Shoulder Problem Evaluation Shoulder assessment Second most common

Shoulder Problem Evaluation

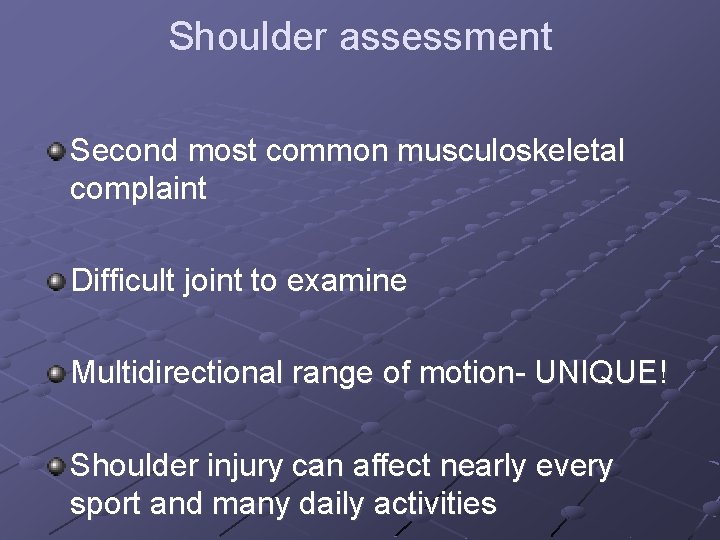

Shoulder assessment Second most common musculoskeletal complaint Difficult joint to examine Multidirectional range of motion- UNIQUE! Shoulder injury can affect nearly every sport and many daily activities

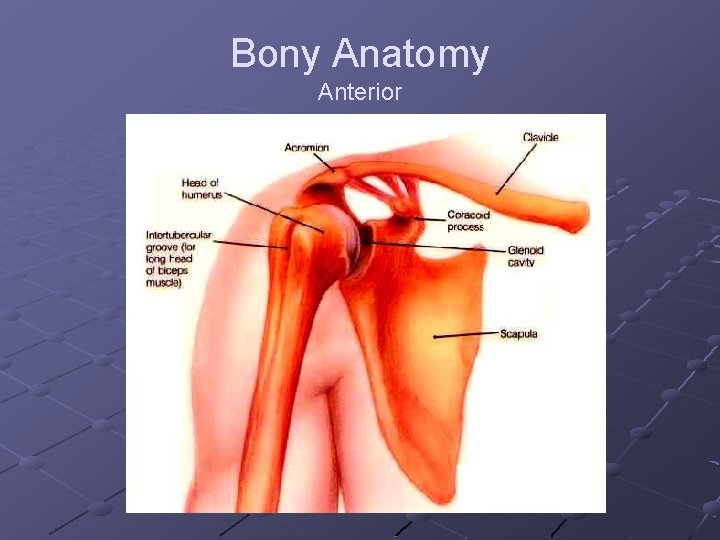

Bony Anatomy Anterior

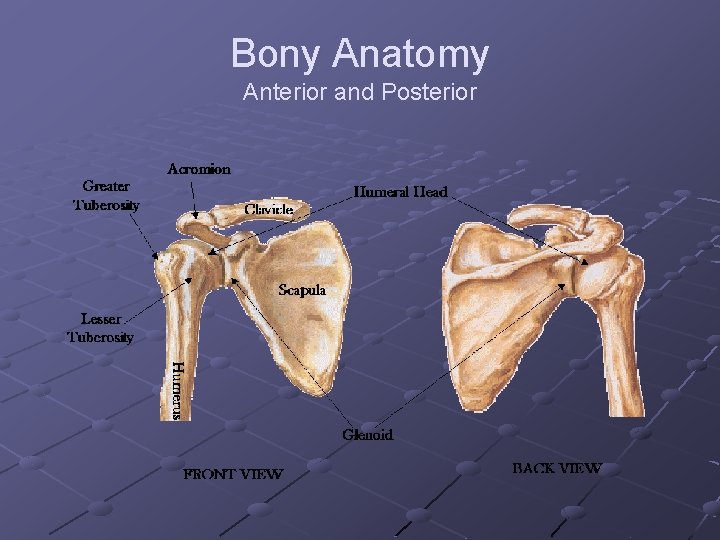

Bony Anatomy Anterior and Posterior

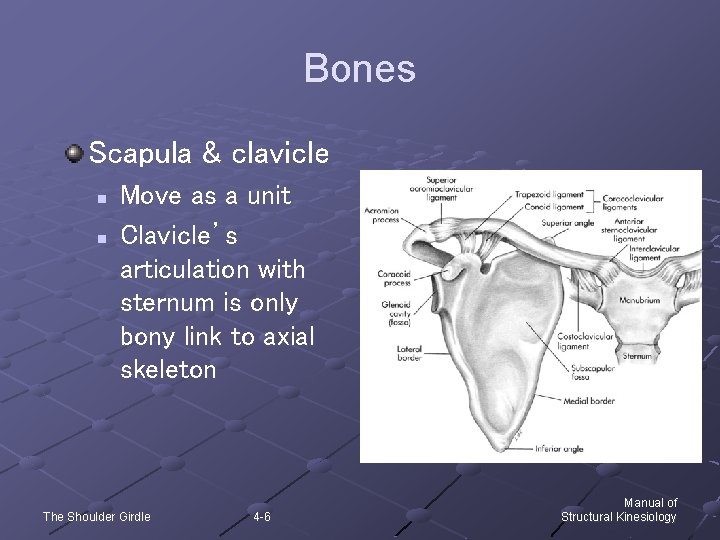

Bones Scapula & clavicle n n Move as a unit Clavicle’s articulation with sternum is only bony link to axial skeleton The Shoulder Girdle 4 -6 Manual of Structural Kinesiology

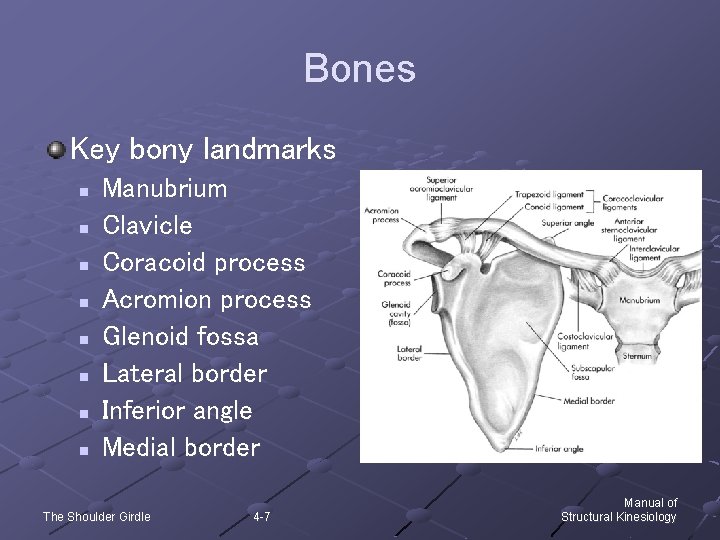

Bones Key bony landmarks n n n n Manubrium Clavicle Coracoid process Acromion process Glenoid fossa Lateral border Inferior angle Medial border The Shoulder Girdle 4 -7 Manual of Structural Kinesiology

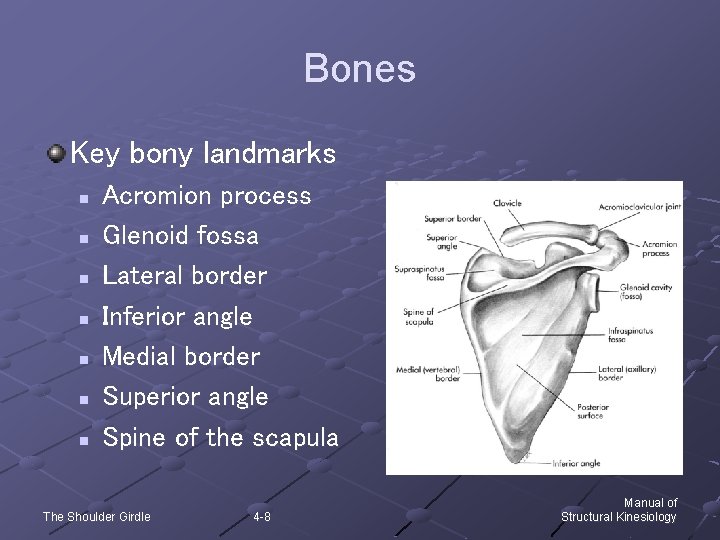

Bones Key bony landmarks n n n n Acromion process Glenoid fossa Lateral border Inferior angle Medial border Superior angle Spine of the scapula The Shoulder Girdle 4 -8 Manual of Structural Kinesiology

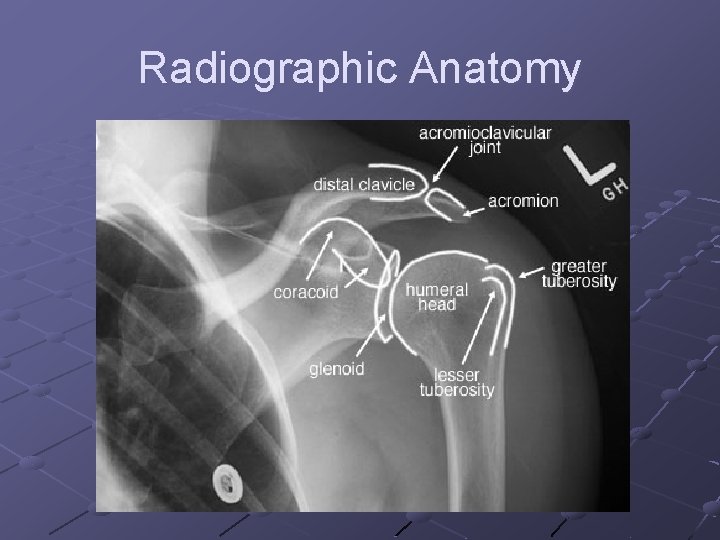

Radiographic Anatomy

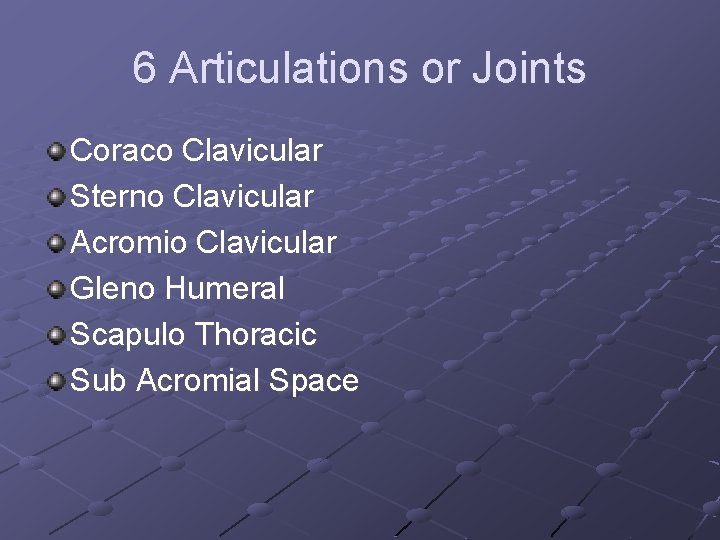

6 Articulations or Joints Coraco Clavicular Sterno Clavicular Acromio Clavicular Gleno Humeral Scapulo Thoracic Sub Acromial Space

Coraco Clavicular

Sterno Clavicular

Acromio Clavicular

A/C Joint Grade 1+ A/C Separation

Gleno Humeral

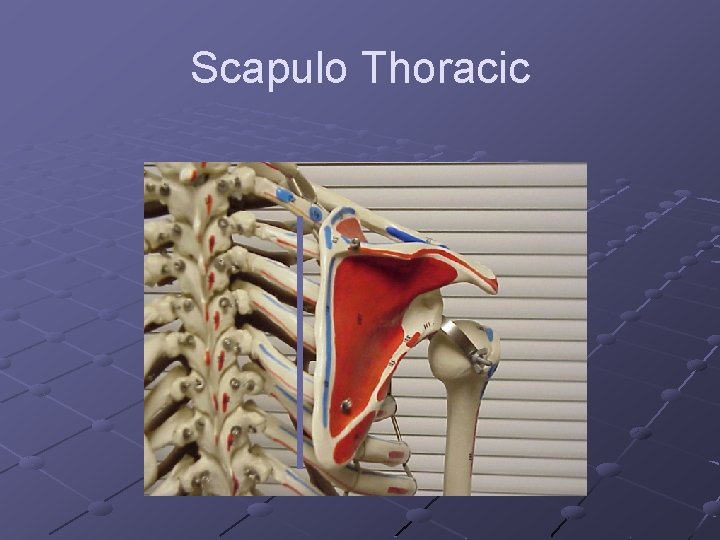

Scapulo Thoracic

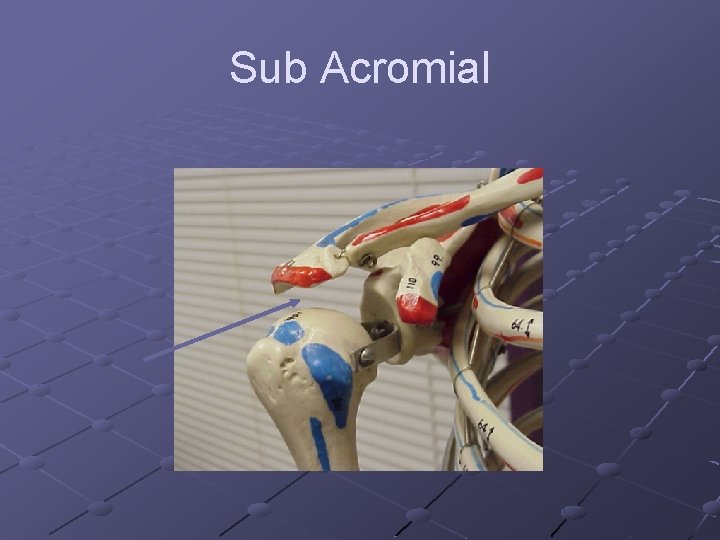

Sub Acromial

Where do things go wrong? ? Fractures

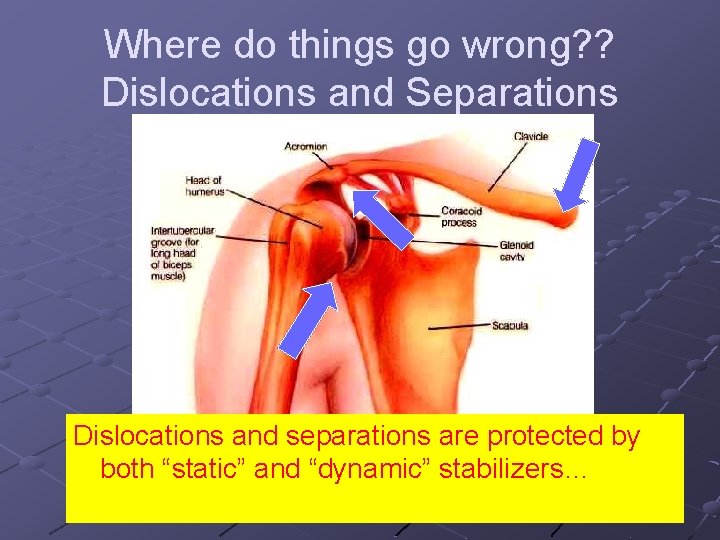

Where do things go wrong? ? Dislocations and Separations Dislocations and separations are protected by both “static” and “dynamic” stabilizers…

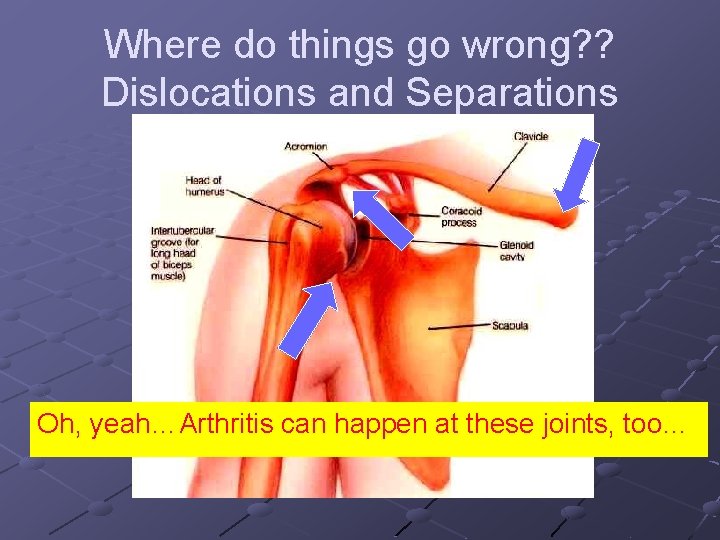

Where do things go wrong? ? Dislocations and Separations Oh, yeah…Arthritis can happen at these joints, too…

Voluntary Posterior Subluxation

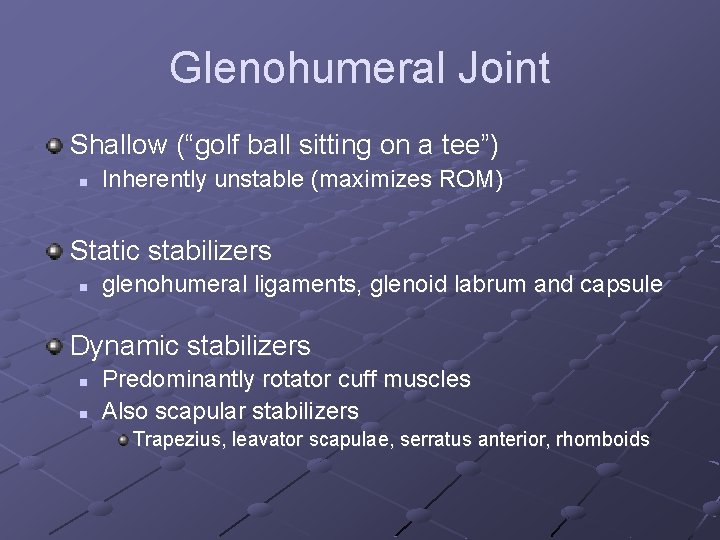

Glenohumeral Joint Shallow (“golf ball sitting on a tee”) n Inherently unstable (maximizes ROM) Static stabilizers n glenohumeral ligaments, glenoid labrum and capsule Dynamic stabilizers n n Predominantly rotator cuff muscles Also scapular stabilizers Trapezius, leavator scapulae, serratus anterior, rhomboids

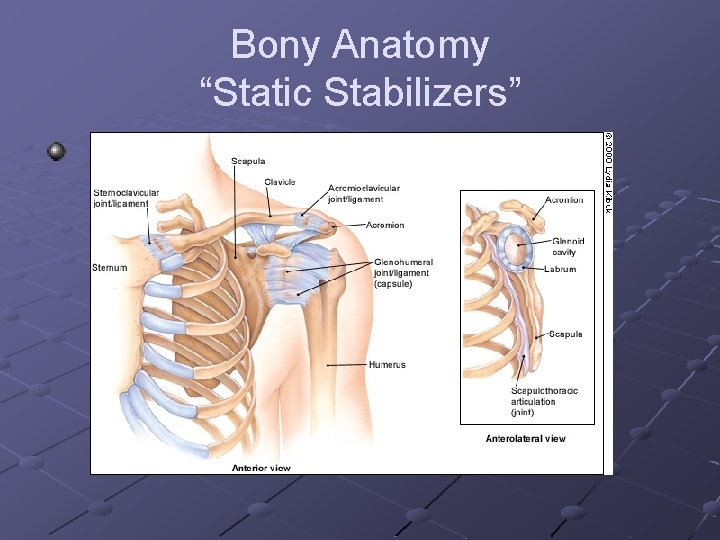

Bony Anatomy “Static Stabilizers”

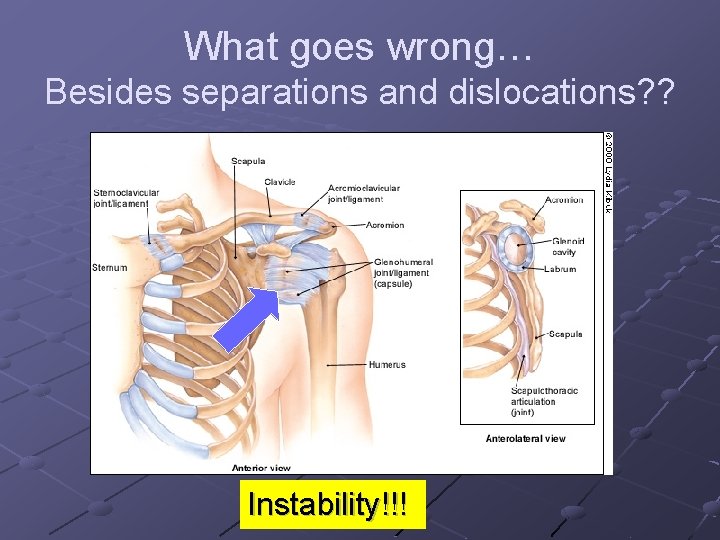

What goes wrong… Besides separations and dislocations? ? Instability!!!

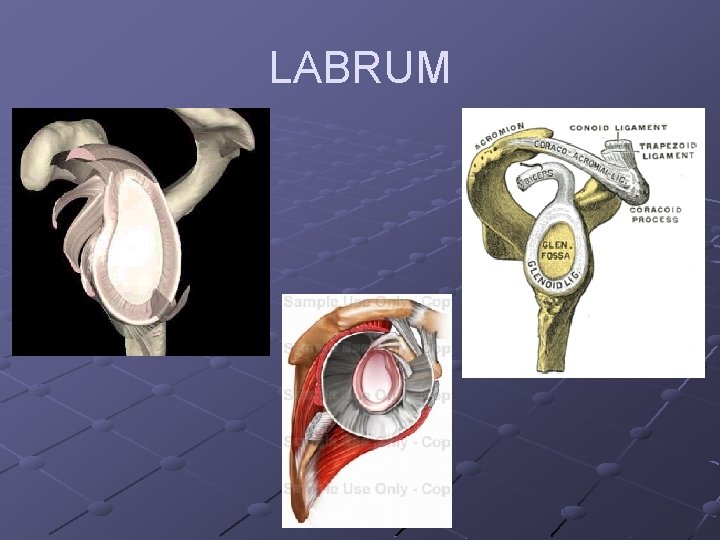

LABRUM

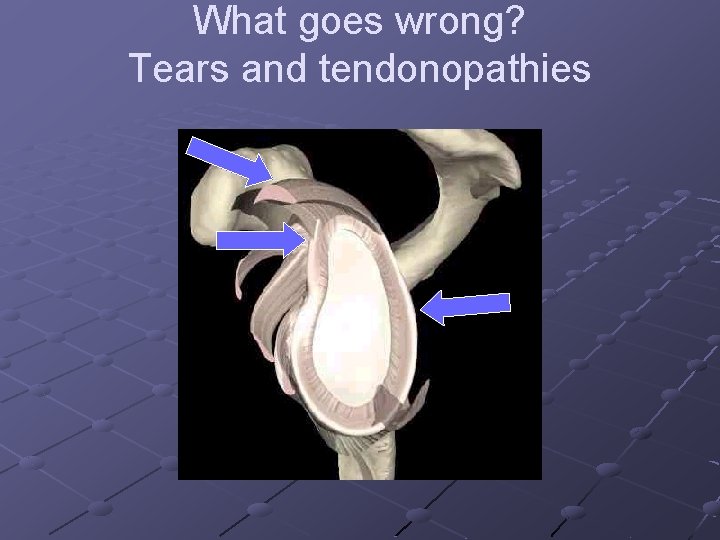

What goes wrong? Tears and tendonopathies

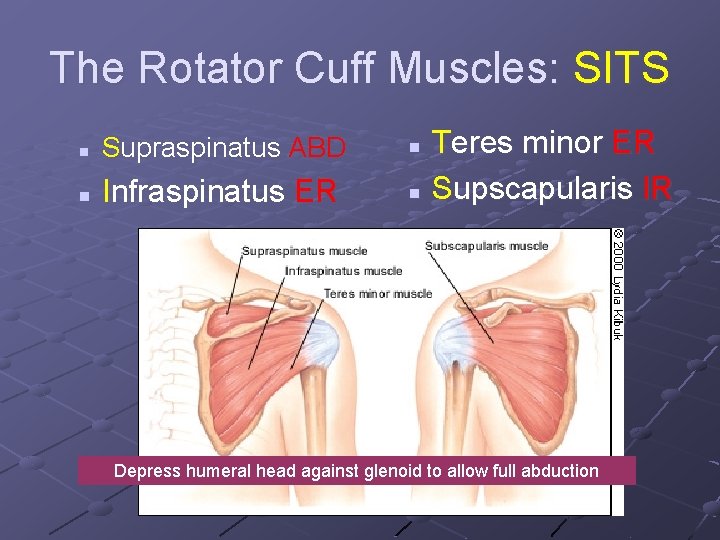

The Rotator Cuff Muscles: SITS n Supraspinatus ABD n Infraspinatus ER Teres minor ER n Supscapularis IR n Depress humeral head against glenoid to allow full abduction

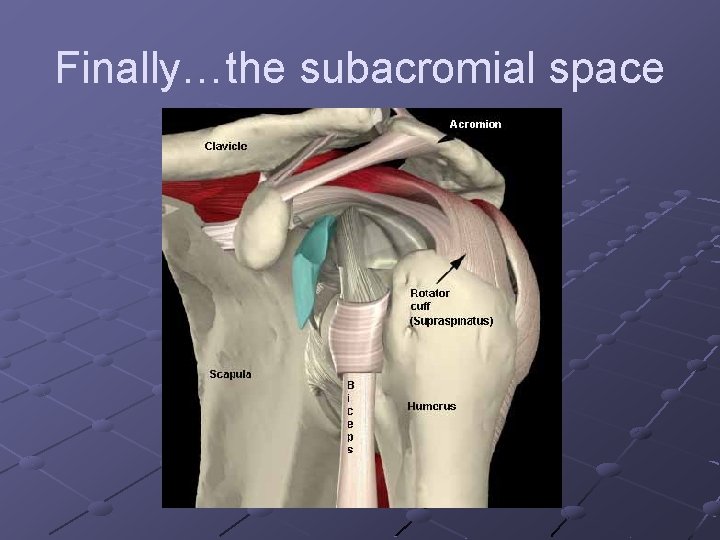

Finally…the subacromial space

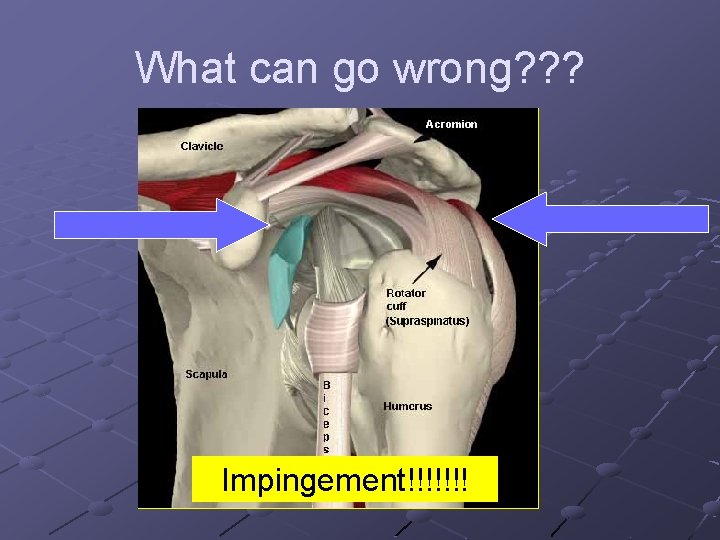

What can go wrong? ? ? Impingement!!!!!!!

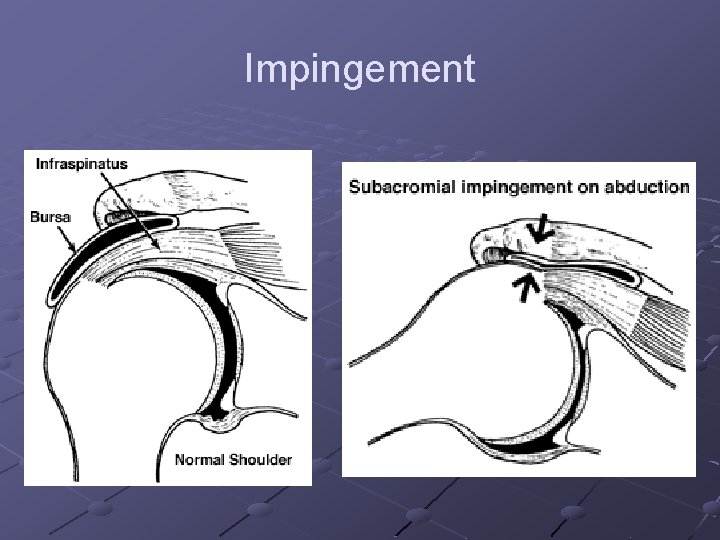

Impingement

Picture 6: Rotator Cuff MRI

Shoulder Complex Muscles Scapular Muscles

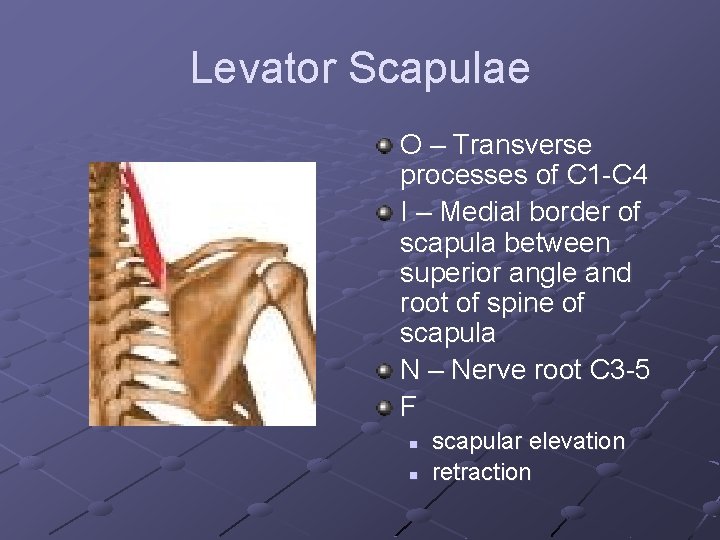

Levator Scapulae O – Transverse processes of C 1 -C 4 I – Medial border of scapula between superior angle and root of spine of scapula N – Nerve root C 3 -5 F n n scapular elevation retraction

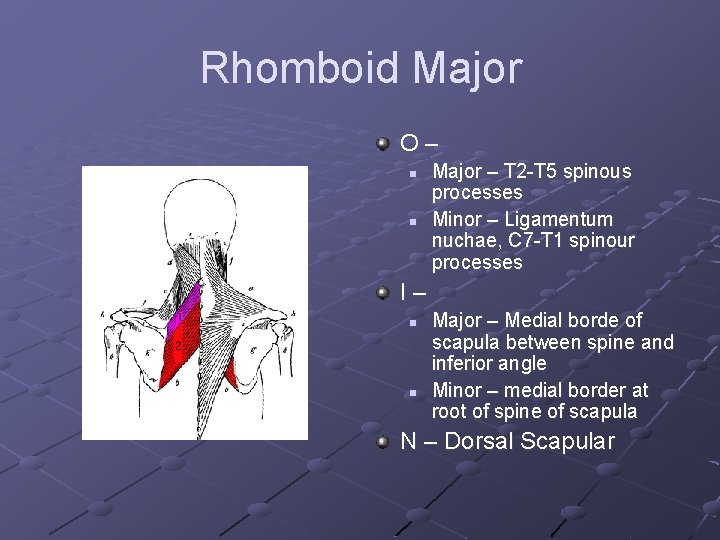

Rhomboid Major O– n n Major – T 2 -T 5 spinous processes Minor – Ligamentum nuchae, C 7 -T 1 spinour processes I– n n Major – Medial borde of scapula between spine and inferior angle Minor – medial border at root of spine of scapula N – Dorsal Scapular

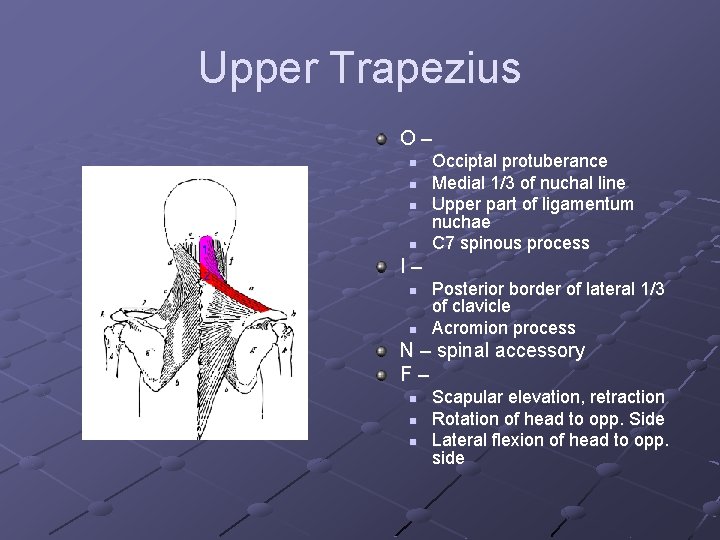

Upper Trapezius O– n n Occiptal protuberance Medial 1/3 of nuchal line Upper part of ligamentum nuchae C 7 spinous process I– n n Posterior border of lateral 1/3 of clavicle Acromion process N – spinal accessory F– n n n Scapular elevation, retraction Rotation of head to opp. Side Lateral flexion of head to opp. side

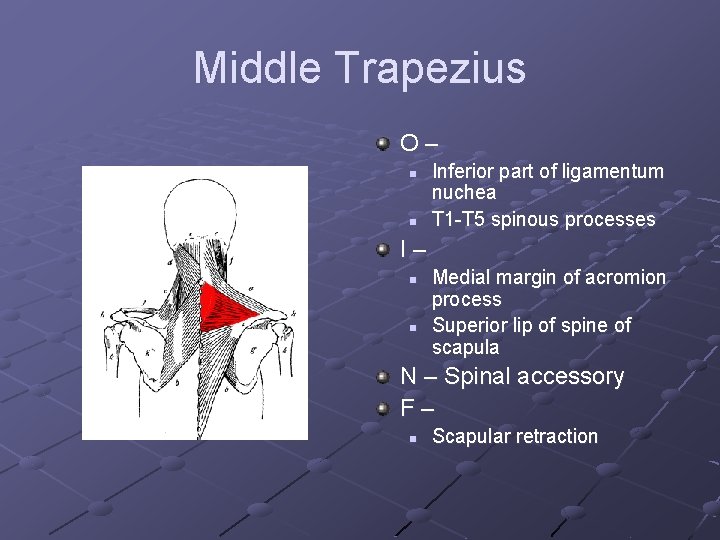

Middle Trapezius O– n n Inferior part of ligamentum nuchea T 1 -T 5 spinous processes I– n n Medial margin of acromion process Superior lip of spine of scapula N – Spinal accessory F– n Scapular retraction

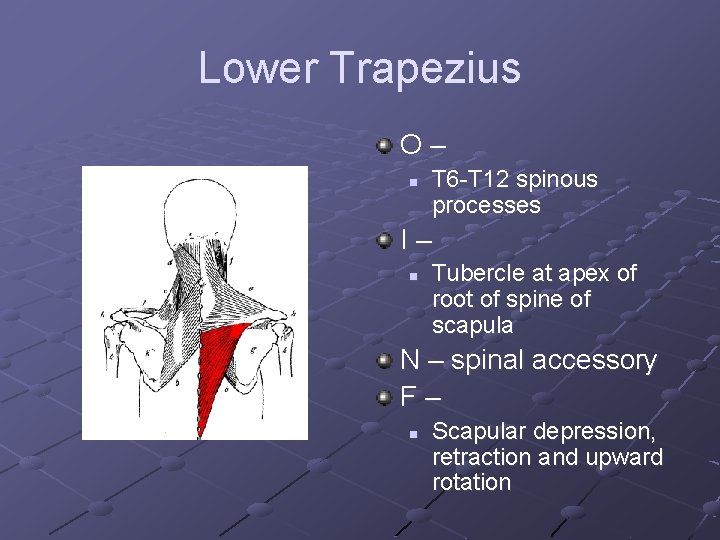

Lower Trapezius O– n T 6 -T 12 spinous processes I– n Tubercle at apex of root of spine of scapula N – spinal accessory F– n Scapular depression, retraction and upward rotation

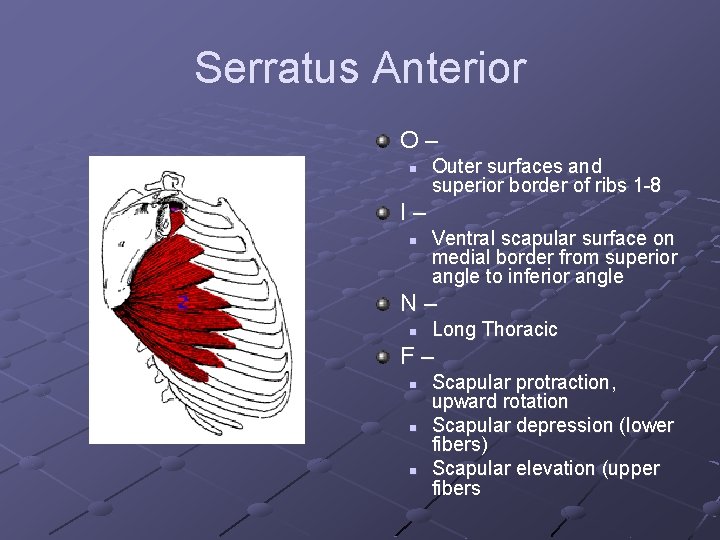

Serratus Anterior O– n Outer surfaces and superior border of ribs 1 -8 I– n Ventral scapular surface on medial border from superior angle to inferior angle N– n Long Thoracic F– n n n Scapular protraction, upward rotation Scapular depression (lower fibers) Scapular elevation (upper fibers

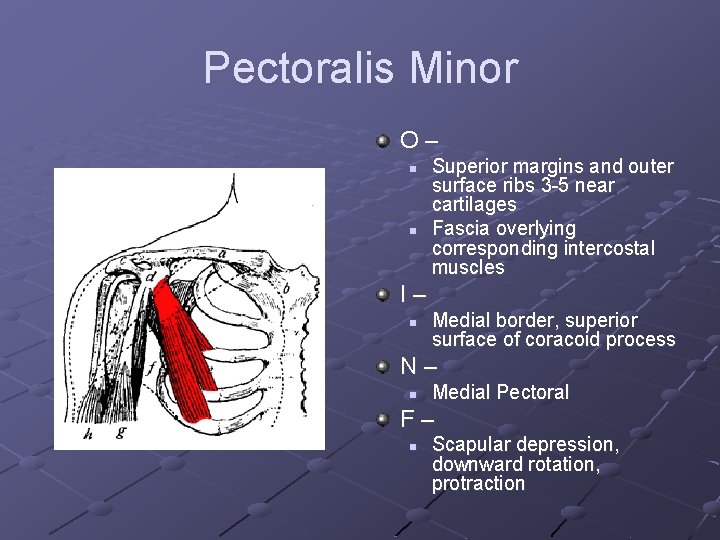

Pectoralis Minor O– n n Superior margins and outer surface ribs 3 -5 near cartilages Fascia overlying corresponding intercostal muscles I– n Medial border, superior surface of coracoid process N– n Medial Pectoral F– n Scapular depression, downward rotation, protraction

Glenohumeral Muscles

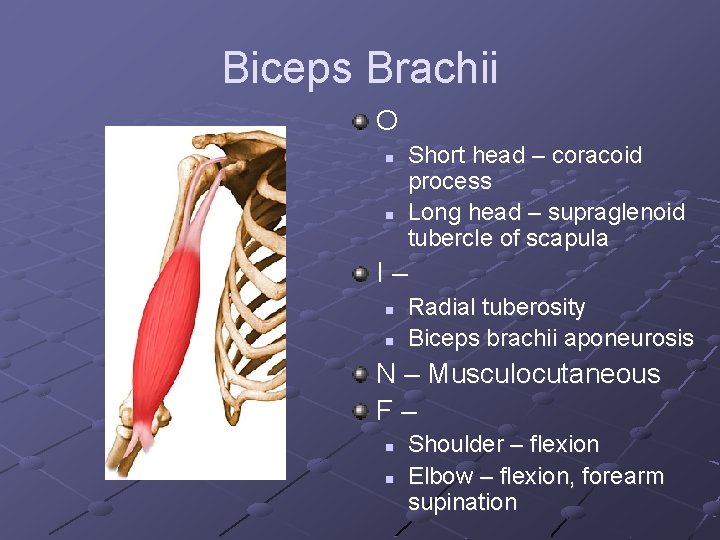

Biceps Brachii O n n Short head – coracoid process Long head – supraglenoid tubercle of scapula I– n n Radial tuberosity Biceps brachii aponeurosis N – Musculocutaneous F– n n Shoulder – flexion Elbow – flexion, forearm supination

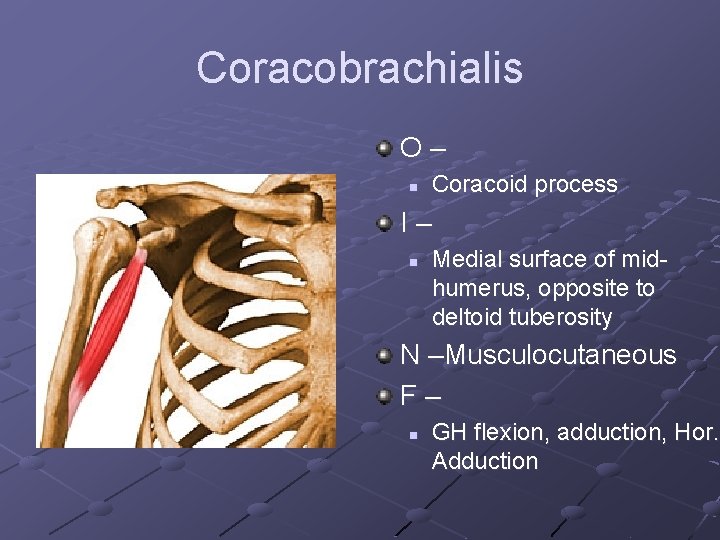

Coracobrachialis O– n Coracoid process I– n Medial surface of midhumerus, opposite to deltoid tuberosity N –Musculocutaneous F– n GH flexion, adduction, Hor. Adduction

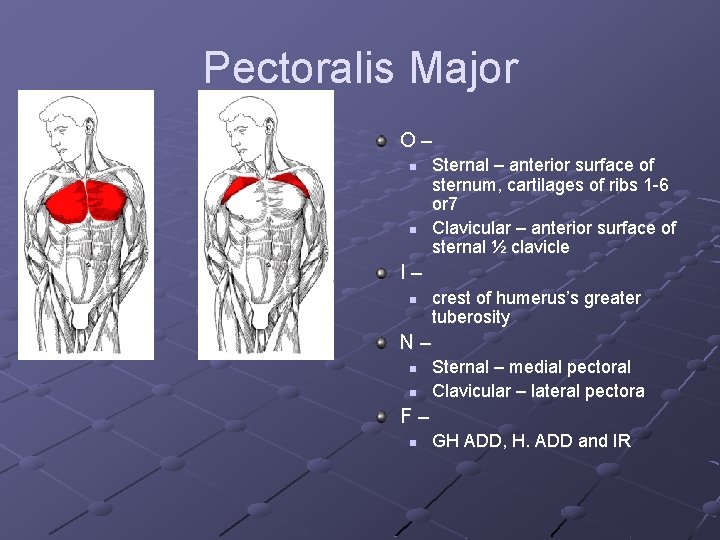

Pectoralis Major O– n n Sternal – anterior surface of sternum, cartilages of ribs 1 -6 or 7 Clavicular – anterior surface of sternal ½ clavicle I– n crest of humerus’s greater tuberosity N– n n Sternal – medial pectoral Clavicular – lateral pectora F– n GH ADD, H. ADD and IR

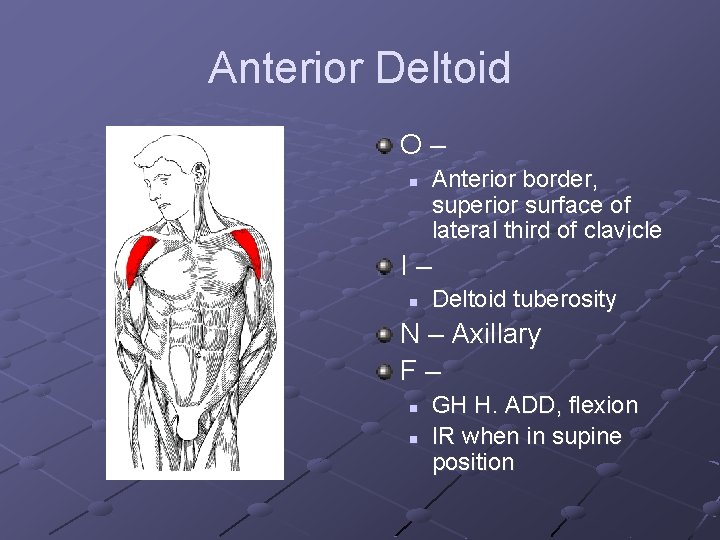

Anterior Deltoid O– n Anterior border, superior surface of lateral third of clavicle I– n Deltoid tuberosity N – Axillary F– n n GH H. ADD, flexion IR when in supine position

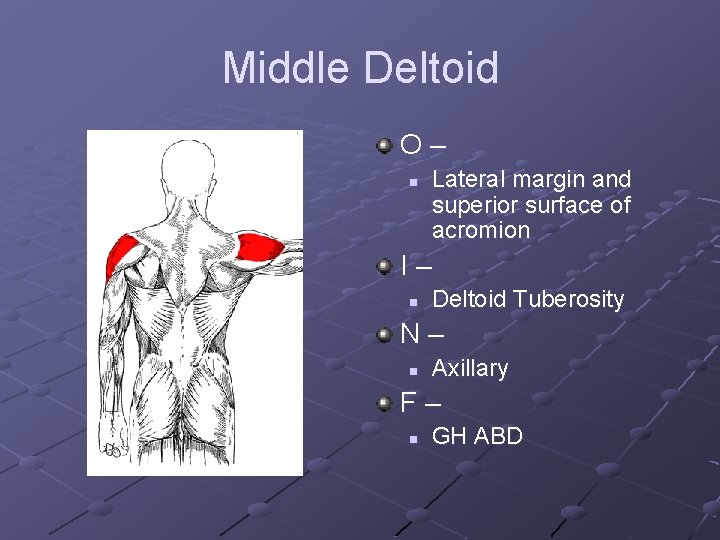

Middle Deltoid O– n Lateral margin and superior surface of acromion I– n Deltoid Tuberosity N– n Axillary F– n GH ABD

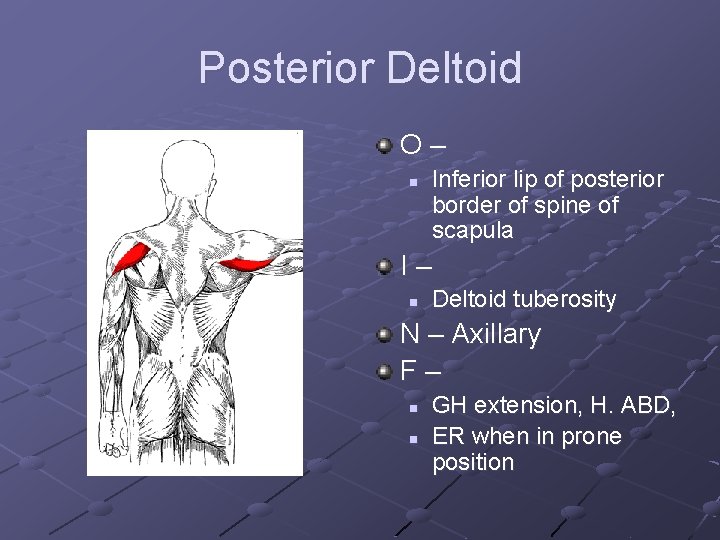

Posterior Deltoid O– n Inferior lip of posterior border of spine of scapula I– n Deltoid tuberosity N – Axillary F– n n GH extension, H. ABD, ER when in prone position

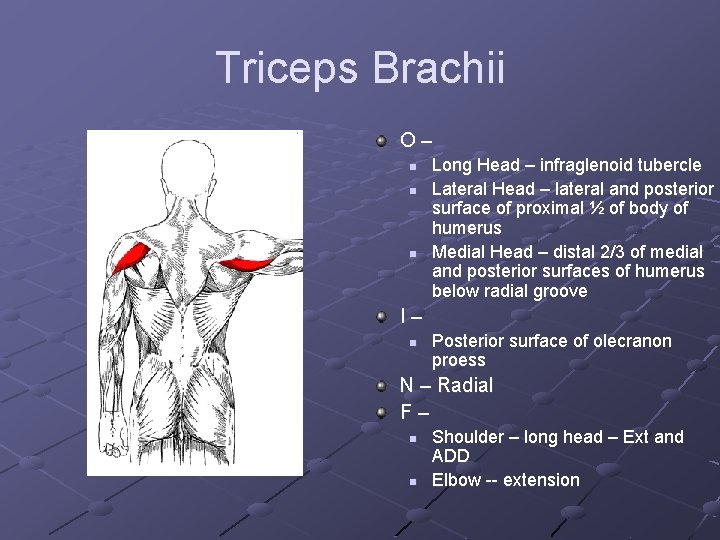

Triceps Brachii O– n n n Long Head – infraglenoid tubercle Lateral Head – lateral and posterior surface of proximal ½ of body of humerus Medial Head – distal 2/3 of medial and posterior surfaces of humerus below radial groove I– n Posterior surface of olecranon proess N – Radial F– n n Shoulder – long head – Ext and ADD Elbow -- extension

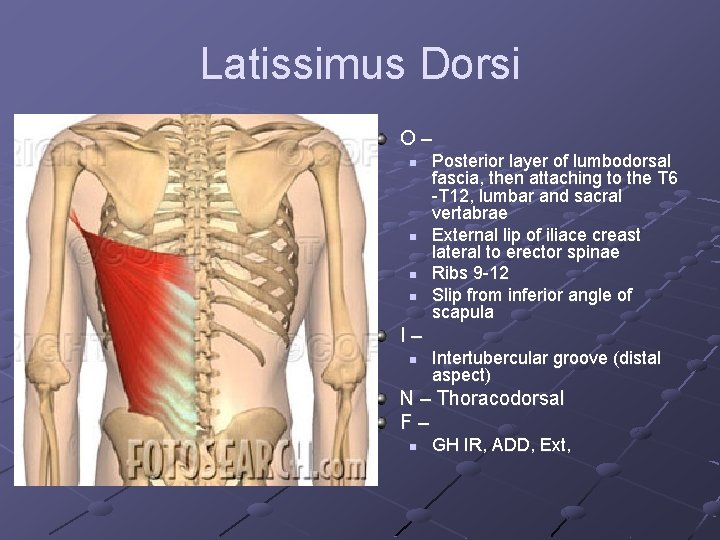

Latissimus Dorsi O– n n Posterior layer of lumbodorsal fascia, then attaching to the T 6 -T 12, lumbar and sacral vertabrae External lip of iliace creast lateral to erector spinae Ribs 9 -12 Slip from inferior angle of scapula I– n Intertubercular groove (distal aspect) N – Thoracodorsal F– n GH IR, ADD, Ext,

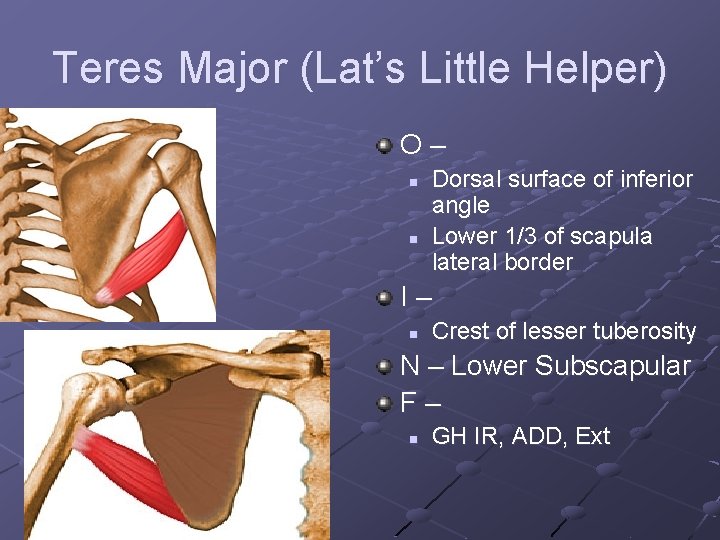

Teres Major (Lat’s Little Helper) O– n n Dorsal surface of inferior angle Lower 1/3 of scapula lateral border I– n Crest of lesser tuberosity N – Lower Subscapular F– n GH IR, ADD, Ext

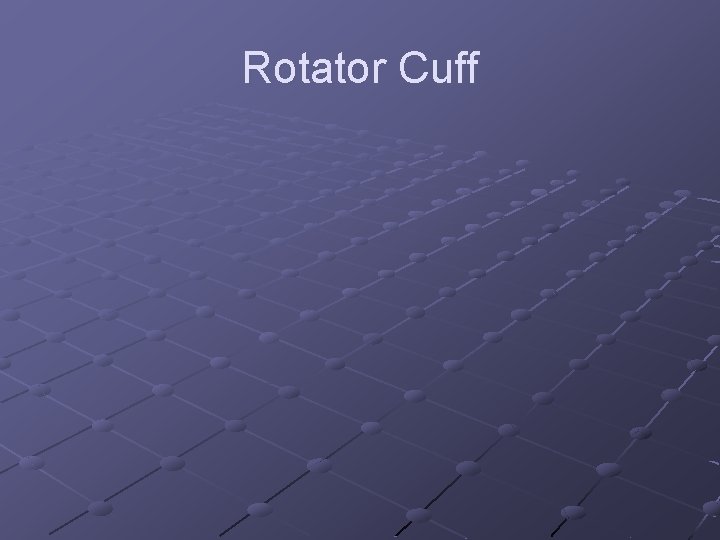

Rotator Cuff

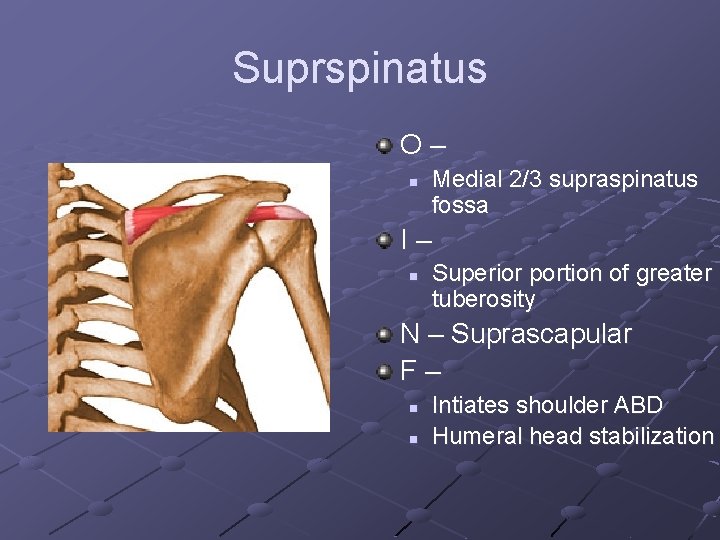

Suprspinatus O– n Medial 2/3 supraspinatus fossa I– n Superior portion of greater tuberosity N – Suprascapular F– n n Intiates shoulder ABD Humeral head stabilization

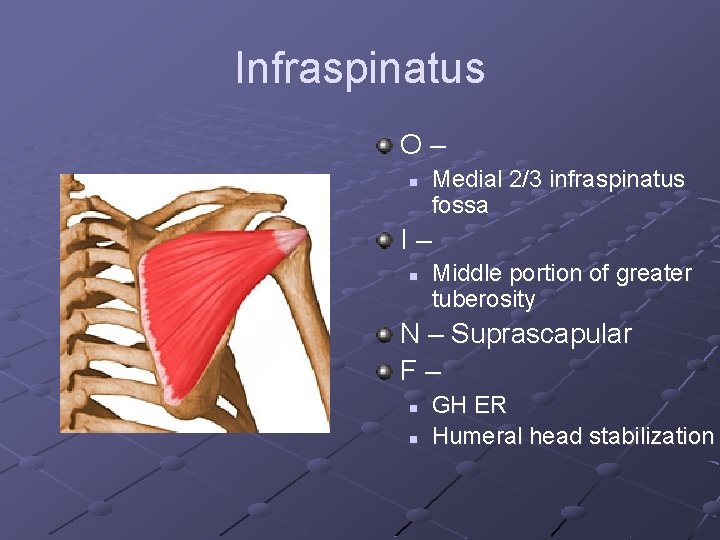

Infraspinatus O– n Medial 2/3 infraspinatus fossa I– n Middle portion of greater tuberosity N – Suprascapular F– n n GH ER Humeral head stabilization

Teres Minor O– n Upper 2/3 dorsal surface of lateral border of scapula I -n Lowest portion of greater tuberosity N– n Axillary F– n n GH ER Humeral head stabilization

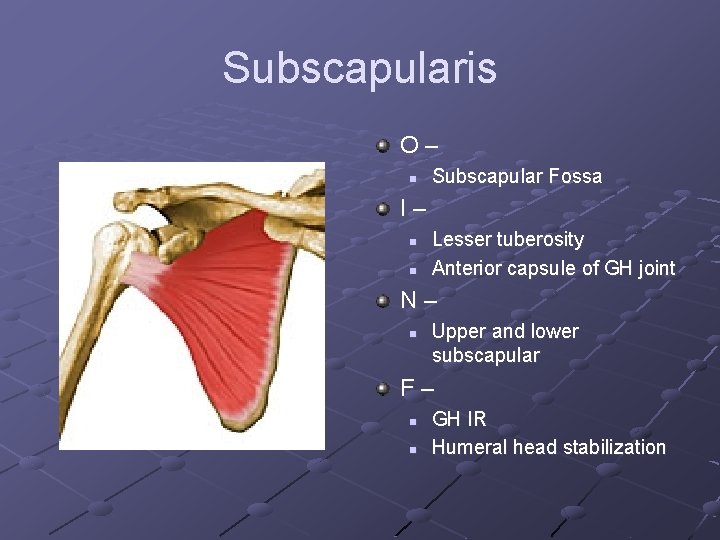

Subscapularis O– n Subscapular Fossa I– n n Lesser tuberosity Anterior capsule of GH joint N– n Upper and lower subscapular F– n n GH IR Humeral head stabilization

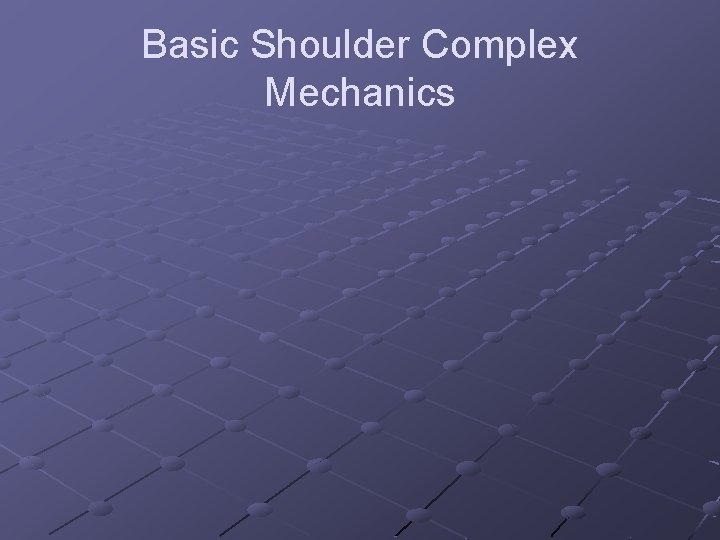

Basic Shoulder Complex Mechanics

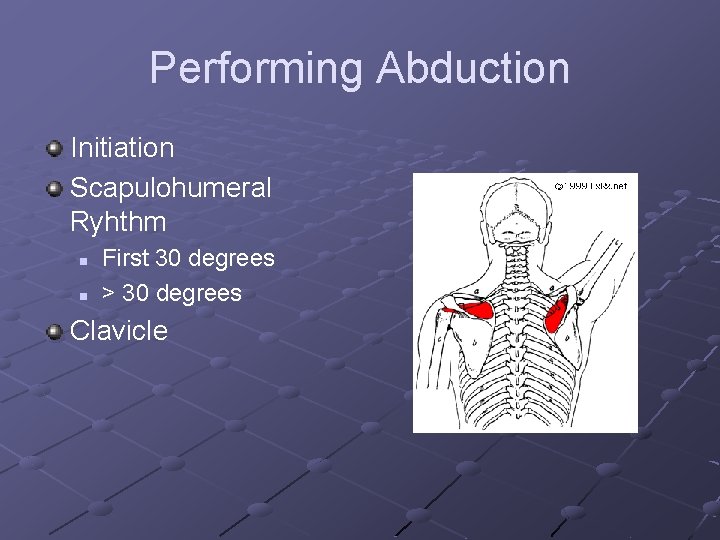

Performing Abduction Initiation Scapulohumeral Ryhthm n n First 30 degrees > 30 degrees Clavicle

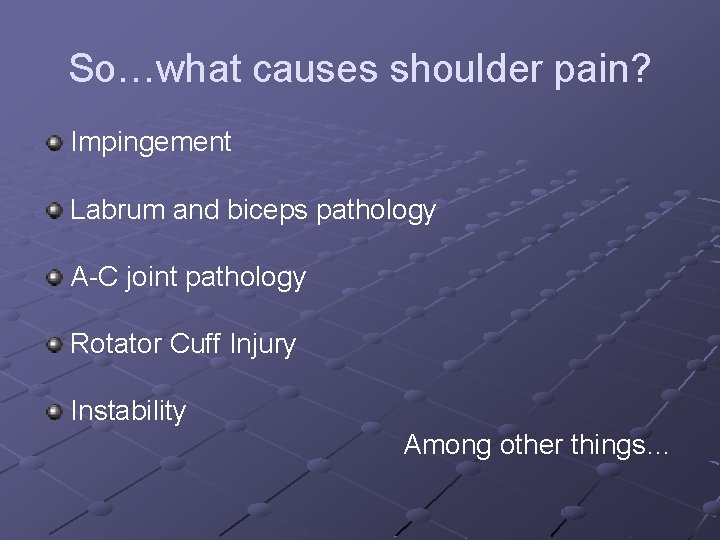

So…what causes shoulder pain? Impingement Labrum and biceps pathology A-C joint pathology Rotator Cuff Injury Instability Among other things…

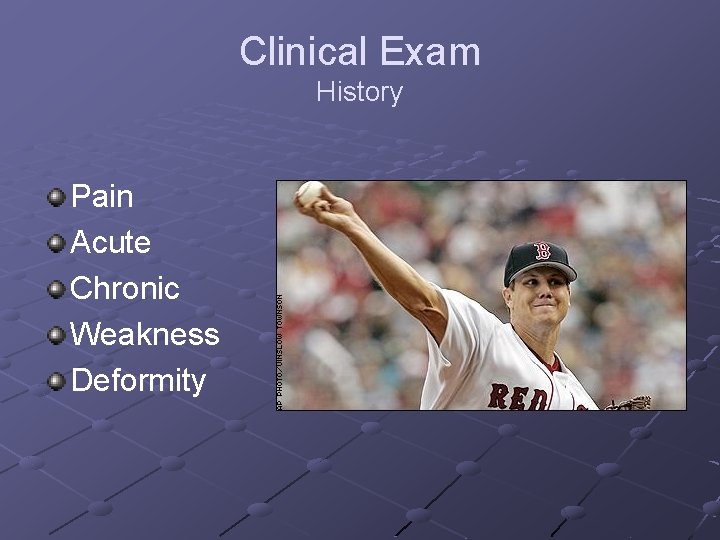

Clinical Exam History Pain Acute Chronic Weakness Deformity

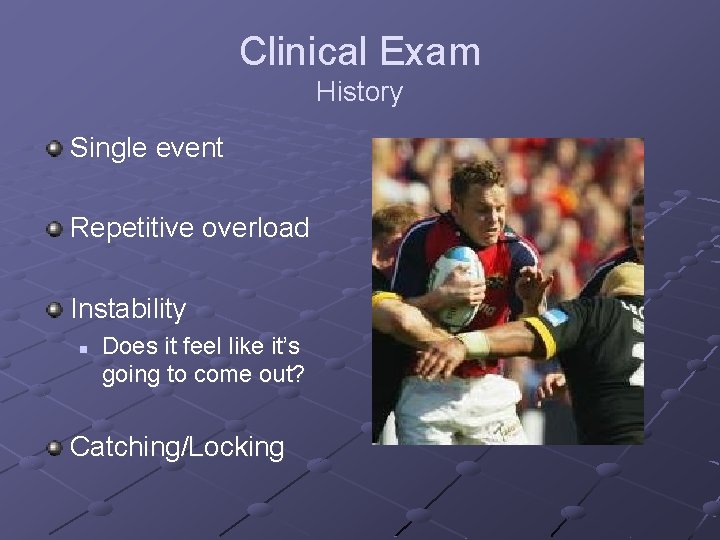

Clinical Exam History Single event Repetitive overload Instability n Does it feel like it’s going to come out? Catching/Locking

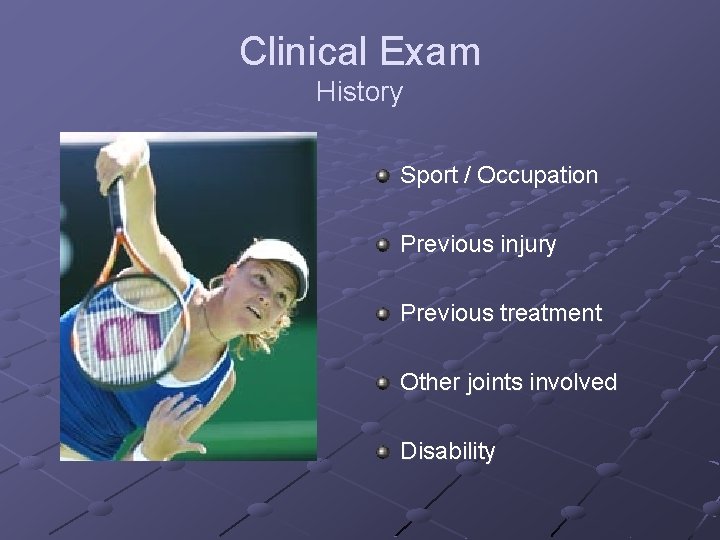

Clinical Exam History Sport / Occupation Previous injury Previous treatment Other joints involved Disability

Physical Exam: Big 6 Inspection Palpation Range of Motion Strength Neurovascular Special Tests

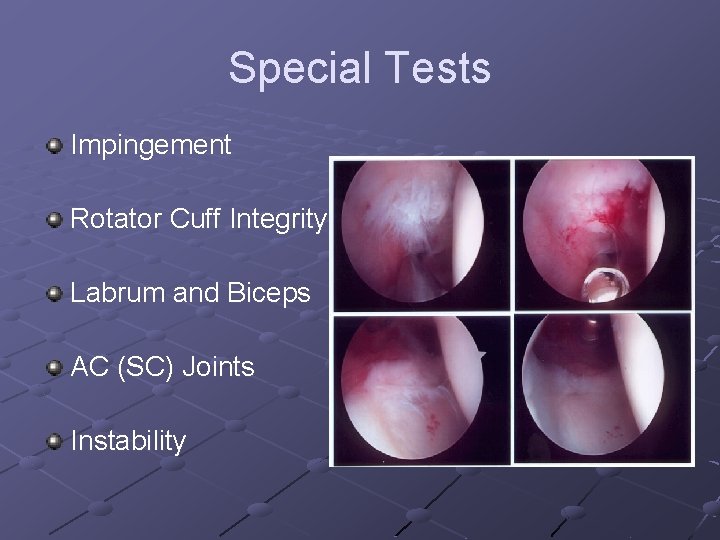

Special Tests Impingement Rotator Cuff Integrity Labrum and Biceps AC (SC) Joints Instability

Throwing Mechanics Arm Cocking Phase n n Begins Ends

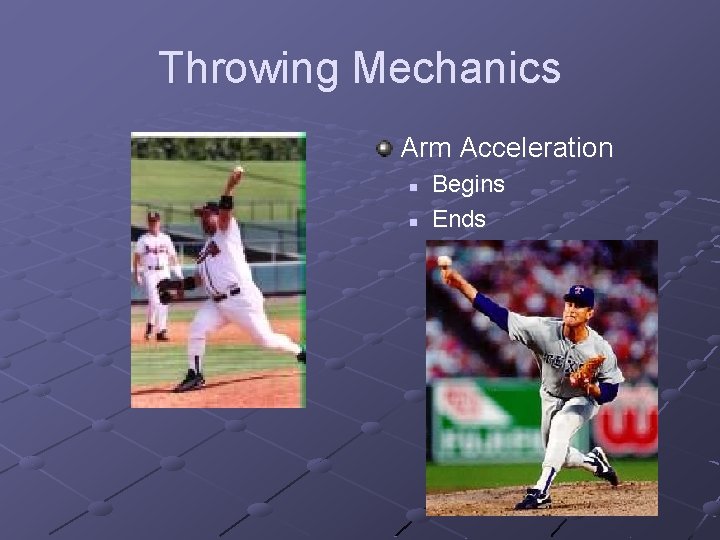

Throwing Mechanics Arm Acceleration n n Begins Ends

Throwing Mechanics Follow-through n n Begins Ends

Pathomechanics of Throwing Shoulder Rotator Cuff Labrum Impingement SLAP Lesion

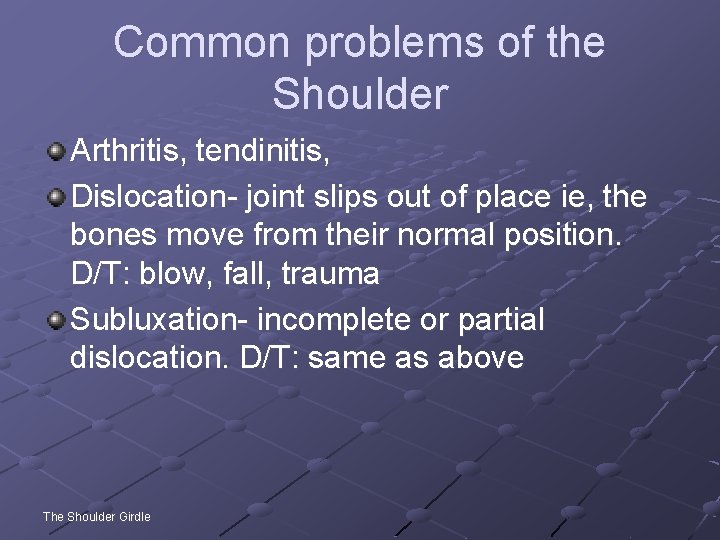

Common problems of the Shoulder Arthritis, tendinitis, Dislocation- joint slips out of place ie, the bones move from their normal position. D/T: blow, fall, trauma Subluxation- incomplete or partial dislocation. D/T: same as above The Shoulder Girdle

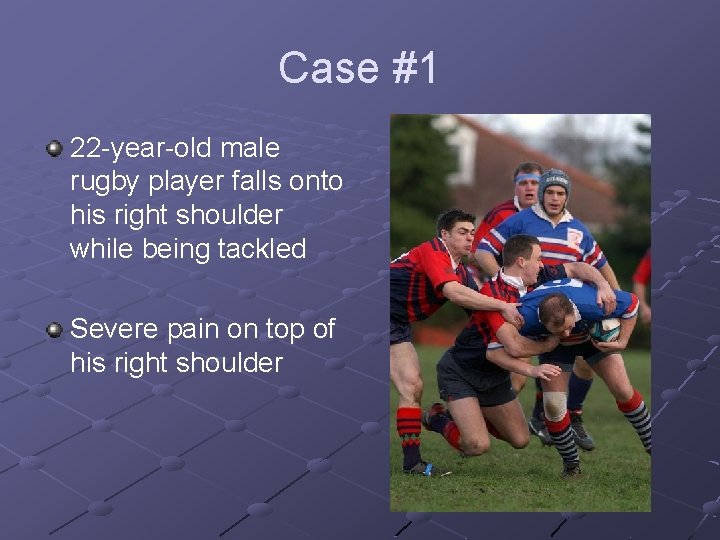

Case #1 22 -year-old male rugby player falls onto his right shoulder while being tackled Severe pain on top of his right shoulder

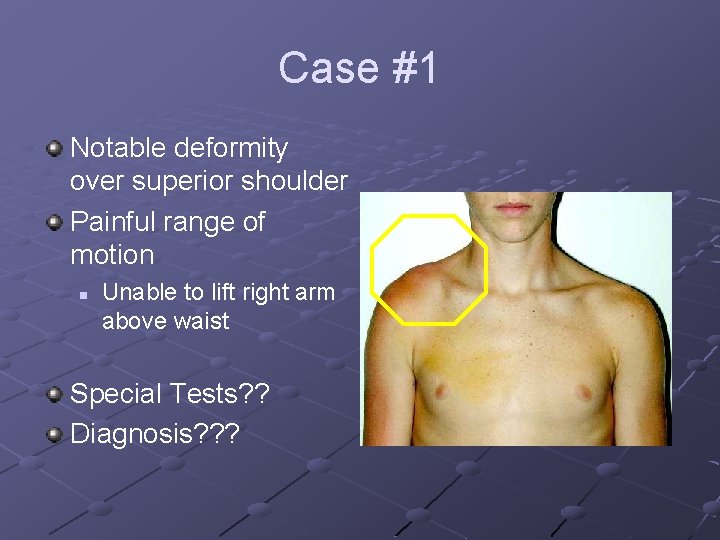

Case #1 Notable deformity over superior shoulder Painful range of motion n Unable to lift right arm above waist Special Tests? ? Diagnosis? ? ?

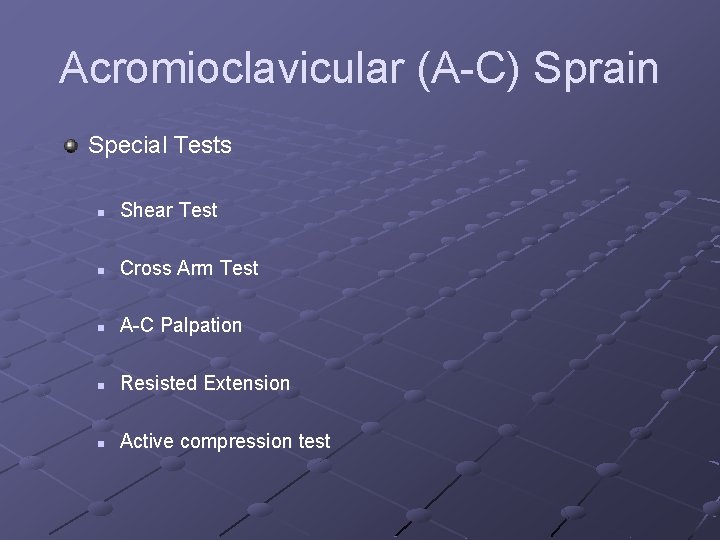

Acromioclavicular (A-C) Sprain Special Tests n Shear Test n Cross Arm Test n A-C Palpation n Resisted Extension n Active compression test

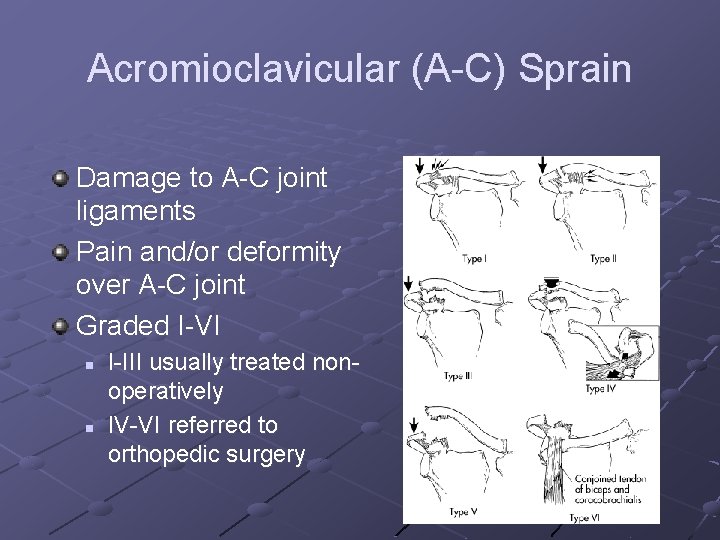

Acromioclavicular (A-C) Sprain Damage to A-C joint ligaments Pain and/or deformity over A-C joint Graded I-VI n n I-III usually treated nonoperatively IV-VI referred to orthopedic surgery

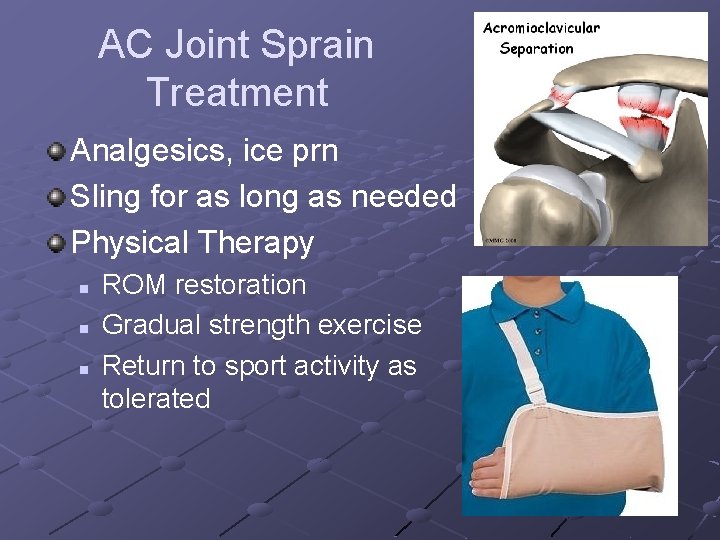

AC Joint Sprain Treatment Analgesics, ice prn Sling for as long as needed Physical Therapy n n n ROM restoration Gradual strength exercise Return to sport activity as tolerated

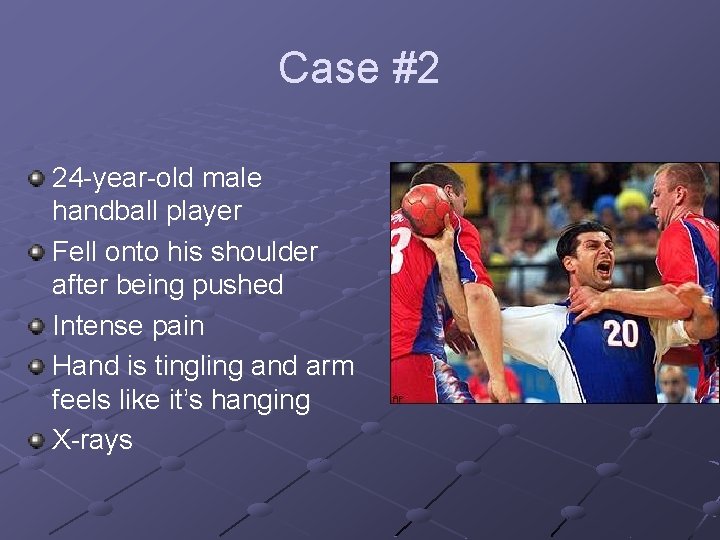

Case #2 24 -year-old male handball player Fell onto his shoulder after being pushed Intense pain Hand is tingling and arm feels like it’s hanging X-rays

X RAYS DIAGNOSIS? ? ?

Shoulder Dislocation/Anterior Instability Humeral head dislocates from glenoid fossa Almost always anterior (95%) Usually traumatic with injury to capsulelabrum complex

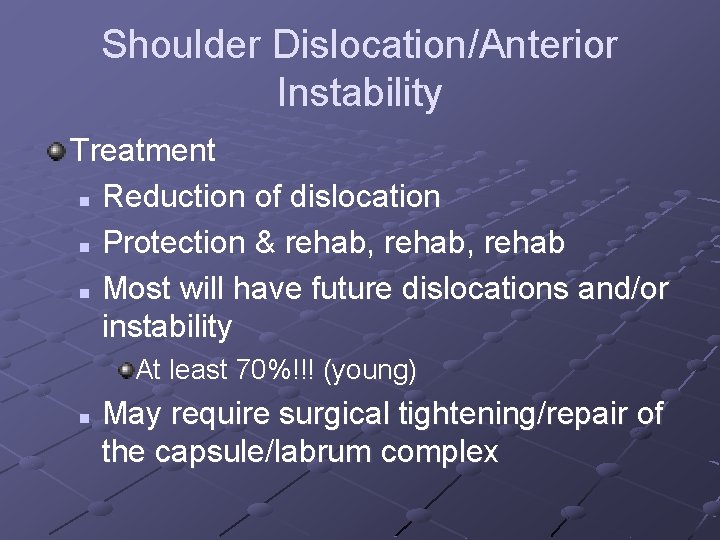

Shoulder Dislocation/Anterior Instability Treatment n Reduction of dislocation n Protection & rehab, rehab n Most will have future dislocations and/or instability At least 70%!!! (young) n May require surgical tightening/repair of the capsule/labrum complex

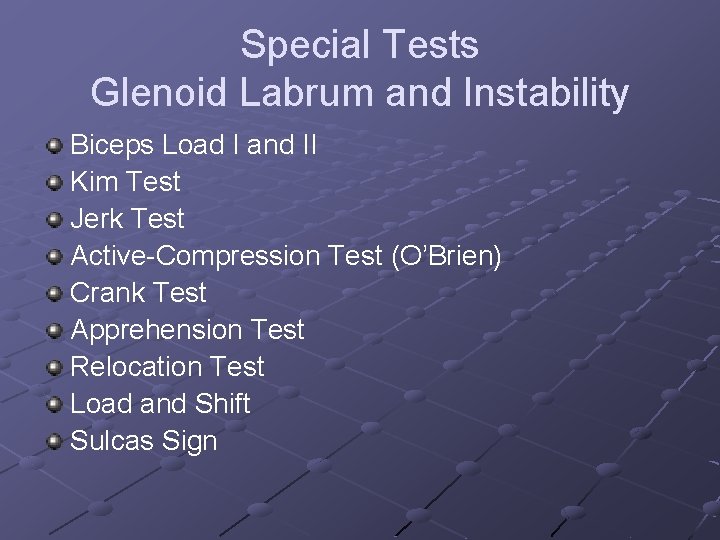

Special Tests Glenoid Labrum and Instability Biceps Load I and II Kim Test Jerk Test Active-Compression Test (O’Brien) Crank Test Apprehension Test Relocation Test Load and Shift Sulcas Sign

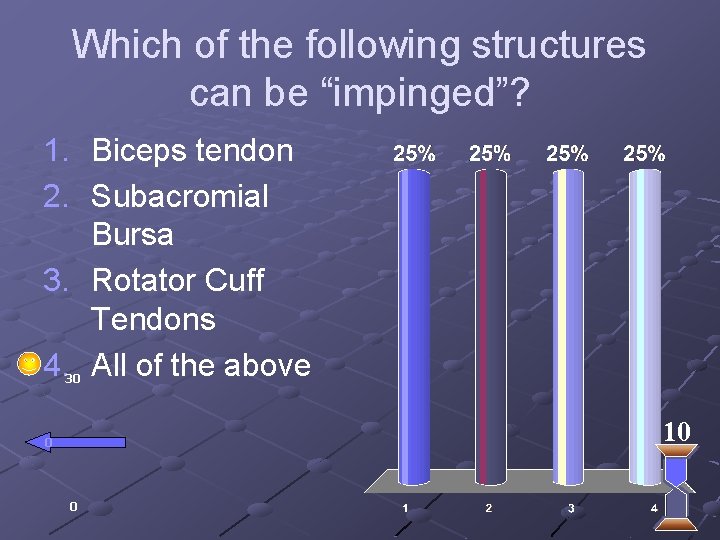

Which of the following structures can be “impinged”? 1. Biceps tendon 2. Subacromial Bursa 3. Rotator Cuff Tendons 4. All of the above 30 10 0 0

Case #3 35 -year-old male tennis player Shoulder pain exacerbated by practicing serves Develops dull, aching pain in right shoulder

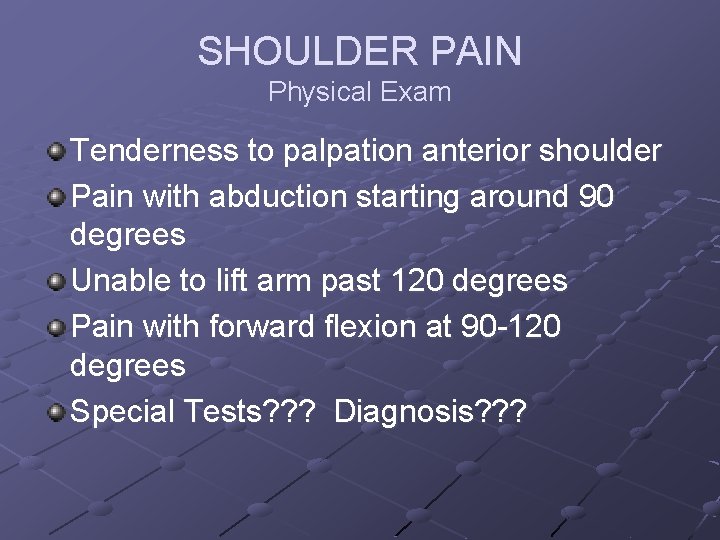

SHOULDER PAIN Physical Exam Tenderness to palpation anterior shoulder Pain with abduction starting around 90 degrees Unable to lift arm past 120 degrees Pain with forward flexion at 90 -120 degrees Special Tests? ? ? Diagnosis? ? ?

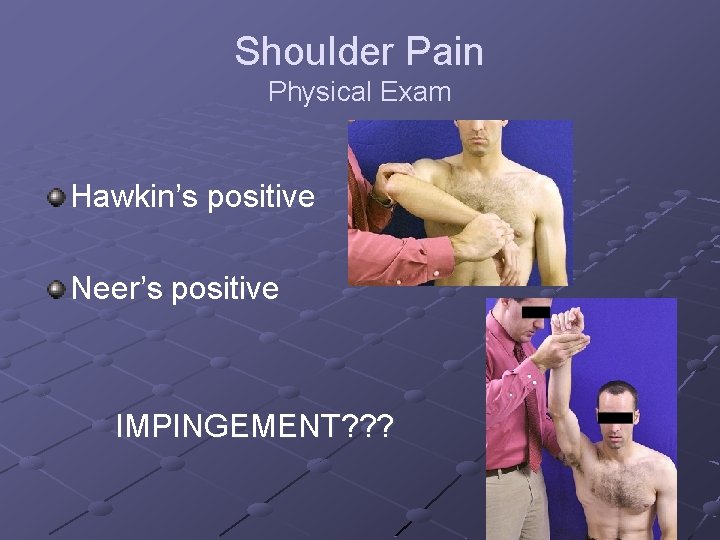

Shoulder Pain Physical Exam Hawkin’s positive Neer’s positive IMPINGEMENT? ? ?

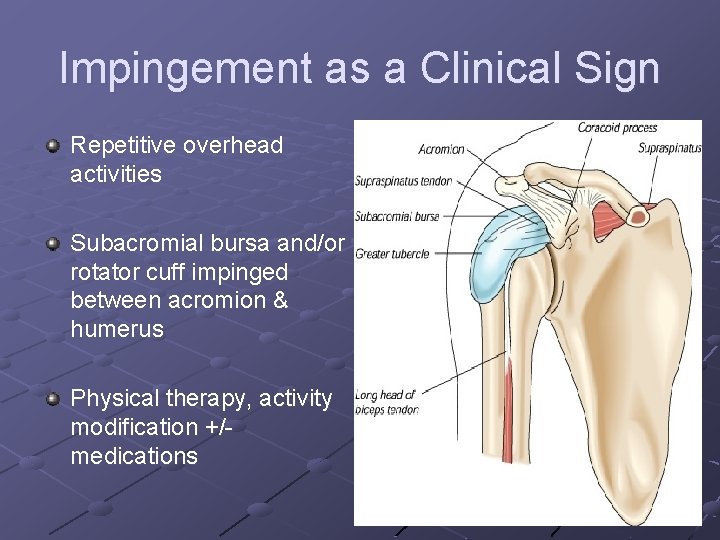

Impingement as a Clinical Sign Repetitive overhead activities Subacromial bursa and/or rotator cuff impinged between acromion & humerus Physical therapy, activity modification +/medications

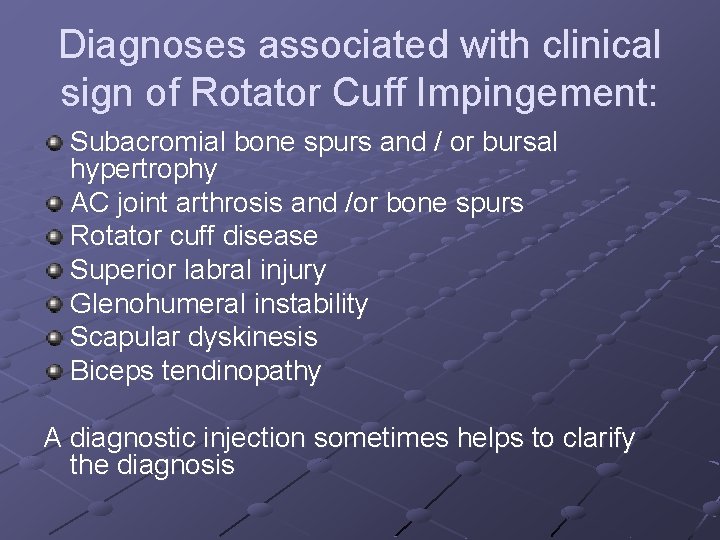

Diagnoses associated with clinical sign of Rotator Cuff Impingement: Subacromial bone spurs and / or bursal hypertrophy AC joint arthrosis and /or bone spurs Rotator cuff disease Superior labral injury Glenohumeral instability Scapular dyskinesis Biceps tendinopathy A diagnostic injection sometimes helps to clarify the diagnosis

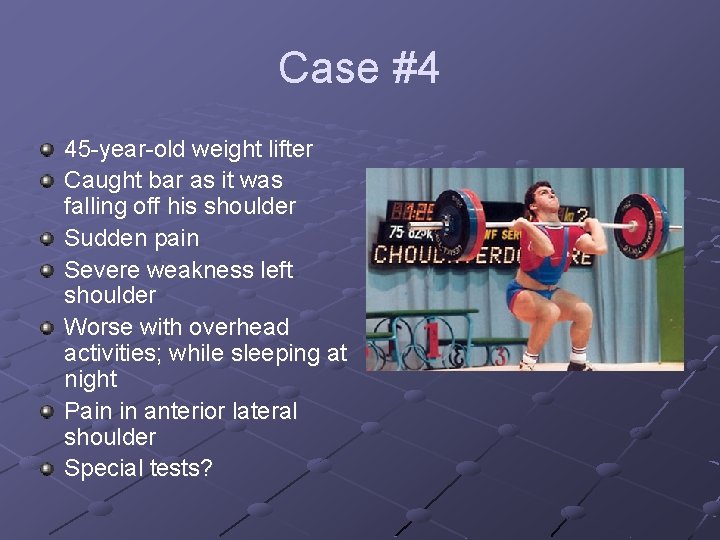

Case #4 45 -year-old weight lifter Caught bar as it was falling off his shoulder Sudden pain Severe weakness left shoulder Worse with overhead activities; while sleeping at night Pain in anterior lateral shoulder Special tests?

Case #4 Drop Arm Test Positive External Rotation Lag Sign positive Weakness with Empty Can Sign Normal bear hug and belly press tests… Diagnosis? ? ?

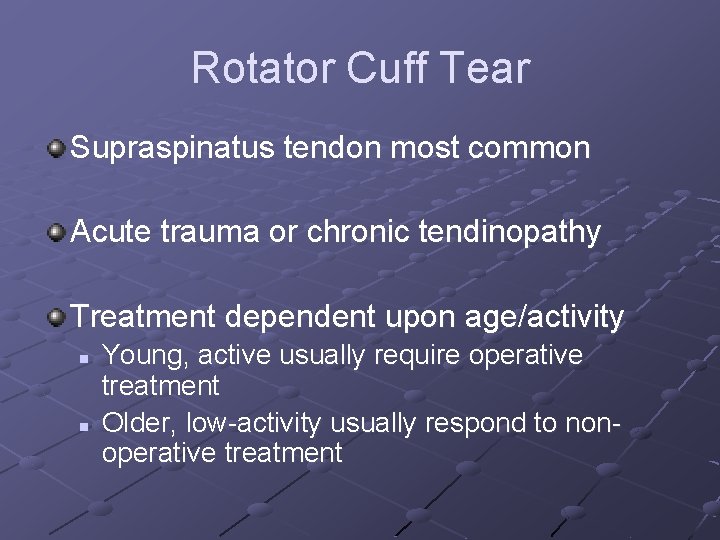

Rotator Cuff Tear Supraspinatus tendon most common Acute trauma or chronic tendinopathy Treatment dependent upon age/activity n n Young, active usually require operative treatment Older, low-activity usually respond to nonoperative treatment

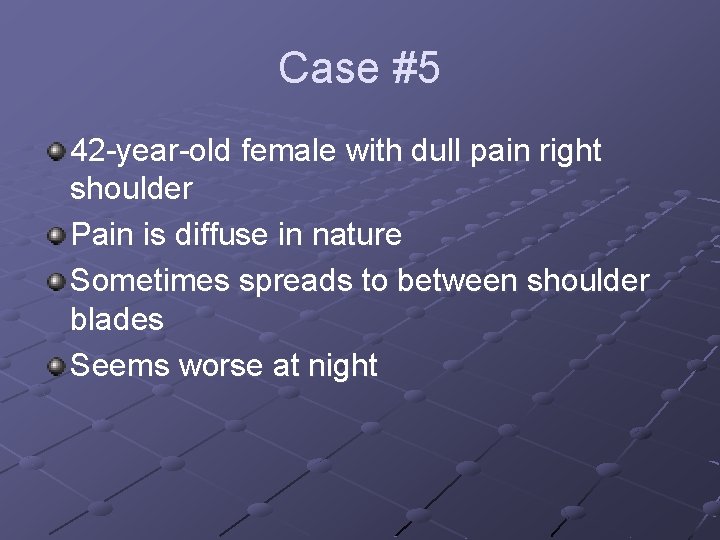

Case #5 42 -year-old female with dull pain right shoulder Pain is diffuse in nature Sometimes spreads to between shoulder blades Seems worse at night

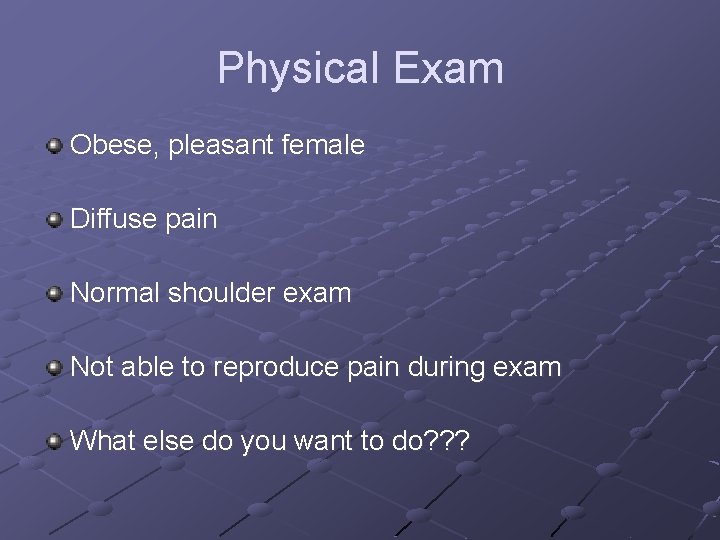

Physical Exam Obese, pleasant female Diffuse pain Normal shoulder exam Not able to reproduce pain during exam What else do you want to do? ? ?

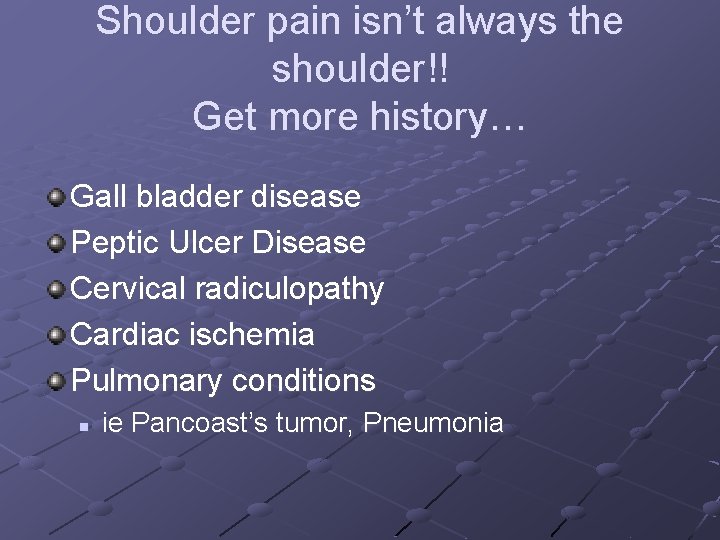

Shoulder pain isn’t always the shoulder!! Get more history… Gall bladder disease Peptic Ulcer Disease Cervical radiculopathy Cardiac ischemia Pulmonary conditions n ie Pancoast’s tumor, Pneumonia

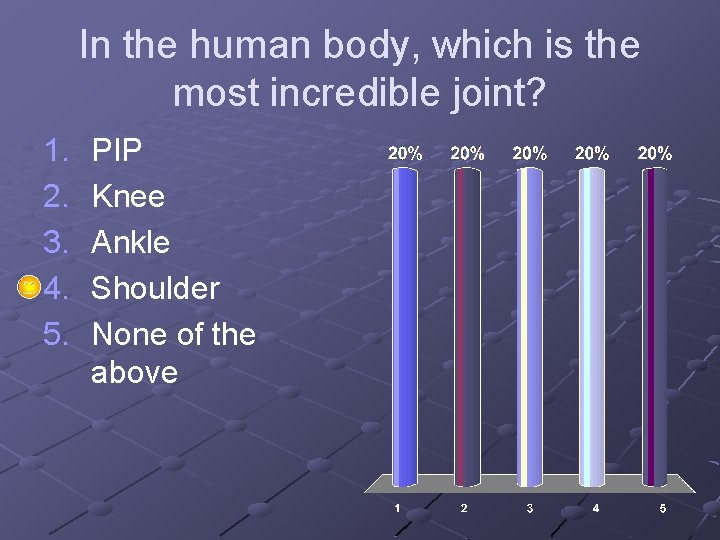

In the human body, which is the most incredible joint? 1. 2. 3. 4. 5. PIP Knee Ankle Shoulder None of the above

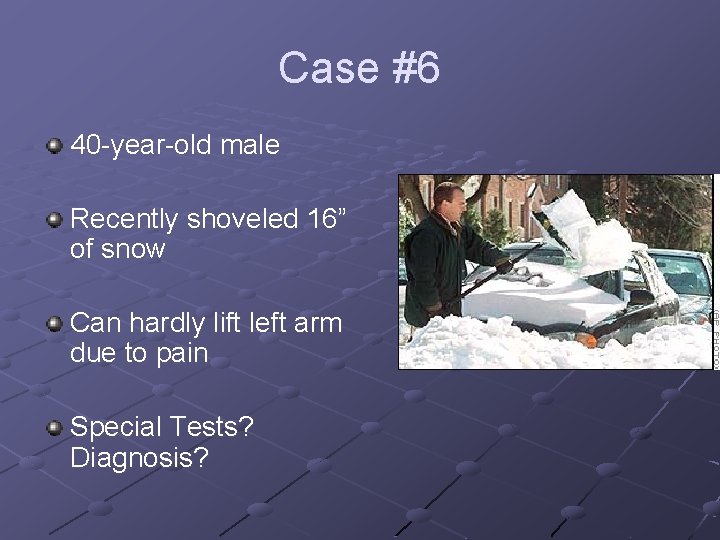

Case #6 40 -year-old male Recently shoveled 16” of snow Can hardly lift left arm due to pain Special Tests? Diagnosis?

Biceps Tendonopathy Speed Test Yergason Test Direct palpation

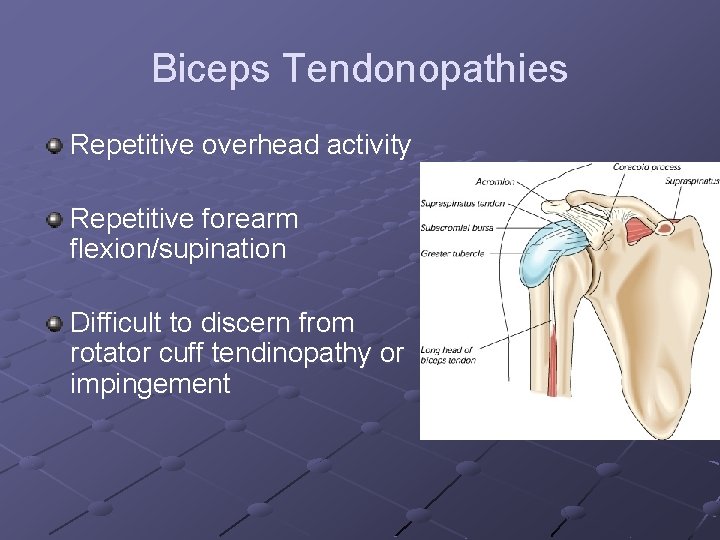

Biceps Tendonopathies Repetitive overhead activity Repetitive forearm flexion/supination Difficult to discern from rotator cuff tendinopathy or impingement

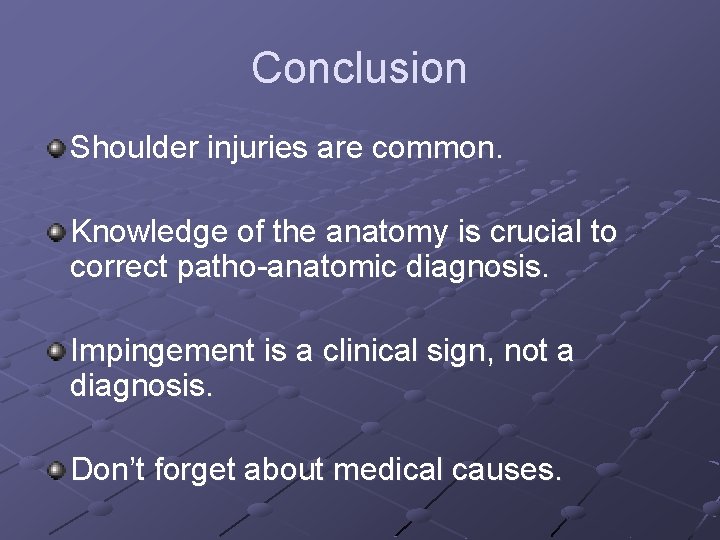

Conclusion Shoulder injuries are common. Knowledge of the anatomy is crucial to correct patho-anatomic diagnosis. Impingement is a clinical sign, not a diagnosis. Don’t forget about medical causes.

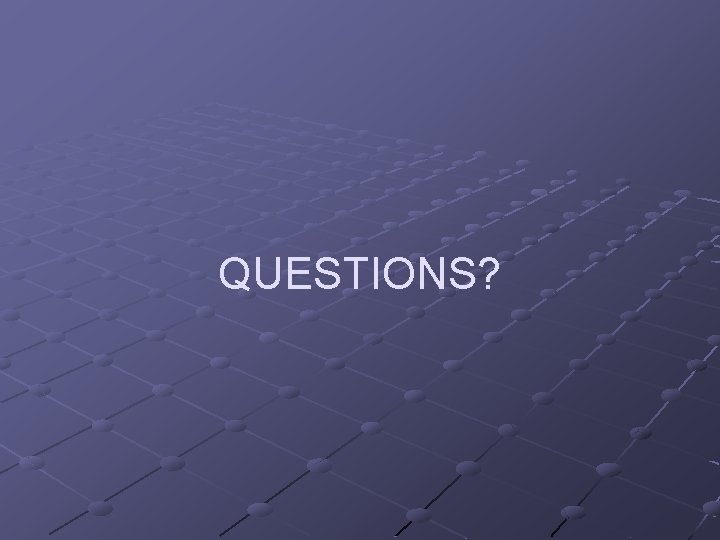

QUESTIONS?

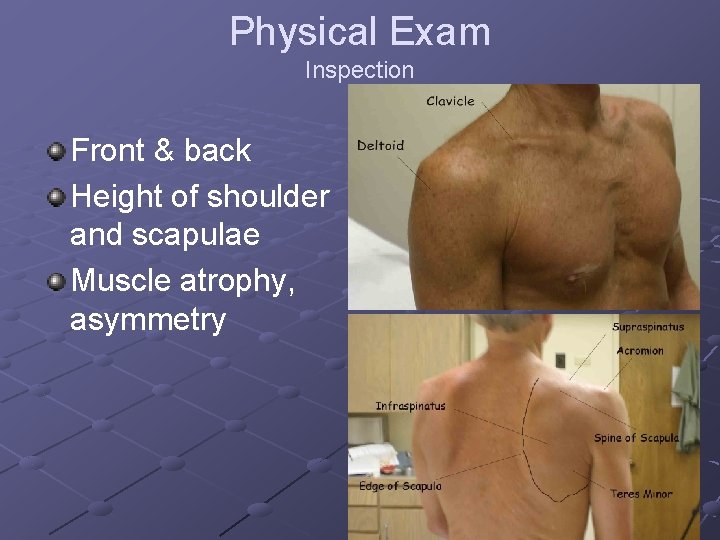

Physical Exam Inspection Front & back Height of shoulder and scapulae Muscle atrophy, asymmetry

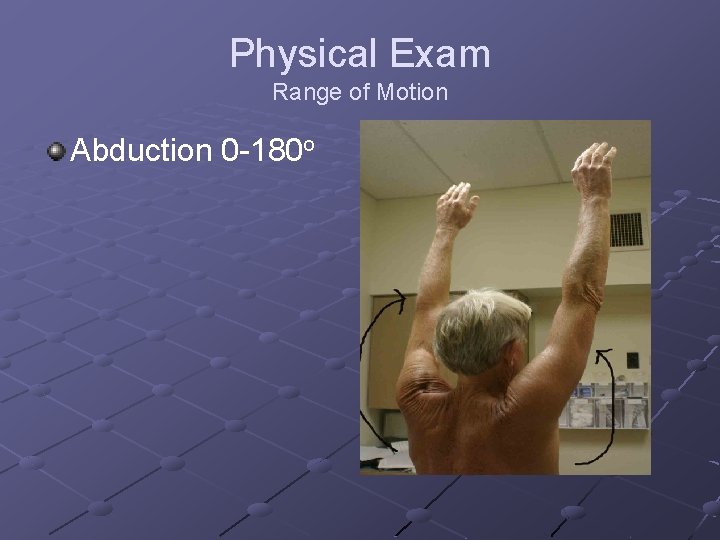

Physical Exam Range of Motion Abduction 0 -180 o

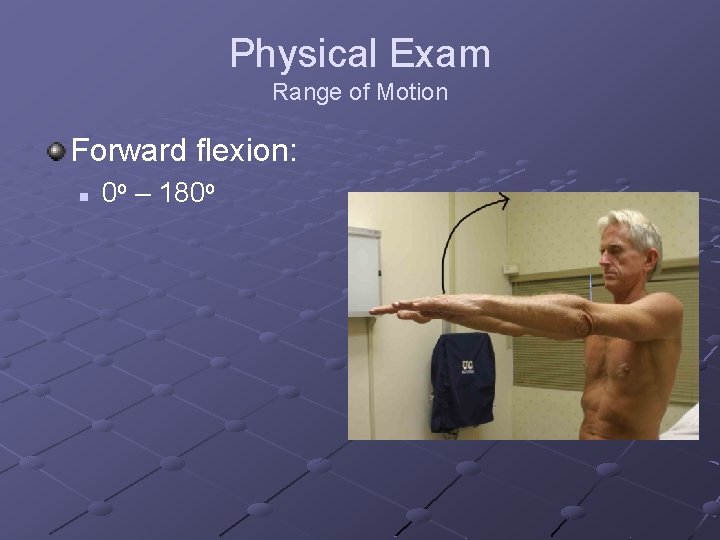

Physical Exam Range of Motion Forward flexion: n 0 o – 180 o

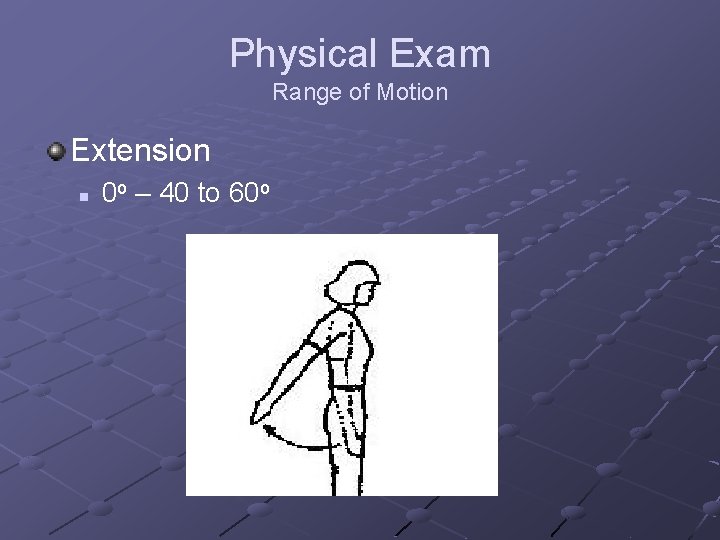

Physical Exam Range of Motion Extension n 0 o – 40 to 60 o

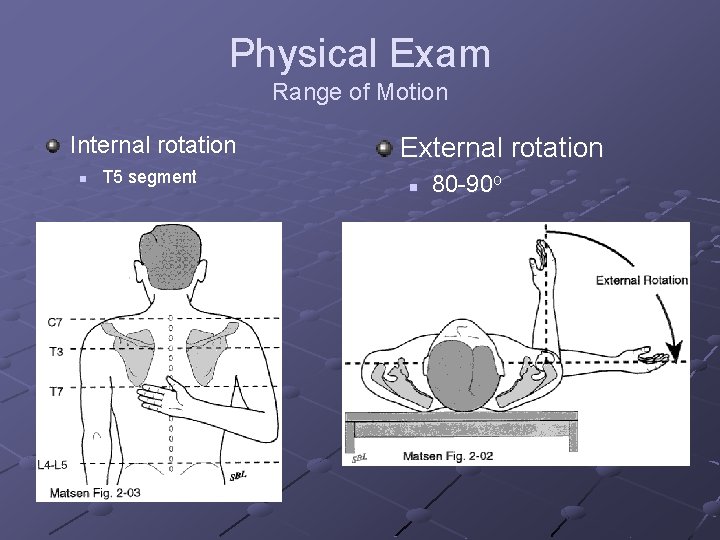

Physical Exam Range of Motion Internal rotation n T 5 segment External rotation n 80 -90 o

Physical Exam Strength Empty can test n n n 30 o angle Steady downward pressure Tests supraspinatus strength and pain

Physical Exam Strength Resisted external rotation n Tests infraspinatus, teres minor strength

Physical Exam Strength of Subscapularis Liftoff test Belly press test

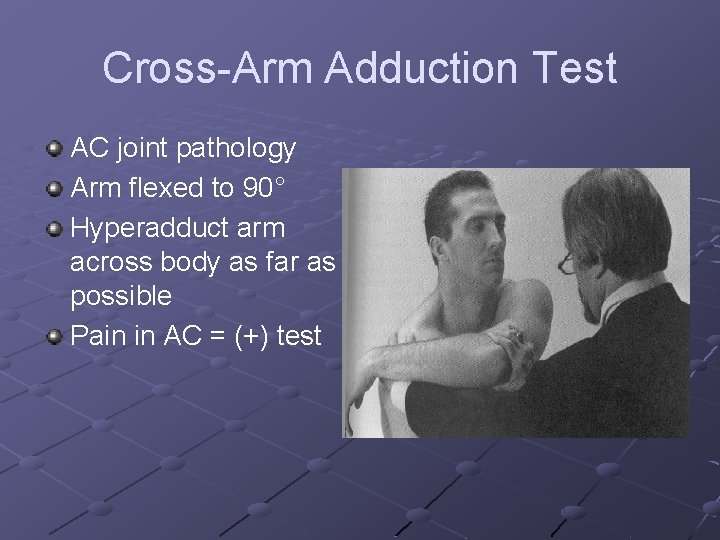

Cross-Arm Adduction Test AC joint pathology Arm flexed to 90° Hyperadduct arm across body as far as possible Pain in AC = (+) test

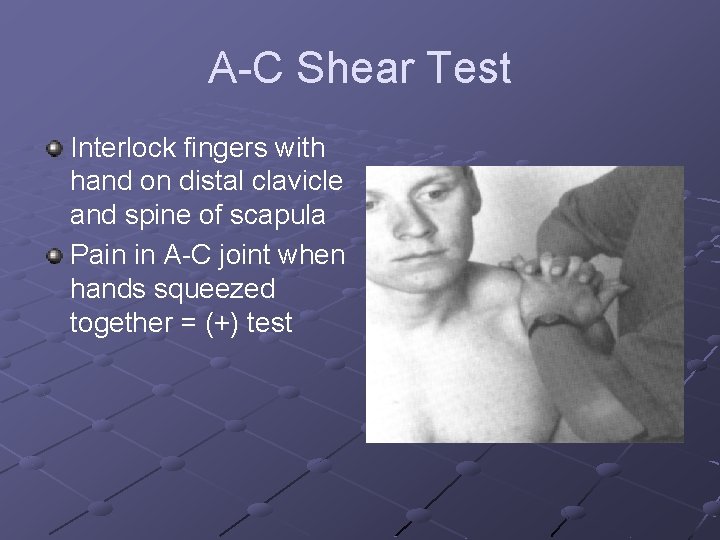

A-C Shear Test Interlock fingers with hand on distal clavicle and spine of scapula Pain in A-C joint when hands squeezed together = (+) test

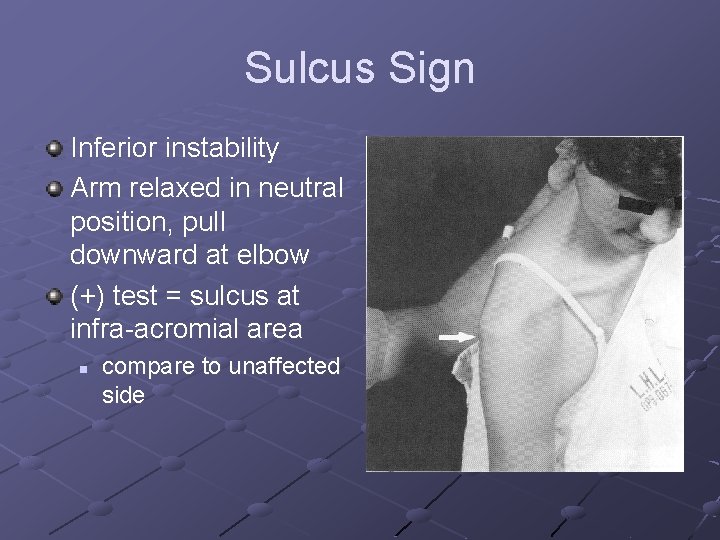

Sulcus Sign Inferior instability Arm relaxed in neutral position, pull downward at elbow (+) test = sulcus at infra-acromial area n compare to unaffected side

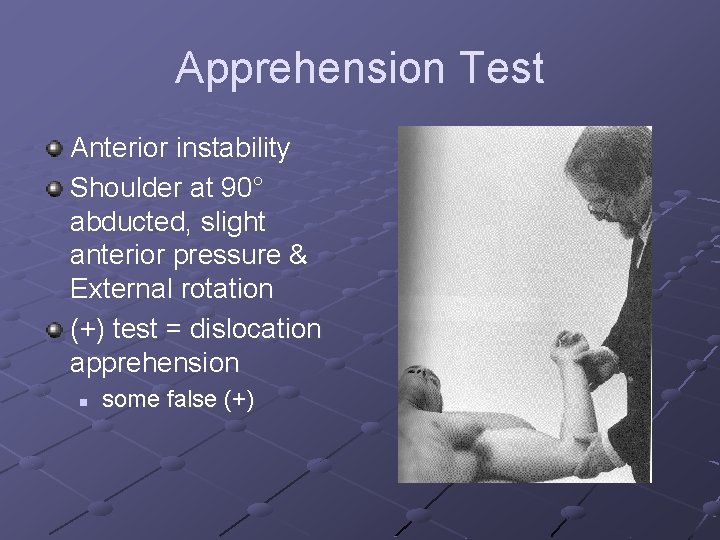

Apprehension Test Anterior instability Shoulder at 90° abducted, slight anterior pressure & External rotation (+) test = dislocation apprehension n some false (+)

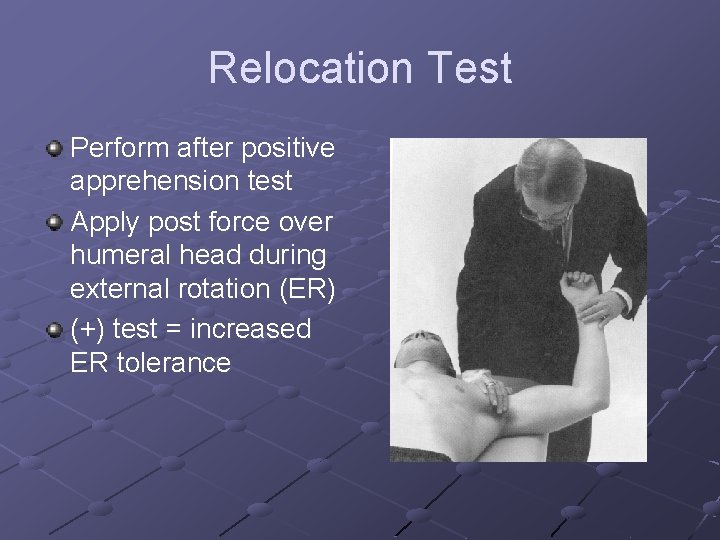

Relocation Test Perform after positive apprehension test Apply post force over humeral head during external rotation (ER) (+) test = increased ER tolerance

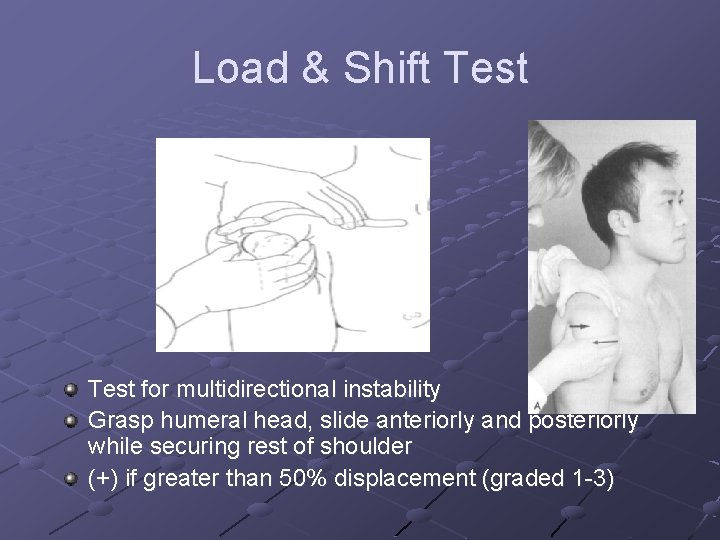

Load & Shift Test for multidirectional instability Grasp humeral head, slide anteriorly and posteriorly while securing rest of shoulder (+) if greater than 50% displacement (graded 1 -3)

Impingement Signs Hawkins Neer

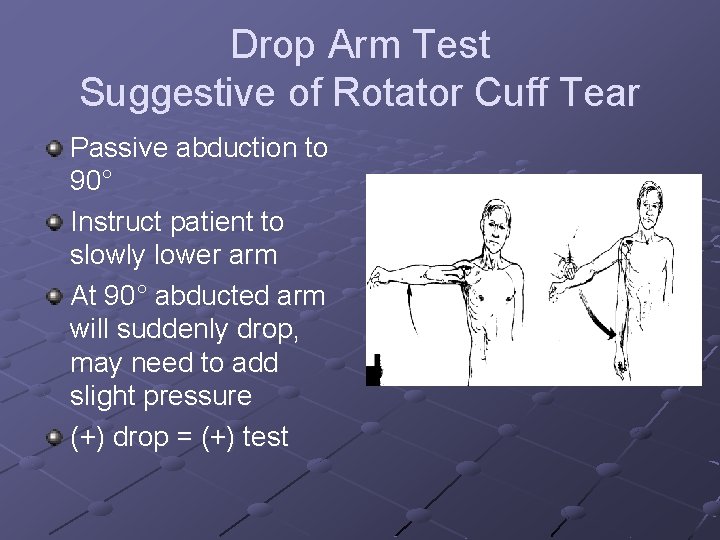

Drop Arm Test Suggestive of Rotator Cuff Tear Passive abduction to 90° Instruct patient to slowly lower arm At 90° abducted arm will suddenly drop, may need to add slight pressure (+) drop = (+) test

Speed’s Test Biceps Tendinopathy Long head of biceps tendonitis Fwd flex to 90°, abd 10°, full supination Apply downward force to distal arm Pain = (+) test n weakness w/o pain = muscle weakness or rupture

O’Brien’s Active Compression SLAP lesion (Superior Labrum Antero-Posterior) Labral/AC pathology Arm flexed to 90°, elbow extended, adduct 10 -15°, resist downward force + if AC pain or internal pain/click

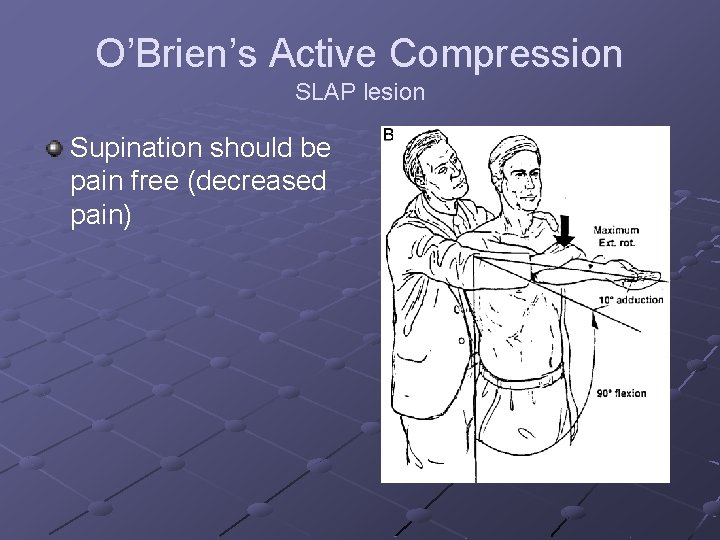

O’Brien’s Active Compression SLAP lesion Supination should be pain free (decreased pain)

Crank Test Labral injury Glenoid labrum tear Abduct arm to 160°, pt is supine or upright, elbow secured with one hand axial load at shoulder with other (+) if audible/painful catch/grind is noted
