Shore Power System General Location

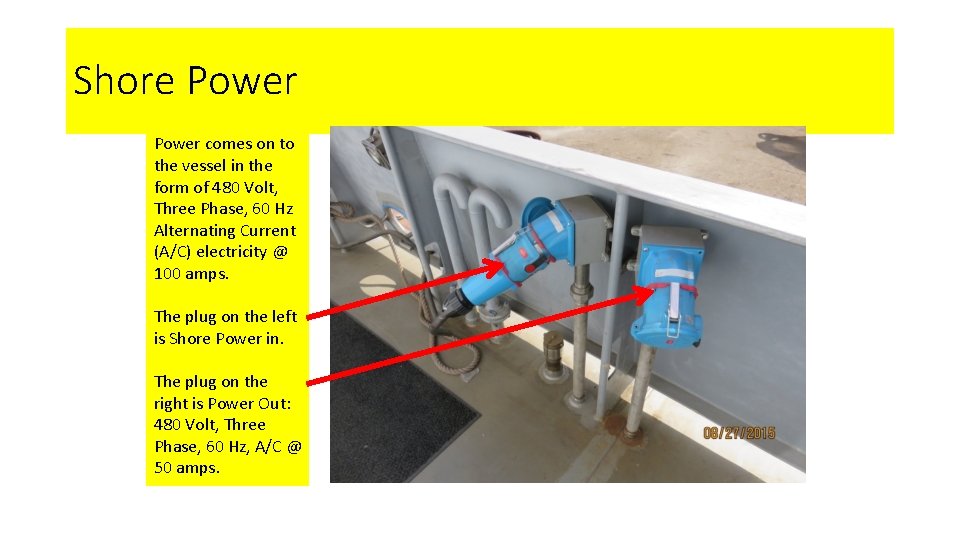

Shore Power comes on to the vessel in the form of 480 Volt, Three Phase, 60 Hz Alternating Current (A/C) electricity @ 100 amps. The plug on the left is Shore Power in. The plug on the right is Power Out: 480 Volt, Three Phase, 60 Hz, A/C @ 50 amps.
Shore Power The plug is designed to disconnect safely with a live load on the line. Prevents arcing. This feature enhances the safety of connecting and disconnecting shore power in the event we forget to open the shore power breaker on the dock.

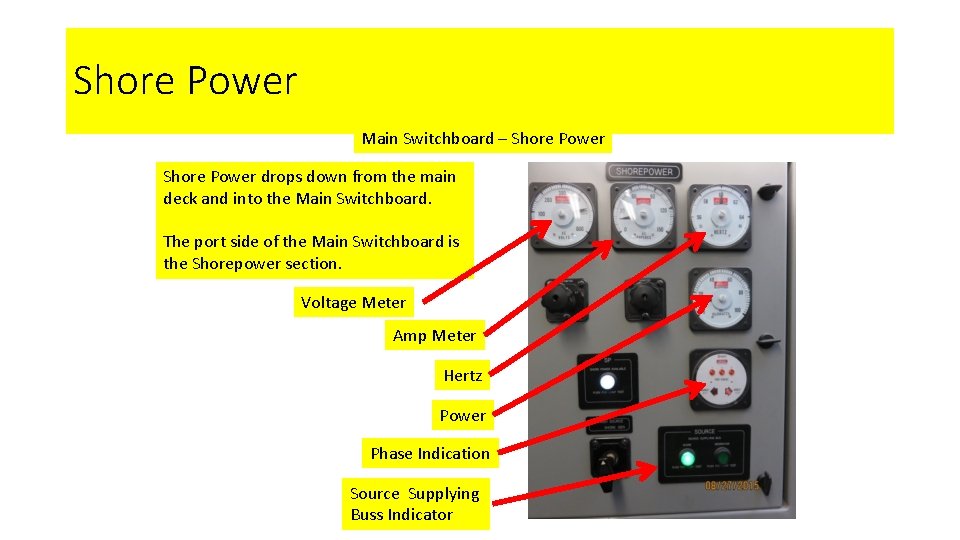

Shore Power Main Switchboard – Shore Power drops down from the main deck and into the Main Switchboard. The port side of the Main Switchboard is the Shorepower section. Voltage Meter Amp Meter Hertz Power Phase Indication Source Supplying Buss Indicator

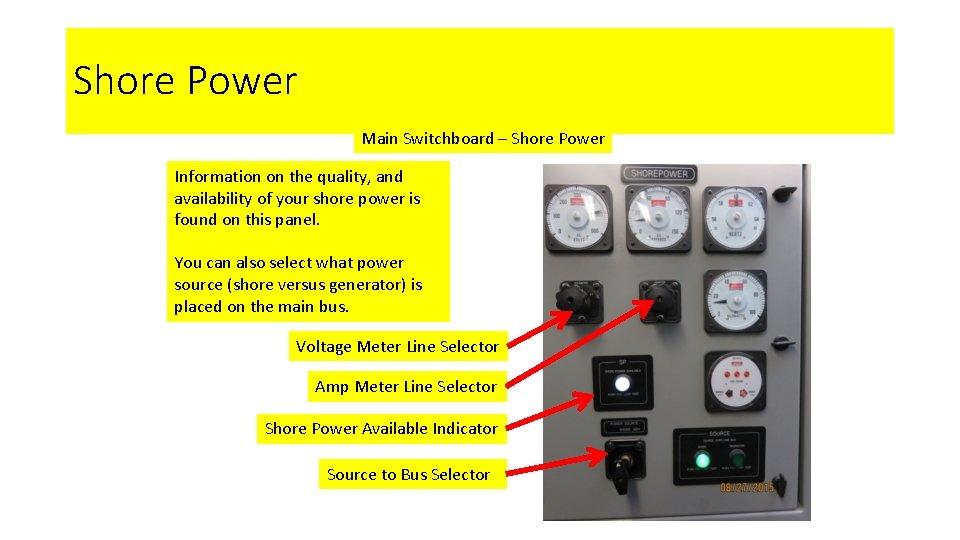

Shore Power Main Switchboard – Shore Power Information on the quality, and availability of your shore power is found on this panel. You can also select what power source (shore versus generator) is placed on the main bus. Voltage Meter Line Selector Amp Meter Line Selector Shore Power Available Indicator Source to Bus Selector

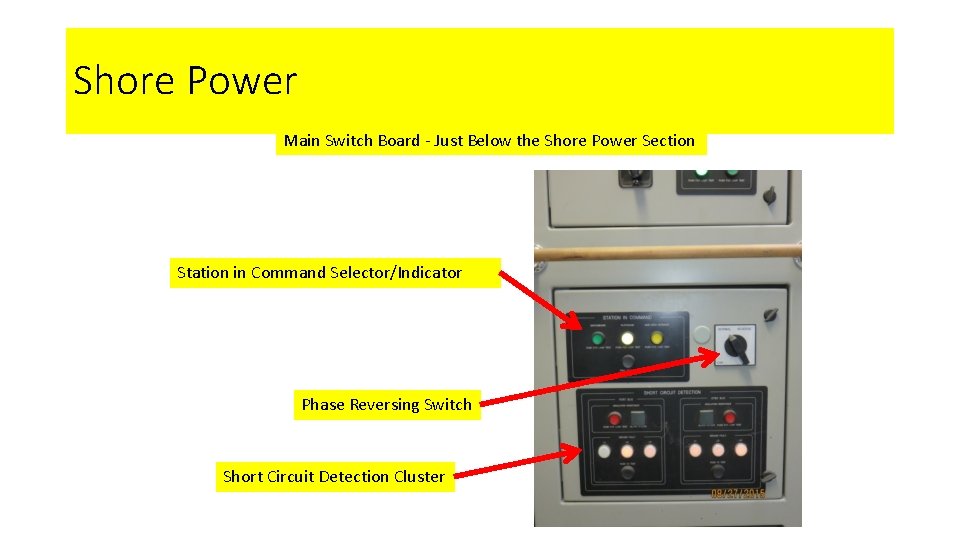

Shore Power Main Switch Board - Just Below the Shore Power Section Station in Command Selector/Indicator Phase Reversing Switch Short Circuit Detection Cluster

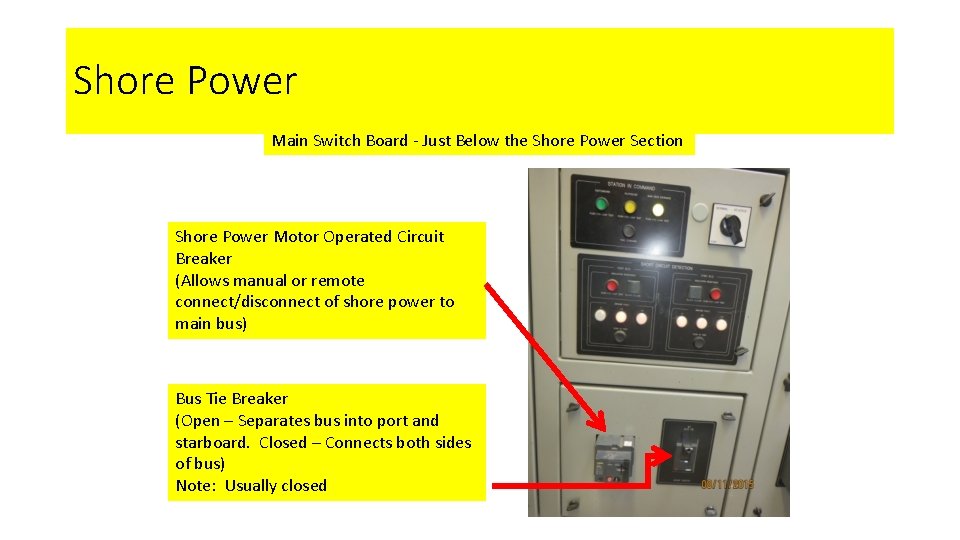

Shore Power Main Switch Board - Just Below the Shore Power Section Main Switch Board – Below Shore Power Motor Operated Circuit Breaker (Allows manual or remote connect/disconnect of shore power to main bus) Bus Tie Breaker (Open – Separates bus into port and starboard. Closed – Connects both sides of bus) Note: Usually closed
Shore Power Cut Sheet of Motor-Operated Circuit Breaker
Shore Power The Wheel House Power Tree gives a visual indication to the Pilot, as he enters the wheelhouse, as to the status of shore power. Power Connected – Red Light. Don’t drive away! Power Available – Red Light. Don’t drive away! On Line – Green Light Bus supplied by shore power. Wheel House Power Tree
