SHIMADZU Solutions for Science Since 1875 2007 11

SHIMADZU Solutions for Science Since 1875 岛津气相色谱维护培训 2007 -11 -13 青岛

SHIMADZU Solutions for Science Since 1875 岛津气相色谱维护培训 气相色谱构造 GC-2010 GC-14系列

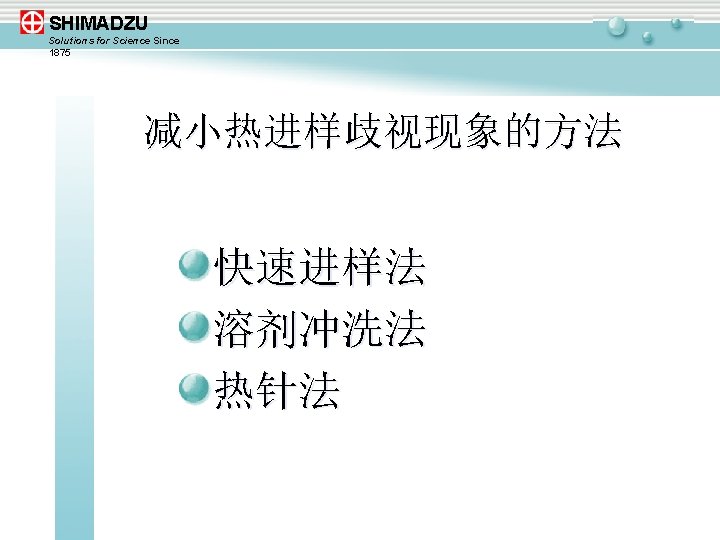

SHIMADZU Solutions for Science Since 1875 溶剂冲洗法 溶剂 空气 样品 空气 蒸溜和分 溜减少 52 51 50 49 48 (%) n-C 4 n-C 9 0. 5 1. 0 2. 0 3. 0 4. 0 (u. L)

SHIMADZU Solutions for Science Since 1875

SHIMADZU Solutions for Science Since 1875

SHIMADZU Solutions for Science Since 1875 几种代表性固定液的极性 (Mc Reynolds 常数) 名称 Squalane SE 30 OV 101(DB 1) SE 54(DB 5) DC 550 OV 17 △I Benzene 0 （非极性） 15 17 33 （弱极性） 74 119（中极性） 名称 △I Benzene PEG 20 M(DBWAX) 322（强极性） FFAP 340 PEG 1000 347 EGA 372 DEGS 484 TCEP 593 （超强极性） BCEF 690

SHIMADZU Solutions for Science Since 1875 内径对毛细柱分离的影响 0. 22 mm x 25 m

SHIMADZU Solutions for Science Since 1875 膜厚对毛细柱分离的影响 CBP 1 -W 25 -100 CBP 1 -W 25 -500 膜厚 1 um 膜厚 5 um

SHIMADZU Solutions for Science Since 1875 毛细柱的内径、膜厚及柱容量 内径 膜厚 柱容量

SHIMADZU Solutions for Science Since 1875 各公司常用毛细柱商品名及固定液对照表

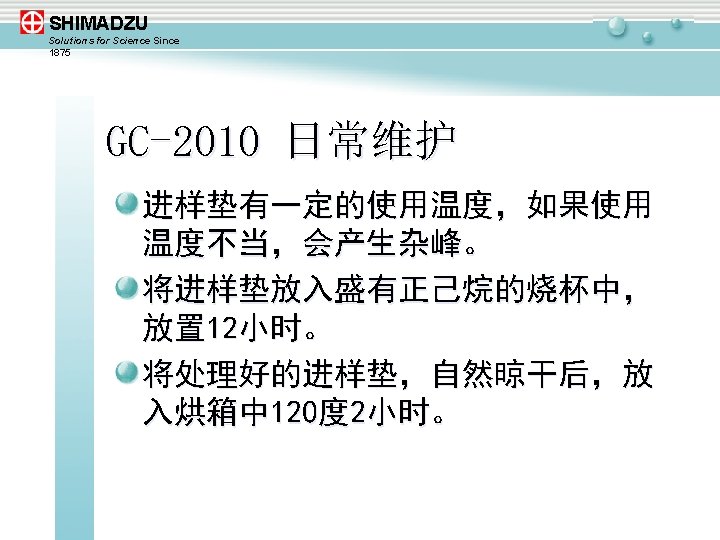

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护－进样垫

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护 (Press the [SYSTEM] key) Select "Analysis" in the PF menu. The GC will be readied automatically 选择 [DIAG] 中的“ 3. Analysis Counter” 从 中选择“Counter for Septum” 并 “Reset” 键 对计数器进行清空

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护 进样垫种类

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护－ O形圈

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护 O 形圈分为两种适用于不同时使用温 度

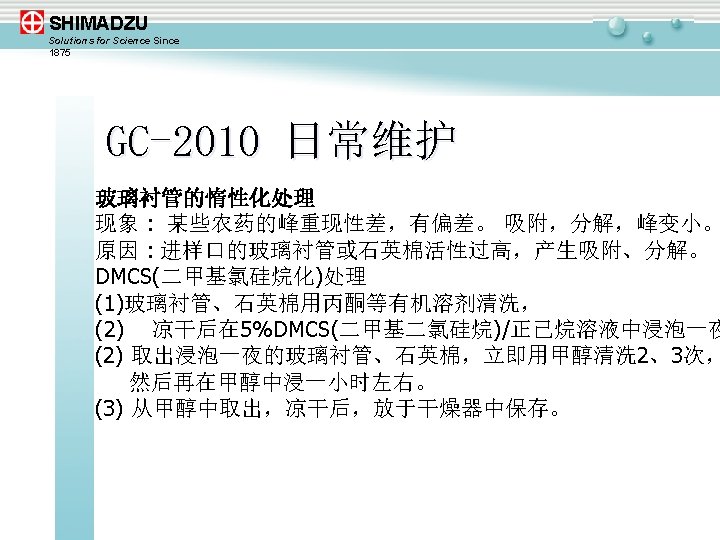

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护－玻璃衬管

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护 (Press the [SYSTEM] key) Select "Analysis" in the PF menu. The GC will be readied automatically 选择 [DIAG] 中的“ 3. Analysis Counter” 从 中选择“Counter for Insert ” 并 “Reset” 键对计数器进行清空

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护－分子筛更换

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护

SHIMADZU Solutions for Science Since 1875

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护－检测器 FID TCD

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护－检测器 检查更换喷嘴 所需 具 8 mm 内六角套筒

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护－检测器 降温并关闭机器

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护－检测器

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护－检测器

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护－检测器

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护－检测器

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护－检测器

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护－检测器

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护－检测器

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护－检测器

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护－检测器 FID 点火丝更换

SHIMADZU Solutions for Science Since 1875

SHIMADZU Solutions for Science Since 1875 GC-2010 日常维护－检测器 TCD 使用应注意Make up不能关闭，默认值为 8 ml/min

SHIMADZU Solutions for Science Since 1875

SHIMADZU Solutions for Science Since 1875 GC-14系列 日常维护 进样口 检测器

SHIMADZU Solutions for Science Since 1875 GC-14系列 日常维护 填充柱

SHIMADZU Solutions for Science Since 1875 GC-14系列 日常维护 SPL进样口

SHIMADZU Solutions for Science Since 1875 GC-14系列 日常维护 更换玻璃衬管

SHIMADZU Solutions for Science Since 1875 GC-14系列 日常维护

SHIMADZU Solutions for Science Since 1875 GC-14系列 日常维护

SHIMADZU Solutions for Science Since 1875 GC-14系列 日常维护 FID 检测器更换喷嘴

SHIMADZU Solutions for Science Since 1875 GC-14系列 日常维护

SHIMADZU Solutions for Science Since 1875 GC-14系列 日常维护

SHIMADZU Solutions for Science Since 1875 GC-14系列 日常维护 TCD 池结构 2 4 1 4 3 2 3 1

SHIMADZU Solutions for Science Since 1875 GC-14系列 日常维护

SHIMADZU Solutions for Science Since 1875 GC-14系列 日常维护

SHIMADZU Solutions for Science Since 1875 GC-14系列 日常维护

SHIMADZU Solutions for Science Since 1875 GC-14系列 日常维护

SHIMADZU Solutions for Science Since 1875 感谢您对岛津公司的支持！
