Sherlock Bones Power Point Presentation Created by Anthony

Sherlock Bones® Power Point Presentation Created by Anthony & Patricia Bertino Designed for use with Ward’s Kit 36 -6082

At birth, you have approximately 450 bones which fuse at different times and rates to produce 206 adult bones

Background: The following bones were found in the woods • Skull • Femur • Humerus • Pelvis

Your assignment: Determine as much as you can about the remains that were found

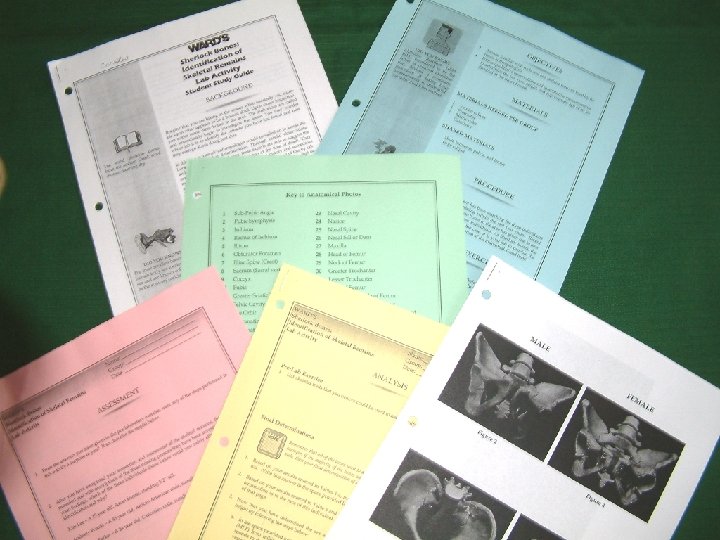

Let’s reorganize the laboratory pages • • Remove staple from lab pages Re-staple pages 1 -11 as a packet (directions) Re-staple pages 12 -19 as a packet (data table) Re-staple pages 21 -30 as a packet (reference pictures) • Page 20 – list of all labeled bone regions ( leave separate for quick reference to labeled parts) • Color coding of pages is also helpful

Another suggestion: Use the terms from page 20 to immediately label pages 22, 24, 29 and 30. You will save yourself time and confusion.

Measure Using a Vernier caliper • Choose either the outside or inside scale • Measurements will be to 1/10 of a mm • Values are read with reference to the ‘zero’ mark. The zero mark represents the number of mm. • Tenths of a mm. are read from the inside or outside scale where the sliding scale and permanent scale marks are aligned. • See examples that follow.

Caliper Scales

Use the inside scale to determine the size of an opening.

Examples using the outside scale Femur head

16 mm+

No match 22 mm+ Match! 22. 8 mm. 8 read on upper scale

Outside Lines match measurement 7 mm+ 7. 8 mm

32. 7 mm

45. 6 mm Record the inside measurement

45. 9 mm

In the frames that follow: • Diagram references are shown in red • Page references are shown in black

Illium Parts of the pelvis

Ischium Parts of the pelvis

Pubis Parts of the pelvis

Pubic symphysis

Ramus of left ischium Parts of the pelvis

Figure 6 number 1 Sub-pubic angle Procedure Page Step #1

Subpubic angle Step 1

Figure 6 number 1 Pelvis, Page 6, step 1

Figure 6 number 6 Figure 6 number 10 Body width of pubis Procedure Page Step #2

Step 2, con’t Figure 6 number 6 Obturator foramen

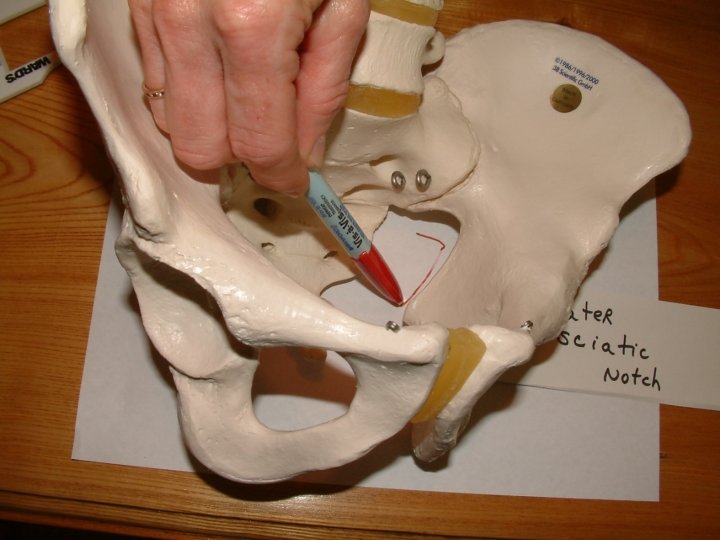

Figure 8, number 11 Greater Sciatic Notch Procedure Page Step #3

Angle of Greater Sciatic Notch

Angle ~68°

Sacrum Figure 7 number 8 Figure 8 number 8 Procedure Page Step #4

Coccyx Figure 7 number 9 Figure 8 number 9

Side view Coccyx Dorsal view

Male or Female? Pelvic examination Female: circular & wide figure 5 Male: heart-shaped figure 3 Step 4

Age of pelvis Age Determination Step 1 Age of pelvis can be determined by a study of cartilaginous line or epiphysis

Age determination from pelvis Epiphyseal union becomes less noticeable Approximate age? Age Determination Step 2

Websites of Interests http: //www. pbs. org/wgbh/nova/teachers/activities/2011_butch. html http: //www. innerbody. com/htm/body. html http: //www. bartleby. com/107 http: //depts. washington. edu/bonebio/ASBMRed. html

You’ve done it! You have finished your PELVIC Observations!
