SHENZHEN WELSON MOLD CO LTD VISION TOTAL PLASTIC

SHENZHEN WELSON MOLD CO. , LTD VISION: TOTAL PLASTIC & DIE CASTING MOLD SOLUTION SUPPLIER. www. welsonmold. com ISO 9001 -2008、 ISO 14001: 2015 、IATF 16949

WELSON Factory n WELSONMOLD CO LTD founded in 2008 in SHENZHEN is a professional manufacturer of plastic molds ＆ die-casting molds and injection molding. It occupies an area of 1600 square meters with total 106 staffs，including more than 60 professional engineers and technicians. The injection molding department has 10 employees.

Value 1. Honesty and mutual respect 2. Teamwork and mutual assistance 3. Conscious communication that allows the staff to fulfill its responsibilities in a trusting atmosphere 4. High quality and quick response to the customer 5. Transparency

Our service n Precision Mold Tooling n Double Injection Mold n Overmolding Mold n Insert Tooling n Unscrewing Mold n Gas Assisted Mold n Large Size Mold n Multi & Single Cavity Mold 2、Product Development & Optimization n Part Optimization n Rib and Boss Design n Dimensional Properties n Mechanical Properties n Cost Analysis n Design For Manufacturability 1、Tool building n CAD/CAM Design n Mold-flow Analysis n DFM Report n Complex Mold Design n Highly Engineered Work Cells Plastic & Die casting Mold and Injection Molding Solutions 3、Engineering n Full Service Custom Injection Molding n Precision Injection Molding n Mass Production n Precision CNC Machining n Custom Wire And Ram EDM n Production Multi-cavity Mold n Quick Change Molds n Mold Repairing n Mold Building Technologies n Prototyping Molds 4、Manufacturing 5、Injection Molding

Department Percentage

Annual Sales Volume Unit: Million USD

Service Area 6% 4% Automobile 6% Household appliance 8% 47% Office appliance Commodity Telecommunication tools 29% Medical apparatus 7

Marketing Share

Our Customers

Our suppliers

Organization Chart General Manager Bill Liu Assistant Logistics Amy Tang Accounting Amy Tang Lu Jing Administrative Amy Tang Injection Dept Cheng Ji Wei Quality Dept Qin Bao Wei Design Dept Wu You Yuan Engineering Dept Qi Chao Yong Manufact ure dept Lin Wu Purchase Dept Bill Liu Resources Integration Dept Robert Lin Foreign Trade Dept Jovi Cai Internal Trade Dept Jimmy Li Project Dept Frank Huang Future Plans Administrative Management Accounting Manager Amy Tang Injection Supervisor Cheng Ji Wei Quality Supervisor Qin Bao Wei Manufacture Management Qi Chao Yong Supplier Management Bill Liu Strategic management Marketing Manager Jack Rao Warehouse Zhou Dong Ping Custom declarator Lu Jing Asset management Budget control Financial analysis Accounting and supervision Receptionist Administrative and logistics HR Liu Jian Ming Injection workers Injection technician ISO System Specialist OQC IPQC IQC Draftsman Mold Designers Tooling Engineer Equipment maintenance Fitting Manufacture Outsourcing Engineers Andy Qiu Assistant Supplier evaluation Robert Lin Quotation the auditor Jovi Cai Robert Lin Quotation engineer Marketing engineers Marketing assistant Project engineers System improvement investment risks Development trends Enterprise culture and brand Strategy and organization managemen Fitter Polishing Grinder Deep gun Wire EDM CNC Milling Laser Engraving

Cooperation Process First Step Quoting within 3 days after we seriously investigating the credit Quotation Starting production after we receive the PO and deposit Order Confirmation Customer RFQ Layout drawing to be offered within 3 -5 days Project Analyzing DFM 1. Product structure analyzing 2. Moldflow analyzing 3. Mold structure analyzing 4. Steel & Plastic material confirmation 5. Mold specification and solution report Mold Layout Design GA Drawing Confirmation Confirming with customer Drawing approved by customer Drawing Approval

Cooperation Process Second Step Order steel/ Mold base/ Standard Component Production Planning Offer weekly report and photos in process Manufacture Apply CMM to inspecting 3 D measurements of each part to satisfy custom’s requirements for dimensions and quality Inspection Mold Trial Send samples, together with the report inspected By CMM and injection parameters to customer

Cooperation Process Third Step Mold improvement & samples inspection Samples inspection after mold improvement Inspecting mold to satisfy customer’s quality request Texture and Engraving Final mold inspection Fix the mold to injection machine for a 4 -6 hours’ trial production to ensure the quality Mold packed with the vacuum film and rustproof in wooden cases 4 -6 Hours trial production before delivery Mold package includes: 1. 2 D & 3 D mold drawings in a CD 2. Steel certification and mold base certification 3. Heat treatment certification 4. Injection molding parameters 5. Mold running video Mold Packaging Delivery

Mold Products Automobile Mold

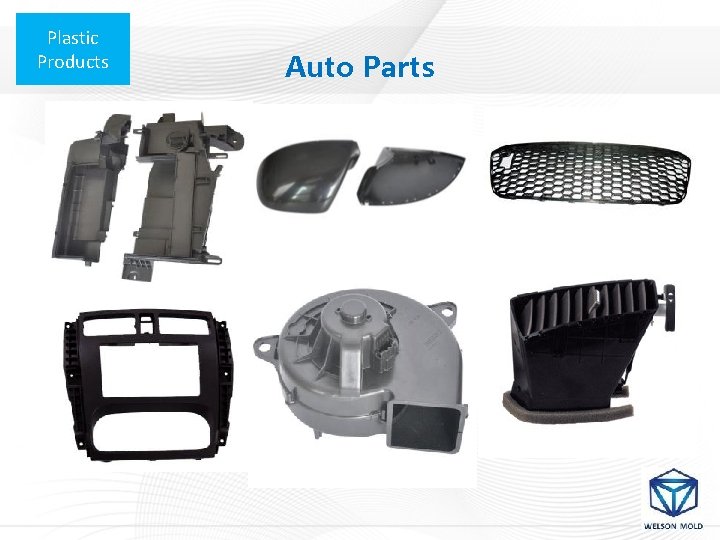

Plastic Products Auto Parts

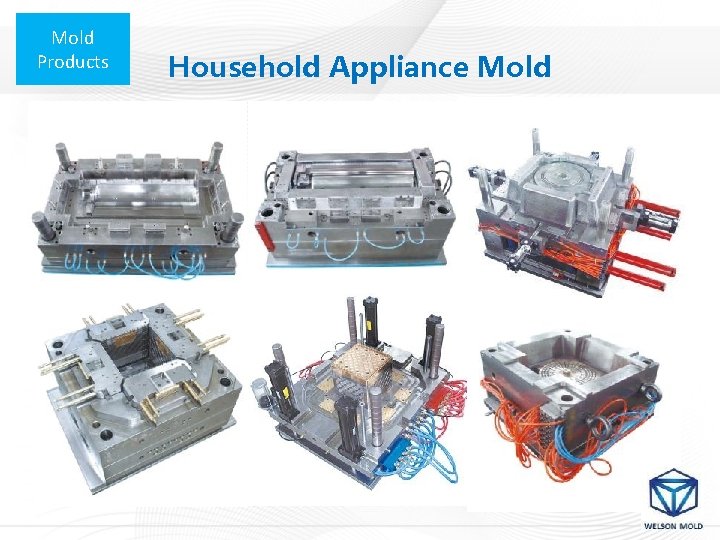

Mold Products Household Appliance Mold

Plastic Products Household Parts

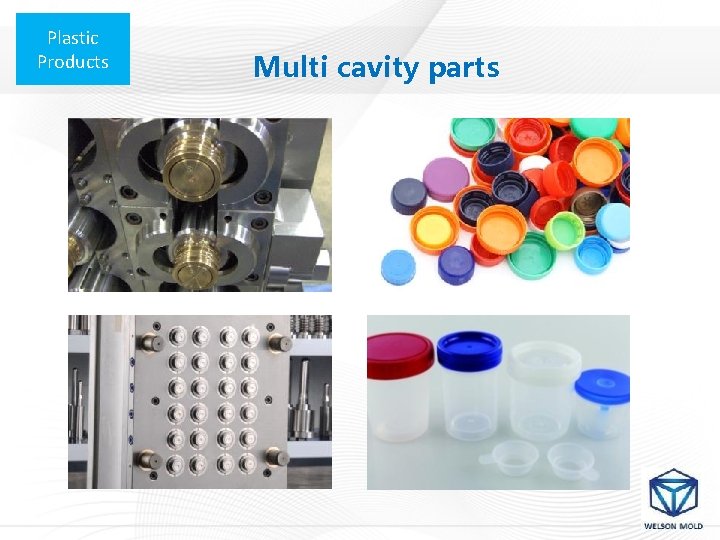

Plastic Products Multi cavity parts

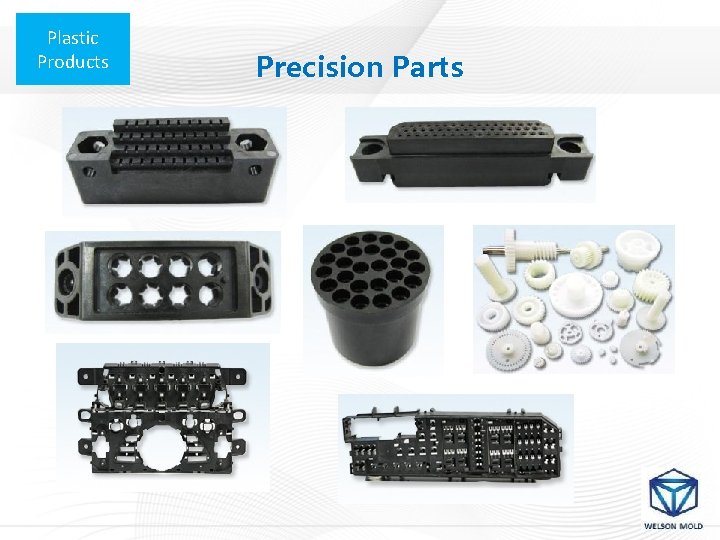

Plastic Products Precision Parts

Plastic Products Precision Component

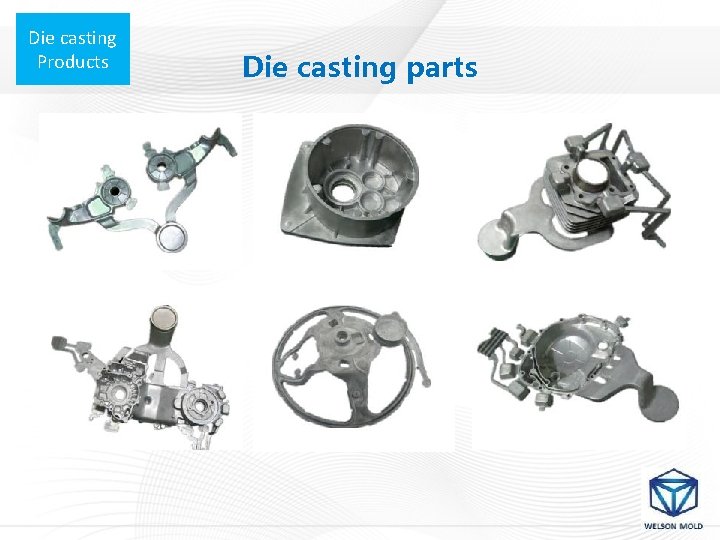

Die casting Products Die casting parts

Die casting Products 2021/3/5 Die casting Mold

Workshop & Equipments Manufacturing capability: Ø Total Size: 1600㎡ Ø Annual Tooling Capacity: 400 sets Ø Max. Tonnage: 20 Tons Ø Max. Tool Size: 2, 000 mm X 1, 200 mm

Workshop & Equipments

Workshop & Equipments

Workshop & Equipments

Engineering Dept n WELSONMOLD owns the high level mold design team and Invests continually in technical Training every year to make the design level keep in line with the international standard.

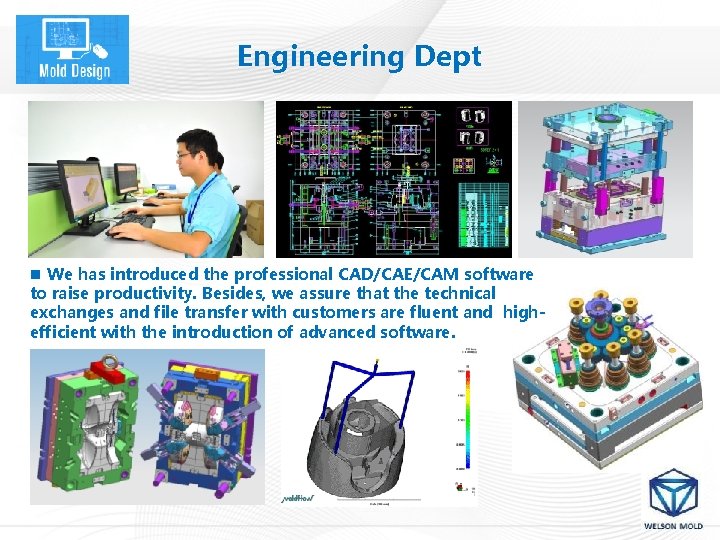

Engineering Dept n We has introduced the professional CAD/CAE/CAM software to raise productivity. Besides, we assure that the technical exchanges and file transfer with customers are fluent and highefficient with the introduction of advanced software.

Project Team n The skilled project engineers and sales with engineering background ensure a good communication with customers in the process of project development and execution. In order to satisfy custom’s demands, We fully understand the needs of customers and then carry out the corresponding solutions. During the project management, we take rigorous performance of contract and offer the most intimate services.

QC Dept Quality control measurement: Ø Optimization of mold deign Ø Quality control of mold steel material Ø Quality control of manufacture technology Ø Quality policy before delivery Ø Detailed QC report with corresponding signature before delivery

Quality management systems Welson Mold has achieved ISO 9001: 2008 2021/3/5

Injection Dept n WELSON MOLD have high speed injection machines from Toshiba, Engel, Sumitomo, Krauss Maffei , HAITIAN. n. All of the machines are well equipped with advanced robot hands, high-power central cooling system, economic vacuum drying machines and mold temperature controllers which ensure the precision molding and high-gross molding strongly. Robot hands

Injection Dept Equipment list Item Machine Name Type Brand Build date Quantity Area of operation plate(MM) Working Table (X*Y*Z)(MM) Axis speed (RPM) 1 Plastic injection maching TOSHIBA IS 550 GS TOSHIBA 2007 1 8200*2400*220 965*965 N/A 2 Plastic injection maching Engel ES 330 / 80 HL Engel 2008 1 6000*1850*2000 600*560 N/A 3 Plastic injection maching Sumitomo SG 180 M Sumitomo 2005 1 5659*1392*2031 510*510 N/A 4 Plastic injection maching KRAUSS MAFFEI KM 300 -1400 C 2 KRAUSS MAFFEI 2006 1 6000*2300 630*630 N/A 5 Plastic injection maching HAITIAN HTF 120 J/TJ HAITIAN 2010 2 4920*1330*1950 410*410 N/A 6 Plastic injection maching HAITIAN HTF 160 J/TJ HAITIAN 2009 4 5400*1450*2050 455*455 N/A 7 Plastic injection maching HAITIAN HTF 250 J/TJ HAITIAN 2009 3 6020*1700*2100 570*570 N/A Plastic injection maching HAITIAN HTF 300 J/TJ HAITIAN 2011 2 6500*2000*2400 660*660 N/A 8

Marketing Team n Each of our marketing team has a good command of English , which can help us build a friendly relationship with our customer. Hope you feel our service satisfactory.

Co ntact Us Find Us

C ontact Us Find Us

Co ntact Us Contact WELSON MOLD(HONGKONG)Co. , LIMITED SHENZHEN WELSON MOLD CO. , LTD Company Office TEL: +86 755 27309875 FAX: +86 755 27309877 Email: info@welsonmold. com Website： www. welsonmold. com Address : 1 F, BLDG A 2, SILICON VALLEYPOWER DIGITAL INDUSTRIAL PARK, ZONGYI ROAD, GUANLAN, LONGHUA NEW DISTRICT SHENZHEN, CHINA Zip Code: 518110 Marketing Office Jack Rao Marketing Manager Office: +86 755 2781 9800 Fax: +86 755 2730 9877 Mobile: +86 13751019244 Email: jack@welsonmold. com Skype: youthlife
