Shelter Module update Jrme Michon MSFB Tom Corsellis

Shelter Module update Jérôme Michon MSF-B Tom Corsellis Shelter Centre followed by: Guatemala, Bangladesh and the Philippines Graham Saunders, CRS 4 - 5 May 2006 | Geneva | hosted by IFRC

Shelter Module session this session is structured as follows: a. strategy for Shelter Module b. Shelter Centre b. feedback on standards MSF-B c. future work on the Shelter Module d. Shelter Centre 4 - 5 May 2006 | Geneva | hosted by IFRC

a. Shelter Module strategy feedback at: overview the product to develop, test, and publish a specification for a new transitional family shelter, will be undertaken in two phases involving a consortium phase 1, funded by USAID/OFDA, to develop and agree shelter specifications for Shelter Module phase 2, funded by DFID, will develop and test prototypes, concluding with technical specifications for publication phase 1 concludes at this Shelter Meeting timeline 4 - 5 May 2006 | Geneva | hosted by IFRC

a. Shelter Module strategy as part of phase 1, standards were circulated to elicit comments and feedback from the working group should the shelter kit be designed to fit on a euro pallet? a. logistics standards and indicators b. physical standards and indicators c. social standards and indicators shelf life when stockpiled? what should be the target weight? 4 - 5 May 2006 | Geneva | hosted by IFRC

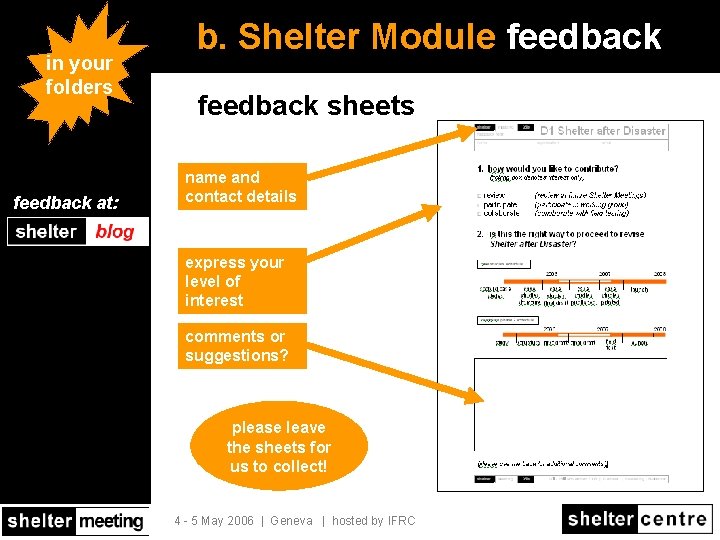

in your folders feedback at: b. Shelter Module feedback sheets name and contact details express your level of interest comments or suggestions? please leave the sheets for us to collect! 4 - 5 May 2006 | Geneva | hosted by IFRC

feedback at: b. Shelter Module feedback so far from ECHO, and from the consortium, which currently includes DFID, USAID, JICA, IFRC, MSF-I and Oxfam GB a 3. 2 packing ‘a pallet shaped pack would not be as easy to handle manually compared to long type cartons/packs’ b 1. 1 usable area ‘at least 50% of the covered space should be walkable, compared to Sphere’s 33%’ b 3. 1 durability ‘how can covering last 18 months? this is more than plastic sheeting’ ‘covering should last at least 24 months’ b 6. 2 ventilation ‘should have water-safe & fireproof opening for chimney’ b 9. 3 toxicity ‘what are minimal negative environmental impacts? ’ b 10 colour ‘colour affects interior light, and colour of light has a psychological impact’ 4 - 5 May 2006 | Geneva | hosted by IFRC

b. Shelter Module feedback as part of phase 1, standards were circulated to elicit comments and feedback from the working group photo: http: //www. auswaertiges-amt. de feedback at: a. logistics standards and indicators b. physical standards and indicators c. social standards and indicators should the shelter kit be designed to fit on a euro pallet? shelf life when stockpiled? what should be the target weight? 4 - 5 May 2006 | Geneva | hosted by IFRC

feedback from you b. Shelter Module feedback at: a. logistics standards and indicators Shelter Centre recommends… 4 - 5 May 2006 | Geneva | hosted by IFRC

b. Shelter Module feedback as part of phase 1, standards were circulated to elicit comments and feedback from the working group feedback at: a. logistics standards and indicators b. physical standards and indicators c. social standards and indicators what colour should the fly be? the liner? ? what standards should the shelter meet? how long should the covering last? the frame? ? 4 - 5 May 2006 | Geneva | hosted by IFRC

feedback from you Shelter Module previous feedback at: b. physical standards and indicators Shelter Centre recommends… 4 - 5 May 2006 | Geneva | hosted by IFRC

b. Shelter Module feedback as part of phase 1, standards were circulated to elicit comments and feedback from the working group feedback at: a. logistics standards and indicators b. physical standards and indicators c. social standards and indicators should tools be distributed with the tent? how many people should it take to set up the shelter? should there be a privacy wall? 4 - 5 May 2006 | Geneva | hosted by IFRC

feedback from you b. Shelter Module feedback at: c. social standards and indicators Shelter Centre recommends… 4 - 5 May 2006 | Geneva | hosted by IFRC

c. Shelter Module future work as with previous summers, Shelter Centre volunteers will be undertaking further development of the 3 rd generation emergency family shelter feedback at: what should be the focus for the intern team this summer? the focus will be on a modular cladding solution made of standardised plastic sheeting and a modular joint example joints from the MSF-Transfer logistics warehouse in Brussels 4 - 5 May 2006 | Geneva | hosted by IFRC

c. Shelter Module future work fly - UNHCR plastic sheeting panels - trenching flaps feedback at: frame -1½” x 1. 8 m tubes - floor area meets Sphere standards for family of 6 -welded or cast stainless steel joints (design allows for extending lengthways and sideways) inter locking plastic sheeting panels translucent gables for interior lighting optional flu aperture for cold climates panels made of UNHCR plastic sheeting extendable 4 - 5 May 2006 | Geneva | hosted by IFRC

c. Shelter Module future work Shelter Module consortium currently includes: DFID, USAID, JICA, IFRC, MSF and Oxfam GB feedback at: Shelter Centre is currently seeking funding for the development of a winterised option Shelter Module working group currently includes: ECHO, SDC-HA, UN-Habitat, UN/OCHA, AMURT International, Caritas Austria, CRS, MSF – International, Provention Consortium, Shelter For Life, The Sphere Project progress by the working group can be followed at: www. sheltercentre. org/blog not part of the working group? email info@sheltercentre. org to change your organisation’s level of involvement 4 - 5 May 2006 | Geneva | hosted by IFRC
