SharedMemory Programming with Threads Adapted by Aleksey Zimin

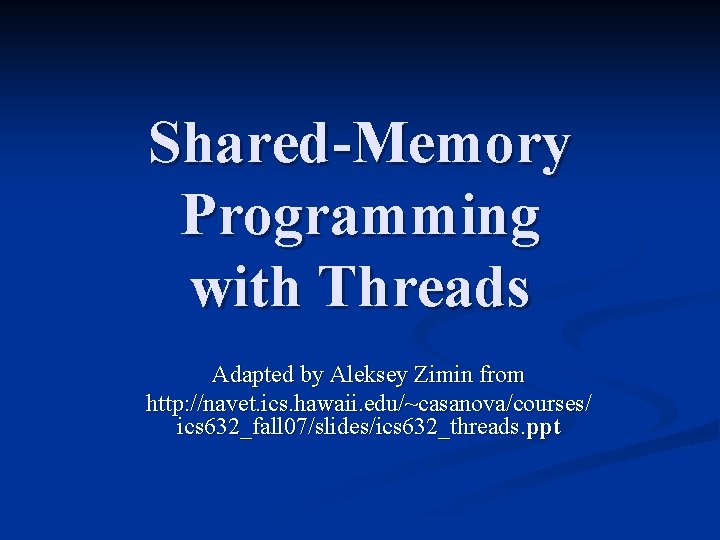

Shared-Memory Programming with Threads Adapted by Aleksey Zimin from http: //navet. ics. hawaii. edu/~casanova/courses/ ics 632_fall 07/slides/ics 632_threads. ppt

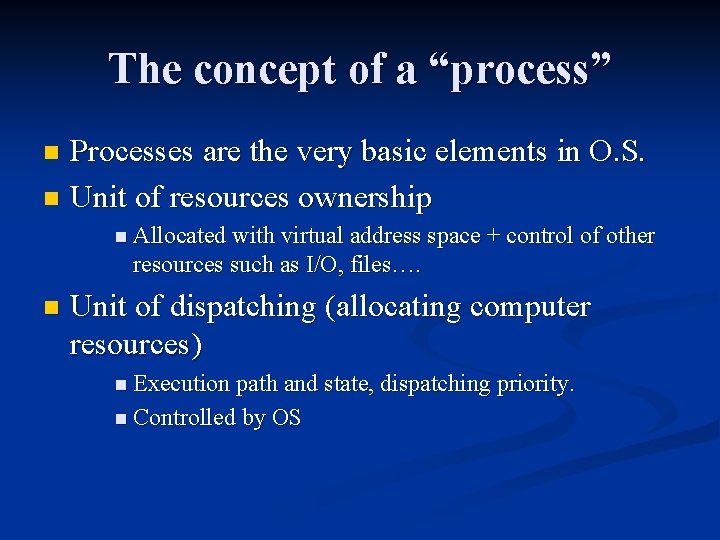

The concept of a “process” Processes are the very basic elements in O. S. n Unit of resources ownership n n Allocated with virtual address space + control of other resources such as I/O, files…. n Unit of dispatching (allocating computer resources) n Execution path and state, dispatching priority. n Controlled by OS

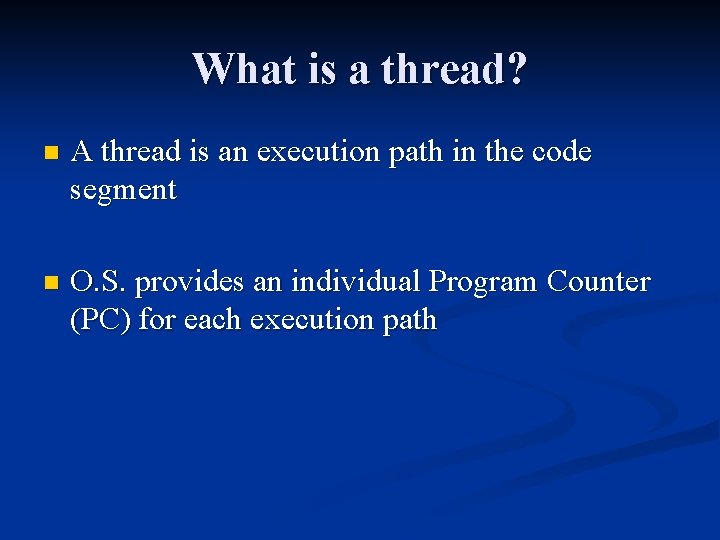

What is a thread? n A thread is an execution path in the code segment n O. S. provides an individual Program Counter (PC) for each execution path

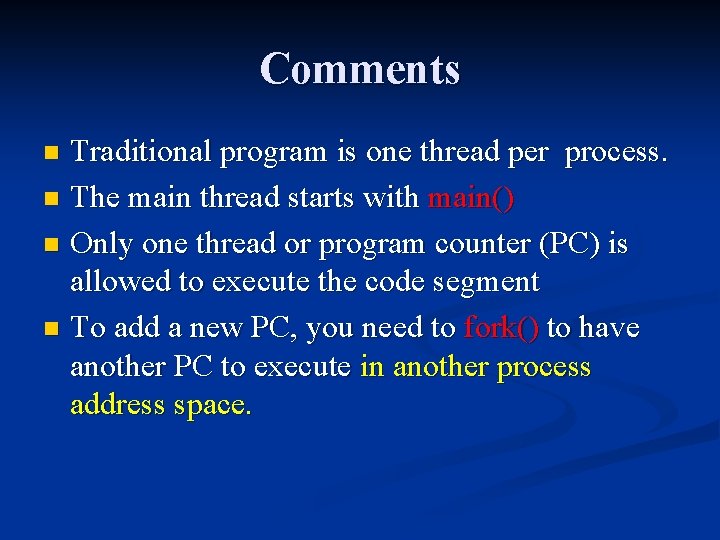

Comments Traditional program is one thread per process. n The main thread starts with main() n Only one thread or program counter (PC) is allowed to execute the code segment n To add a new PC, you need to fork() to have another PC to execute in another process address space. n

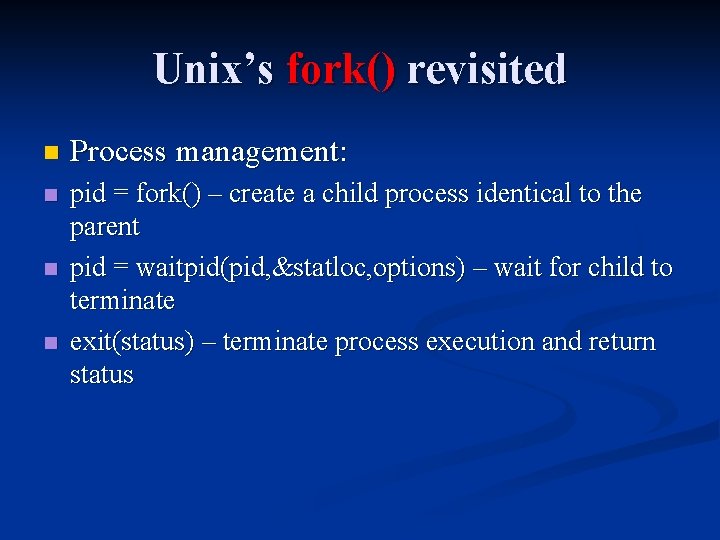

Unix’s fork() revisited n Process management: n pid = fork() – create a child process identical to the parent pid = waitpid(pid, &statloc, options) – wait for child to terminate exit(status) – terminate process execution and return status n n

fork() example void main() { if (fork() == 0) printf(“ in the child process”); else printf(“ in the parent process”); }

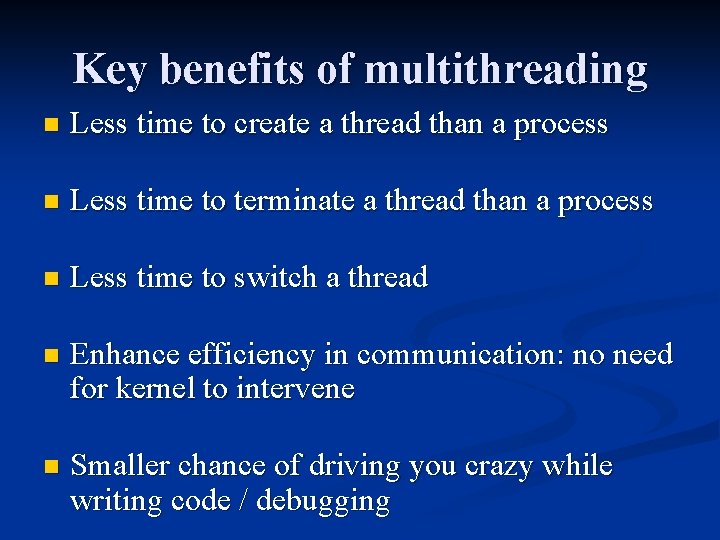

Key benefits of multithreading n Less time to create a thread than a process n Less time to terminate a thread than a process n Less time to switch a thread n Enhance efficiency in communication: no need for kernel to intervene n Smaller chance of driving you crazy while writing code / debugging

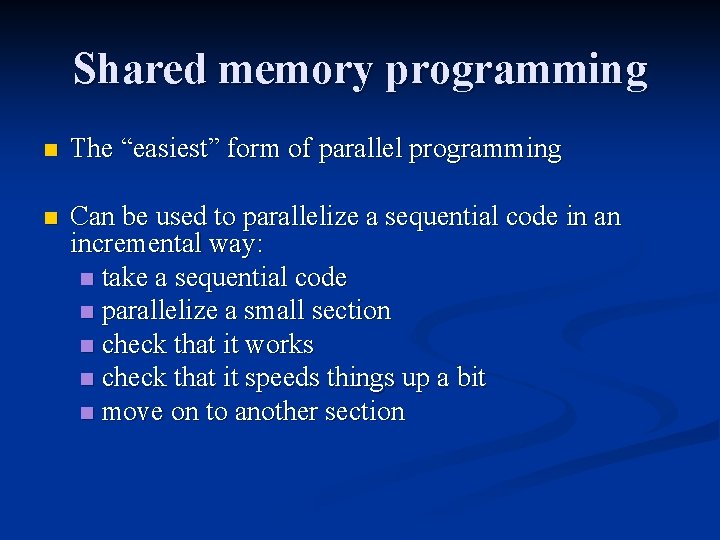

Shared memory programming n The “easiest” form of parallel programming n Can be used to parallelize a sequential code in an incremental way: n take a sequential code n parallelize a small section n check that it works n check that it speeds things up a bit n move on to another section

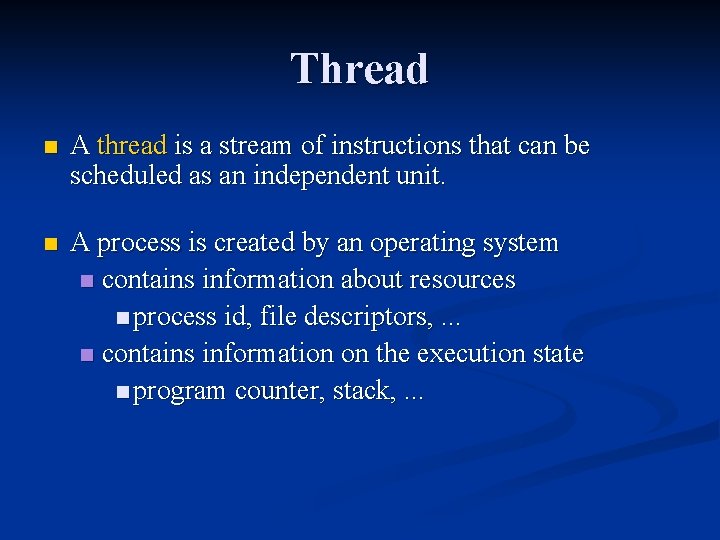

Thread n A thread is a stream of instructions that can be scheduled as an independent unit. n A process is created by an operating system n contains information about resources n process id, file descriptors, . . . n contains information on the execution state n program counter, stack, . . .

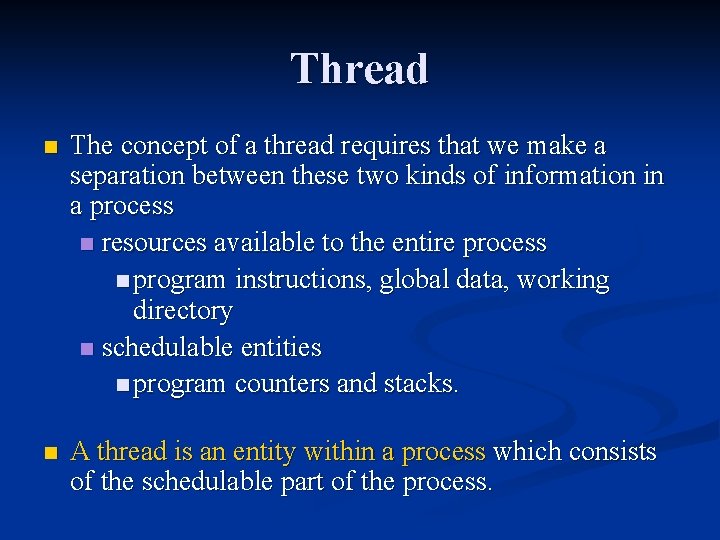

Thread n The concept of a thread requires that we make a separation between these two kinds of information in a process n resources available to the entire process n program instructions, global data, working directory n schedulable entities n program counters and stacks. n A thread is an entity within a process which consists of the schedulable part of the process.

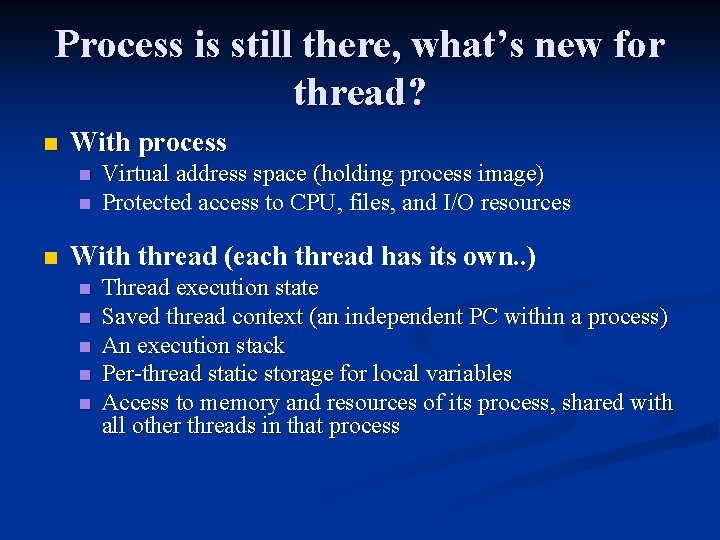

Process is still there, what’s new for thread? n With process n n n Virtual address space (holding process image) Protected access to CPU, files, and I/O resources With thread (each thread has its own. . ) n n n Thread execution state Saved thread context (an independent PC within a process) An execution stack Per-thread static storage for local variables Access to memory and resources of its process, shared with all other threads in that process

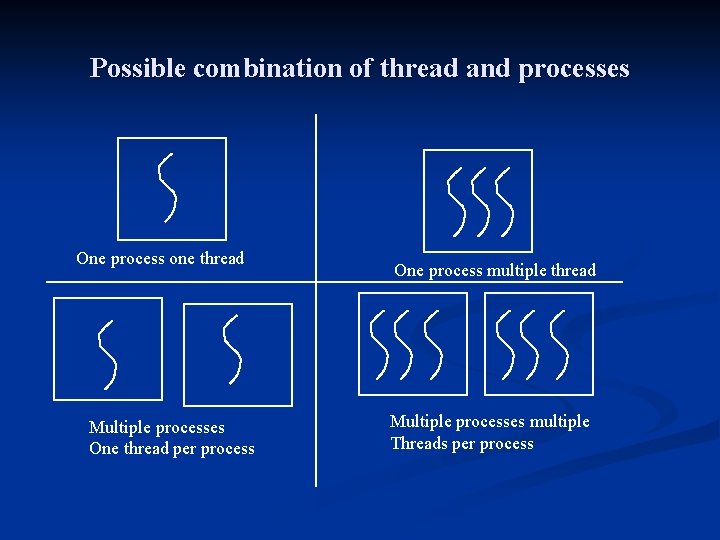

Possible combination of thread and processes One process one thread Multiple processes One thread per process One process multiple thread Multiple processes multiple Threads per process

Parallelism with Threads Create threads within a process n Each thread does something (hopefully) useful n Threads may be working truly concurrently n Multi-processor n Multi-core n n Or just pseudo-concurrently n Single-proc, single-core

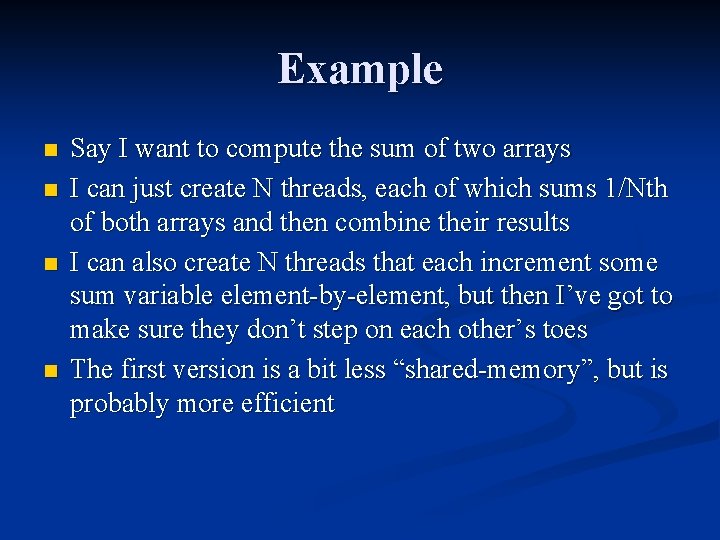

Example n n Say I want to compute the sum of two arrays I can just create N threads, each of which sums 1/Nth of both arrays and then combine their results I can also create N threads that each increment some sum variable element-by-element, but then I’ve got to make sure they don’t step on each other’s toes The first version is a bit less “shared-memory”, but is probably more efficient

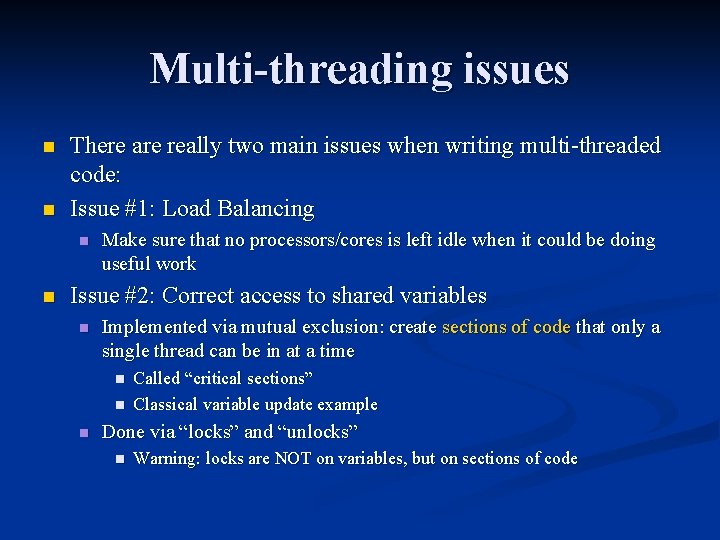

Multi-threading issues n n There are really two main issues when writing multi-threaded code: Issue #1: Load Balancing n n Make sure that no processors/cores is left idle when it could be doing useful work Issue #2: Correct access to shared variables n Implemented via mutual exclusion: create sections of code that only a single thread can be in at a time n n n Called “critical sections” Classical variable update example Done via “locks” and “unlocks” n Warning: locks are NOT on variables, but on sections of code

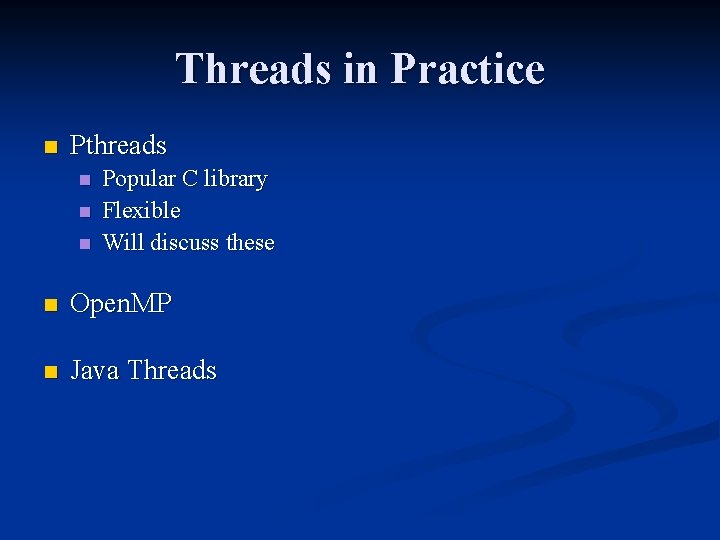

Threads in Practice n Pthreads n n n Popular C library Flexible Will discuss these n Open. MP n Java Threads

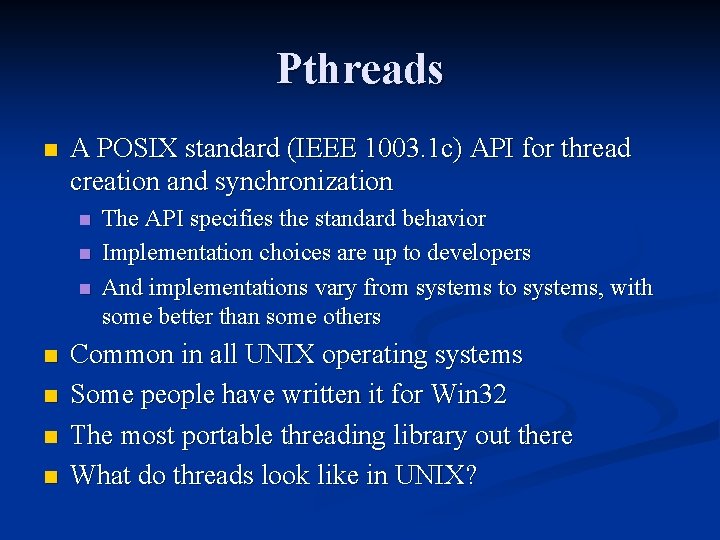

Pthreads n A POSIX standard (IEEE 1003. 1 c) API for thread creation and synchronization n n n The API specifies the standard behavior Implementation choices are up to developers And implementations vary from systems to systems, with some better than some others Common in all UNIX operating systems Some people have written it for Win 32 The most portable threading library out there What do threads look like in UNIX?

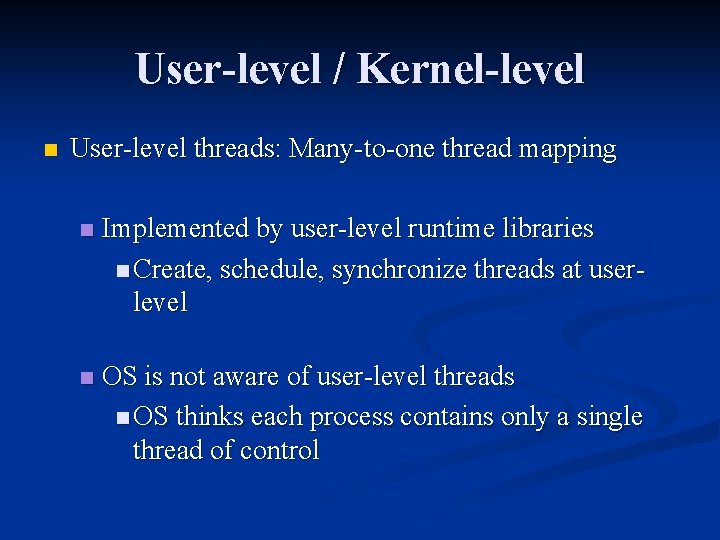

User-level / Kernel-level n User-level threads: Many-to-one thread mapping n Implemented by user-level runtime libraries n Create, schedule, synchronize threads at userlevel n OS is not aware of user-level threads n OS thinks each process contains only a single thread of control

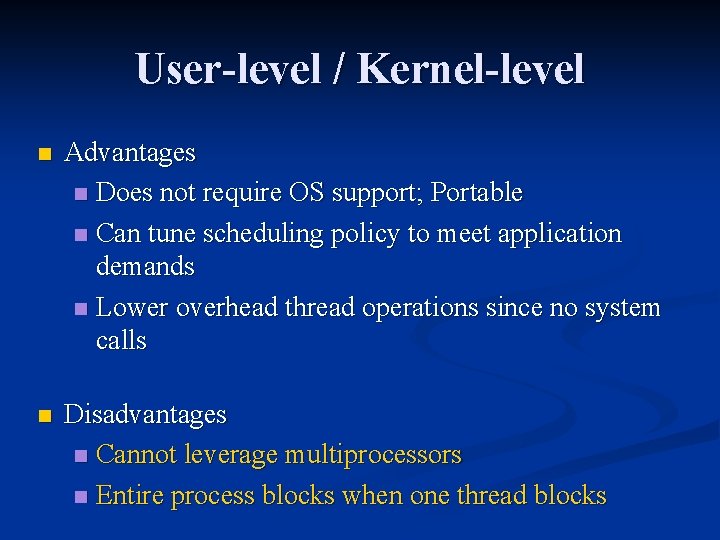

User-level / Kernel-level n Advantages n Does not require OS support; Portable n Can tune scheduling policy to meet application demands n Lower overhead thread operations since no system calls n Disadvantages n Cannot leverage multiprocessors n Entire process blocks when one thread blocks

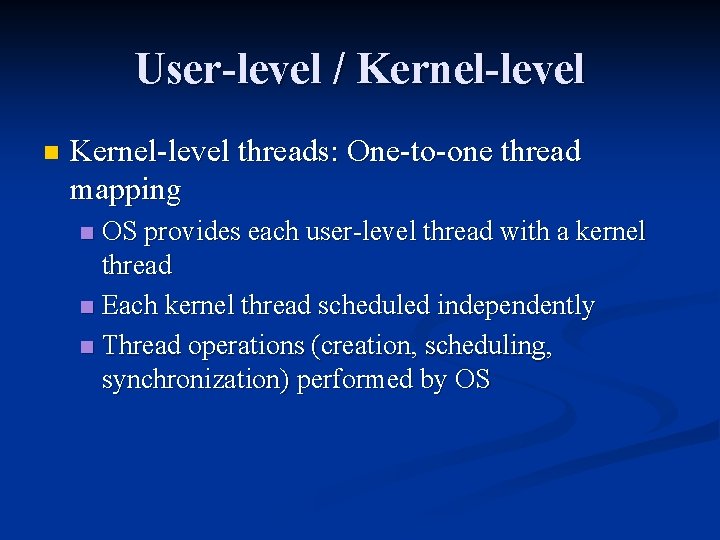

User-level / Kernel-level n Kernel-level threads: One-to-one thread mapping OS provides each user-level thread with a kernel thread n Each kernel thread scheduled independently n Thread operations (creation, scheduling, synchronization) performed by OS n

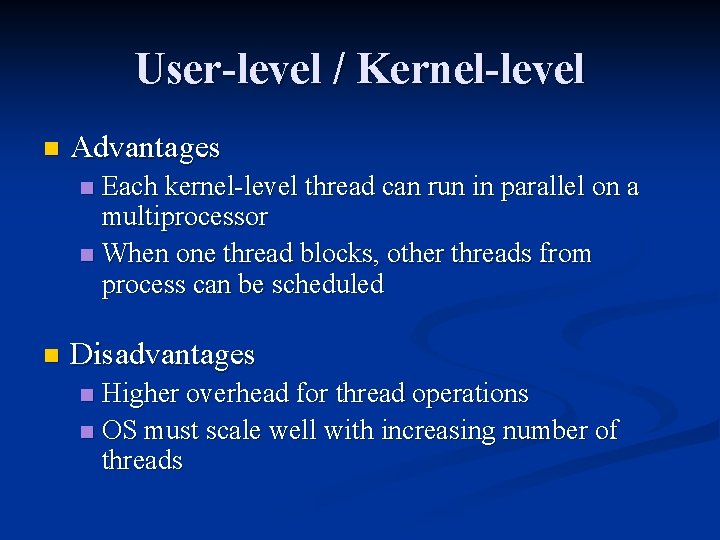

User-level / Kernel-level n Advantages Each kernel-level thread can run in parallel on a multiprocessor n When one thread blocks, other threads from process can be scheduled n n Disadvantages Higher overhead for thread operations n OS must scale well with increasing number of threads n

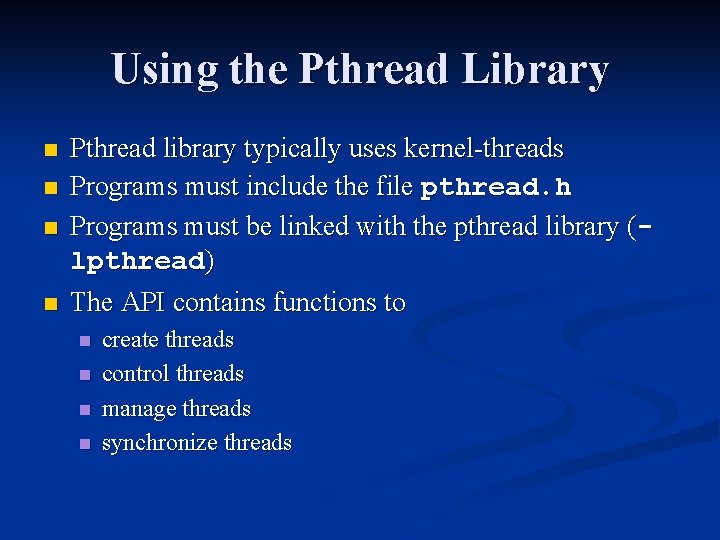

Using the Pthread Library n n Pthread library typically uses kernel-threads Programs must include the file pthread. h Programs must be linked with the pthread library (lpthread) The API contains functions to n n create threads control threads manage threads synchronize threads

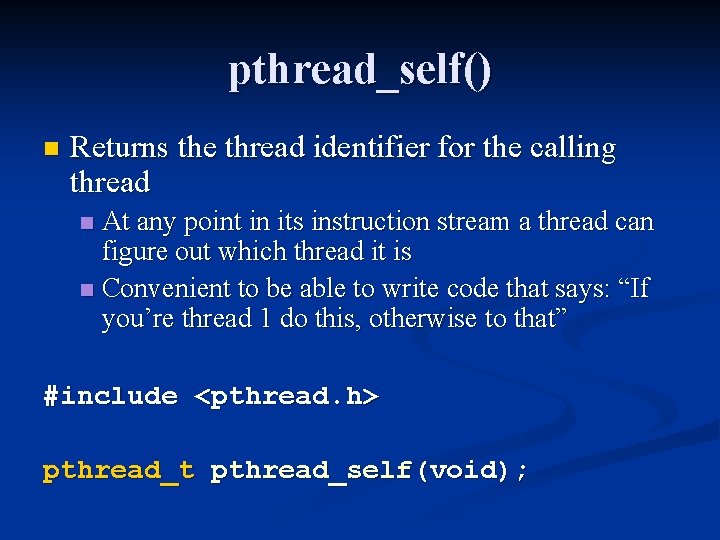

pthread_self() n Returns the thread identifier for the calling thread At any point in its instruction stream a thread can figure out which thread it is n Convenient to be able to write code that says: “If you’re thread 1 do this, otherwise to that” n #include <pthread. h> pthread_t pthread_self(void);

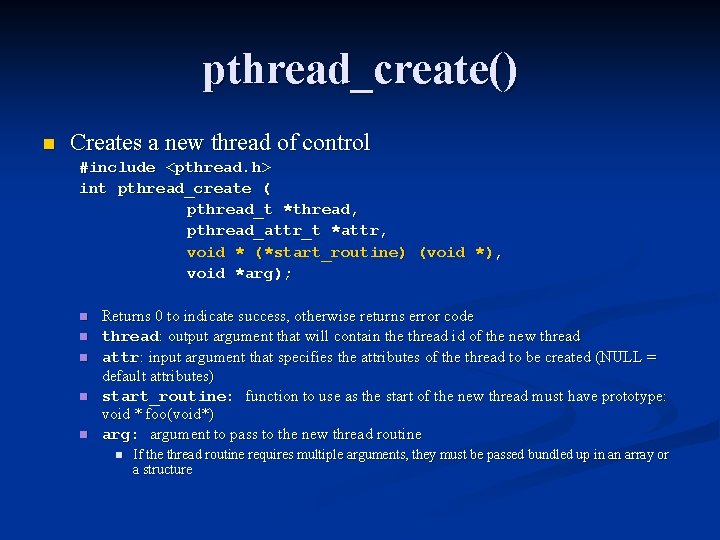

pthread_create() n Creates a new thread of control #include <pthread. h> int pthread_create ( pthread_t *thread, pthread_attr_t *attr, void * (*start_routine) (void *), void *arg); n n n Returns 0 to indicate success, otherwise returns error code thread: output argument that will contain the thread id of the new thread attr: input argument that specifies the attributes of the thread to be created (NULL = default attributes) start_routine: function to use as the start of the new thread must have prototype: void * foo(void*) arg: argument to pass to the new thread routine n If the thread routine requires multiple arguments, they must be passed bundled up in an array or a structure

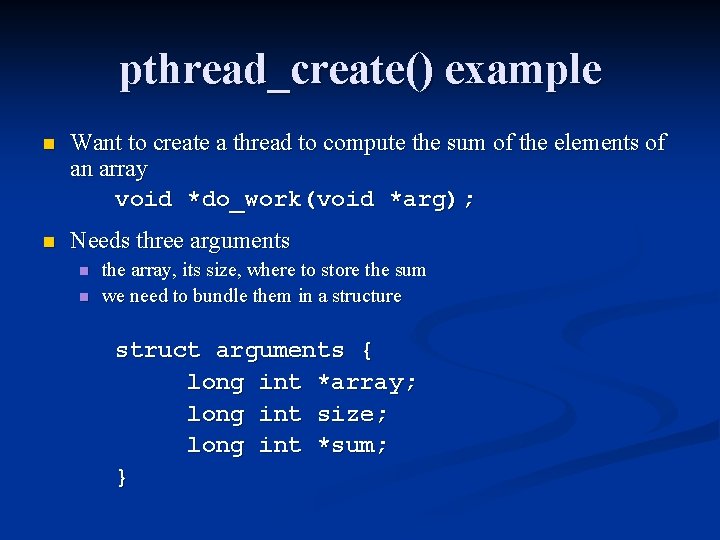

pthread_create() example n Want to create a thread to compute the sum of the elements of an array void *do_work(void *arg); n Needs three arguments n n the array, its size, where to store the sum we need to bundle them in a structure struct arguments { long int *array; long int size; long int *sum; }

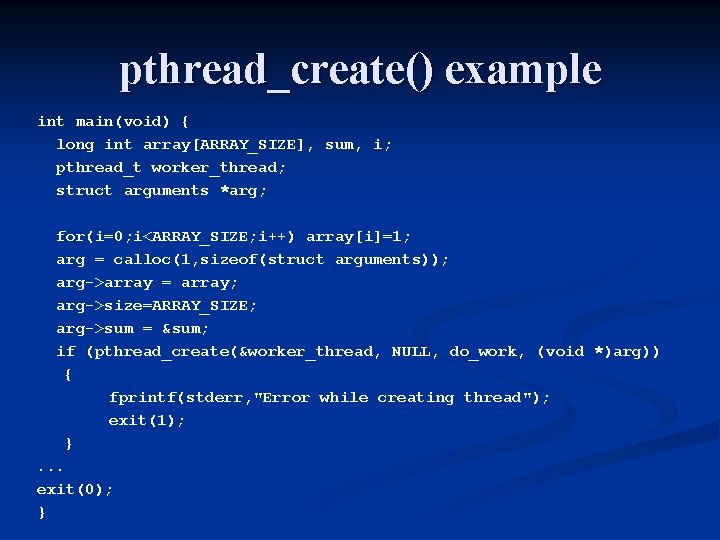

pthread_create() example int main(void) { long int array[ARRAY_SIZE], sum, i; pthread_t worker_thread; struct arguments *arg; for(i=0; i<ARRAY_SIZE; i++) array[i]=1; arg = calloc(1, sizeof(struct arguments)); arg->array = array; arg->size=ARRAY_SIZE; arg->sum = ∑ if (pthread_create(&worker_thread, NULL, do_work, (void *)arg)) { fprintf(stderr, "Error while creating thread"); exit(1); }. . . exit(0); }

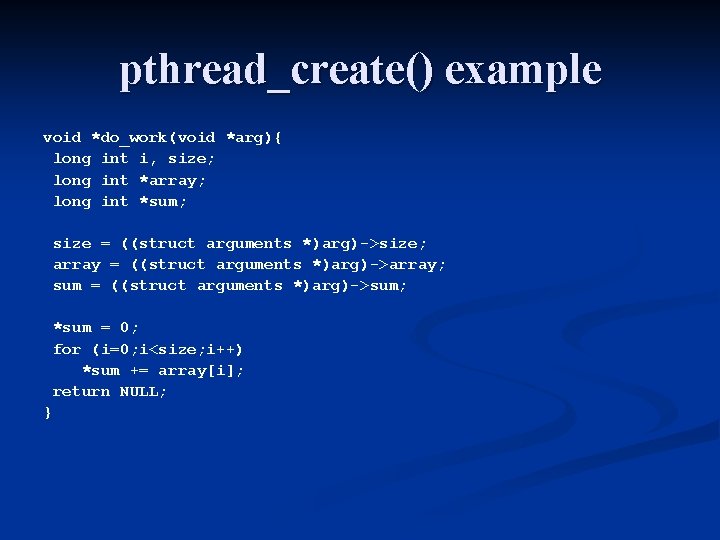

pthread_create() example void *do_work(void *arg){ long int i, size; long int *array; long int *sum; size = ((struct arguments *)arg)->size; array = ((struct arguments *)arg)->array; sum = ((struct arguments *)arg)->sum; *sum = 0; for (i=0; i<size; i++) *sum += array[i]; return NULL; }

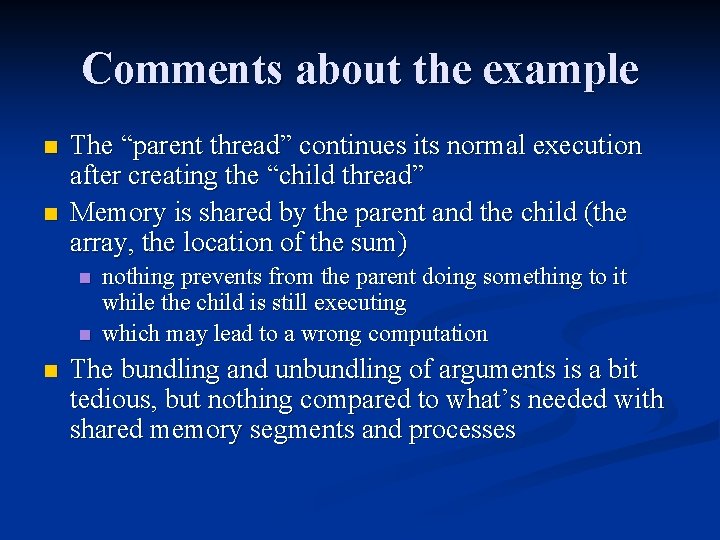

Comments about the example n n The “parent thread” continues its normal execution after creating the “child thread” Memory is shared by the parent and the child (the array, the location of the sum) n nothing prevents from the parent doing something to it while the child is still executing which may lead to a wrong computation The bundling and unbundling of arguments is a bit tedious, but nothing compared to what’s needed with shared memory segments and processes

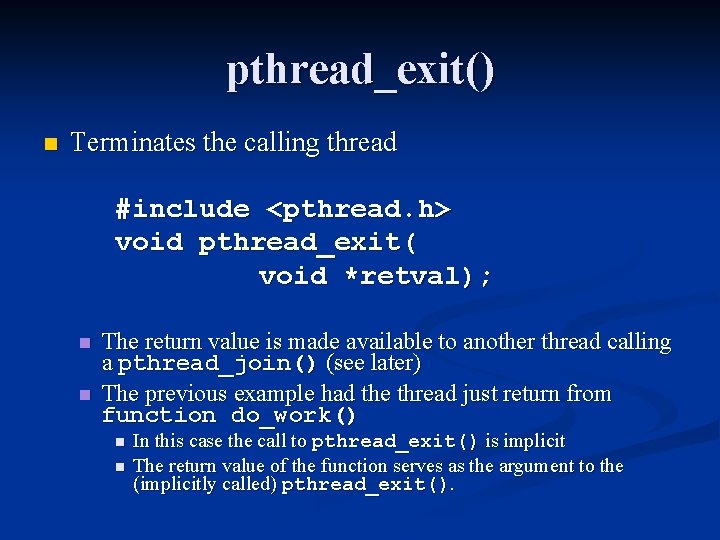

pthread_exit() n Terminates the calling thread #include <pthread. h> void pthread_exit( void *retval); n n The return value is made available to another thread calling a pthread_join() (see later) The previous example had the thread just return from function do_work() n n In this case the call to pthread_exit() is implicit The return value of the function serves as the argument to the (implicitly called) pthread_exit().

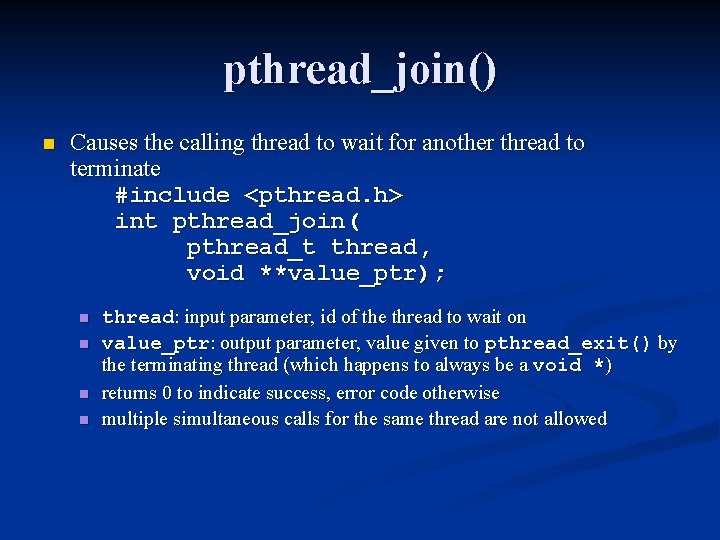

pthread_join() n Causes the calling thread to wait for another thread to terminate #include <pthread. h> int pthread_join( pthread_t thread, void **value_ptr); n n thread: input parameter, id of the thread to wait on value_ptr: output parameter, value given to pthread_exit() by the terminating thread (which happens to always be a void *) returns 0 to indicate success, error code otherwise multiple simultaneous calls for the same thread are not allowed

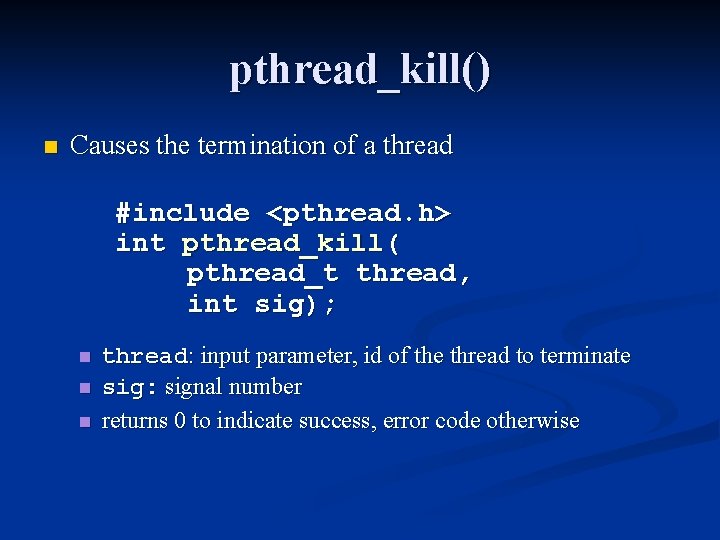

pthread_kill() n Causes the termination of a thread #include <pthread. h> int pthread_kill( pthread_t thread, int sig); n n n thread: input parameter, id of the thread to terminate sig: signal number returns 0 to indicate success, error code otherwise

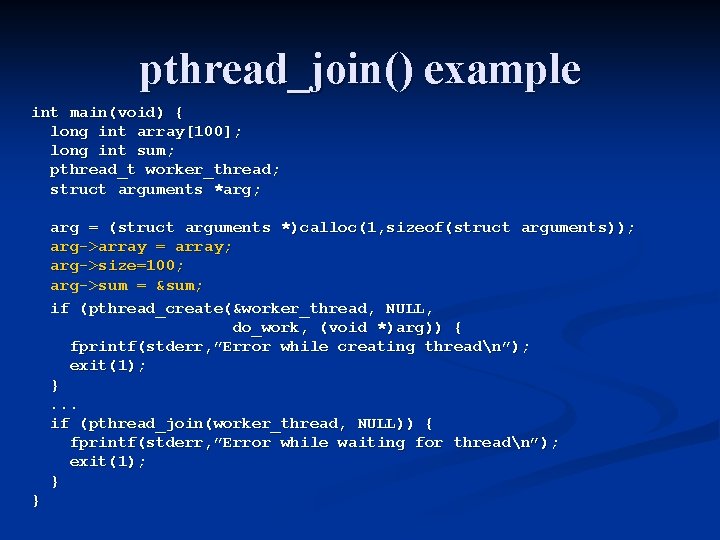

pthread_join() example int main(void) { long int array[100]; long int sum; pthread_t worker_thread; struct arguments *arg; arg = (struct arguments *)calloc(1, sizeof(struct arguments)); arg->array = array; arg->size=100; arg->sum = ∑ if (pthread_create(&worker_thread, NULL, do_work, (void *)arg)) { fprintf(stderr, ”Error while creating threadn”); exit(1); }. . . if (pthread_join(worker_thread, NULL)) { fprintf(stderr, ”Error while waiting for threadn”); exit(1); } }

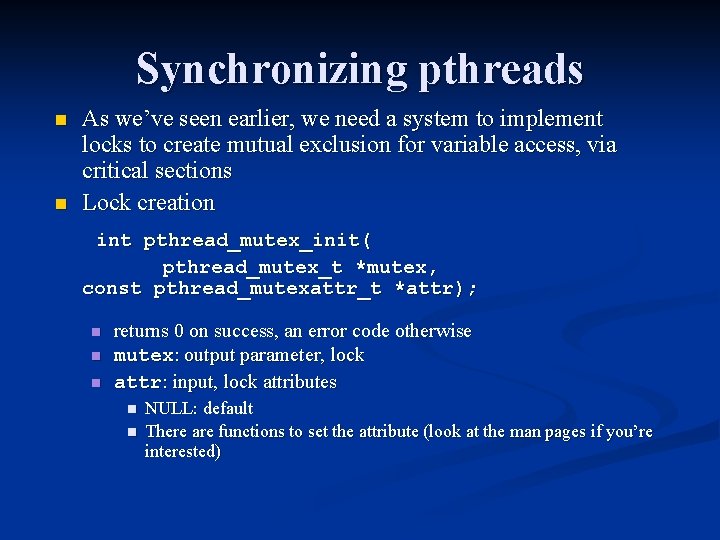

Synchronizing pthreads n n As we’ve seen earlier, we need a system to implement locks to create mutual exclusion for variable access, via critical sections Lock creation int pthread_mutex_init( pthread_mutex_t *mutex, const pthread_mutexattr_t *attr); n n n returns 0 on success, an error code otherwise mutex: output parameter, lock attr: input, lock attributes n n NULL: default There are functions to set the attribute (look at the man pages if you’re interested)

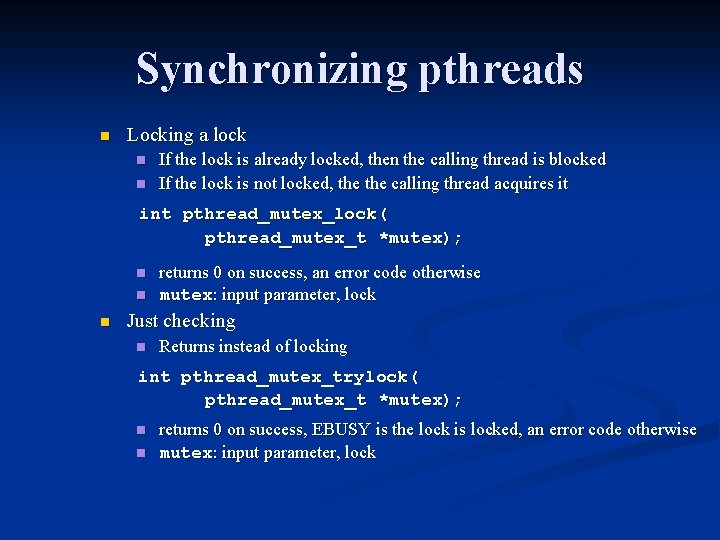

Synchronizing pthreads n Locking a lock n n If the lock is already locked, then the calling thread is blocked If the lock is not locked, the calling thread acquires it int pthread_mutex_lock( pthread_mutex_t *mutex); n n n returns 0 on success, an error code otherwise mutex: input parameter, lock Just checking n Returns instead of locking int pthread_mutex_trylock( pthread_mutex_t *mutex); n n returns 0 on success, EBUSY is the lock is locked, an error code otherwise mutex: input parameter, lock

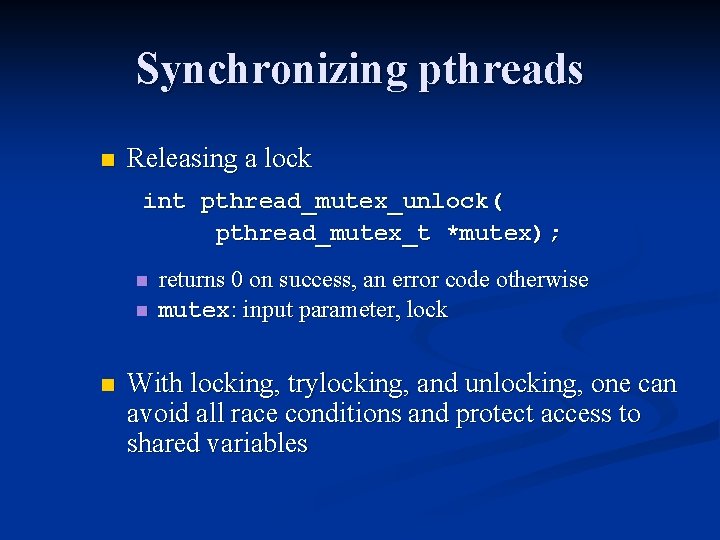

Synchronizing pthreads n Releasing a lock int pthread_mutex_unlock( pthread_mutex_t *mutex); n n n returns 0 on success, an error code otherwise mutex: input parameter, lock With locking, trylocking, and unlocking, one can avoid all race conditions and protect access to shared variables

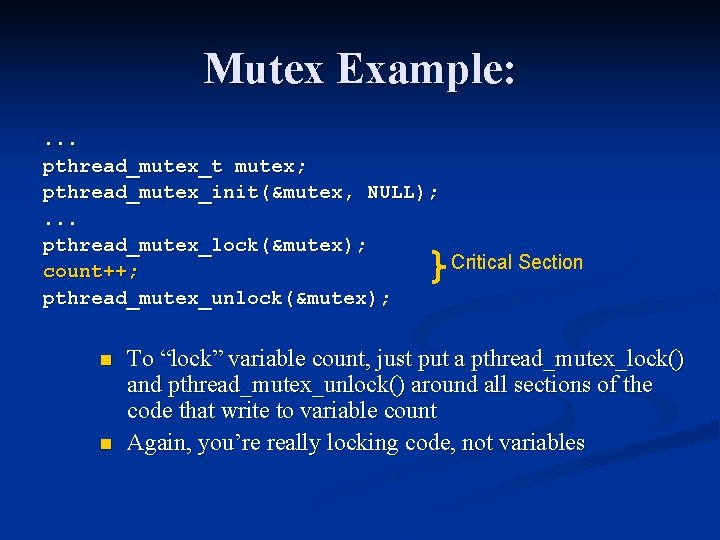

Mutex Example: . . . pthread_mutex_t mutex; pthread_mutex_init(&mutex, NULL); . . . pthread_mutex_lock(&mutex); Critical Section count++; pthread_mutex_unlock(&mutex); n n To “lock” variable count, just put a pthread_mutex_lock() and pthread_mutex_unlock() around all sections of the code that write to variable count Again, you’re really locking code, not variables

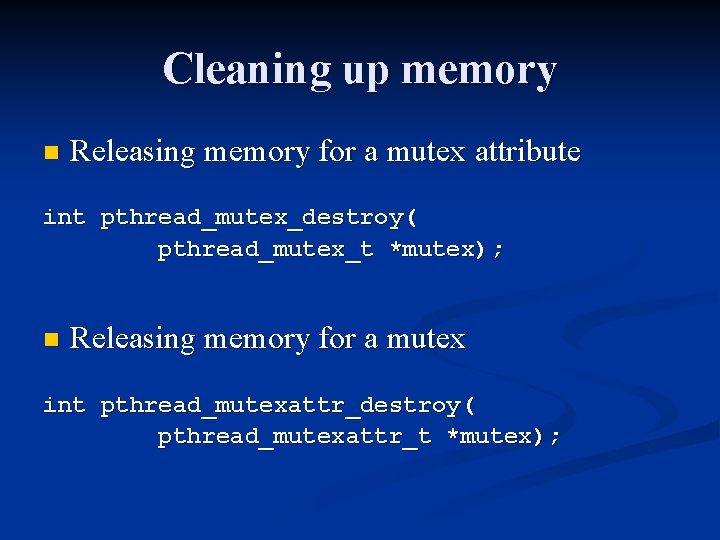

Cleaning up memory n Releasing memory for a mutex attribute int pthread_mutex_destroy( pthread_mutex_t *mutex); n Releasing memory for a mutex int pthread_mutexattr_destroy( pthread_mutexattr_t *mutex);

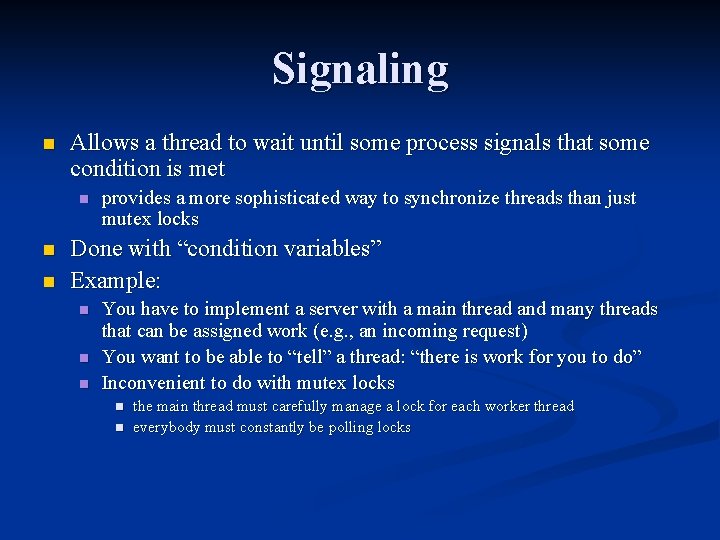

Signaling n Allows a thread to wait until some process signals that some condition is met n n n provides a more sophisticated way to synchronize threads than just mutex locks Done with “condition variables” Example: n n n You have to implement a server with a main thread and many threads that can be assigned work (e. g. , an incoming request) You want to be able to “tell” a thread: “there is work for you to do” Inconvenient to do with mutex locks n n the main thread must carefully manage a lock for each worker thread everybody must constantly be polling locks

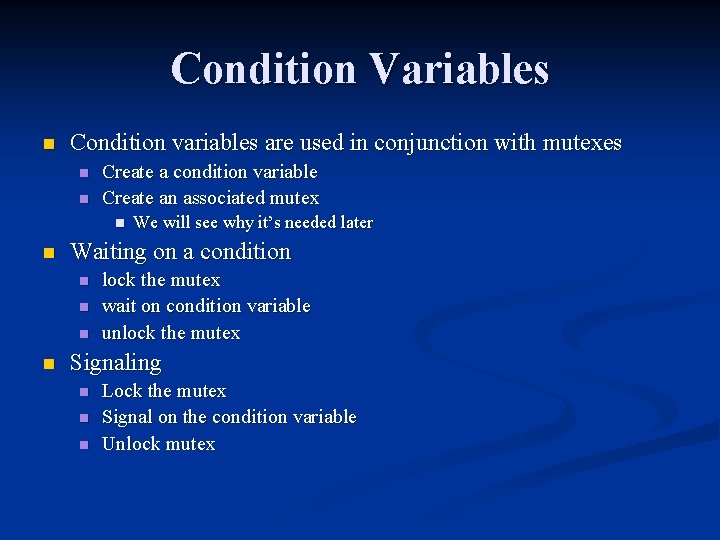

Condition Variables n Condition variables are used in conjunction with mutexes n n Create a condition variable Create an associated mutex n n Waiting on a condition n n We will see why it’s needed later lock the mutex wait on condition variable unlock the mutex Signaling n n n Lock the mutex Signal on the condition variable Unlock mutex

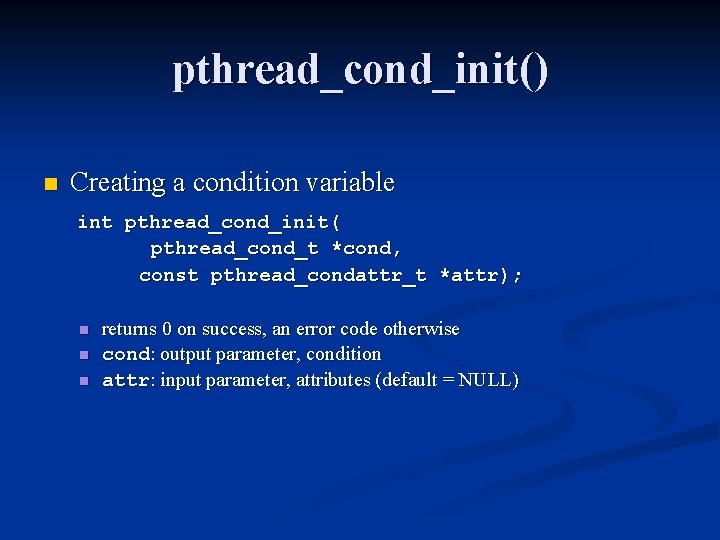

pthread_cond_init() n Creating a condition variable int pthread_cond_init( pthread_cond_t *cond, const pthread_condattr_t *attr); n n n returns 0 on success, an error code otherwise cond: output parameter, condition attr: input parameter, attributes (default = NULL)

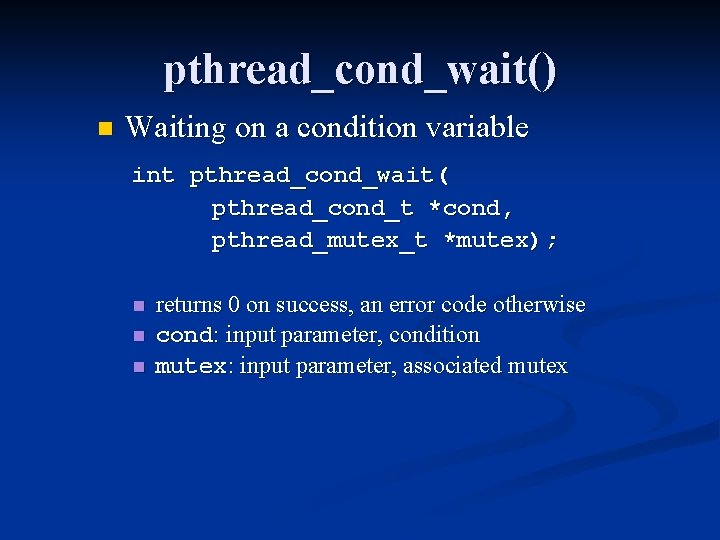

pthread_cond_wait() n Waiting on a condition variable int pthread_cond_wait( pthread_cond_t *cond, pthread_mutex_t *mutex); n n n returns 0 on success, an error code otherwise cond: input parameter, condition mutex: input parameter, associated mutex

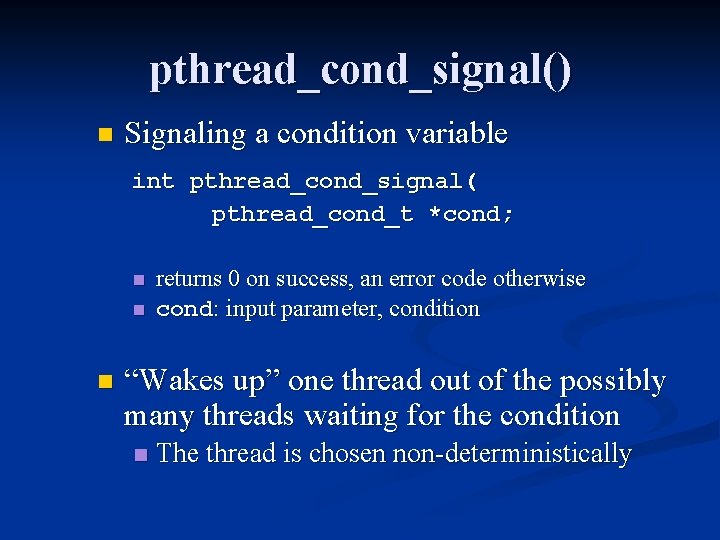

pthread_cond_signal() n Signaling a condition variable int pthread_cond_signal( pthread_cond_t *cond; n n n returns 0 on success, an error code otherwise cond: input parameter, condition “Wakes up” one thread out of the possibly many threads waiting for the condition n The thread is chosen non-deterministically

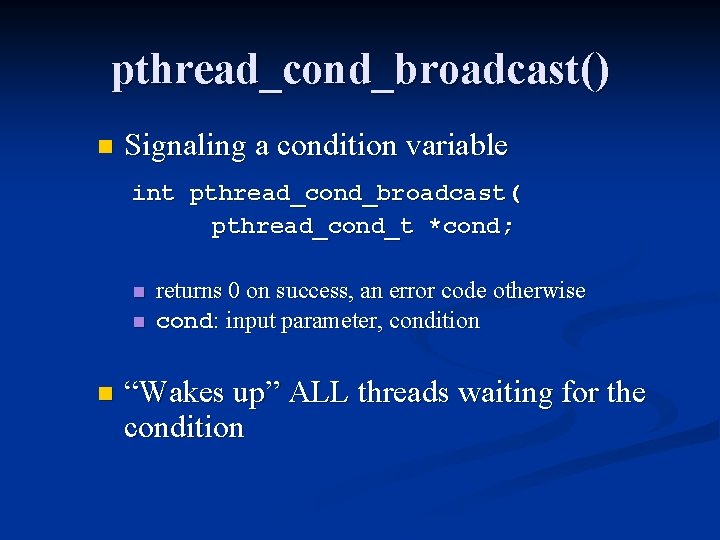

pthread_cond_broadcast() n Signaling a condition variable int pthread_cond_broadcast( pthread_cond_t *cond; n n n returns 0 on success, an error code otherwise cond: input parameter, condition “Wakes up” ALL threads waiting for the condition

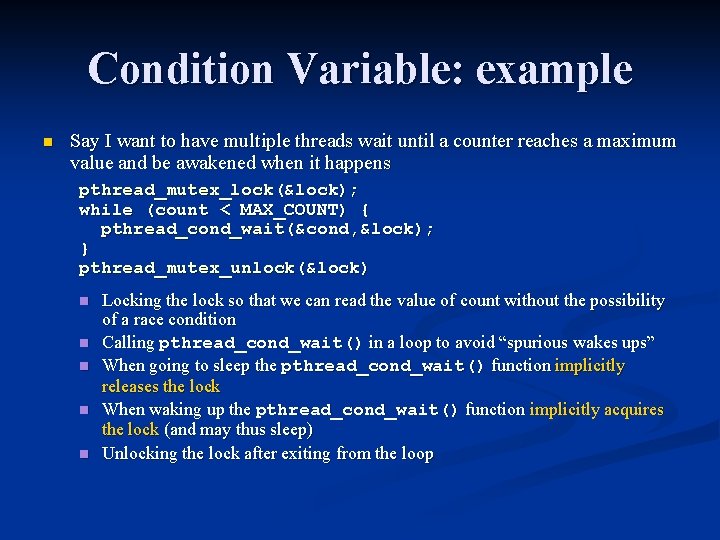

Condition Variable: example n Say I want to have multiple threads wait until a counter reaches a maximum value and be awakened when it happens pthread_mutex_lock(&lock); while (count < MAX_COUNT) { pthread_cond_wait(&cond, &lock); } pthread_mutex_unlock(&lock) n n n Locking the lock so that we can read the value of count without the possibility of a race condition Calling pthread_cond_wait() in a loop to avoid “spurious wakes ups” When going to sleep the pthread_cond_wait() function implicitly releases the lock When waking up the pthread_cond_wait() function implicitly acquires the lock (and may thus sleep) Unlocking the lock after exiting from the loop

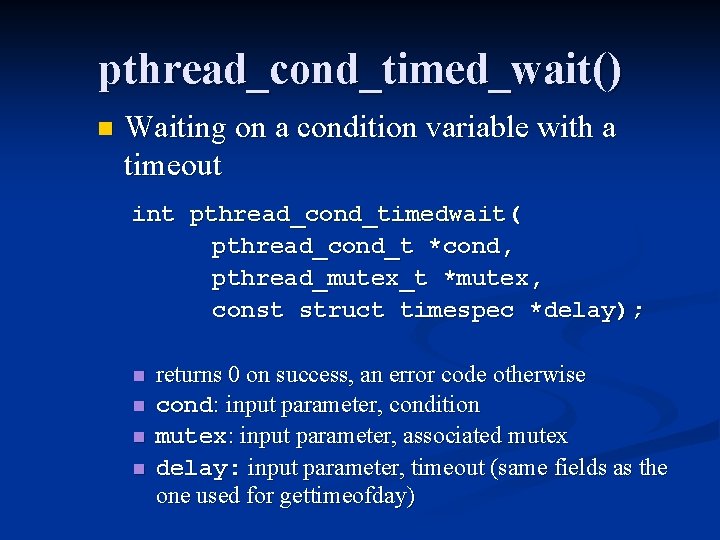

pthread_cond_timed_wait() n Waiting on a condition variable with a timeout int pthread_cond_timedwait( pthread_cond_t *cond, pthread_mutex_t *mutex, const struct timespec *delay); n n returns 0 on success, an error code otherwise cond: input parameter, condition mutex: input parameter, associated mutex delay: input parameter, timeout (same fields as the one used for gettimeofday)

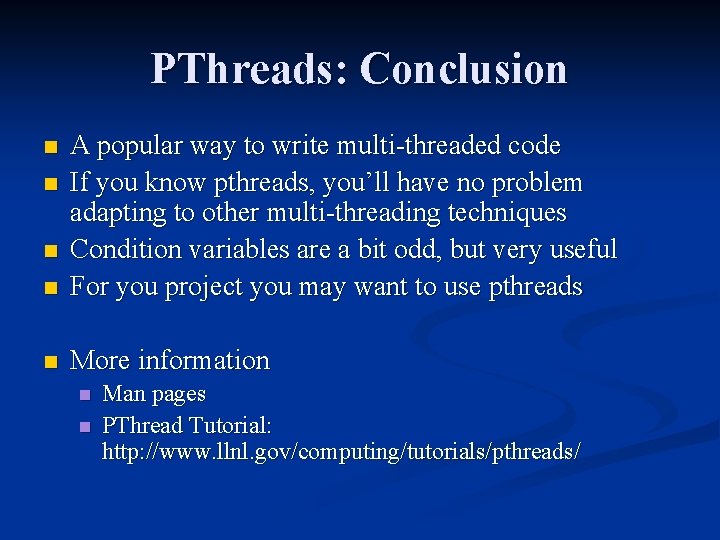

PThreads: Conclusion n A popular way to write multi-threaded code If you know pthreads, you’ll have no problem adapting to other multi-threading techniques Condition variables are a bit odd, but very useful For you project you may want to use pthreads n More information n n Man pages PThread Tutorial: http: //www. llnl. gov/computing/tutorials/pthreads/
