Share Point 2007 Enterprise Content Management ECM Deep
- Slides: 56
Share. Point 2007: Enterprise Content Management (ECM) Deep Dive Erik Mau Inetium
INTRODUCTION
Today’s Agenda • • • Share. Point Overview ECM Foundation: Document Management Records Management Web Content Management Q&A
SHAREPOINT OVERVIEW

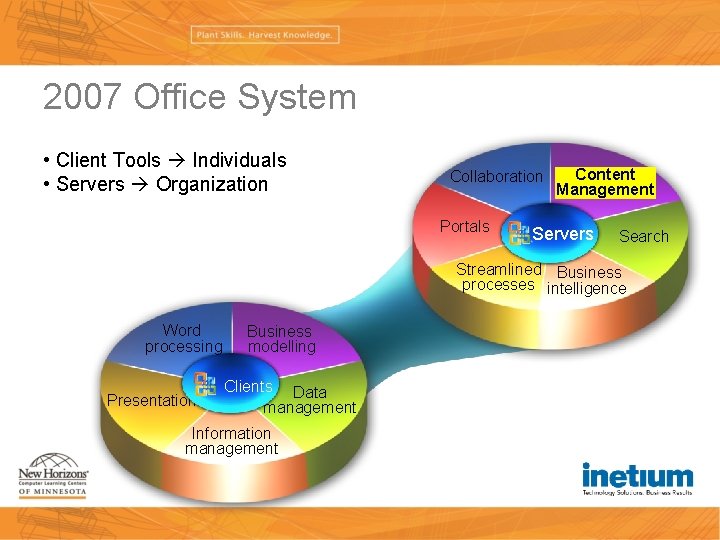

2007 Office System • Client Tools Individuals • Servers Organization Collaboration Portals Content Management Servers Search Streamlined Business processes intelligence Word processing Presentations Business modelling Clients Data management Information management
Share. Point Concepts • • • Content Database Site Collection Site List / Library Web Part
ECM Concepts • Document Management – “A computer system (or set of computer programs) used to track and store electronic documents and / or images of paper documents. ” Wikipedia
ECM Concepts • Records Management – “Practice of identifying, classifying, archiving, preserving, and destroying records. ” Wikipedia
ECM Concepts • Web Content Management – “A content management system usually implemented as a web application for creating and managing HTML content. ” Wikipedia
Before we begin… What do you want to hear about? What does ECM mean to you?
DOCUMENT MANAGEMENT

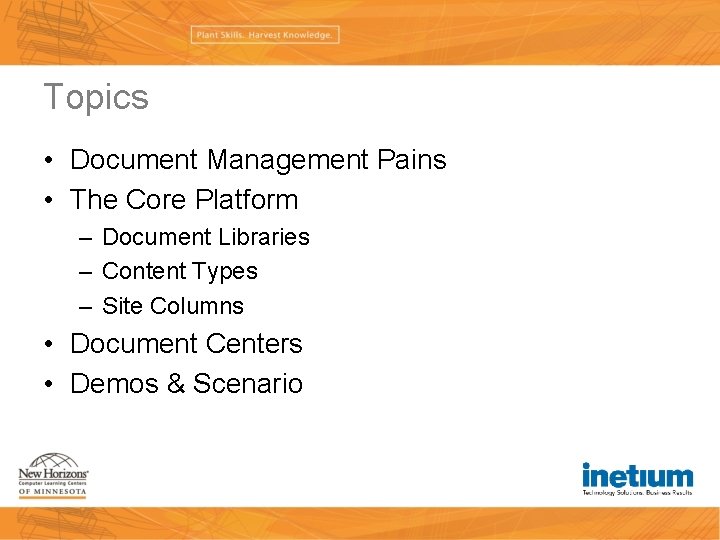

Topics • Document Management Pains • The Core Platform – Document Libraries – Content Types – Site Columns • Document Centers • Demos & Scenario
Document Management Pains
Document Libraries • Document storage • Security – Library-level Security – Folder and Item-level Security – Require Content Approval – Draft Item Security
Document Libraries • Versioning – – Check-in / Checkout Major and Minor Versioning Version Management Require Checkout
Document Libraries • Workflows – – – Approval Collect Feedback Collect Signatures Disposition Approval Custom…
Document Libraries • Metadata (a. k. a. Columns) – Provide context – Options: • • • Text Lookups Dates Boolean Custom
Document Libraries • Views – Provide different display based on metadata captured – Options: • Filtering • Sorting • Grouping
Document Libraries • Capabilities – – – – Upload single / multiple Datasheet Mode Explorer View Outlook 2007 Integration RSS / Alerts Recycle Bin Send To
DEMO DOCUMENT MANAGEMENT BASICS
An Analogy
An Analogy • • • Label = Content Type (Metadata, Template) How old = Retention / Disposition Policy Where has it been = Auditing How do I prepare = Workflow Who can enter the pantry = Security

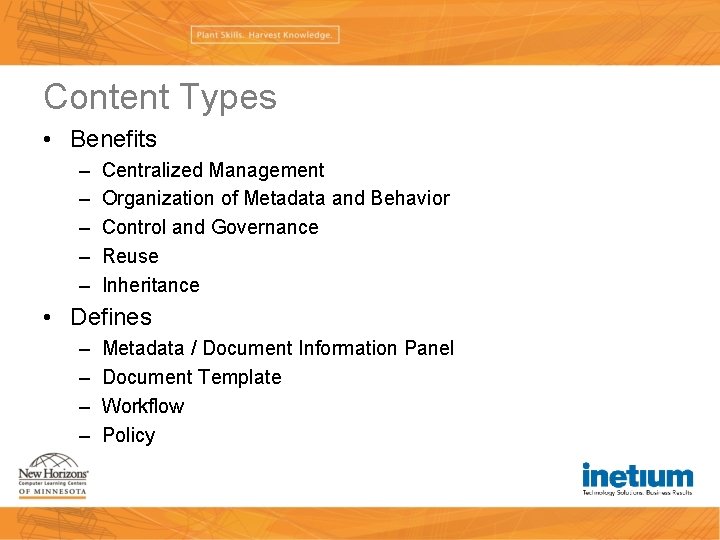

Content Types • Benefits – – – Centralized Management Organization of Metadata and Behavior Control and Governance Reuse Inheritance • Defines – – Metadata / Document Information Panel Document Template Workflow Policy
Content Types: Management • Top-level site “gallery” • Child sites inherit
Content Types: Management • Name / Description • Parent Content Type • Group

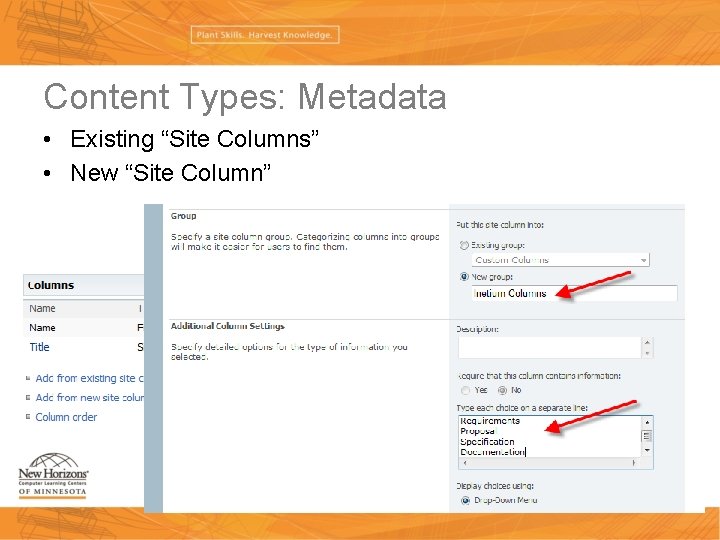

Content Types: Metadata • Existing “Site Columns” • New “Site Column”

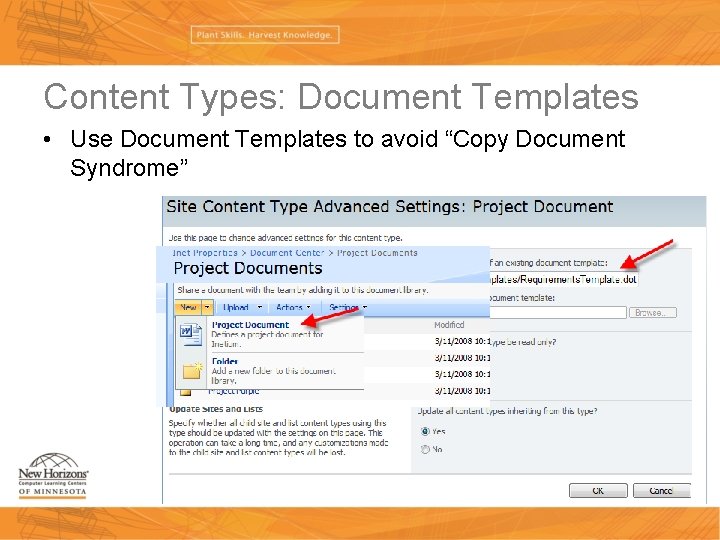

Content Types: Document Templates • Use Document Templates to avoid “Copy Document Syndrome”
Content Types: Policy • Policy enforcement • Capabilities – – – Labels Auditing Expiration Barcodes Custom
Content Types: The DIP • Document Information Panel • Info. Path 2007 Form • Requires Office 2007
Let’s do some “whiteboarding”…
Document Center Site Template • • • Site template dedicated to document management Content Types enabled Versioning Settings enabled Tree View enabled Relevant Documents Web Part
Constraints and Suggested Practices Constraint Suggested Practice Site Collection Limitations • Content Types • Site Columns Leverage Share. Point “Features” to “staple” company content types and site columns to site collections. Versioning on Document Libraries Plan out content types and corresponding document libraries to ensure versioning is applied appropriately. # of Documents per “Level” (2, 000 Documents) Plan document balancing techniques by using folders or “automated” balancing techniques using Event Handlers. Capacity Plan out Document Centers to align to content databases. Share. Point Groups and Indexing Leverage AD Groups instead of Share. Point Groups to avoid full crawls of large repositories.
Scenario: Policies and Procedures Litware, Inc. would like to use the document management capabilities of Share. Point 2007 to manage and publish approved policies and procedures. Policies and procedures must be reviewed by a core group of “reviewers” at Litware, Inc. on a yearly basis. Solution: -Policy and Procedures Content Type -Approval Workflow -Expiration Policy for Review -Label for Policy Information -Company Document Center -Associate Content Type to Library
RECORDS MANAGEMENT
Topics • • Records Management Concepts Records Center Site Template Do. D 5015. 2 Scenario
Records Management Concepts • Documents authored and initially managed in a “collaboration” space • “Official” documents must be retained to comply with legislation – – – Logically categorized and organized Available Immutable Auditable Disposable Suspend Disposition
Records Center • Site template dedicated to records management – Record Routing – Hold Management – Unclassified Records Management • Owned by “Records Managers”
Records Center: Farm Configuration • Share. Point provides one record center per Farm • Configured in Central Administration
Records Center: Routing Configuration • Define a “route” for records based on content type • Checks content type of incoming document and “routes” to defined document library.
Records Center: Record Routing • Corresponding Document Library is configured in Records Repository – Define required metadata columns / associate content type – Define auditing – Define policies • Checks content type of incoming document and “routes” it to defined document library. • Deposits document and metadata in corresponding library. – Metadata stored in XML and promoted to available columns – Version history • Unique document name generated to avoid overwrite

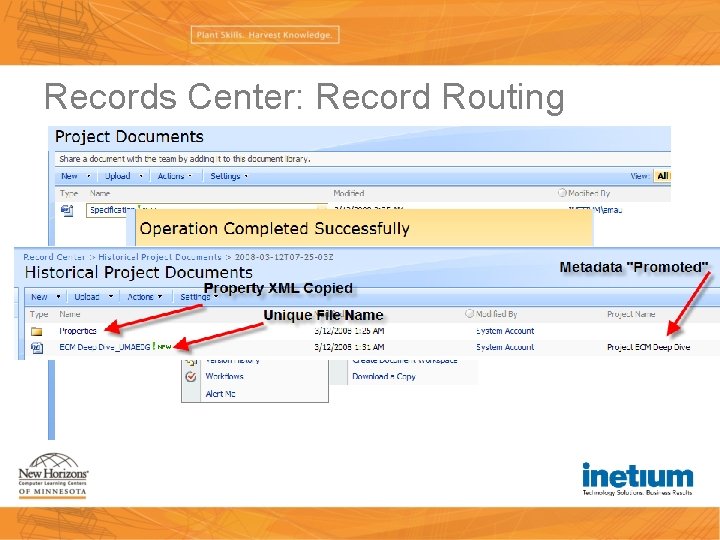

Records Center: Record Routing

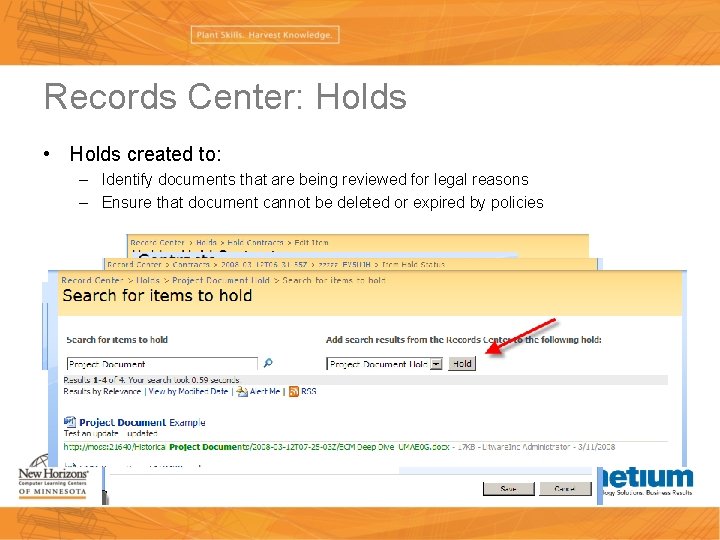

Records Center: Holds • Holds created to: – Identify documents that are being reviewed for legal reasons – Ensure that document cannot be deleted or expired by policies
Do. D 5015. 2: Resource Kit • US Department of Defense Standard • Available for companies that must comply to these standards • Deployed as a set of “Features” that provide enhanced capabilities to the default records center site. • Additional Information: http: //www. microsoft. com/sharepoint/capabilities/ecm/dod 5015. mspx
Constraints and Suggested Practices Constraint Suggested Practice Site Collection Limitations • Content Types • Site Columns Leverage Share. Point “Features” to “staple” company content types and site columns to records repository site collections. Single Records Center per Farm Implement a custom router to route documents to appropriate record center. Capacity Plan out Record Centers to align to content databases. Share. Point Groups and Indexing Leverage AD Groups instead of Share. Point Groups to avoid full crawls of large repositories.
Scenario: Project Close-out Litware, Inc. is required to retain all documents related to capital projects for compliance reasons. They are currently using Microsoft Office Share. Point Server 2007 for management of project documents. All project documents must be retained for 7 years from the completion date of the project. Solution: -Document Library for Project Documents -Project Document Content Type with Metadata -Creation of Record Center -Configure Record Routing -Configure Historical Project Document Repository and Required Metadata -Define Auditing and Policy for Record Retention
WEB CONTENT MANAGEMENT
Topics • Publishing Sites • Content Types and Page Layouts • Managing Web Content
Publishing Sites • Site template configured with web content management features enabled – – Page Layout Content Types Page Layouts Content Pages Page Libraries
Page Layout Content Types • Out-of-the-box Content Types for Publishing – Article Page – Redirect Page – Welcome Page
Page Layouts • • Web page templates that define the content layout Created in Share. Point Designer (optional) “Married” to the page layout content type Field and Content Controls = Metadata from Content Type
Content Pages • Content Page = Document in a Library • Instance of a page layout • WYSIWYG
Content Pages: Page Editing Toolbar • • Check In / Checkout and Publish Spell Check Workflow Unpublished Items
Page Library • Storage for content pages • Page content is metadata on the page! • Familiar document management concepts apply
WEB CONTENT MANAGEMENT DEMO
Scenario: Press Releases Litware, Inc. has been using Share. Point internally for document management and collaboration. Given the employee’s familiarity with the toolset, the marketing department would like to build their publicfacing site on Share. Point. Employees in the marketing department create press releases on a weekly basis and want to make sure that the content is reviewed and approved before it goes live. Solution: -Create Publishing Site -Define Press Release Content Type and Page Layout -Configure Approval Workflow and Scheduling
SUMMARY AND Q&A
