SHAKEN Know Your Customer Jim Mc Eachern Principal

SHAKEN & Know Your Customer Jim Mc. Eachern Principal Technologist ATIS October 2018 Advancing ICT Industry Transformation

SHAKEN & Analytics SHAKEN AS • • STI-GA/PA - Governance “Root of Trust” Call Blocking STI-CA “Certificate Management” Display to user “Call Processing” VS Sign “good TNs” Provide traceability Ensure correct use of STI certificates Enabling technology WC Docket No. 17 -97 Call Authentication Trust Anchor Analytics / CVT • • Analyze robocall/spoofing data Detect fraudulent calls Block unwanted calls (at user’s request) Provide a consumer service CG Docket No. 17 -59 Advanced Methods to Target and Eliminate Unlawful Robocalls 2

SHAKEN • SHAKEN verifies that the entity originating a call is entitled to use the phone number displayed – nothing more! • SHAKEN builds on the information the originating carrier has about the calling party. • The originating service provider can only attest to “what it knows”. Enterprise Carrier 0 SHAKEN Carrier 2 3

Call Origination Scenario Platform 1. 555. 0123 1. 555. 0124 1. 555. 0125 1. 555. 0126 1. 555. 0127 … Call Center Multiple Originating Carriers Enterprise Typical real-world call origination scenarios are far more complex. 4

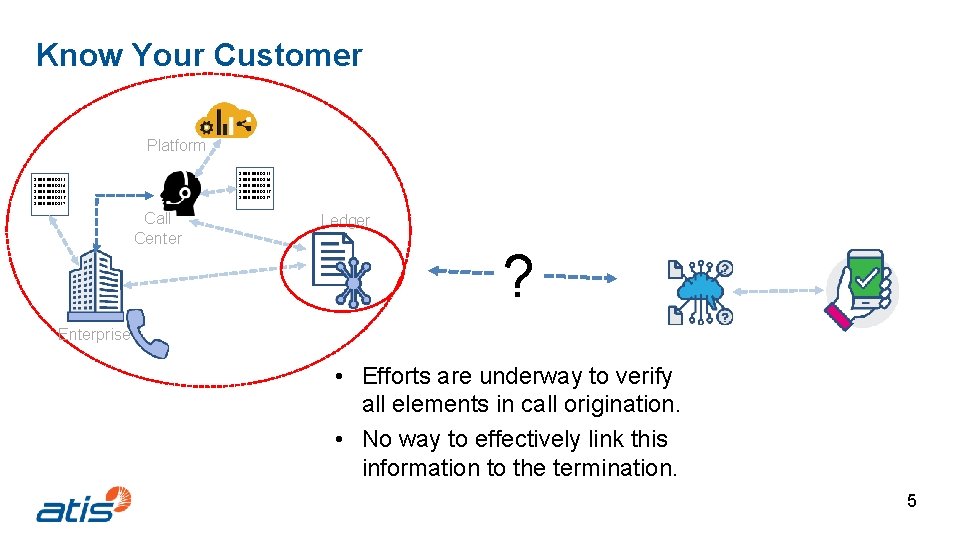

Know Your Customer Platform 1. 555. 0123 1. 555. 0124 1. 555. 0125 1. 555. 0126 1. 555. 0127 … Call Center Ledger ? Enterprise • Efforts are underway to verify all elements in call origination. • No way to effectively link this information to the termination. 5

SHAKEN Plays Complementary Role Platform 1. 555. 0123 1. 555. 0124 1. 555. 0125 1. 555. 0126 1. 555. 0127 … Call Center Ledger SHAKEN could extend the reach of “Know Your Customer” to include terminating network. Enterprise Carrier 0 SHAKEN Carrier 2 6

SHAKEN: Standards and Governance: SHAKEN Governance Authority is an industry led initiative under the auspices of ATIS, with FCC oversight. Standards: SHAKEN Standards developed by ATIS/SIP Forum IP-NNI TF Enterprise Carrier 0 SHAKEN Carrier 2 7

Know Your Customer: Standards and Governance Platform 1. 555. 0123 1. 555. 0124 1. 555. 0125 1. 555. 0126 1. 555. 0127 … Enterprise 1. 555. 0123 1. 555. 0124 1. 555. 0125 1. 555. 0126 1. 555. 0127 … Call Center Ledger Governance must include: • Enterprise • Call centers • Consumer advocates • Carriers • Others? Standards Analysis underway in various forums, but no consolidated industry effort yet: • PACE • Consumer Protection Consortium • USTelecom • ATIS 8

SHAKEN No Trust Between Carriers and Enterprise TRUST • CNAM may or may not have current data • Legal Entity Not Verified • No baseline of truth • Analytics determine based on algorithm Enterprise TRUST Carrier 0 • Number not attested • Cannot traceback to originating carriercustomer Carrier 2 9

SHAKEN Partial Trust Established Through SHAKEN ONLY TRUST ? • CNAM may or may not have current data • Legal Entity Not Verified • No baseline of truth • Analytics determine based on algorithm Enterprise TRUST Carrier 0 • Number partially attested • Cannot traceback to originating carriercustomer Carrier 2 10

SHAKEN Trust Established Through SHAKEN ONLY TRUST ? • CNAM may or may not have current data • Legal Entity Not Verified • No baseline of truth • Analytics determine based on algorithm Enterprise TRUST Carrier 0 • Know the number used by the owner • Cannot traceback to originating carriercustomer Carrier 2 11

SHAKEN Trust Established Through Know Your Customer & SHAKEN TRUST • Consumer informed of entity who is calling • Legal Entity Verified • Baseline of truth Enterprise TRUST Carrier 0 • Know the number used by the owner • Cannot traceback to originating carriercustomer Carrier 2 12

Summary • Focus is different, but complementary: – Know Your Customer: focused on the intent of the call – SHAKEN: focused on verifying the source of the call • The “Know Your Customer” initiative should remain distinct from SHAKEN. – Trying to merge the two could compromise both. • Coordination between the two initiatives would be valuable: – Ensure necessary functionality is supported – Understand limitations – Coordinated messaging • Watch this space… 13
