Shafts, spline shafts Flóra Hajdu B 406 hajdfl@sze. hu
Content • Shafts • Spline shafts and spline hubs 2021. 03. 08. Hajdu Flóra

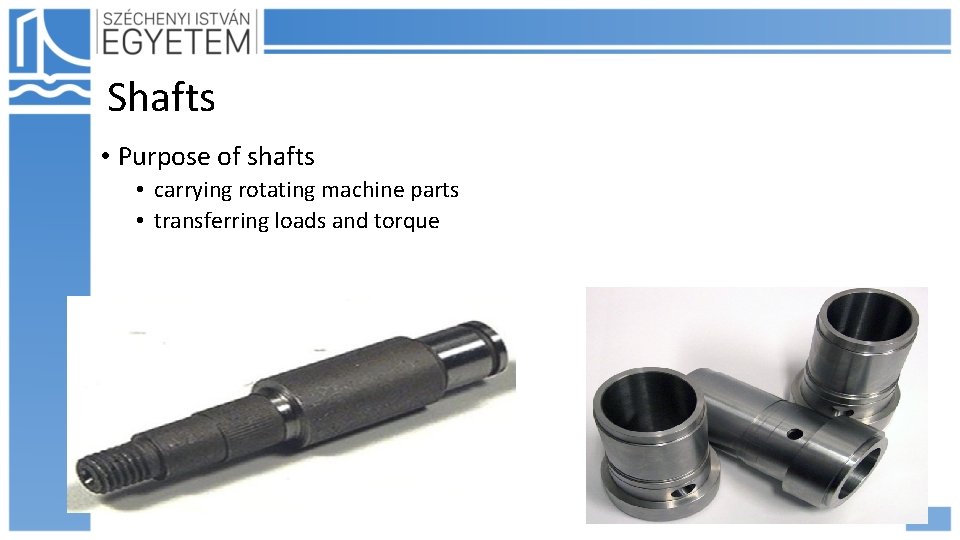

Shafts • Purpose of shafts • carrying rotating machine parts • transferring loads and torque

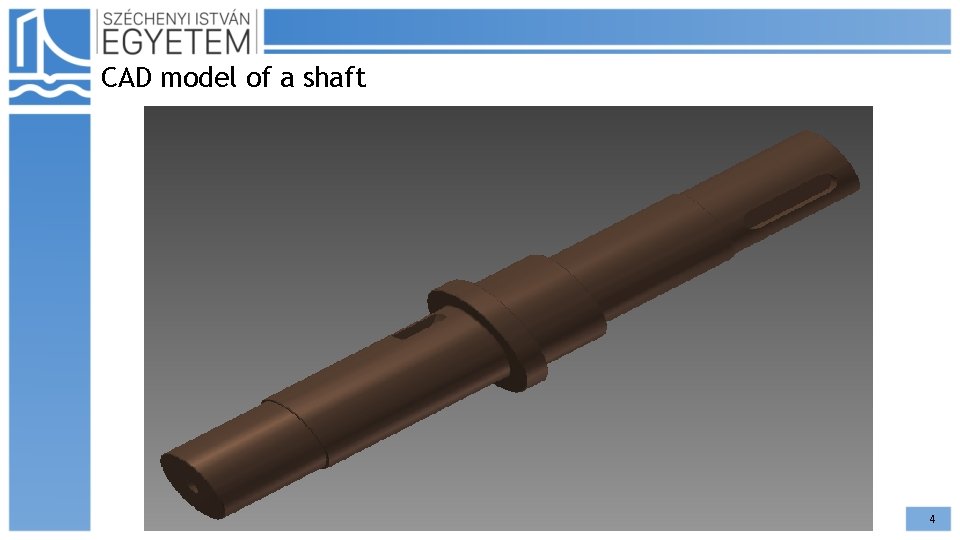

CAD model of a shaft 4

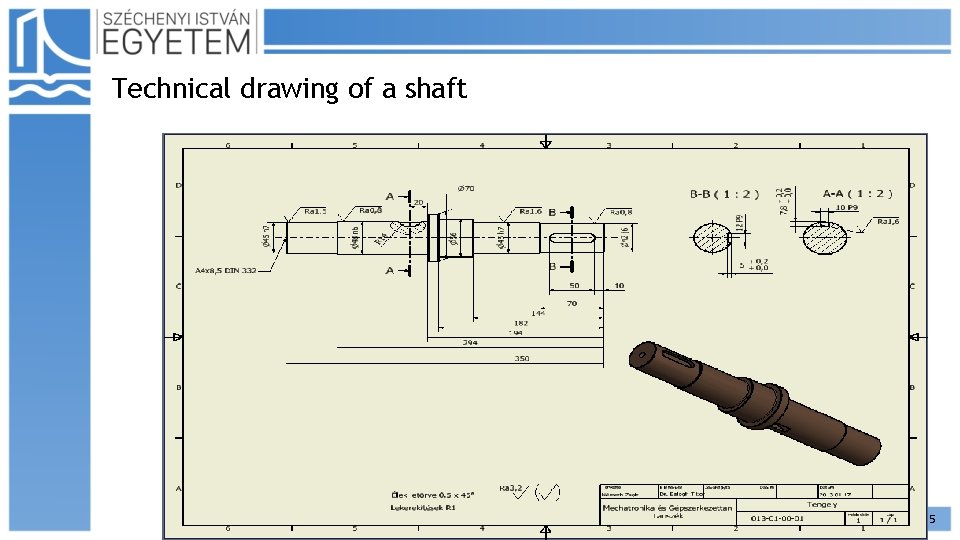

Technical drawing of a shaft 5

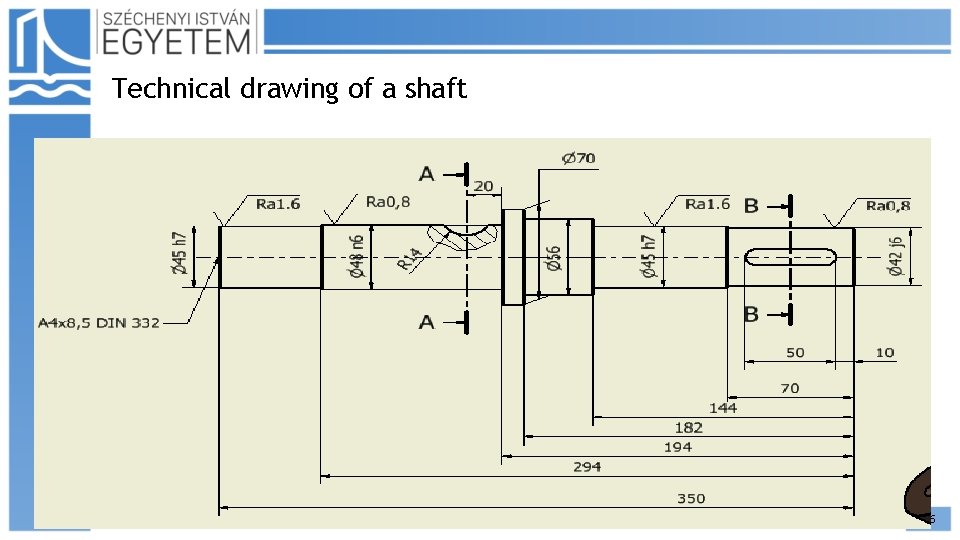

Technical drawing of a shaft 6

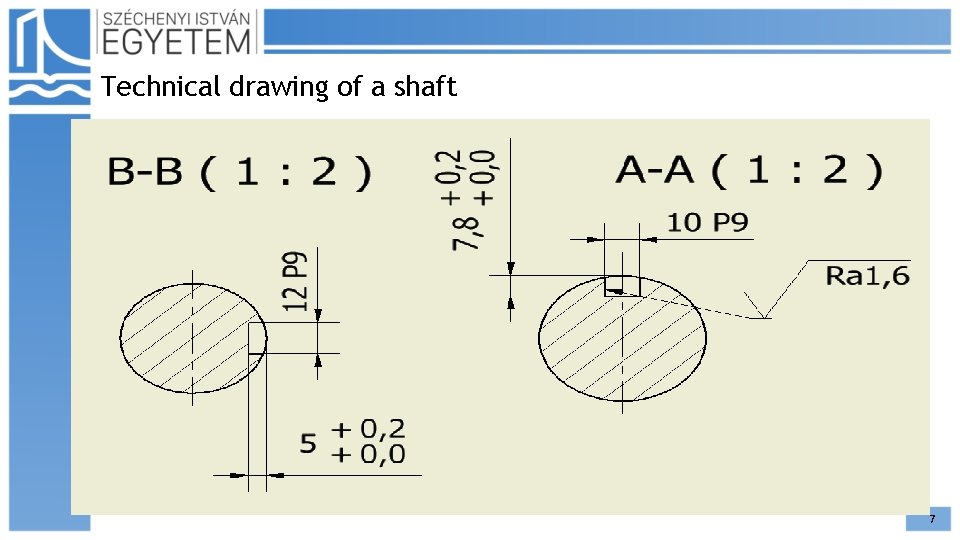

Technical drawing of a shaft 7

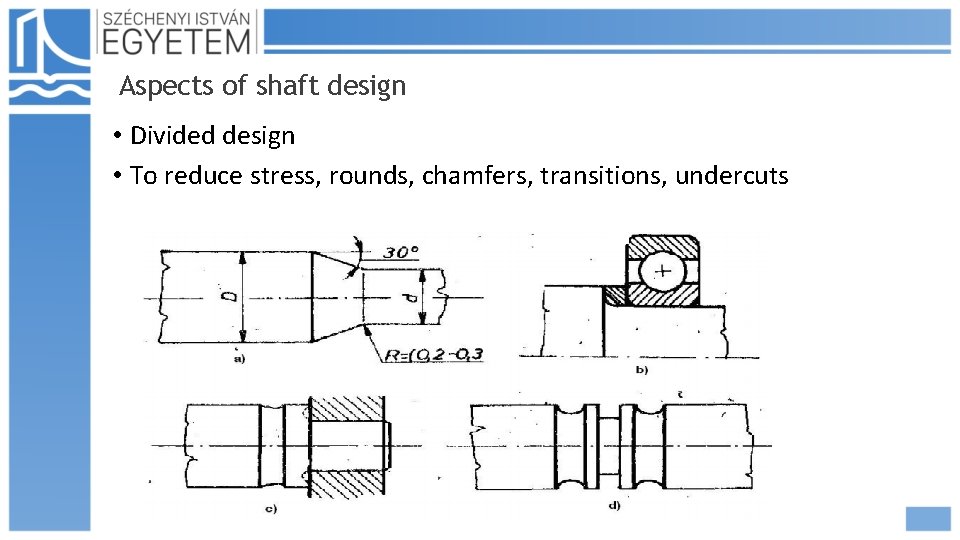

Aspects of shaft design • Divided design • To reduce stress, rounds, chamfers, transitions, undercuts

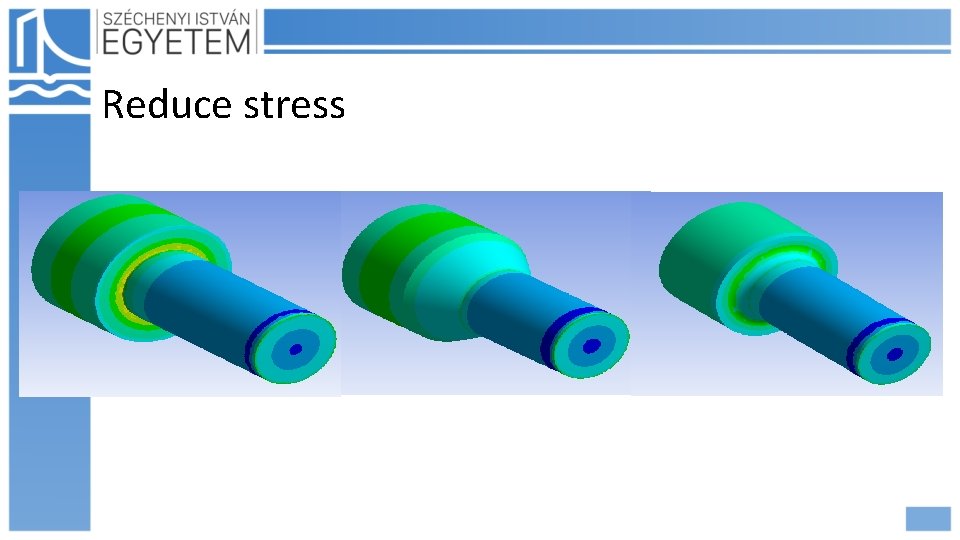

Reduce stress

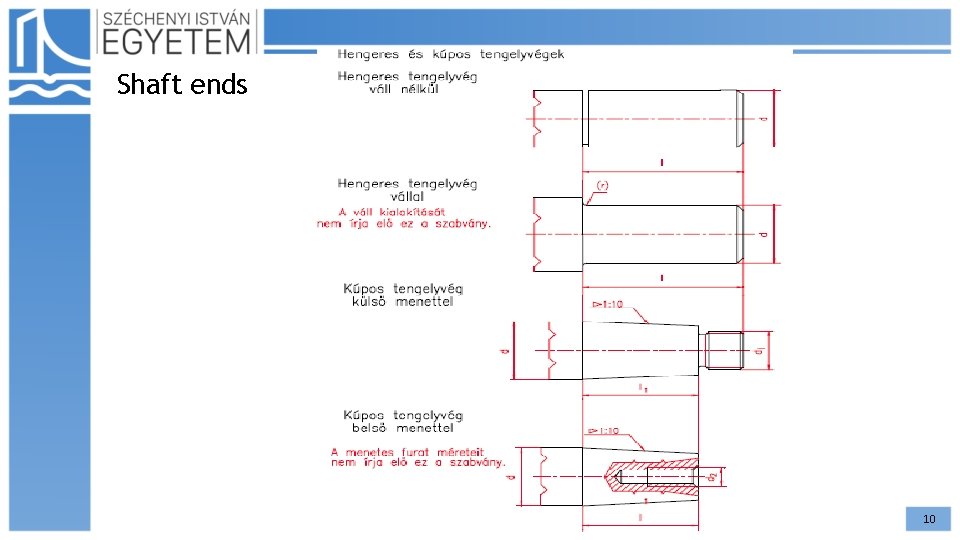

Shaft ends 10

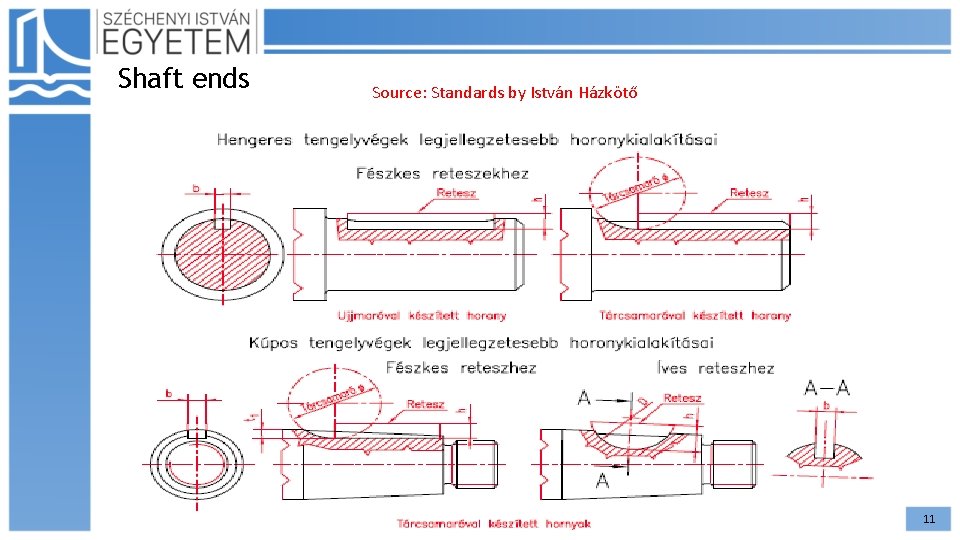

Shaft ends Source: Standards by István Házkötő 11

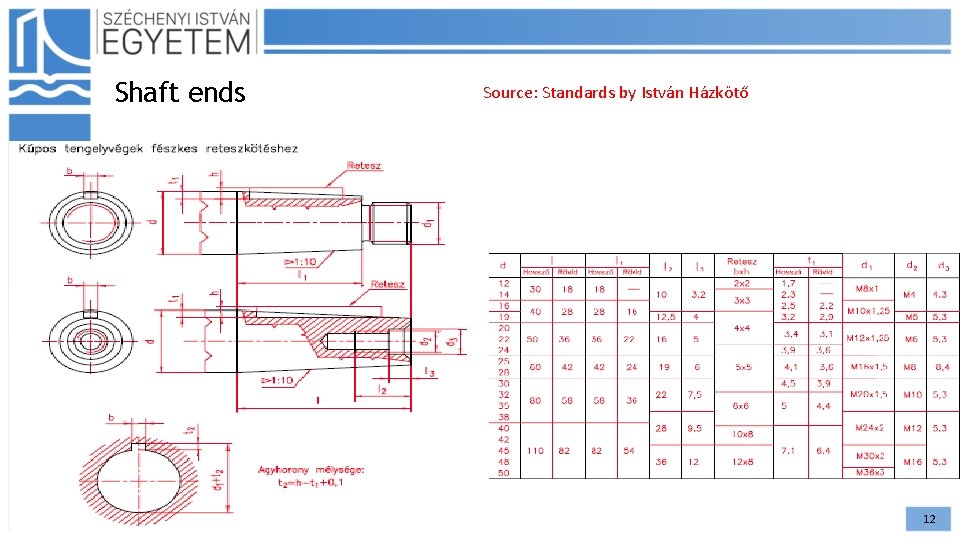

Shaft ends Source: Standards by István Házkötő 12

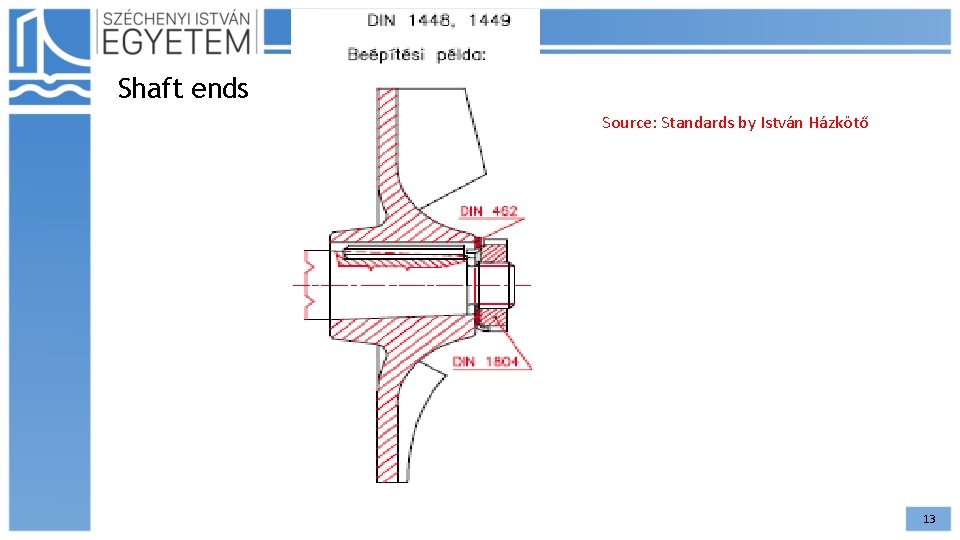

Shaft ends Source: Standards by István Házkötő 13

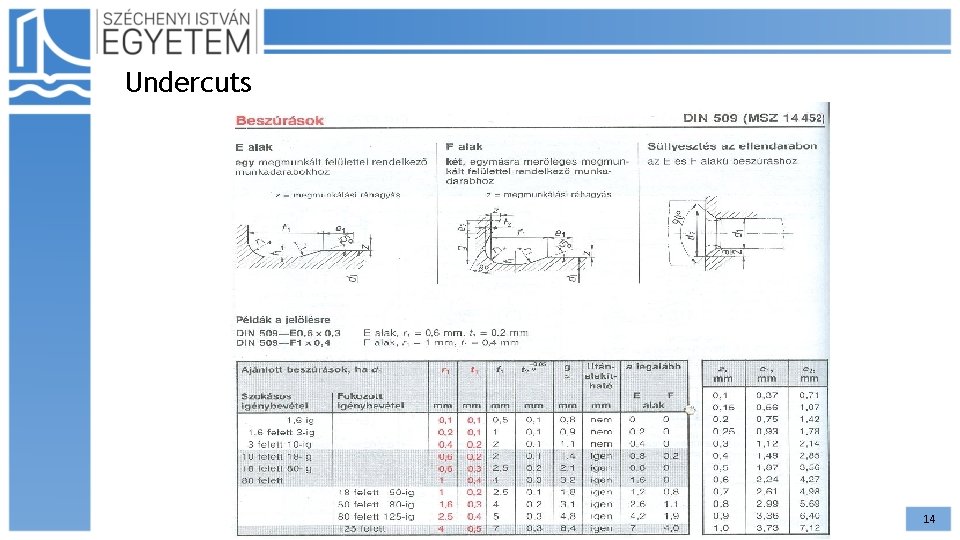

Undercuts 14
Undercuts 15
Undercuts in case of threads 16

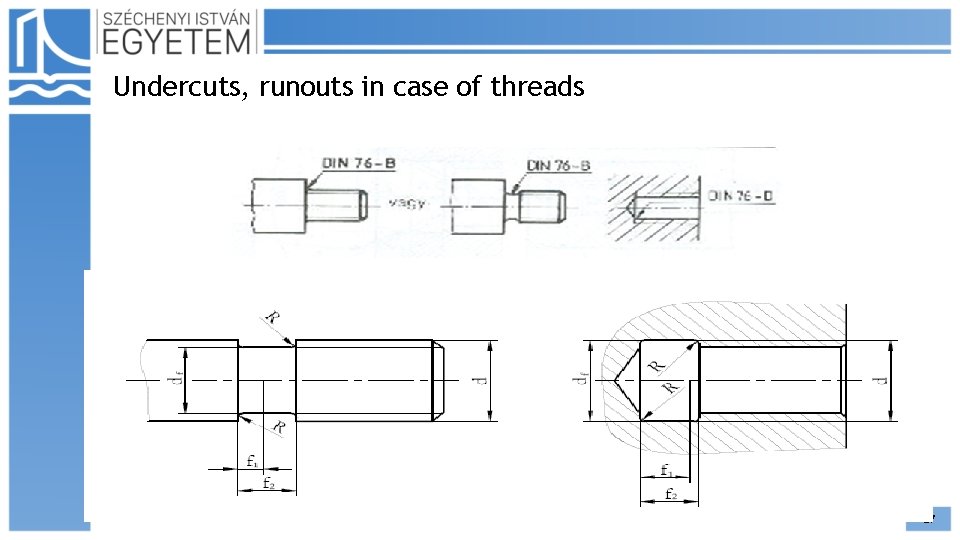

Undercuts, runouts in case of threads 17

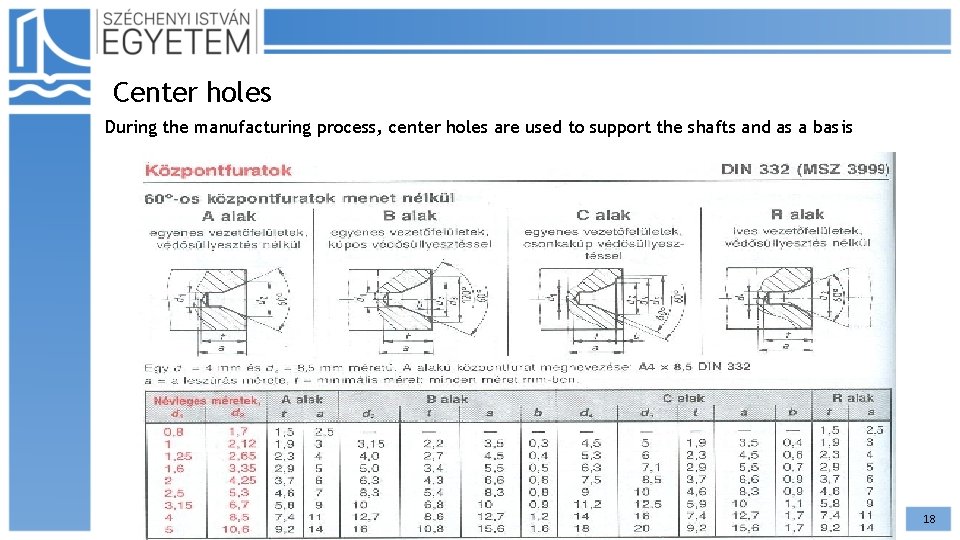

Center holes During the manufacturing process, center holes are used to support the shafts and as a basis 18

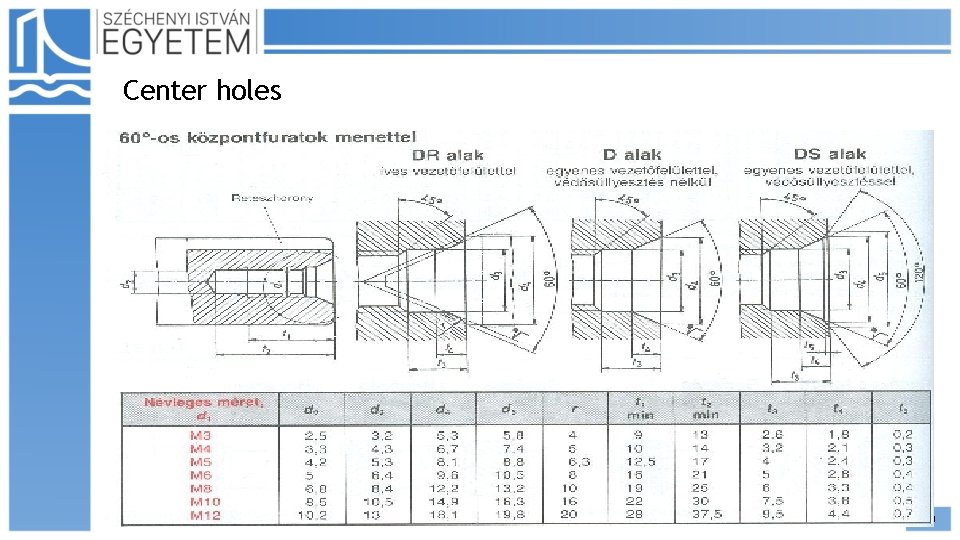

Center holes Forrás: http: //turning. fw. hu/t 006. html 19
Center holes 20

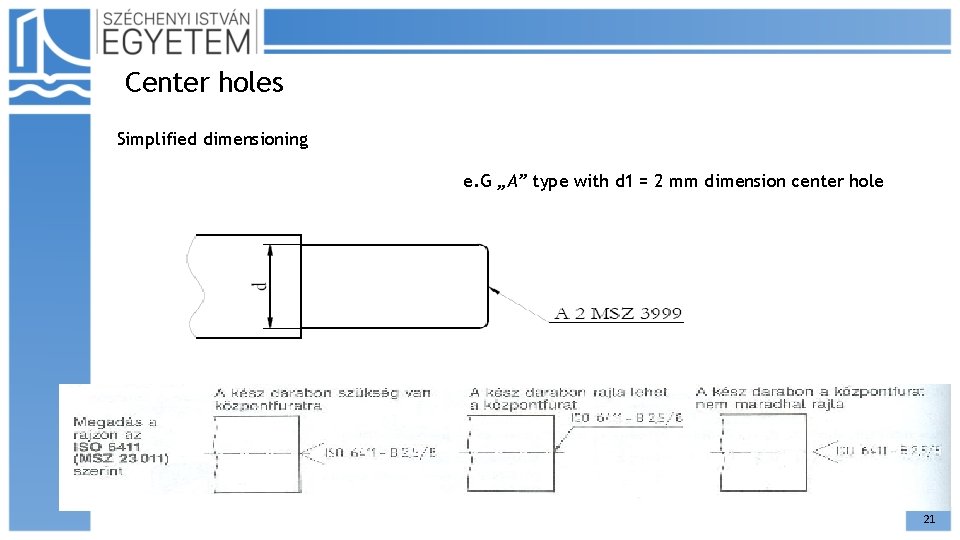

Center holes Simplified dimensioning e. G „A” type with d 1 = 2 mm dimension center hole 21
Undercut for axial retaining ring Standardized undercut 22

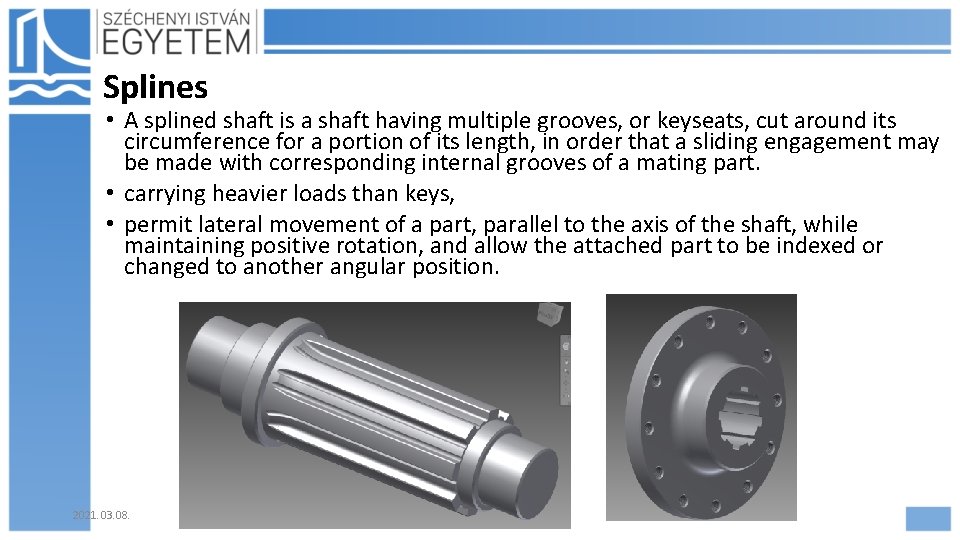

Splines • A splined shaft is a shaft having multiple grooves, or keyseats, cut around its circumference for a portion of its length, in order that a sliding engagement may be made with corresponding internal grooves of a mating part. • carrying heavier loads than keys, • permit lateral movement of a part, parallel to the axis of the shaft, while maintaining positive rotation, and allow the attached part to be indexed or changed to another angular position. 2021. 03. 08. Hajdu Flóra
Splines • Advantage: • Even torque transmission • Concentricity • High load capacity • Disadvantage • expensive • Space requirement
Splines • Involute splines: similar in shape to involute gear teeth but have pressure angles of 30°, 37. 5°, or 45°. 2 types of fits: side fit and the major diameter fit • Straight-Side Splines: The most popular are the SAE straightside splines. They have been used in many applications in the automotive and machine industries. • Serrations: shallow, involute splines with 45° pressure angles. They are primarily used for holding parts, such as plastic knobs, on steel shafts. 2021. 03. 08. Hajdu Flóra

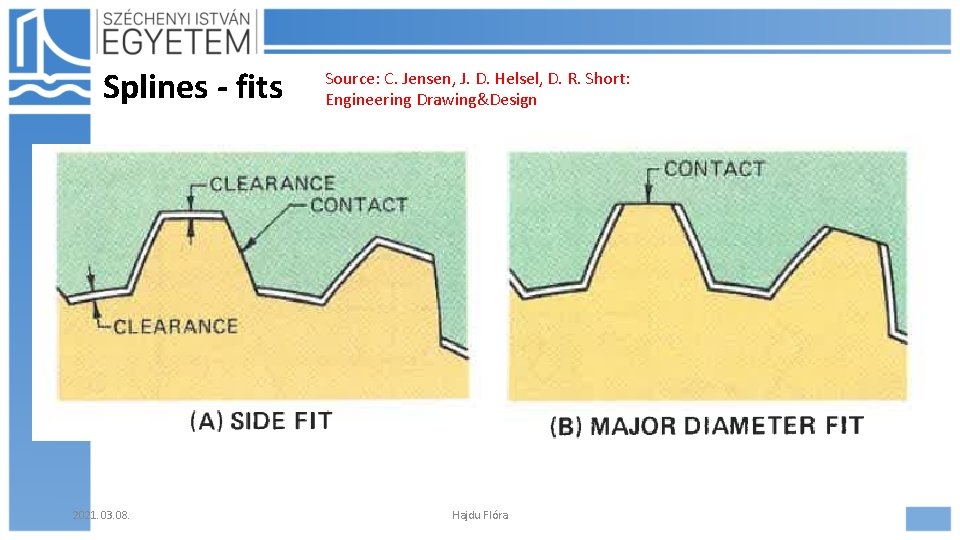

Splines - fits 2021. 03. 08. Source: C. Jensen, J. D. Helsel, D. R. Short: Engineering Drawing&Design Hajdu Flóra

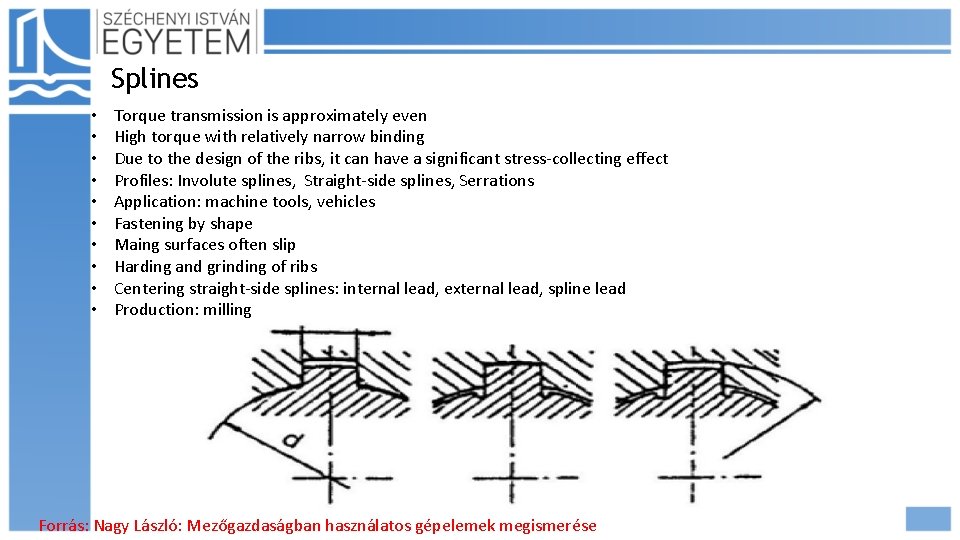

Splines • • • Torque transmission is approximately even High torque with relatively narrow binding Due to the design of the ribs, it can have a significant stress-collecting effect Profiles: Involute splines, Straight-side splines, Serrations Application: machine tools, vehicles Fastening by shape Maing surfaces often slip Harding and grinding of ribs Centering straight-side splines: internal lead, external lead, spline lead Production: milling Forrás: Nagy László: Mezőgazdaságban használatos gépelemek megismerése
Spline application Forrás: Wikipédia Zinner György: Gépjárművek erőátviteli berendezései

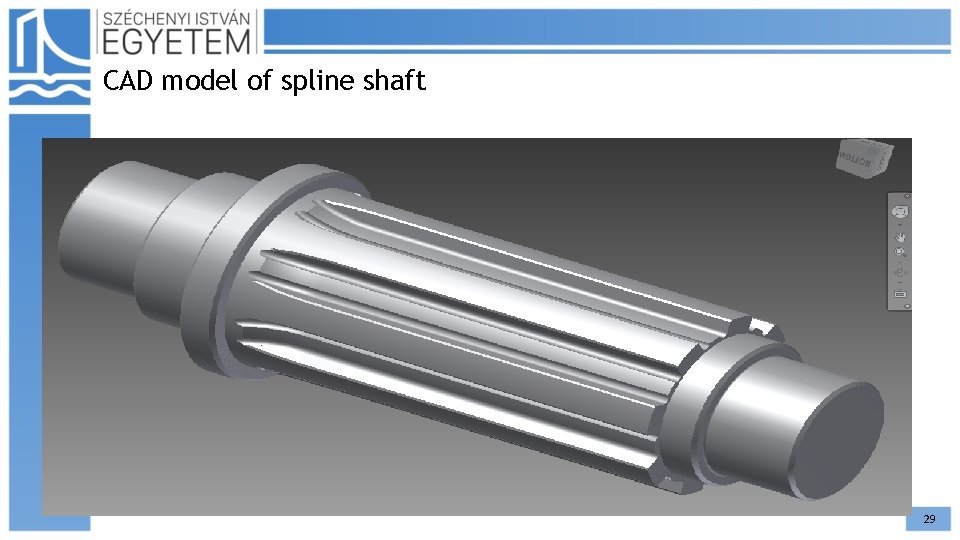

CAD model of spline shaft 29
Technical drawing of spline shaft A borda kialakítása DIN 5464 szerint 30

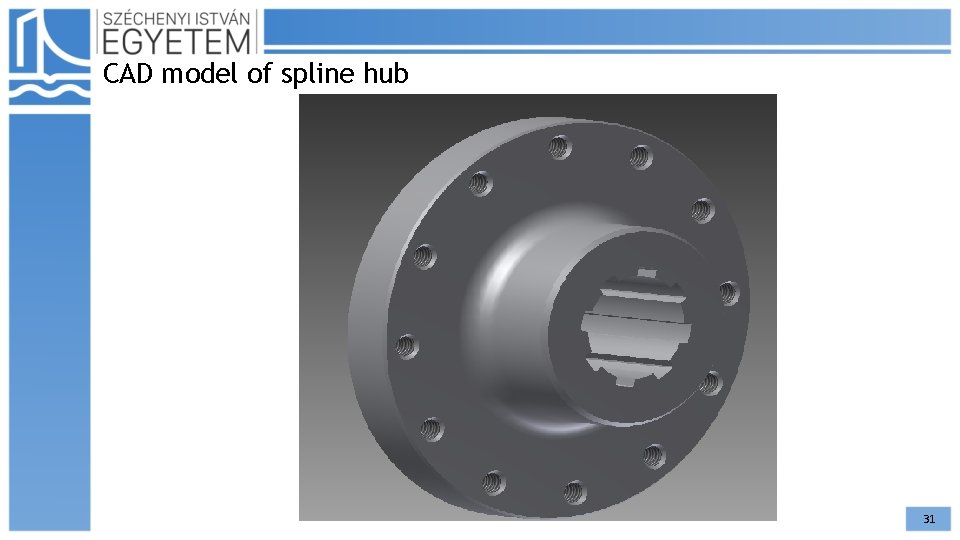

CAD model of spline hub 31
Technical drawing of spline hub 32

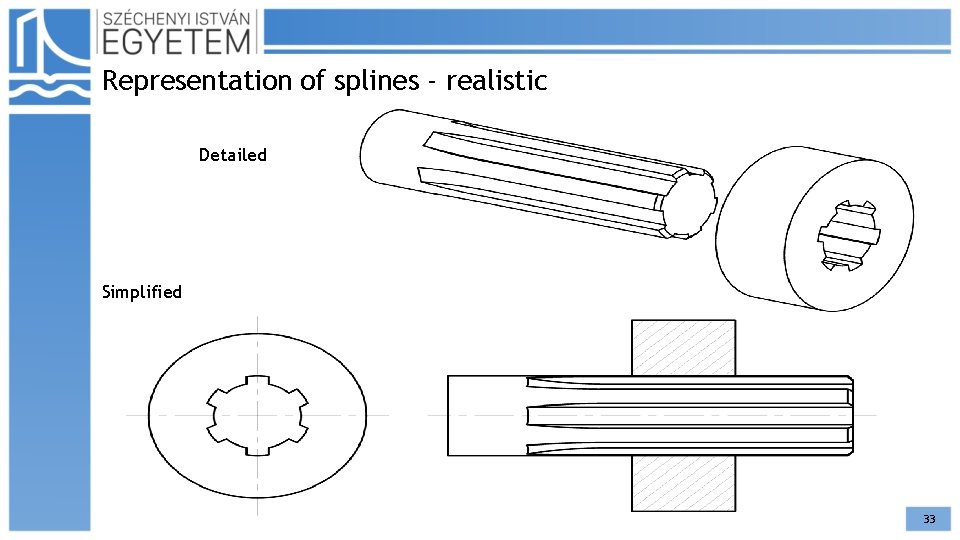

Representation of splines - realistic Detailed Simplified 33
Representation of splines - schematic 34
Representation of splines - schematic 35

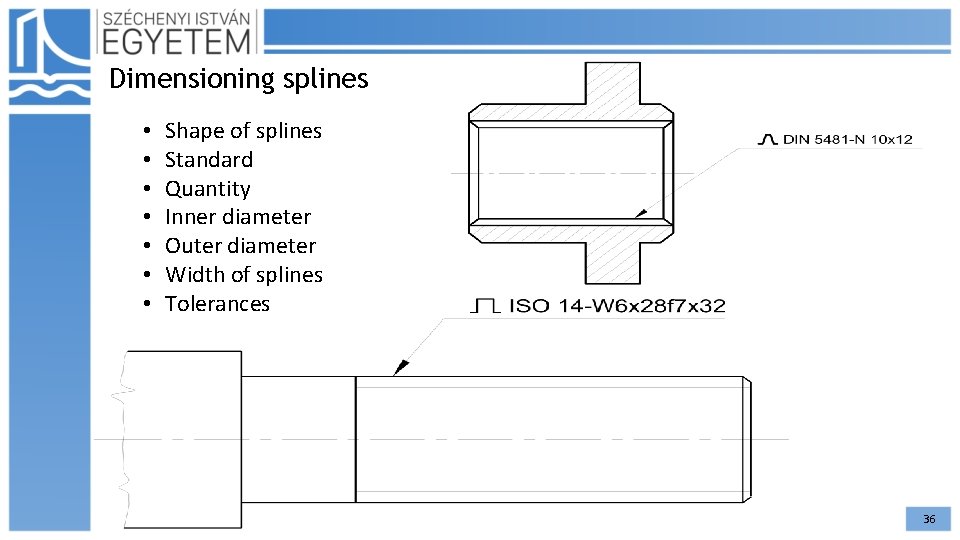

Dimensioning splines • • Shape of splines Standard Quantity Inner diameter Outer diameter Width of splines Tolerances 36
Standardized splines Source: Standards by István Házkötő 37
Standardized spline dimensions Source: Standards by István Házkötő 38

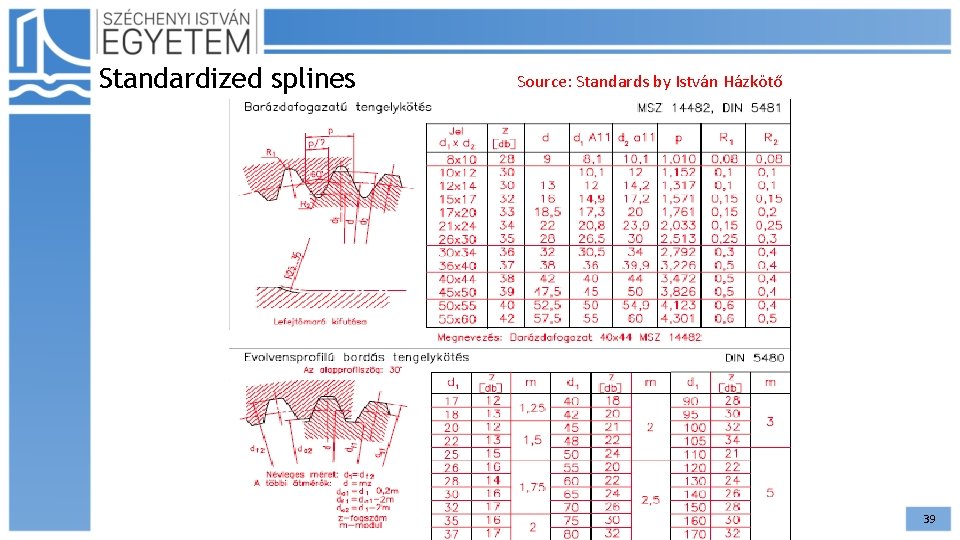

Standardized splines Source: Standards by István Házkötő 39

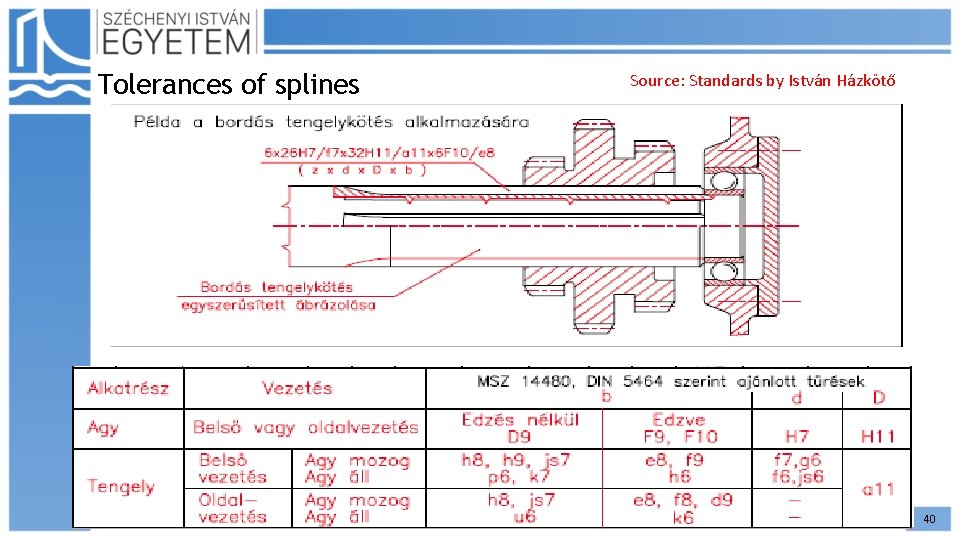

Tolerances of splines Source: Standards by István Házkötő 40

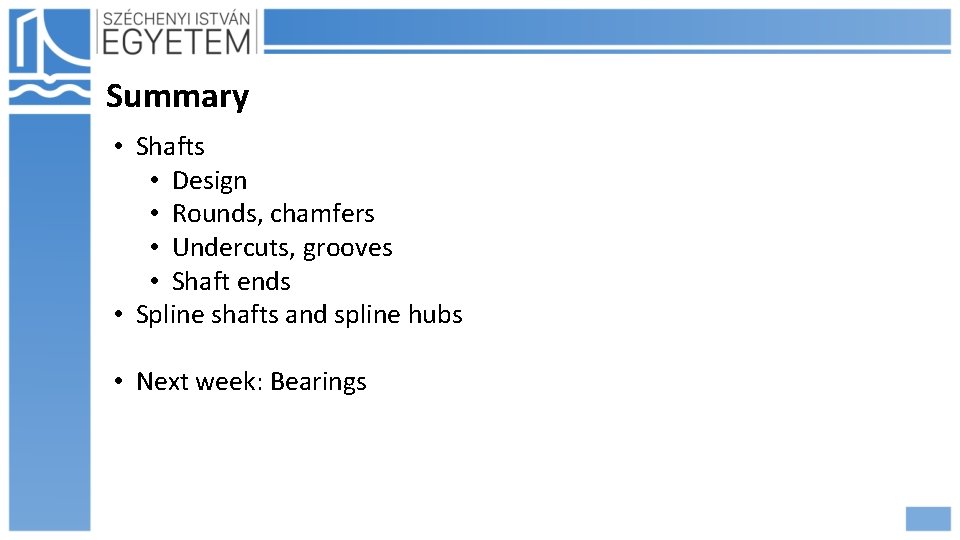

Summary • Shafts • Design • Rounds, chamfers • Undercuts, grooves • Shaft ends • Spline shafts and spline hubs • Next week: Bearings
