SGI Rackable C 2108 GP 5 Arcadia Server
SGI Rackable C 2108 -GP 5 “Arcadia” Server © 2015 SGI
What is Arcadia? • Dual socket Intel based server • 2 U full-depth form factor • Up to 8 double slot GPU/MIC cards x 8 OR x 8 © 2015 SGI 2
Arcadia Specifications – CPU and memory • 2 x Intel E 5 -2600 v 3 processors – Including 145 w SKUs • 24 DIMM slots – DDR 4 2133 MT/s – up to 768 GB (today with 32 GB DIMMs) © 2015 SGI 3
Arcadia Specifications - GPUs • Nvidia Tesla GPU – K 40 – K 80 © 2015 SGI 4
Arcadia Specifications - MIC • Intel Xeon Phi – 5110 P – 7120 P © 2015 SGI 5

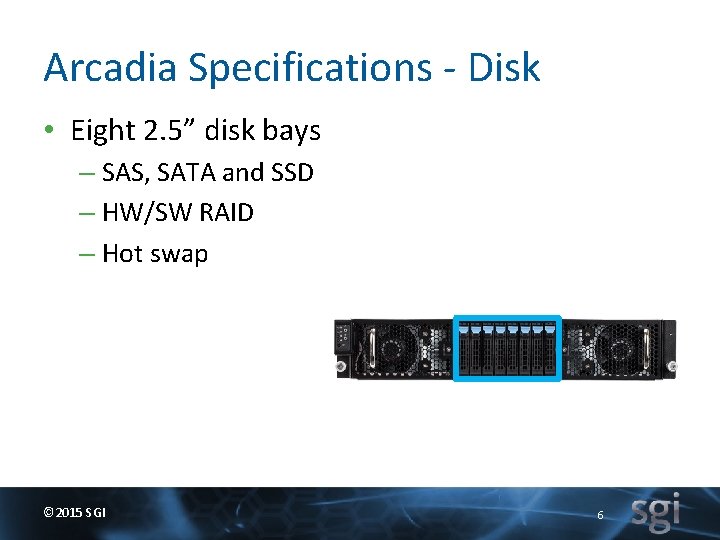

Arcadia Specifications - Disk • Eight 2. 5” disk bays – SAS, SATA and SSD – HW/SW RAID – Hot swap © 2015 SGI 6
Arcadia Specifications – I/O • Single low-profile PCIe slot • Proprietary PCIe x 8 (Gen 3 x 8 bus) mezzanine connector – Dual QSFP+ port card supporting either: • 56 Gb/s FDR Infini. Band • 40 Gb Ethernet – Dual port 10 Gb/s SFP+ LAN card • Two 10 Gb. E SFP+ ports © 2015 SGI 7

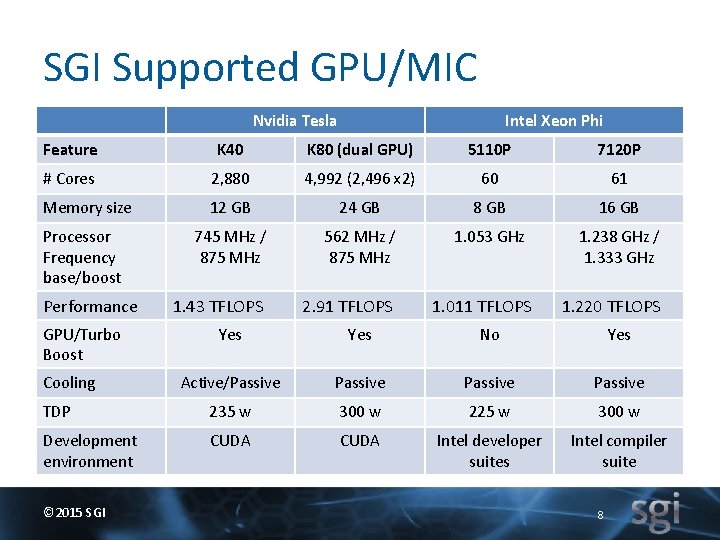

SGI Supported GPU/MIC Nvidia Tesla Intel Xeon Phi Feature K 40 K 80 (dual GPU) 5110 P 7120 P # Cores 2, 880 4, 992 (2, 496 x 2) 60 61 Memory size 12 GB 24 GB 8 GB 16 GB 745 MHz / 875 MHz 562 MHz / 875 MHz 1. 053 GHz 1. 238 GHz / 1. 333 GHz 1. 43 TFLOPS 2. 91 TFLOPS Processor Frequency base/boost Performance GPU/Turbo Boost 1. 011 TFLOPS 1. 220 TFLOPS Yes No Yes Active/Passive TDP 235 w 300 w 225 w 300 w Development environment CUDA Intel developer suites Intel compiler suite Cooling © 2015 SGI 8
Other SGI GPU/MIC Server Options • Rackable C 2112 -GP 2 (Peak) – two maximum – Nvidia Tesla K 20 and K 40 – active • Rackable C 1104 -GP 1 (Perrin) - three maximum – Nvidia Tesla K 20 and K 40 – passive – Intel Xeon Phi 5120 P and 7120 P - passive © 2015 SGI 9
Other SGI GPU/MIC Server Options cont. • Rackable C 2108 -RP 2 (Summit) – two maximum – Nvidia Tesla K 20 and K 40 – active – Intel Xeon Phi 3120 A - active • Rackable C 1104 G-RP 5 (Pyramid 1 U) - two maximum – Nvidia Tesla K 20, K 20 X and K 40 – passive – Intel Xeon Phi 5110 P – passive • Rackable C 2110 G-RP 5 -P (Pyramid 2 U Plus) - six maximum – Nvidia Tesla K 20, K 20 X and K 40 – passive – Intel Xeon Phi 5110 P and 7120 P – passive © 2015 SGI 10

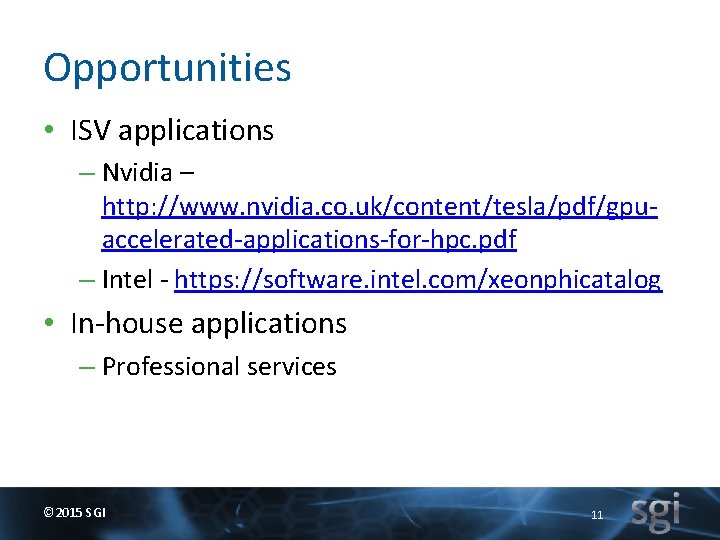

Opportunities • ISV applications – Nvidia – http: //www. nvidia. co. uk/content/tesla/pdf/gpuaccelerated-applications-for-hpc. pdf – Intel - https: //software. intel. com/xeonphicatalog • In-house applications – Professional services © 2015 SGI 11
