SGC250 Synchronous Generator Controller www basler com Introduction
SGC-250 Synchronous Generator Controller www. basler. com

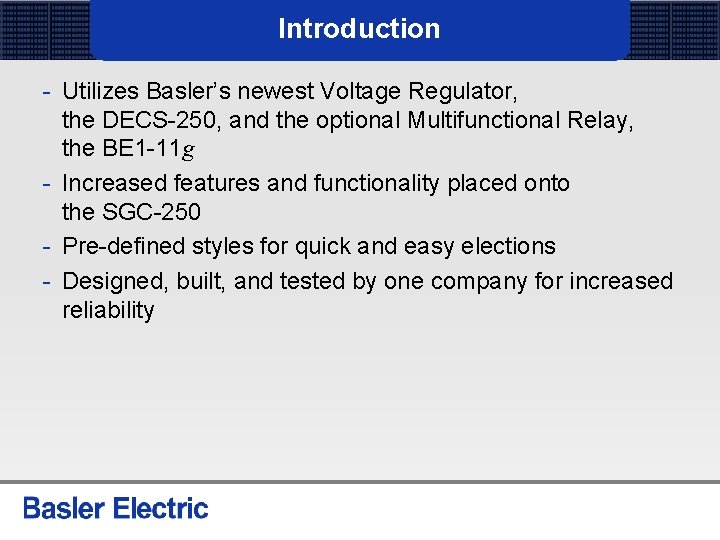

Introduction - Utilizes Basler’s newest Voltage Regulator, the DECS-250, and the optional Multifunctional Relay, the BE 1 -11 g - Increased features and functionality placed onto the SGC-250 - Pre-defined styles for quick and easy elections - Designed, built, and tested by one company for increased reliability
Brushless Synchronous Generator

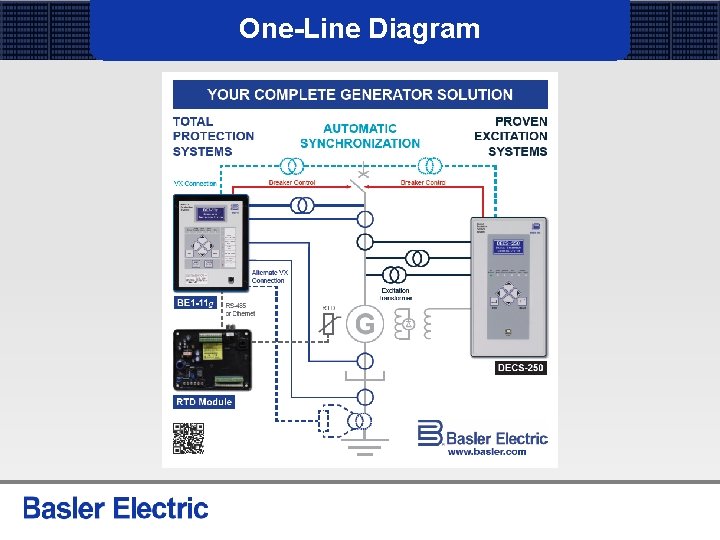

One-Line Diagram

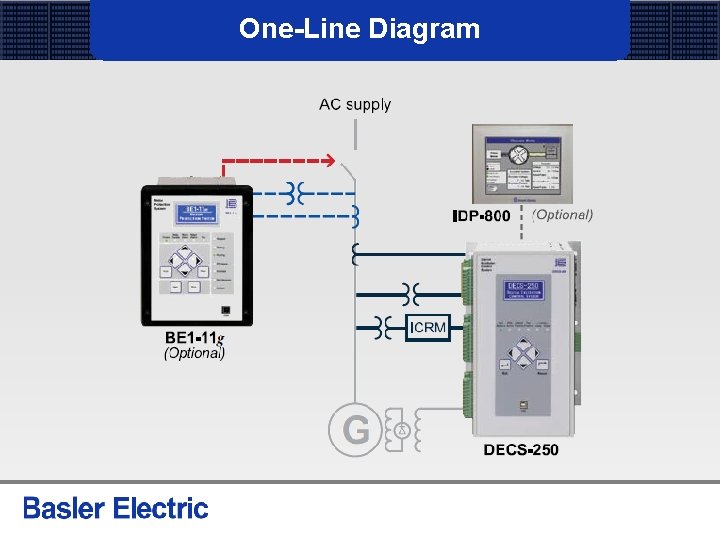

One-Line Diagram

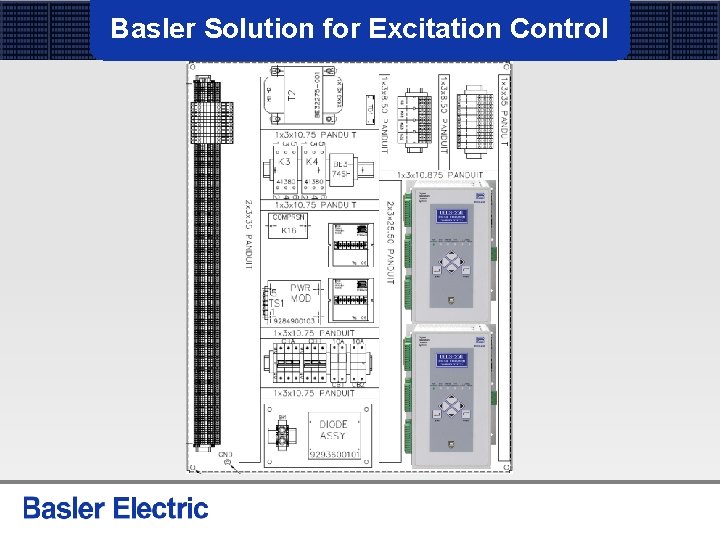

Basler Solution for Excitation Control
Basler Solution for Excitation Control

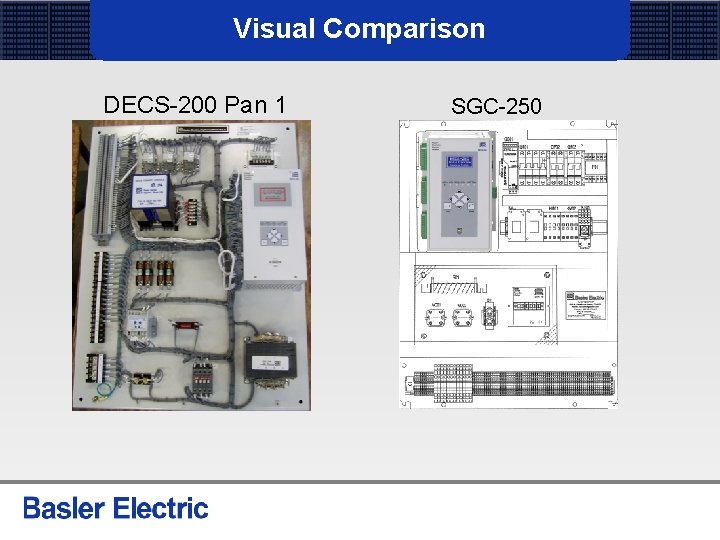

Visual Comparison DECS-200 Pan 1 SGC-250

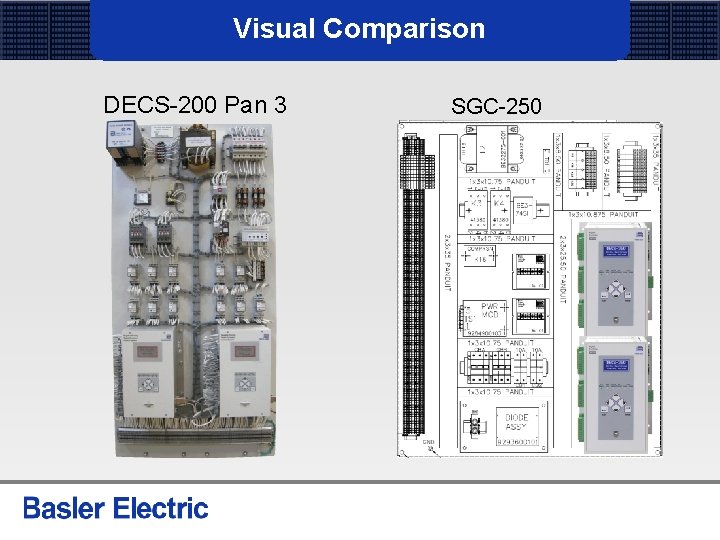

Visual Comparison DECS-200 Pan 3 SGC-250
SGC-250 with BE 1 -11 g option Single Dual

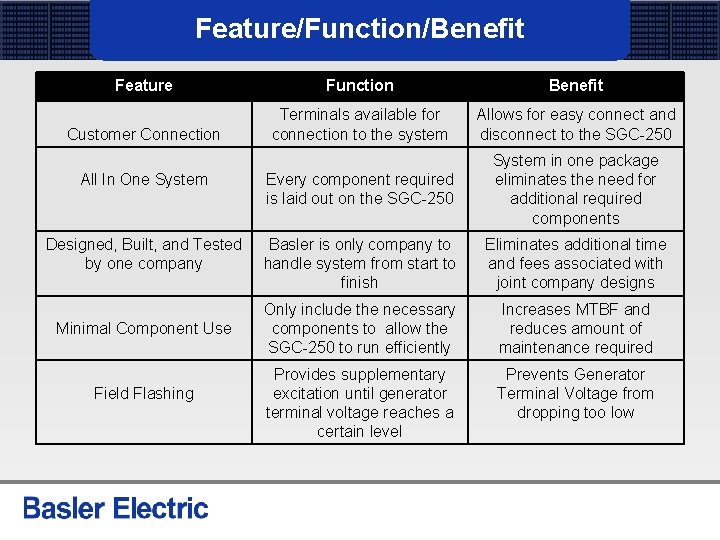

Feature/Function/Benefit Feature Function Benefit Customer Connection Terminals available for connection to the system Allows for easy connect and disconnect to the SGC-250 All In One System Every component required is laid out on the SGC-250 System in one package eliminates the need for additional required components Designed, Built, and Tested by one company Basler is only company to handle system from start to finish Eliminates additional time and fees associated with joint company designs Only include the necessary components to allow the SGC-250 to run efficiently Increases MTBF and reduces amount of maintenance required Provides supplementary excitation until generator terminal voltage reaches a certain level Prevents Generator Terminal Voltage from dropping too low Minimal Component Use Field Flashing
Mounting Options - Pan Chassis • Made using a rigid metal panel • Welded with structural supports for added strength - Mounting Plate • Made using a 1/16” thick sheet of galvanized steel • Ability to be hung in specific enclosures

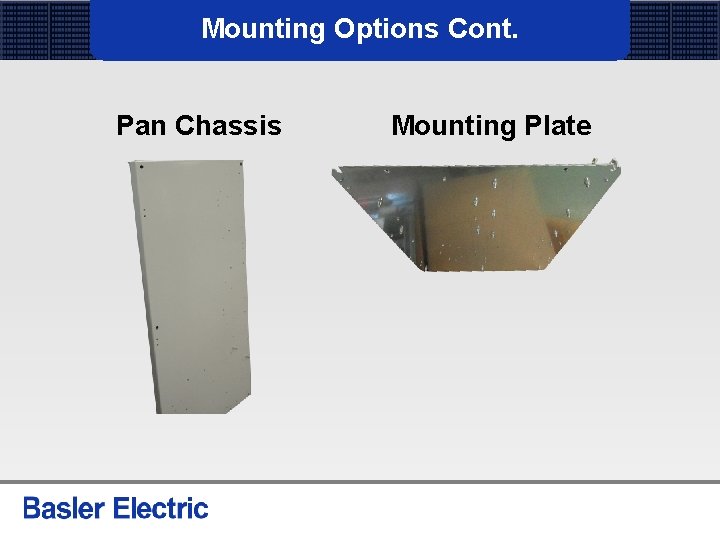

Mounting Options Cont. Pan Chassis Mounting Plate

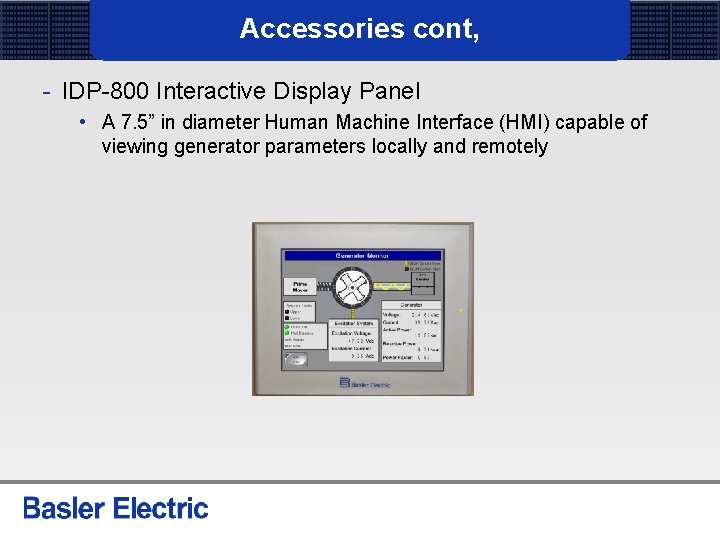

Accessories cont, - IDP-800 Interactive Display Panel • A 7. 5” in diameter Human Machine Interface (HMI) capable of viewing generator parameters locally and remotely
