Setting Multidrop Settings 1 Operative Setting IO Box
Sign up to view full document!
SIGN UP
![](https://slidetodoc.com/presentation_image_h2/913fe6ba6cc1cf9e35a63ee3d6f3549b/image-1.jpg)

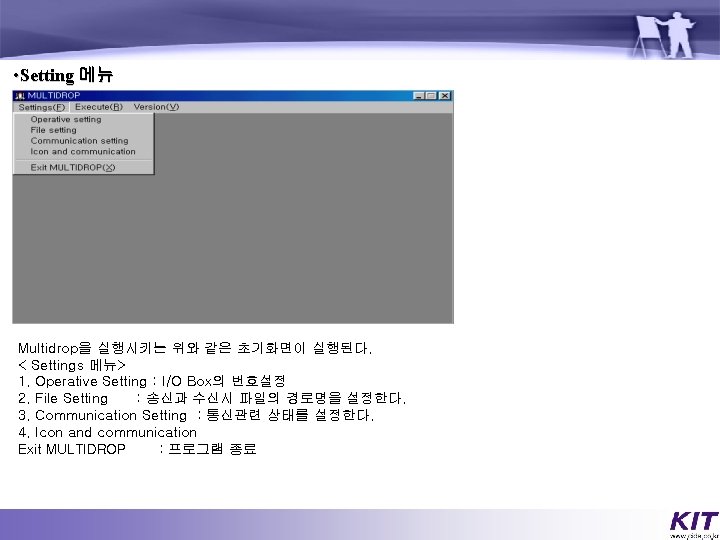

![• Setting 메뉴 Multidrop을 실행시키는 위와 같은 초기화면이 실행된다. < Settings 메뉴> 1. • Setting 메뉴 Multidrop을 실행시키는 위와 같은 초기화면이 실행된다. < Settings 메뉴> 1.](http://slidetodoc.com/presentation_image_h2/913fe6ba6cc1cf9e35a63ee3d6f3549b/image-2.jpg)
• Setting 메뉴 Multidrop을 실행시키는 위와 같은 초기화면이 실행된다. < Settings 메뉴> 1. Operative Setting : I/O Box의 번호설정 2. File Setting : 송신과 수신시 파일의 경로명을 설정한다. 3. Communication Setting : 통신관련 상태를 설정한다. 4. Icon and communication Exit MULTIDROP : 프로그램 종료
![](http://slidetodoc.com/presentation_image_h2/913fe6ba6cc1cf9e35a63ee3d6f3549b/image-3.jpg)

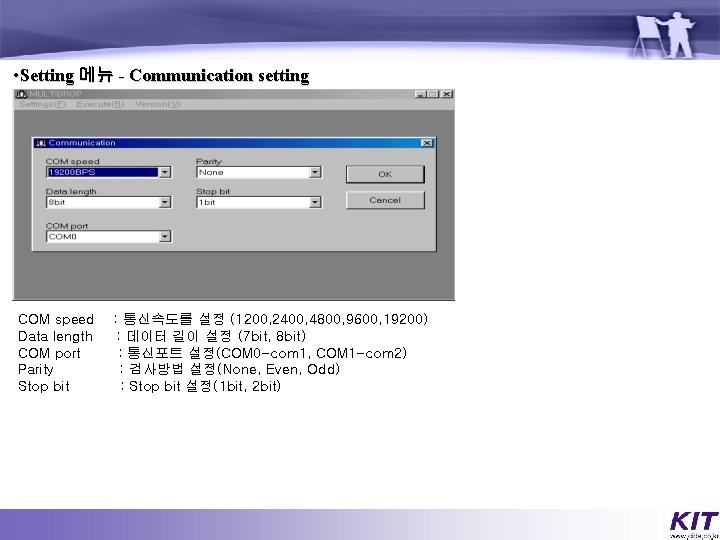

![• Setting 메뉴 - Communication setting COM speed Data length COM port Parity • Setting 메뉴 - Communication setting COM speed Data length COM port Parity](http://slidetodoc.com/presentation_image_h2/913fe6ba6cc1cf9e35a63ee3d6f3549b/image-4.jpg)
• Setting 메뉴 - Communication setting COM speed Data length COM port Parity Stop bit : 통신속도를 설정 (1200, 2400, 4800, 9600, 19200) : 데이터 길이 설정 (7 bit, 8 bit) : 통신포트 설정(COM 0 -com 1, COM 1 -com 2) : 검사방법 설정(None, Even, Odd) : Stop bit 설정(1 bit, 2 bit)
![](http://slidetodoc.com/presentation_image_h2/913fe6ba6cc1cf9e35a63ee3d6f3549b/image-5.jpg)
