Set 11 Asynchronous Consensus CSCE 668 DISTRIBUTED ALGORITHMS

Set 11: Asynchronous Consensus CSCE 668 DISTRIBUTED ALGORITHMS AND SYSTEMS CSCE 668 Spring 2014 Prof. Jennifer Welch 1

Impossibility of Asynchronous Consensus 2 Show impossible in read/write shared memory with n processors and n - 1 faults prove directly: not hard since so many faults implies there is no 2 -proc algorithm for 1 fault Show impossible in r/w shared memory with n processors and 1 fault. Two approaches: Reduction: use a hypothetical n-proc algorithm for 1 fault as a subroutine to design a 2 -proc algorithm for 1 fault Direct proof: Use similar ideas to n-1 failures Set 11: Asynchronous Consensus CSCE 668 case

Impossibility of Asynchronous Consensus 3 Show impossible in message passing with n processors and 1 fault. Two approaches: Reduction: Use a hypothetical message passing algorithm for n procs and 1 fault as a subroutine to design a shared memory algorithm for n procs and 1 fault. This would contradict previous result. Direct approach: Use similar ideas to shared memory case, augmented to handle messages. (Historically, this was the first version that was proven. ) Set 11: Asynchronous Consensus CSCE 668

Modeling Asynchronous Systems with Crash Failures 4 Let f be the maximum number of faulty processors. For both SM and MP: All but f of the processors must take an infinite number of steps in an admissible execution. For MP: Also require that all messages sent to a nonfaulty processor must eventually be delivered, except for those sent by a faulty processor in its last step, which might or might not be delivered. Set 11: Asynchronous Consensus CSCE 668

Wait-Free Algorithms 5 An algorithm for n processors is wait-free if it can tolerate n - 1 failures. Intuition is that a nonfaulty processor does not wait for other processors to do something: it cannot, because it might be the only processor left alive. First result is to show that there is no wait-free consensus algorithm in the asynchronous r/w shared memory model. Set 11: Asynchronous Consensus CSCE 668

6 Impossibility of Wait-Free Consensus Suppose in contradiction there is an nprocessor algorithm for n - 1 faults in the asynchronous read/write shared memory model. Proof is similar to that showing f + 1 rounds are necessary in the synchronous message passing model. bivalent initial config bivalent config Set 11: Asynchronous Consensus CSCE 668 … bivalent config

Modified Notion of Bivalence 7 In the synchronous round lower bound proof, valency referred to which decisions are reachable in failure-sparse admissible executions. For this proof, we are concerned with which decisions are reachable in any execution, as long as it is admissible (for the asynchronous shared memory model with up to n - 1 failures). Set 11: Asynchronous Consensus CSCE 668

Univalent Similarity 8 Lemma (5. 15): If C 1 and C 2 are both univalent and they are similar w. r. t. pi (shared memory state is same, pi’s local state is same), then they have the same valency. Proof: p -only i C 1 v-valent pi decides v C 2 w-valent pi decides v Set 11: Asynchronous Consensus CSCE 668

Bivalent Initial Configuration 9 Lemma (5. 16): There exists a bivalent initial configuration. Proof is similar to what we did for the synchronous f + 1 round lower bound proof. Set 11: Asynchronous Consensus CSCE 668

Critical Processors 10 Def: If C is bivalent and i(C) (result of pi taking one step) is univalent, then pi is critical in C. Lemma (5. 17): If C is bivalent, then at least one processor is not critical in C, i. e. , there is a bivalent extension. Proof: Suppose in contradiction all processors i(C) are critical. pi C bival. pj 0 -val. j(C) 1 -val. Rest of proof is case analysis of what pi and pj do in their two steps Set 11: Asynchronous Consensus CSCE 668

Critical Processors 11 Case 1: pi and pj access different registers. i(C) 0 -val. pj pi C bival. pi pj j(C) 1 -val. Case 2: pi and pj read same register. Same proof. Set 11: Asynchronous Consensus CSCE 668

Critical Processors 12 Case 3: pi writes to a register R and pj reads from R. C bival. pj reads from R pi writes to R j(C) 1 -val pi writes to R i(C) 0 -val i(j(C)) 1 -val similar w. r. t. pi Set 11: Asynchronous Consensus CSCE 668

Critical Processors 13 Case 4: What if pi and pj both write to the same shared variable? Can "assume away" the problem by assuming we only have single-writer shared variables. Or, can do a similar proof for this case. Set 11: Asynchronous Consensus CSCE 668

Finishing the Impossibility Proof 14 Create an admissible execution C 0, i 1, C 1, i 2, C 2, … in which all configurations are bivalent. contradicts termination requirement Start with bivalent initial configuration. Suppose we have bivalent Ck. To get bivalent Ck+1: Let pi_k+1 be a processor that is not critical in Ck. Let Ck+1 be ik+1(Ck). Set 11: Asynchronous Consensus CSCE 668

Impossibility of 1 -Resilient Consensus: Reduction Idea 15 Even if the ratio of nonfaulty processors becomes overwhelming, consensus still cannot be solved in asynchronous SM (with read/write registers). 1. Assume there exists an algorithm A for n processors and 1 failure. 2. Use A as a subroutine to design an algorithm A' for 2 processors and 1 failure. 3. We just showed such an A' cannot exist. 4. Thus A cannot exist. Set 11: Asynchronous Consensus CSCE 668

Impossibility of 1 -Resilient Consensus: Direct Proof Idea 16 Suppose in contradiction there is such an algorithm. Strategy: Construct an admissible execution (at most 1 fault) that never terminates: show there is a bivalent initial configuration show to go from one bivalent configuration to another, forever (so can never terminate) Technically more involved because in constructing this execution, we cannot kill more than one processor. Set 11: Asynchronous Consensus CSCE 668

Impossibility of Consensus in Message Passing: Reduction 17 Strategy: 1. Assume there exists an n-processor 1 resilient consensus algorithm A for the asynchronous message passing model. 2. Use A as a subroutine to design an nprocessor 1 -resilient consensus algorithm A' for asynchronous shared memory (with read/write variables). 3. Previous result shows A' cannot exist. 4. Thus A cannot exist. Set 11: Asynchronous Consensus CSCE 668

Impossibility of Consensus in MP 18 Idea of A': Simulate message channels with read/write registers. Then run algorithm A on top of these simulated channels. To simulate channel from pi to pj: Use one register to hold the sequence of messages sent over the channel pi "sends" a message m by writing the old value of the register with m appended pj "receives" a message by reading the register Set 11: Asynchronous Consensus CSCE 668 and checking for new values at the end

Randomized Consensus 19 To get around the negative results for asynchronous consensus, we can: weaken the termination condition: nonfaulty processors must decide with some nonzero probability keep the same agreement and validity conditions This version of consensus is solvable, in both shared memory and message passing! Set 11: Asynchronous Consensus CSCE 668

Motivation for Adversary 20 Even without randomization, in an asynchronous system there are many executions of an algorithm, even when the inputs are fixed, depending on when processors take steps, when they fail, and when messages are delivered. To be able to calculate probabilities for a randomized algorithm, we need to separate out variation due to causes other than the random choices Group executions of interest so that members of each group differ only in the random choices Perform probabilistic calculations separately for each group and Set then combine somehow 11: Asynchronous Consensus CSCE 668

Adversary 21 Concept used to account for all variability other than the random choices is that of "adversary”: Message delays, relative proc speeds, which procs fail and when, … Adversary is a function that takes an execution prefix and returns the next event to occur. Adversary must obey admissibility conditions of the revelant model Other conditions might be put on the adversary: Set 11: Asynchronous Consensus CSCE 668 what information it can observe, how much

Probabilistic Definitions 22 An execution of a specific algorithm, exec(A, C 0, R), is uniquely determined by an adversary A an initial configuration C 0 a collection of random numbers R Given a predicate P on executions and a fixed adversary A and initial config C 0, Pr[P] is the probability of {R : exec(A, C 0, R) satisfies P} Let T be a random variable (e. g. , running time). For a Pr[T = x] value of T is fixed A and C 0, the ∑ x expected x is a value of T Set 11: Asynchronous Consensus CSCE 668

Probabilistic Definitions 23 We define the expected value of a complexity measure to be the maximum over all admissible adversaries A and initial configurations C 0, of the expected value for that particular A and C 0. So this is a "worst-case" average: worst possible adversary (pattern of asynchrony and failures) and initial configuration, averaging over the random choices. Set 11: Asynchronous Consensus CSCE 668

24 A Randomized Consensus Algorithm Works in message passing model Tolerates f crash failures Works in asynchronous case more complicated version handles Byzantine failures circumvents asynchronous impossibility result (by weakening termination condition) Requires n > 2 f this is optimal Set 11: Asynchronous Consensus CSCE 668

Consensus Algorithm 25 Code for processor pi: ensures a high level Initially r = 1 and prefer = pi 's input of consistency b/w what different procs 1. while true do get 2. votes : = get-core(<VOTE, prefer, r>) 3. let v be majority of phase r votes 4. if all phase r votes are v then decide v 5. outcomes : = get-core(<OUTCOME, v, r>) 6. if all phase r outcome values are w 7. then prefer : = w uses randomizatio 8. else prefer : = common-coin() to imitate tossing a coin 9. r : = r + 1 Set 11: Asynchronous Consensus CSCE 668

Properties of Get-Core 26 Executed by n processors, at most f of which can crash. Input parameter is a value supplied by the calling processor. Return parameter is an n-array, one entry per processor Every nonfaulty processor's call to get-core returns. There exists a set C of more than n/2 processors such that every array returned by a call to get-core contains the input parameter Set 11: Asynchronous Consensus supplied by every processor in C. CSCE 668

Properties of Common-Coin 27 Subroutine implements an f-resilient common coin with bias . Executed by n processors, at most f of which can crash. No input parameter Return parameter is a 0 or 1. Every nonfaulty processor's call to commoncoin returns. Probability that a return value is 0 is at least . Probability that a return value is 1 is at least . Set 11: Asynchronous Consensus CSCE 668

28 Correctness of Consensus Algorithm For now, don't worry about how to implement get-core and common-coin. Assuming we have subroutines with the desired properties, we'll show validity agreement probabilistic termination (and expected running time) Set 11: Asynchronous Consensus CSCE 668

Unanimity Lemma 29 Lemma (14. 6): If all procs. that reach phase r prefer v, then all nonfaulty procs decide v by phase r. Proof: Since all prefer v, all call get-core with v Thus get-core returns a majority of votes for v Thus all nonfaulty procs. decide v Set 11: Asynchronous Consensus CSCE 668

Validity 30 If all processors have input v, then all prefer v in phase 1. By unanimity lemma, all nonfaulty processors decide v by phase 1. Set 11: Asynchronous Consensus CSCE 668

Agreement 31 Claim: If pi decides v in phase r, then all nonfaulty procs. decide v by phase r + 1. Proof: Suppose r is earliest phase in which any proc. decides. pi decides v in phase r all its phase r votes are v pi 's call to get-core(<VOTE, prefer, r>) returns more than n/2 non-nil entries and all are <VOTE, v, r> all entries for procs. in C are <VOTE, v, r> continued on next slide… Set 11: Asynchronous Consensus CSCE 668

Agreement (cont’d) 32 Thus every pj receives more than n/2 <VOTE, v, r> entries pj does not decide a value other than v in phase r Also if pj calls get-core a second time in phase r, it uses input <OUTCOME, v, r> Every pk gets only <OUTCOME, v, r> as a result of its second call to get-core in phase r pk sets preference to v at end of phase r in round r + 1, all prefer v and Unanimity Lemma implies they all decide v in that round. Set 11: Asynchronous Consensus CSCE 668

Termination 33 Lemma (4. 10): Probability that all nonfaulty procs decide by any particular phase is at least . Proof: Case 1: All nonfaulty procs set preference in that phase using common-coin. Prob. that all get the same value is at least 2 ( for 0 and for 1), by property of common-coin Then apply Unanimity Lemma (14. 6) Set 11: Asynchronous Consensus CSCE 668

Termination 34 Case 2: Some processor does not set its preference using common-coin. All procs. that don't use common-coin to set their preference for that round have the same preference, v (convince yourself) Probability that the common-coin subroutine returns v for all procs. that use it is at least . Then apply the Unanimity Lemma (14. 6). Set 11: Asynchronous Consensus CSCE 668

Expected Number of Phases 35 What is the expected number of phases until all nonfaulty processors have decided? Probability of all deciding in any given phase is at least . Probability of terminating after i phases is (1– )i-1. Geometric random variable whose expected value is 1/. Set 11: Asynchronous Consensus CSCE 668

Implementing Get-Core 36 Difficulty in achieving consistency of messages is due to combination of asynchrony and crash possibility: a processor can only wait to receive n - f messages the first n - f messages that pi gets might not be from the same set of processors as pj 's first n - f messages Overcome this by exchanging messages three times Set 11: Asynchronous Consensus CSCE 668

Get-Core 37 First exchange ("round"): � send argument value to all wait for n - f first round msgs Second exchange ("round"): send values received in first round to all wait for n - f second round msgs merge data from second round msgs Third exchange ("round"): send values received in second round to all wait for n - f third round msgs merge data from third round msgs return result Set 11: Asynchronous Consensus CSCE 668

Analysis of Get-Core 38 Lemmas 14. 4 and 14. 5 show that it satisfies the desired properties (termination and consistency). Time is O(1) (using standard way of measuring time in an asynchronous system) Set 11: Asynchronous Consensus CSCE 668

Implementing Common-Coin 39 A simple algorithm: Each processor independently outputs 0 with probability 1/2 and 1 with probability 1/2. Bias = 1/2 n Advantage: simple, no communication Disadvantage: Expected number of phases until termination is 2 n Set 11: Asynchronous Consensus CSCE 668

40 A Common Coin with Constant Bias 0 with probability 1/n c : = 1 with probability 1 – 1/n coins : = get-core(<FLIP, c>) if there exists j s. t. coins[j] = 0 then return 0 else return 1 Set 11: Asynchronous Consensus CSCE 668

Correctness of Common Coin 41 Lemma (14. 12): Common-coin implements a ( n/2 – 1)-resilient coin with bias 1/4. Proof: Fix any admissible adversary that is weak (cannot see the contents of messages) and any initial configuration. All probabilities are calculated with respect to them. Set 11: Asynchronous Consensus CSCE 668

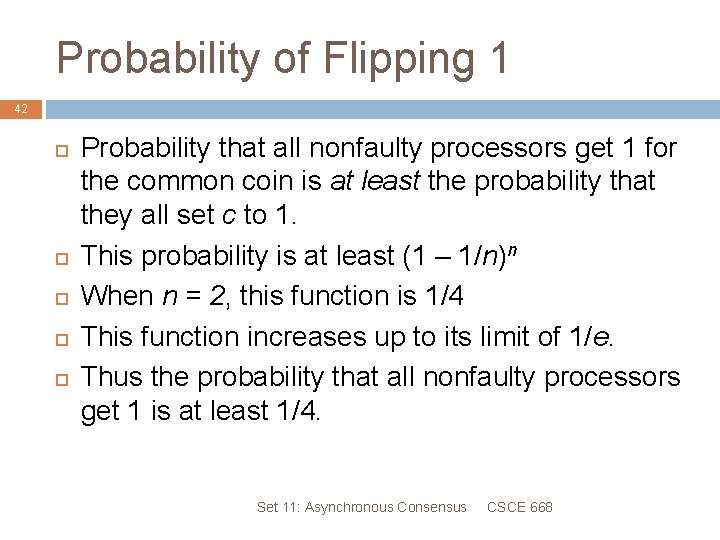

Probability of Flipping 1 42 Probability that all nonfaulty processors get 1 for the common coin is at least the probability that they all set c to 1. This probability is at least (1 – 1/n)n When n = 2, this function is 1/4 This function increases up to its limit of 1/e. Thus the probability that all nonfaulty processors get 1 is at least 1/4. Set 11: Asynchronous Consensus CSCE 668

Probability of Flipping 0 43 Let C be the set of core processors (whose existence is guaranteed by properties of getcore). If any processor in C sets c to 0, then all the nonfaulty processors will observe this 0 after executing get-core, and thus return 0. Probability at least one processor in C sets c to 0 is 1 – (1 – 1/n)|C|. This expression is at least 1/4 (by arithmetic). Set 11: Asynchronous Consensus CSCE 668

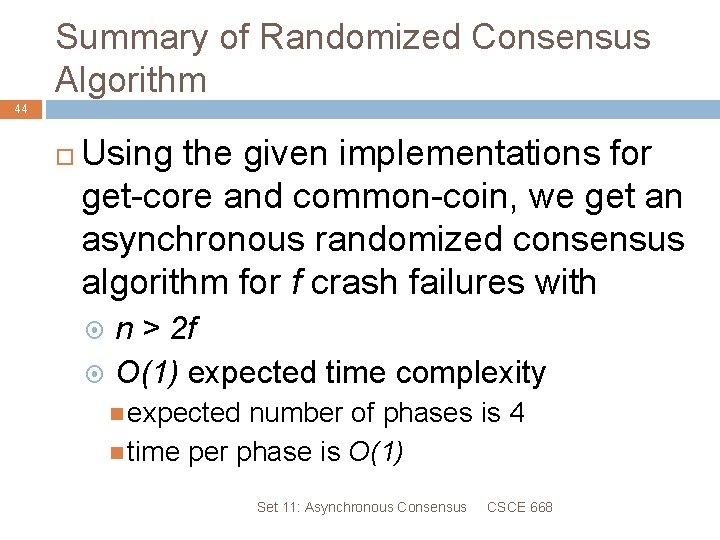

Summary of Randomized Consensus Algorithm 44 Using the given implementations for get-core and common-coin, we get an asynchronous randomized consensus algorithm for f crash failures with n > 2 f O(1) expected time complexity expected number of phases is 4 time per phase is O(1) Set 11: Asynchronous Consensus CSCE 668
