Sessions Objectives Azure Cosmos DB Core SQL API

Session’s Objectives

Azure Cosmos DB Core (SQL) API Table API Column-family Mongo. DB Document Graph Key-value Elastic scale out of storage & throughput Turnkey global distribution Guaranteed low latency at the 99 th percentile Five well-defined consistency models Comprehensive SLAs

Use Case: Building an Enterprise Time Tracking Platform

Determining Throughput (RUs)

Steps to determine required throughput

Calculating required throughput Workload is in the ratio of 2: 1 Reads vs. Writes Graph: Max consumed RUs per partition key range Pop Quiz: What should be throughput in RUs per partition?

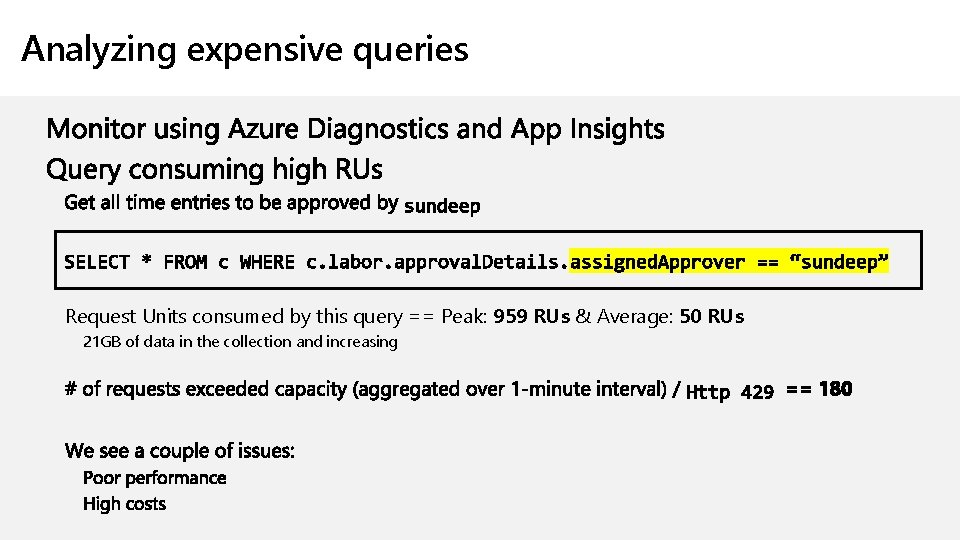

Analyzing expensive queries Request Units consumed by this query == Peak: 959 RUs & Average: 50 RUs 21 GB of data in the collection and increasing

Partitioning

Identifying the partition key Storage Distribution Uniformity Cardinality Or Uniqueness Of Value Distinctness at any given time (sec) submitted. By High submitted. Date Low High Low assigned. Approver High Low Partition Key: submitted. By

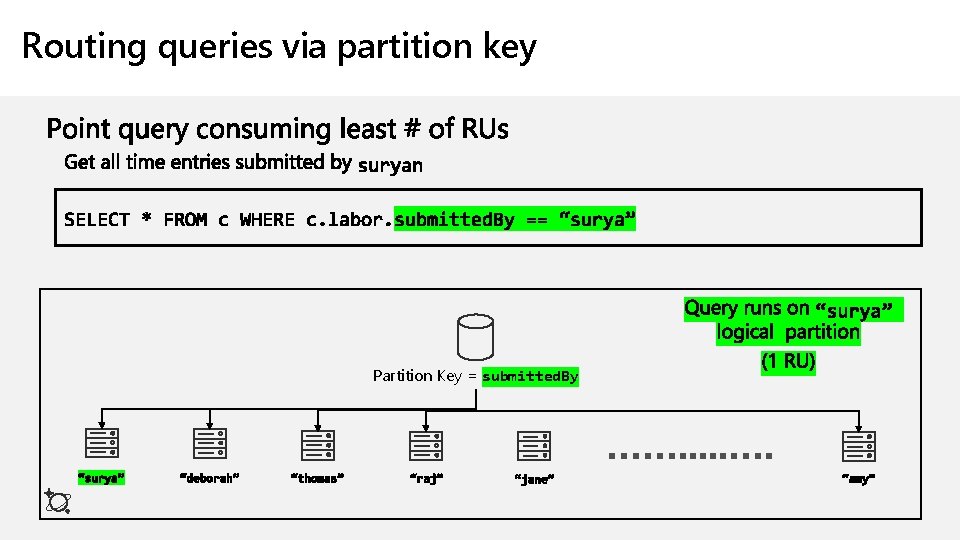

Routing queries via partition key Partition Key = submitted. By

Cross-partition queries Partition Key = submitted. By

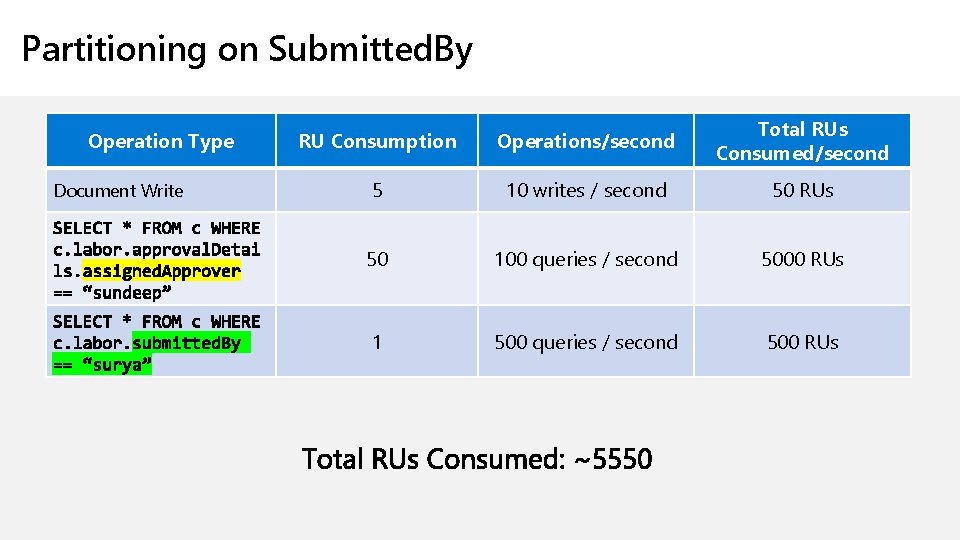

Partitioning on Submitted. By Operation Type Document Write RU Consumption Operations/second Total RUs Consumed/second 5 10 writes / second 50 RUs 50 100 queries / second 5000 RUs 1 500 queries / second 500 RUs

Change Feed Partition Key = assigned. Approver. Collection assigned. Approver

Using the Change Feed to duplicate data RU Consumption Operations/second Total RUs Consumed/second Document Write into Collection partitioned on submitted. By 5 10 writes / second 50 RUs Read Document from Change Feed 1 10 reads / second 10 RUs Document Write into Collection partitioned on assigned. Approver 5 10 writes / second 50 RUs 1 100 queries / second 100 RUs 1 500 queries / second 500 RUs Operation Type

Remember the Pop Quiz? Workload is in the ratio of 2: 1 Reads vs. Writes Graph: Max consumed RUs per partition key range Pop Quiz: What should be throughput in RUs per partition?

Consistency Level

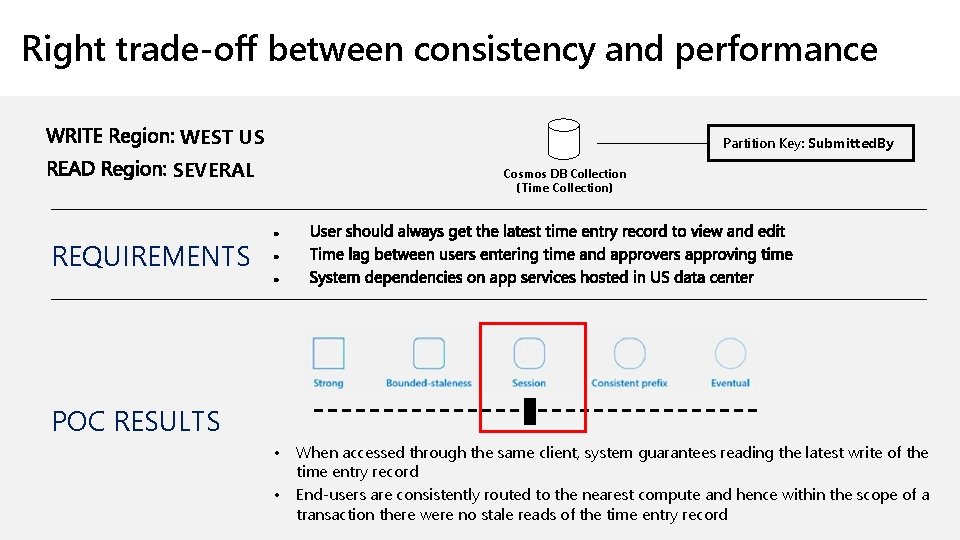

Right trade-off between consistency and performance WEST US Partition Key: Submitted. By SEVERAL Cosmos DB Collection (Time Collection) REQUIREMENTS POC RESULTS • • We cannot deploy READ regions outside US due to violation of the constraint of having READ region within 5 K miles of the nearest WRITE region High response times

Right trade-off between consistency and performance WEST US Partition Key: Submitted. By SEVERAL Cosmos DB Collection (Time Collection) REQUIREMENTS POC RESULTS • • Does not guarantee that a user will be able to see the last updated time entry record Repeated re-submission of time entry and inconsistent data

Right trade-off between consistency and performance WEST US Partition Key: Submitted. By SEVERAL Cosmos DB Collection (Time Collection) REQUIREMENTS POC RESULTS • • When accessed through the same client, system guarantees reading the latest write of the time entry record End-users are consistently routed to the nearest compute and hence within the scope of a transaction there were no stale reads of the time entry record

Right trade-off between consistency and performance WEST US Partition Key: Submitted. By SEVERAL Cosmos DB Collection (Time Collection) REQUIREMENTS POC RESULTS • • • Workload in our application is in the ratio of 2: 1 Reads vs. Writes Approver might not be able to see the submissions after a predictable time Application cannot operate with eventual consistency, since there are no latency guarantees

Right trade-off between consistency and performance WEST US Partition Key: Submitted. By SEVERAL Cosmos DB Collection (Time Collection) REQUIREMENTS POC RESULTS • Best effort replication of data and hence not suitable

Right trade-off between consistency and performance WEST US Partition Key: Submitted. By SEVERAL Cosmos DB Collection (Time Collection) REQUIREMENTS POC RESULTS • • When accessed through the same client, system guarantees reading the latest write of the time entry record End-users are consistently routed to the nearest compute and hence within the scope of a transaction there were no stale reads of the time entry record

Metrics and SLAs

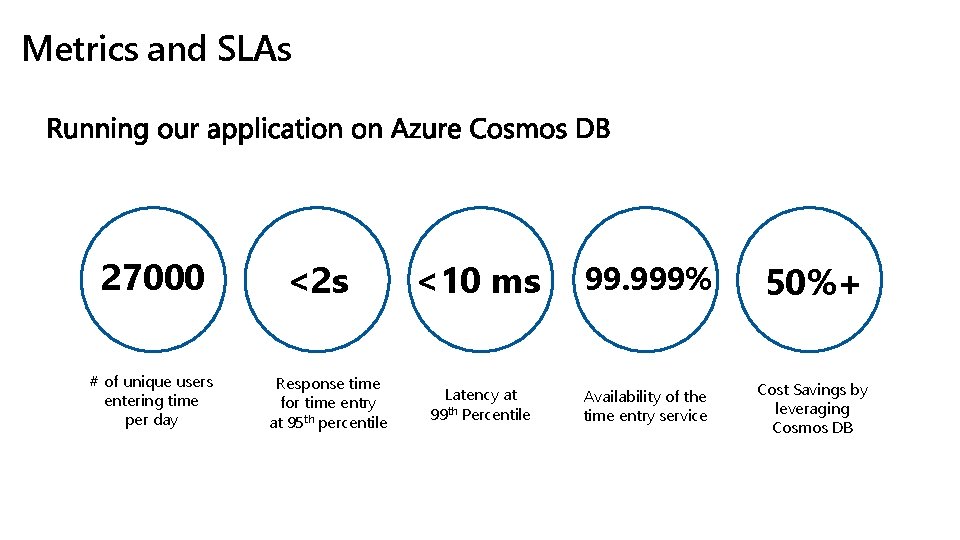

Metrics and SLAs 27000 # of unique users entering time per day <2 s Response time for time entry at 95 th percentile <10 ms 99. 999% 50%+ Latency at 99 th Percentile Availability of the time entry service Cost Savings by leveraging Cosmos DB

Demo

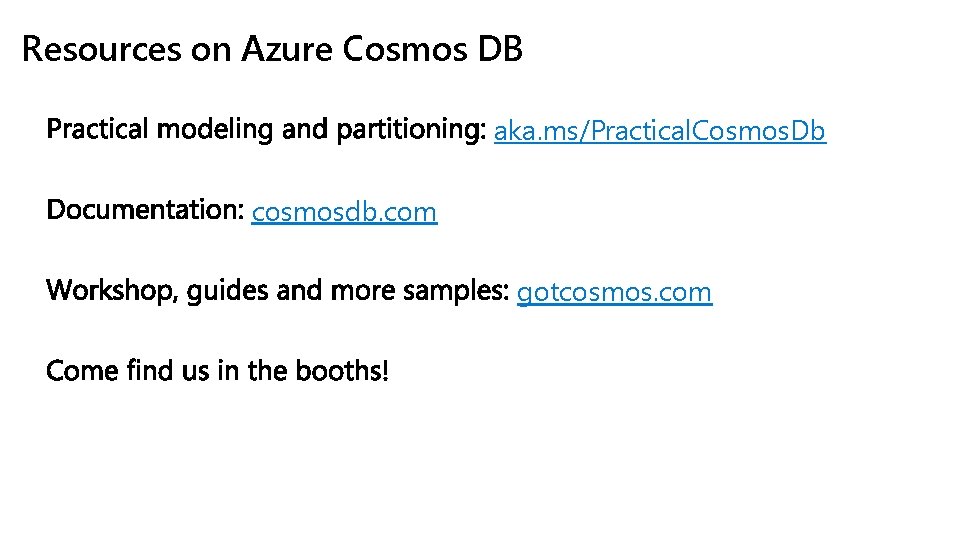

Resources on Azure Cosmos DB aka. ms/Practical. Cosmos. Db cosmosdb. com gotcosmos. com
