SESSION CODE WPH 304 Chris Walsh Chris Walshie

SESSION CODE: WPH 304 Chris Walsh @Chris. Walshie blog. walshie. me WHAT’S NEW FOR SILVERLIGHT & XNA DEVELOPERS IN WINDOWS PHONE MANGO (c) 2011 Microsoft. All rights reserved.

Which is right for me? ► Browser, Maps control ► Graphics, pick a technology – XNA • GPU Accelerated • Very low level – Silverlight • XAML markup • Controls & User Friendly (c) 2011 Microsoft. All rights reserved.

What you have now ► Silverlight Controls Retained Mode Declarative XAML ► XNA GPU Accelerated Immediate Mode (c) 2011 Microsoft. All rights reserved.

What is XNA? (c) 2011 Microsoft. All rights reserved.

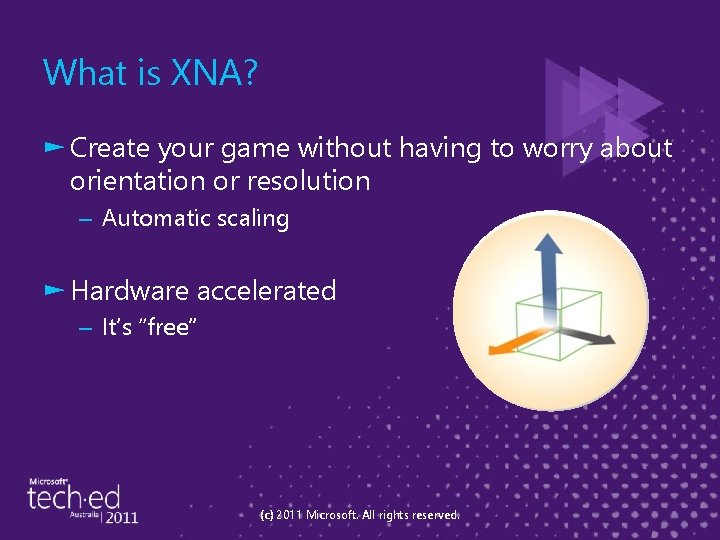

What is XNA? ► Create your game without having to worry about orientation or resolution – Automatic scaling ► Hardware accelerated – It’s “free” (c) 2011 Microsoft. All rights reserved.

The Game Loop private void On. Update(object sender, Game. Timer. Event. Args e) { } private void On. Draw(object sender, Game. Timer. Event. Args e) { Shared. Graphics. Device. Manager. Current. Graphics. Device. Clear (Color. Cornflower. Blue); } (c) 2011 Microsoft. All rights reserved.

The Game Loop ► Two game options – Fixed-Step Loops (default) – Variable Step Loops (c) 2011 Microsoft. All rights reserved.

Content Pipeline (c) 2011 Microsoft. All rights reserved.

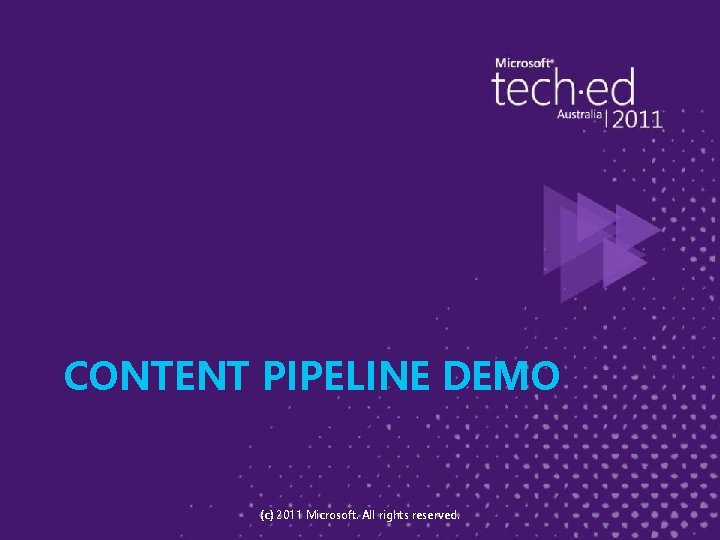

CONTENT PIPELINE DEMO (c) 2011 Microsoft. All rights reserved.

XNA Shared Graphics ► XNA Rendering takes over – Graphics operations valid when shared rendering enabled – Set. Sharing. Mode(bool Is. Enabled) ► Silverlight model – Application class – Phone. App. Page with default navigation ► XNA 3 D graphics within your APP!!! (c) 2011 Microsoft. All rights reserved.

XNA Shared Graphics ► GPU resource management – Silverlight releases resources when using XNA – Maximize free memory by minimizing repeat loading of content – XNA API’s allow manual resource management ► XNA Shared. Graphics. Device. Manager – Uses Direct 3 D device sharing with Silverlight (c) 2011 Microsoft. All rights reserved.

XNA SHARED GRAPHICS DEMO (c) 2011 Microsoft. All rights reserved.

But what about the “Game” type ► New Game. Timer type for events ► XNA. Framework. Game – Game “Heartbeat” methods – Application lifetime events (from Silverlight) – Content Manager (c) 2011 Microsoft. All rights reserved.

What’s changed? public sealed class Game. Timer : IDisposable { public Game. Timer(); public event Event. Handler<Game. Timer. Event. Args> Draw; public event Event. Handler<Event. Args> Frame. Action; public event Event. Handler<Game. Timer. Event. Args> Update; public int Frame. Action. Order { get; set; } Time. Span Update. Interval { get; set; } int Update. Order { get; set; } int Draw. Order { get; set; } // A snapshot of the game timing state. // The values provided are solely based // on game time and not real time. public sealed class Game. Timer. Event. Args : Event. Args { //… public Time. Span Elapsed. Time { get; internal set; public bool Is. Running. Slowly { get; internal set; public Time. Span Total. Time { get; internal set; } } public static void Reset. Elapsed. Time(); public static void Suppress. Frame(); public void Start(); public void Stop(); public void Dispose(); } (c) 2011 Microsoft. All rights reserved.

Can I use them together? (c) 2011 Microsoft. All rights reserved.

UIElement. Renderer ► Silverlight App Page still active when using XNA Shared Rendering ► UIElement. Renderer renders a UIElement to a Texture 2 D ► Use it how you want – Texture models – Billboards – UI, controls & input (c) 2011 Microsoft. All rights reserved.

UIElement. Renderer uses ► Per-frame targets – Draw entire page along with 3 D rendering – Game score / Status Bar – Menu’s ► Single-use targets – International text, where you want it – Effects & Transitions from Silverlight to XNA – Background image creation (c) 2011 Microsoft. All rights reserved.

Sockets! (c) 2011 Microsoft. All rights reserved.

WINDOWS PHONE “MANGO” RTM’ED 27. 07. 2011!!!! Get started now – http: //create. msdn. com (c) 2011 Microsoft. All rights reserved.

Enrol in Microsoft Virtual Academy Today Why Enroll, other than it being free? The MVA helps improve your IT skill set and advance your career with a free, easy to access training portal that allows you to learn at your own pace, focusing on Microsoft technologies. What Do I get for enrolment? ► Free training to make you become the Cloud-Hero in my Organization ► Help mastering your Training Path and get the recognition ► Connect with other IT Pros and discuss The Cloud Where do I Enrol? www. microsoftvirtualacademy. com Then tell us what you think. Tell. The. Dean@microsoft. com

Resources www. msteched. com/Australia www. microsoft. com/australia/learning Sessions On-Demand & Community Microsoft Certification & Training Resources http: // technet. microsoft. com/en-au http: //msdn. microsoft. com/en-au Resources for IT Professionals Resources for Developers (c) 2011 Microsoft. All rights reserved.
