Servlets Explain how browsers and servers work Use

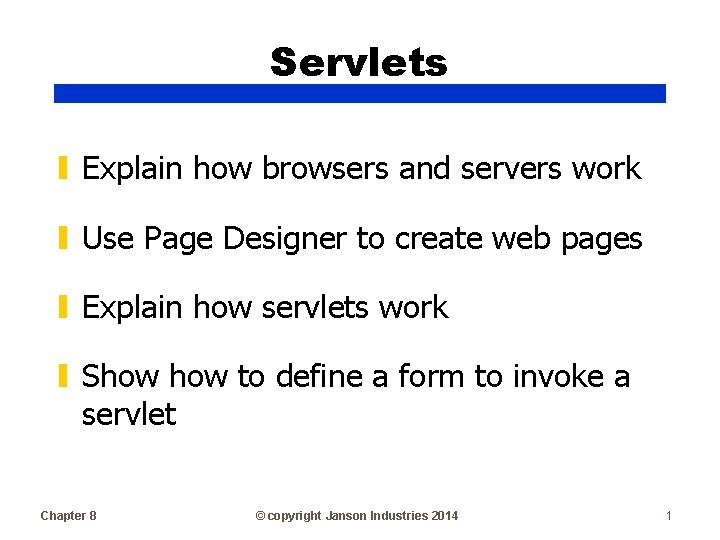

Servlets ▮ Explain how browsers and servers work ▮ Use Page Designer to create web pages ▮ Explain how servlets work ▮ Show to define a form to invoke a servlet Chapter 8 © copyright Janson Industries 2014 1
New Source of Documentation Chapter 8 © copyright Janson Industries 2014 http: //download. oracle. com/javaee/7/api/ 2
Servlets and JSPs ▮ Servlets are Java programs that generate HTML which is sent to a browser ▮ JSP’s (Java Server Pages) are HTML with embedded Java commands ▮ The advantage over static web pages: servlets and JSP’s can dynamically build web pages and their content Chapter 8 © copyright Janson Industries 2014 3
Servlets and JSP’s ▮ In actuality, JSP’s are converted into Servlets by the JSP “container” ▮ Need a server that provides Servlet and JSP containers – an application server ▮ Before we can create need to: ▮ Explain how browser, server & servlets work ▮ Show some alternatives for building servlets: ▮ Source code ▮ RAD Page Designer Chapter 8 © copyright Janson Industries 2014 4
Servers ▮ When a link is clicked or a URL is entered, the browser sends a request to the server ▮ There are many type of requests ▮ Primarily, browsers send get and post requests ▮ A browser get request asks for a file’s contents, a post sends HTML FORM info ▮ If the get request identifies a html file, the server sends the html back to the client as part of a response Chapter 8 © copyright Janson Industries 2014 5
Servlets ▮ If a request identifies a servlet, servlet is run i. e. its init() method is run ▮ if a constructor exists, it will be run also ▮ If a get request, server also invokes the do. Get method of the servlet ▮ What method does a post request invoke? ▮ Server also passes 2 objects to the servlet: Http. Servlet. Request Chapter 8 Http. Servlet. Response © copyright Janson Industries 2014 6
Servlets Users PC Browser S/W 1 URL. class Server 2 Get request for servlet Server S/W Req & Resp objects . CLASS 3 Load and run servlet Servlet User Chapter 8 © copyright Janson Industries 2014 7
Servlets ▮ The servlet modifies the response object ▮ When the servlet finishes, the response is passed back to the server ▮ The server returns the modified response object back to the browser Chapter 8 © copyright Janson Industries 2014 8
Servlets Server Users PC Browser S/W 5 Response w/ HTML 6 Display Web Page Server S/W 4 Response object Servlet User Chapter 8 © copyright Janson Industries 2014 9
Server based apps can’t be stored in a Java project We will create and use a Dynamic Web project File, New, Project, Dynamic Web Project Chapter 8 © copyright Janson Industries 2014 10
New project - My. Web Must create an EAR then add My. Web to EAR Chapter 8 © copyright Janson Industries 2014 11

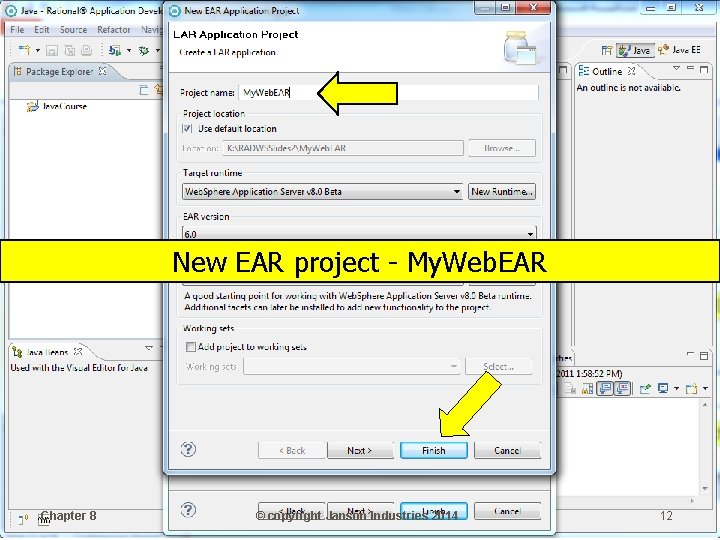

New EAR project - My. Web. EAR Chapter 8 © copyright Janson Industries 2014 12

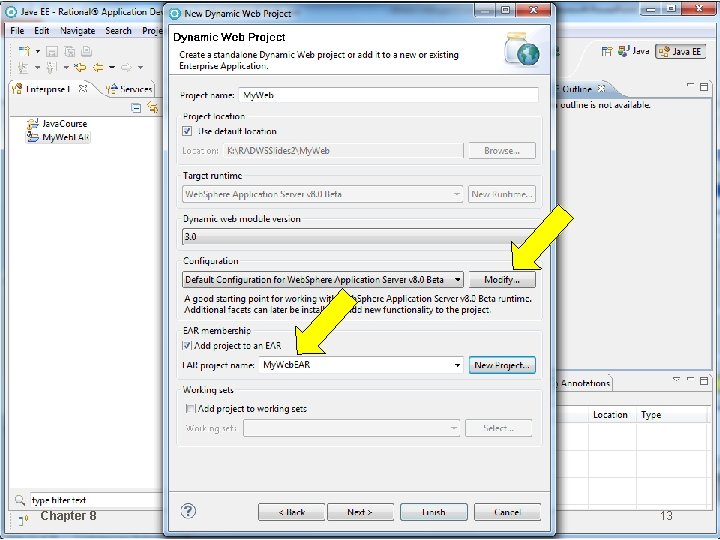

Chapter 8 © copyright Janson Industries 2014 13

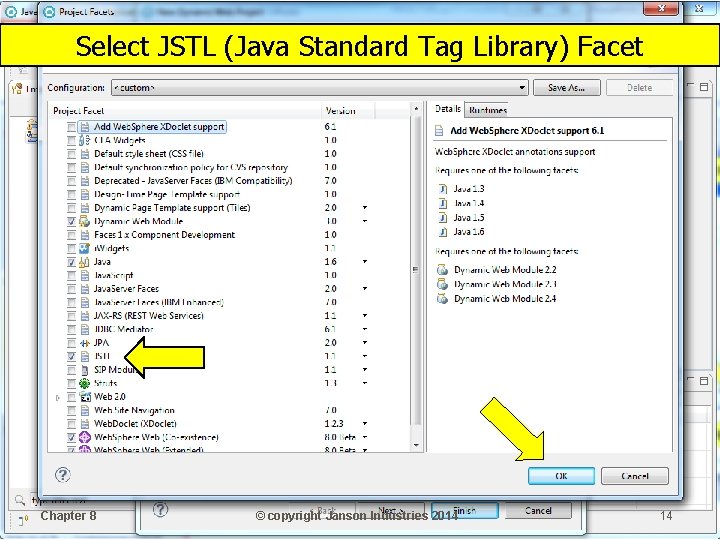

Select JSTL (Java Standard Tag Library) Facet Chapter 8 © copyright Janson Industries 2014 14
Will ask for perspective switch to Web, click Yes Chapter 8 © copyright Janson Industries 2014 15

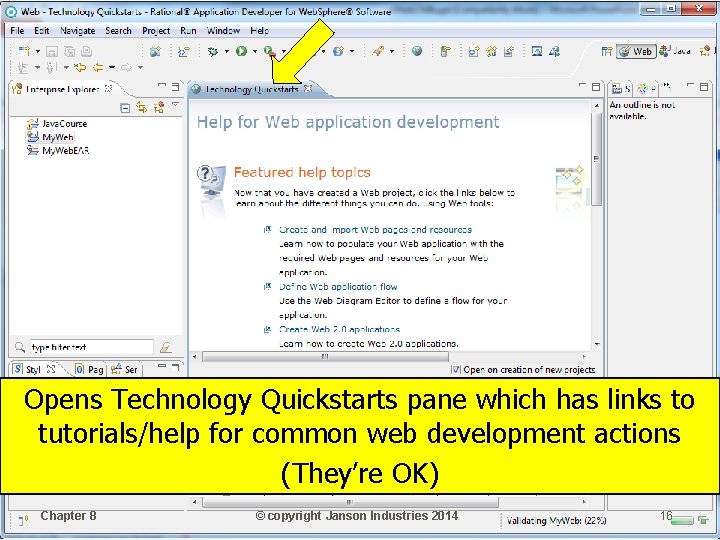

Opens Technology Quickstarts pane which has links to tutorials/help for common web development actions (They’re OK) Chapter 8 © copyright Janson Industries 2014 16

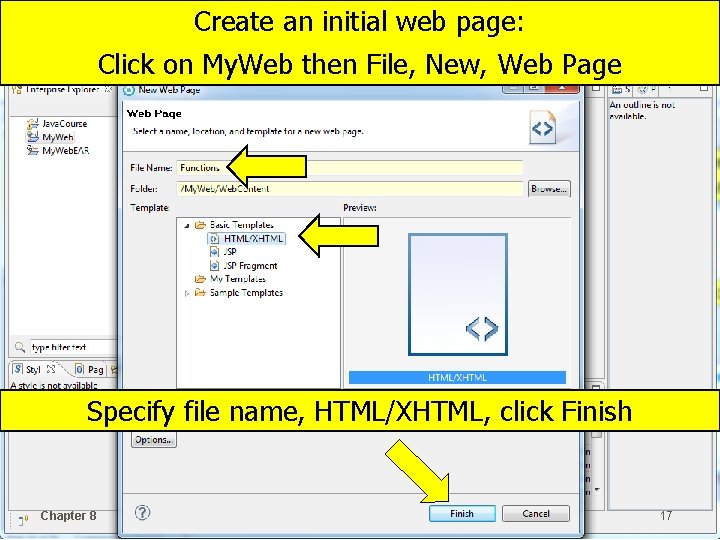

Create an initial web page: Click on My. Web then File, New, Web Page Specify file name, HTML/XHTML, click Finish Chapter 8 © copyright Janson Industries 2014 17
Servers ▮ Servers require that web app resources be stored in specific locations, i. e. ▮ Web pages are stored in a particular folder ▮ Servlets are stored in a particular folder ▮ RAD picks the correct folder: Web. Content Chapter 8 © copyright Janson Industries 2014 18

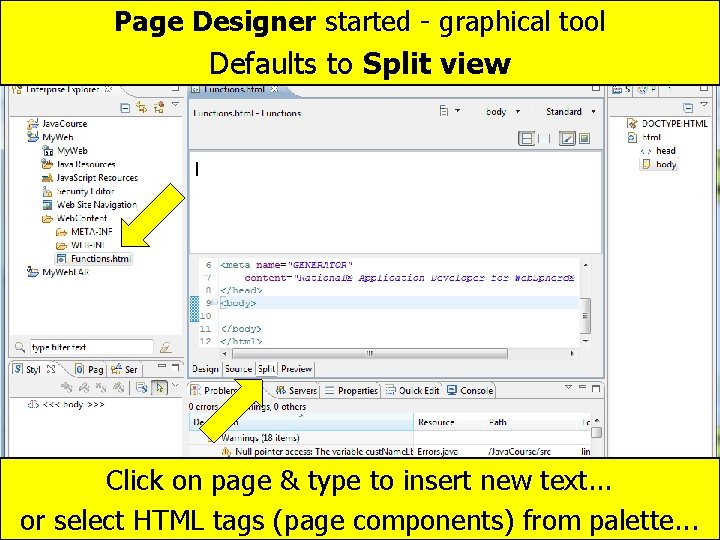

Page Designer started - graphical tool Defaults to Split view Click on page & type to insert new text. . . 8 Janson Industries 2014 19 or. Chapter select HTML tags© copyright (page components) from palette. . .

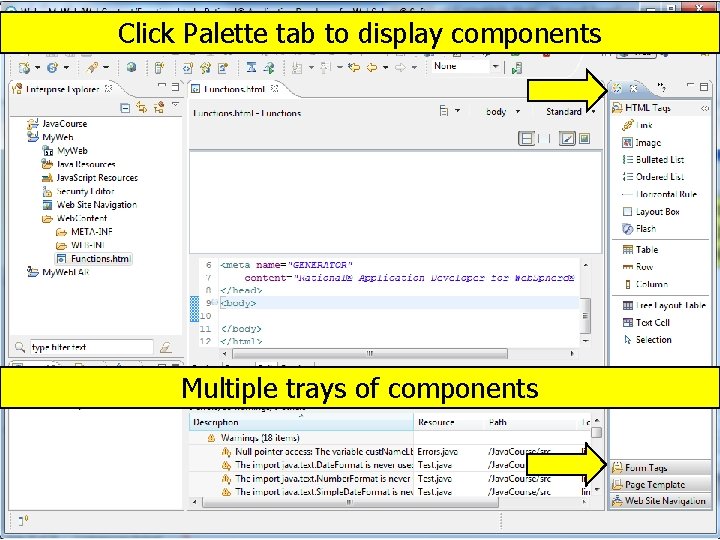

Click Palette tab to display components Multiple trays of components Chapter 8 © copyright Janson Industries 2014 20
Or insert other components (Images, Links, Lines, Tables, etc. )2014 Chapter 8 © copyright Janson Industries 21

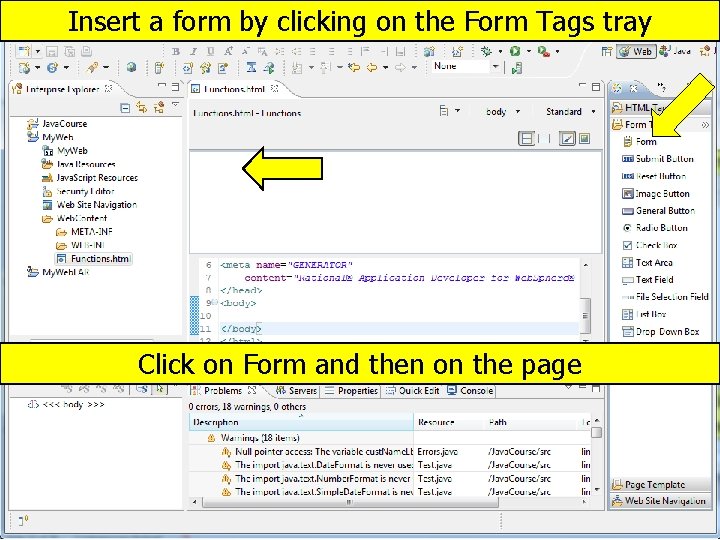

Insert a form by clicking on the Form Tags tray Click on Form and then on the page Chapter 8 © copyright Janson Industries 2014 22
Shows form in design view and inserts the HTML Chapter 8 © copyright Janson Industries 2014 23
Must put other visual components in the form Click Text Field then click inside form Specify properties and click OK Name is very important! Chapter 8 © copyright Janson Industries 2014 24
Places component at cursor location Move by click and drag. . . but Web pages are line oriented (as opposed to Frames) Have to put in blank lines and spaces to drag Chapter 8 © copyright Janson Industries 2014 25

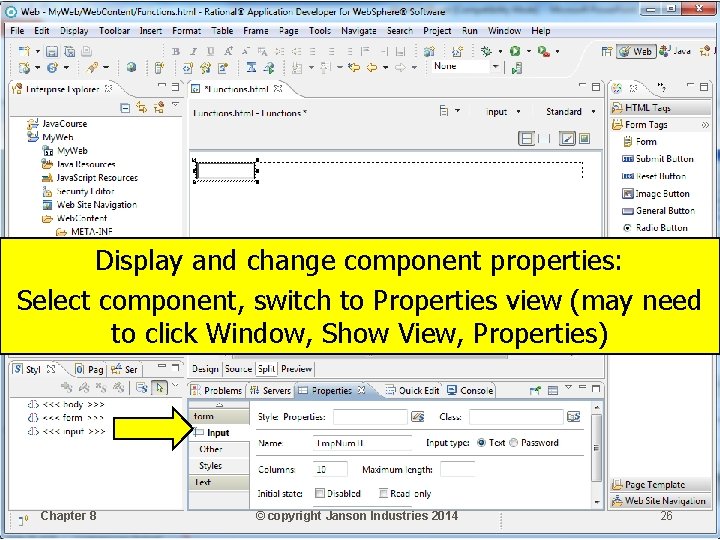

Display and change component properties: Select component, switch to Properties view (may need to click Window, Show View, Properties) Chapter 8 © copyright Janson Industries 2014 26
Put in 3 new lines (Enter 3 times) in web page then clicked List. Box and the last line Specify LB properties Must click Add to specify values Chapter 8 © copyright Janson Industries 2014 27
Chapter 8 © copyright Janson Industries 2014 28
Click and drag on resize handles to reshape or change properties Chapter 8 © copyright Janson Industries 2014 29

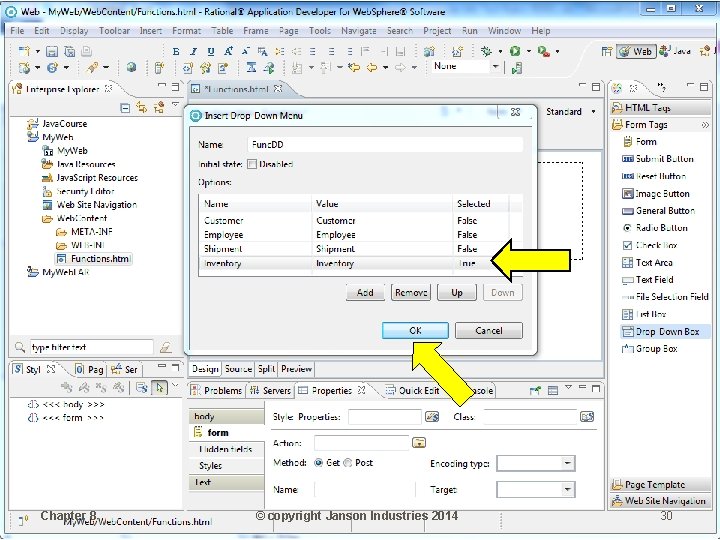

Chapter 8 © copyright Janson Industries 2014 30
Text Field List Box Drop Down Menu Notice in DDM that selected item (Inventory) not chosen Chapter 8 © copyright Janson Industries 2014 31
Switch to Preview pane Employee item in list is selected and listed at top and Inventory in DDM is selected and displayed Chapter 8 © copyright Janson Industries 2014 32
To format: select component (or components), click Format Chapter 8 © copyright Janson Industries 2014 33
Choose format options Chapter 8 © copyright Janson Industries 2014 34
You get the idea… I’ll add text and pretty it up a little Chapter 8 © copyright Janson Industries 2014 35
Alternative view: Source Chapter 8 © copyright Janson Industries 2014 36
Of course, you can modify source directly Chapter 8 Forms must have a submit button! © copyright Janson Industries 2014 37

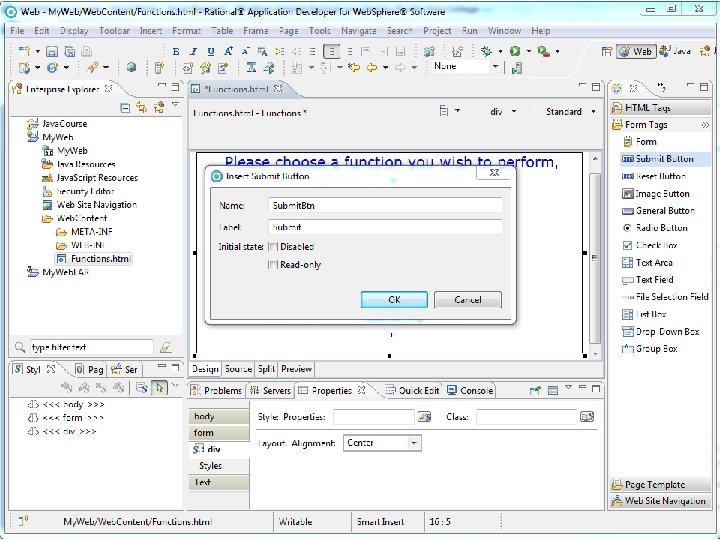

Chapter 8 © copyright Janson Industries 2014 38
Chapter 8 © copyright Janson Industries 2014 39
In Class Assg ▮ Create a page called Functions 2 that has form, submit button, and a drop down box with options for: ▮ Customer ▮ Sale ▮ Create two pages (Cust. html and Sale. html) that: ▮ Have forms (with text fields, buttons, and text) to enter customer and transaction info that look like the following. . . Chapter 8 © copyright Janson Industries 2014 40

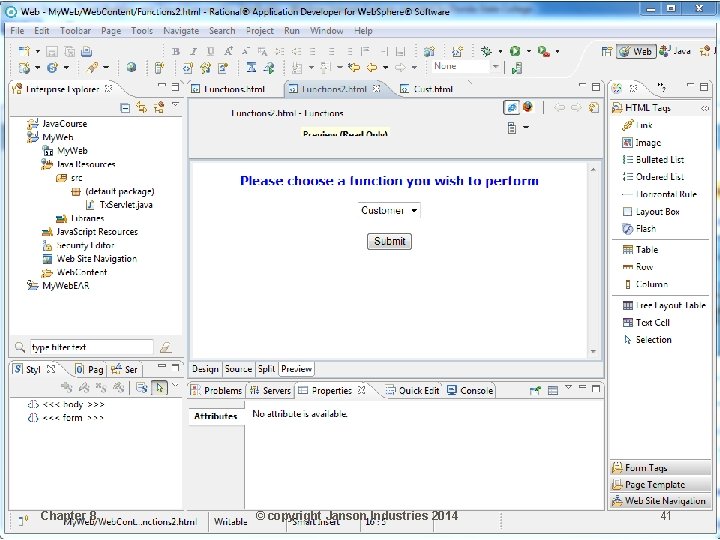

Chapter 8 © copyright Janson Industries 2014 41

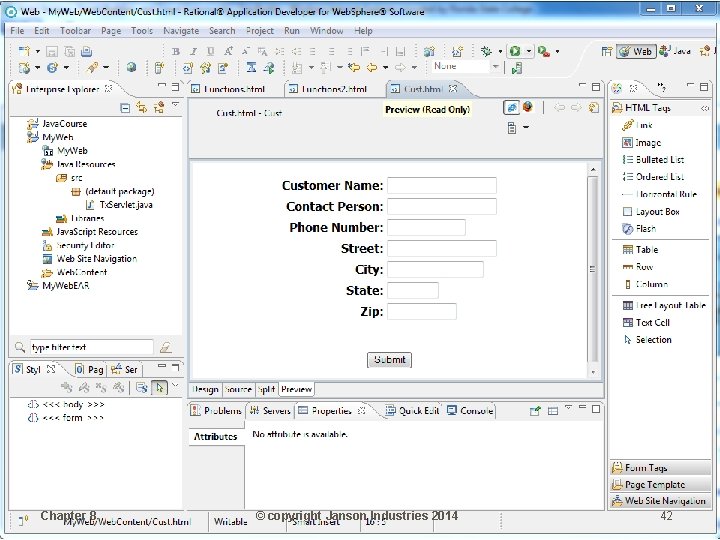

Chapter 8 © copyright Janson Industries 2014 42
A trick to get all the components to line up: Invisible tables (tables with Border = 0) Chapter 8 © copyright Janson Industries 2014 43
Chapter 8 © copyright Janson Industries 2014 44

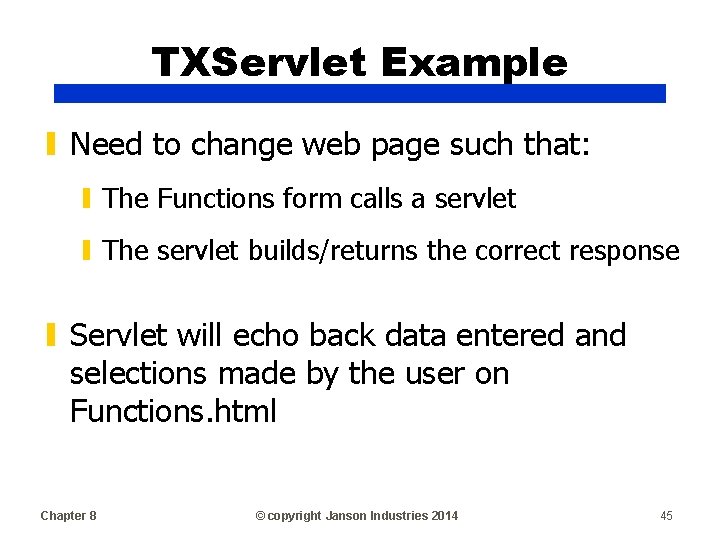

TXServlet Example ▮ Need to change web page such that: ▮ The Functions form calls a servlet ▮ The servlet builds/returns the correct response ▮ Servlet will echo back data entered and selections made by the user on Functions. html Chapter 8 © copyright Janson Industries 2014 45

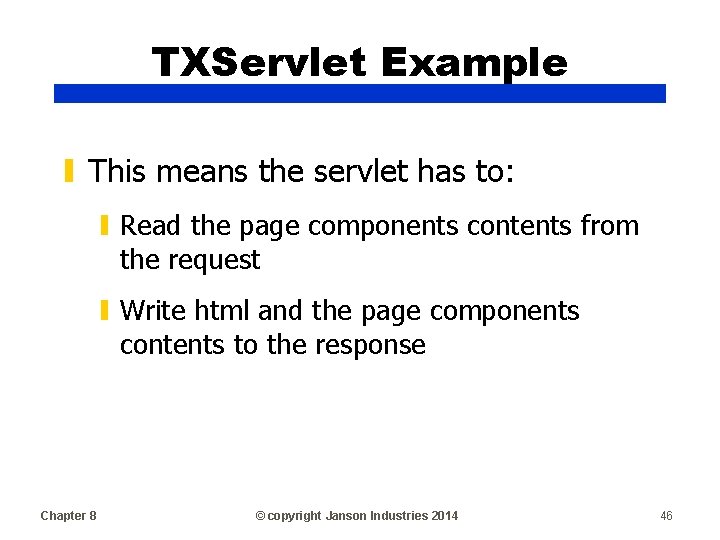

TXServlet Example ▮ This means the servlet has to: ▮ Read the page components contents from the request ▮ Write html and the page components contents to the response Chapter 8 © copyright Janson Industries 2014 46
To create a servlet for the first time: File, New, Other Expand Web and select Servlet Chapter 8 © copyright Janson Industries 2014 47
Notice RAD knows where to save source Specify name and then click Finish Chapter 8 © copyright Janson Industries 2014 48

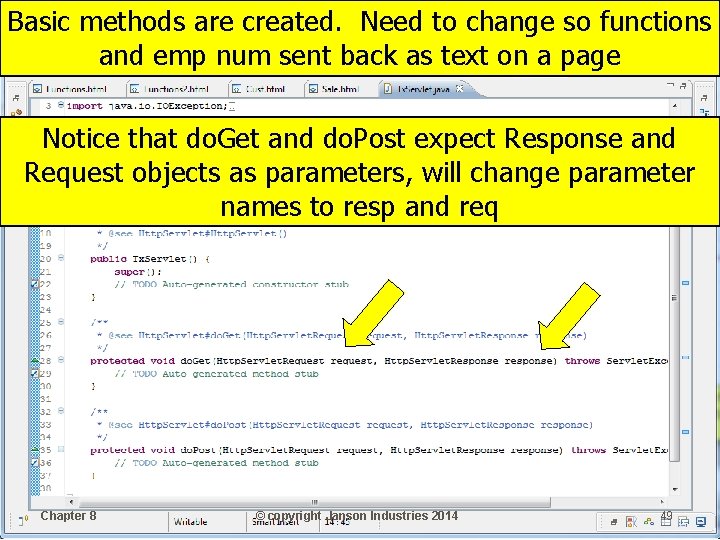

Basic methods are created. Need to change so functions and emp num sent back as text on a page Notice that do. Get and do. Post expect Response and Request objects as parameters, will change parameter names to resp and req Chapter 8 © copyright Janson Industries 2014 49
To tie a web page to the servlet, in Design view of page click form outline or in Properties pane the form tab Chapter 8 copyright Janson Industries 2014 Then ©click the Action button 50
RAD will display the available servlets Select a servlet and click the OK button Chapter 8 © copyright Janson Industries 2014 51
Drop Down Menu ■ To retrieve the selected item from the DDM use the request object’s get. Parmeter method ♦ Remember form data imbedded in the request ♦ Each of the forms visual components is a request “parameter” ■ Syntax is: String func = req. get. Parameter(“DDMName"); Chapter 8 © copyright Janson Industries 2014 52
Tieing To Other Pages ■ A response object’s send. Redirect() method allows you to redirect the browser to another url if (func. equals(“other”)) { resp. send. Redirect(“Otherpage. html"); } Chapter 8 © copyright Janson Industries 2014 53
In Class Assg 2 ▮ Create a servlet called Func. Servlet that is ▮ Called by Functions 2. html ▮ Based on the selected function, redirects to either Cust. html or Sale. html User Functions 2. html Func. Servlet Cust or Sale. html Assg 2 Solution Chapter 8 © copyright Janson Industries 2014 54
Writing to a Response ▮ Servlets need two objects to manipulate a Response object: ▮ Print. Writer ▮ Output. Stream ▮ The Print. Writer, Output. Stream, and Response are “tied together” ▮ The Print. Writer feeds the Output. Stream, which writes to the Response Chapter 8 © copyright Janson Industries 2014 55
Servlets ▮ Print. Writer takes Strings and numbers and converts to a text output stream ▮ Output. Stream converts a text output stream to a binary stream Text Print. Writer Stream Primitives & Strings Chapter 8 Output Stream Binary Stream Response © copyright Janson Industries 2014 56
Servlets ▮ The Response object has a method that returns a Output. Stream object that is tied to the repsonse: resp. get. Output. Stream() ▮ Must create a Print. Writer object and pass it the Output. Stream object (ties the two together) ▮ Standard syntax to create Print. Writer object: Print. Writer out = new Print. Writer(resp. get. Output. Stream()); ▮ Don’t forget to import the class import java. io. Print. Writer; Chapter 8 © copyright Janson Industries 2014 57
Servlets ▮ Use the request object to retrieve info from page components then assign to variables: String emp. Num = req. get. Parameter(“Emp. Num. TF”); String func. LB = req. get. Parameter(“Func. LB”); String func. DD = req. get. Parameter(“Func. DD”); ▮ HTML for basic page: out. println("<HTML>"); out. println("<HEAD><Title>Servlet Response</Title></HEAD>"); out. println("<BODY>"); out. println("</HTML>"); Chapter 8 © copyright Janson Industries 2014 58

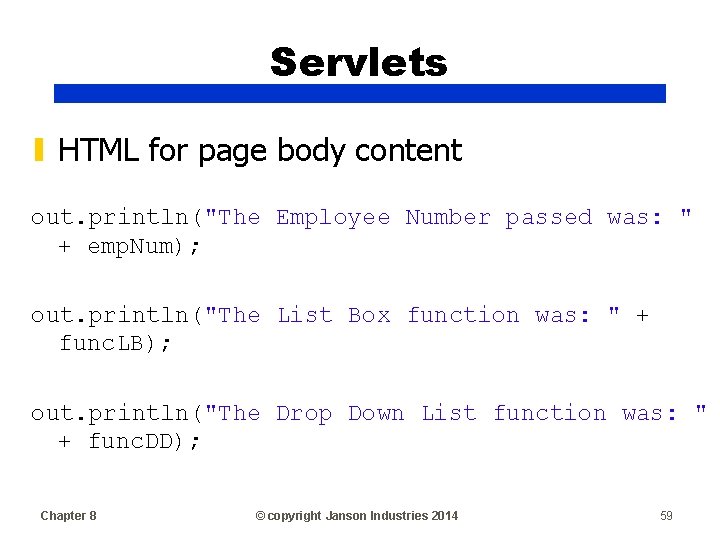

Servlets ▮ HTML for page body content out. println("The Employee Number passed was: " + emp. Num); out. println("The List Box function was: " + func. LB); out. println("The Drop Down List function was: " + func. DD); Chapter 8 © copyright Janson Industries 2014 59

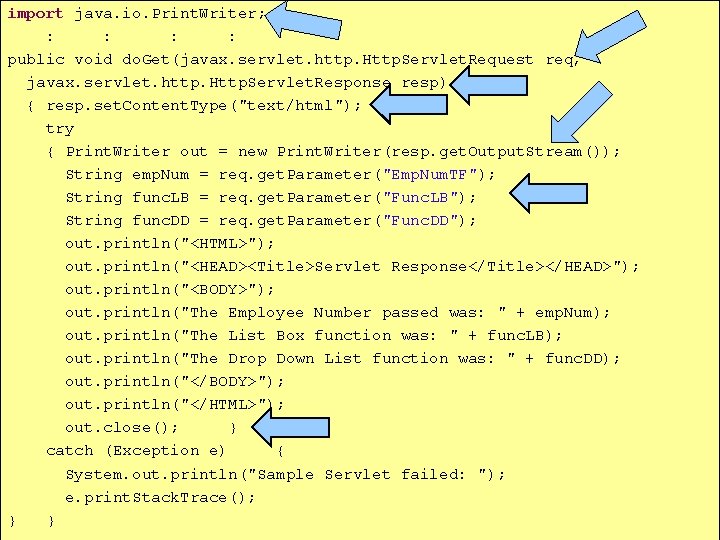

import java. io. Print. Writer; : : public void do. Get(javax. servlet. http. Http. Servlet. Request req, javax. servlet. http. Http. Servlet. Response resp) { resp. set. Content. Type("text/html"); try { Print. Writer out = new Print. Writer(resp. get. Output. Stream()); String emp. Num = req. get. Parameter("Emp. Num. TF"); String func. LB = req. get. Parameter("Func. LB"); String func. DD = req. get. Parameter("Func. DD"); out. println("<HTML>"); out. println("<HEAD><Title>Servlet Response</Title></HEAD>"); out. println("<BODY>"); out. println("The Employee Number passed was: " + emp. Num); out. println("The List Box function was: " + func. LB); out. println("The Drop Down List function was: " + func. DD); out. println("</BODY>"); out. println("</HTML>"); out. close(); } catch (Exception e) { System. out. println("Sample Servlet failed: "); e. print. Stack. Trace(); Chapter 8 © copyright Janson Industries 2014 } } 60
Don't forget to tie Web page and servlet together: Chapter 8 copyright Janson Industries 2014 61 specify that when ©Submit. Btn clicked, Tx. Servlet called
Start by clicking form outline in Design view or form tab in Properties pane to display Properties Chapter 8 © copyright Janson Industries 2014 Then click Action button and select Servlet 62
RAD will display the available servlets Select Tx. Servlet and click the OK button Chapter 8 © copyright Janson Industries 2014 63
Will not work in Preview pane Must run the web page on server In Project Explorer: Chapter 8 copyright Janson Industries 2014 64 Right click the web©page, select Run as, Run on Server

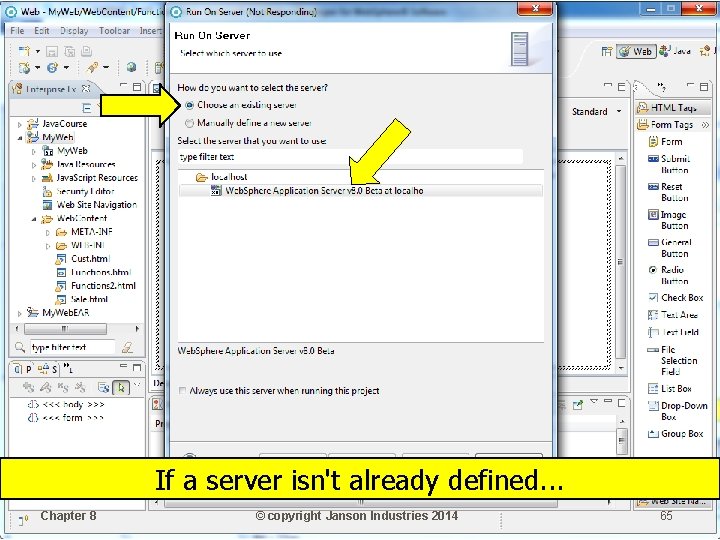

If a server isn't already defined. . . Chapter 8 © copyright Janson Industries 2014 65
If first time or in lab, create a new Test server Chapter 8 © copyright Janson Industries 2014 66
Deselect RMI and IPC. Soap plays nicer with the firewall. Chapter 8 © copyright Janson Industries 2014 67
If not first time or not in lab, use existing server Chapter 8 © copyright Janson Industries 2014 68
If you get an error, click the Details button and follow instructions Chapter 8 © copyright Janson Industries 2014 69
Server Problems ▮ How to fix server errors when running servlets ▮ Turn off your firewall ▮ Turn off anti-virus s/w (or configure it so RAD has total authority) ▮ Run RAD as an administrator ▮ Right click RAD icon/menu item ▮ Select Run as administrator Chapter 8 © copyright Janson Industries 2014 70
Server Problems ▮ Profile name App. Srv 1 is invalid. Specify a profile name that exists on the server. ▮ Click here for document with instructions on how to create server profile name Chapter 8 © copyright Janson Industries 2014 71
Server Problems ▮ If resource not found error ▮ In Servers pane, right click server ▮ Select Add and Remove ▮ Click Remove All then Finish ▮ This forces the server to reload the project the next time it is run ▮ In Explorer pane select the project ▮ In Command bar click on Project ▮ Select Clean ▮ Forces RAD to rebuild the project Chapter 8 © copyright Janson Industries 2014 72

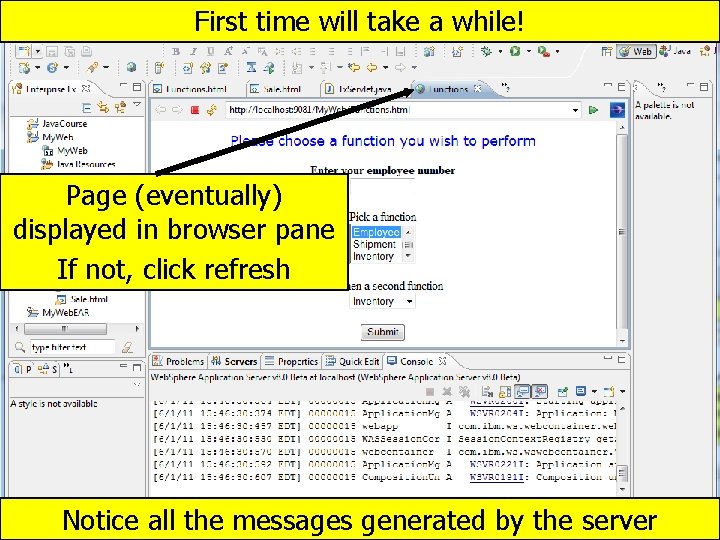

First time will take a while! Page (eventually) displayed in browser pane If not, click refresh © copyright Janson Industries 2014 Notice all the messages generated by the server 73 Chapter 8

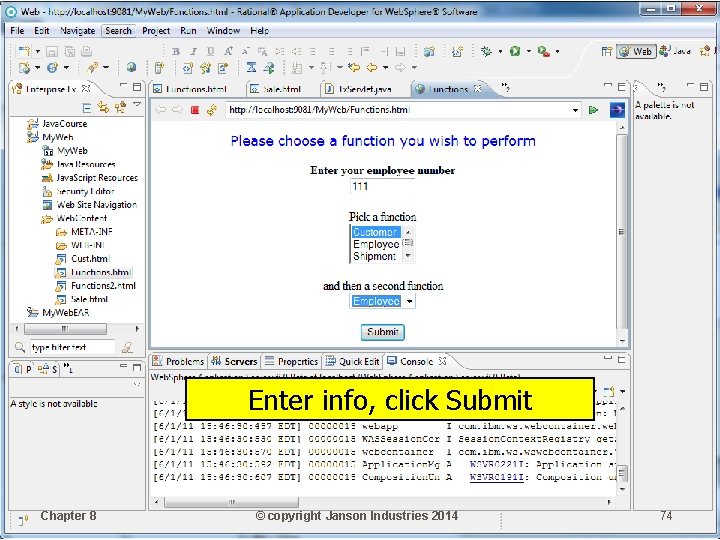

Enter info, click Submit Chapter 8 © copyright Janson Industries 2014 74

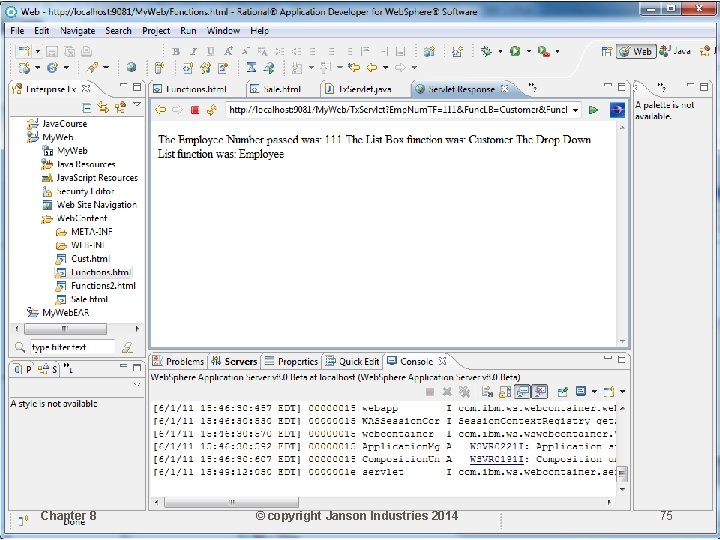

Chapter 8 © copyright Janson Industries 2014 75
In Class Assg 3 - Sale. Servlet ▮ Sale. html should invoke Sale. Servlet ▮ Create Sale. Servlet to: ▮ Echo back the data from the Sale Web Page Sale. html User Chapter 8 HTML (response) With Sale info © copyright Janson Industries 2014 Sale Servlet 76
In Class Assg 3 - Sale. Servlet Solution Chapter 8 © copyright Janson Industries 2014 77

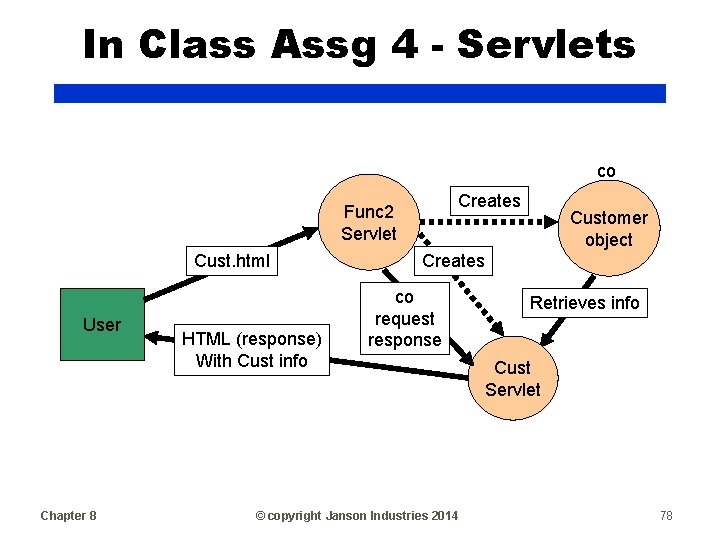

In Class Assg 4 - Servlets co Creates Func 2 Servlet Cust. html User Chapter 8 HTML (response) With Cust info Customer object Creates co request response © copyright Janson Industries 2014 Retrieves info Cust Servlet 78

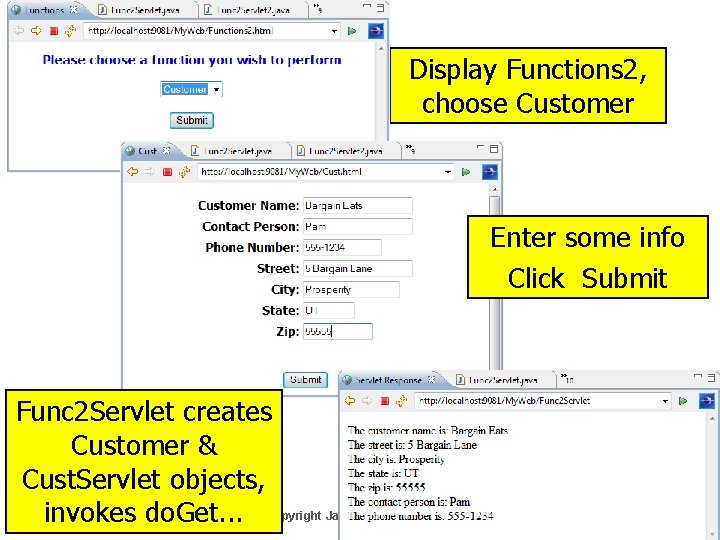

Display Functions 2, choose Customer Enter some info Click Submit Func 2 Servlet creates Customer & Cust. Servlet objects, Chapter 8 invokes do. Get. . . © copyright Janson Industries 2014 Voila 79
In Class Assg 4 - Cust. Servlet ▮ Cust. html should invoke Func 2 Servlet that: ▮ Creates a Customer object, assigns to a variable called co, populates object with page data ▮ Must copy Customer class into My. Web ▮ Code Cust. Servlet such that: ▮ do. Get also expects a Customer variable ▮ Echoes back data from Customer object Chapter 8 © copyright Janson Industries 2014 80

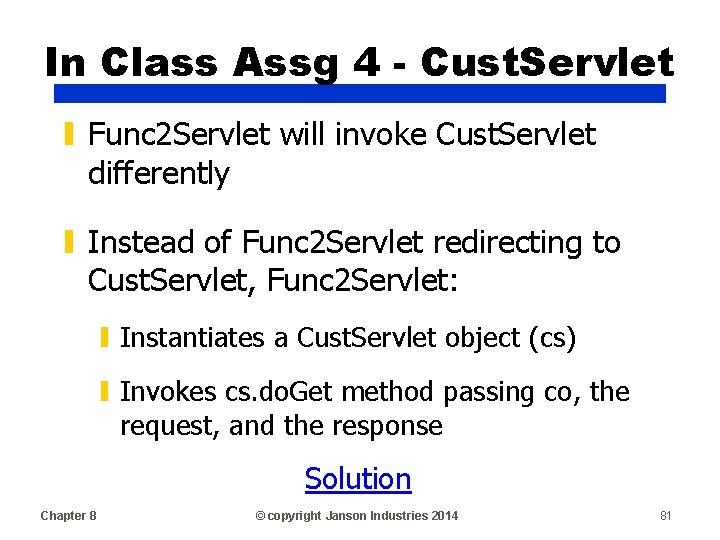

In Class Assg 4 - Cust. Servlet ▮ Func 2 Servlet will invoke Cust. Servlet differently ▮ Instead of Func 2 Servlet redirecting to Cust. Servlet, Func 2 Servlet: ▮ Instantiates a Cust. Servlet object (cs) ▮ Invokes cs. do. Get method passing co, the request, and the response Solution Chapter 8 © copyright Janson Industries 2014 81

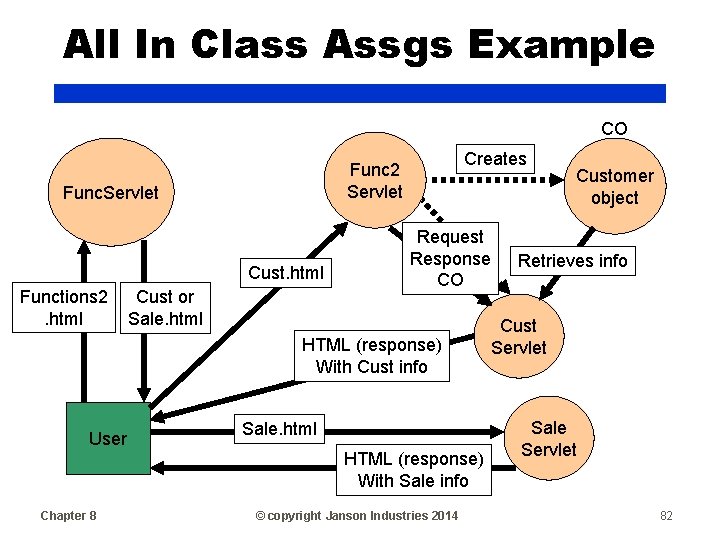

All In Class Assgs Example CO Func. Servlet Cust. html Functions 2. html Creates Func 2 Servlet Cust or Sale. html Request Response CO HTML (response) With Cust info User Sale. html HTML (response) With Sale info Chapter 8 © copyright Janson Industries 2014 Customer object Retrieves info Cust Servlet Sale Servlet 82
Chapter 8 Tutorial ▮ To turn in the C 8 (and C 9) tutorial: ▮ Export the dynamic web project as a WAR file ▮ Give the WAR file the same name as the project with your initials at the end ▮ Send the WAR as an email attachment to me at rjanson@fscj. edu ▮ I will let you know within 1 business day that I received it, if you don’t hear from me I didn’t get it Chapter 8 © copyright Janson Industries 2014 83
