Service-Oriented Architectures Software Architecture Matthew Moccaro

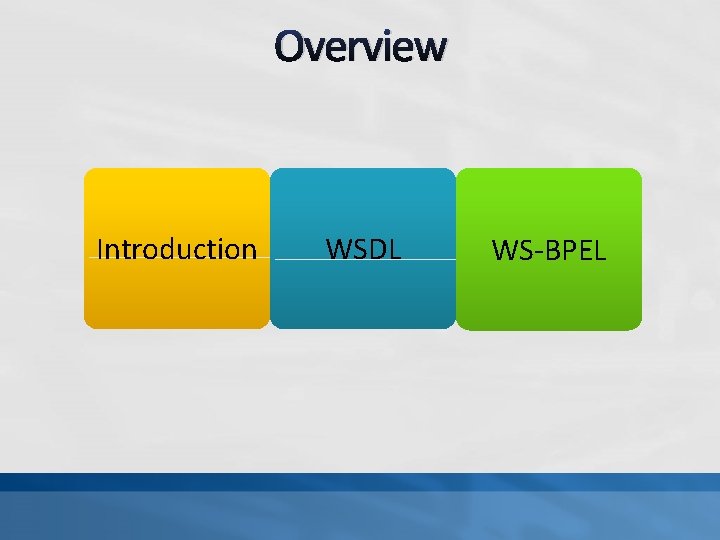

Overview Introduction WSDL WS-BPEL

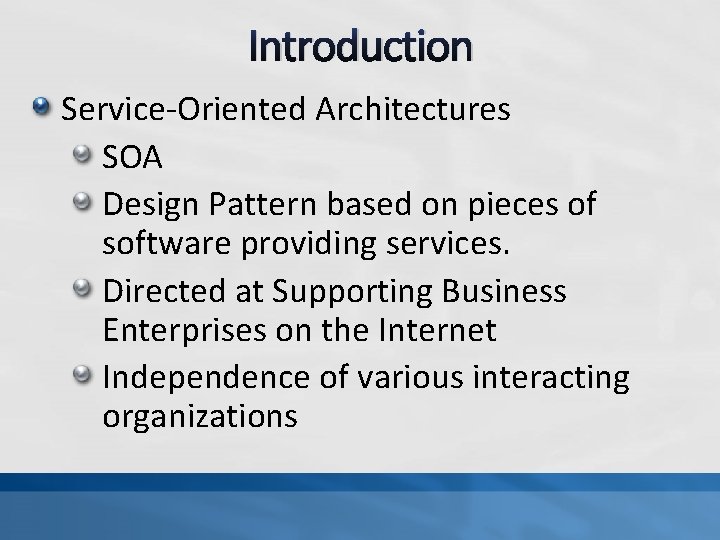

Introduction Service-Oriented Architectures SOA Design Pattern based on pieces of software providing services. Directed at Supporting Business Enterprises on the Internet Independence of various interacting organizations

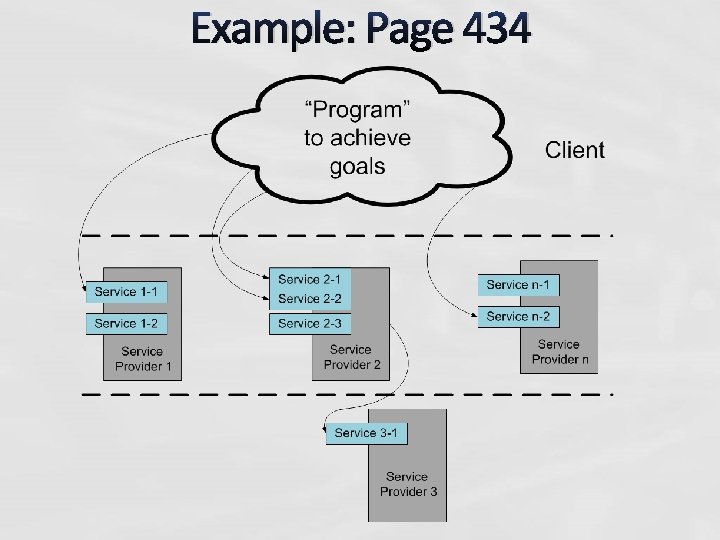

Example: Page 434

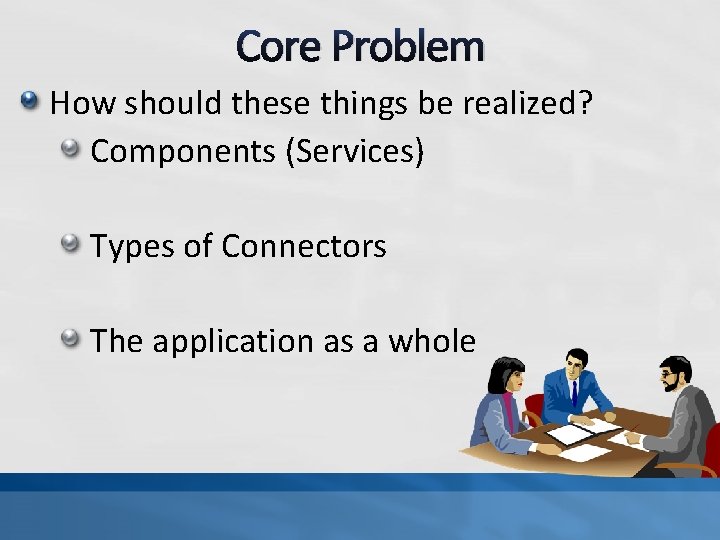

Core Problem How should these things be realized? Components (Services) Types of Connectors The application as a whole

Web Services Description Language (WSDL) Web Services A way of providing SOA Describe services needed Uses XML to describe the operations needed.

Example: Page 435

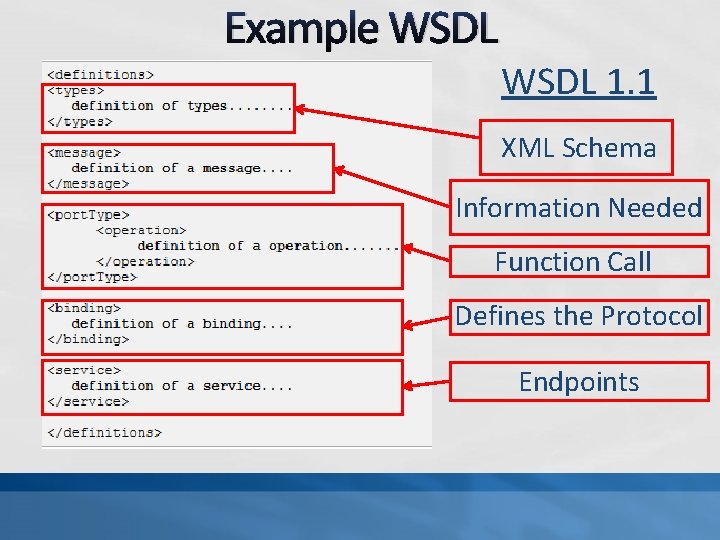

Example WSDL 1. 1 XML Schema Information Needed Function Call Defines the Protocol Endpoints

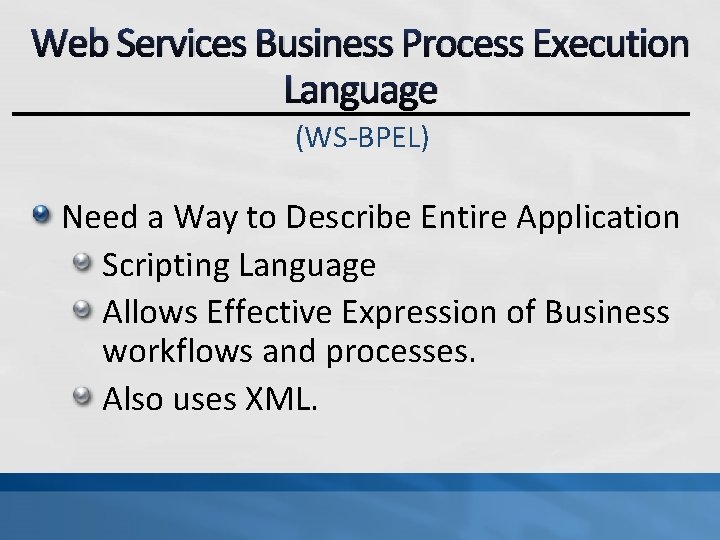

Web Services Business Process Execution Language (WS-BPEL) Need a Way to Describe Entire Application Scripting Language Allows Effective Expression of Business workflows and processes. Also uses XML.

Example WS-BPEL Copy. Invoke Import Create Value Link To Operation Into WSDL Variables Service Variable File <import. Type="http: //schemas. xmlsoap. org/wsdl/" location=". . /test_bucket/service_libraries/tptp_Engine. Printer. Port. wsdl" namespace="http: //www. eclipse. org/tptp/choreography/2004/engine/Print" /> <partner. Links> <partner. Link name="print. Service“ partner. Link. Type="print: print. Link” partner. Role="print. Service"/> </partner. Links> <variable </variables> <assign> </assign> <copy> </copy> name="hello_world“ message. Type="print: Print. Message" /> <from><literal>Hello World</literal></from> <to>$hello_world. value</to> <invoke partner. Link="print. Service" operation="print" input. Variable="hello_world" />

Conclusion SOA - Design Pattern based on pieces of software providing services. Different languages can be used to describe and help realize SOA including WSDL and WSBPEL. Simultaneously trying to satisfy many goals. Interoperability between heterogeneous platforms.
