Serial Server Configuration Peter Szyszko Hardware Configuration Unit

Serial Server Configuration Peter Szyszko

Hardware Configuration § Unit has to be connected to network and powered. § Computer has to be connected to the same network. § Ipconfig command from dos prompt shows current computer IP. § Monitor utility will help to find unit on the network and identify it’s current IP address. § In order to have TCP communication it is necessary to have computer and device server in the same subnet or in case device is in different network segmentappropriate gateway and network configuration.

STE-501 interfaces

Finding Computer IP Address

Monitor utility – IP address change Select Auto IP for DHCP Address Resolution

Web Page Login

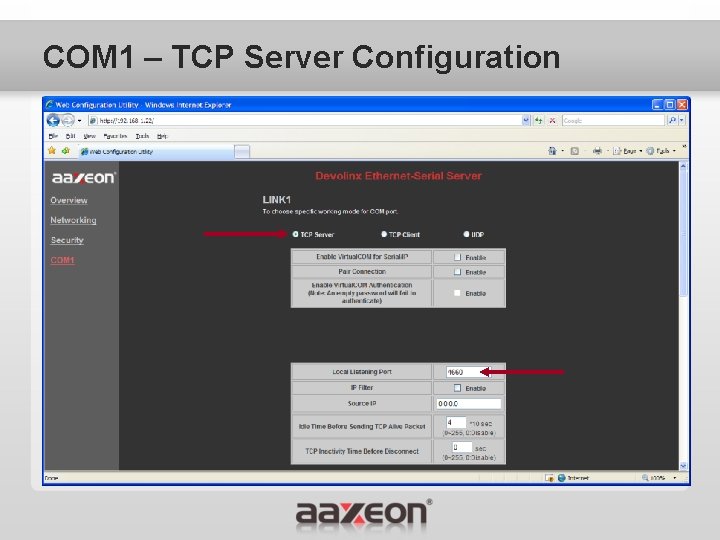

COM 1 – TCP Server Configuration

COM 1 – TCP Server Configuration

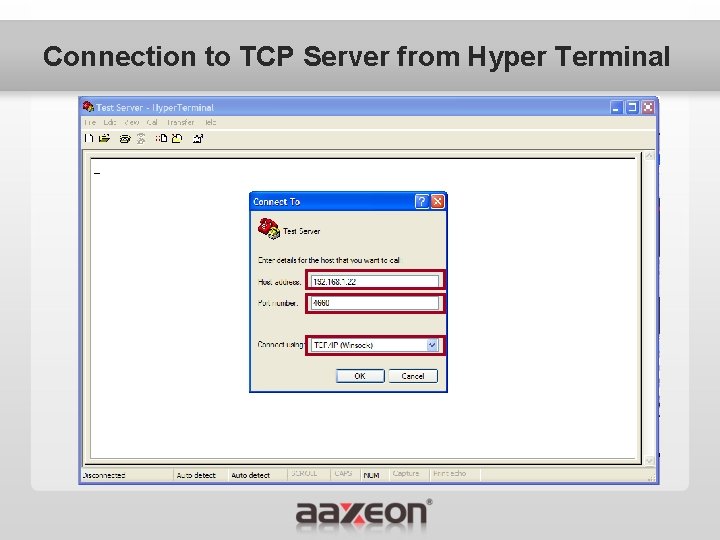

Connection to TCP Server from Hyper Terminal

COM 1 – TCP Client Configuration Destination computer IP and port number

COM 1 -TCP Client Configuration

COM 1 - UDP Configuration Destination computer IP and local listening port and destination port

COM 1 - UDP Configuration

COM 1 - Serial settings configuration

COM 1 - Virtual COM port configuration

Computer Software Configuration § Serial IP redirector hat to be installed from CD. § Virtual COMs have to be selected and configured

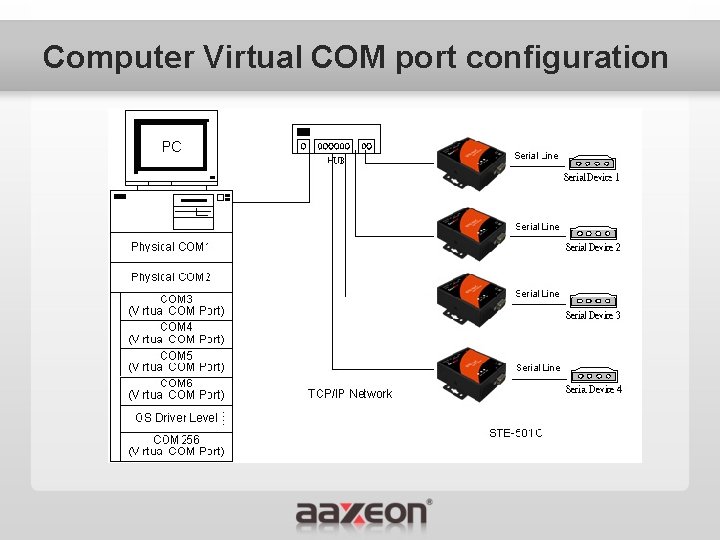

Computer Virtual COM port configuration

Computer Virtual COM port configuration

Computer Virtual COM port configuration

Computer Virtual COM port configuration

Virtual COM 4 Test
