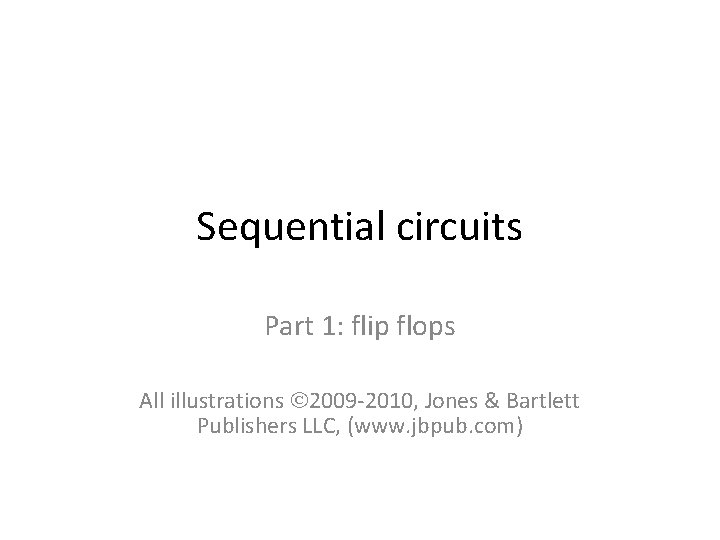

Sequential circuits Part 1: flip flops All illustrations 2009 -2010, Jones & Bartlett Publishers LLC, (www. jbpub. com)
Maintaining values over time • Electronic signals (e. g. clock pulses) are transient • In order for value to survive (be retained by receiving device), must be trapped & held after transient signal/connection broken • So can’t build computer from combinational nets alone – such devices don’t retain info

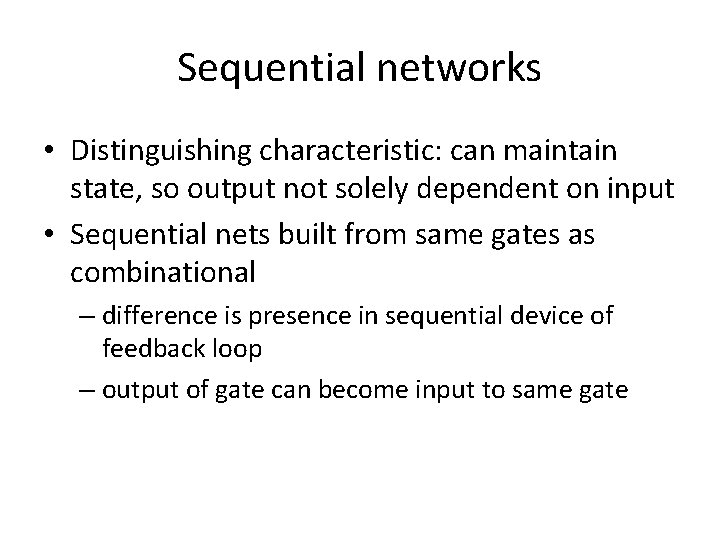

Sequential networks • Distinguishing characteristic: can maintain state, so output not solely dependent on input • Sequential nets built from same gates as combinational – difference is presence in sequential device of feedback loop – output of gate can become input to same gate
Stable vs. unstable network • Unstable: remains constant for only a few gate delays – suppose d=0; then a=0, b=1, c=0, d=1 – changed • Stable: state retained indefinitely (or at least as long as power is on) – if c=0, then a=0, b=1, c=0 – no change
S-R latch • S-R: Set-Reset • Mechanism for holding signal in a device – bi-stable device: can maintain one of 2 stable conditions – when signal arrives, S-R latch is set – remains set until second signal arrives, making it unset
S-R latch Stable states: S R Q Q’ 0 0 0 1 1 0 • Output depends on both input & state • Normal input position condition for input latch is SR=00 • To set or unset, change S or R to 1, then back to 0 (S & R never 1 at same time)
Timing diagram for SR latch: 2 cycles • Initial state: Q=0, Q’=1 a) b) c) d) e) S gets 1; Q=1, Q’=0; when S goes back to 0, output doesn’t change R gets 1; resets Q to 0, Q’ to 1 (initial state) S gets 1; sets Q to 1 1 to 0 transition in S; no change another reset; back to initial state
Clock pulses • Signal sent at regular intervals • Time between pulses called period of clock • Shorter the period, faster the machine
Effect of clock pulse • As machine executes Von Neumann cycle, states of all sequential devices change with time • Machine maintains clock to synchronize these state changes (all occur simultaneously) • Clock generates series of pulses – CP: clock pulse – Every sequential device has CP input along with other inputs • S-R latch with CP: Flip-flop
Operation of sequential net • t 0: initial state • t 1: set (1) arrives @ S – passes through OR gate; value true @ point a – signal negated; false @ b – since no signal has arrived @ R, both R & b are false, so c is false – At point 2, signal negated, so Q is true – this result is fed back to lower OR-gate
Operation of sequential net • t 2: signal @ S ceases – no impact on flip-flop, since Q is true; so regardless of S value, OR -gate produces true @ point a, false @ b, false @ c, true @ Q – output of flip-flop remains available at Q
Flip-flop symmetry • Provides mechanism for terminating set state • Reset mechanism – Signal @ R causes change at point c, Q=false – This cuts off support to bottom gate – signal now high @ Q’, low @ Q – If a second signal arrived @ S before signal arrived @ R, no change to outputs
Expanded view of clocked SR flip flop SR signals go through AND gates that act as enables: With CP=0, NOR inputs are 0 regardless of SR values, so latch won’t change state With CP=1, S & R pass through enable gates unchanged; device acts like SR described previously
Clock effect • Evenly spaced clock pulses force state change to occur only at evenly spaced time intervals – clock makes time digital just as voltage made digital by electronic circuitry – state change can only occur at pulse, not between them
Level-sensitive flip-flop • Latch responds to CP only when CP high • Can cause problem when combined with combinational devices in feedback loop: can lead to unstable state every few gate delays • Need: – SR constrained by CP – immune to further changes through feedback connection – sensitive to input for extremely short time period
Techniques for addressing levelsensitive flip flop problem • Edge-triggered flip flop: sensitive to input only when clock is making transition from low to high • Master-slave flip flop Diagram at left: timing detail of single clock pulse

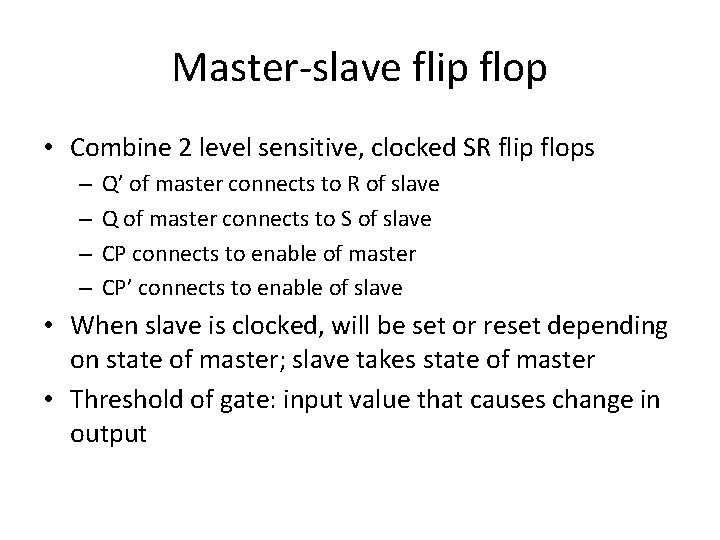

Master-slave flip flop • Combine 2 level sensitive, clocked SR flip flops – – Q’ of master connects to R of slave Q of master connects to S of slave CP connects to enable of master CP’ connects to enable of slave • When slave is clocked, will be set or reset depending on state of master; slave takes state of master • Threshold of gate: input value that causes change in output

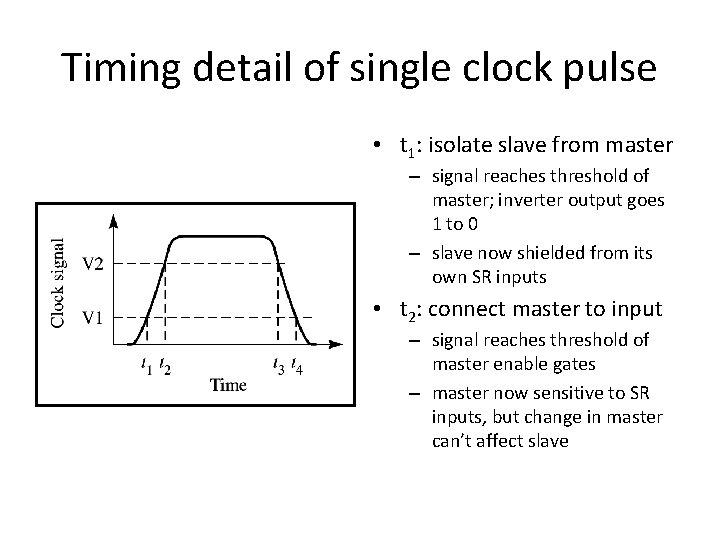

Timing detail of single clock pulse • t 1: isolate slave from master – signal reaches threshold of master; inverter output goes 1 to 0 – slave now shielded from its own SR inputs • t 2: connect master to input – signal reaches threshold of master enable gates – master now sensitive to SR inputs, but change in master can’t affect slave
Timing detail of single clock pulse • t 3: isolate master from input – CP in high to low transition – master becomes insensitive to input – slave still isolated • t 4: connect slave to master – CP now below inverter threshold – output goes 0 to 1, slave now connected to master – slave assumes state of master
Master-slave flip flop

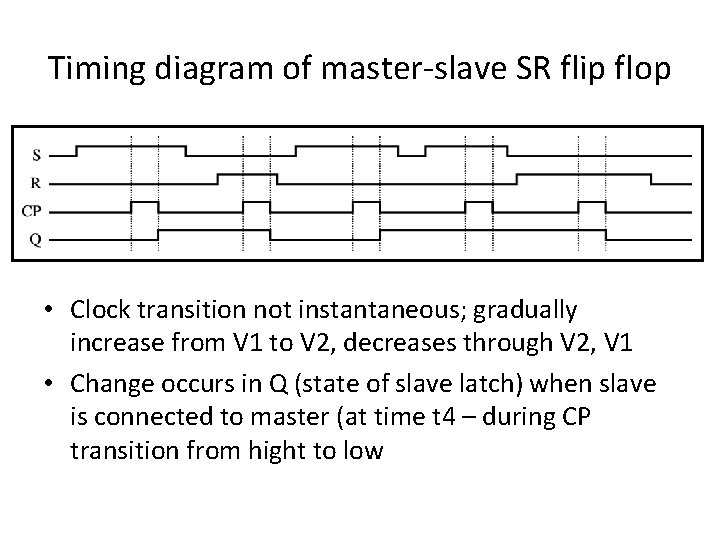

Timing diagram of master-slave SR flip flop • Clock transition not instantaneous; gradually increase from V 1 to V 2, decreases through V 2, V 1 • Change occurs in Q (state of slave latch) when slave is connected to master (at time t 4 – during CP transition from hight to low
Representing flip flop states • Flip flop is sequential, not combinatorial – can’t describe using truth table • Alternatives: – Finite state machine – Characteristic table

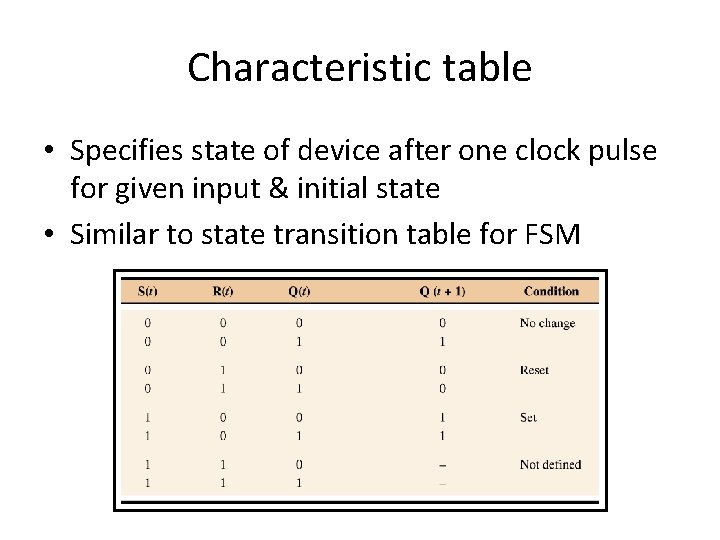

Characteristic table • Specifies state of device after one clock pulse for given input & initial state • Similar to state transition table for FSM
Finite State Machine • SR flip flop is FSM with 2 possible states (Q=0, Q=1) • As FSM can characterize using state transition diagram
