Sequence Stratigraphy Framework for Conceptual Models Used to
- Slides: 97
Sequence Stratigraphy Framework for “Conceptual Models” Used to Interpret Depositional Systems - beauty but not truth? Christopher G. St. C. Kendall University of South Carolina kendall@sc. edu 803 978 7523 Sequence Stratigraphy Defined
Talk Organization Ü What is Sequence Stratigraphy Ü Sedimentary Analysis & Sequence Stratigraphy Ü History of Sequence Stratigraphy Ü Sequence Stratigraphy Analysis Defined Ü Geometries & Stacking Patterns Ü System Tracts & Relative Sea Level Ü Bounding Surfaces Ü Conceptual Models Ü Terminology That Should be Defined Ü Conclusions Sequence Stratigraphy Defined
Talk Organization Ü What is Sequence Stratigraphy Ü Sedimentary Analysis & Sequence Stratigraphy Ü History of Sequence Stratigraphy Ü Sequence Stratigraphy Analysis Defined Ü Geometries & Stacking Patterns Ü System Tracts & Relative Sea Level Ü Bounding Surfaces Ü Conceptual Models Ü Terminology That Should be Defined Ü Conclusions Sequence Stratigraphy Defined
Sequence Stratigraphy A framework of genetically related stratigraphic facies geometries and their bounding surfaces used to determine depositional setting s e i r t e m o e G s e Faci s e c a f Sur Establish Setting Sequence Stratigraphy Defined
Sequence Stratigraphy – Terminology Stratigraphers’ position on terminology similar to Humpty Dumpty's from Lewis Carroll’s “Through the Looking Glass ” “When I use a word, it means just what I choose it to mean nothing more nor less”. Sequence Stratigraphy Defined
Why provide ‘rules’ for sequence stratigraphic nomenclature? Ü We use common terms and know their meaning Ü Have a standard hierarchy of subdivisions Ü Have a uniform methodology Ü Guidance for revision Ü Teaching resource: each new generation of pupils & practitioners have a common understanding Sequence Stratigraphy Defined

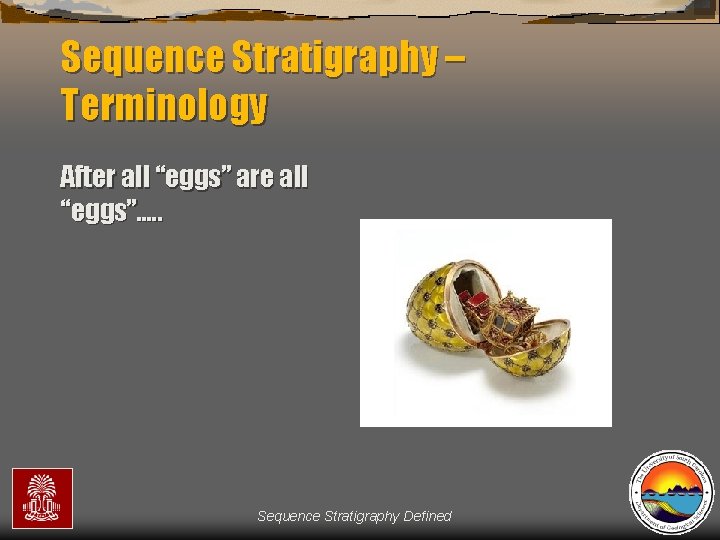

Sequence Stratigraphy – Terminology After all “eggs” are all “eggs”…. . Sequence Stratigraphy Defined
Sequence Stratigraphy – Terminology Perspective of precedence &/or copyright? Sequence Stratigraphy Defined
Talk Organization Ü What is Sequence Stratigraphy Ü Sedimentary Analysis & Sequence Stratigraphy Ü History of Sequence Stratigraphy Ü Sequence Stratigraphy Analysis Defined Ü Geometries & Stacking Patterns Ü System Tracts & Relative Sea Level Ü Bounding Surfaces Ü Conceptual Models Ü Terminology That Should be Defined Ü Conclusions Sequence Stratigraphy Defined
Sequence Stratigraphy – The process Interpretation of the Sedimentary section involves: Ü From oldest to youngest, identify the subdividing surfaces that envelope & enclose the discrete geometric bodies of sediment of the sedimentary section & build a template ÜBackstrip these geometries & then use the template of surfaces to reassemble them in order of their accumulation ÜThe subdividing surfaces, geometry, lithofacies & fauna are input to a conceptual model to determine the evolving character of the depositional setting ‘‘Each stratal unit is defined and identified only by physical relationships of the strata, including lateral continuity and geometry of the surfaces bounding the units, vertical stacking patterns, and lateral geometry of the strata within the units. " (Van Wagoner et al. , 1990). Sequence Stratigraphy Defined

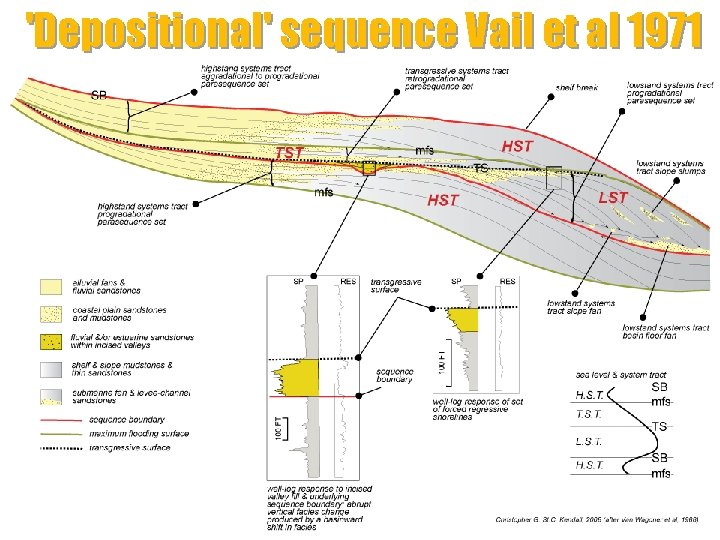

'Depositional' sequence Vail et al 1971 Sequence Stratigraphy Defined

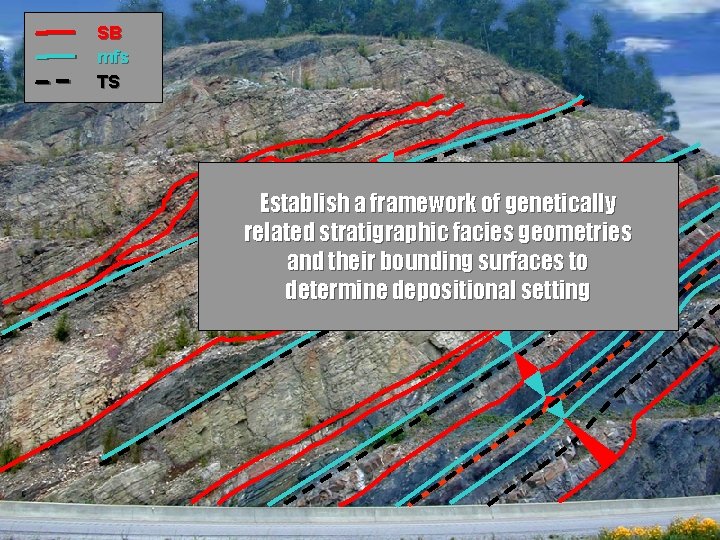

SB mfs TS Establish a framework of genetically related stratigraphic facies geometries and their bounding surfaces to determine depositional setting Sequence Stratigraphy Defined
Coastal Elements “Sequence Stratigraphy – Depositional Models” C. G. St. C. Kendall

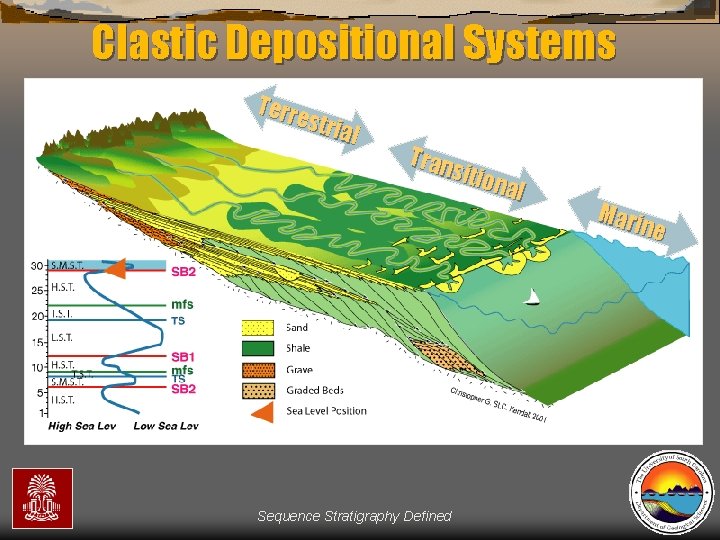

Clastic Depositional Systems Terr estr ial Tran sitio nal Sequence Stratigraphy Defined Mari ne
Clastic Depositional Systems Terr estr ial Tran sitio nal Sequence Stratigraphy Defined Mari ne
Clastic Depositional Systems Terr estr ial Tran sitio nal Sequence Stratigraphy Defined Mari ne

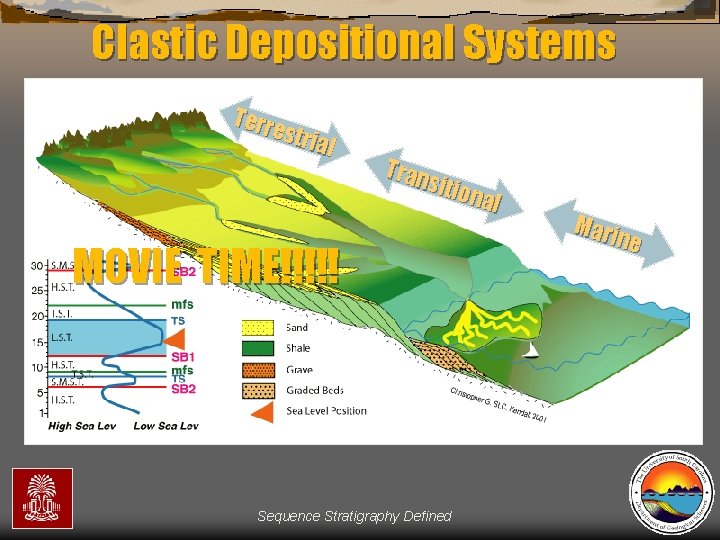

Clastic Depositional Systems Terr estr ial Tran sitio nal MOVIE TIME!!!!! Sequence Stratigraphy Defined Mari ne

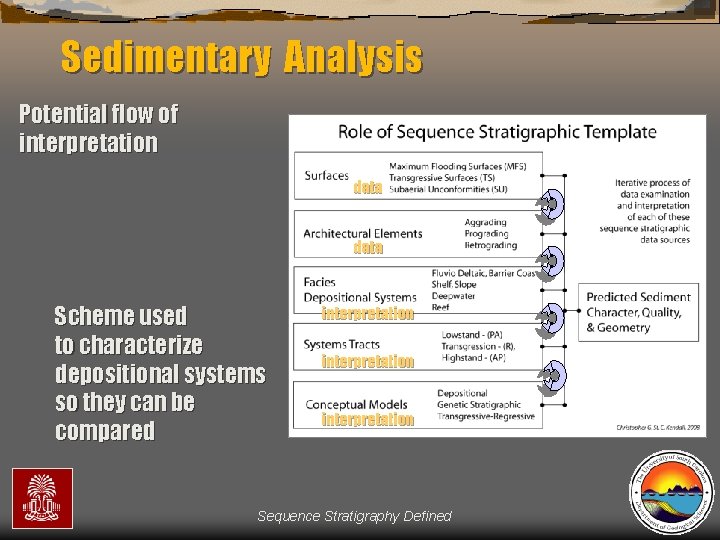

Sedimentary Analysis Potential flow of interpretation data Scheme used to characterize depositional systems so they can be compared interpretation Sequence Stratigraphy Defined
Power of Sequence Stratigraphy Determines depositional setting by: Ü Establishing the order in which strata were laid down in Ü Explains the geometric hierarchy of sedimentary strata & the elements formed by the strata Ü Uses the major surfaces marking breaks in the character of sedimentary section as a template for conceptual depositional models, independent of time (relative ages) Geologic time derived from: Ü Radiometric markers Ü Biostratigraphic markers Sequence Stratigraphy Defined
Sedimentary Fill Hierarchy Jeroen Schokker, Wim Westerhoff & Henk Weerts after Heinz & Aigner, 2003 Sequence Stratigraphy Defined

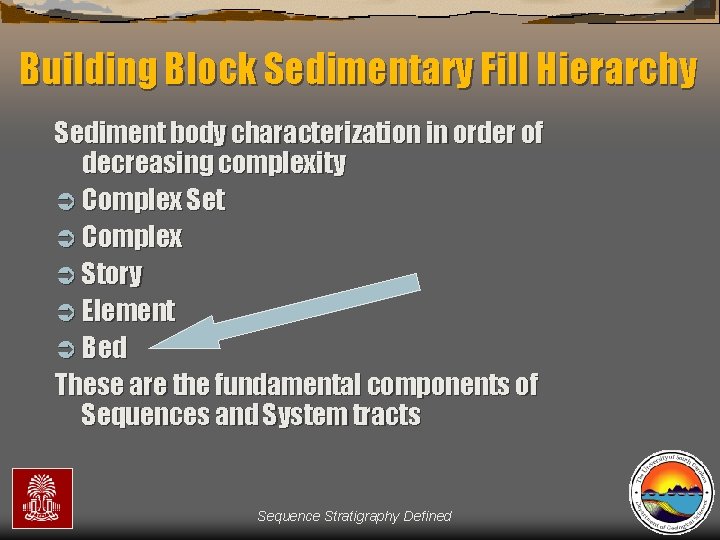

Building Block Sedimentary Fill Hierarchy Sediment body characterization in order of decreasing complexity Ü Complex Set Ü Complex Ü Story Ü Element Ü Bed These are the fundamental components of Sequences and System tracts Sequence Stratigraphy Defined
Sequence Stratigraphy Defined

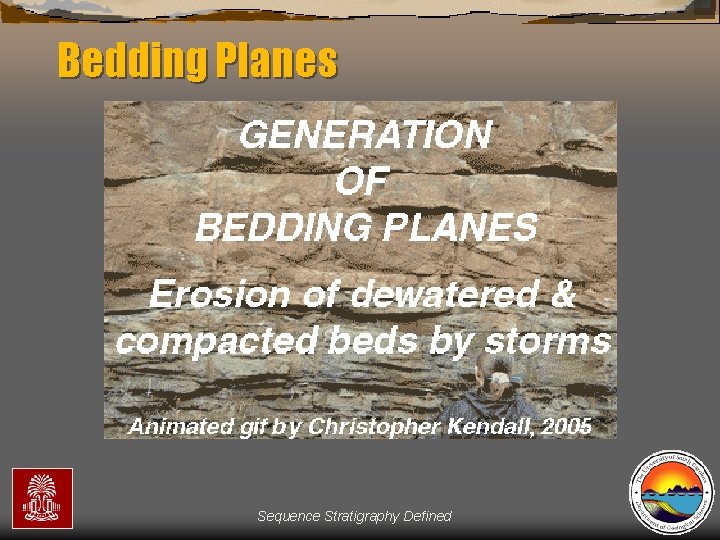

Bedding Planes Sequence Stratigraphy Defined

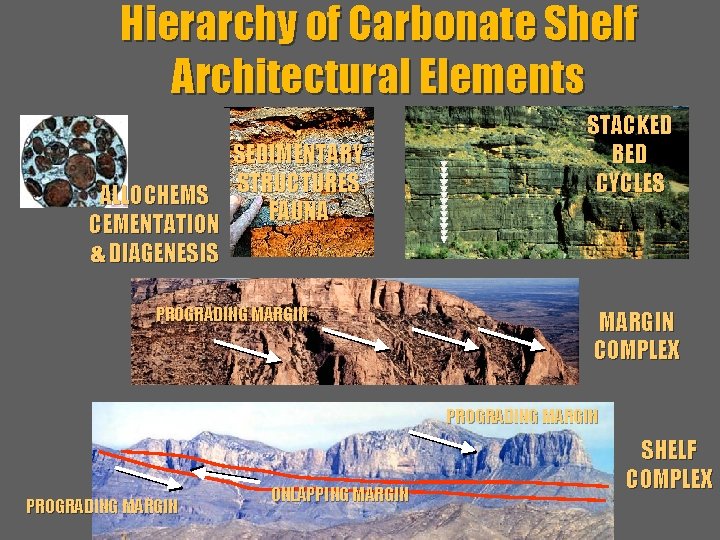

Hierarchy of Carbonate Shelf Architectural Elements BED, , SEDIMENTARY LITHOLOGY COMPONENT STRUCTURES ALLOCHEMS BEDS FAUNA GRAINS CEMENTATION & DIAGENESIS STACKED CYCLES OF BEDS PROGRADING MARGIN STACKED BED CYCLES MARGIN COMPLEX HST MARGIN COMPLEX PROGRADING MARGIN SHELF MARGIN PROGRADING MARGIN COMPLEX ONLAPPING MARGIN Sequence Stratigraphy Defined SHELF COMPLEX

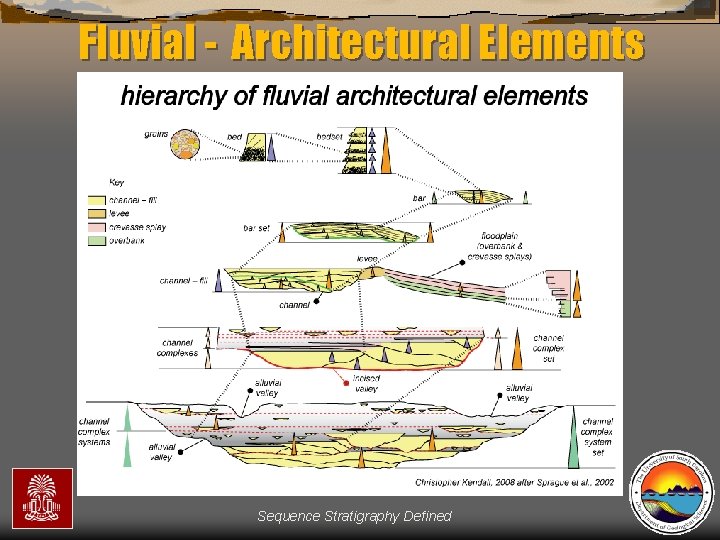

Fluvial - Architectural Elements Sequence Stratigraphy Defined

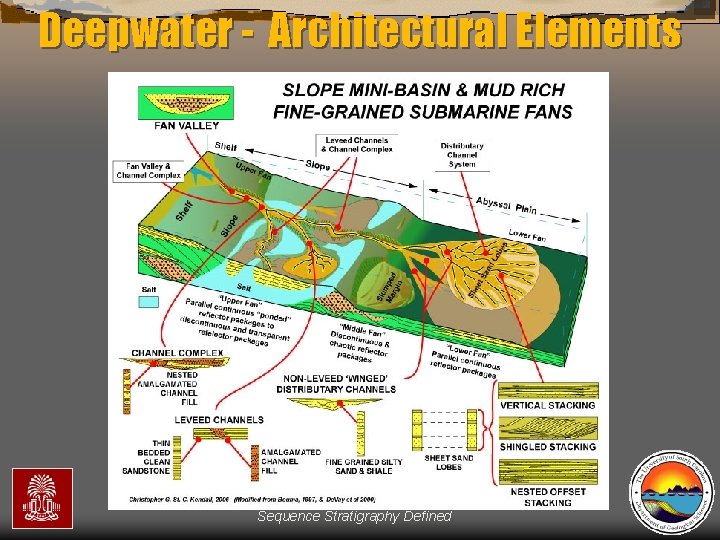

Deepwater - Architectural Elements Sequence Stratigraphy Defined
Deepwater - Architectural Elements Sequence Stratigraphy Defined
Deepwater - Architectural Elements Sequence Stratigraphy Defined
Elements – Sequence Building Blocks Definition of element hierarchy Framework for systematic description & comparison of deposits of a depositional setting (reef, carbonate shelf, fluvial, deltaic, deepwater etc) Ü Based on physical organization of strata (geometry) & the surfaces bounding them Ü Genetically-related stratigraphic elements form the hierarchy Independent of type of setting Applicable at all scales & to all sedimentary systems Purpose Ü Analysis & comparison of the elements of similar depositional systems Ü Application Provide the detailed character of a sequence and/or system tract Net to-gross, aspect ratio, & connectivity Lithofacies type & aquifer/reservoir quality Better defined depositional geometries and so depositional models More accurate aquifer/resource assessment Optimize strategy for depletion of aquifer/resource Sequence Stratigraphy Defined
Talk Organization Ü What is Sequence Stratigraphy Ü Sedimentary Analysis & Sequence Stratigraphy Ü History of Sequence Stratigraphy Ü Sequence Stratigraphy Analysis Defined Ü Geometries & Stacking Patterns Ü System Tracts & Relative Sea Level Ü Bounding Surfaces Ü Conceptual Models Ü Terminology That Should be Defined Ü Conclusions Sequence Stratigraphy Defined

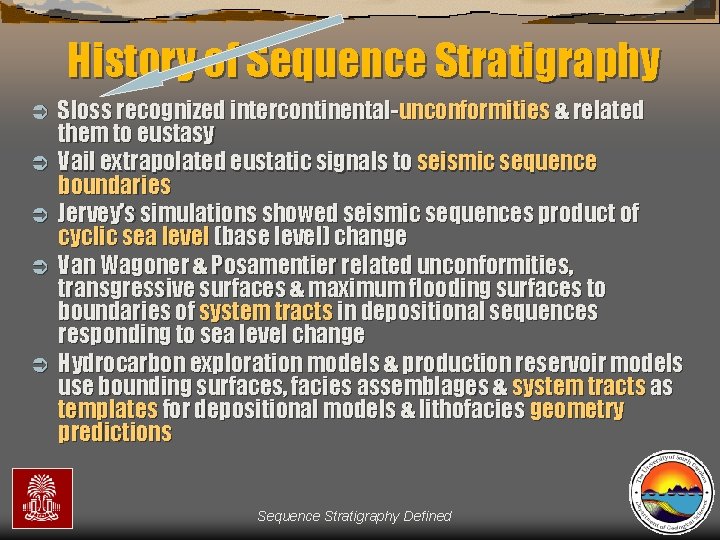

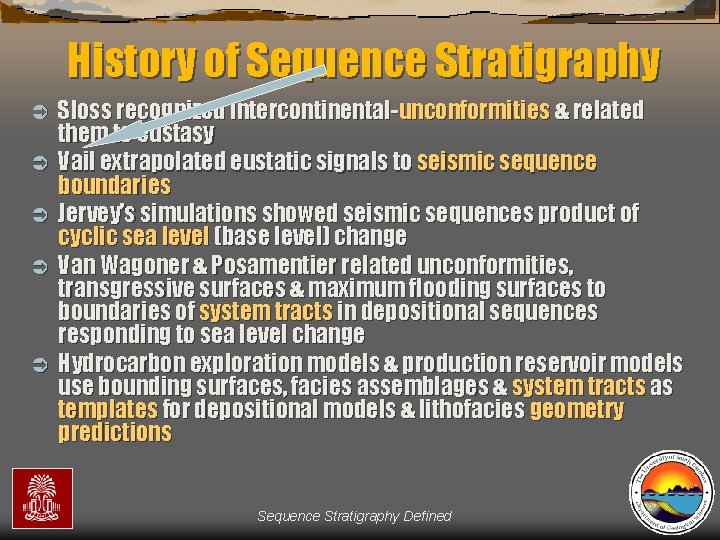

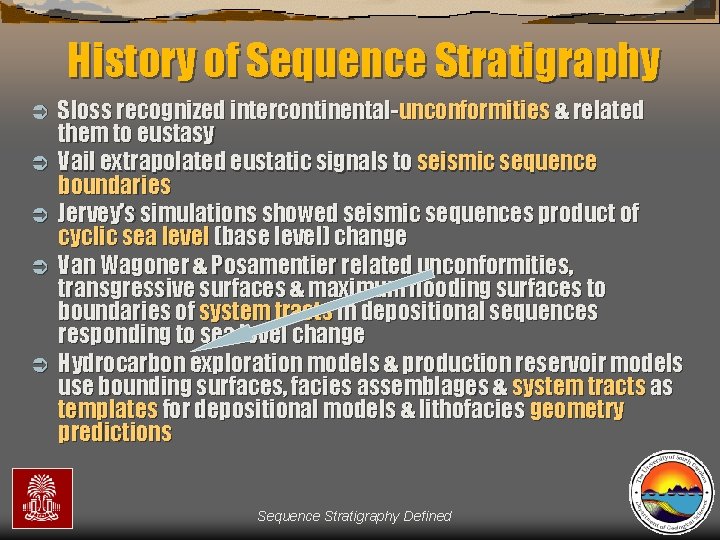

History of Sequence Stratigraphy Ü Ü Ü Sloss recognized intercontinental-unconformities & related them to eustasy Vail extrapolated eustatic signals to seismic sequence boundaries Jervey’s simulations showed seismic sequences product of cyclic sea level (base level) change Van Wagoner & Posamentier related unconformities, transgressive surfaces & maximum flooding surfaces to boundaries of system tracts in depositional sequences responding to sea level change Hydrocarbon exploration models & production reservoir models use bounding surfaces, facies assemblages & system tracts as templates for depositional models & lithofacies geometry predictions Sequence Stratigraphy Defined
Sloss Unconformities & Eustasy After Lowell Thwaite Sequence Stratigraphy Defined
History of Sequence Stratigraphy Ü Ü Ü Sloss recognized intercontinental-unconformities & related them to eustasy Vail extrapolated eustatic signals to seismic sequence boundaries Jervey’s simulations showed seismic sequences product of cyclic sea level (base level) change Van Wagoner & Posamentier related unconformities, transgressive surfaces & maximum flooding surfaces to boundaries of system tracts in depositional sequences responding to sea level change Hydrocarbon exploration models & production reservoir models use bounding surfaces, facies assemblages & system tracts as templates for depositional models & lithofacies geometry predictions Sequence Stratigraphy Defined
1 st Seismic Sequence Interpretation Vail et al, 1976 Mesozoic through Tertiary of Offshore Morocco Sequence Stratigraphy Defined
History of Sequence Stratigraphy Ü Ü Ü Sloss recognized intercontinental-unconformities & related them to eustasy Vail extrapolated eustatic signals to seismic sequence boundaries Jervey’s simulations showed seismic sequences product of cyclic sea level (base level) change Van Wagoner & Posamentier related unconformities, transgressive surfaces & maximum flooding surfaces to boundaries of system tracts in depositional sequences responding to sea level change Hydrocarbon exploration models & production reservoir models use bounding surfaces, facies assemblages & system tracts as templates for depositional models & lithofacies geometry predictions Sequence Stratigraphy Defined
History of Sequence Stratigraphy Ü Ü Ü Sloss recognized intercontinental-unconformities & related them to eustasy Vail extrapolated eustatic signals to seismic sequence boundaries Jervey’s simulations showed seismic sequences product of cyclic sea level (base level) change Van Wagoner & Posamentier related unconformities, transgressive surfaces & maximum flooding surfaces to boundaries of system tracts in depositional sequences responding to sea level change Hydrocarbon exploration models & production reservoir models use bounding surfaces, facies assemblages & system tracts as templates for depositional models & lithofacies geometry predictions Sequence Stratigraphy Defined
'Depositional' sequence Vail Jervey Posmentier Van Wagoner Sequence Stratigraphy Defined
History of Sequence Stratigraphy Ü Ü Ü Sloss recognized intercontinental-unconformities & related them to eustasy Vail extrapolated eustatic signals to seismic sequence boundaries Jervey’s simulations showed seismic sequences product of cyclic sea level (base level) change Van Wagoner & Posamentier related unconformities, transgressive surfaces & maximum flooding surfaces to boundaries of system tracts in depositional sequences responding to sea level change Hydrocarbon exploration models & production reservoir models use bounding surfaces, facies assemblages & system tracts as templates for depositional models & lithofacies geometry predictions Sequence Stratigraphy Defined
Talk Organization Ü What is Sequence Stratigraphy Ü Sedimentary Analysis & Sequence Stratigraphy Ü History of Sequence Stratigraphy Ü Sequence Stratigraphy Analysis Defined Ü Geometries & Stacking Patterns Ü System Tracts & Relative Sea Level Ü Bounding Surfaces Ü Conceptual Models Ü Terminology That Should be Defined Ü Conclusions Sequence Stratigraphy Defined

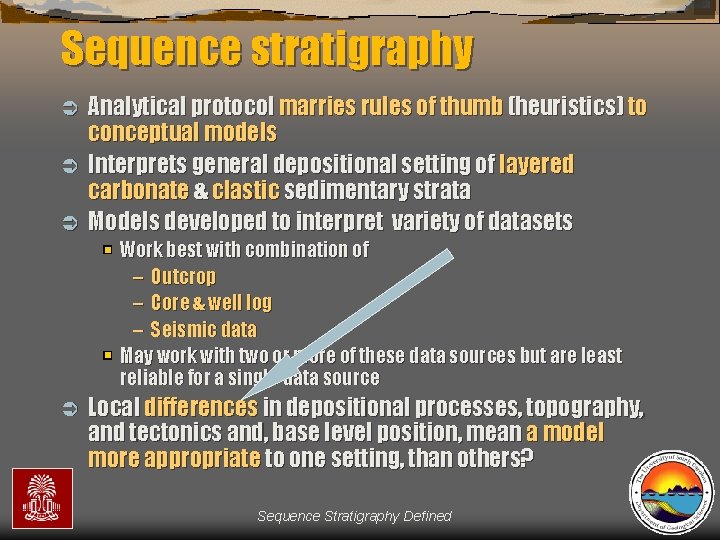

Sequence stratigraphy Analytical protocol marries rules of thumb (heuristics) to conceptual models Ü Interprets general depositional setting of layered carbonate & clastic sedimentary strata Ü Models developed to interpret variety of datasets Ü Work best with combination of – Outcrop – Core & well log – Seismic data May work with two or more of these data sources but are least reliable for a single data source Ü Local differences in depositional processes, topography, and tectonics and, base level position, mean a model more appropriate to one setting, than others? Sequence Stratigraphy Defined
Sequence stratigraphy Analytical protocol marries rules of thumb (heuristics) to conceptual models Ü Interprets general depositional setting of layered carbonate & clastic sedimentary strata Ü Models developed to interpret variety of datasets Ü Work best with combination of – Outcrop – Core & well log – Seismic data May work with two or more of these data sources but are least reliable for a single data source Ü Local differences in depositional processes, topography, and tectonics and, base level position, mean a model more appropriate to one setting, than others? Sequence Stratigraphy Defined
Outcrop Interpretation Pleistocene Miocene Reef Complex Majorca - Spain Sequence Stratigraphy Defined after Jeff Yarus
Movie time …… Miocene Outcrop Sequence Stratigraphy Defined
Sequence stratigraphy Analytical protocol marries rules of thumb (heuristics) to conceptual models Ü Interprets general depositional setting of layered carbonate & clastic sedimentary strata Ü Models developed to interpret variety of datasets Ü Work best with combination of – Outcrop – Core & well log – Seismic data May work with two or more of these data sources but are least reliable for a single data source Ü Local differences in depositional processes, topography, and tectonics and, base level position, mean a model more appropriate to one setting, than others? Sequence Stratigraphy Defined
Movie time …… clastic well logs Sequence Stratigraphy Defined
Sequence stratigraphy Analytical protocol marries rules of thumb (heuristics) to conceptual models Ü Interprets general depositional setting of layered carbonate & clastic sedimentary strata Ü Models developed to interpret variety of datasets Ü Work best with combination of – Outcrop – Core & well log – Seismic data May work with two or more of these data sources but are least reliable for a single data source Ü Local differences in depositional processes, topography, and tectonics and, base level position, mean a model more appropriate to one setting, than others? Sequence Stratigraphy Defined
Outcrop & Vertical Seismic Resolution 15, 000 ft/sec. 4, 580 m/sec. 30 Hz Wavelet 15 Hz Wavelet Pleistocene 90 Meters ~38 Meters Miocene Reef Complex Majorca - Spain 152 m wavelength Sequence Stratigraphy Defined ~76 Meters 305 m wavelength after Jeff Yarus
West Bahamas Seismic Sequence Stratigraphy Defined
Movie time …… Bahamas Platform Sequence Stratigraphy Defined
Sequence stratigraphy Analytical protocol marries rules of thumb (heuristics) to conceptual models Ü Interprets general depositional setting of layered carbonate & clastic sedimentary strata Ü Models developed to interpret variety of datasets Ü Work best with combination of – Outcrop – Core & well log – Seismic data May work with two or more of these data sources but are least reliable for a single data source Ü Local differences in depositional processes, topography, and tectonics and, base level position, mean a model more appropriate to one setting, than others? Sequence Stratigraphy Defined
Sequence Stratigraphy’s Fuzzy Rules Ü Lithofacies geometries & confining surfaces transgress time Ü Different geometries for a specific time interval Local variations in rates & direction of tectonic movement Local rates of sediment supply & accumulation Ü Not all erosional or depositional surfaces are product of base level change Depositional models successfully predict lithofacies geometry for exploration & reservoirs Depositional model is refined as data base grows Sequence Stratigraphy Defined
Stratal architecture & buildup style in TST vs. HST tract of Albian 19 HFS Sequence Stratigraphy Defined After Charlie Kerans
Example: Province of Zeeland N Tidal flat deposits Tidal channel deposits (sand) Tidal channel deposits (shells) Sequence Stratigraphy Defined After Jeroen Schokker, Wim Westerhoff & Henk Weerts 20008
Lithostratigraphic modelling After Jeroen Schokker, Wim Westerhoff & Henk Weerts 20008 Sequence Stratigraphy Defined
Lithofacies modelling Sequence Stratigraphy Defined After Jeroen Schokker, Wim Westerhoff & Henk Weerts 20008
Time …… Varying Rates Mississippian downslope fan deposits each bed hours but section hundreds of thousands of years Intertidal Flat Flaser Structures Accumulated in Minutes Cross Bedded Ordovician Beach Carbonates Accumulation - Several Years Sequence Stratigraphy Defined
Talk Organization Ü What is Sequence Stratigraphy Ü Sedimentary Analysis & Sequence Stratigraphy Ü History of Sequence Stratigraphy Ü Sequence Stratigraphy Analysis Defined Ü Geometries & Stacking Patterns Ü System Tracts & Relative Sea Level Ü Bounding Surfaces Ü Conceptual Models Ü Terminology That Should be Defined Ü Conclusions Sequence Stratigraphy Defined
Sequence stratigraphic analysis Fundamental to sequence stratigraphic analysis: Strata deposited in order Ü Surfaces subdivide strata into packages of beds with common depositional origin Ü Geometric arrangement of strata & packages of strata reflect Ü Basin filling Erosional events Commonly sequence stratigraphiy applied to sediment accumulation at basin margins in continental, marginal marine, and/or down-slope settings Ü Fill accumulates either as: Ü Unconfined fill over these settings Confined within erosional down-cut topography Sequence Stratigraphy Defined

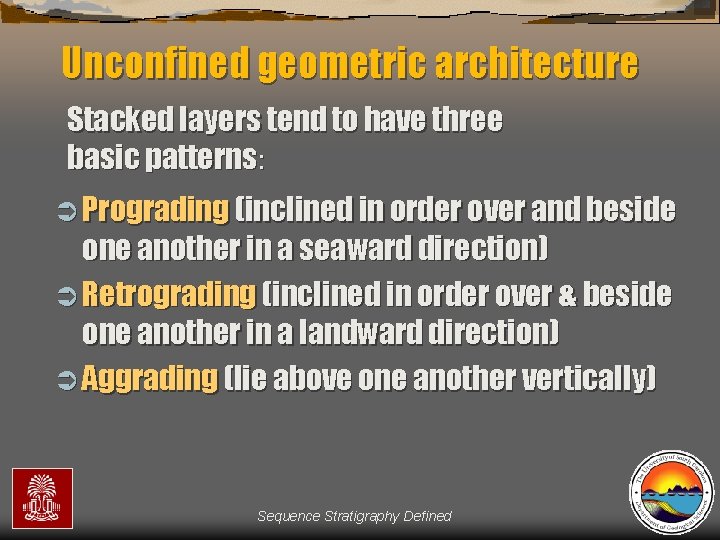

Unconfined geometric architecture Stacked layers tend to have three basic patterns: Ü Prograding (inclined in order over and beside one another in a seaward direction) Ü Retrograding (inclined in order over & beside one another in a landward direction) Ü Aggrading (lie above one another vertically) Sequence Stratigraphy Defined

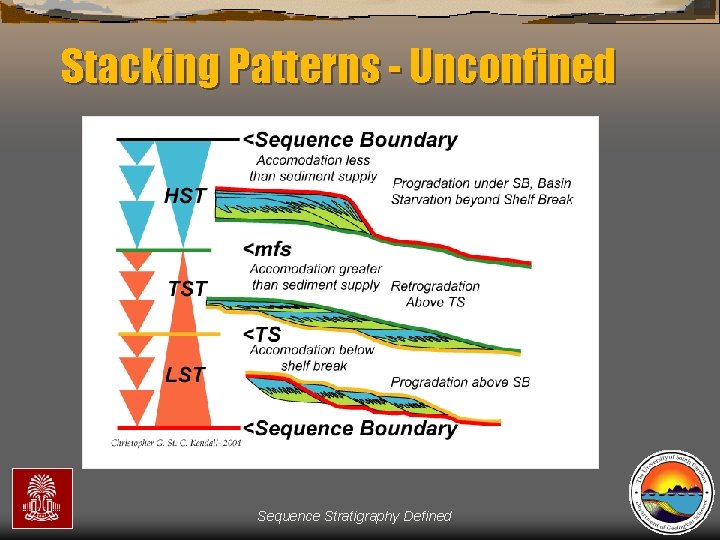

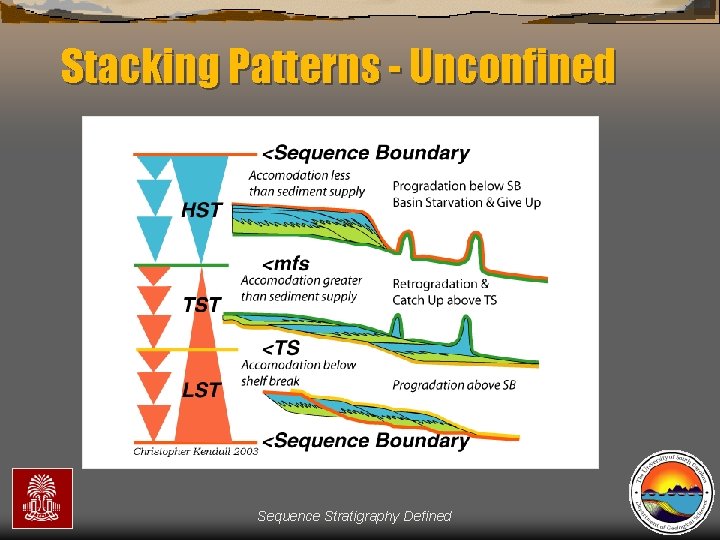

Stacking Patterns - Unconfined After Van Wagoner Sequence Stratigraphy Defined
Stacking Patterns - Unconfined Sequence Stratigraphy Defined
Stacking Patterns - Unconfined Sequence Stratigraphy Defined

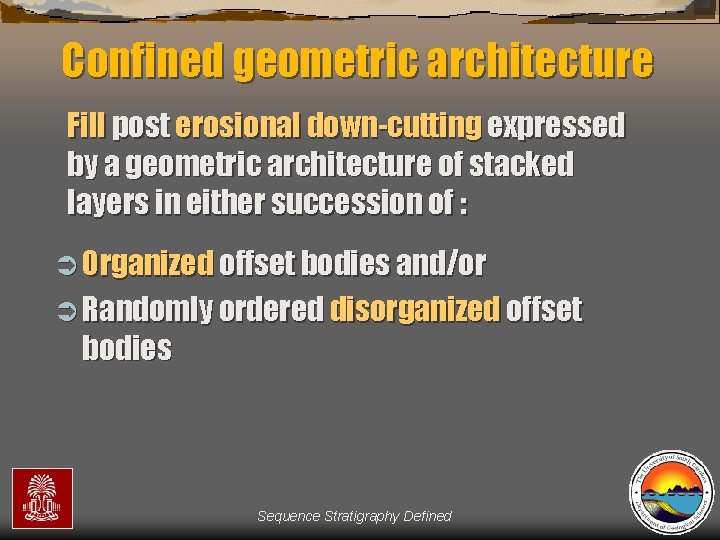

Confined geometric architecture Fill post erosional down-cutting expressed by a geometric architecture of stacked layers in either succession of : Ü Organized offset bodies and/or Ü Randomly ordered disorganized offset bodies Sequence Stratigraphy Defined

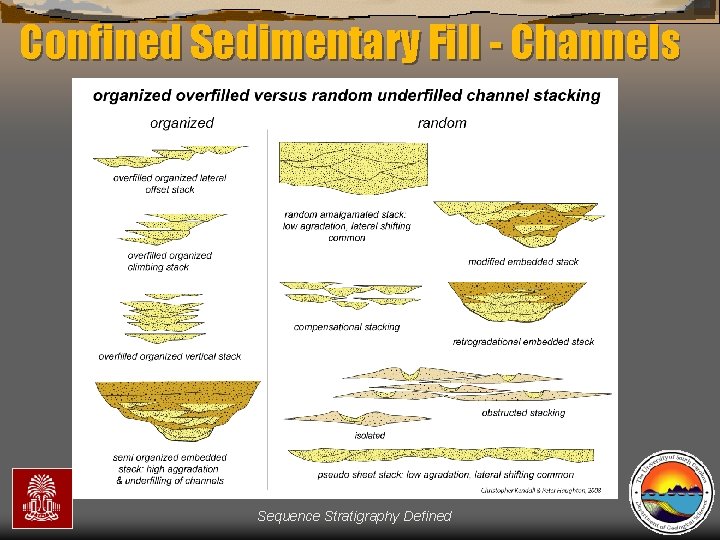

Confined Sedimentary Fill - Channels Sequence Stratigraphy Defined
Stacking Pattern Rules & Problems Ü End member stratal stacking patterns reflect interplay of accommodation (space available for sediments to fill) & rates of sediment accumulation Ü Local vagaries in Depositional processes Topography Tectonics & so base level position mean stacking styles of geometry may merge with one another but are tied to system tracts Sequence Stratigraphy Defined
Talk Organization Ü What is Sequence Stratigraphy Ü Sedimentary Analysis & Sequence Stratigraphy Ü History of Sequence Stratigraphy Ü Sequence Stratigraphy Analysis Defined Ü Geometries & Stacking Patterns Ü System Tracts & Relative Sea Level Ü Bounding Surfaces Ü Conceptual Models Ü Terminology That Should be Defined Ü Conclusions Sequence Stratigraphy Defined
Stacking, Surfaces & System tracts! Geometric architecture of stacked layers are inferred to be related to eustatic events : Ü Lowstand - Progradation-to-aggradational (PA) Ü Transgression - Retrogradational geometries (R), Ü Highstand - Aggradational-to-progradation geometries (AP) system tracts (Van Wagoner et al. , 1988; Neil and Abreu, 2008) As many as five system tracts recognized but above three are most commonly used Sequence Stratigraphy Defined
System Tracts - Reviewed Sequence Stratigraphy Defined
System Tracts - Unconfined 3 -D facies assemblages of common genetic origin with unconfined geometric architecture are interpreted to form during phases of relative sea-level cycle (Posamentier, et al, 1988) Ü System tracts defined by: Bounding surfaces Position within a sequence Geometric stacking pattern Lowstand - Progradation-to-aggradational (PA) Ü Transgression - Retrogradational geometries (R), Ü Highstand - Aggradational-to-progradation geometries (AP) system tracts (Van Wagoner et al. , 1988; Neil and Abreu, 2008) As many as five system tracts recognized but above three are most commonly used Ü Sequence Stratigraphy Defined
Talk Organization Ü What is Sequence Stratigraphy Ü Sedimentary Analysis & Sequence Stratigraphy Ü History of Sequence Stratigraphy Ü Sequence Stratigraphy Analysis Defined Ü Geometries & Stacking Patterns Ü System Tracts & Relative Sea Level Ü Bounding Surfaces Ü Conceptual Models Ü Terminology That Should be Defined Ü Conclusions Sequence Stratigraphy Defined

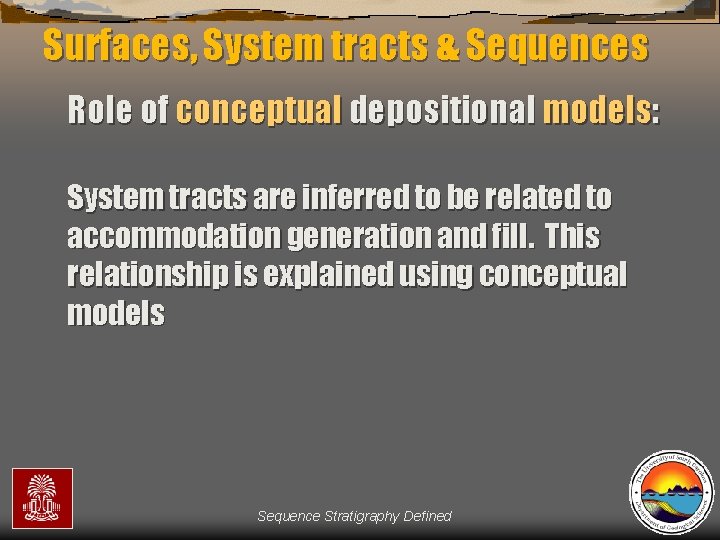

Surfaces, System tracts & Sequences Role of conceptual depositional models: System tracts are inferred to be related to accommodation generation and fill. This relationship is explained using conceptual models Sequence Stratigraphy Defined
Bounding Surfaces Identification & interpretation of bounding surfaces that separate layered clastic and carbonate sedimentary strata into genetically related packages, system tracts, a key to Sequence Stratigraphy Ü Maximum Flooding Surfaces (MFS) Ü Transgressive Surfaces (TS) (maximum regressive surfaces & transgressive ravinement surfaces) Ü Sequence Boundaries (SB) (subaerial unconformities, regressive surfaces of marine erosion & correlative conformities). Sequence Stratigraphy Defined
Boundaries Ü The movie!! Sequence Stratigraphy Defined

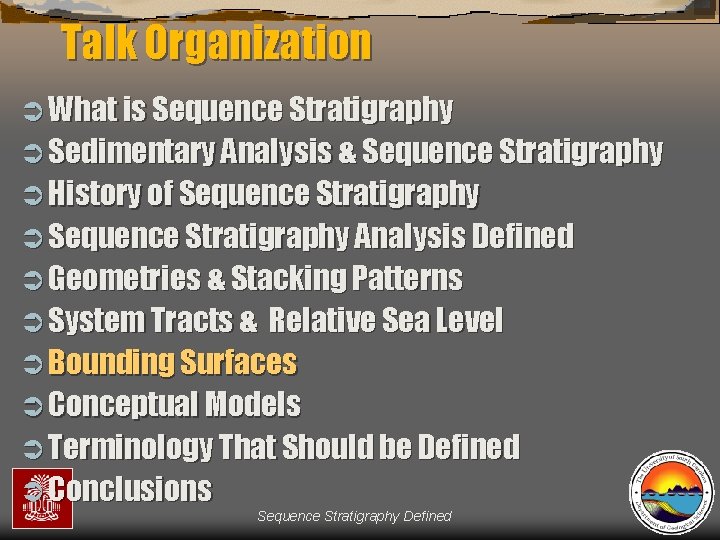

Talk Organization Ü What is Sequence Stratigraphy Ü Sedimentary Analysis & Sequence Stratigraphy Ü History of Sequence Stratigraphy Ü Sequence Stratigraphy Analysis Defined Ü Geometries & Stacking Patterns Ü System Tracts & Relative Sea Level Ü Bounding Surfaces Ü Conceptual Models Ü Terminology That Should be Defined Ü Conclusions Sequence Stratigraphy Defined
Conceptual Models Three conceptual models commonly used in sequence stratigraphy are separated from each other on basis of bounding & subdividing boundaries of system tracts: Ü 'Depositional' sequence of Vail et al 1971 Ü 'Genetic Stratigraphic' sequence model of Galloway, 1989 Ü 'Transgressive-Regressive' (T-R) sequence model of Embry and Johannessen, 1992 Sequence Stratigraphy Defined
'Depositional' Sequence (Vail et al 1971) Ü Bounded by subaerial unconformities & marine correlative conformities Ü Bounding surface assumed genetically connected with stratigraphic hiatus associated with subaerial unconformity that is progressively younger in seaward direction Ü No matter systems-tract terminology used bounding surfaces of this sequence enclose: Forced regressive Normal regressive (lowstand highstand) Transgressive sedimentary packages Sequence Stratigraphy Defined
'Genetic Stratigraphic' Sequence Galloway, 1989 Ü Bounded by maximum flooding surfaces. Ü These surfaces interpreted to form as sea level rises rapidly, sediment supply slows & organic matter accumulates sequestering radioactive materials Ü Sequence encloses Forced regressive deposits Normal regressive (lowstand highstand) deposits Transgressive deposits Sequence Stratigraphy Defined
'Transgressive-Regressive' (T-R) sequence (Embry & Johannessen, 1992) Ü Composite sequence boundary includes subaerial unconformity & marine portion of maximum regressive surface Ü ‘Normal' & 'forced' regressive deposits are included within the 'regressive systems tract' Sequence Stratigraphy Defined
Boundaries & Conceptual Models After Catuneanu, 2007 Sequence Stratigraphy Defined

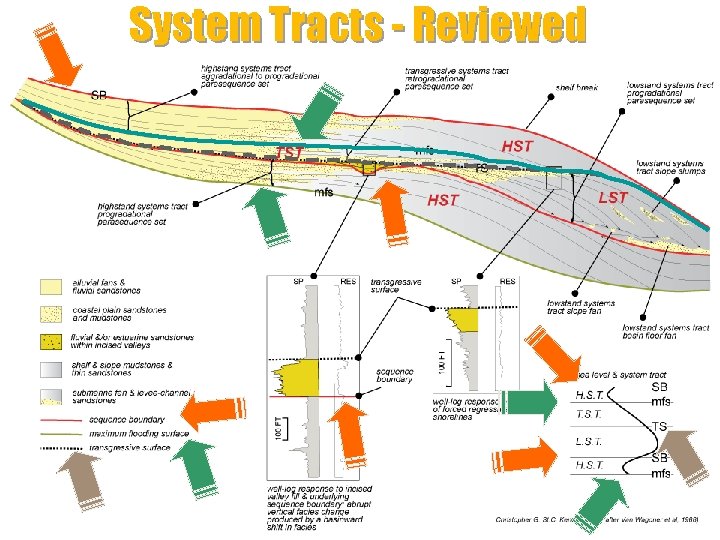

System Tracts - Reviewed Sequence Stratigraphy Defined
Sequence Stratigraphy Model Tree After Catuneanu, 2002 Sequence Stratigraphy Defined
Talk Organization Ü What is Sequence Stratigraphy Ü Sedimentary Analysis & Sequence Stratigraphy Ü History of Sequence Stratigraphy Ü Sequence Stratigraphy Analysis Defined Ü Geometries & Stacking Patterns Ü System Tracts & Relative Sea Level Ü Bounding Surfaces Ü Conceptual Models Ü Terminology That Should be Defined Ü Conclusions Sequence Stratigraphy Defined
Application & nomenclature of conceptual models subject to debate Nomenclature of systems tracts & sequence stratigraphic surfaces Ü Surfaces that should be ranked as 'sequence boundary‘ Ü Framework of surfaces, systems tracts, selection of sequence boundaries may vary with approach, available data sets, & depositional setting Ü Good news!! Ü Sequence stratigraphic method determines depositional setting of section Ü Identification of genetic units & bounding surfaces mostly model independent. Ü For both non-marine and marine systems, no matter characterization of 'sequence boundary', these boundaries envelope sedimentary section as through-going physical Stratigraphy Defined surface from basin. Sequence margin to depocenter
Caveats Ü Ü Ü Sequence stratigraphic surfaces serve, at least in part, as boundaries between different genetic types of deposit Not all data lend themselves to identification of all sequence stratigraphic surfaces Not all sequence stratigraphic surfaces are present in every depositional section Depositional settings of nearshore to just offshore generate an array of depositional and erosional surfaces, many of incorporated into sequence stratigraphy In contrast, within either fluvial and/or deep-water systems, conditions favor formation of fewer key bounding sequence stratigraphic surfaces Sequence Stratigraphy Defined
Why codify ‘rules’ for sequence stratigraphic nomenclature? Ü We use common terms and know their meaning Ü Have a standard hierarchy of subdivisions Ü Have a uniform methodology Ü Guidance for revision Ü Teaching resource: each new generation of students & practitioners have a common understanding Sequence Stratigraphy Defined
Terms to Define Surfaces Separate layered clastic and carbonate sedimentary strata into genetically related packages, system tracts Ü System Tract Specific three-dimensional facies assemblages of common genetic origin, associated with unconfined geometric architecture & interpreted as formed during phases of a relative sea-level cycle Ü Conceptual Models Explains configuration of surfaces and geometries that occur in layered sedimentary record in terms of: Ü Basinal setting Rates of sediment supply & erosion (accumulation) Eustasy Tectonic movement Sequence Stratigraphy Defined

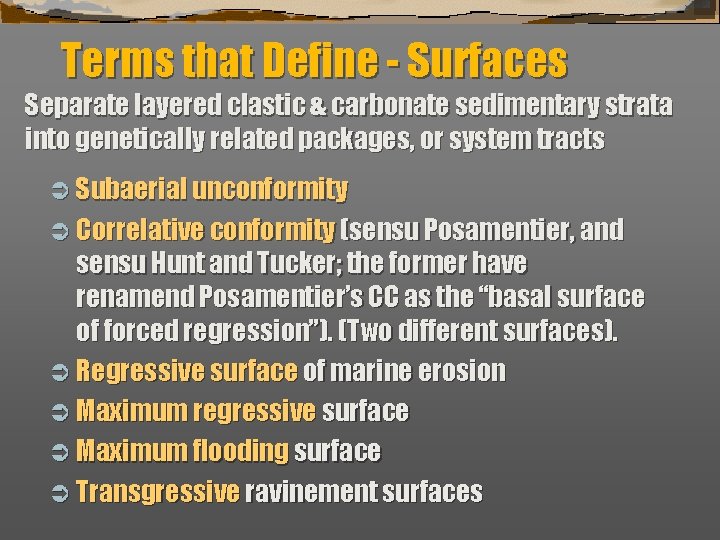

Terms that Define - Surfaces Separate layered clastic & carbonate sedimentary strata into genetically related packages, or system tracts Ü Subaerial unconformity Ü Correlative conformity (sensu Posamentier, and sensu Hunt and Tucker; the former have renamend Posamentier’s CC as the “basal surface of forced regression”). (Two different surfaces). Ü Regressive surface of marine erosion Ü Maximum regressive surface Ü Maximum flooding surface Ü Transgressive ravinement surfaces Sequence Stratigraphy Defined
Terms to Define – Systems Tracts Specific three-dimensional facies assemblages of common genetic origin, associated with unconfined geometric architecture & interpreted as formed during phases of a relative sea-level cycle Ü Falling Stage Systems Tract (FSST) Ü Lowstand Systems Tract (LST) Ü Transgressive Systems Tract (TST) Ü Highstand Systems Tract (HST) Ü Regressive System Tract Ü Low-accommodation systems Tract Ü High-accommodation Systems Tract Ü Forced regression Ü Normal regression Ü Transgression Sequence Stratigraphy Defined
Terms to Define – Conceptual Models that explain surfaces & geometries of layered sediments in terms of basinal setting, rates of supply & erosion (accumulation), eustasy, and tectonics Ü 'Depositional' sequence of Vail et al 1971 Ü 'Genetic Stratigraphic' sequence model of Galloway, 1989 Ü 'Transgressive-Regressive' (T-R) sequence model of Embry and Johannessen, 1992 Sequence Stratigraphy Defined
Definitions – Points to consider Ü Definition Ü Alternate terms Ü Origin of Feature Ü Absolute time or Fuzzy time significance if any? Sequence Stratigraphy Defined
Talk Organization Ü What is Sequence Stratigraphy Ü Sedimentary Analysis & Sequence Stratigraphy Ü History of Sequence Stratigraphy Ü Sequence Stratigraphy Analysis Defined Ü Geometries & Stacking Patterns Ü System Tracts & Relative Sea Level Ü Bounding Surfaces Ü Conceptual Models Ü Terminology That Should be Defined Ü Conclusions Sequence Stratigraphy Defined
"What's in a name? That which we call a rose. By any other name would smell as sweet. “ WHAT, YOU THINK I’M AN IDIOT? OF COURSE I WROTE DOWN WHAT WENT WHERE. OH…. . WAIT…… IS THAT AN “H” OR AN “I” Shakespeare's Romeo and Juliet (II, ii, 1 -2) Sequence Stratigraphy Defined
Sequence Stratigraphy – Conclusions ÜThe fundamental key to sequence stratigraphic interpretation is the surfaces that subdivide the sedimentary section. ÜUnfortunately the nomenclature of each of these sequence stratigraphic surfaces is constantly changing as our understanding of sedimentary systems & their interpretation improves Ü Though changes in nomenclature are well intentioned they add to the confusion to a scientific methodology that is already overlaid with complex multi-syllable terminology ÜA surface can be given a name that has been used before for a different surface. The innocent, not knowing the terminology has been changed, may lack understanding of the reason for the change, & feel that they are going stark raving mad Sequence Stratigraphy Defined

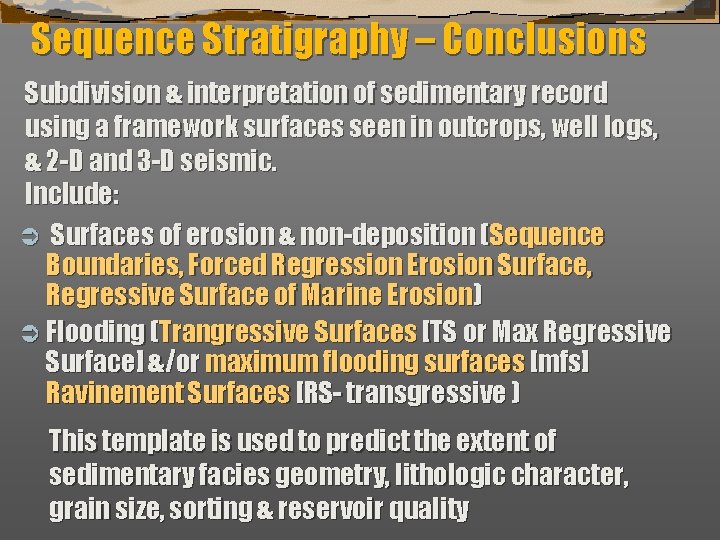

Sequence Stratigraphy – Conclusions Subdivision & interpretation of sedimentary record using a framework surfaces seen in outcrops, well logs, & 2 -D and 3 -D seismic. Include: Ü Surfaces of erosion & non-deposition (Sequence Boundaries, Forced Regression Erosion Surface, Regressive Surface of Marine Erosion) Ü Flooding (Trangressive Surfaces [TS or Max Regressive Surface] &/or maximum flooding surfaces [mfs] Ravinement Surfaces [RS- transgressive ) This template is used to predict the extent of sedimentary facies geometry, lithologic character, grain size, sorting Sequence & reservoir quality Stratigraphy Defined

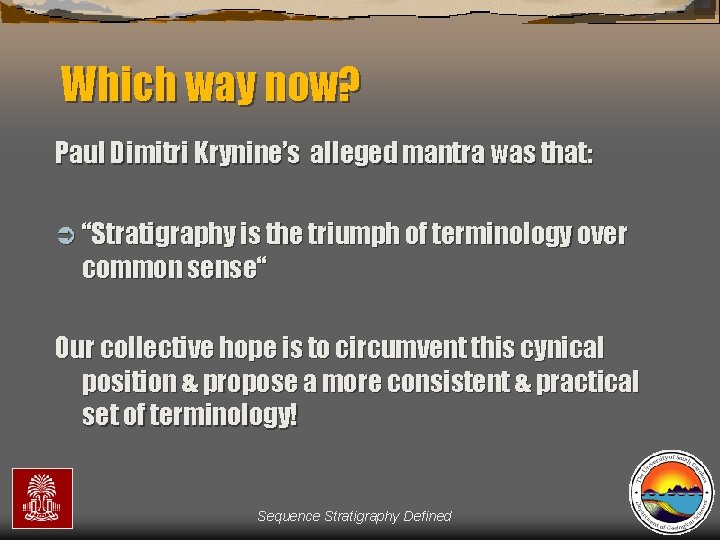

Which way now? Paul Dimitri Krynine’s alleged mantra was that: Ü “Stratigraphy is the triumph of terminology over common sense“ Our collective hope is to circumvent this cynical position & propose a more consistent & practical set of terminology! Sequence Stratigraphy Defined
TIME TO RELAX! Sequence Stratigraphy Defined
Sequence Stratigraphy Defined
