September 23 rd 2015 Webinar Introducing The Selecta In-Motion Checkweigher

September 23 rd 2015 Webinar Introducing The Selecta In-Motion Checkweigher

Jeff Heath VP Business Development – Western Region Doran Scales Inc. Based in Denver,

Jeff Heath VP Business Development – Western Region Doran Scales Inc. Based in Denver, CO

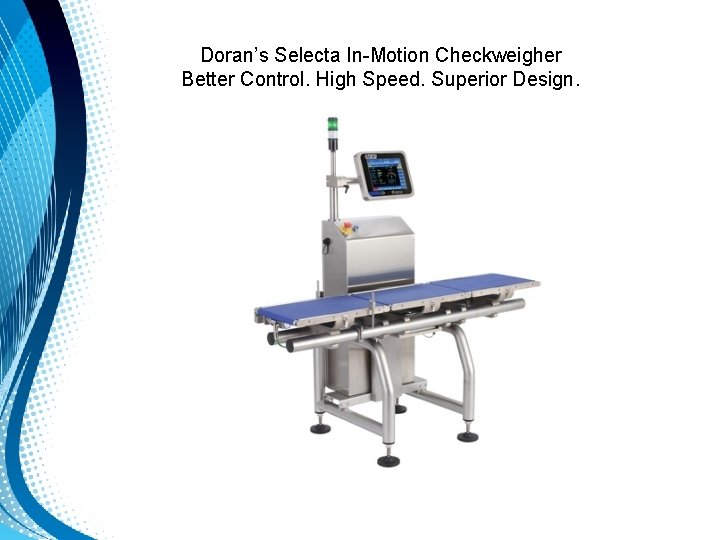

Doran’s Selecta In-Motion Checkweigher Better Control. High Speed. Superior Design.

Doran’s Selecta In-Motion Checkweigher Better Control. High Speed. Superior Design.

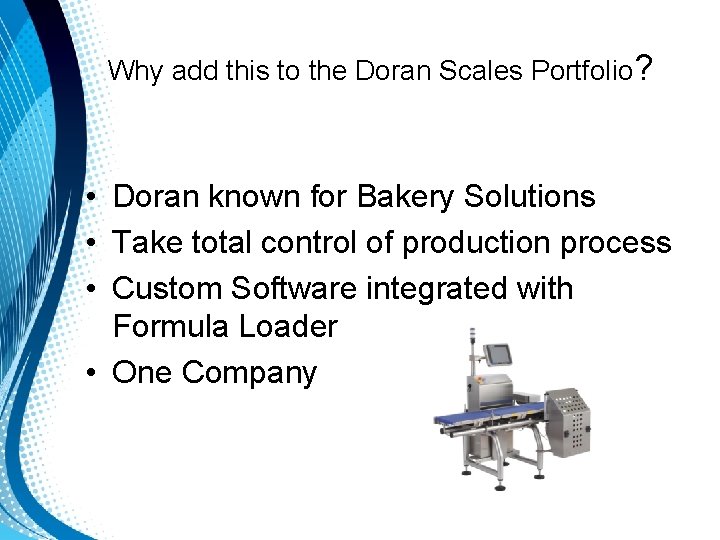

Why add this to the Doran Scales Portfolio? • Doran known for Bakery Solutions

Why add this to the Doran Scales Portfolio? • Doran known for Bakery Solutions • Take total control of production process • Custom Software integrated with Formula Loader • One Company

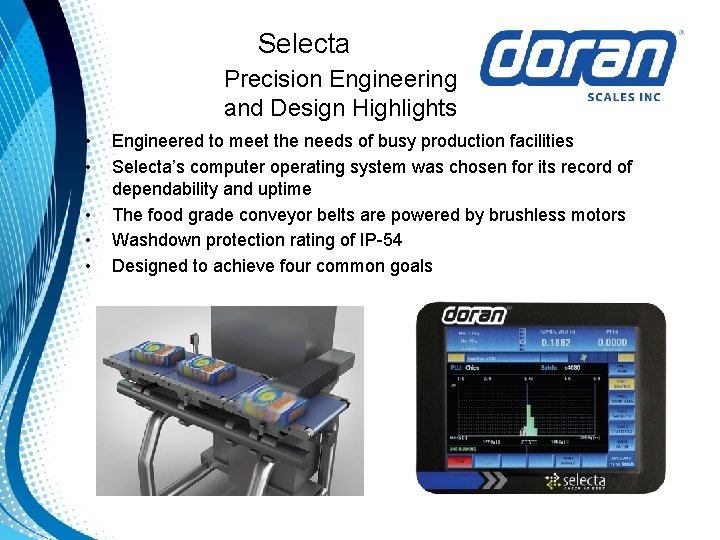

Selecta Precision Engineering and Design Highlights • • • Engineered to meet the needs

Selecta Precision Engineering and Design Highlights • • • Engineered to meet the needs of busy production facilities Selecta’s computer operating system was chosen for its record of dependability and uptime The food grade conveyor belts are powered by brushless motors Washdown protection rating of IP-54 Designed to achieve four common goals

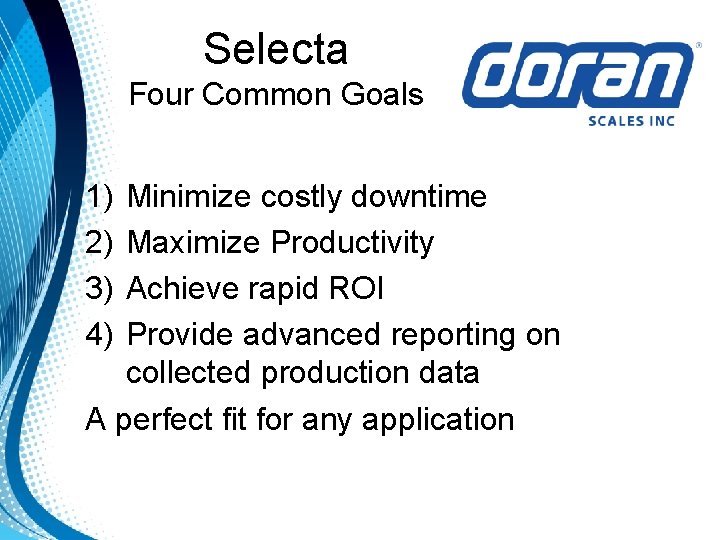

Selecta Four Common Goals 1) 2) 3) 4) Minimize costly downtime Maximize Productivity Achieve

Selecta Four Common Goals 1) 2) 3) 4) Minimize costly downtime Maximize Productivity Achieve rapid ROI Provide advanced reporting on collected production data A perfect fit for any application

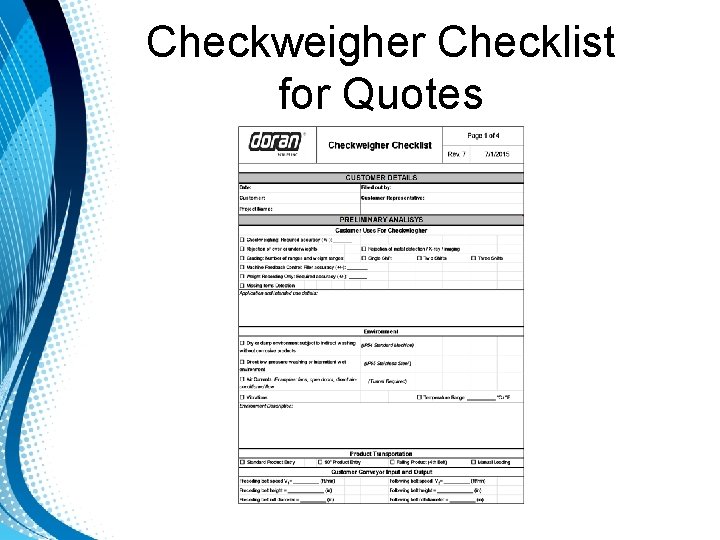

Checkweigher Checklist for Quotes

Checkweigher Checklist for Quotes

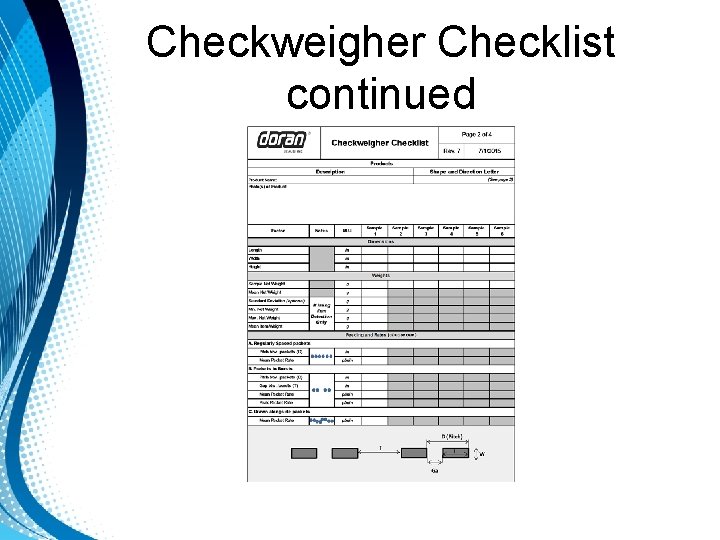

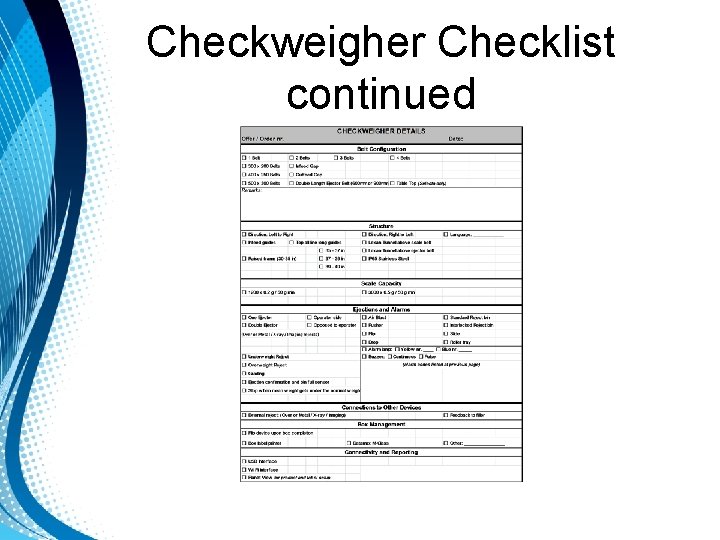

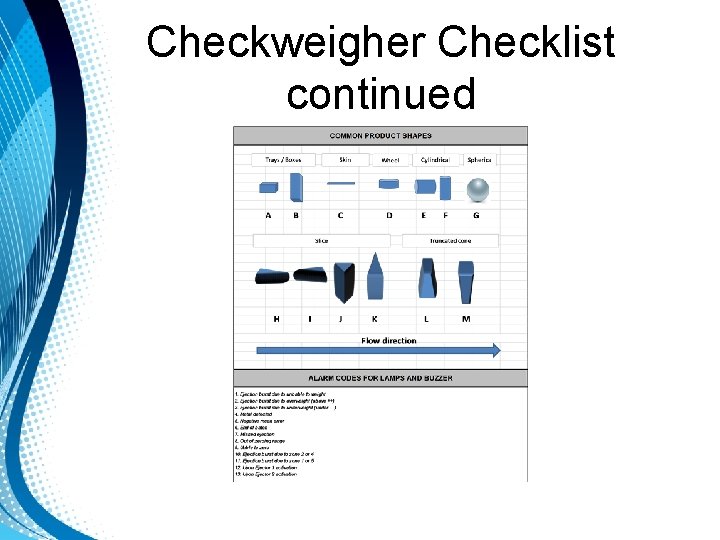

Checkweigher Checklist continued

Checkweigher Checklist continued

Checkweigher Checklist continued

Checkweigher Checklist continued

Checkweigher Checklist continued

Checkweigher Checklist continued

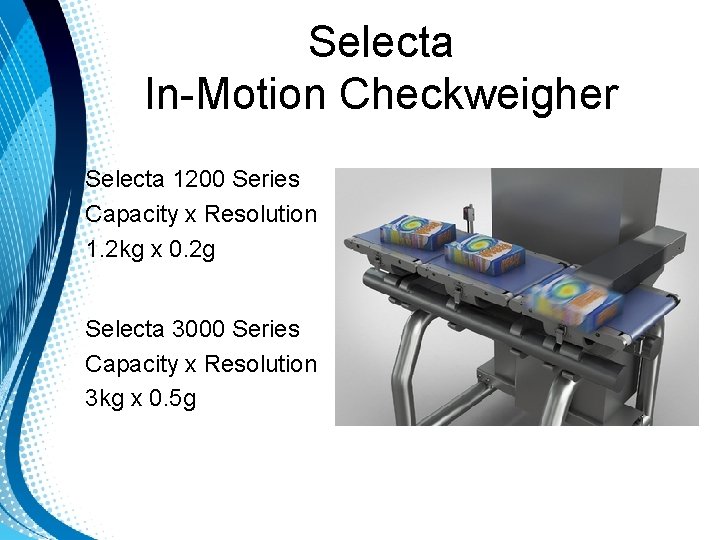

Selecta In-Motion Checkweigher Selecta 1200 Series Capacity x Resolution 1. 2 kg x 0.

Selecta In-Motion Checkweigher Selecta 1200 Series Capacity x Resolution 1. 2 kg x 0. 2 g Selecta 3000 Series Capacity x Resolution 3 kg x 0. 5 g

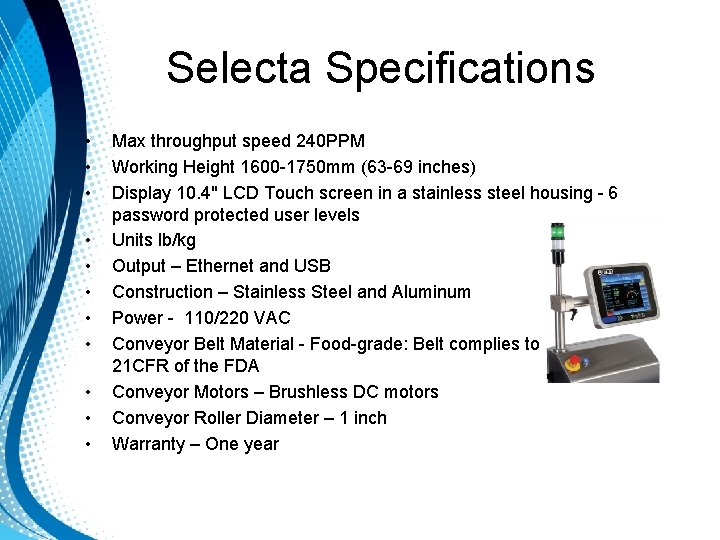

Selecta Specifications • • • Max throughput speed 240 PPM Working Height 1600 -1750

Selecta Specifications • • • Max throughput speed 240 PPM Working Height 1600 -1750 mm (63 -69 inches) Display 10. 4" LCD Touch screen in a stainless steel housing - 6 password protected user levels Units lb/kg Output – Ethernet and USB Construction – Stainless Steel and Aluminum Power - 110/220 VAC Conveyor Belt Material - Food-grade: Belt complies to regulation 21 CFR of the FDA Conveyor Motors – Brushless DC motors Conveyor Roller Diameter – 1 inch Warranty – One year

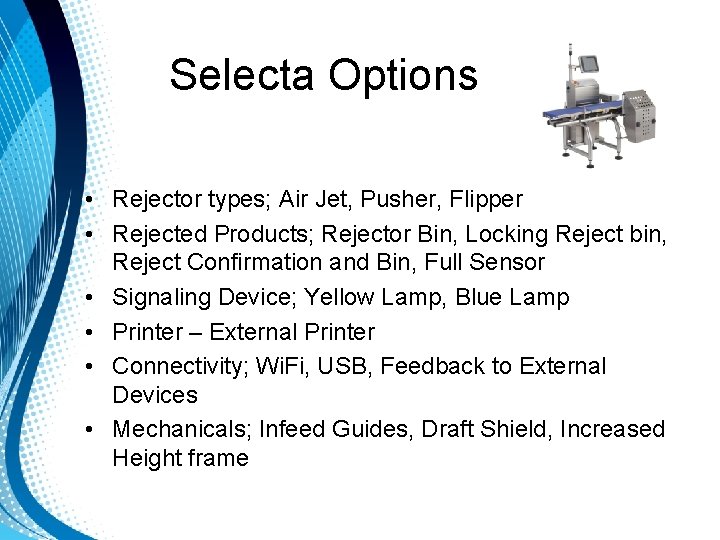

Selecta Options • Rejector types; Air Jet, Pusher, Flipper • Rejected Products; Rejector Bin,

Selecta Options • Rejector types; Air Jet, Pusher, Flipper • Rejected Products; Rejector Bin, Locking Reject bin, Reject Confirmation and Bin, Full Sensor • Signaling Device; Yellow Lamp, Blue Lamp • Printer – External Printer • Connectivity; Wi. Fi, USB, Feedback to External Devices • Mechanicals; Infeed Guides, Draft Shield, Increased Height frame

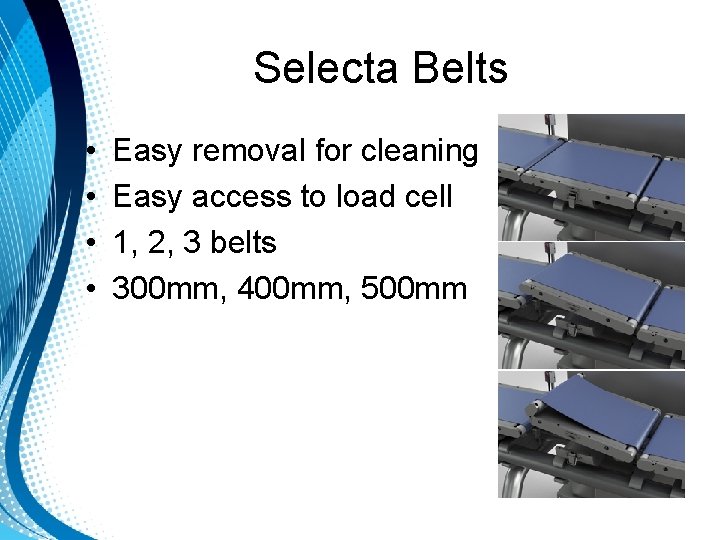

Selecta Belts • • Easy removal for cleaning Easy access to load cell 1,

Selecta Belts • • Easy removal for cleaning Easy access to load cell 1, 2, 3 belts 300 mm, 400 mm, 500 mm

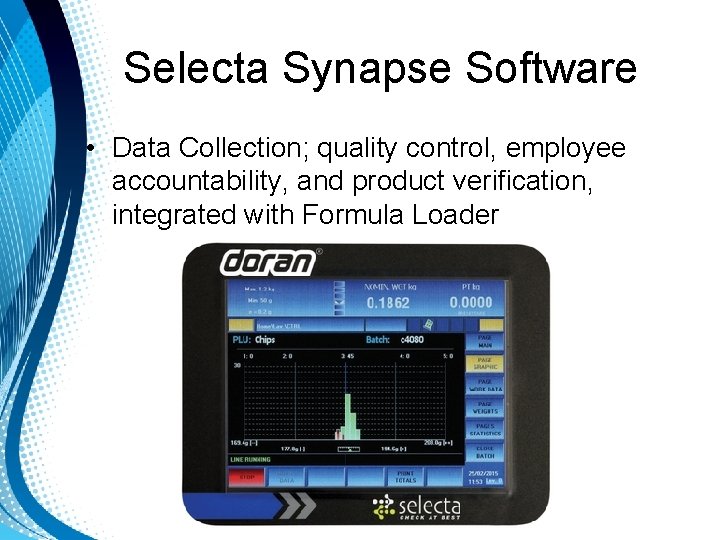

Selecta Synapse Software • Data Collection; quality control, employee accountability, and product verification, integrated

Selecta Synapse Software • Data Collection; quality control, employee accountability, and product verification, integrated with Formula Loader

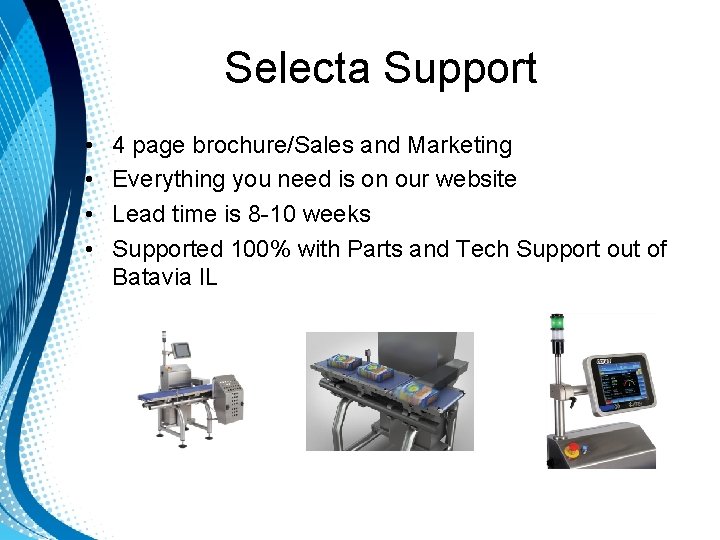

Selecta Support • • 4 page brochure/Sales and Marketing Everything you need is on

Selecta Support • • 4 page brochure/Sales and Marketing Everything you need is on our website Lead time is 8 -10 weeks Supported 100% with Parts and Tech Support out of Batavia IL

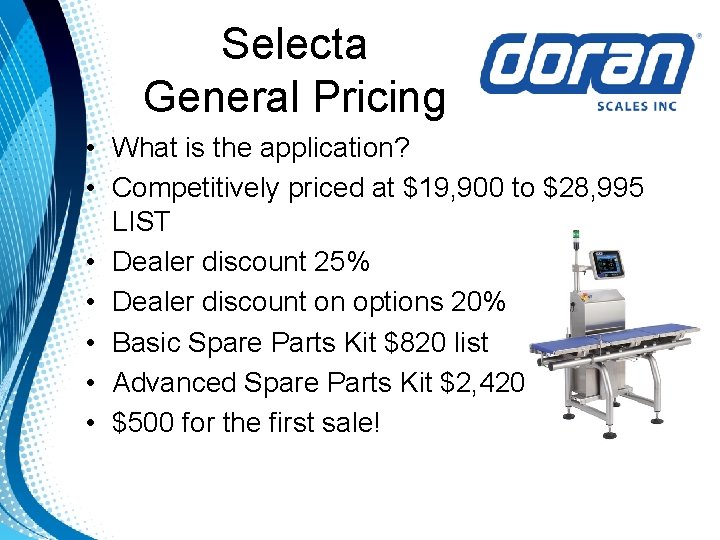

Selecta General Pricing • What is the application? • Competitively priced at $19, 900

Selecta General Pricing • What is the application? • Competitively priced at $19, 900 to $28, 995 LIST • Dealer discount 25% • Dealer discount on options 20% • Basic Spare Parts Kit $820 list • Advanced Spare Parts Kit $2, 420 • $500 for the first sale!

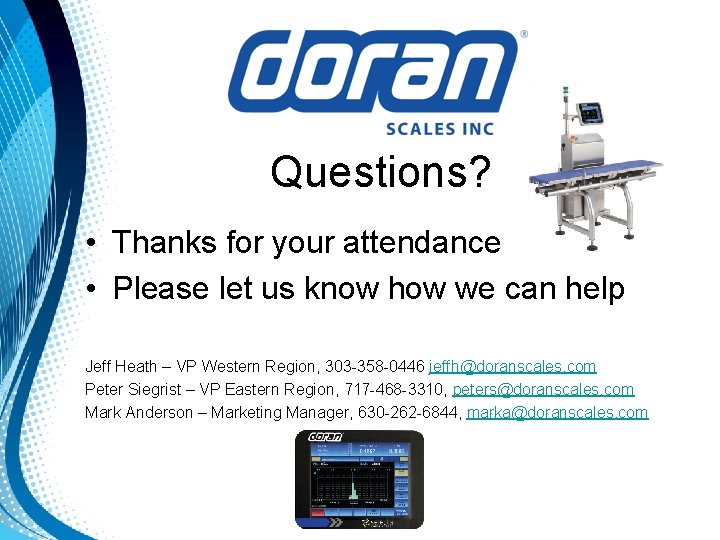

Questions? • Thanks for your attendance • Please let us know how we can

Questions? • Thanks for your attendance • Please let us know how we can help Jeff Heath – VP Western Region, 303 -358 -0446 [email protected] com Peter Siegrist – VP Eastern Region, 717 -468 -3310, [email protected] com Mark Anderson – Marketing Manager, 630 -262 -6844, [email protected] com
