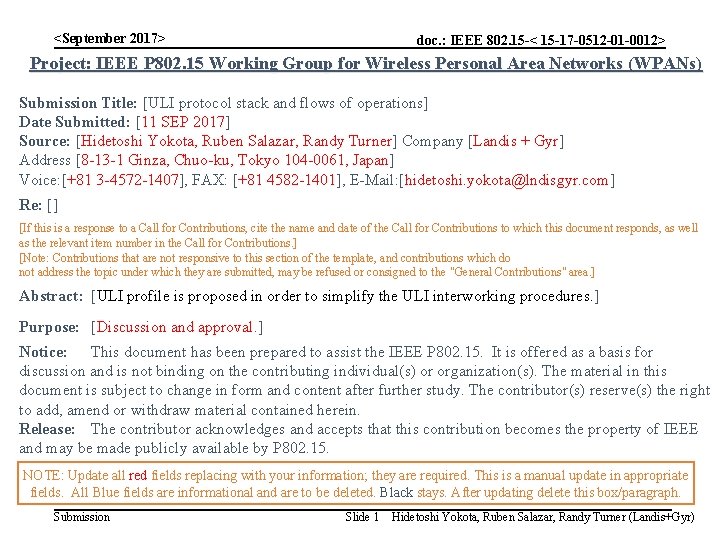

<September 2017> doc. : IEEE 802. 15 -< 15 -17 -0512 -01 -0012> Project: IEEE P 802. 15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: [ULI protocol stack and flows of operations] Date Submitted: [11 SEP 2017] Source: [Hidetoshi Yokota, Ruben Salazar, Randy Turner] Company [Landis + Gyr] Address [8 -13 -1 Ginza, Chuo-ku, Tokyo 104 -0061, Japan] Voice: [+81 3 -4572 -1407], FAX: [+81 4582 -1401], E-Mail: [hidetoshi. yokota@lndisgyr. com] Re: [] [If this is a response to a Call for Contributions, cite the name and date of the Call for Contributions to which this document responds, as well as the relevant item number in the Call for Contributions. ] [Note: Contributions that are not responsive to this section of the template, and contributions which do not address the topic under which they are submitted, may be refused or consigned to the “General Contributions” area. ] Abstract: [ULI profile is proposed in order to simplify the ULI interworking procedures. ] Purpose: [Discussion and approval. ] Notice: This document has been prepared to assist the IEEE P 802. 15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P 802. 15. NOTE: Update all red fields replacing with your information; they are required. This is a manual update in appropriate fields. All Blue fields are informational and are to be deleted. Black stays. After updating delete this box/paragraph. Submission Slide 1 Hidetoshi Yokota, Ruben Salazar, Randy Turner (Landis+Gyr)

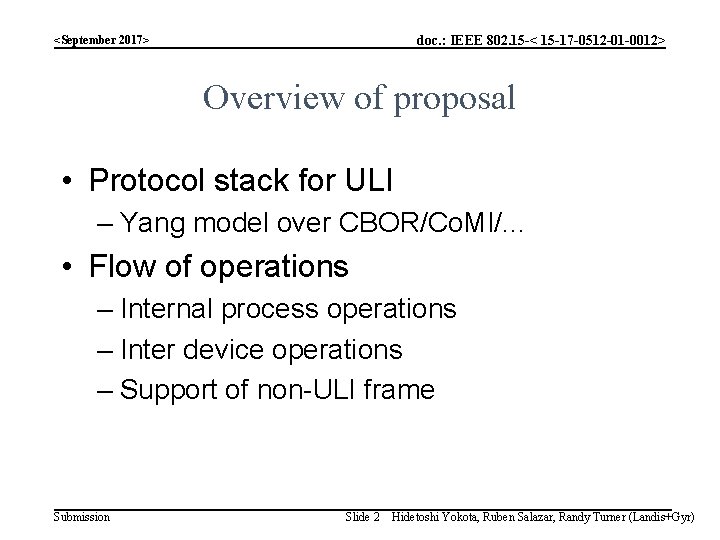

doc. : IEEE 802. 15 -< 15 -17 -0512 -01 -0012> <September 2017> Overview of proposal • Protocol stack for ULI – Yang model over CBOR/Co. MI/. . . • Flow of operations – Internal process operations – Inter device operations – Support of non-ULI frame Submission Slide 2 Hidetoshi Yokota, Ruben Salazar, Randy Turner (Landis+Gyr)

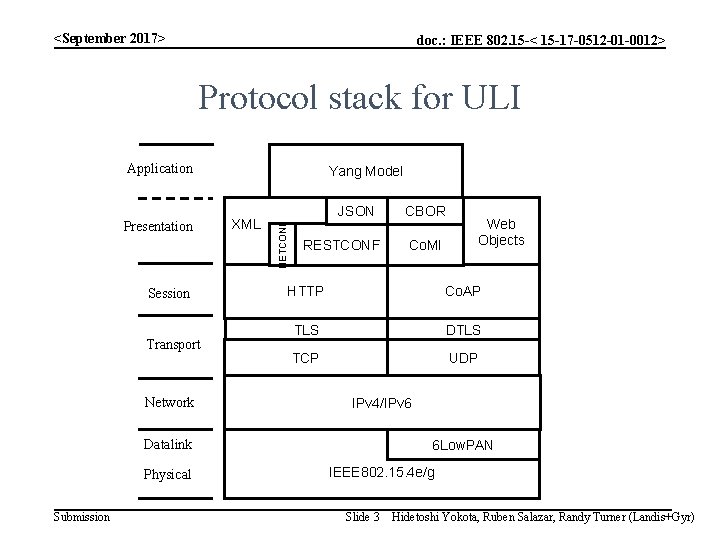

<September 2017> doc. : IEEE 802. 15 -< 15 -17 -0512 -01 -0012> Protocol stack for ULI Application Session Transport Network XML JSON NETCONF Presentation Yang Model RESTCONF Submission Co. MI Web Objects HTTP Co. AP TLS DTLS TCP UDP IPv 4/IPv 6 Datalink Physical CBOR 6 Low. PAN IEEE 802. 15. 4 e/g Slide 3 Hidetoshi Yokota, Ruben Salazar, Randy Turner (Landis+Gyr)

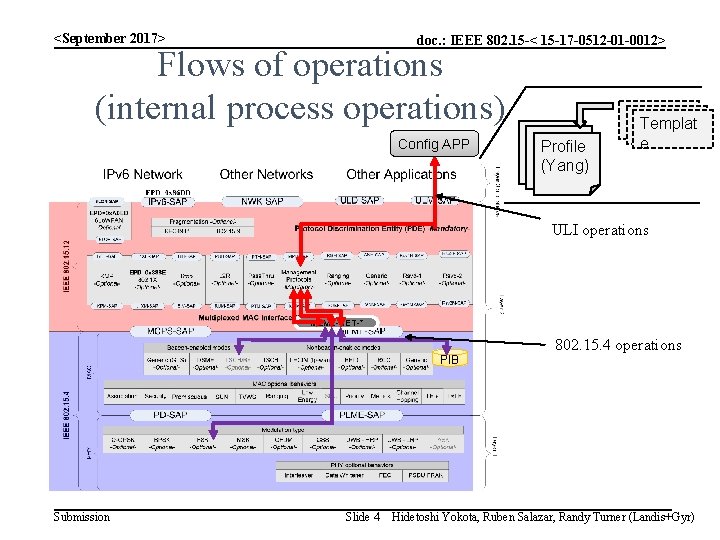

<September 2017> doc. : IEEE 802. 15 -< 15 -17 -0512 -01 -0012> Flows of operations (internal process operations) Config APP Profile (Yang) Templat ee e ULI operations MLME-SET-* PIB Submission Slide 4 802. 15. 4 operations Hidetoshi Yokota, Ruben Salazar, Randy Turner (Landis+Gyr)

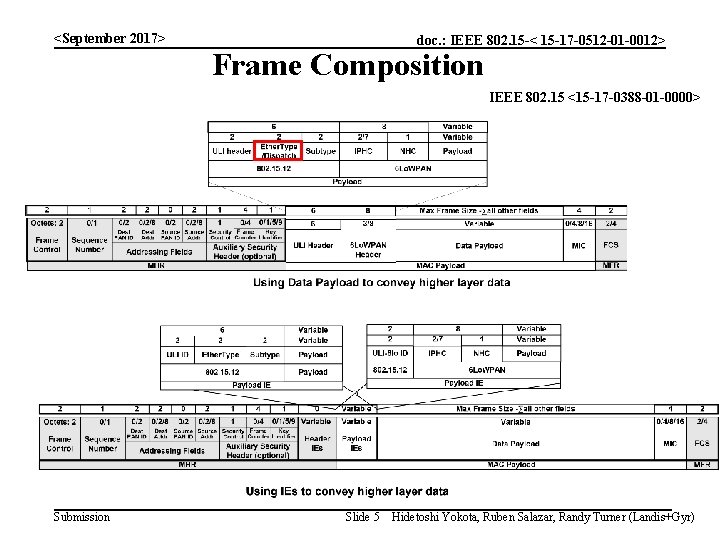

<September 2017> doc. : IEEE 802. 15 -< 15 -17 -0512 -01 -0012> Frame Composition IEEE 802. 15 <15 -17 -0388 -01 -0000> Submission Slide 5 Hidetoshi Yokota, Ruben Salazar, Randy Turner (Landis+Gyr)

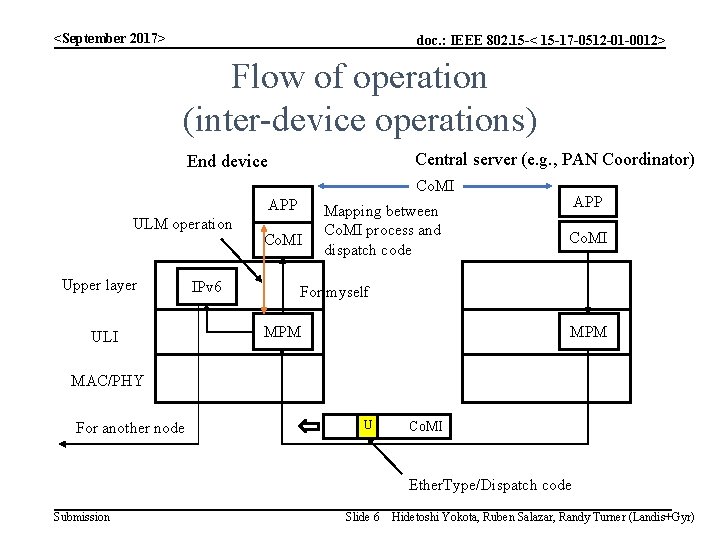

<September 2017> doc. : IEEE 802. 15 -< 15 -17 -0512 -01 -0012> Flow of operation (inter-device operations) Central server (e. g. , PAN Coordinator) End device Co. MI APP ULM operation Upper layer ULI IPv 6 Co. MI Mapping between Co. MI process and dispatch code APP Co. MI For myself MPM MAC/PHY For another node U Co. MI Ether. Type/Dispatch code Submission Slide 6 Hidetoshi Yokota, Ruben Salazar, Randy Turner (Landis+Gyr)

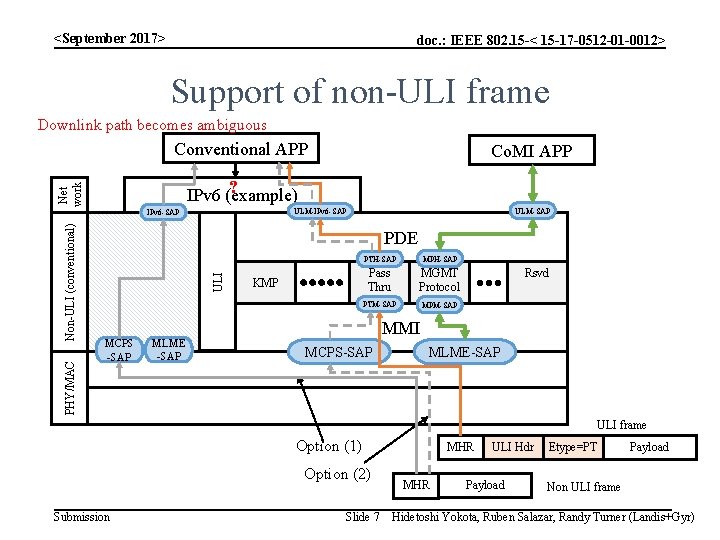

<September 2017> doc. : IEEE 802. 15 -< 15 -17 -0512 -01 -0012> Support of non-ULI frame Downlink path becomes ambiguous Conventional APP Net work ? IPv 6 (example) PDE ULI Non-ULI (conventional) ULM-SAP ULM-IPv 6 -SAP PHY/MAC Co. MI APP MCPS -SAP MLME -SAP PTH-SAP MPH-SAP Pass Thru MGMT Protocol PTM-SAP MPM-SAP KMP Rsvd MMI MCPS-SAP MLME-SAP ULI frame Option (1) Option (2) Submission Slide 7 MHR ULI Hdr Payload Etype=PT Payload Non ULI frame Hidetoshi Yokota, Ruben Salazar, Randy Turner (Landis+Gyr)

<September 2017> doc. : IEEE 802. 15 -< 15 -17 -0512 -01 -0012> Support of non-ULI frame (proposal A) Net work Conventional APP ULI APP IPv 6 (example) PDE ULI Non-ULI (conventional) ULM-SAP ULM-IPv 6 -SAP PHY/MAC Co. MI APP MCPS -SAP MLME -SAP KMP MPH-SAP Pass Thru MGMT Protocol PTM-SAP MPM-SAP Rsvd MMI MCPS-SAP MLME-SAP Mux/Demux MHR Submission PTH-SAP ULI Hdr Payload Slide 8 Etype=PT Payload ULI frame Non ULI frame Hidetoshi Yokota, Ruben Salazar, Randy Turner (Landis+Gyr)

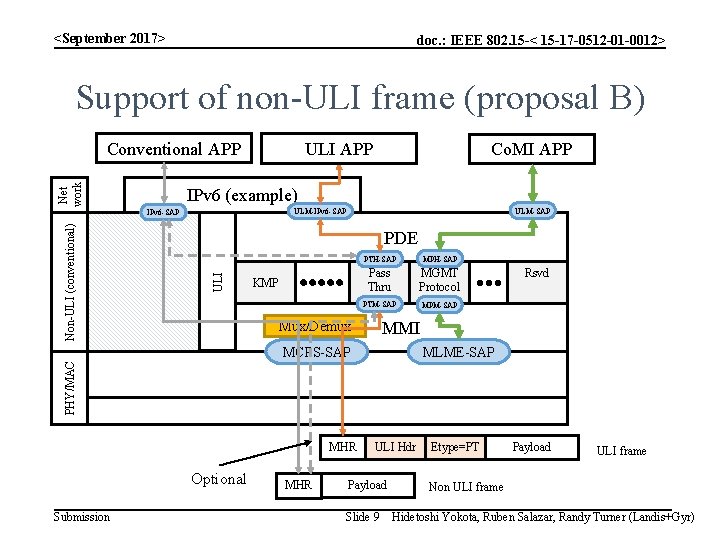

<September 2017> doc. : IEEE 802. 15 -< 15 -17 -0512 -01 -0012> Support of non-ULI frame (proposal B) Net work Conventional APP ULI APP IPv 6 (example) ULM-SAP ULM-IPv 6 -SAP PDE ULI Non-ULI (conventional) Co. MI APP KMP PTH-SAP MPH-SAP Pass Thru MGMT Protocol PTM-SAP MPM-SAP Rsvd MMI Mux/Demux MCPS-SAP PHY/MAC MLME-SAP MHR Optional Submission MHR ULI Hdr Payload Slide 9 Etype=PT Payload ULI frame Non ULI frame Hidetoshi Yokota, Ruben Salazar, Randy Turner (Landis+Gyr)
