Separation and Purification Techniques Soft Toys Games Books

Separation and Purification Techniques

Soft Toys Games Books

But what if… Sugar Sand How to separate them?

Lesson Objectives At the end of the lesson, students should be able to: Name the 3 methods in which we can test for pure substances Identify the effect of impurities on a substance. Choose suitable separation techniques to separate a given mixture. Explain the working principles behind each separation technique.

To test for Purity of a Substance Methods of Testing Observation Melting point If a substance is pure, it will melt at a fixed temperature. Boiling point If a substance is pure, it will boils at a fixed temperature. Use of chromatography If a substance is pure, it will show only one spot on the chromatogram.

Effect of impurities in a substance Attributes Effect of impurities Melting point A substance melts below its melting point. Boiling point A substance boils higher than its boiling point. Use of chromatography Gives rise to more than one spot on the chromatogram.

Physical Methods of Separation Only separate the different substances in a mixture. No new substance is formed. The choice of separation technique depends on the nature of the mixture.

Common physical methods to separate a mixture ◦ Paper chromatography ◦ Filtration ◦ Crystallisation ◦ Simple and fractional distillation

FILTRATION Solid-Liquid Mixture

Filtration Solid-liquid mixture (insoluble solids) E. g. sand in water A filter paper is used because it contains very tiny pores. Mixture of solid and liquid

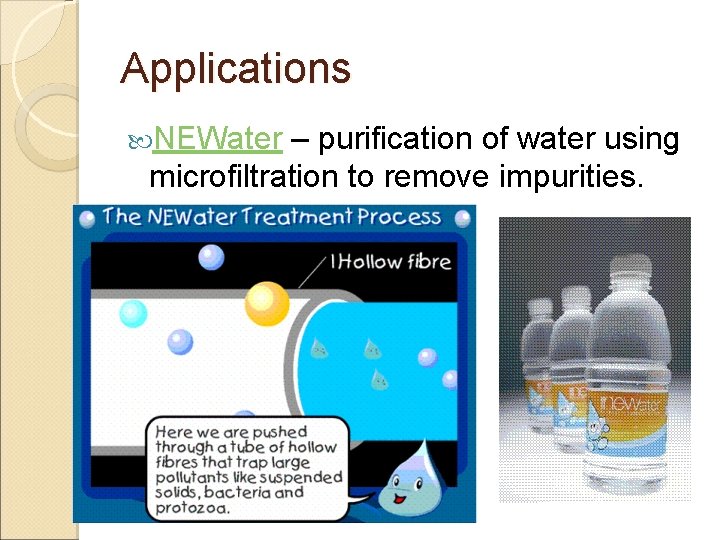

Applications NEWater – purification of water using microfiltration to remove impurities.

CRYSTALLISATION Separating soluble solids from a solution

Crystallisation To separate dissolved pure solid Maximum amount from a solution. of solid dissolved in a given solvent. 2. Saturated solution Evaporation of solution 3. Pure Crystals formed. 1. Heat the solution until saturated.

How to test for saturated solution? Dip a glass rod into the solution and removed. If crystals are formed on the glass rod, it means that the solution is saturated. This is the saturation crystallisation point or

Think!!! Why can’t we just evaporate the solution to dryness to obtain the crystals? For some substances, they will decompose when heated. charring When water is removed, any soluble impurities will be left on the crystal not pure.

Mixture of Sand Sugar How do I get sand sugar back? Filtration Sand is the residue, filtrate is the sugar solution Crystallisation pure sugar crystals Is the filtrate always a pure liquid?

SIMPLE DISTILLATION Separating liquid from a solution

Distillation To separate a liquid from a solution. E. g. salt solution, sugar solution Involves two physical state changes.

Set-up for distillation 1 Bulb of thermometer placed beside the side arm of the distillation flask to ensure accurate measurement of boiling point. Liquid is heated until its boiling point and changes to vapour. 2 Vapour is cooled and changes to liquid (distillate). Mixture To ensure smooth boiling. Other examples: 1. Marble chips 2. Porcelain chips Main concept Boiling point of the liquid

Boiling chips To ensure smooth boiling During boiling of water, big air bubbles can be seen. These air bubbles causes ‘bumping’. Boiling chips can reduce this ‘bumping’ effect.

Temperature Profile Temperature remains unchanged until all the liquid boils off. Temperature as solution is heated

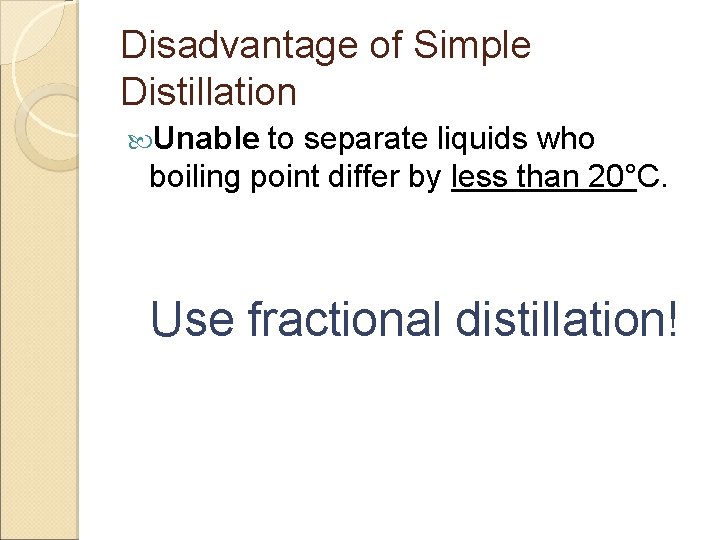

Disadvantage of Simple Distillation Unable to separate liquids who boiling point differ by less than 20°C. Use fractional distillation!

FRACTIONAL DISTILLATION Separating miscible liquids

Fractional distillation For liquids that are miscible and having different boiling points. Miscible – mix together completely to form a solution. E. g. water and ethanol Liquid with lower boiling point distill over first. Liquids with higher boiling point will return back into the round-bottomed flask.

Set-up of fractional distillation Thermometer Water outlet Main concept Boiling point of the liquids where the liquid with the lowest boiling point will distill over first. Condenser Fractionating column Round-bottomed flask Liquid-liquid mixture Water inlet Distillate Boiling chips

During fractional distillation, • The liquid with lowest boiling point will distill over to the condenser first. • The vapour of liquids with higher boiling point condenses along the fractionating column and re-enter the round-bottomed flask.

Fractionating Column Packed with glass beads Provide large surface area for evaporation and condensation of liquids with different boiling points for effectively separation.

Temperature Profile Liquid with lowest boiling point will distill over first Second liquid distill over. First liquid distill over upon reaching its boiling point

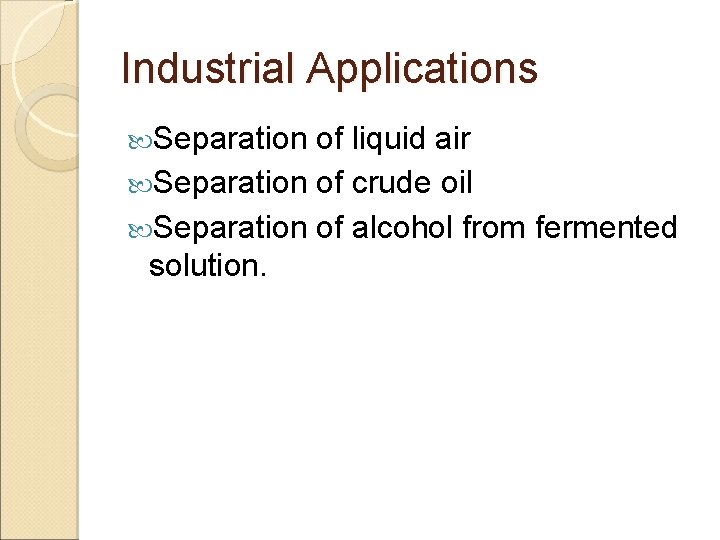

Industrial Applications Separation of liquid air Separation of crude oil Separation of alcohol from fermented solution.

Think!!! What is the difference between distillation and fractional distillation? Simple distillation Fractional Distillation No fractionating column Separate liquids whose boiling points differs more than 20°C Has a fractionating column Able to separate liquids whose boiling point differs by less than 20°C

Think!! Is it possible to obtain salt from seawater? Yes However, industrially, we use reverse osmosis to obtain salt (Desalination). What is the reason? Distillation exhaust a lot of energy, resulting in high production cost.

TYPES of MIXTURES MIXTURE SUBSTANCES TO OBTAIN METHODS Salt mixed with broken glass pieces Salt crystals Evaporation Sea Water Pure Salt Desalination/ Distillation Copper (II) Sulphate Crystallisation solution Crystals Ink Pure Water Paper Chromatography Wine Ethanol Fractional Distillation

Check your Understanding Which process is used to separate Chromatography Three water-soluble dyes? Two miscible liquids with boiling points of 78°C and 100°C? Fractional distillation Water containing an insoluble solid? Filtration Water containing a dissolved solid? Crystallisation

Check your Understanding A mixture contains the following three liquids that are completely miscible: Liquid propanone Ethanol Water Boiling point (°C ) 48 78 100 The liquid can be separated by fractional distillation. State, with a reason, which liquid will distill over first. Propanone. It has the lowest boiling point among the 3 liquids. Name an industrial process that involves fractional distillation. Fractional distillation of crude oil

What did you learnt today? 3 methods to test for purity Effect of impurities in a substance 3 separation techniques and their working principles

Summary Fractional distillation Simple distillation To separate miscible liquids To separate solvent from solution Separation technique Filtration To separate solid from a liquid To separate solids (only one is soluble in a solvent) To separate solid from a solution Crystallisation

Online Quiz http: //www. sciencequiz. net/jcscience/jcch emistry/septechniques 1 a. htm
