SENTRON 5 SV 9 Residual Current Circuit Breakers
SENTRON 5 SV 9 Residual Current Circuit Breakers with Overcurrent Protection Unrestricted / © Siemens AG 2014. All Rights Reserved. siemens. com/answers
5 SV 9 RCBOs Residual Current Circuit Breakers with Overcurrent Protection (RCBOs) are a combination of an RCCB and MCB in a compact design for personnel, fire and line protection. For personnel protection and fire protection, the residual current part of the type AC trips in the event of sinusoidal AC residual currents, type A also trips in the event of pulsating DC residual currents. RCBOs with a rated residual current of maximum 30 m. A are used for personnel, material and fire protection, as well as for protection against direct contact. The MCB part of the 5 SV 9 RCBOs protects lines against overload and short circuits and is available in characteristics C. RCBOs comprise one part for fault-current detection and one part for overcurrent detection. They are equipped with a delayed overload/time-dependent thermal release (thermal bimetal) for low overcurrents and with an instantaneous electromagnetic release for higher overload and short-circuit currents. Unrestricted / © Siemens AG 2014. All Rights Reserved.

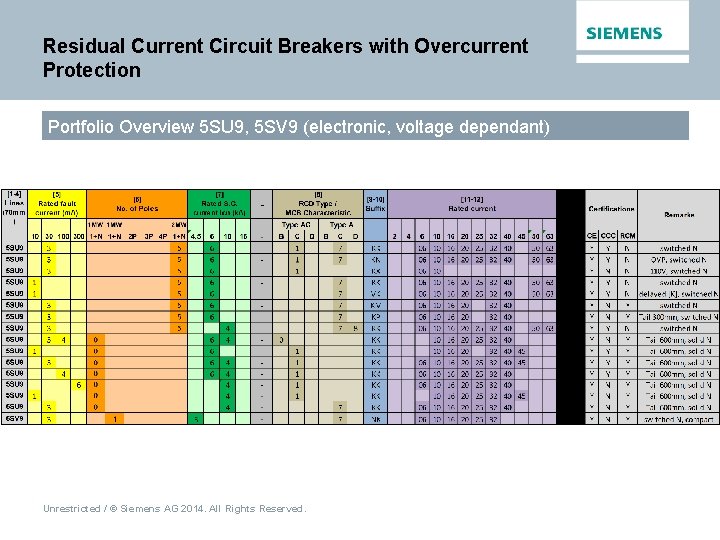

Residual Current Circuit Breakers with Overcurrent Protection Portfolio Overview 5 SU 9, 5 SV 9 (electronic, voltage dependant) Unrestricted / © Siemens AG 2014. All Rights Reserved.
5 SV 9 RCBOs Type Overview 5 SV 9313 -7 NK 06 (6 A) 5 SV 9313 -7 NK 10 (10 A) 5 SV 9313 -7 NK 16 (16 A) 5 SV 9313 -7 NK 20 (20 A) 5 SV 9313 -7 NK 25 (25 A) 5 SV 9313 -7 NK 32 (32 A) Unrestricted / © Siemens AG 2014. All Rights Reserved.
5 SV 9 RCBOs Technical Overview • • • Compliance with standards: IEC 61009 / GB 16917 Tripping characteristics: C Rated current: 6 A, 10 A, 16 A, 25 A, 32 A Rated voltages: AC 230 V I∆n: 30 m. A, Type A Poles: 1 P+N Electrical and mechanical switching cycles: >10. 000 Ambient temperature range: -25°C to +40°C Terminal conductor cross-sections: • Solid and stranded wire: 0, 75. . . 16 mm² • Finely stranded with end sleeve: 0, 75. . . 10 mm² • Compliance with Ro. Hs • Approvals & markings: • 5 SV 9 grey line: CE, RCM • 5 SV 9 green line: CE, CCC Unrestricted / © Siemens AG 2014. All Rights Reserved.
5 SV 9 RCBOs Feature Overview 18 mm width Top or bottom mains connection Type A Ergonomical toggle Hidden test button Compact busbar Unrestricted / © Siemens AG 2014. All Rights Reserved.
5 SV 9 RCBOs Features • • 1 P+N RCBO with only 18 mm modular width Top or bottom mains connection Hidden test button Enable easier installation and better appearance with compact busbars 5 ST 376 and 5 ST 361 • Easy-to-read, colored switch position indicator integrated in the handle • Optimum reach-round touch protection • Higher personnel safety protection with A type residual current Busbar Unrestricted / © Siemens AG 2014. All Rights Reserved.
5 SV 9 RCBOs Ergonomy and design • Ergonomic handle and housing contours for user-friendly switching • Lockable in OFF-position with locking device and padlock • "Hidden" test button: Design is in line with 5 SL miniature circuit breakers Unrestricted / © Siemens AG 2014. All Rights Reserved.
5 SV 9 RCBOs Terminals and busbar compatibility • Solid & stranded wires: 0, 75. . . 16 mm² • Finely stranded with end sleeve: 0, 75. . . 10 mm² • With accessory line-side terminal 5 ST 3768: up to 25 mm² • 5 ST 376 busbar system for single phase interconnection • 5 ST 361 busbar system for three-phase interconnection • Accessory line-side terminal 5 ST 3768 can be combined with 5 ST 376 busbar system 5 ST 376 (can be cut) End caps for 5 ST 376 busbars or Example image, here shown with MCB 1+N compact Line-side terminal 5 ST 3768 (compatible with 5 ST 376 busbars) Unrestricted / © Siemens AG 2014. All Rights Reserved. 5 ST 361 (can not be cut) 5 ST 376 (can be cut)

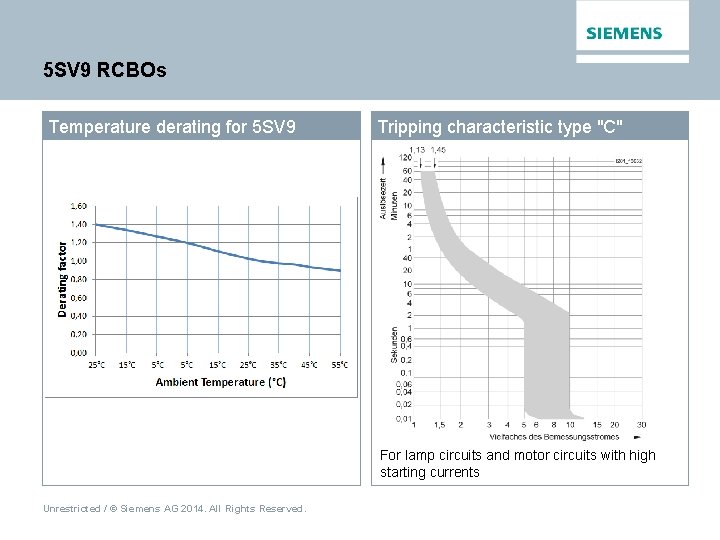

5 SV 9 RCBOs Temperature derating for 5 SV 9 Tripping characteristic type "C" For lamp circuits and motor circuits with high starting currents Unrestricted / © Siemens AG 2014. All Rights Reserved.
5 SV 9 RCBOs I²t-value (A²S) for 5 SV 9 Peak-current Imax (A) for 5 SV 9 32 A 25 A 20 A 16 A 10 A 6 A Unrestricted / © Siemens AG 2014. All Rights Reserved.
5 SV 9 RCBOs Dimensions – Symbols Dimensions Symbols / Connection diagram and lettering 1 P+N Unrestricted / © Siemens AG 2014. All Rights Reserved.
5 SV 9 RCBOs Additional Components Busbar systems 5 ST 37 busbar system, single-phase, 10 mm², for MCB or RCBO 1+N in 1 MW of the compact range, can be cut, with end caps Grey, 216 mm length (for 12 devices), with end caps: Blue (N), 216 mm length (for 12 devices), with end caps: Grey, 1016 mm length, without end caps: Blue (N), 1016 mm length, without end caps: 5 ST 3762 (10 per pack) 5 ST 3763 (10 per pack) 5 ST 3764 (10 per pack) 5 ST 3765 (10 per pack) Grey end caps for 5 ST 376 busbars: Blue end caps for 5 ST 376 busbars: 5 ST 3766 (10 x 2 per pack) 5 ST 3767 (10 x 2 per pack) Side terminal for 5 ST 376 busbars (for conductors up to 25 mm²): 5 ST 3768 (25 per pack) 5 ST 36 busbar system, three-phase, 10 mm², for MCB or RCBO 1+N in 1 MW of the compact range, can not be cut, fully insulated For 6 MCBs or RCBOs 1+N compact: For 9 MCBs or RCBOs 1+N compact: For 12 MCBs or RCBOs 1+N compact: Unrestricted / © Siemens AG 2014. All Rights Reserved. 5 ST 3613 (10 per pack) 5 ST 3614 (10 per pack) 5 ST 3615 (10 per pack)

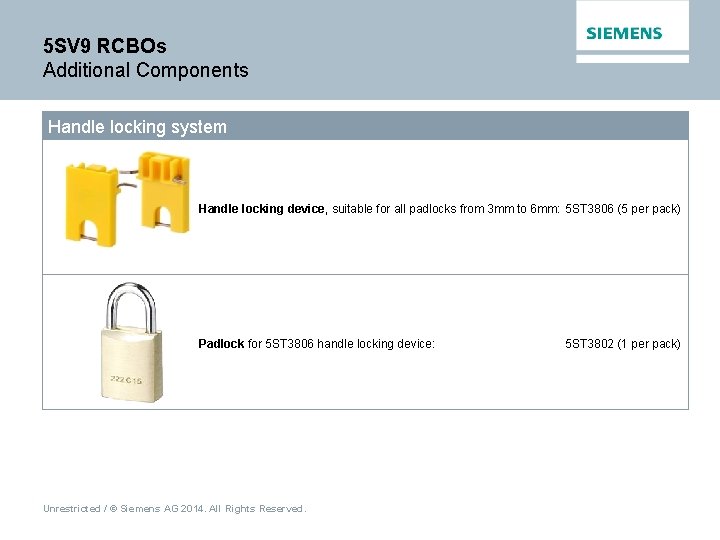

5 SV 9 RCBOs Additional Components Handle locking system Handle locking device, suitable for all padlocks from 3 mm to 6 mm: 5 ST 3806 (5 per pack) Padlock for 5 ST 3806 handle locking device: Unrestricted / © Siemens AG 2014. All Rights Reserved. 5 ST 3802 (1 per pack)
Contact Page Peter Karl Product Manager IC LMV LP IEC P CP Siemensstrasse 10 93055 Regensburg Phone: +49 (941) 790 -2066 Fax: +49 (941) 790 -2227 Mobile: +49 (173) 7337767 E-mail: karl. peter@siemens. com Answers for infrastructure and cities. Unrestricted / © Siemens AG 2014. All Rights Reserved.
