Sensor Web Enablement: The 52 north SWE Suite <Title> • I. Simonis, A. Wytzisk, J. Echterhoff

Prologue A world full of sensors: J. Echterhoff http: //www. 52 north. org 2

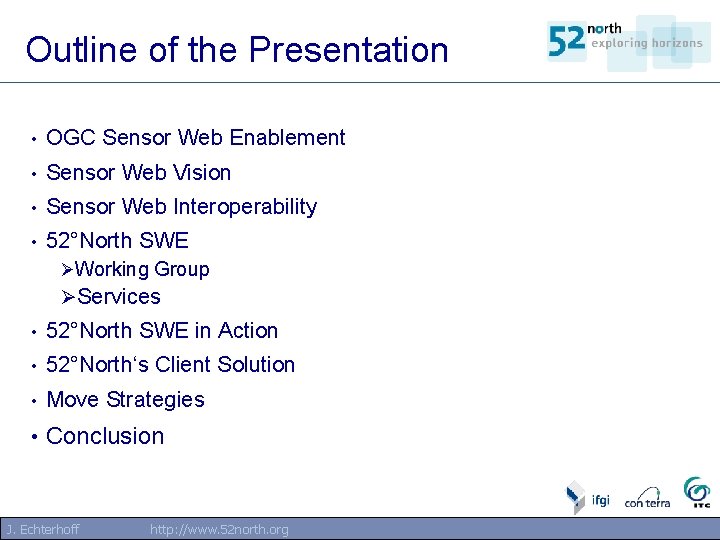

Outline of the Presentation • OGC Sensor Web Enablement • Sensor Web Vision • Sensor Web Interoperability • 52°North SWE ØWorking Group ØServices • 52°North SWE in Action • 52°North‘s Client Solution • Move Strategies • Conclusion J. Echterhoff http: //www. 52 north. org 3

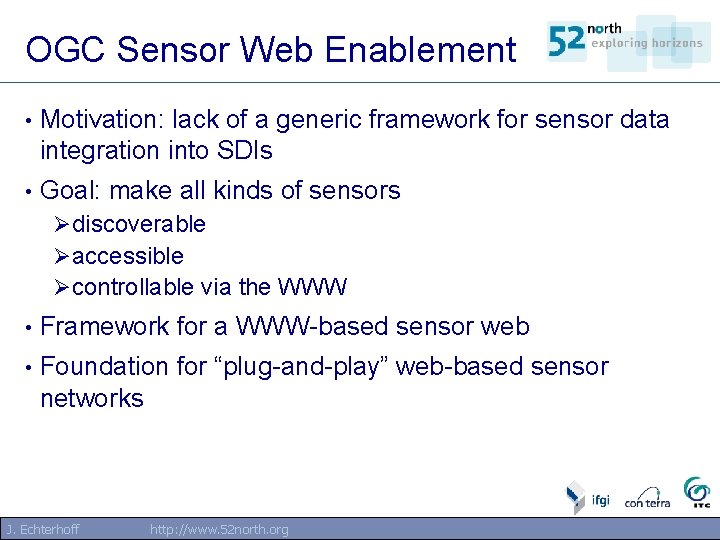

OGC Sensor Web Enablement • Motivation: lack of a generic framework for sensor data integration into SDIs • Goal: make all kinds of sensors Ødiscoverable Øaccessible Øcontrollable via the WWW • Framework for a WWW-based sensor web • Foundation for “plug-and-play” web-based sensor networks J. Echterhoff http: //www. 52 north. org 4

Sensor Web Vision wireless sensor networks (WSN) @ Image Processing Server Notification Threshold Server Web Mapping Client J. Echterhoff Fusion Processing Server http: //www. 52 north. org Registry Server Storage Server End Users Application Autentication Server Sensors Mission Planning System 5

Sensor Web Interoperability Get Observation SOS O&M, Sensor. ML Submit Task Sensor Tasking SPS Data Do Notify Data store WNS Messages Subscribe SAS Alerts J. Echterhoff http: //www. 52 north. org 6

Sensor Web Interoperability Get Observation SOS O&M, Sensor. ML Submit Task Sensor Tasking SPS Data Do Notify Data store WNS Messages Subscribe SAS Alerts J. Echterhoff http: //www. 52 north. org 7

Sensor Web Interoperability Get Observation SOS O&M, Sensor. ML Submit Task Sensor Tasking SPS Data Do Notify Data store WNS Messages Subscribe SAS Alerts J. Echterhoff http: //www. 52 north. org 8

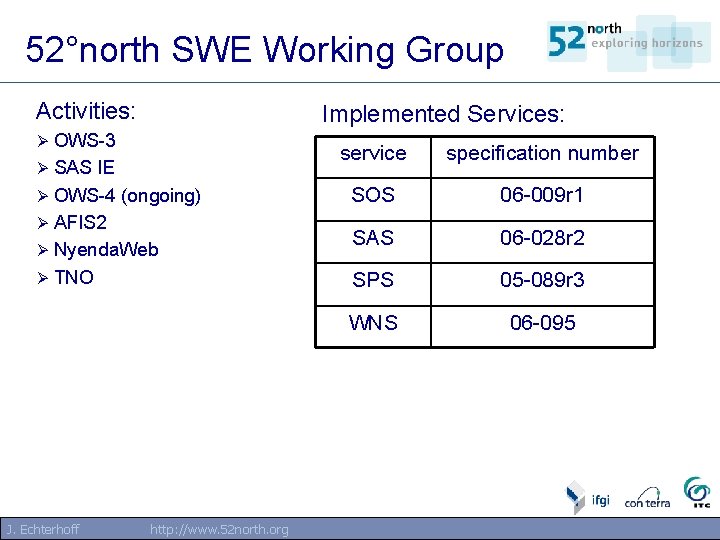

52°north SWE Working Group Activities: Implemented Services: OWS-3 Ø SAS IE Ø OWS-4 (ongoing) Ø AFIS 2 Ø Nyenda. Web Ø TNO Ø J. Echterhoff http: //www. 52 north. org service specification number SOS 06 -009 r 1 SAS 06 -028 r 2 SPS 05 -089 r 3 WNS 06 -095 9

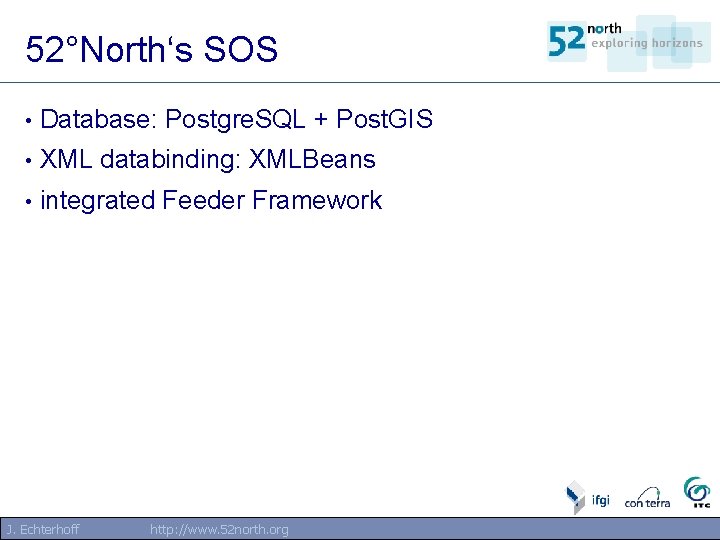

52°North‘s SOS • Database: Postgre. SQL + Post. GIS • XML databinding: XMLBeans • integrated Feeder Framework J. Echterhoff http: //www. 52 north. org 10

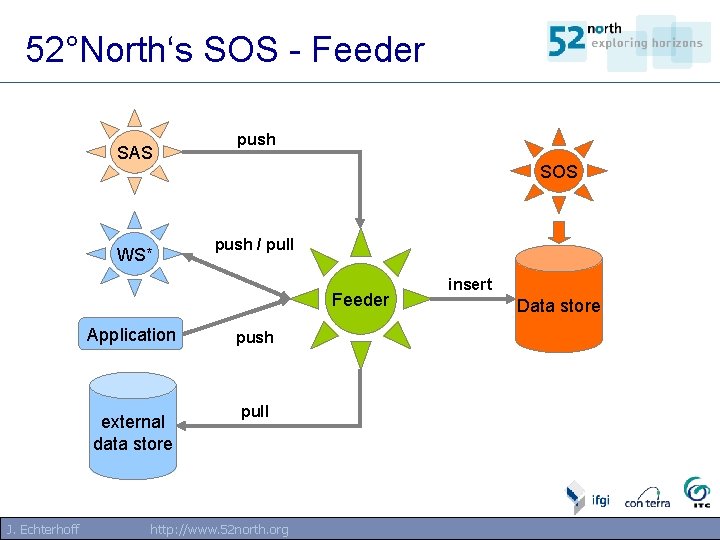

52°North‘s SOS - Feeder SAS WS* push SOS push / pull Feeder Application external data store J. Echterhoff insert Data store push pull http: //www. 52 north. org 11

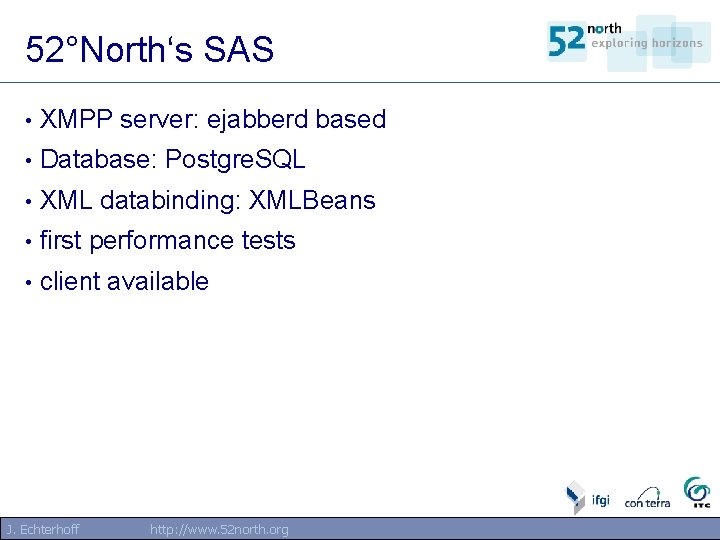

52°North‘s SAS • XMPP server: ejabberd based • Database: Postgre. SQL • XML databinding: XMLBeans • first performance tests • client available J. Echterhoff http: //www. 52 north. org 12

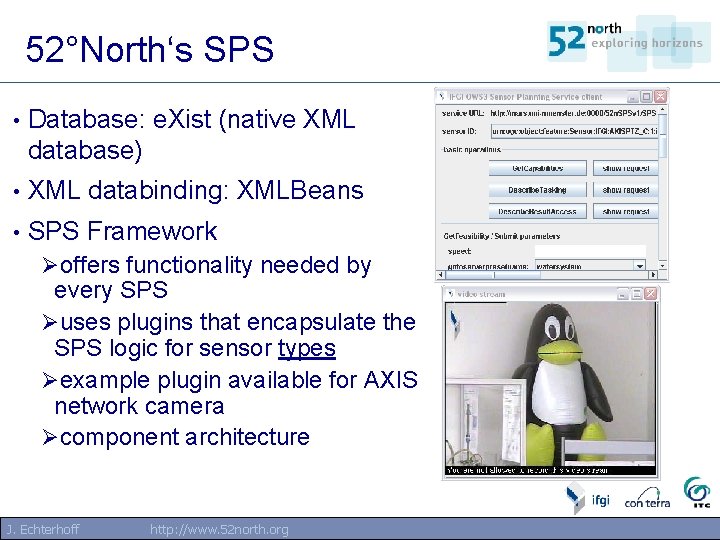

52°North‘s SPS • Database: e. Xist (native XML database) • XML databinding: XMLBeans • SPS Framework Øoffers functionality needed by every SPS Øuses plugins that encapsulate the SPS logic for sensor types Øexample plugin available for AXIS network camera Øcomponent architecture J. Echterhoff http: //www. 52 north. org 13

52°North‘s WNS • Database: e. Xist • XML databinding: XMLBeans • message delivery via handlers, one for each protocol: ØHTTP ØXMPP ØSMTP ØSMS ØFax ØPhone J. Echterhoff http: //www. 52 north. org 14

52°North SWE in Action SMS, email, … WNS SAS T 1 T 2 App. Logic SOS SPS T 3 Client The Corridor Sensor. Web, a project from the Meraka Institute of the Council for Scientific and Industrial Research (South Africa). J. Echterhoff http: //www. 52 north. org 15

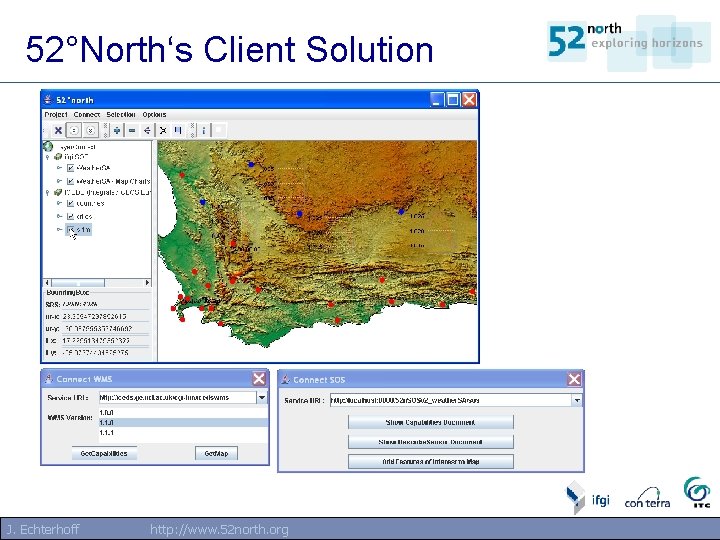

52°North‘s Client Solution J. Echterhoff http: //www. 52 north. org 16

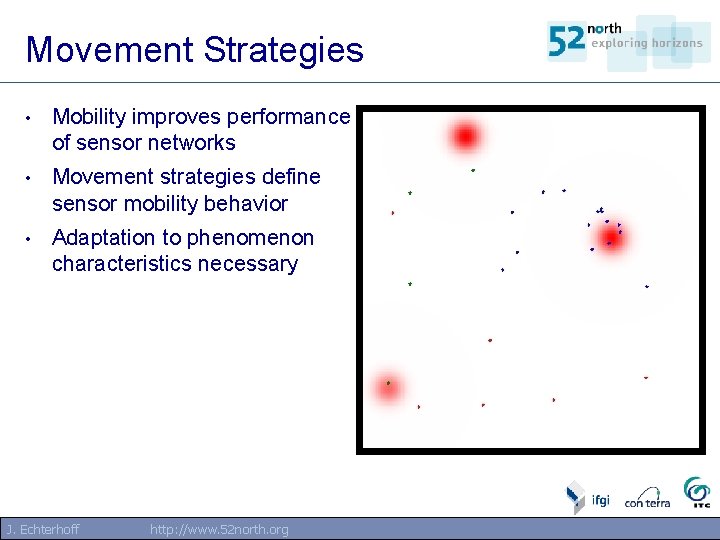

Movement Strategies • Mobility improves performance of sensor networks • Movement strategies define sensor mobility behavior • Adaptation to phenomenon characteristics necessary J. Echterhoff http: //www. 52 north. org 17

Conclusion • 52°North‘s SWE WG is pushing forward to realize the Sensor. Web vision • Implementations are available for current OGC SWE services • additional implementations will be available in the future to reflect the most recent specifications • find additional information at: https: //www. incubator 52 n. de/twiki/bin/view/Sensornet/ Web. Home J. Echterhoff http: //www. 52 north. org 18

Sensor Web Alliance • Worldwide • Collaboration on Sensor Web Technologies • http: //www. sensorweb-alliance. org J. Echterhoff http: //www. 52 north. org 19

Thank you for your attention! http: //www. 52 north. org J. Echterhoff http: //www. 52 north. org Johannes Echterhoff Robert-Koch-Str. 26 -28 D-48149 Münster Fon: +49 (0) 251 83 39761 Fax: +49 (0) 251 83 39763 echterhoff@uni-muenster. de http: //ifgi. uni-muenster. de 20

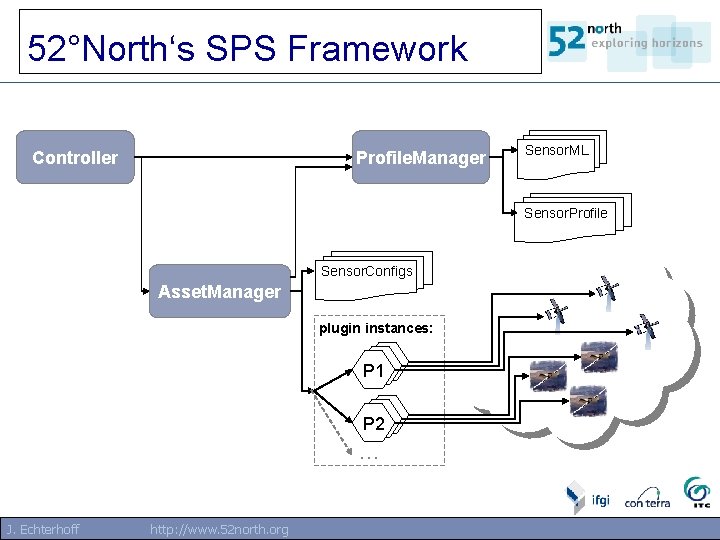

52°North‘s SPS Framework Controller Profile. Manager Sensor. ML Sensor. Profile Sensor. Configs Asset. Manager plugin instances: P 1 P 2 … J. Echterhoff http: //www. 52 north. org 21
