Sensor, switch & Transmitter 劉聖元

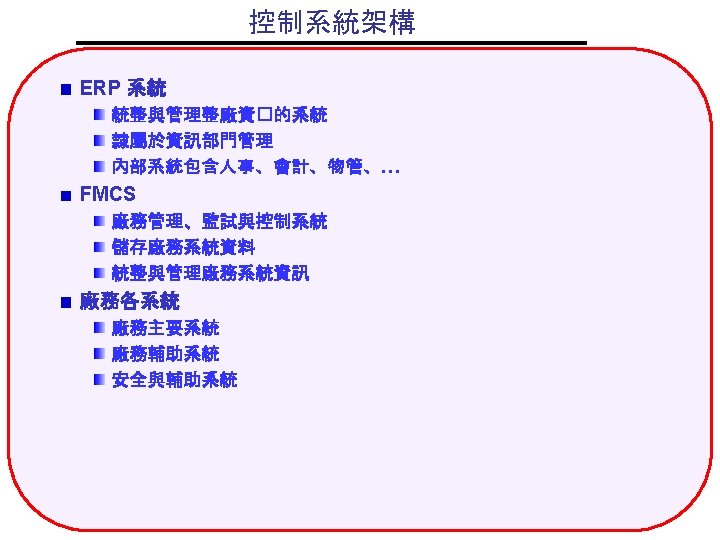

控制系統架構 分層系統 MIS Management Information System FMCS Facility Monitoring & Control System Facility Management & Control System Facility Systems Water treatment system (UPW/WT/REC…) Power system (MRT/CPS/DPUS/GEN/Local Station) Interface Gas Supply (Bulk Gas / Special Gas) Chemical Dispense Clean room system(HVAC/Exhaust) Mechanical/Electrical/Peripheral( PCW/PV/HV/HVAC…) Peripheral(PA/Fire/Vesda/Security/CCTV…) ERP 系統 廠務管理 (DB) View SCADA Controllers Sensors Equipment

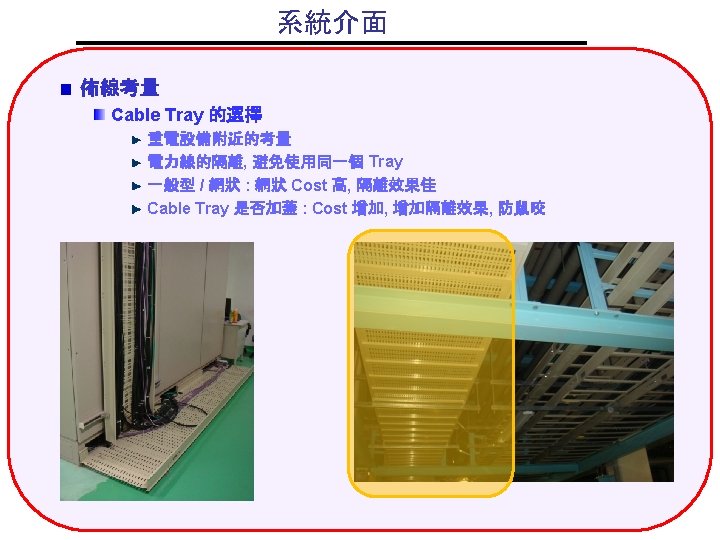

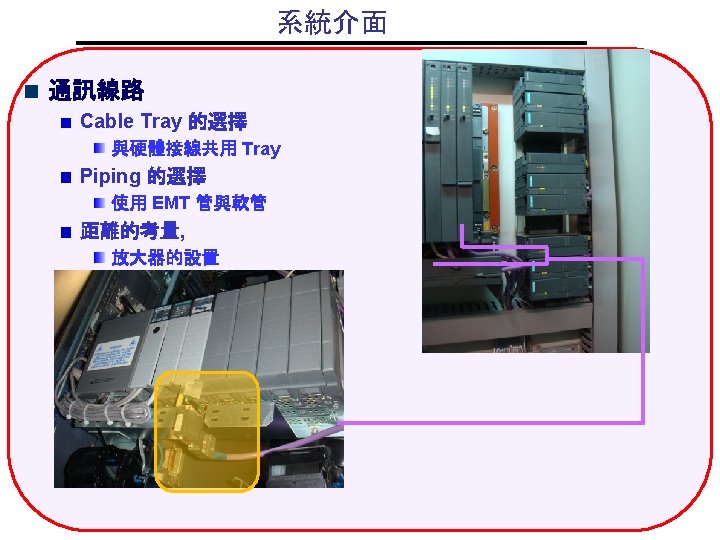

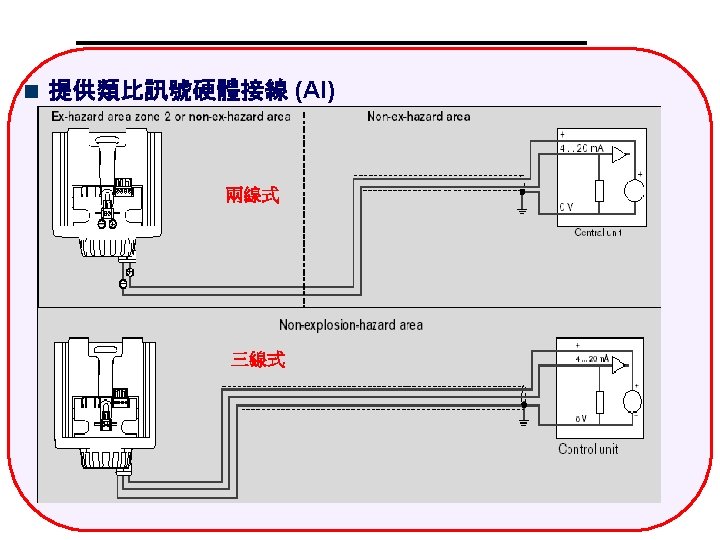

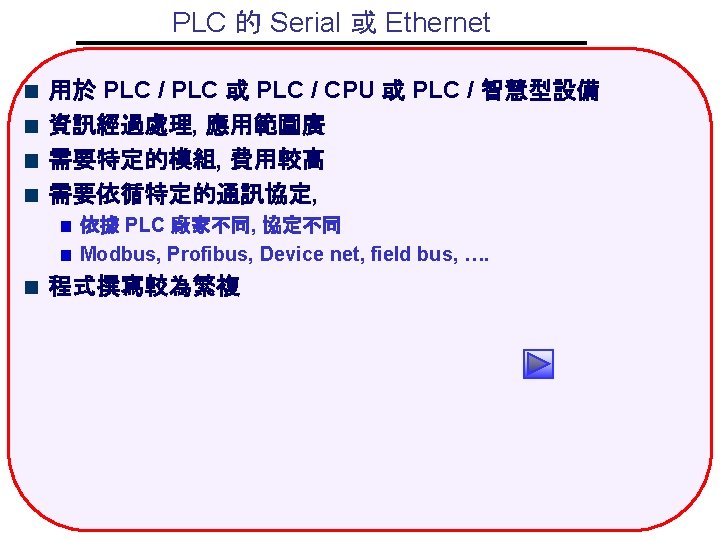

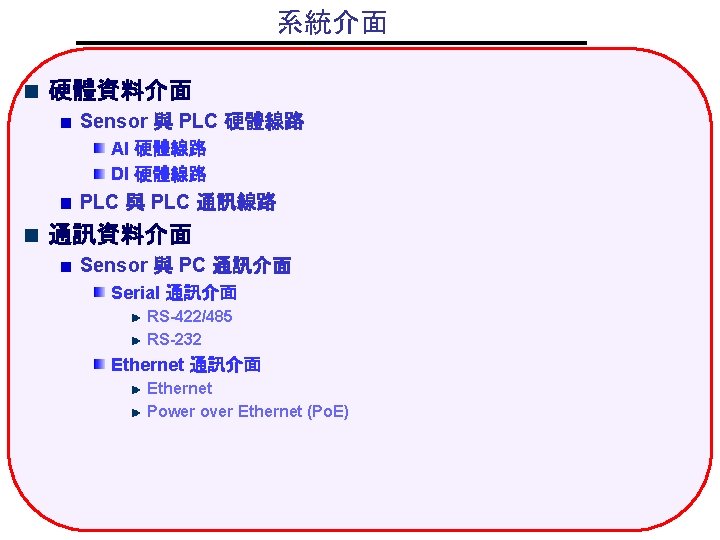

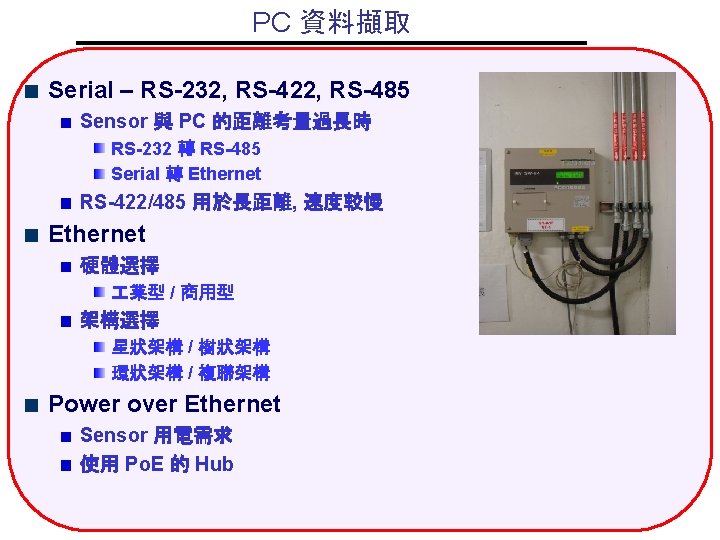

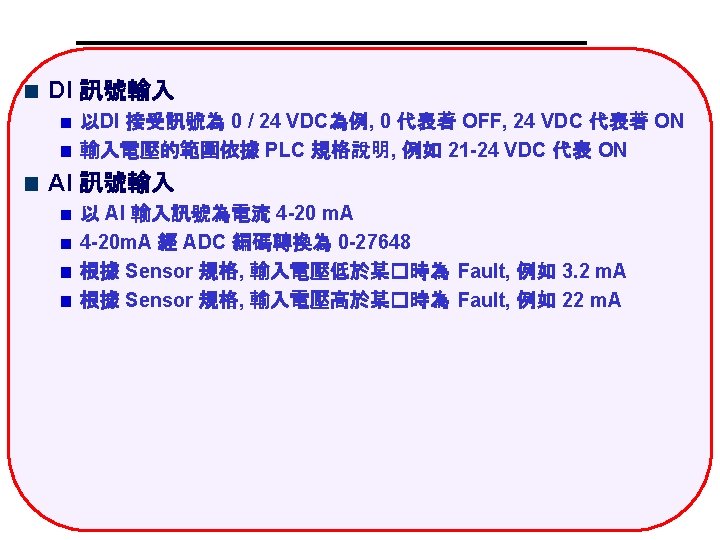

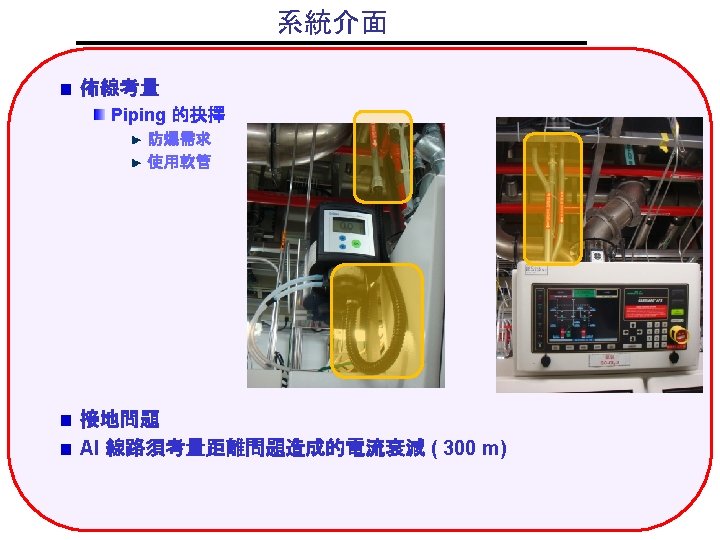

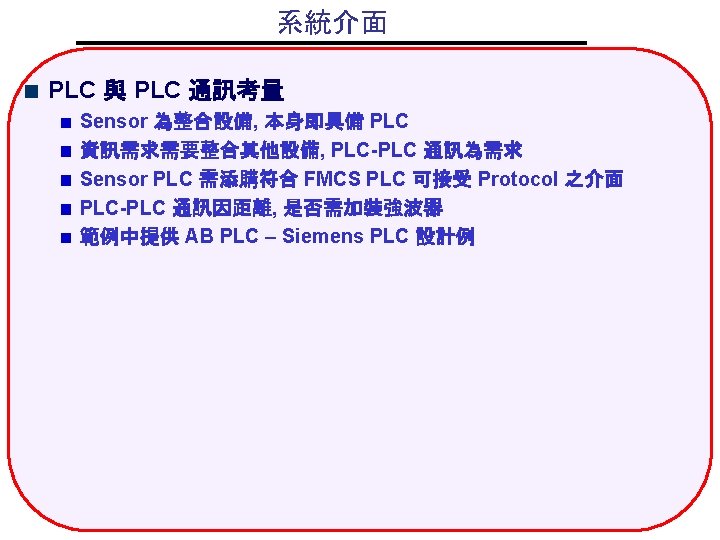

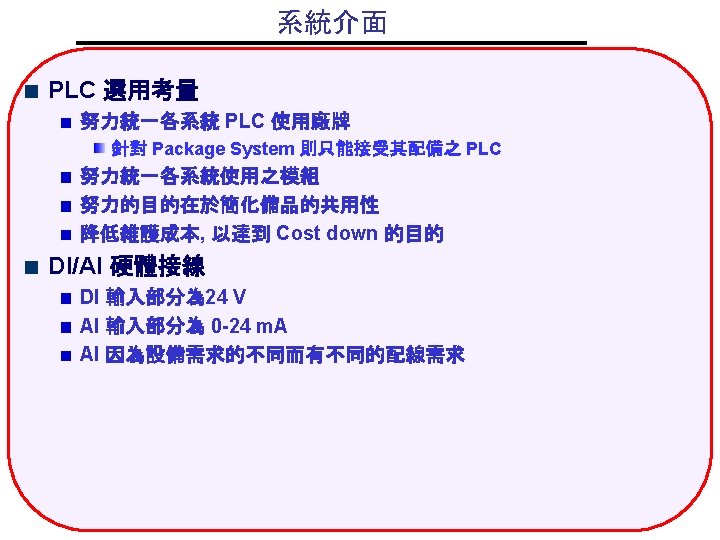

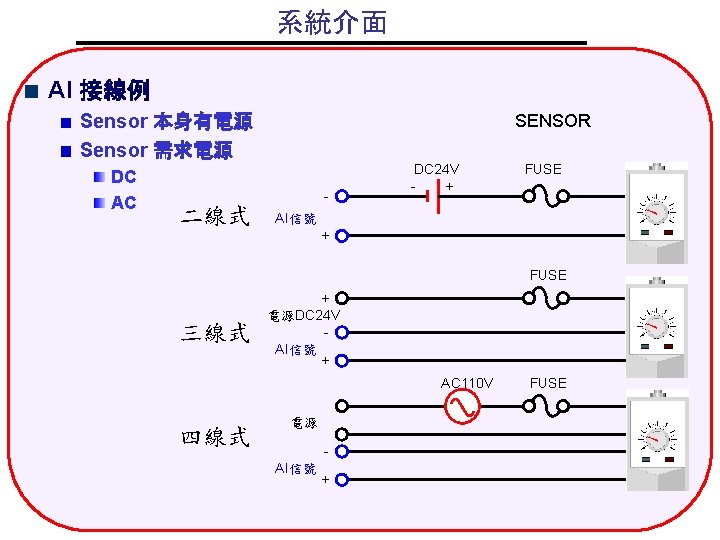

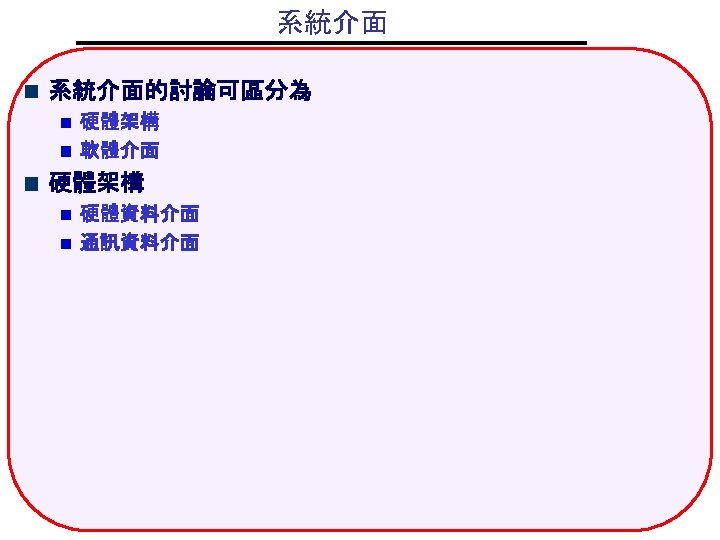

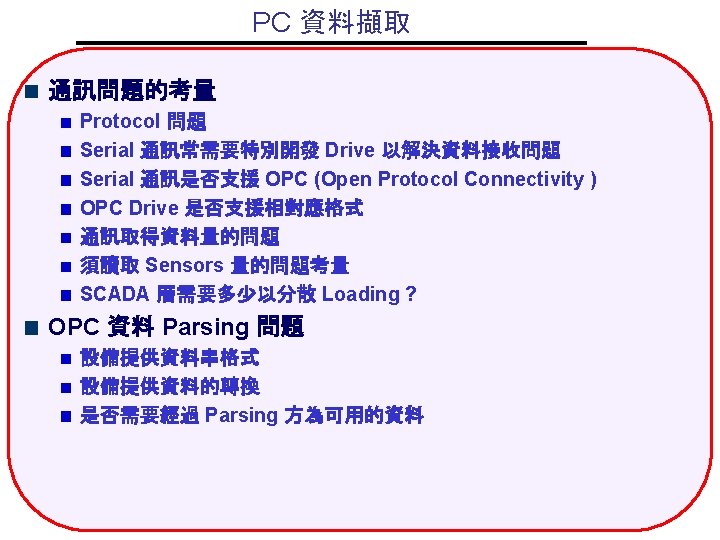

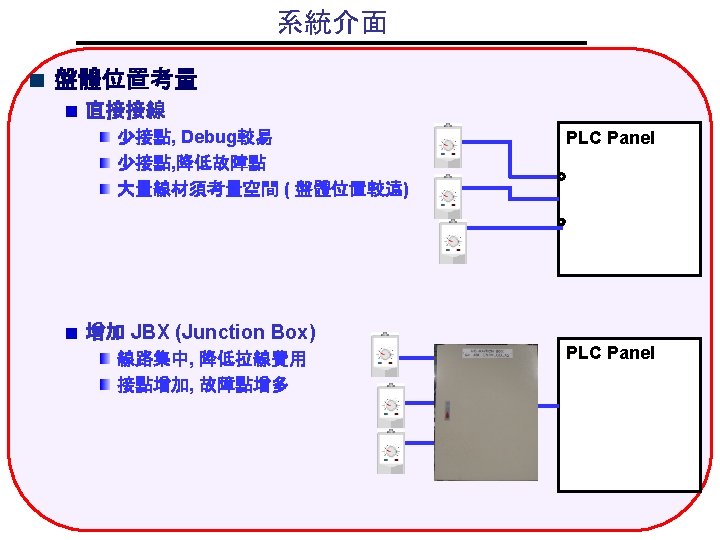

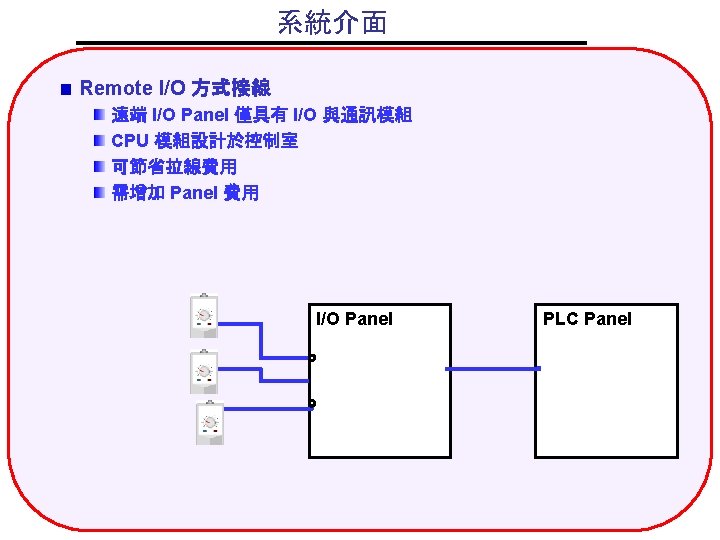

系統介面 硬體資料介面 Sensor 與 PLC 硬體線路 AI 硬體線路 DI 硬體線路 PLC 與 PLC 通訊線路 通訊資料介面 Sensor 與 PC 通訊介面 Serial 通訊介面 RS-422/485 RS-232 Ethernet 通訊介面 Ethernet Power over Ethernet (Po. E)

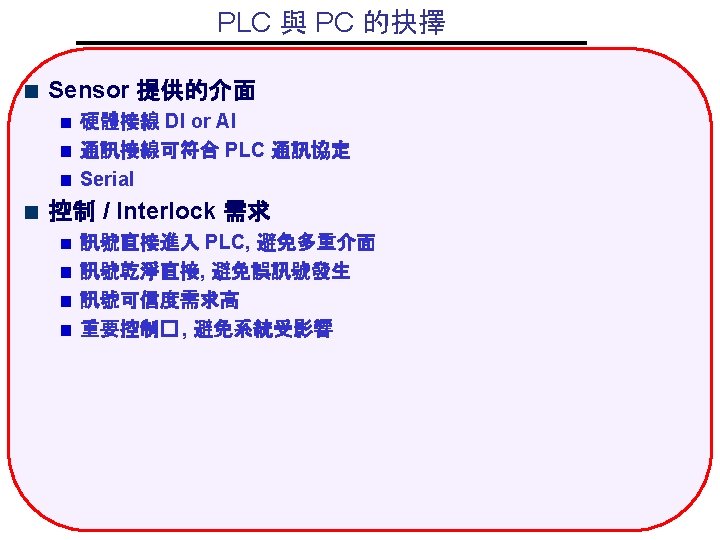

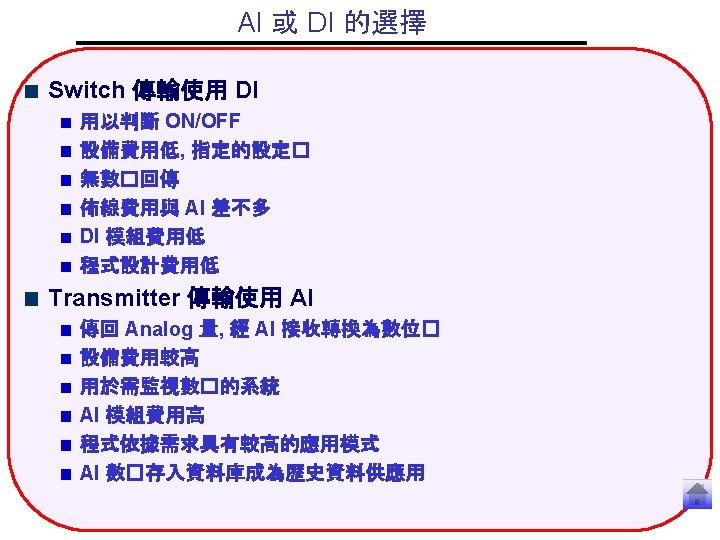

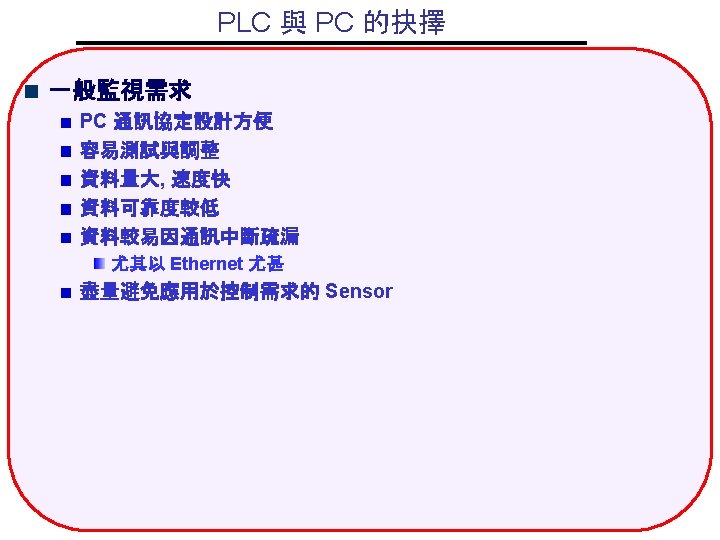

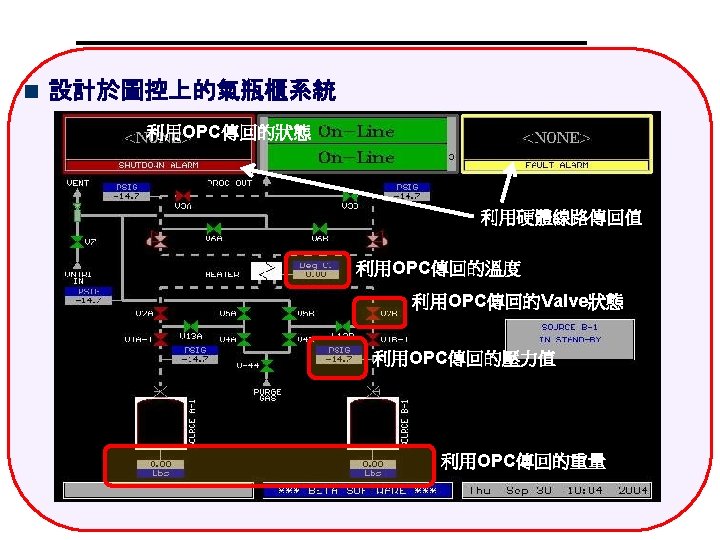

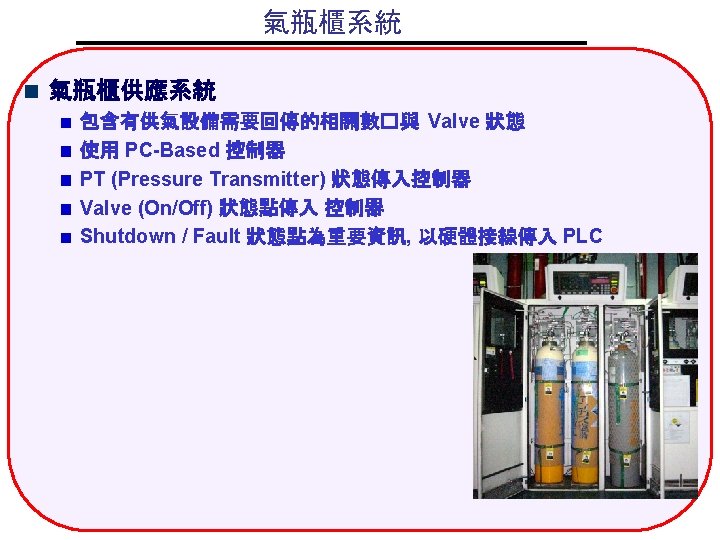

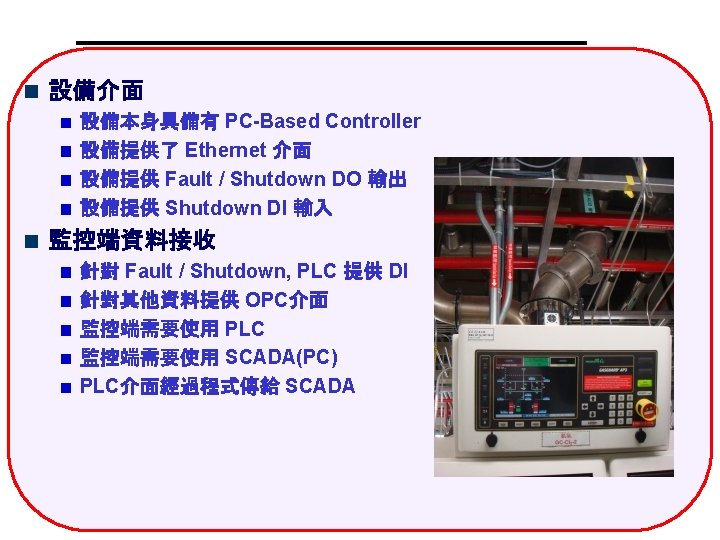

架構圖 DI x 1 氣瓶櫃 Hub DO x 1 PLC DO DO x 2 DI x 2 PLC DI 通訊介面 Controller Layer CPU SCADA View Layer View

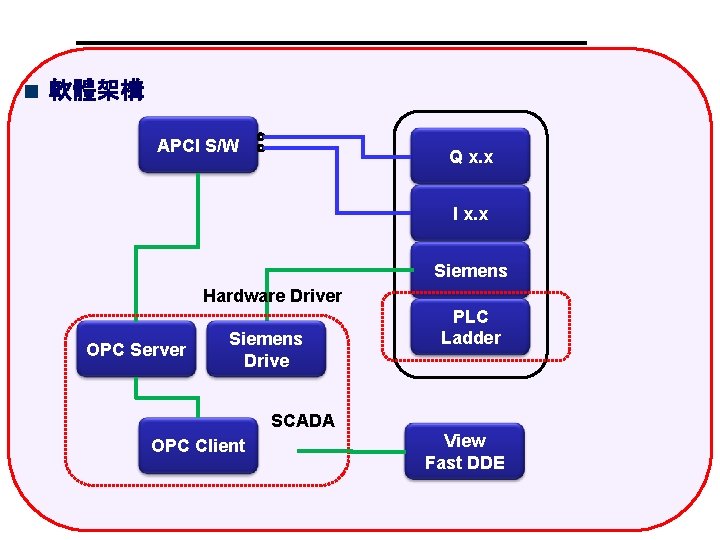

軟體架構 APCI S/W Q x. x I x. x Siemens Hardware Driver OPC Server Siemens Drive PLC Ladder SCADA OPC Client View Fast DDE

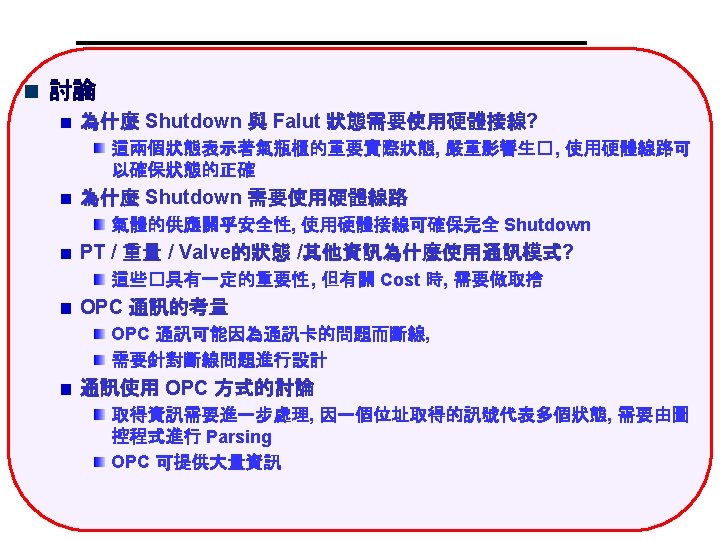

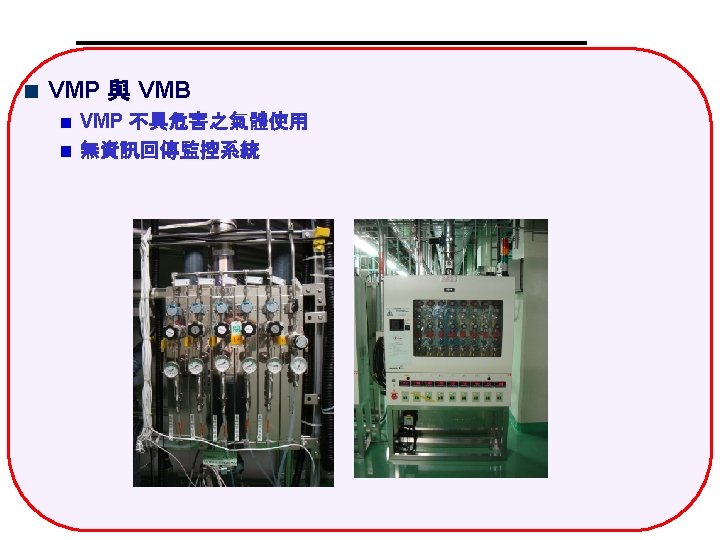

VMB / VMP

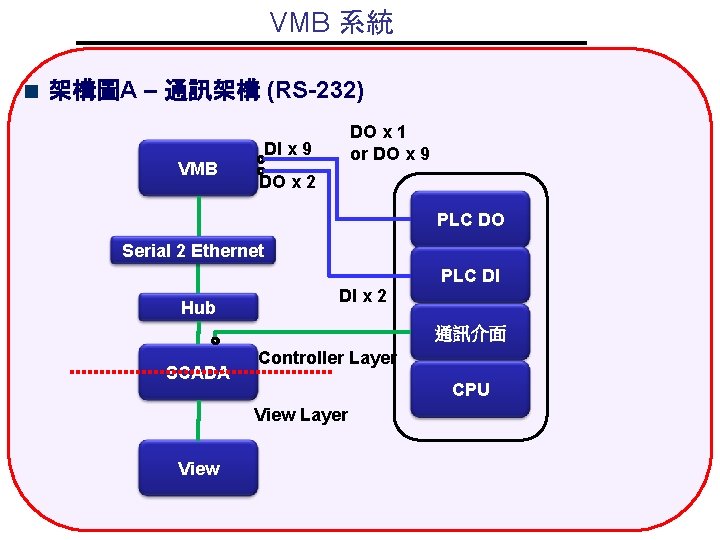

VMB 系統 架構圖A – 通訊架構 (RS-232) VMB DO x 1 or DO x 9 DI x 9 DO x 2 PLC DO Serial 2 Ethernet Hub DI x 2 PLC DI 通訊介面 SCADA Controller Layer CPU View Layer View

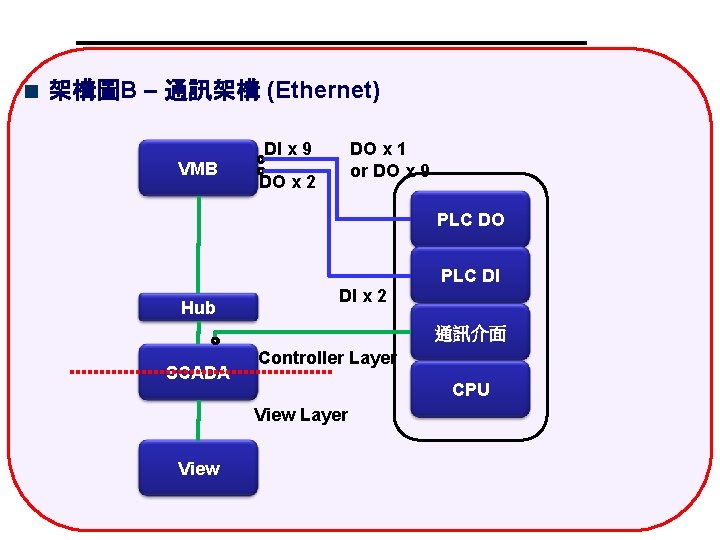

架構圖B – 通訊架構 (Ethernet) VMB DI x 9 DO x 1 or DO x 9 DO x 2 PLC DO Hub DI x 2 PLC DI 通訊介面 SCADA Controller Layer CPU View Layer View

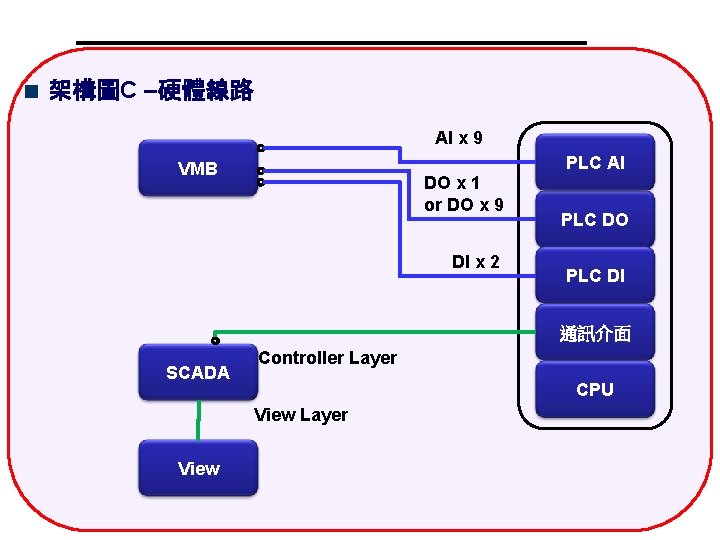

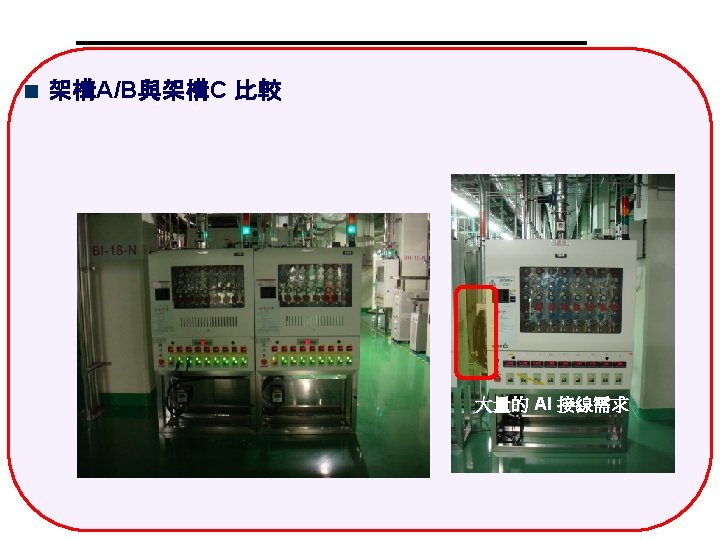

架構圖C –硬體線路 AI x 9 VMB DO x 1 or DO x 9 DI x 2 PLC AI PLC DO PLC DI 通訊介面 SCADA Controller Layer CPU View Layer View

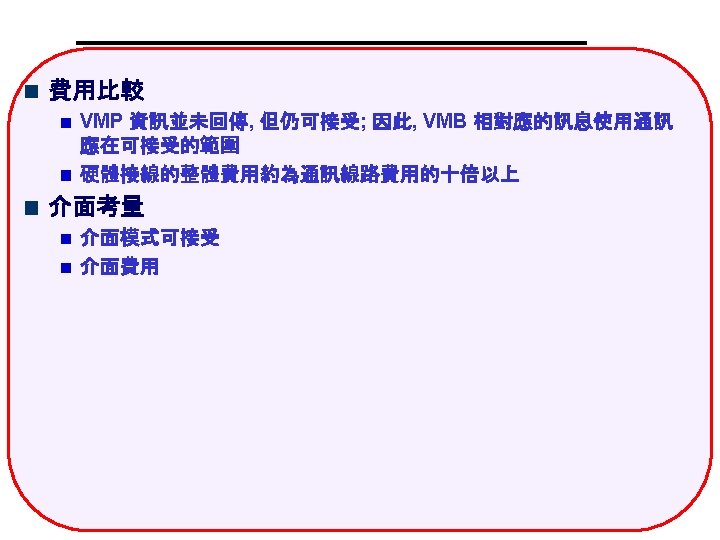

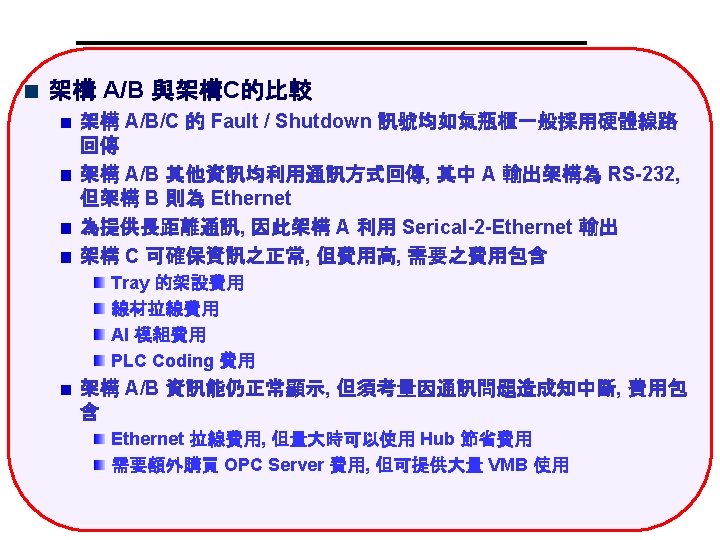

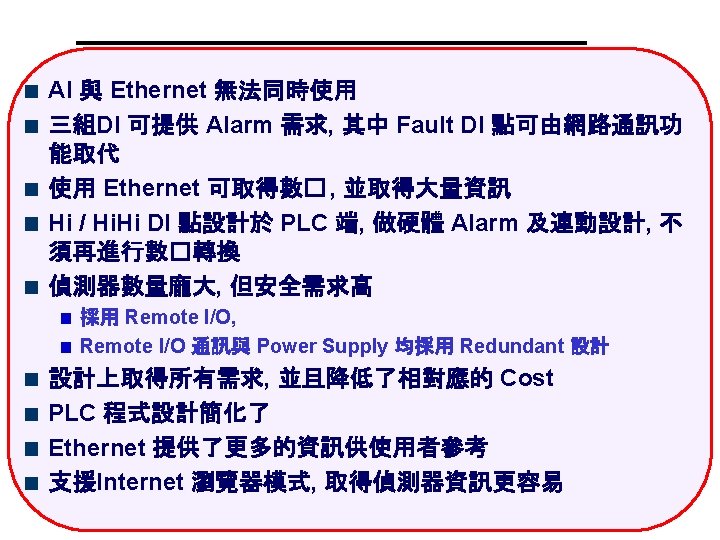

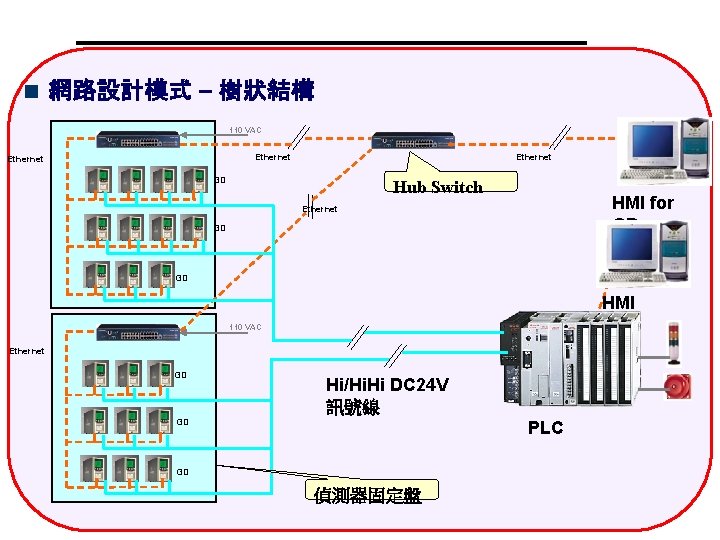

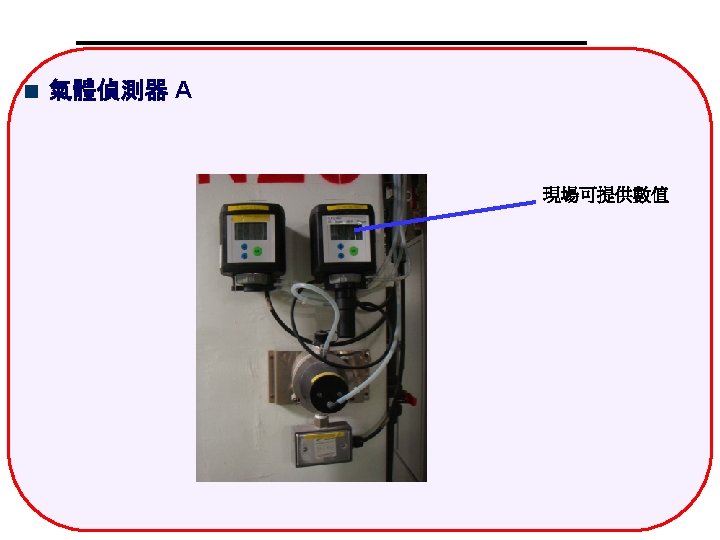

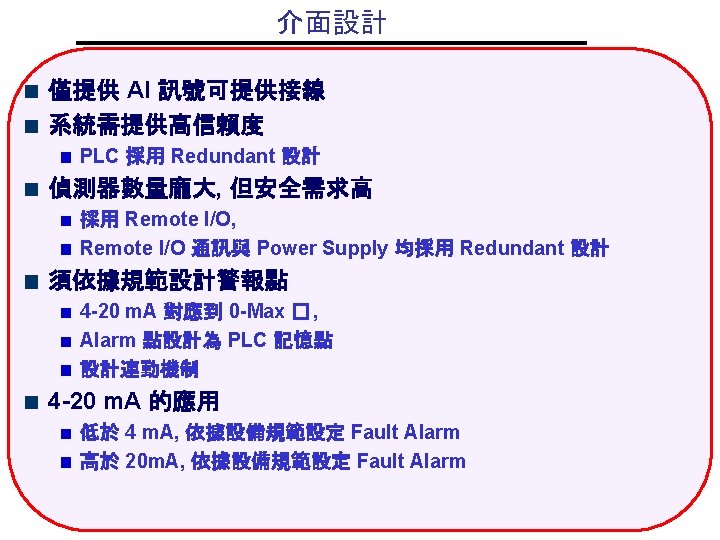

網路設計模式 – 樹狀結構 110 VAC Ethernet GD Hub Switch HMI for GD Ethernet GD GD HMI 110 VAC Ethernet GD Hi/Hi. Hi DC 24 V 訊號線 GD PLC GD 偵測器固定盤

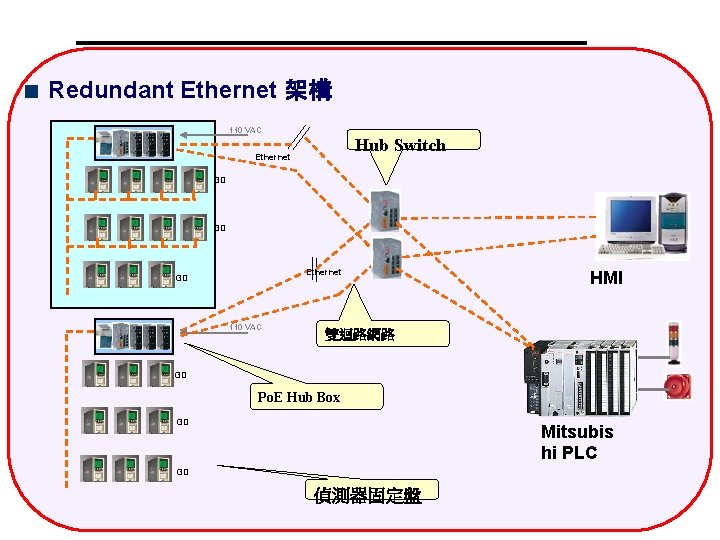

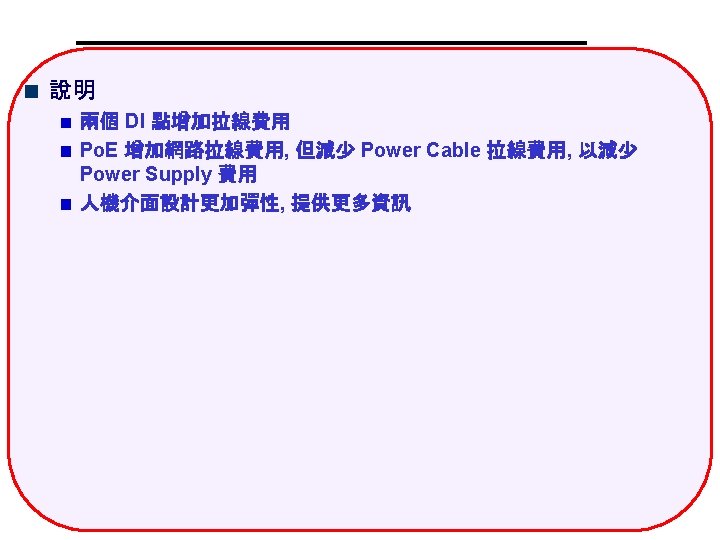

Redundant Ethernet 架構 110 VAC Hub Switch Ethernet GD GD Ethernet GD 110 VAC HMI 雙迴路網路 GD Po. E Hub Box GD Mitsubis hi PLC GD 偵測器固定盤

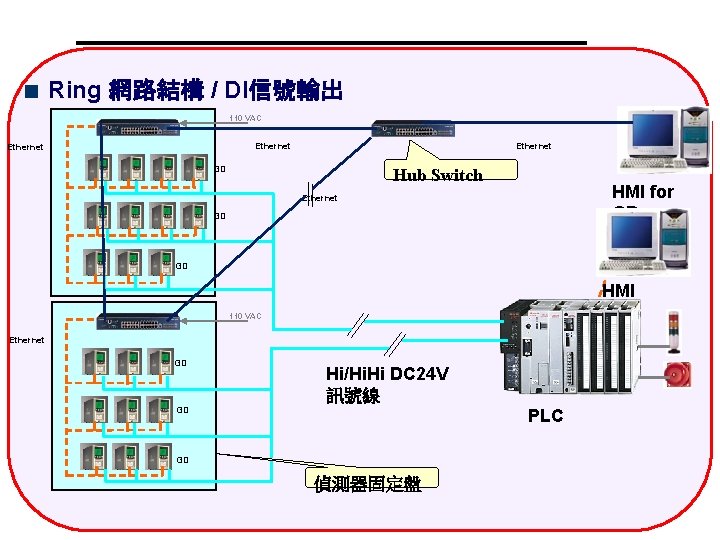

Ring 網路結構 / DI信號輸出 110 VAC Ethernet GD Hub Switch HMI for GD Ethernet GD GD HMI 110 VAC Ethernet GD Hi/Hi. Hi DC 24 V 訊號線 GD PLC GD 偵測器固定盤

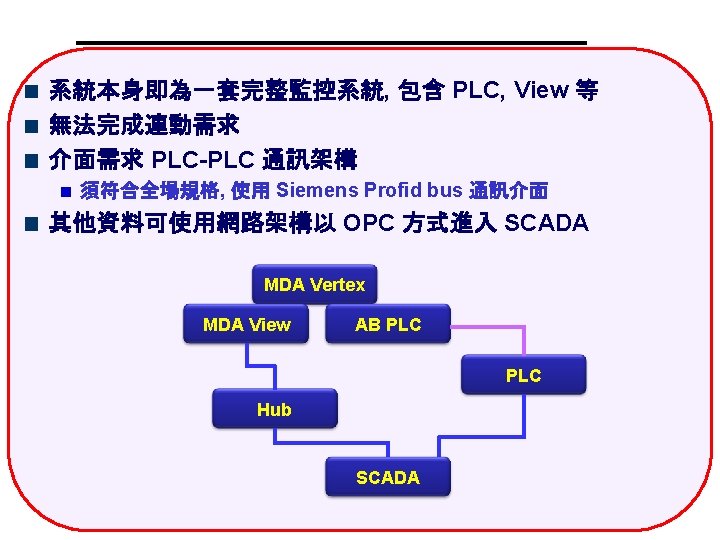

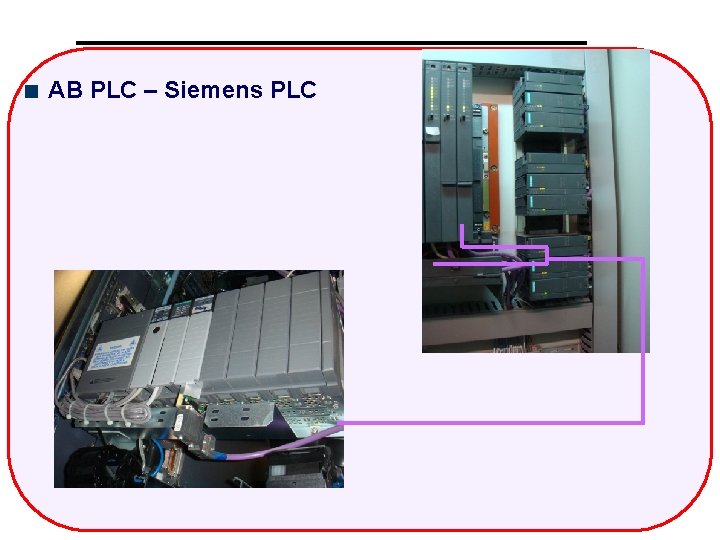

AB PLC – Siemens PLC

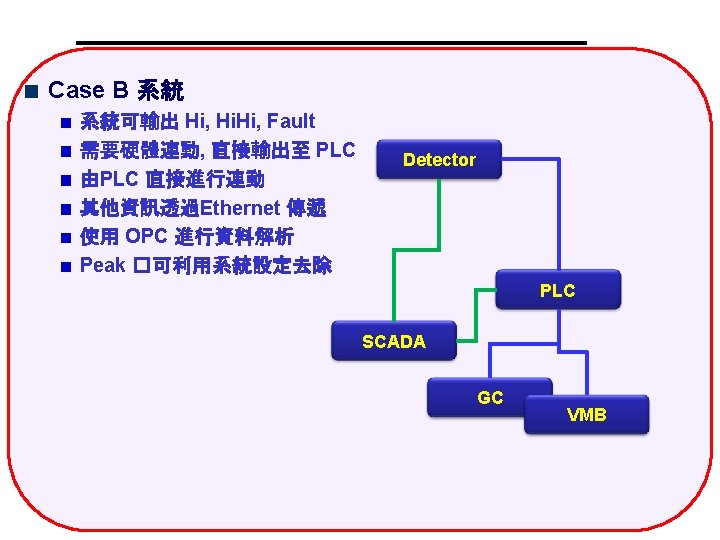

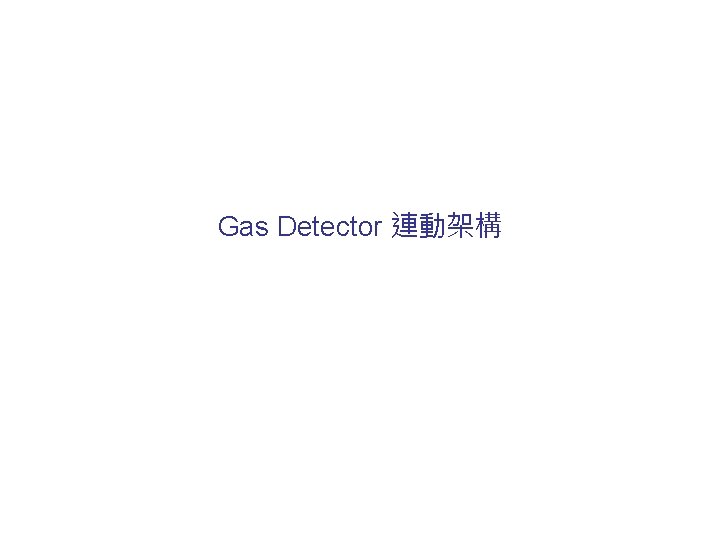

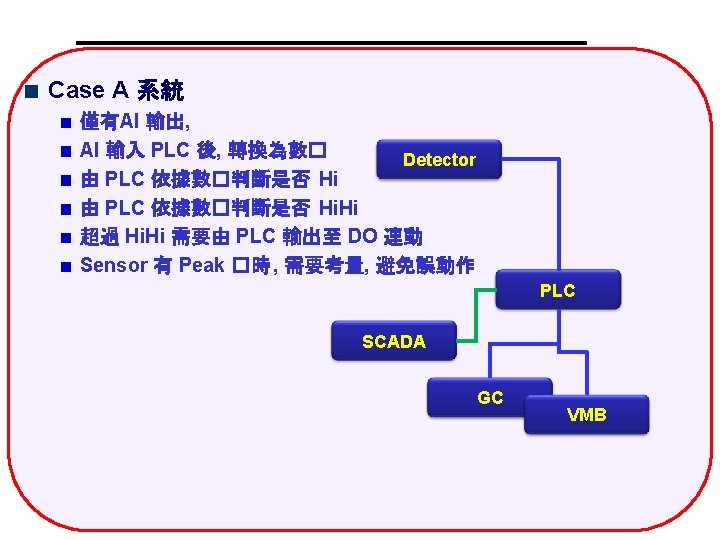

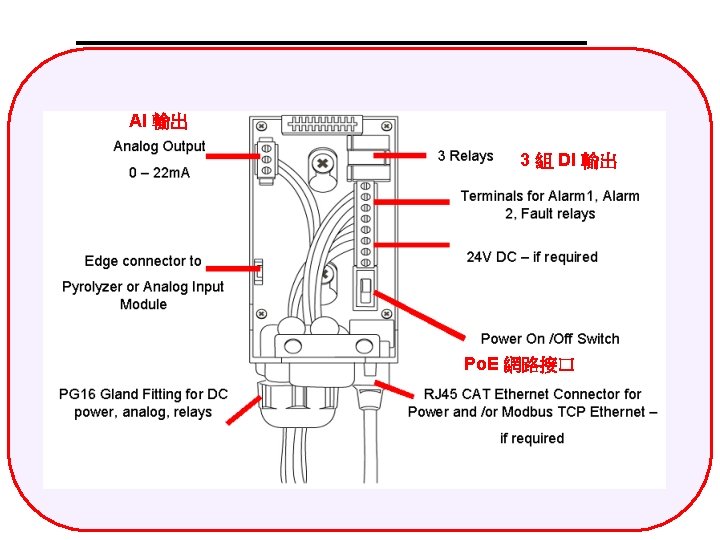

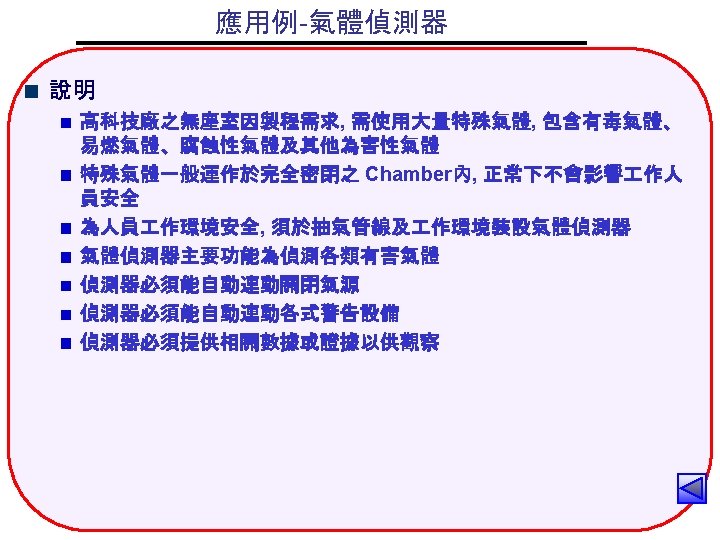

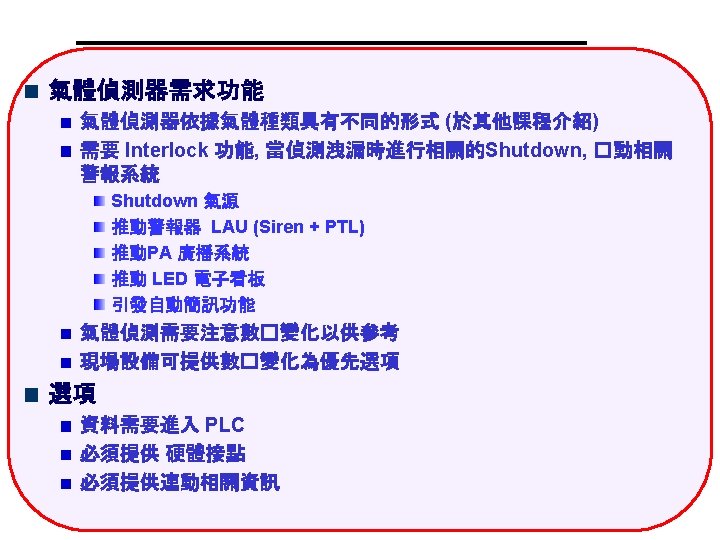

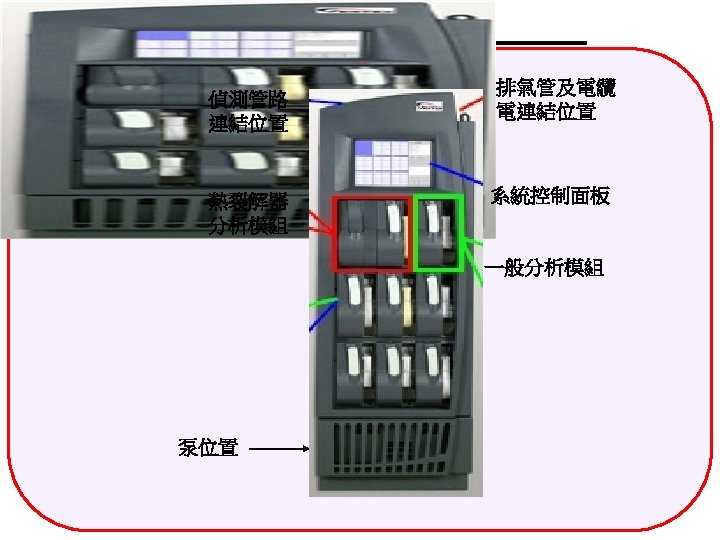

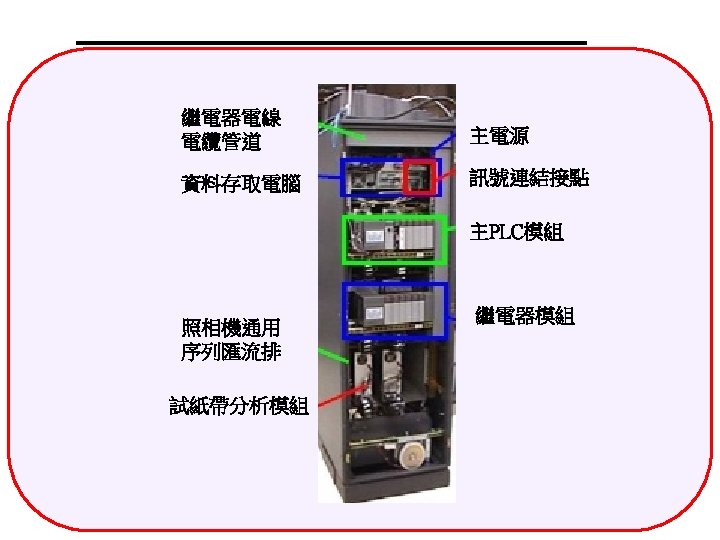

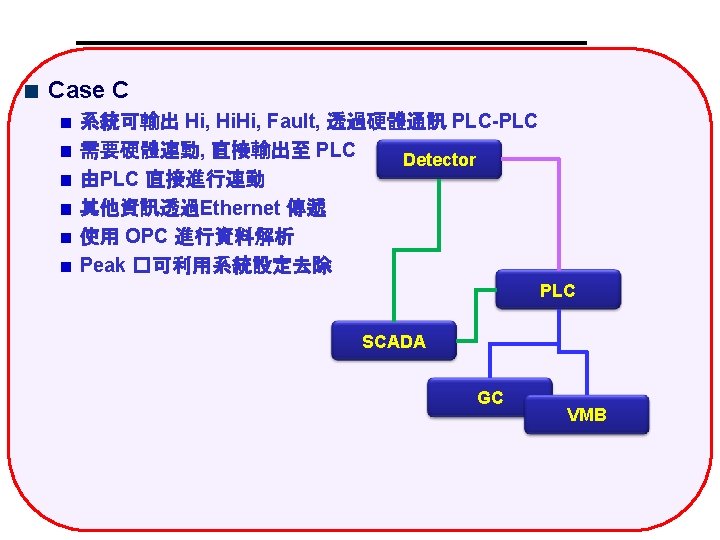

Gas Detector 連動架構

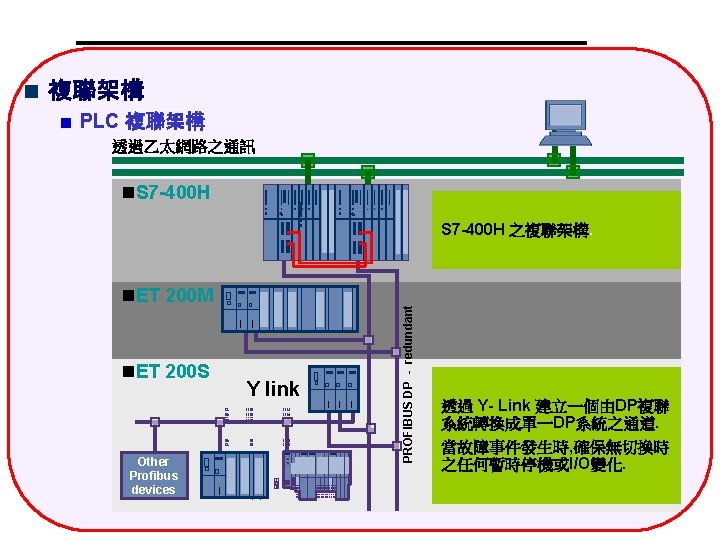

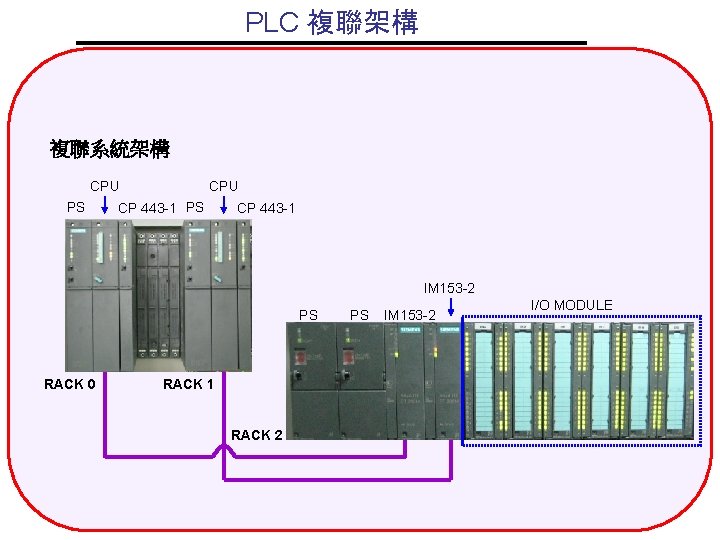

PLC 複聯架構 複聯系統架構 CPU PS CPU CP 443 -1 PS CP 443 -1 IM 153 -2 PS RACK 0 RACK 1 RACK 2 PS IM 153 -2 I/O MODULE
