Sensation Perception Psychology 201 Sensation Perception Sensation is

Sensation & Perception Psychology 201

Sensation & Perception Sensation is the detection and encoding of the changes in physical energy (e. g. , light waves, sound waves, pressure, kinetic energy, etc. ) caused by environmental or internal events.

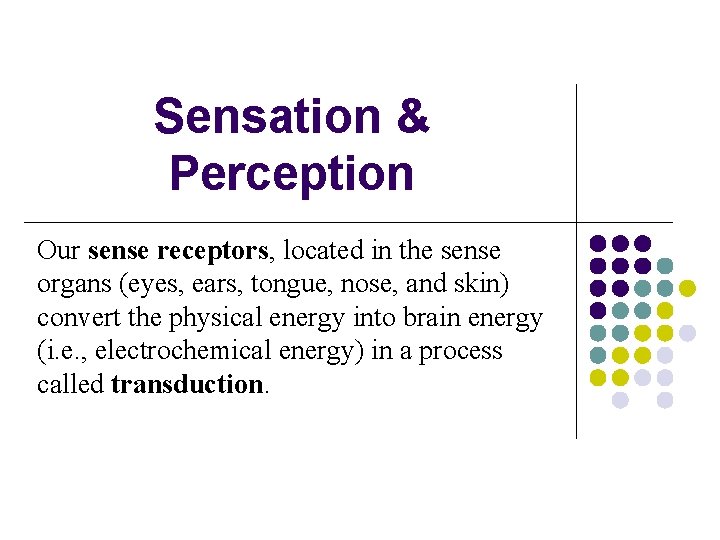

Sensation & Perception Our sense receptors, located in the sense organs (eyes, ears, tongue, nose, and skin) convert the physical energy into brain energy (i. e. , electrochemical energy) in a process called transduction.

Sensation & Perception l. But sensations alone do not tell us much about the world until we perceive them. Sensations are just meaningless energy (e. g. light waves and sound waves) until we organize them into meaningful information (sights and sounds).

Sensation & Perception

Sensation & Perception

Sensation & Perception If a tree falls in the forest and no one is around, does it make a sound? Why?

Senses How many senses are there? What are they?

Sensation & Perception 1. sight 2. sound 3. taste 4. smell 5. touch

More senses 6. heat 7. cold 8. pressure 9. pain (Would any of you like to live a life without any pain? ) 10. itching 11. balance 12. nausea 13. proprioception 14. pheromones 15. thirst 16. hunger 17. chemical pain (red hot peppers) 18. infrared (snakes) 19. electrical (sharks and platypuses) 20. sonar (bats) 21. magnetic north (birds and moles)

Reality What is reality? What is real? Do we accurately perceive our world? Demonstration #1 Demonstration #2

Reality

Do we accurately perceive the world?

Our brains alter incoming signals

Our senses are amazingly sensitive. It is commonly cited that a normal individual can: 1. see a candle, on a clear, and dark night from a distance of 30 miles 2. hear a watch ticking in a perfectly quiet room from 20 feet (if they don’t have tinnitus) 3. taste a teaspoon of sugar diluted in two gallons of water 4. smell a single drop of perfume diffused throughout a three bedroom apartment 5. fell the wing of a bee fall on their skin from a height of 1 centimeter

Light is Color

Objects absorb and reflect light

How many colors can we perceive? l l We can discriminate among 200 steps in the visible spectrum. We can distinguish among 500 levels of brightness. We can discriminate among 20 levels of saturation (i. e. , how little white light is reflected) 200 X 500 X 20 = 2 million colors!

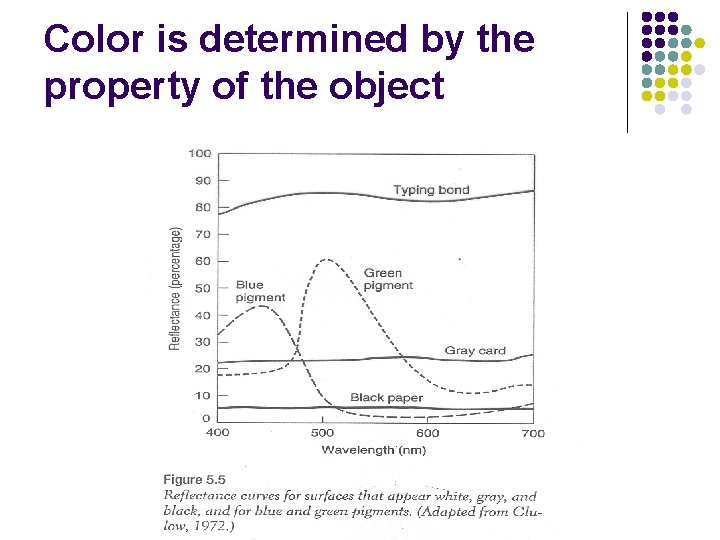

Color is determined by the property of the object

Maple leaf before (a) and after (b) it changes color in the fall

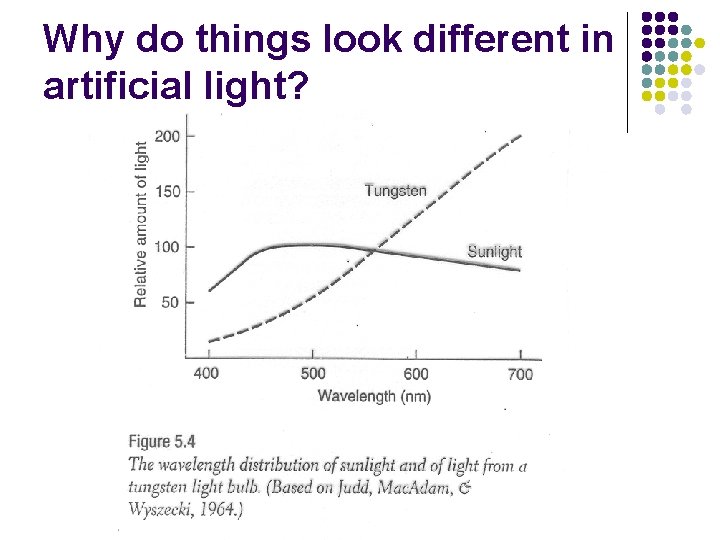

Why do things look different in artificial light?

Light energy is transduced into neuronal energy

Transduction takes place in the retina.

120 Million Rods and 5 Million Cones per Eye

Nocturnal vision is, in part, achieved by higher concentrations of rods.

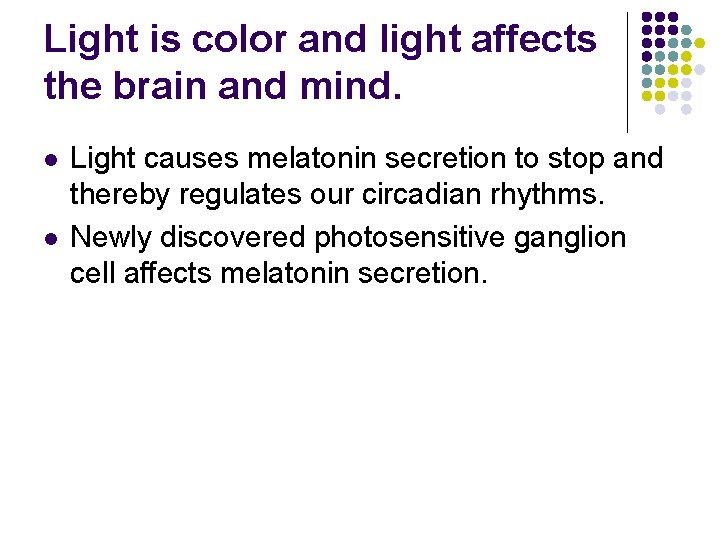

Light is color and light affects the brain and mind. l l Light causes melatonin secretion to stop and thereby regulates our circadian rhythms. Newly discovered photosensitive ganglion cell affects melatonin secretion.

Newly discovered intrinsically photosensitive ganglion cell

http: //www. brown. edu/Adminis tration/News_Bureau/200102/01 -080. html

Light is color and light affects the brain and mind. l l l Light affects mood (e. g. , seasonal affective disorder). Disruptions of light cause jet-lag and have been associated with cognitive impairment. The characteristics of light and the architecture of our brain cause us to perceive color.

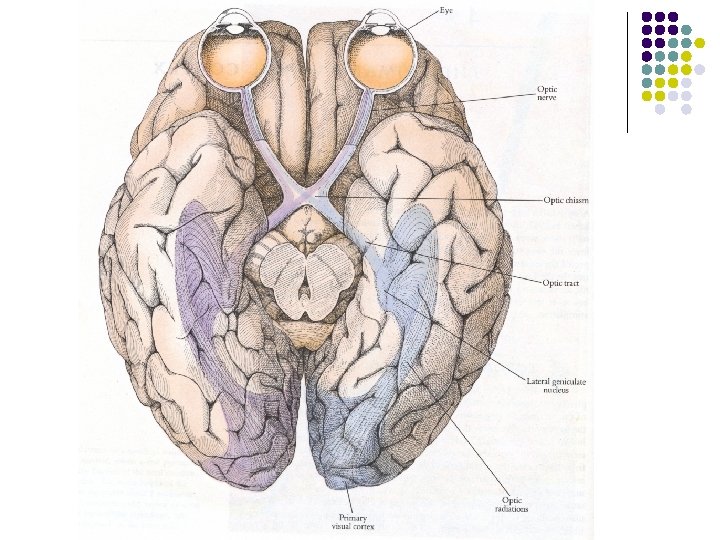

Neural Processing

Colorful illusions in your mind l You will see a green, black, and yellow flag. Stare at the circle in the middle for 30 seconds. Then, when the screen changes, blink once or twice and enjoy your color illusion.

Theories of Color Vision l Opponent-Process Theory suggests that color perception depends on receptors that make antagonistic responses to three pairs of colors. l After-images

Theories of Color Vision l Trichromatic Theory suggests that humans have three types of receptors with differing sensitivities to different wavelengths. l You can make any color by mixing red, green, and blue light

Theories of Color Vision l Trichromatic Theory suggests that humans have three types of receptors with differing sensitivities to different wavelengths. l We appear to have three types of cones

Theories of Color Vision l Opponent Process Theory l Trichromatic Theory l Which theory is correct?

Genetics affect color perception and color deficiency (not color blindness) l l l Color deficiency affects either blue/yellow or red/green perception. Color deficiency is much more common in men, especially men with European ancestry (8%) (men with Asian ancestry 5%, men with African ancestry 3%). Monochromatism or true colorblindness occurs in 1 out every 100, 000 people.

Ishihara Test

Ishihara Test

“Color blindness…” l Why is the term color blindness a poor term?

Color Perception varies among Animals l l l Insects and ultraviolet Snakes and infrared Nocturnal animals have more rods

Color Perception varies among Species l l l Bees can detect three colors: ultraviolet, blue, and yellow, but not red. The ability to see red is rare for insects. The butterfly is an exception; they can perceive the widest range of visual wavelengths (310 nm to 700 nm) From: http: //landsat. gsfc. nasa. gov/education/compositor/ http: //www. robijns. nl/prod-info/julbo_zonnebrillen. php

Color Perception Varies among Humans l Newborns do not possess cones and therefore can’t perceive color or detail.

The lack of cones also affects visual acuity

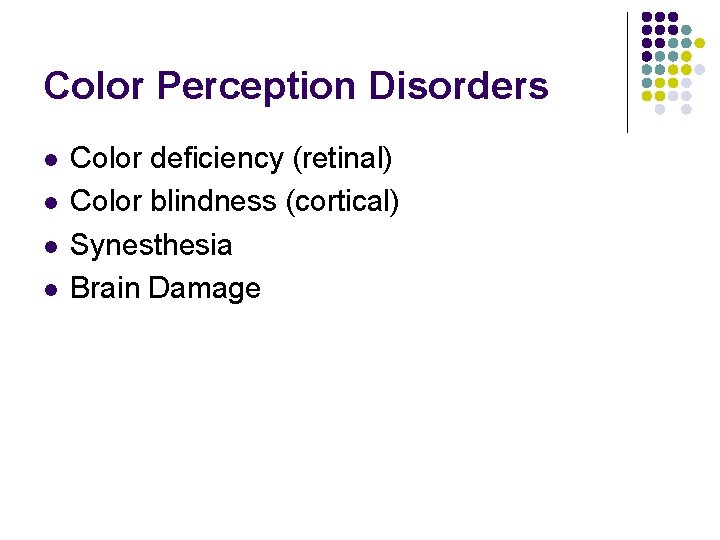

Color Perception Disorders l l Color deficiency (retinal) Color blindness (cortical) Synesthesia Brain Damage

Cortical Color Blindness or Cerebral Achromatopsia l l Mr. I was in an automobile accident and experienced brain damage. He wrote Dr. Oliver Sacks and said “My brown dog is dark gray. Tomato soup is black. Color TV is a hodge-podge…” Mr. I had been a successful painter.

Cerebral Achromatopsia

Cerebral Achromatopsia

Cerebral Achromatopsia

Cerebral Achromatopsia

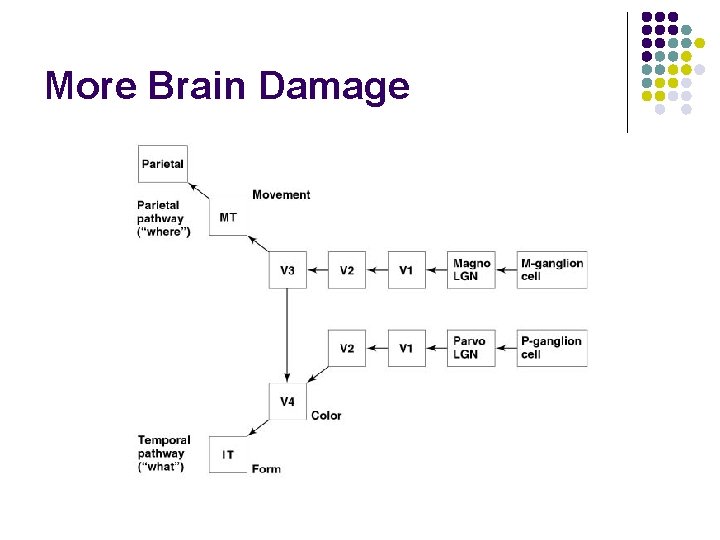

More Brain Damage

Visual Motion Blindness or Akinetopsia l From: http: //www. undergrad. ahs. uwaterloo. ca/~tbolton/Dorsal%20 Disorders. htm

Questions l l l What color is the sound of a fog-horn? What color is the sound an old-fashioned bicycle horn makes? What color is a siren?

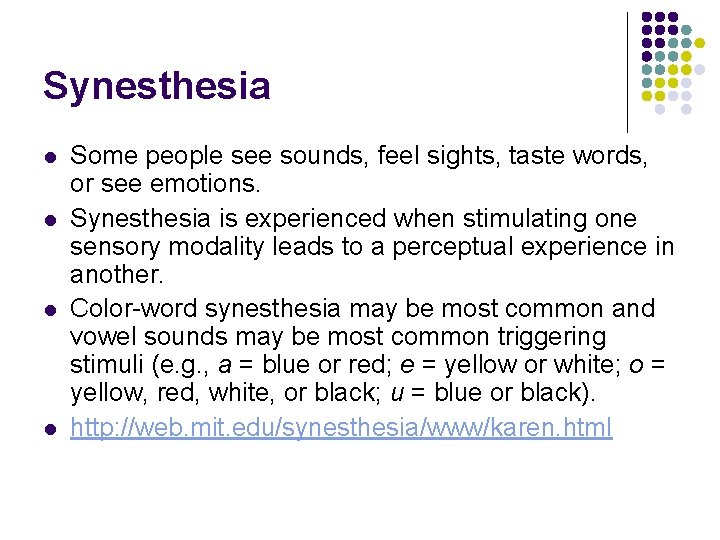

Synesthesia l l Some people see sounds, feel sights, taste words, or see emotions. Synesthesia is experienced when stimulating one sensory modality leads to a perceptual experience in another. Color-word synesthesia may be most common and vowel sounds may be most common triggering stimuli (e. g. , a = blue or red; e = yellow or white; o = yellow, red, white, or black; u = blue or black). http: //web. mit. edu/synesthesia/www/karen. html

Synesthesia Pitch (Hz) l 30 Loudness (d. B) 100 Visual Experience a strip 12 -15 cm. in length and the color of old, tarnished silver l 50 100 l 100 86 l 250(alto sax =196) 64 a brown strip against a dark background with redtongue-like edges a strip with a reddish-orange hue in the center and it gradually faded towards the edges until it ended in pink a velvet cord with fiber jutting out on all sides l 500 (violin=440) 100 a streak of lighting splitting the heavens in two l 500 74 dense orange color that which made him feel as though a needle had been thrust into his spin l 2000 113 "It looks something like fireworks tinged with a pinkred hue. The strip of color feels rough and unpleasant and has an ugly taste- -rather like a briny pickle…you could hurt your hand on this one”

Does color exist in the external world or only in our minds? l l l What makes a tomato red? Why do long wavelengths (usually) look red? Support for color existing in our minds: l l l Animals’ color perception Color deficiency or blindness Cortical color blindness Synesthesia Illusions

Copyright © 2002 Wadsworth Group. Wadsworth is an imprint of the Wadsworth Group, a division of Thomson Learning Page 104 (26) Some major subdivisions of the Human cerebral cortex

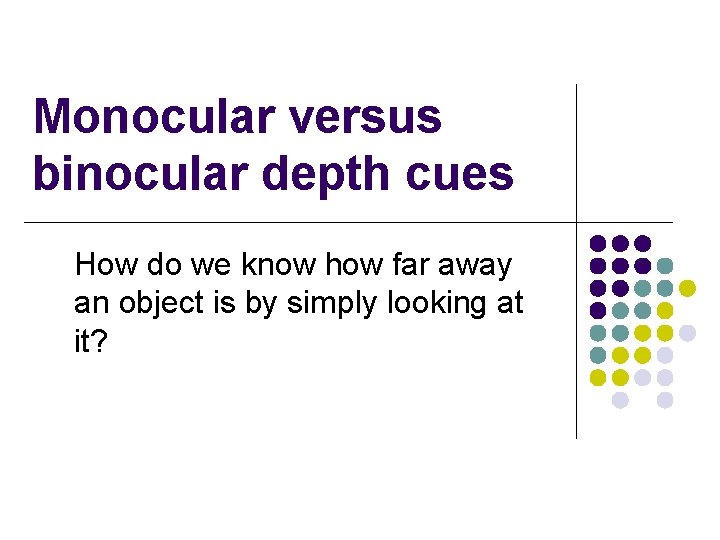

Monocular versus binocular depth cues How do we know how far away an object is by simply looking at it?

Overview of Questions l How can we see far into the distance based on the flat image of the retina? l Why do we see depth better with two eyes than with one eye? l Why don’t people appear to shrink in size when they walk away?

Binocular Depth Cues l Oculomotor - cues based on sensing the position of the eyes and muscle tension l Convergence - inward movement of the eyes when we focus on nearby objects l Accommodation - change in the shape of the lens when we focus on objects at different distances

Figure 8. 2 (a) Convergence of the eyes occurs when a person looks at something that is very close. (b) The eyes look straight ahead when the person observes something that is far away.

Monocular Depth Cues l Monocular - cues that come from one eye l Pictorial cues - sources of depth information that come from 2 -D images, such as pictures l Interposition - when one object partially covers another l Relative height - objects that are higher in the field of vision are more distant

Monocular Depth Cues l Relative size - when objects are equal size, the closer one will take up more of your visual field l Perspective convergence - parallel lines appear to come together in the distance l Familiar size - distance information based on our knowledge of object size

Figure 8. 3 A scene in Tucson, Arizona containing a number of depth cues: occlusion (the cactus occludes the hill, which occludes the mountain); perspective convergence (the sides of the road converge in the distance); relative size (the far motorcycle is smaller than the near one); and relative height (the far motorcycle is higher in the field of view; the far cloud is lower).

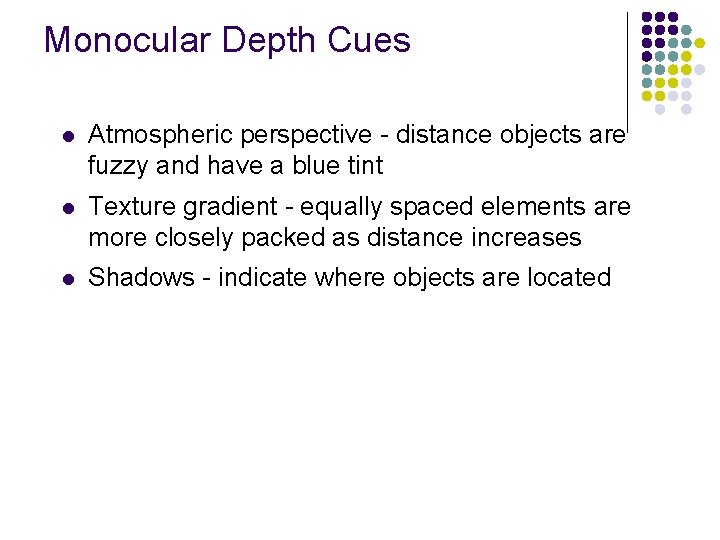

Monocular Depth Cues l Atmospheric perspective - distance objects are fuzzy and have a blue tint l Texture gradient - equally spaced elements are more closely packed as distance increases l Shadows - indicate where objects are located

Figure 8. 5 A scene along the coast of California that illustrates atmospheric perspective.

Figure 8. 6 A texture gradient in Death Valley, California.

Monocular Depth Cues l Motion parallax - close objects in direction of movement glide rapidly past but objects in the distance appear to move slowly l Deletion and accretion - objects are covered or uncovered as we move relative to them l Also called occlusion-in-motion

Binocular Depth Perception l Binocular (or retinal) disparity - difference in images between the two eyes l Difference can be described by examining corresponding points on the retina that connect to same places in the cortex

Figure 8. 16 The two images of a stereoscopic photograph. The difference between the two images, such as the distances between the front cactus and the window in the two views, creates retinal disparity. This creates a perception of depth when (a) the left image is viewed by the left eye and (b) the right image is viewed by the right eye.

Binocular Depth Information - continued l Stereopsis - depth information provided by binocular disparity l Stereoscope uses two pictures from slightly different viewpoints l 3 -D movies use the same principle and viewers wear glasses to see the effect l Random-dot stereogram has two identical patterns with one shifted to the right

Stereograms l http: //www. eyetricks. com/3 dstereo. htm

Figure 8. 33 Two cylinders resting on a texture gradient. The fact that the bases of both cylinders cover the same number of units on the gradient indicates that the bases of the two cylinders are the same size.

Size Constancy l Perception of an object’s size remains relatively constant l This effect remains even if the size of the object on the retina changes

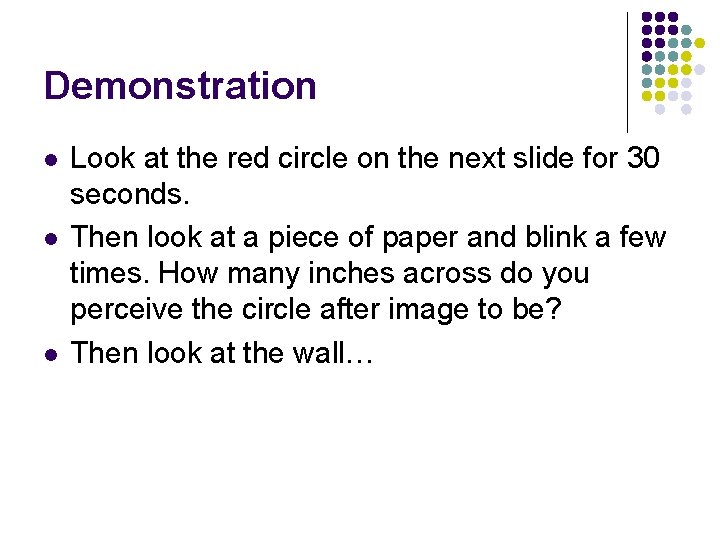

Demonstration l l l Look at the red circle on the next slide for 30 seconds. Then look at a piece of paper and blink a few times. How many inches across do you perceive the circle after image to be? Then look at the wall…

Figure 8. 31 The principle behind the observation that the size of an afterimage increases as the afterimage is viewed against more distant surfaces.

Light directly on each coin. Each coin was the same distance from the observer. Which did they think was the farthest away?

l. I wondered why the baseball was getting bigger. Then, it hit me.

Visual Illusions l Nonveridical perception occurs during visual illusions l Müller-Lyer illusion: l Straight lines with inward fins appear shorter than straight lines with outward fins l Lines are actually the same length

Which is larger? l Front Monster or back monster?

Figure 8. 34 The Müller-Lyer illusion. Both lines are actually the same length.

Müller-Lyer Illusion l Why does this illusion occur? l Misapplied size-constancy scaling: l Size constancy scaling that works in 3 -D is misapplied for 2 -D objects l Observers unconsciously perceive the fins as belonging to outside and inside corners l Outside corners would be closer and inside would be further away

Müller-Lyer Illusion - continued l l Since the retinal images are the same, the lines must be different sizes Problems with this explanation: l The “dumbbell” version shows the same perception even though there are no “corners” l The illusion also occurs for some 3 -D displays

Figure 8. 35 According to Gregory (1973), the Müller-Lyer line on the left corresponds to an outside corner, and the line on the right to an inside corner. Note that the two vertical lines are the same length (measure them!).

Figure 8. 39 The Ponzo (or railroad track) illusion. The two horizontal rectangles are the same length on the page (measure them), but the far one appears larger.

Fig. 8 -40, p. 187

The Ames Room l Two people of equal size appear very different in size in this room l The room is constructed so that: l Shape looks like normal room when viewed with one eye l Actual shape has left corner twice as far away as right corner

Figure 8. 41 The Ames room, showing its true shape. The woman on the left is actually almost twice as far away from the observer as the woman on the right; however, when the room is viewed through the peephole, this difference in distance is not seen. In order for the room to look normal when viewed through the peephole, it is necessary to enlarge the left side of the room.

Fig. 8 -40, p. 187

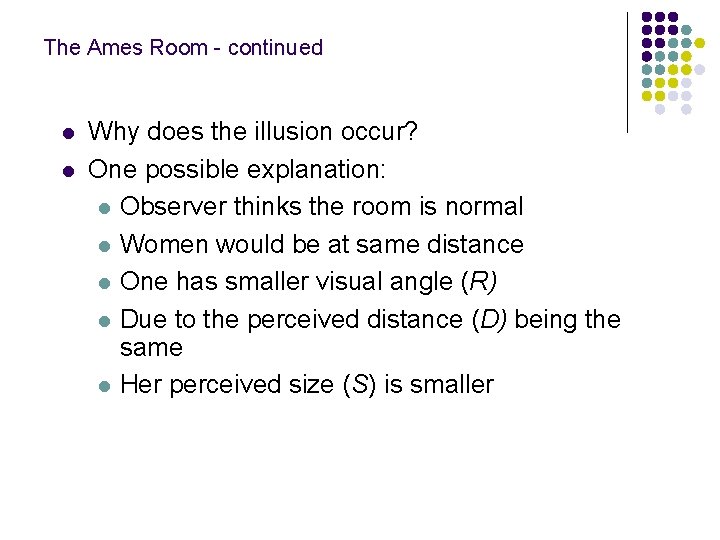

The Ames Room - continued l l Why does the illusion occur? One possible explanation: l Observer thinks the room is normal l Women would be at same distance l One has smaller visual angle (R) l Due to the perceived distance (D) being the same l Her perceived size (S) is smaller

The Ames Room - continued l Another possible explanation: l Perception of size depends on relative size l One woman fills the distance between the top and bottom of the room l Other woman only fills part of the distance l Thus, first woman appears taller

What is the difference between these two animals?
