Seminar topic Venous drainage of thoracic wall Lim

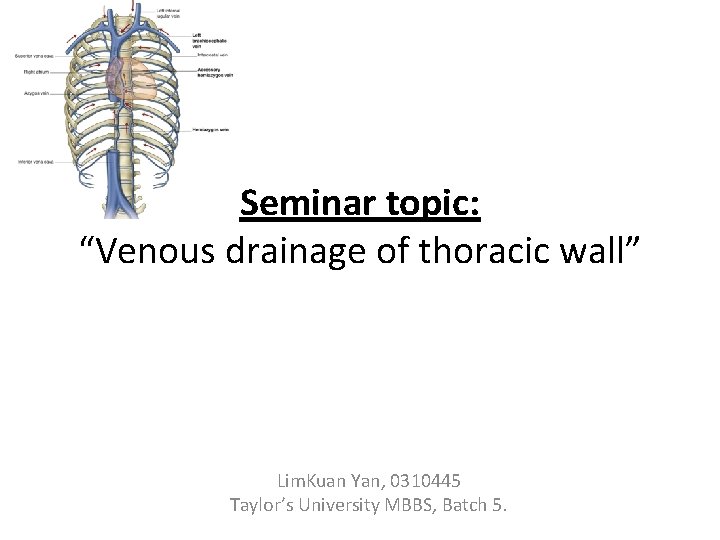

Seminar topic: “Venous drainage of thoracic wall” Lim. Kuan Yan, 0310445 Taylor’s University MBBS, Batch 5.

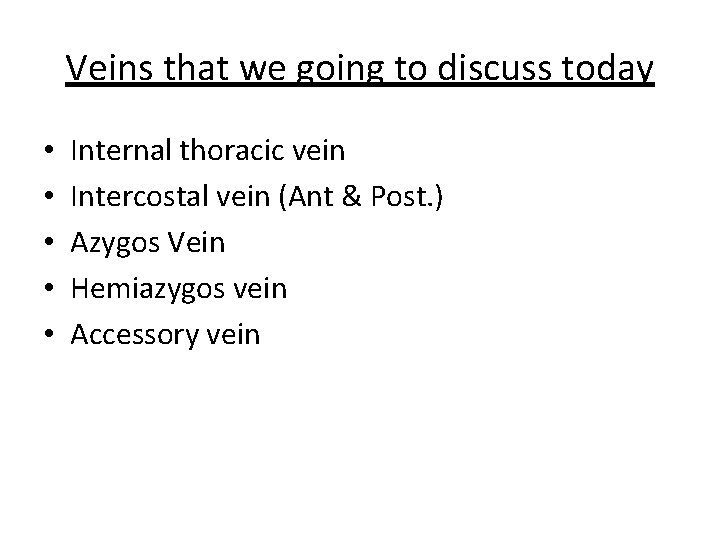

Veins that we going to discuss today • • • Internal thoracic vein Intercostal vein (Ant & Post. ) Azygos Vein Hemiazygos vein Accessory vein

Internal Thoracic Vein the (Internal Mammary Vein) • Is a vessel that drains the chest wall and breasts. • Bilaterally, it arises from the superior epigastric vein, • Accompanies the internal thoracic artery along its course and terminates in the brachiocephalic vein.

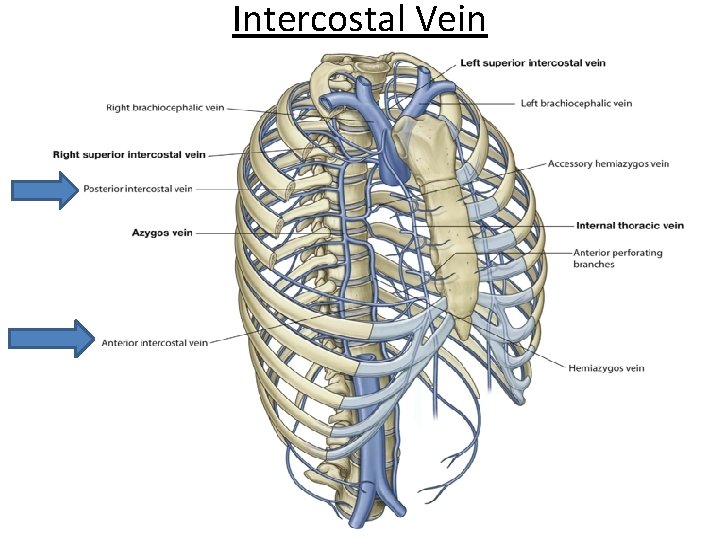

Intercostal Vein

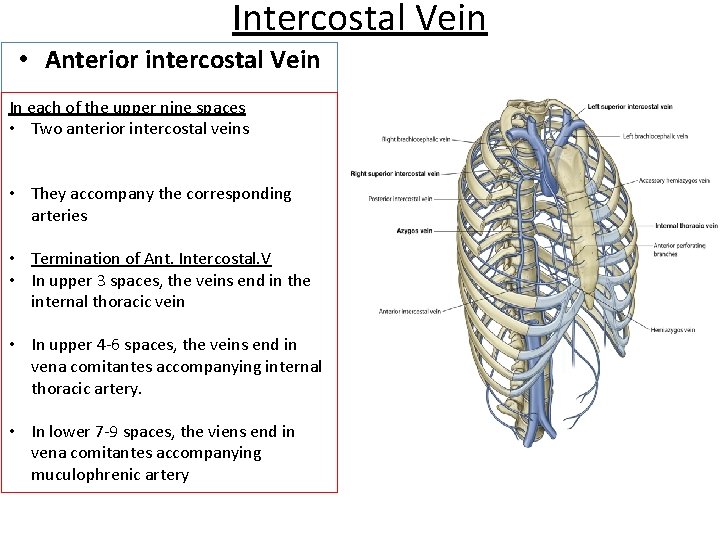

Intercostal Vein • Anterior intercostal Vein In each of the upper nine spaces • Two anterior intercostal veins • They accompany the corresponding arteries • Termination of Ant. Intercostal. V • In upper 3 spaces, the veins end in the internal thoracic vein • In upper 4 -6 spaces, the veins end in vena comitantes accompanying internal thoracic artery. • In lower 7 -9 spaces, the viens end in vena comitantes accompanying muculophrenic artery

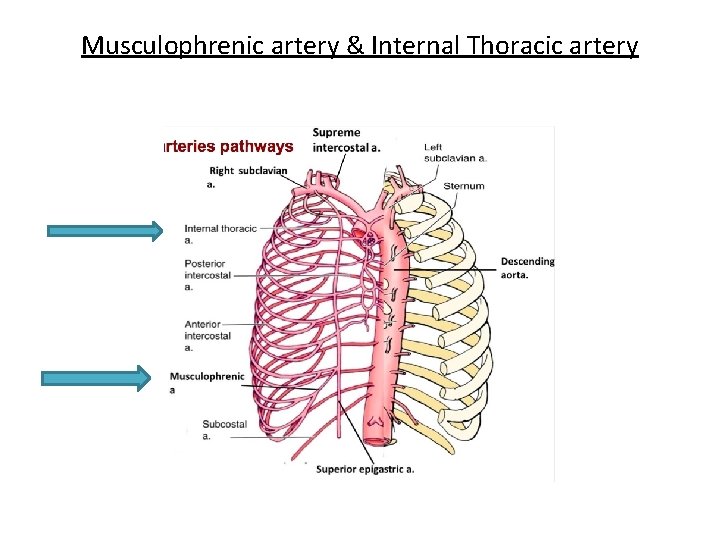

Musculophrenic artery & Internal Thoracic artery

Intercostal Vein • Posterior intercostal Vein In each of upper nine spaces • One posterior intercostal vein • One collateral vein V. A. N • Each vein accompany the corresponding artery and lies superiorly to the artery Posterior intercostal Vein Collateral branch of the posterior intercostal vein

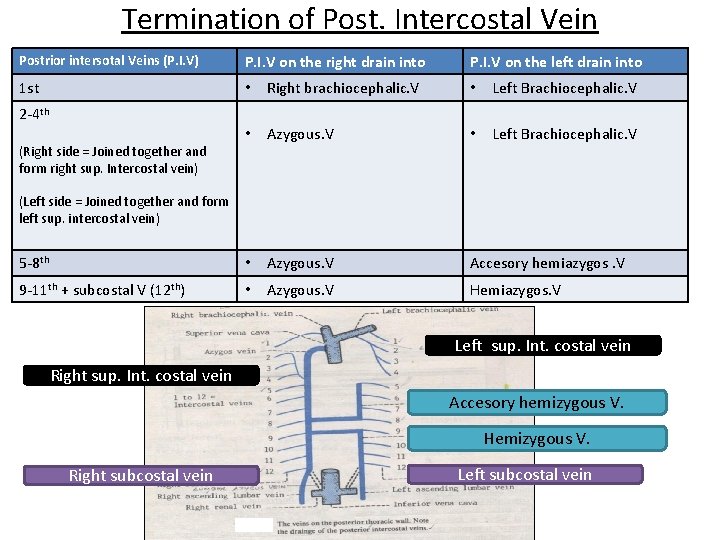

Termination of Post. Intercostal Vein Postrior intersotal Veins (P. I. V) P. I. V on the right drain into 1 st • Right brachiocephalic. V • Left Brachiocephalic. V • Azygous. V • Left Brachiocephalic. V 5 -8 th • Azygous. V Accesory hemiazygos. V 9 -11 th + subcostal V (12 th) • Azygous. V Hemiazygos. V 2 -4 th (Right side = Joined together and form right sup. Intercostal vein) P. I. V on the left drain into (Left side = Joined together and form left sup. intercostal vein) Left sup. Int. costal vein Right sup. Int. costal vein Accesory hemizygous V. Hemizygous V. Right subcostal vein Left subcostal vein

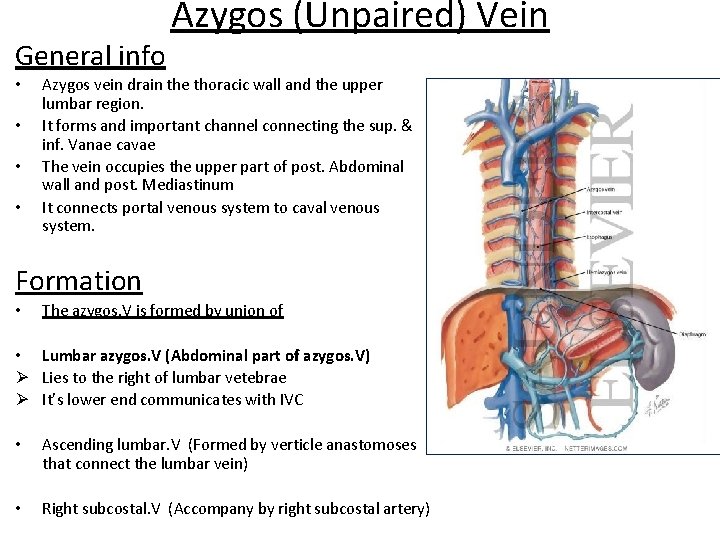

General info • • Azygos (Unpaired) Vein Azygos vein drain the thoracic wall and the upper lumbar region. It forms and important channel connecting the sup. & inf. Vanae cavae The vein occupies the upper part of post. Abdominal wall and post. Mediastinum It connects portal venous system to caval venous system. Formation • The azygos. V is formed by union of • Lumbar azygos. V (Abdominal part of azygos. V) Ø Lies to the right of lumbar vetebrae Ø It’s lower end communicates with IVC • Ascending lumbar. V (Formed by verticle anastomoses that connect the lumbar vein) • Right subcostal. V (Accompany by right subcostal artery)

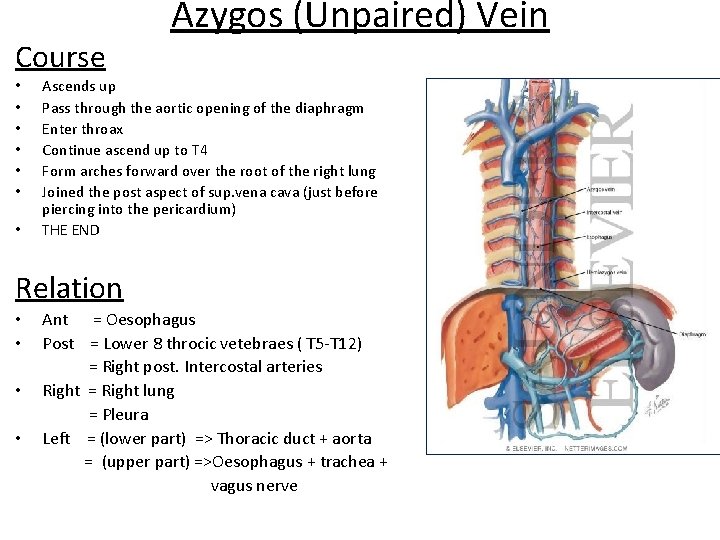

Course • • Azygos (Unpaired) Vein Ascends up Pass through the aortic opening of the diaphragm Enter throax Continue ascend up to T 4 Form arches forward over the root of the right lung Joined the post aspect of sup. vena cava (just before piercing into the pericardium) THE END Relation • • Ant = Oesophagus Post = Lower 8 throcic vetebraes ( T 5 -T 12) = Right post. Intercostal arteries Right = Right lung = Pleura Left = (lower part) => Thoracic duct + aorta = (upper part) =>Oesophagus + trachea + vagus nerve

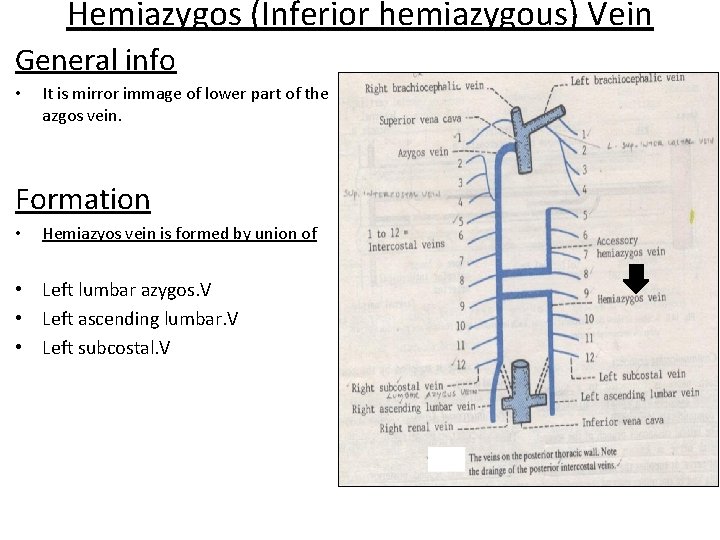

Hemiazygos (Inferior hemiazygous) Vein General info • It is mirror immage of lower part of the azgos vein. Formation • Hemiazyos vein is formed by union of • Left lumbar azygos. V • Left ascending lumbar. V • Left subcostal. V

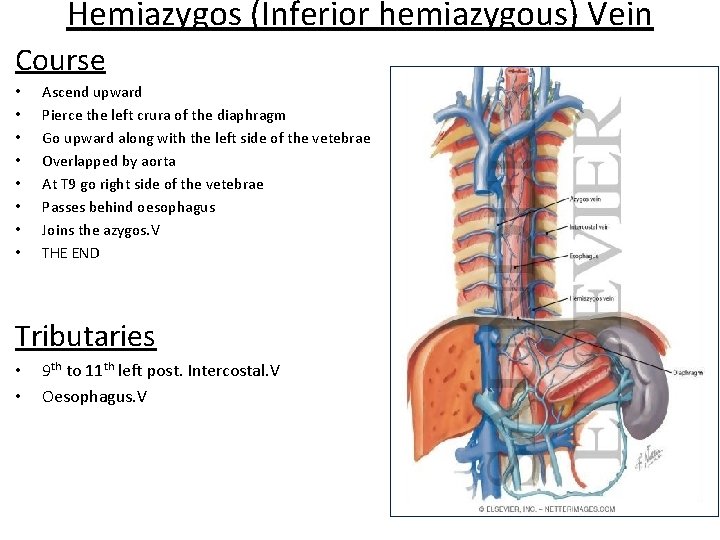

Hemiazygos (Inferior hemiazygous) Vein Course • • Ascend upward Pierce the left crura of the diaphragm Go upward along with the left side of the vetebrae Overlapped by aorta At T 9 go right side of the vetebrae Passes behind oesophagus Joins the azygos. V THE END Tributaries • • 9 th to 11 th left post. Intercostal. V Oesophagus. V

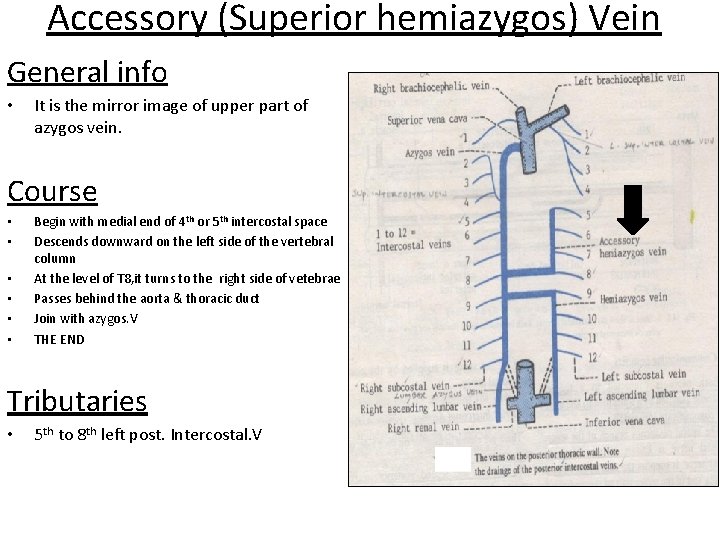

Accessory (Superior hemiazygos) Vein General info • It is the mirror image of upper part of azygos vein. Course • • • Begin with medial end of 4 th or 5 th intercostal space Descends downward on the left side of the vertebral column At the level of T 8, it turns to the right side of vetebrae Passes behind the aorta & thoracic duct Join with azygos. V THE END Tributaries • 5 th to 8 th left post. Intercostal. V

References

Thank you !!!
