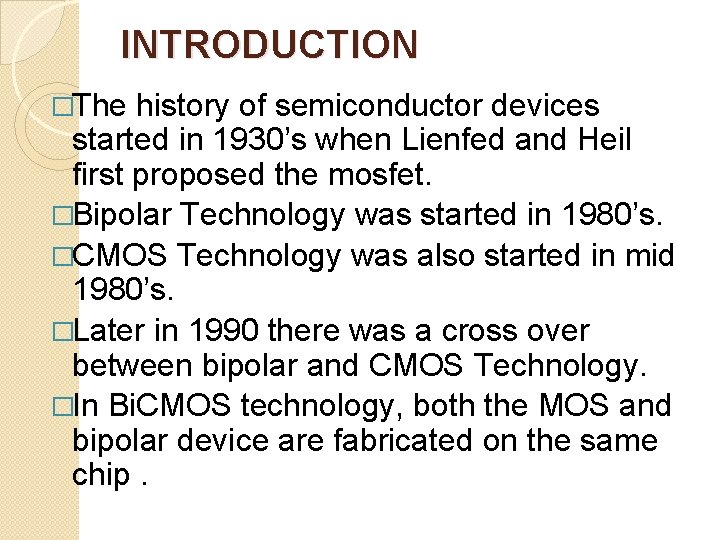

INTRODUCTION �The history of semiconductor devices started in 1930’s when Lienfed and Heil first proposed the mosfet. �Bipolar Technology was started in 1980’s. �CMOS Technology was also started in mid 1980’s. �Later in 1990 there was a cross over between bipolar and CMOS Technology. �In Bi. CMOS technology, both the MOS and bipolar device are fabricated on the same chip.

�The objective of the Bi. CMOS is to combine bipolar and CMOS so as to exploit the advantages of both the technlogies. �Today Bi. CMOS has become one of the dominant technologies used for high speed, low power and highly functional VLSI circuits. �The process step required for both CMOS and bipolar are similar so the Bi. CMOS process has been enhanced and integrated into the CMOS process without any additional steps.

�The primary approach to realize high performance Bi. CMOS devices is the addition of bipolar process steps to a baseline CMOS process. �The Bi. CMOS gates could be used as an effective way of speeding up the VLSI circuits. �The applications of Bi. CMOS are vast. �Advantages of bipolar and CMOS circuits can be retained in Bi. CMOS chips. �Bi. CMOS technology enables high performance integrated circuits IC’s but increases process complexity.

ABSTRACT �Bi. CMOS technology is a combination of Bipolar and CMOS technology. �CMOS technology offers less power dissipation, smaller noise margins, and higher packing density. �Bipolar technology, on the other hand, ensures high switching and I/O speed and good noise performance �Now we are in 3 rd Generation Bi. CMOS Technology.

�Bi. CMOS technology accomplishes both - improved speed over CMOS and lower power dissipation than bipolar technology. �The main drawback of Bi. CMOS technology is the higher costs due to the added process complexity. �This greater process complexity in Bi. CMOS results in a cost increase compared to conventional CMOS technology.

Characteristics of CMOS Technology � Lower static power dissipation � Higher noise margins � Higher packing density � High yield with large integrated complex functions � High input impedance (low drive current) � Scaleable threshold voltage � High delay load sensitivity � Low output drive current (issue when driving large capacitive loads) � Low transconductance, where transconductance, gm Vin � Bi-directional capability (drain & source are interchangeable) � A near ideal switching device � Low gain

Characteristics of Bipolar Technology � Higher switching speed � Higher current drive per unit area, higher gain � Generally better noise performance and better high frequency characteristics � Improved I/O speed (particularly significant with the growing importance of package limitations in high speed systems). � high power dissipation � lower input impedance (high drive current) � low packing density � low delay sensitivity to load � High transconductance gm (gm Vin) � It is essentially unidirectional.

Combine advantages in Bi. CMOS Technology �It follows that Bi. CMOS technology goes some way towards combining the virtues of both CMOS and Bipolar technologies �Improved speed over purely-CMOS technology �Lower power dissipation than purely-bipolar technology(Lower power consumption than bipolar) �Flexible I/Os for high performance �Improved current drive over CMOS �Improved packing density over bipolar �High input impedance �Low output impedance �High Gain and low noise

Bi. CMOS FABRICATION

Bi. CMOS Integrated Circuits

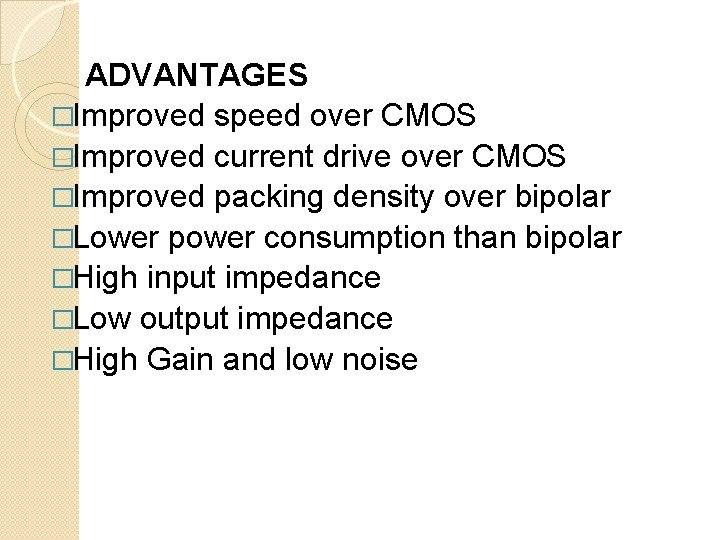

ADVANTAGES �Improved speed over CMOS �Improved current drive over CMOS �Improved packing density over bipolar �Lower power consumption than bipolar �High input impedance �Low output impedance �High Gain and low noise

DISADVANTAGES �Increased manufacturing process complexity �higher cost �Speed degradation due to scaling �longer fabrication cycle time Bi. CMOS process �Bipolar process + Well + Gate Oxide & Poly + CMOS process

APPLICATIONS OF BICMOS �Full custom ICs �ALU’s, Barrel Shifters �SRAM, DRAM �Microproessor, Controller �Semi custom ICs �Register, Flipflop , Standard cells �Adders, mixers, ADC, DAC �Gate arrays �Flash A/D Coverters

COMPARISON between BASIC CMOS & Bi. CMOS 1. Speed Comparison 3. Area Comparison 2. Delay Comparison
