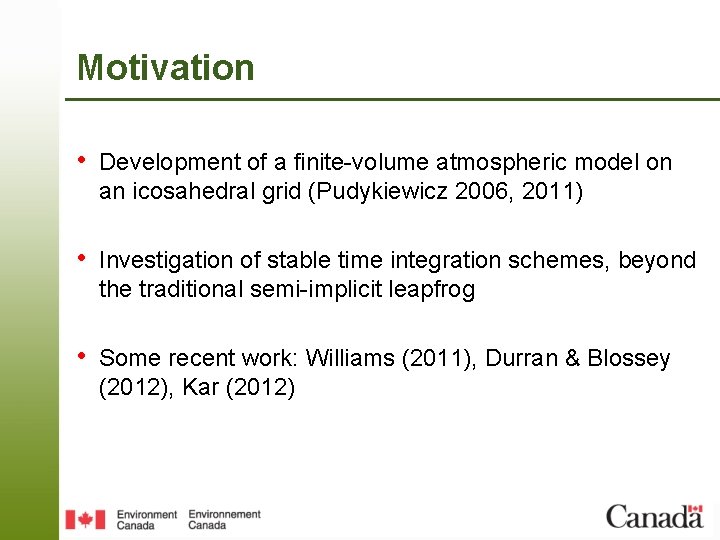

Motivation • Development of a finite-volume atmospheric model on an icosahedral grid (Pudykiewicz 2006, 2011) • Investigation of stable time integration schemes, beyond the traditional semi-implicit leapfrog • Some recent work: Williams (2011), Durran & Blossey (2012), Kar (2012)

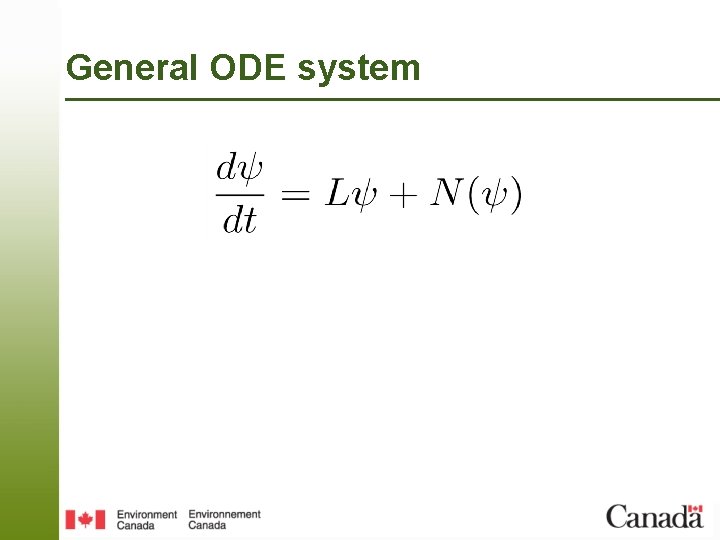

General ODE system

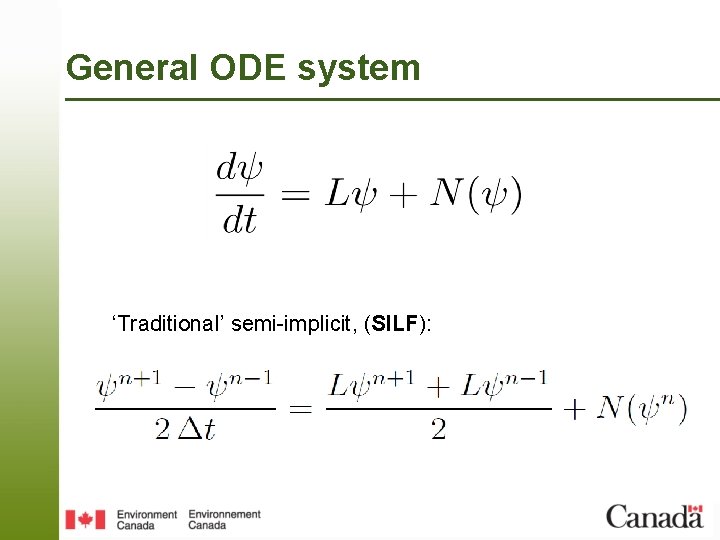

General ODE system ‘Traditional’ semi-implicit, (SILF):

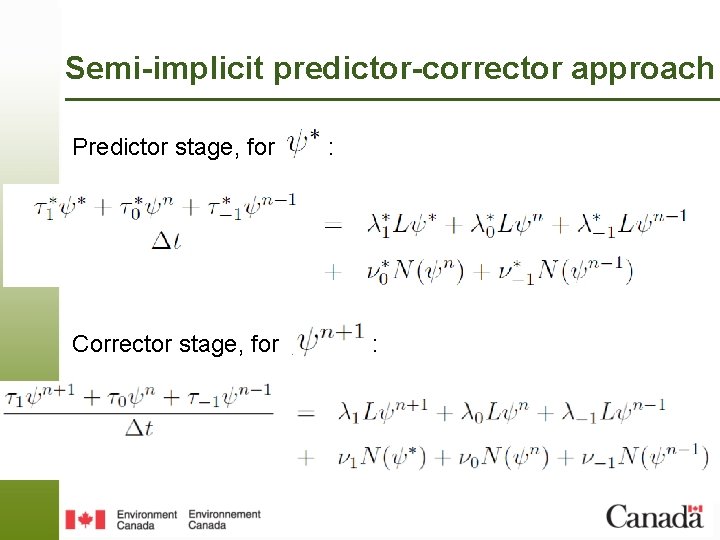

Semi-implicit predictor-corrector approach Predictor stage, for Corrector stage, for : :

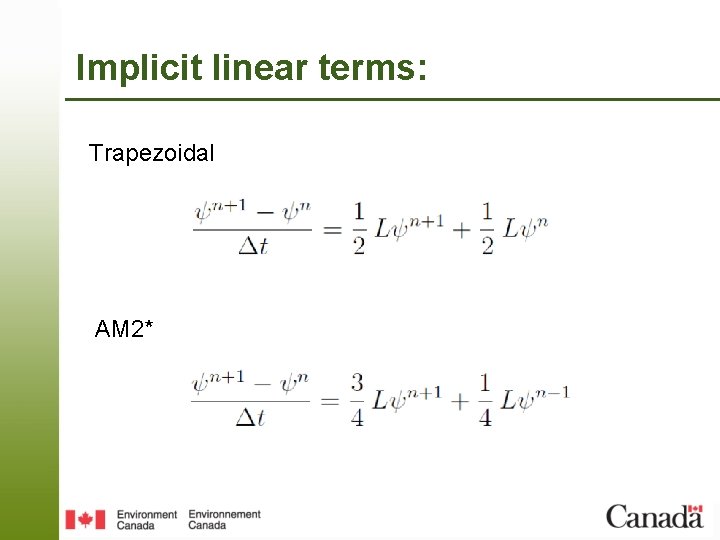

Implicit linear terms: Trapezoidal AM 2*

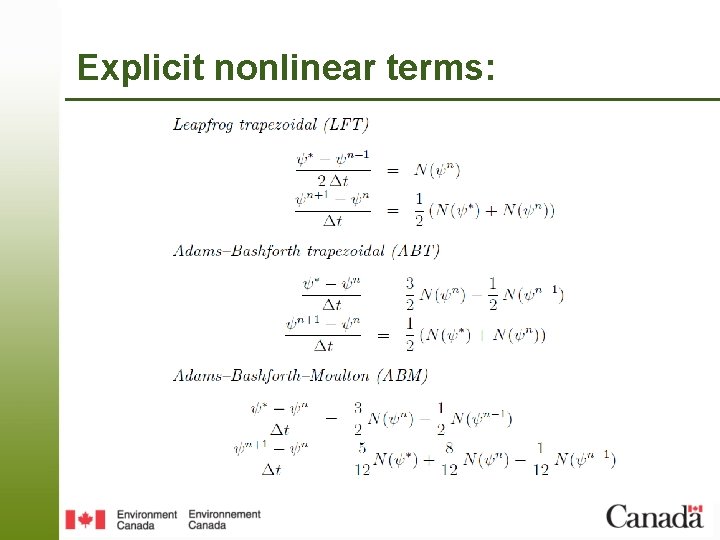

Explicit nonlinear terms:

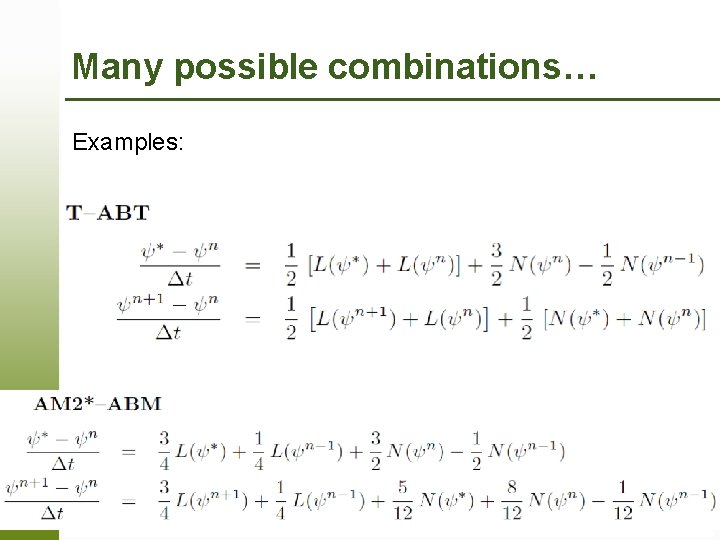

Many possible combinations… Examples:

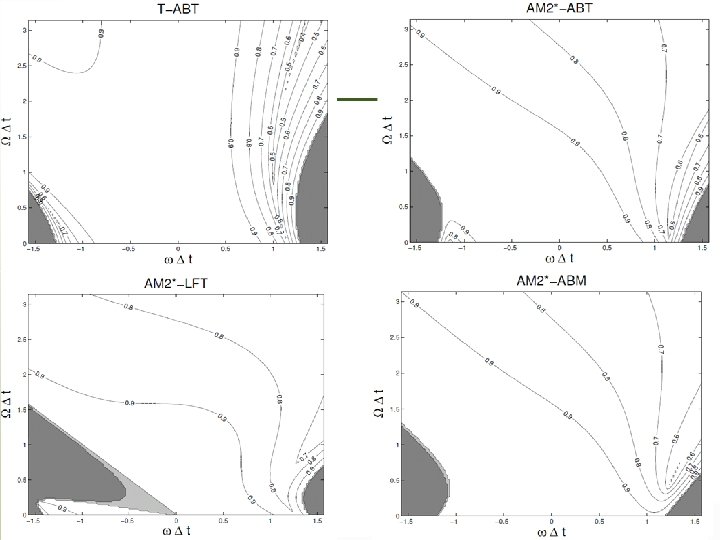

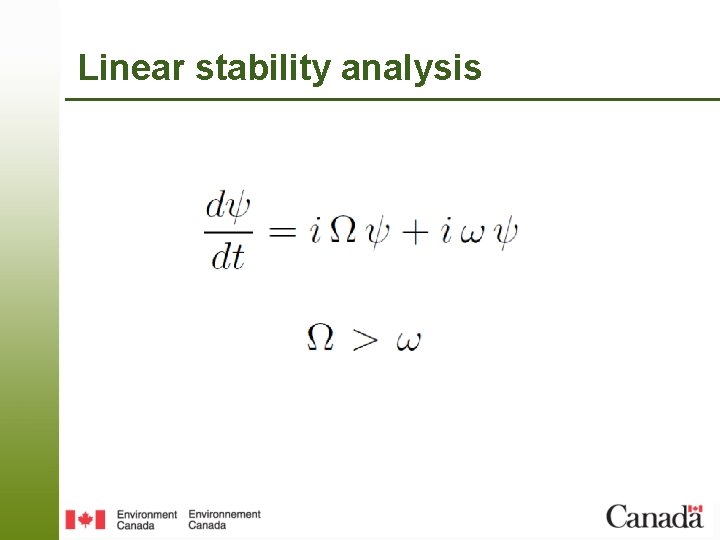

Linear stability analysis

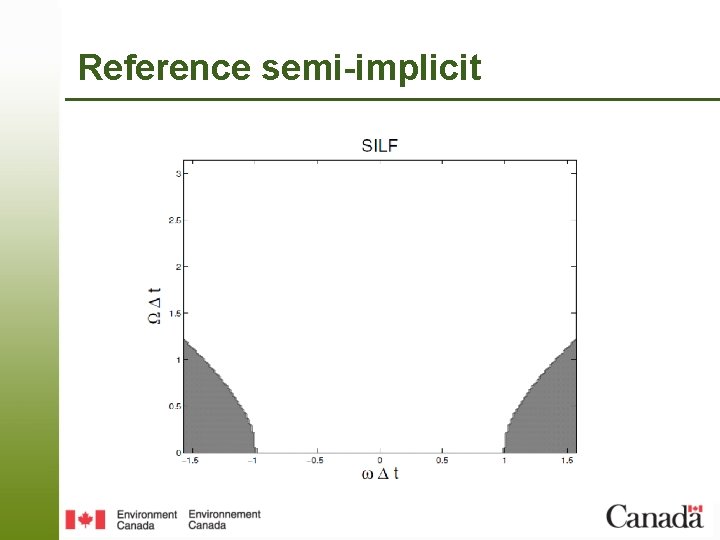

Reference semi-implicit

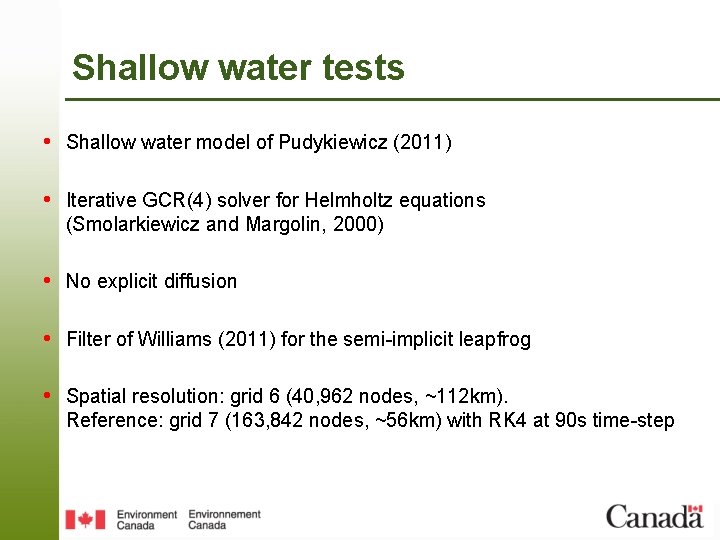

Shallow water tests • Shallow water model of Pudykiewicz (2011) • Iterative GCR(4) solver for Helmholtz equations (Smolarkiewicz and Margolin, 2000) • No explicit diffusion • Filter of Williams (2011) for the semi-implicit leapfrog • Spatial resolution: grid 6 (40, 962 nodes, ~112 km). Reference: grid 7 (163, 842 nodes, ~56 km) with RK 4 at 90 s time-step

Sample results: Flow over isolated mountain

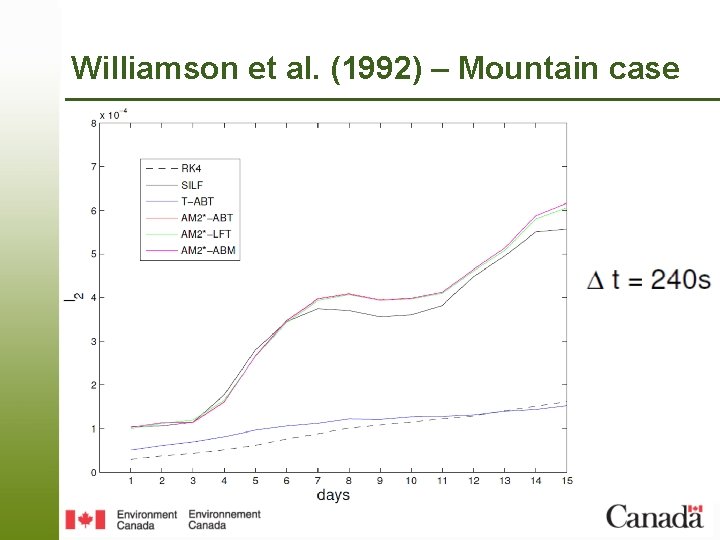

Williamson et al. (1992) – Mountain case

Williamson et al. (1992) – Mountain case

Williamson et al. (1992) – Mountain case

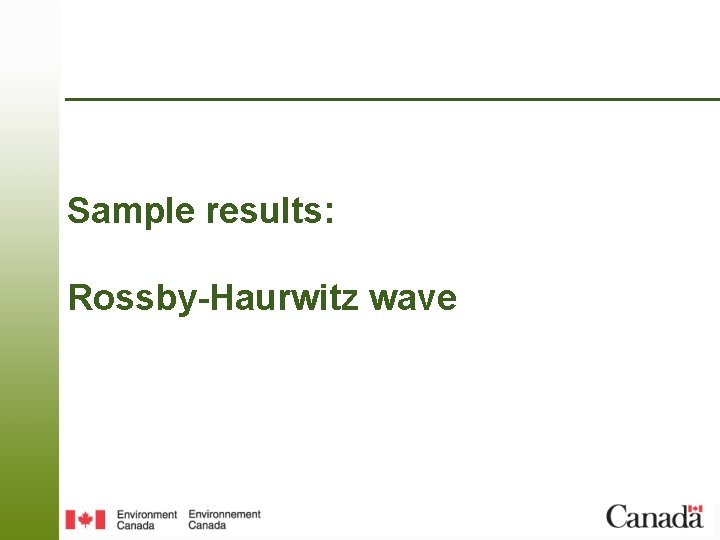

Sample results: Rossby-Haurwitz wave

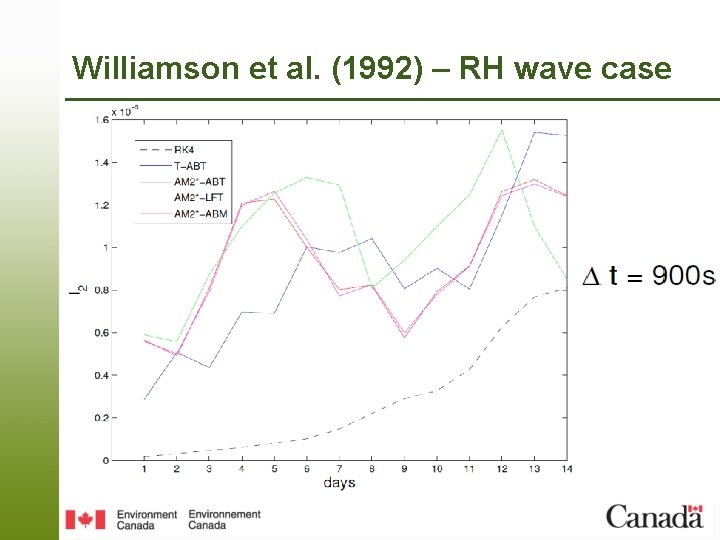

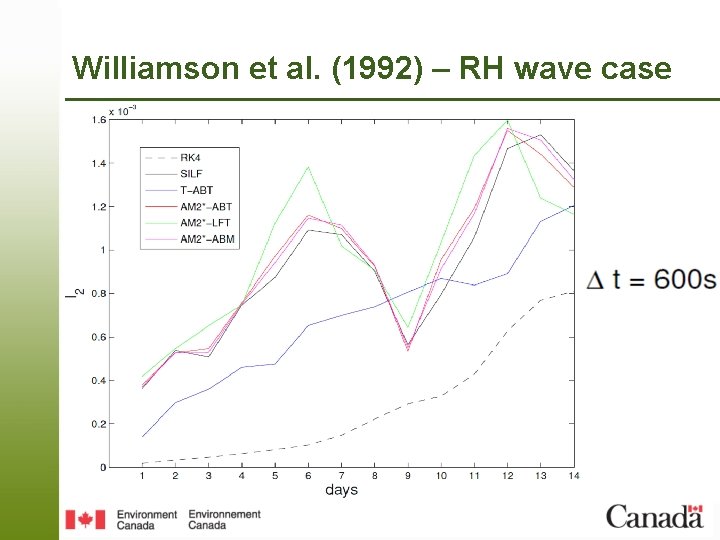

Williamson et al. (1992) – RH wave case

Williamson et al. (1992) – RH wave case

Williamson et al. (1992) – RH wave case

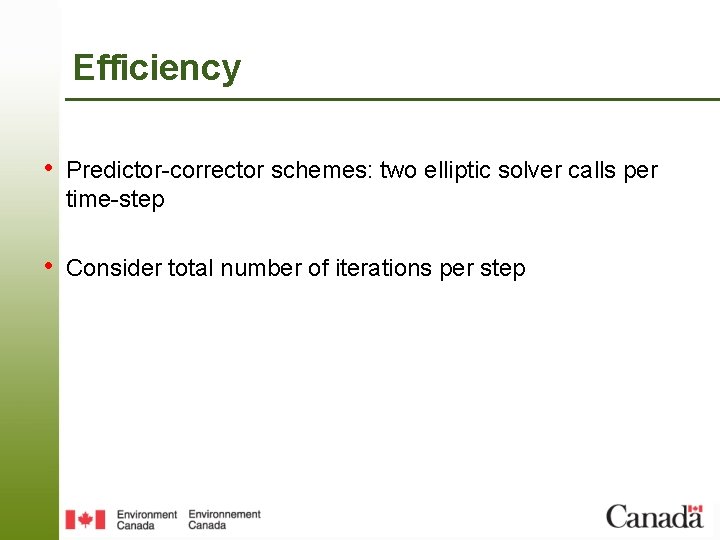

Efficiency • Predictor-corrector schemes: two elliptic solver calls per time-step • Consider total number of iterations per step

Efficiency

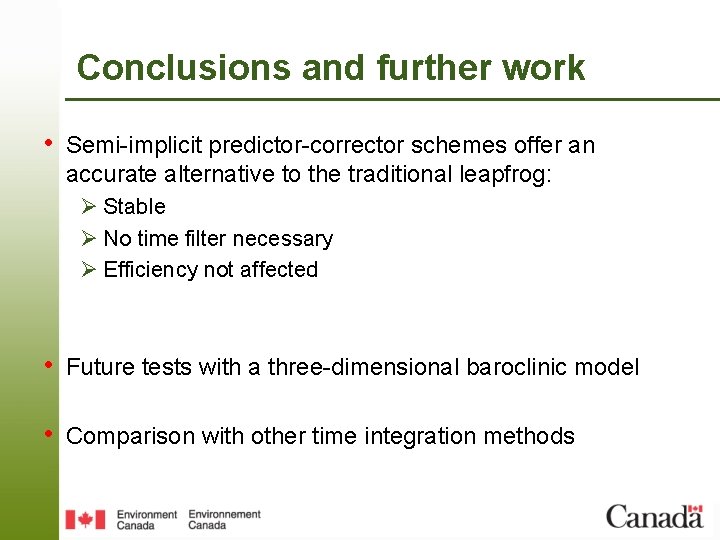

Conclusions and further work • Semi-implicit predictor-corrector schemes offer an accurate alternative to the traditional leapfrog: Ø Stable Ø No time filter necessary Ø Efficiency not affected • Future tests with a three-dimensional baroclinic model • Comparison with other time integration methods

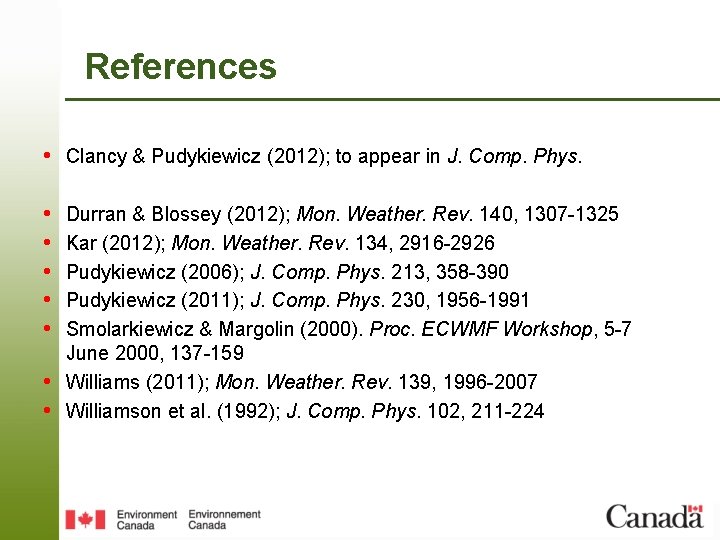

References • Clancy & Pudykiewicz (2012); to appear in J. Comp. Phys. • • Durran & Blossey (2012); Mon. Weather. Rev. 140, 1307 -1325 Kar (2012); Mon. Weather. Rev. 134, 2916 -2926 Pudykiewicz (2006); J. Comp. Phys. 213, 358 -390 Pudykiewicz (2011); J. Comp. Phys. 230, 1956 -1991 Smolarkiewicz & Margolin (2000). Proc. ECWMF Workshop, 5 -7 June 2000, 137 -159 Williams (2011); Mon. Weather. Rev. 139, 1996 -2007 Williamson et al. (1992); J. Comp. Phys. 102, 211 -224

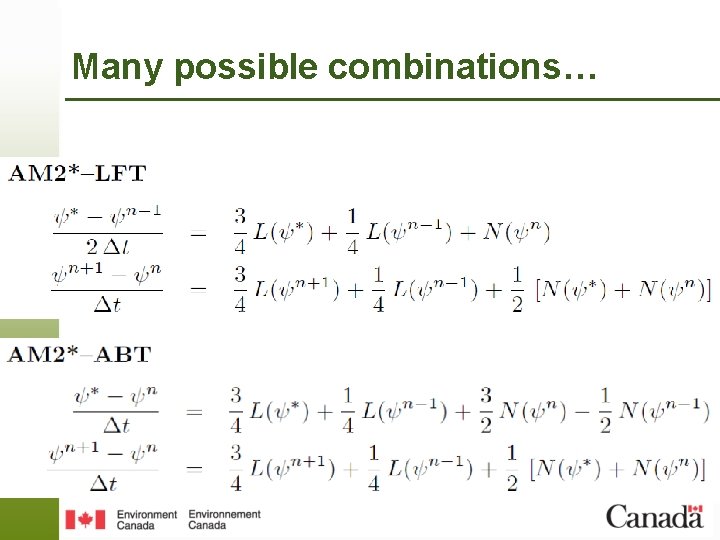

Many possible combinations…
