Semiconductor Technology Basics Why Semiconductors Conductors always have

Semiconductor Technology Basics

Why Semiconductors? • Conductors always have a high concentration of electrons in conduction bands – states that are free to move through the material • Insulators always have virtually zero electrons in such bands – conduction band energy is too high – all the electrons are stuck in valance bands • localized to particular atoms/molecules in the material • Semiconductors have a conduction band whose electron population is easily manipulated – Sensitive to dopants, applied potentials, temperature

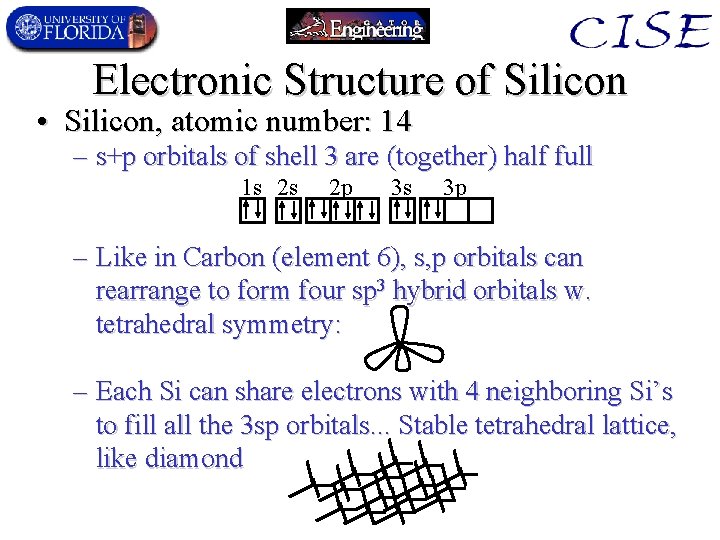

Electronic Structure of Silicon • Silicon, atomic number: 14 – s+p orbitals of shell 3 are (together) half full 1 s 2 s 2 p 3 s 3 p – Like in Carbon (element 6), s, p orbitals can rearrange to form four sp 3 hybrid orbitals w. tetrahedral symmetry: – Each Si can share electrons with 4 neighboring Si’s to fill all the 3 sp orbitals. . . Stable tetrahedral lattice, like diamond

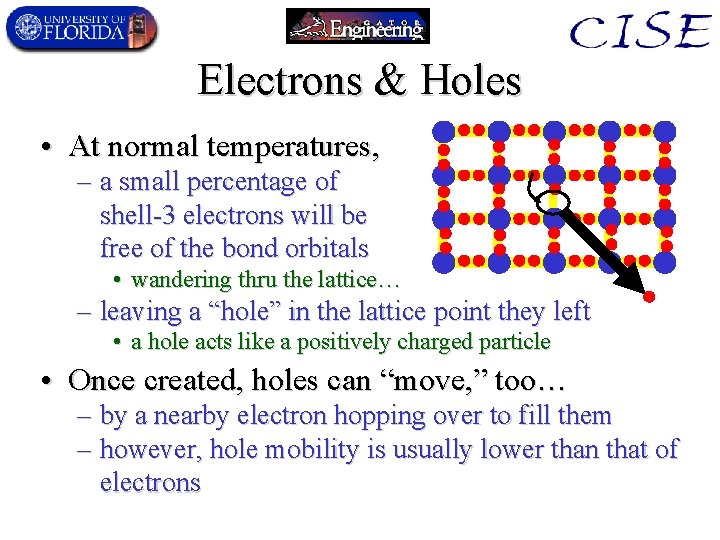

Electrons & Holes • At normal temperatures, – a small percentage of shell-3 electrons will be free of the bond orbitals • wandering thru the lattice… – leaving a “hole” in the lattice point they left • a hole acts like a positively charged particle • Once created, holes can “move, ” too… – by a nearby electron hopping over to fill them – however, hole mobility is usually lower than that of electrons

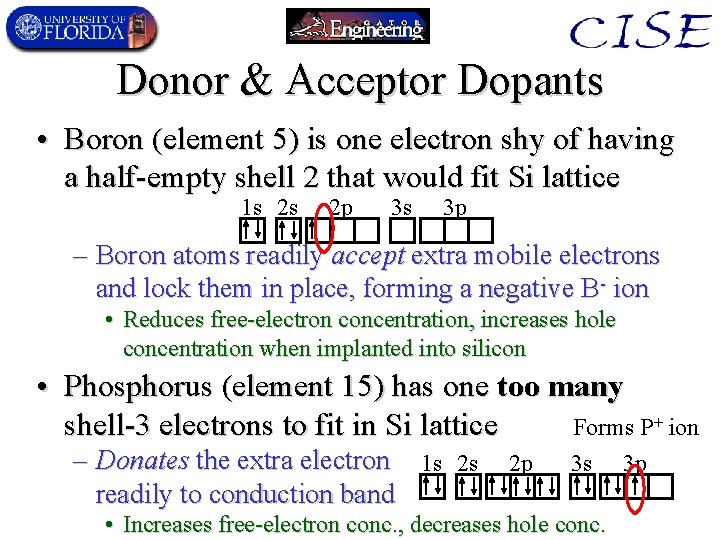

Donor & Acceptor Dopants • Boron (element 5) is one electron shy of having a half-empty shell 2 that would fit Si lattice 1 s 2 s 2 p 3 s 3 p – Boron atoms readily accept extra mobile electrons and lock them in place, forming a negative B- ion • Reduces free-electron concentration, increases hole concentration when implanted into silicon • Phosphorus (element 15) has one too many shell-3 electrons to fit in Si lattice Forms P+ ion – Donates the extra electron 1 s 2 s readily to conduction band 2 p 3 s • Increases free-electron conc. , decreases hole conc. 3 p

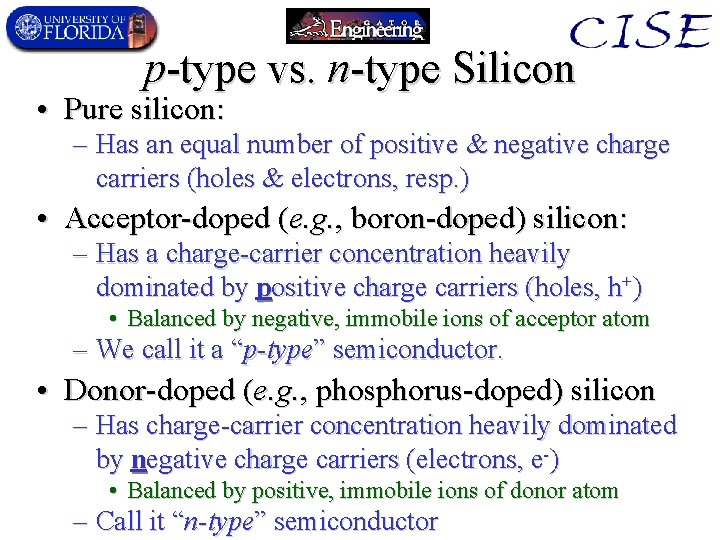

p-type vs. n-type Silicon • Pure silicon: – Has an equal number of positive & negative charge carriers (holes & electrons, resp. ) • Acceptor-doped (e. g. , boron-doped) silicon: – Has a charge-carrier concentration heavily dominated by positive charge carriers (holes, h+) • Balanced by negative, immobile ions of acceptor atom – We call it a “p-type” semiconductor. • Donor-doped (e. g. , phosphorus-doped) silicon – Has charge-carrier concentration heavily dominated by negative charge carriers (electrons, e-) • Balanced by positive, immobile ions of donor atom – Call it “n-type” semiconductor

pn junctions • What happens when you put p-type and n-type silicon in direct contact with each other? – Near the junction, electrons from the n and holes from the p diffuse into & annihilate each other! – Forms a depletion region free of charge carriers Depletion region p-type h+ B- h+ h+ B- n-type B- B- h+ h+ BBBB BB- h+ B h+ h+ h+ BBh+ - B B B h+ B BB B B- h+ B B h+ h+ P+ e- e- + e. P P P+ P e- e. P+ + e- + e. P P P + + + e- P P P+ ee. P+ e+ P P+ P+ e- P+ P+ P+

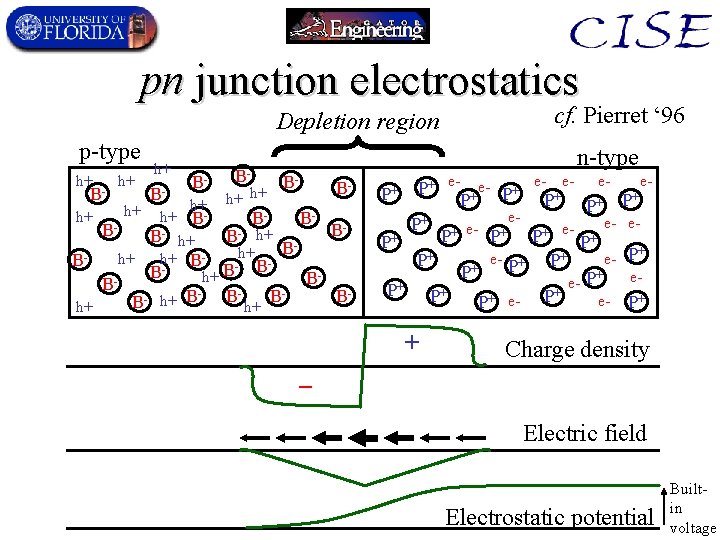

pn junction electrostatics Depletion region p-type h+ B- h+ h+ B- B- B- h+ h+ n-type B- B- h+ h+ BBBB BB- h+ B h+ h+ h+ BBB- B B h+ BBBBB- h+ B B h+ h+ cf. Pierret ‘ 96 P+ e- e- + e. P P P+ P e- e. P+ + e- + e. P P P + + + e- P P P P+ e+ P + P+ e- P P+ + Charge density Electric field Electrostatic potential Builtin voltage

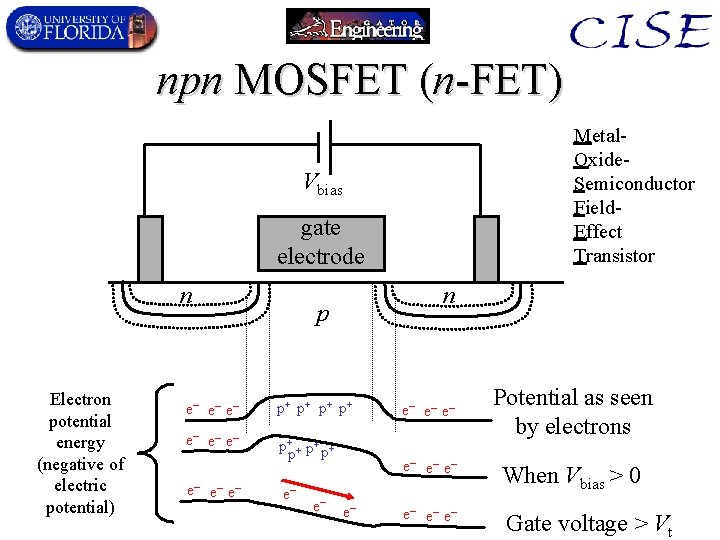

npn MOSFET (n-FET) Metal. Oxide. Semiconductor Field. Effect Transistor Vbias gate electrode n Electron potential energy (negative of electric potential) n p e e e p+ p+ e e e p+p+ e e e e e e e Potential as seen by electrons e e e When Vbias > 0 e e e Gate voltage > Vt

CMOS Inverters (a) CMOS inverter structure. (b) Transition curves.

Semiconductor Technology Scaling

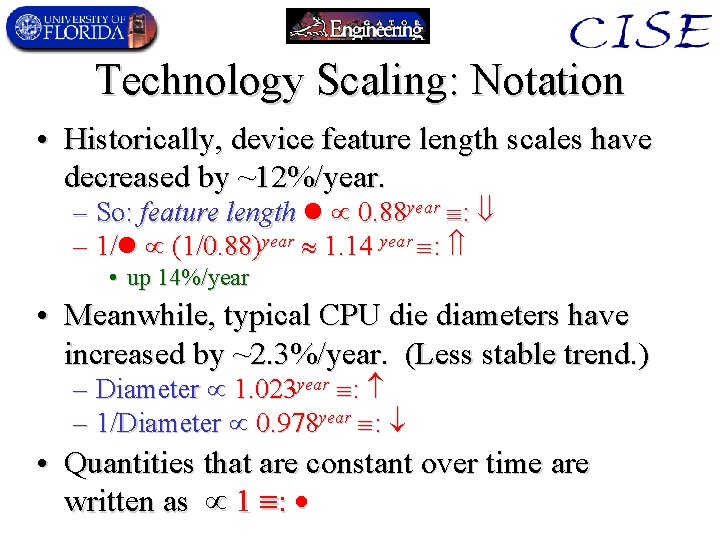

Technology Scaling: Notation • Historically, device feature length scales have decreased by ~12%/year. – So: feature length 0. 88 year : – 1/ (1/0. 88)year 1. 14 year : • up 14%/year • Meanwhile, typical CPU die diameters have increased by ~2. 3%/year. (Less stable trend. ) – Diameter 1. 023 year : – 1/Diameter 0. 978 year : • Quantities that are constant over time are written as 1 :

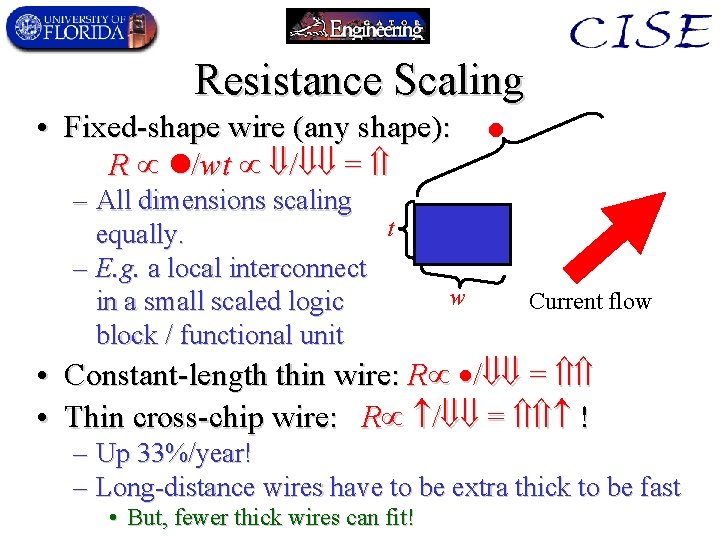

Resistance Scaling • Fixed-shape wire (any shape): R /wt / = – All dimensions scaling t equally. – E. g. a local interconnect in a small scaled logic block / functional unit w Current flow • Constant-length thin wire: R / = • Thin cross-chip wire: R / = ! – Up 33%/year! – Long-distance wires have to be extra thick to be fast • But, fewer thick wires can fit!

Capacitance Scaling • Fixed-shape structure (any): C w/s / = – E. g. scaled devices/wires • Per unit wire length: – C w/s / (constant) • Cross-chip thin wire: C • Per unit area: C /s – E. g. , total on-chip cap. /cm 2 w s

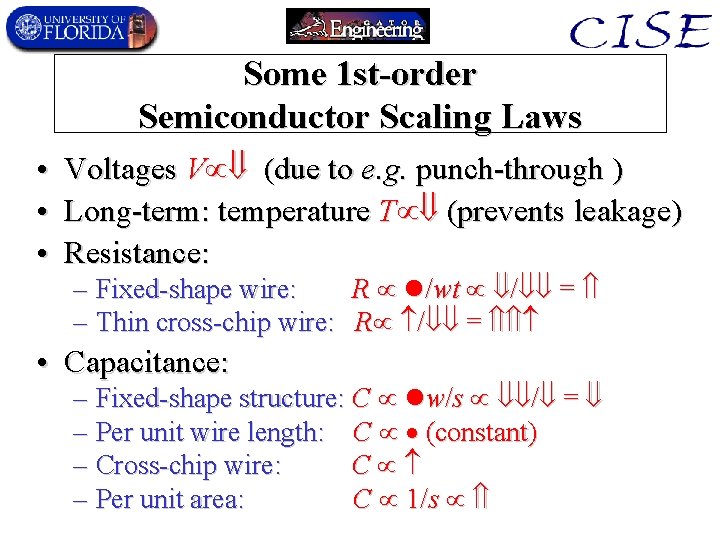

Some 1 st-order Semiconductor Scaling Laws • • • Voltages V (due to e. g. punch-through ) Long-term: temperature T (prevents leakage) Resistance: – Fixed-shape wire: R /wt / = – Thin cross-chip wire: R / = • Capacitance: – Fixed-shape structure: C w/s / = – Per unit wire length: C (constant) – Cross-chip wire: C – Per unit area: C 1/s

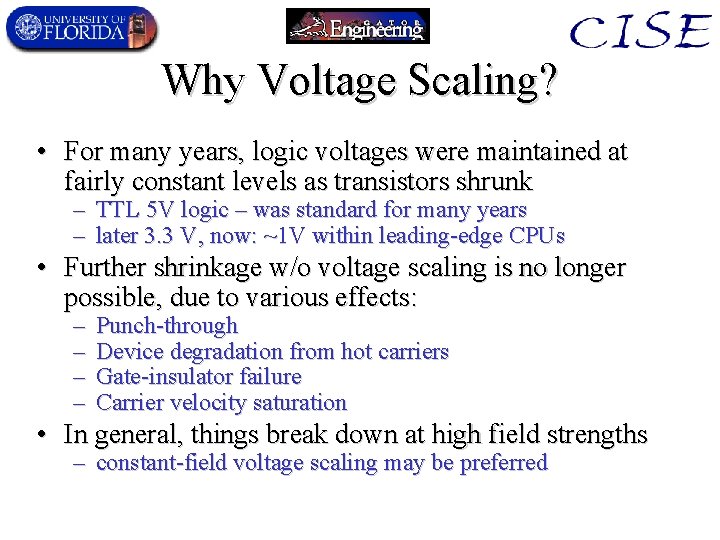

Why Voltage Scaling? • For many years, logic voltages were maintained at fairly constant levels as transistors shrunk – TTL 5 V logic – was standard for many years – later 3. 3 V, now: ~1 V within leading-edge CPUs • Further shrinkage w/o voltage scaling is no longer possible, due to various effects: – – Punch-through Device degradation from hot carriers Gate-insulator failure Carrier velocity saturation • In general, things break down at high field strengths – constant-field voltage scaling may be preferred

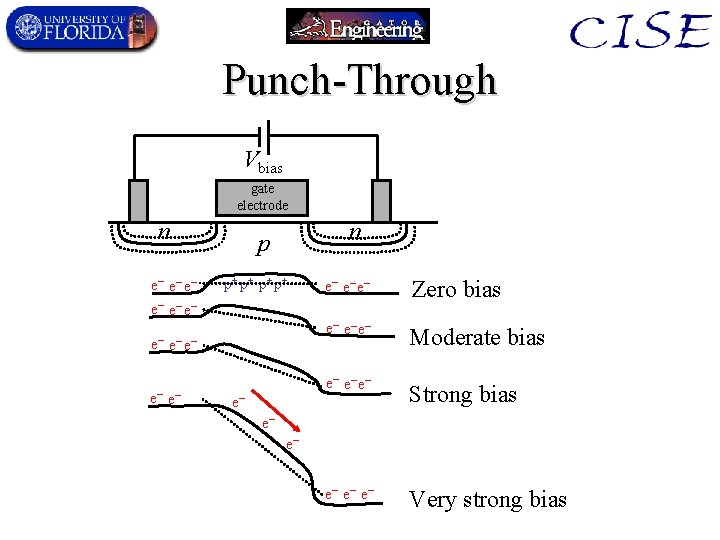

Punch-Through Vbias gate electrode n e e e n p p+ p+ e e e Zero bias e e e Moderate bias e e e e Strong bias e e e Very strong bias

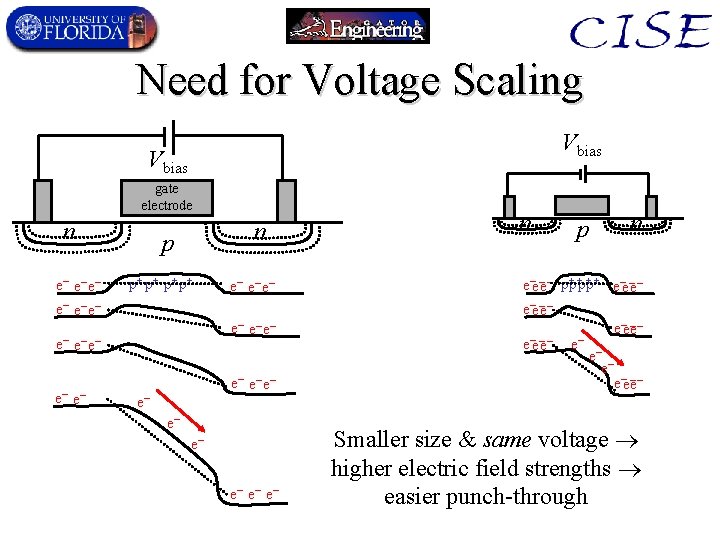

Need for Voltage Scaling Vbias gate electrode n e e e n p p+ p+ e e e p n e e e p+p+ e e e e e e e e Smaller size & same voltage higher electric field strengths easier punch-through e e e n e e

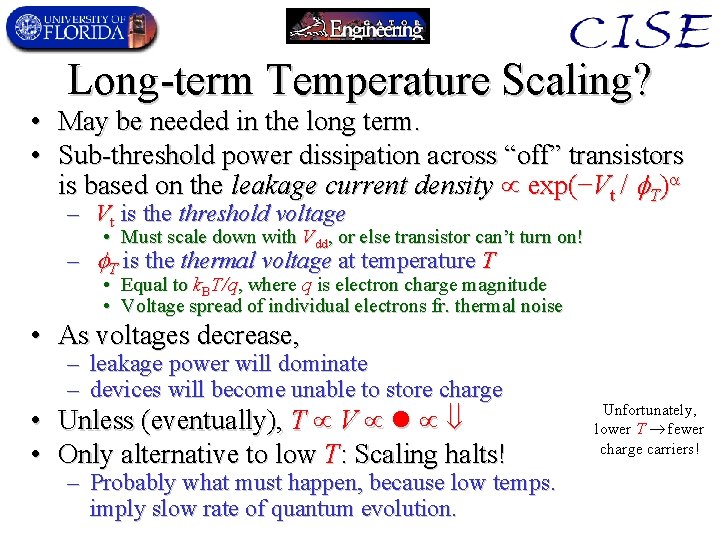

Long-term Temperature Scaling? • May be needed in the long term. • Sub-threshold power dissipation across “off” transistors is based on the leakage current density exp(−Vt / T) – Vt is the threshold voltage • Must scale down with Vdd, or else transistor can’t turn on! – T is thermal voltage at temperature T • Equal to k. BT/q, where q is electron charge magnitude • Voltage spread of individual electrons fr. thermal noise • As voltages decrease, – leakage power will dominate – devices will become unable to store charge • Unless (eventually), T V • Only alternative to low T: Scaling halts! – Probably what must happen, because low temps. imply slow rate of quantum evolution. Unfortunately, lower T fewer charge carriers!

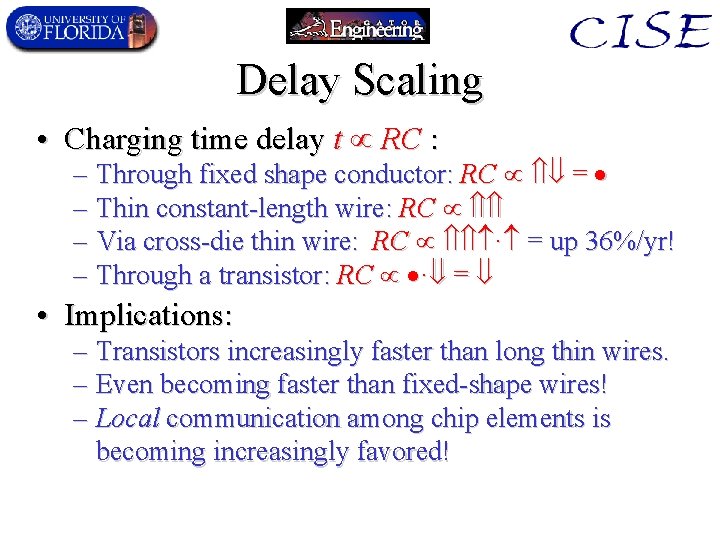

Delay Scaling • Charging time delay t RC : – Through fixed shape conductor: RC = – Thin constant-length wire: RC – Via cross-die thin wire: RC · = up 36%/yr! – Through a transistor: RC · = • Implications: – Transistors increasingly faster than long thin wires. – Even becoming faster than fixed-shape wires! – Local communication among chip elements is becoming increasingly favored!

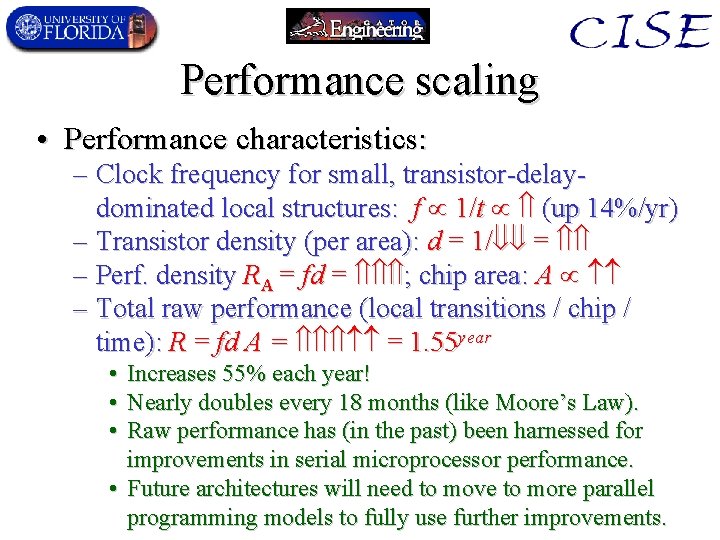

Performance scaling • Performance characteristics: – Clock frequency for small, transistor-delaydominated local structures: f 1/t (up 14%/yr) – Transistor density (per area): d = 1/ = – Perf. density RA = fd = ; chip area: A – Total raw performance (local transitions / chip / time): R = fd A = = 1. 55 year • Increases 55% each year! • Nearly doubles every 18 months (like Moore’s Law). • Raw performance has (in the past) been harnessed for improvements in serial microprocessor performance. • Future architectures will need to move to more parallel programming models to fully use further improvements.

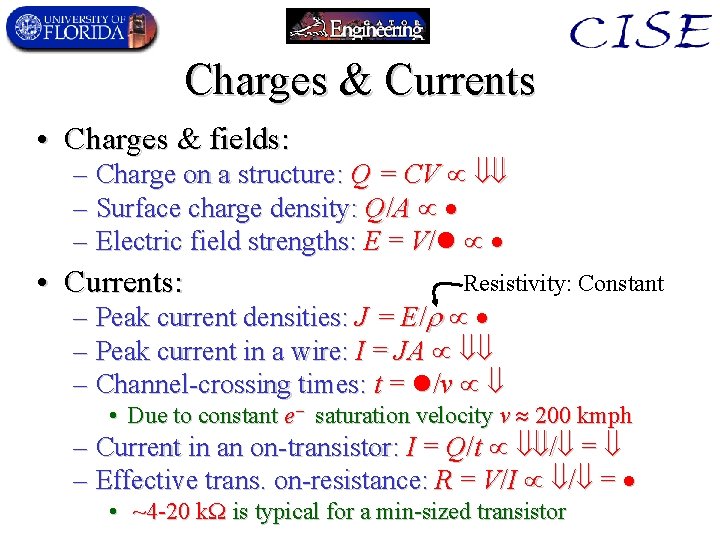

Charges & Currents • Charges & fields: – Charge on a structure: Q = CV – Surface charge density: Q/A – Electric field strengths: E = V/ • Currents: Resistivity: Constant – Peak current densities: J = E/ – Peak current in a wire: I = JA – Channel-crossing times: t = /v • Due to constant e saturation velocity v 200 kmph – Current in an on-transistor: I = Q/t / = – Effective trans. on-resistance: R = V/I / = • ~4 -20 kΩ is typical for a min-sized transistor

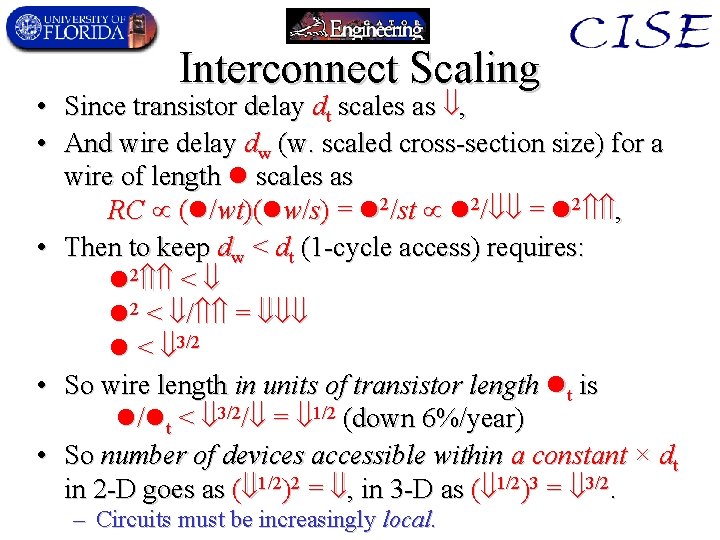

Interconnect Scaling • Since transistor delay dt scales as , • And wire delay dw (w. scaled cross-section size) for a wire of length scales as RC ( /wt)( w/s) = 2/st 2/ = 2 , • Then to keep dw < dt (1 -cycle access) requires: 2 < 2 < / = < 3/2 • So wire length in units of transistor length t is / t < 3/2/ = 1/2 (down 6%/year) • So number of devices accessible within a constant × dt in 2 -D goes as ( 1/2)2 = , in 3 -D as ( 1/2)3 = 3/2. – Circuits must be increasingly local.

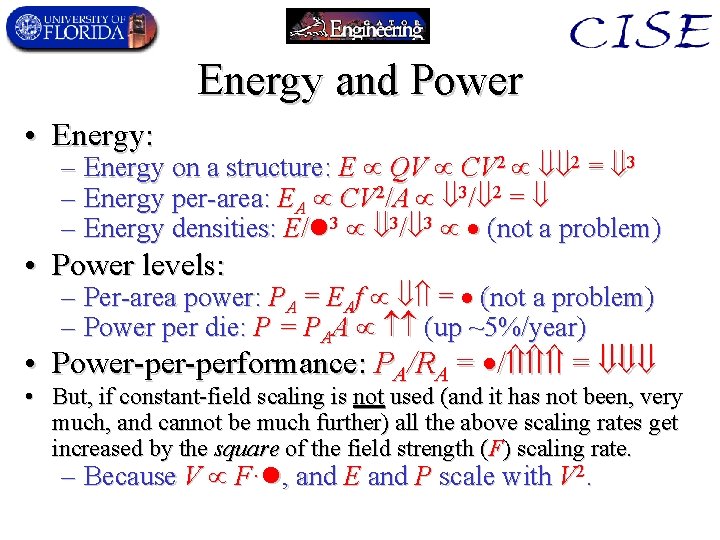

Energy and Power • Energy: – Energy on a structure: E QV CV 2 2 = 3 – Energy per-area: EA CV 2/A 3/ 2 = – Energy densities: E/ 3 3/ 3 (not a problem) • Power levels: – Per-area power: PA = EAf = (not a problem) – Power per die: P = PAA (up ~5%/year) • Power-performance: PA/RA = / = • But, if constant-field scaling is not used (and it has not been, very much, and cannot be much further) all the above scaling rates get increased by the square of the field strength (F) scaling rate. – Because V F· , and E and P scale with V 2.

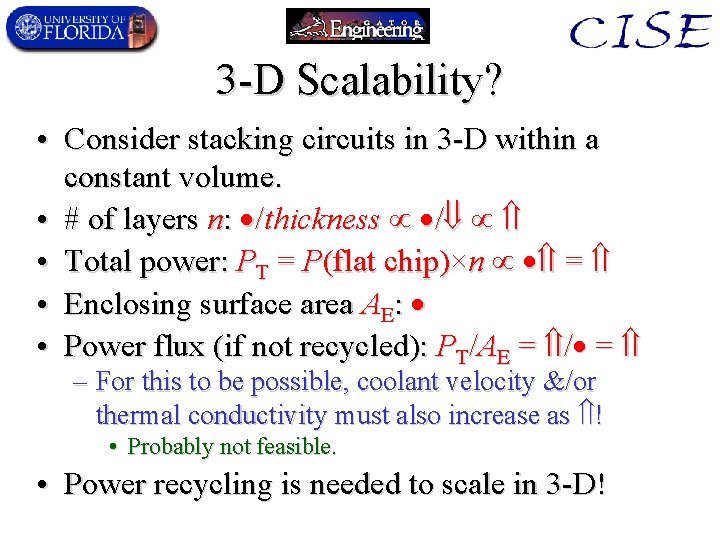

3 -D Scalability? • Consider stacking circuits in 3 -D within a constant volume. • # of layers n: /thickness / • Total power: PT = P(flat chip)×n = • Enclosing surface area AE: • Power flux (if not recycled): PT/AE = / = – For this to be possible, coolant velocity &/or thermal conductivity must also increase as ! • Probably not feasible. • Power recycling is needed to scale in 3 -D!

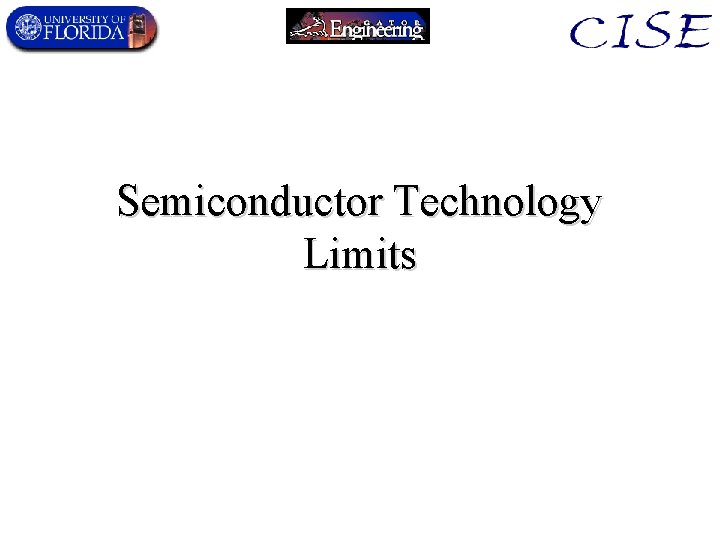

Semiconductor Technology Limits

Types of Limits • Meindl ‘ 95 identifies several kinds of limits on VLSI (from most to least fundamental): – Theoretical limits (focus on energy & delay) • • • Fundamental limits (such as we already discussed) Material limits (dependent on materials used) Device limits (dependent on structure & geometry) Circuit limits (dependent on circuit styles used) System limits (dependent on architecture & packaging) – Practical limits • Design limits • Manufacturing limits

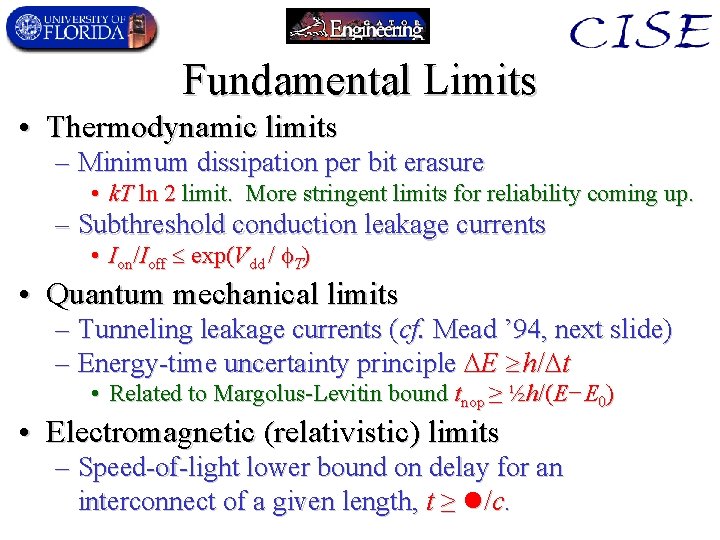

Fundamental Limits • Thermodynamic limits – Minimum dissipation per bit erasure • k. T ln 2 limit. More stringent limits for reliability coming up. – Subthreshold conduction leakage currents • Ion/Ioff exp(Vdd / T) • Quantum mechanical limits – Tunneling leakage currents (cf. Mead ’ 94, next slide) – Energy-time uncertainty principle E h/ t • Related to Margolus-Levitin bound tnop ≥ ½h/(E−E 0) • Electromagnetic (relativistic) limits – Speed-of-light lower bound on delay for an interconnect of a given length, t ≥ /c.

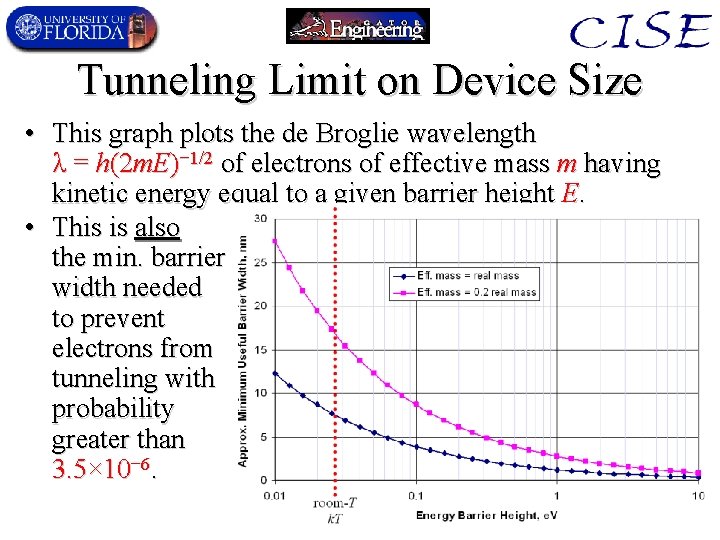

Tunneling Limit on Device Size • This graph plots the de Broglie wavelength λ = h(2 m. E)− 1/2 of electrons of effective mass m having kinetic energy equal to a given barrier height E. • This is also the min. barrier width needed to prevent electrons from tunneling with probability greater than 3. 5× 10− 6.

Material Limits • Carrier mobility (carrier velocity/field strength) – Affects carrier velocity, on-current, transition time – 6 x higher in Ga. As than in Si, but only at low field • Carrier saturation velocity (max velocity) – Nearly equal for Si and Ga. As. – Velocity maxes out @ ~100 nm/ps – Occurs @ ~1 -10 V/ m in Si (depends on doping) • Breakdown field strength Ec – 33% higher in Ga. As than Si • Thermal conductivity – next slide • Dielectric constants – slide after

Thermal Conductivity • For a given (device+heat-sink) structure, P K T – P - rate of heat removal (power) – K - thermal conductivity of materials used – T - how much hotter is device than its surroundings • K is 3 x lower in Ga. As than in Si – Implies that Ga. As is 3 x slower than Si when speed is limited by conductive cooling through substrate (often true)! • Highest known K: Diamond! – K = 2 m. W/ m·K, 14 times higher than Silicon! – Can be a semiconductor if Boron-doped, or an insulator if not. • Also has high mobility, high breakdown voltage, & good tolerance for high-temperature operation. – NTT recently demonstrated a diamond semiconductor capable of 81 GHz frequencies in analog applications. • Apollo Diamond in Massachusetts is developing a cheap manufacturing capability for single-crystal diamond wafers using CVD.

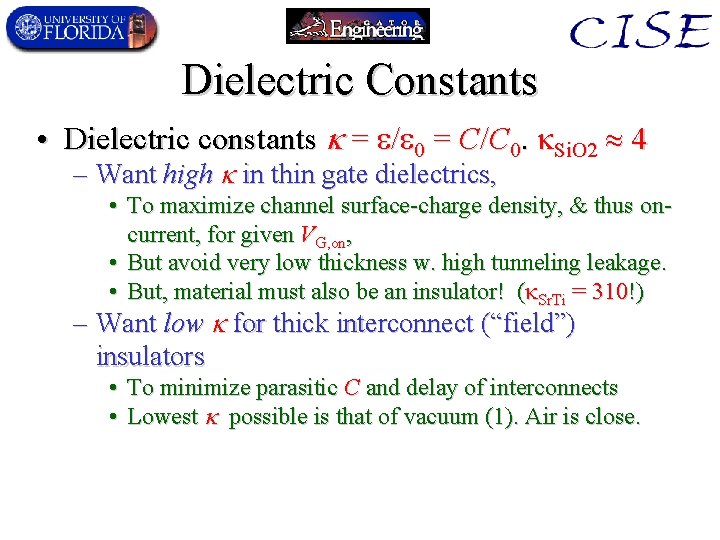

Dielectric Constants • Dielectric constants = / 0 = C/C 0. Si. O 2 4 – Want high in thin gate dielectrics, • To maximize channel surface-charge density, & thus oncurrent, for given VG, on, • But avoid very low thickness w. high tunneling leakage. • But, material must also be an insulator! ( Sr. Ti = 310!) – Want low for thick interconnect (“field”) insulators • • To minimize parasitic C and delay of interconnects Lowest possible is that of vacuum (1). Air is close.

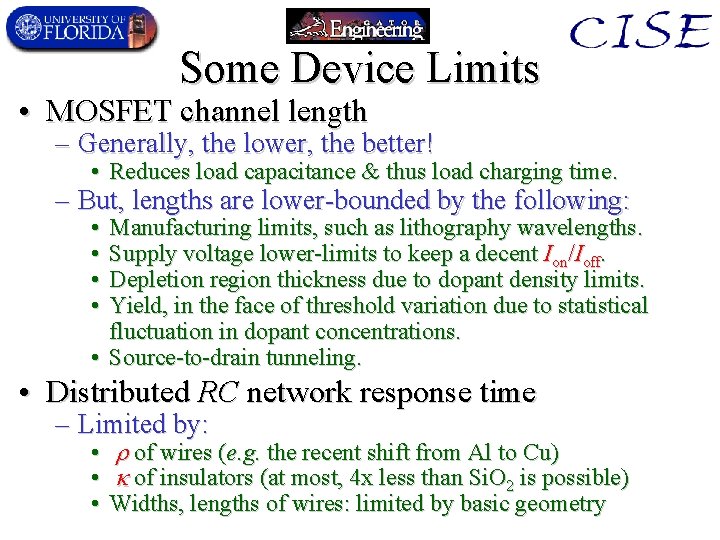

Some Device Limits • MOSFET channel length – Generally, the lower, the better! • Reduces load capacitance & thus load charging time. – But, lengths are lower-bounded by the following: • • Manufacturing limits, such as lithography wavelengths. Supply voltage lower-limits to keep a decent Ion/Ioff. Depletion region thickness due to dopant density limits. Yield, in the face of threshold variation due to statistical fluctuation in dopant concentrations. • Source-to-drain tunneling. • Distributed RC network response time – Limited by: • • • of wires (e. g. the recent shift from Al to Cu) of insulators (at most, 4 x less than Si. O 2 is possible) Widths, lengths of wires: limited by basic geometry

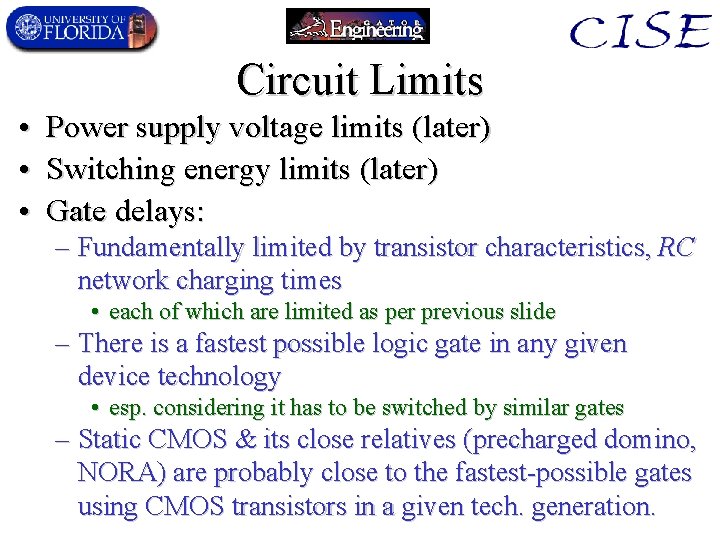

Circuit Limits • • • Power supply voltage limits (later) Switching energy limits (later) Gate delays: – Fundamentally limited by transistor characteristics, RC network charging times • each of which are limited as per previous slide – There is a fastest possible logic gate in any given device technology • esp. considering it has to be switched by similar gates – Static CMOS & its close relatives (precharged domino, NORA) are probably close to the fastest-possible gates using CMOS transistors in a given tech. generation.

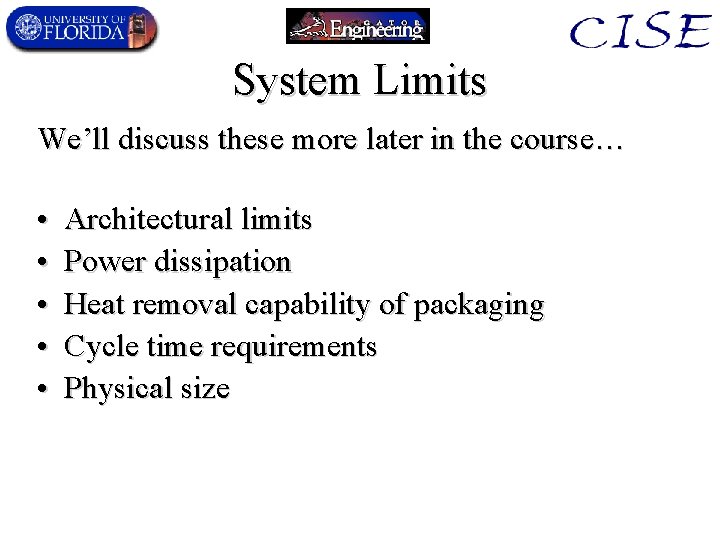

System Limits We’ll discuss these more later in the course… • • • Architectural limits Power dissipation Heat removal capability of packaging Cycle time requirements Physical size

Design & Design-Verification Limits • Increasing complexity (# of devices/chip) leads to continual new challenges in: – Design organization • modularity vs. efficiency – Automatic circuit synthesis & layout • circuit optimization – Design verification • • • layout-vs-schematic logic-level simulation analog (e. g. SPICE) modeling – Testing and design-for-testability • test coverage

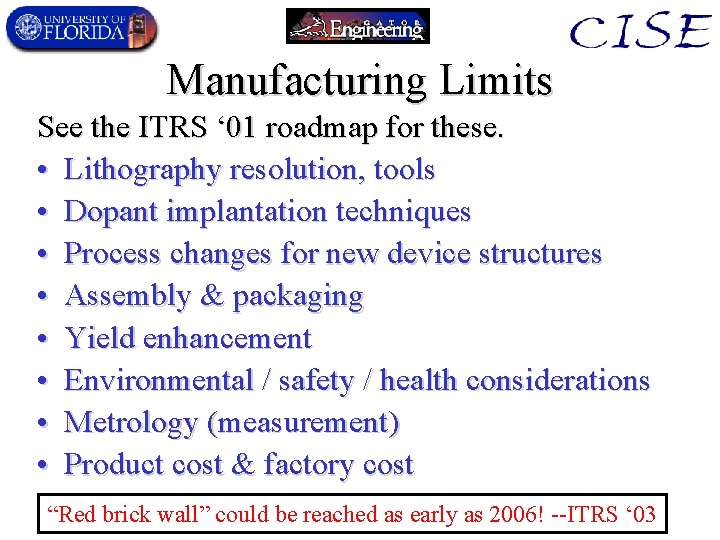

Manufacturing Limits See the ITRS ‘ 01 roadmap for these. • Lithography resolution, tools • Dopant implantation techniques • Process changes for new device structures • Assembly & packaging • Yield enhancement • Environmental / safety / health considerations • Metrology (measurement) • Product cost & factory cost “Red brick wall” could be reached as early as 2006! --ITRS ‘ 03

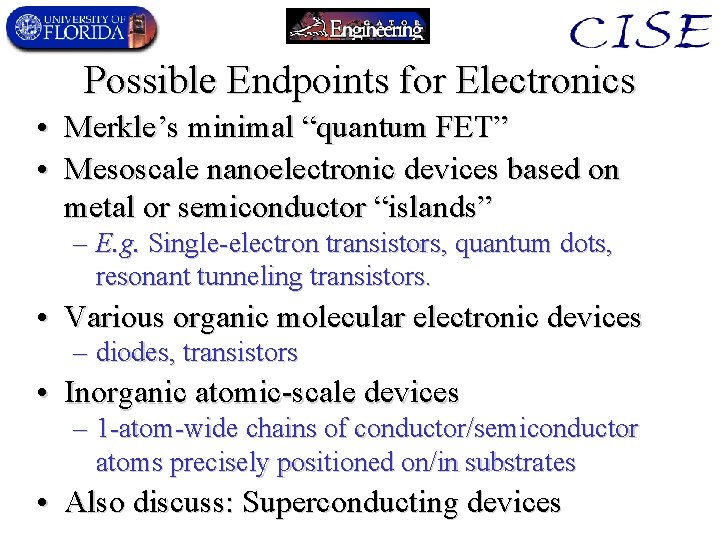

Possible Endpoints for Electronics • Merkle’s minimal “quantum FET” • Mesoscale nanoelectronic devices based on metal or semiconductor “islands” – E. g. Single-electron transistors, quantum dots, resonant tunneling transistors. • Various organic molecular electronic devices – diodes, transistors • Inorganic atomic-scale devices – 1 -atom-wide chains of conductor/semiconductor atoms precisely positioned on/in substrates • Also discuss: Superconducting devices

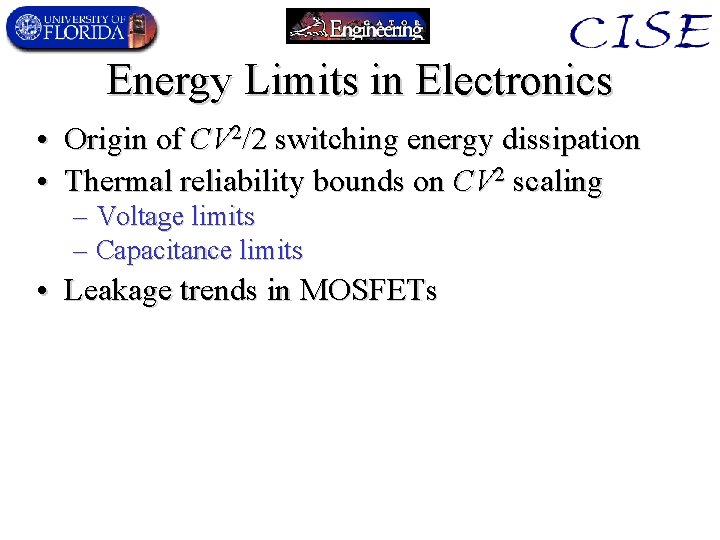

Energy Limits in Electronics • Origin of CV 2/2 switching energy dissipation • Thermal reliability bounds on CV 2 scaling – Voltage limits – Capacitance limits • Leakage trends in MOSFETs

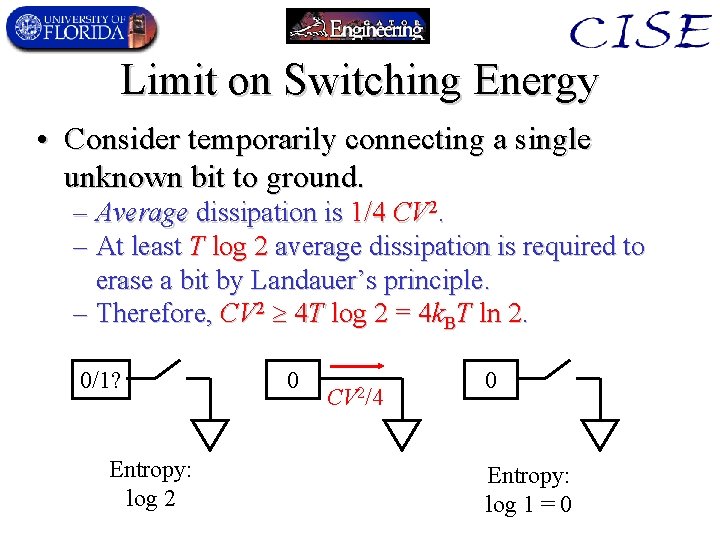

Limit on Switching Energy • Consider temporarily connecting a single unknown bit to ground. – Average dissipation is 1/4 CV 2. – At least T log 2 average dissipation is required to erase a bit by Landauer’s principle. – Therefore, CV 2 4 T log 2 = 4 k. BT ln 2. 0/1? Entropy: log 2 0 CV 2/4 0 Entropy: log 1 = 0

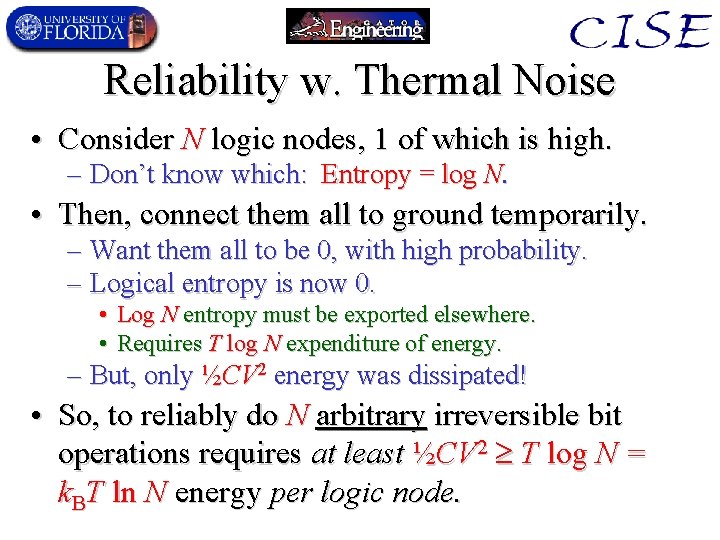

Reliability w. Thermal Noise • Consider N logic nodes, 1 of which is high. – Don’t know which: Entropy = log N. • Then, connect them all to ground temporarily. – Want them all to be 0, with high probability. – Logical entropy is now 0. • Log N entropy must be exported elsewhere. • Requires T log N expenditure of energy. – But, only ½CV 2 energy was dissipated! • So, to reliably do N arbitrary irreversible bit operations requires at least ½CV 2 T log N = k. BT ln N energy per logic node.

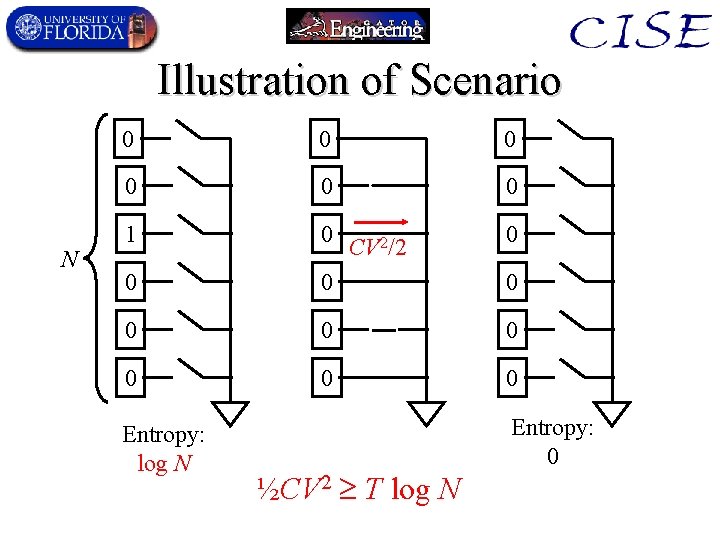

Illustration of Scenario N 0 0 0 1 0 0 0 0 0 Entropy: log N CV 2/2 ½CV 2 T log N 0 Entropy: 0

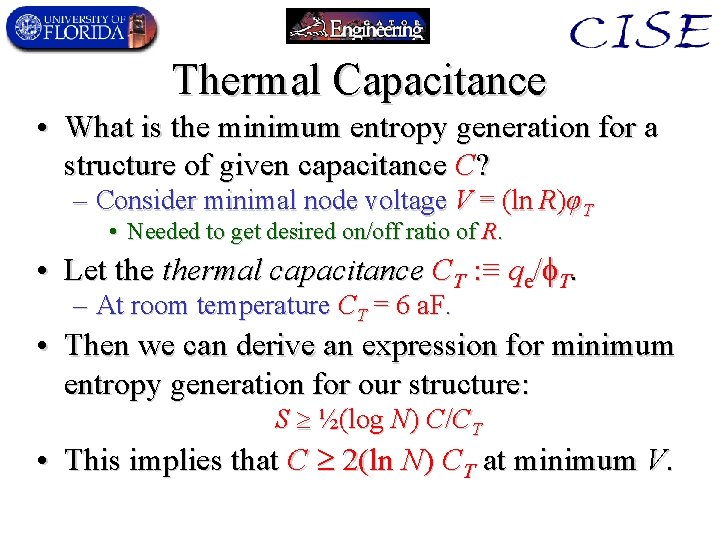

Thermal Capacitance • What is the minimum entropy generation for a structure of given capacitance C? – Consider minimal node voltage V = (ln R)φT • Needed to get desired on/off ratio of R. • Let thermal capacitance CT : ≡ qe/ T. – At room temperature CT = 6 a. F. • Then we can derive an expression for minimum entropy generation for our structure: S ½(log N) C/CT • This implies that C 2(ln N) CT at minimum V.

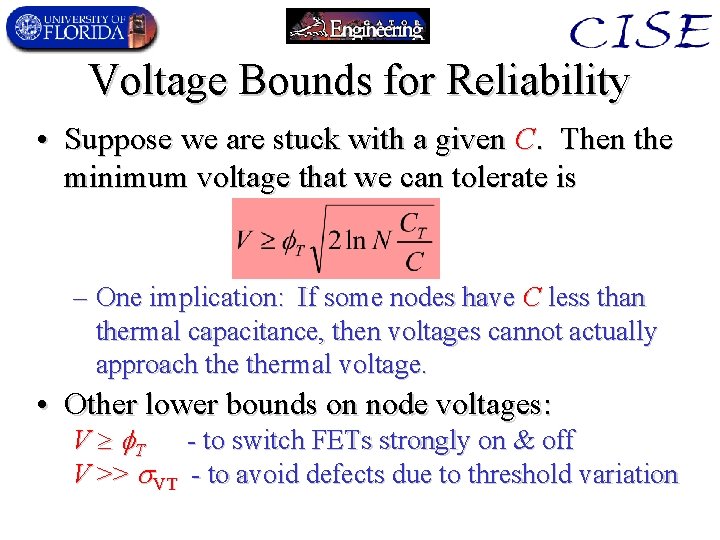

Voltage Bounds for Reliability • Suppose we are stuck with a given C. Then the minimum voltage that we can tolerate is – One implication: If some nodes have C less than thermal capacitance, then voltages cannot actually approach thermal voltage. • Other lower bounds on node voltages: V T - to switch FETs strongly on & off V >> VT - to avoid defects due to threshold variation

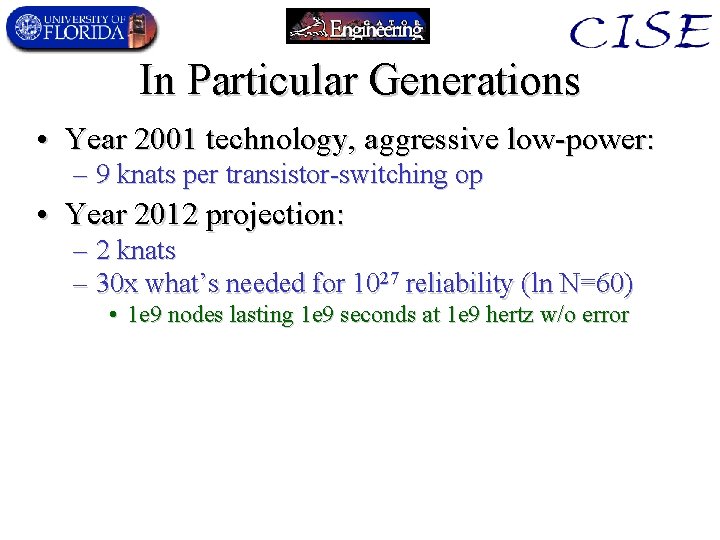

In Particular Generations • Year 2001 technology, aggressive low-power: – 9 knats per transistor-switching op • Year 2012 projection: – 2 knats – 30 x what’s needed for 1027 reliability (ln N=60) • 1 e 9 nodes lasting 1 e 9 seconds at 1 e 9 hertz w/o error
