Semester 1, 2018 -2019 Kristal-Mineral GS 1126 - 2 SKS teori by: DR. hill. gendoet hartono Selasa&Jumat-jam 07. 30 – 09. 10 & jam 09. 15 – 10. 55
SILABUS TGS 7113 KRISTALOGRAFI - MINERALOGI (2 SKS) Minggu III Minggu IV Minggu VIII PENDAHULUAN PENGENALAN KRISTAL SISTEM KRISTAL SIFAT/KARAKTERISTIK KRISTAL VS MINERAL PEMBENTUKAN & MODIFIKASI MINERAL Aspek Kimia PEMBENTUKAN & MODIFIKASI MINERAL Aspek Fisik UJIAN TENGAH SEMESTER

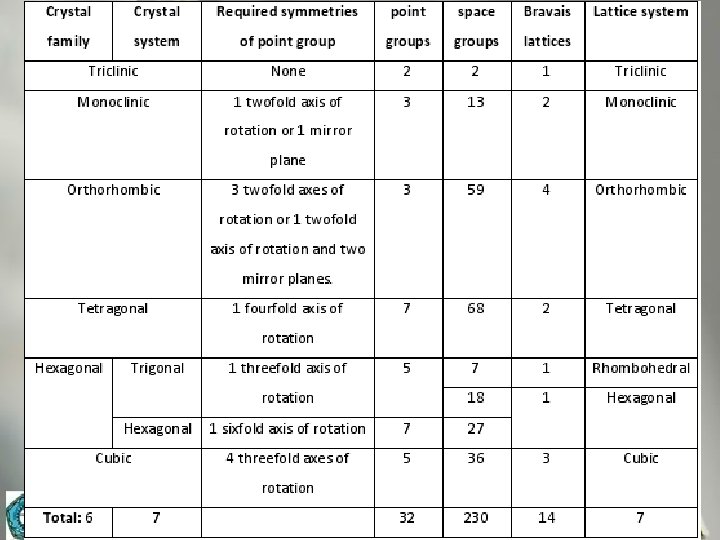

SISTEM KRISTAL 7 Sistem Kristal Pembagian utama dlm klasifikasi kristal-kristal menurut bentuknya : Kubik, Tetragonal, Hexagonal, Trigonal, Ortorombik, Monoklinik & Triklinik

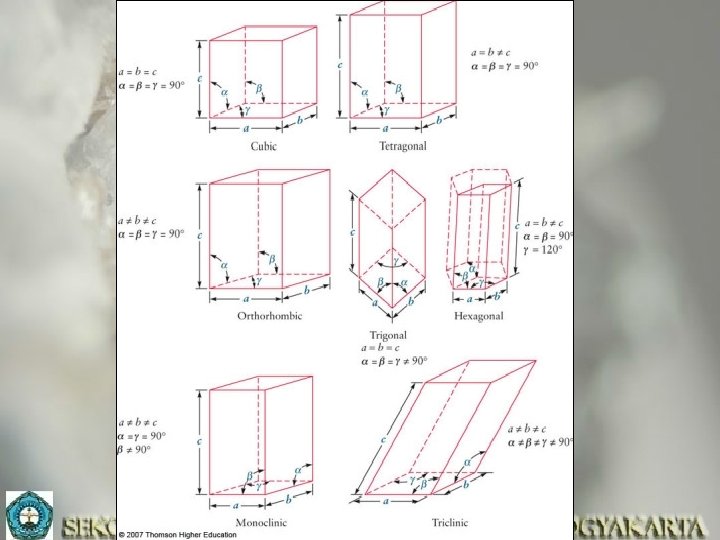

Dasar penggolongan sistem kristal : • Jumlah sumbu kristalografi v kristal bersumbu tiga dan empat • Letak atau posisi sumbu kristalografi v semua sumbu saling tegak lurus v salah satu sumbu tidak tegak lurus v ketiganya saling tegak lurus • Perbandingan panjang dari sumbu-sumbu kristalografi v tiga sumbu mempunyai parameter yang sama v dua sumbu parameternya sama dan satu diantaranya berbeda § Nilai sumbu c atau sumbu vertikal Sumbu Kristal : garis bayangan, lurus, yg menembus kristal (bidang-bidang muka kristal) dan melalui pusat kristal
Crystal System (Shape) • Different minerals have different crystal shapes
c+ a- b- b+ a+ c- • 3 sumbu saling tegak lurus a┴b; b┴c; c┴a a=b=c • sumbu a+ dibuat 30 o terhadap b • parameter a dibuat 1/3 b (b = c = 3 a)
Mineral Identification Basics • ISOMETRIC CRYSTALS a 3 ISOMETRIC a 2 In this crystal system there are 3 axes. Each has the same length (as indicated by the same letter “a”). They all meet at mutual 90 o angles in the center of the crystal. a 1 ISOMETRIC Basic Cube Crystals in this system are typically blocky or ball-like.
Cara Menggambar: Ð a- / b+ = 300 a : b¯: c = 1 : 3
Mineral Identification Basics • ISOMETRIC CRYSTALS Within this ISOMETRIC crystal model is the OCTAHEDRAL crystal form (yellow) and the TETRAHEDRAL crystal form (shown by the black lines). ISOMETRIC Crystal Model
Mineral Identification Basics • ISOMETRIC CRYSTALS a 3 a 2 a 1 ISOMETRIC - Basic Cube Fluorite cube with crystal axes

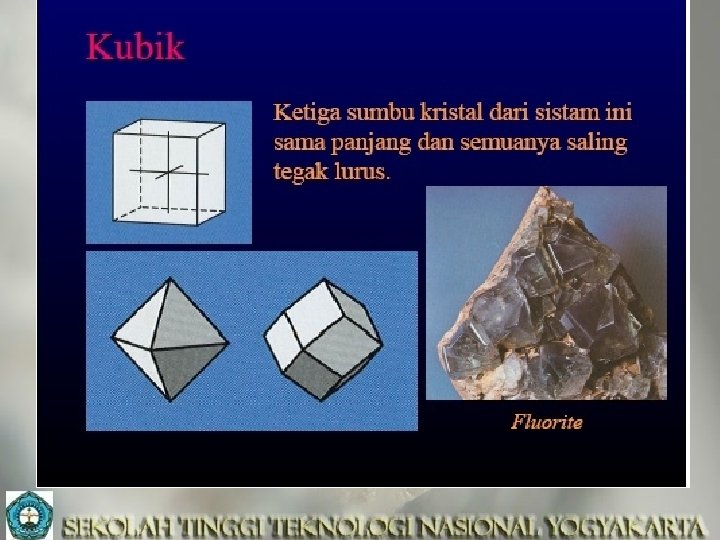

Mineral Identification Basics • ISOMETRIC BASIC CRYSTAL SHAPES Spinel Octahedron Garnet Trapezohedron Fluorite Cube Garnet - Dodecahedron Pyrite Cube with Pyritohedron Striations
Sistem Tetragonal • Mempunyai 3 sumbu kristal yg tegak lurus a b c • a = b sama c berlainan • kadang ditulis: • a 1=a 2 c 17
Cara menggambar: Ð a + / b-- = 30 o a: b: c=1: 3: 6

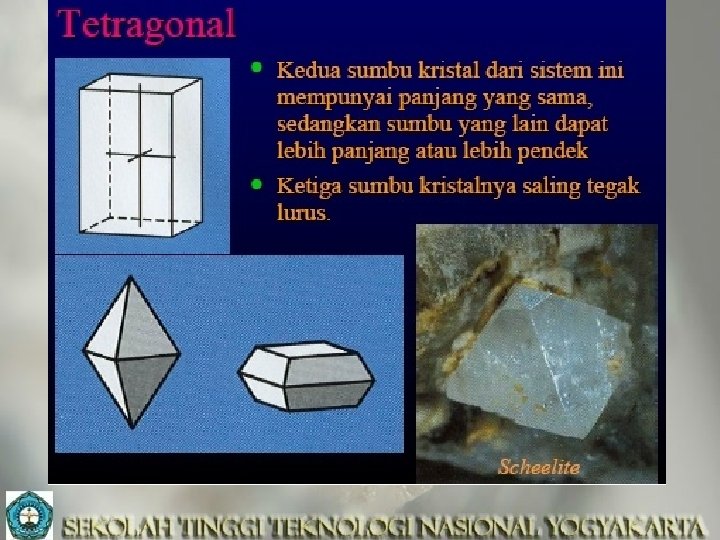

Mineral Identification Basics • TETRAGONAL CRYSTALS TETRAGONAL c Two equal, horizontal, mutually perpendicular axes (a 1, a 2) a 1 a 2 Vertical axis (c) is perpendicular to the horizontal axes and is of a different length. c TETRAGONAL Crystal Axes a 1 a 2 This is an Alternative Crystal Axes
Mineral Identification Basics • TETRAGONAL CRYSTALS TETRAGONAL This model shows a tetragonal PRISM enclosing a DIPYRAMID. TETRAGONAL Crystal Model
Mineral Identification Basics • TETRAGONAL CRYSTALS WULFENITE Same crystal seen edge on.
Mineral Identification Basics • TETRAGONAL CRYSTALS This is the same Apophyllite crystal looking down the “c” axis. APOPHYLLITE on Stilbite The red square shows the position of the pinacoid (perpendicular to the “c” axis).
