SEMANTIC WEB Realizing What Semantic Web Can Be

SEMANTIC WEB “Realizing What Semantic Web Can Be……. ” By, Anup Patel (07305042) Tanmay Mande (07305051) Sapan Shah (07305061) Nilesh Padariya (07305064)

2020 And Beyond ……. . Middle Agent Prafful’s Agent Contacts A Middle Agent to find out some hospital in powai New Powai Hospital having a recently admitted Phone: had Agent: “Your wife is “Yourat meeting is patient named Gita. Agent: an accident she is know admitted Prafful: “I still. New don’t re-scheduled to Prafful: “Isome “Ishould have admitted Powai Hospital Ward where is at she admitted Prafful’s Agent Negotiates With tomorrow 5: 00 PM” inform a. No. meeting my agent with hospital in…. powai …” use 9” in powai I should Boss’s Agent and re-schedule to myreschedule boss and I my agent …. ” meeting to tomorrow. ammeeting” late ……. ”

Motivation � Original driver: Automation - Make information on the Web more “machine-friendly” - Origins of the Semantic Web are in web metadata � Short term goal: Interoperability - Combining information from multiple sources - Web Services: discovery, composition � Long term goal: “Departure from the Tool Paradigm” - instead of using computers like tools, make them work on our behalf - removing humans from the loop to the extent possible

Roadmap 1. 2. 3. 4. 5. 6. 7. 8. 9. Introduction to Semantic Web Knowledge Representation Agents in Semantic Web Multi-Agent System Communication Agent Communication Language SPARQL Status of Semantic Web Conclusion Bibliography

1. Semantic Web The Semantic Web is an evolving extension of the World Wide Web in which web content can be expressed not only in natural language, but also in a format that can be read and used by software agents, thus permitting them to find, share and integrate information more easily. -- Wikipedia

1. 1 Semantic Web Architecture Trustworthiness Reasoning Knowledge Sharing Knowledge Representation

1. 2 Tree of Knowledge Technologies Semantic Technology Languages AI Knowledge Representation Content Management Languages Process Knowledge Languages Software Modeling Languages

2. Ontologies in Semantic Web � What? . . Is an ontology � Why? . . Do we need ontology � How? . . Do we use ontology

2. 1 What? � Ontology is a term borrowed from philosophy that refers to the science of describing the kinds of entities in the world and how they are related. � An ontology is explicit specification of conceptualization � An ontology defines the terms used to describe and represent an area of knowledge � Ontology provides the to be used in a knowledge domain

2. 2 Why? Does Web today understand information? � No � Can we make it understand the information? � Yes. . First provide vocabulary!! �

2. 3 How? � Web Ontology Language (owl) � Goal is to provide machine-readable descriptions of the content and capabilities of Web accessible resources � Ontology may include descriptions of classes, properties and their instances. � Given such an ontology, the OWL formal semantics specifies how to derive its logical consequences, i. e. facts not literally present in the ontology, but entailed by the semantics.

2. 4 OWL constructs � Classes: <owl: Class rdf: ID=“man"> <rdfs: sub. Class. Of rdf: resource="#human" /> </owl: Class> � Properties: � Datatype properties: relates objects to datatype values � Object Properties: relates objects to objects � Example: <owl: Object. Property rdf: ID=“is. Father. Of"> <rdfs: domain rdf: resource="#man"/> <rdfs: range rdf: resource="#man"/> </owl: Object. Property> .

2. 4 OWL constructs (Contd. ) � Property Restrictions: used when one requires to put some constraints � Example: <owl: Restriction> <owl: on. Property rdf: resource="#is. Father. Of"/> <owl: max. Cardinality rdf: datatype="&xsd; non. Negative. Integer"> 1 </owl: max. Cardinality> </owl: Restriction> � Possible Use: A ‘is father of’ X & B ‘is father of’ X ‘A = B’

2. 5 Example � Interested in Buying a Ticket? � Scenario: I am interested in buying a ticket. � start_point: Mumbai � end_point: Delhi � date_of_journey: xxx � I launch my personal "Web agent" which crawls the Web looking for Web sites that can fulfill my request � Assume that there exists an OWL ‘Travel’ Ontology, which the Web agent can "consult" upon its travels across the Web.

2. 6 Example (Contd. ) The Web Agent finds this document at a Web site: <Travel. Agent rdf: ID=“Travel. Easy" xmlns: rdf="http: //www. w 3. org/1999/02/22 -rdf-syntax-ns#"> <location>Mumbai</location> <phone>9911224455</phone> <catalog rdf: parse. Type="Collection"> <air. Ticket rdf: ID=“Air. India“ xmlns="http: //www. air_india. org#"> <source> Mumbai </source> <destination> Delhi </destination> <date> xxx </date> Is it relevant ? <cost rdf: parse. Type="Resource"> <rdf: value>3250</rdf: value> <currency>Rs</currency> </cost> </air. Ticket> </catalog> </Travel. Agent>

2. 6 Example (Contd. ) � Is there a match ? � To answer this question, following questions must be answered: � Is there a match between air. Ticket and ticket? � Is there a match between start-point and source? � Is there a match between end-point and destination?

2. 6 Example (Contd. ) Relationship between ticket and air. Ticket? The Web agent "consults" the OWL travel Ontology. This OWL statement tells the Web agent that a air. Ticket is a type of ticket: <owl: Class rdf: ID=“air. Ticket"> <rdfs: sub. Class. Of rdf: resource="#ticket"/> </owl: Class> <Travel. Agent rdf: ID=“Travel. Easy" <air. Ticket> … </air. Ticket> </Travel. Agent> Travel. Agent. xml "Relationship between ticket and air. Ticket? " Web Agent “air. Ticket is a type of ticket. " <owl: Class rdf: ID=“air. Ticket"> <rdfs: sub. Class. Of rdf: resource="#ticket"/> </owl: Class> Travel. owl

2. 6 Example (Contd. ) Relationship between start-point and source? This OWL statement tells the Web agent that Start-point is equivalent to source: <owl: Datatype. Property rdf: ID=“start-point"> <owl: equivalent. Property rdf: resource="#source"/> <rdfs: domain rdf: resource="#place"/> <rdfs: range rdf: resource="&xsd; #airplane"/> </owl: Datatype. Property> start-point is synonymous with source.

2. 6 Example (Contd. ) Relationship between date and date_of_journey? This OWL statement tells the Web agent that date is equivalent to date_of_journey: <owl: Datatype. Property rdf: ID=“date"> <owl: equivalent. Property rdf: resource="#date_of_journey"/> <rdfs: domain rdf: resource="#airplane"/> <rdfs: range rdf: resource="&xsd; #Date"/> </owl: Datatype. Property>

2. 6 Example (Contd. ) The Web agent now recognizes that the XML document it found at the Web site Is talking about tickets It does show the start-point and end-point It does show a date Values are matching Thus, the Web agent recognizes that the XML document is a match!

3. Agents in Semantic Web � Agent in AI is any thing that can be viewed as perceiving its environment through sensors and acting upon that environment through effectors, showing a rational behavior. E. g. A human agent has eyes, ears and other organs as as sensors, and hands, legs, mouth, and other body parts for effectors. � Agent = Architecture + Program. � Semantic Web Agents are agents in the web environment.

3. 1 Agent Definition � The definition of agents has not been agreed upon universally but, we can have some good characteristic of such agents, which are : - Autonomy - Reasoning Ability - Learning Ability - Mobility - Sociability - Cooperation - Negotiation

3. 1 Agent Definition (Contd. . ) � From semantic web point of view agents can be thought of as intelligent software program that host a collection of web services. � Unlike standard Web Services, an agent can reason about: - How to handle external request ? - Order in which to carry out the request ?

3. 2 Multi-Agent System (MAS) � MAS is distributed system which incorporates more than one independent agents. � The collection of agents interact, and solve problems that are outside their individual capacities. � Agents in MAS display a dual behavior: on the one hand they are goal directed programs that autonomously solve problems and on the other hand have a social dimension when they interoperate as part of MAS. � Semantic web in future will be one large MAS containing millions of agents communicating with each other.

3. 2 Multi-Agent System (Contd. ) � Ontologies in MAS provide agents : - The basic representation that allows them to reason about interactions with other agents. - Shared knowledge that they can use to communicate and work together. � In general we can distinguish between Private Ontologies that allow the agent to organize its own problem solving and reasoning, and Public Ontologies that the agent shares with the rest of the agents in the MAS. � Private ontologies are used to represent Private Knowledge whereas, public ontologies are used to represent Public Knowledge of an semantic web agent.

3. 2 Multi-Agent System (Contd. ) � Example to illustrate use of private and public knowledge. Private Knowledge Public Knowledge

4. MAS Communication � In MAS communication we are effectively seeking to mimic the process of (verbal) communication between humans, which by itself is very ambitious task. � At the lowest level, there are two main techniques that facilitate communication: - Message Passing: The agents communicate by the direct exchange of messages that encapsulate knowledge. - Shared State: The Agents communicate by asserting and retracting facts in a shared knowledge base. � The web uses a message passing approach (TCP + UDP) so, semantic web communication also have based on message passing approach (HTTP + XML).

4. MAS Communication (Contd. ) � For communication on semantic web some issues must be promptly addressed, like: - Automatic discovery of agents. - Effectively manage the shared knowledge. - It must be coordinated, correct, and robust to failure. � To solve the problem of automatic discovery of agents we have Middle-Agent architectures. � To solve the problem of managing shared knowledge we have network architectures.

4. 1 Middle Agent Architecture � Middle-agents assist in locating service providers, and connecting service providers with service requesters. � A variety of middle agent types based on privacy considerations of service providers capabilities and requesters preferences are possible. � Middle Agent Architectures are techniques to solve problem of automated discovery of agents in MAS.

4. 1 Middle Agent Architecture (Contd. ) � Two important types of middle-agent have been identified. � Service Matchmaker: The Matchmaker serves as a "yellow pages" of agent capabilities, matching service providers with service requestors based on agent capability descriptions. The Matchmaker system allows agents to find each other by providing a mechanism for registering each agent's capabilities. For each query it searches its dynamic database of "advertisements" for a registered agent that can fulfill the incoming request.

4. 1 Middle Agent Architecture (Contd. ) Service Matchmaker

4. 1 Middle Agent Architecture (Contd. ) � Service Broker: Service Broker is similar to matchmaker, but also processes the requests. Service Broker

4. 1 Middle Agent Architecture (Contd. ) � A variety of middle agent types based on privacy considerations of service providers capabilities and requesters preferences are possible. Capabilities Initially Known By Preferences Initially Known By Provider Only Provider & Middle Agent & Requestor Only Broadcaster “Front-Agent” Matchmaker / Yellow Pages Requestor & Middle Agent Anonymizer Broker Personal Assistant / Recommender Requestor & Middle Agent & Provider Blackboard Introducer / “Bodyguard” Arbitrator

4. 2 Network Architecture � Network Architectures so far, mainly assumed some kind of centralized client/server architecture. But Service Oriented Architectures can equally well be decentralized. � Network Architectures are techniques to effectively store and retrieve shared knowledge of all agents in MAS. � We can three types of architectures possible here: - Centralized (Client-Server) - Decentralized (Peer-to-Peer) - Hybrid (Client-Server and Peer-to-Peer)

4. 2 Network Architecture (Contd. ) � Centralized (Client-Server):

4. 2 Network Architecture (Contd. ) � In Client-Server system, a centralized server is used to manage the shared resources. � Servers works as central repository of the shared resources or the shared knowledge. � It is very easy to adapt current knowledge representation like owl and rdf for client-server system. � There are hard limits to number of clients that can be served from a single server or a cluster of servers. This limits are primarily a function of available network bandwidth.

4. 2 Network Architecture (Contd. ) � Decentralized (Peer-to-Peer):

4. 2 Network Architecture (Contd. ) � P 2 P is a self-organizing system of equal, autonomous entities (peers) which aims for the shared usage of distributed resources in a networked environment avoiding central services. � Peers interact directly with each other, usually without central coordination. Each peer has autonomy over its own resources. � Peers can act as both clients and servers; i. e. , no intrinsic asymmetry of role. � The network saturation problem does not occur to decentralized P 2 P network.

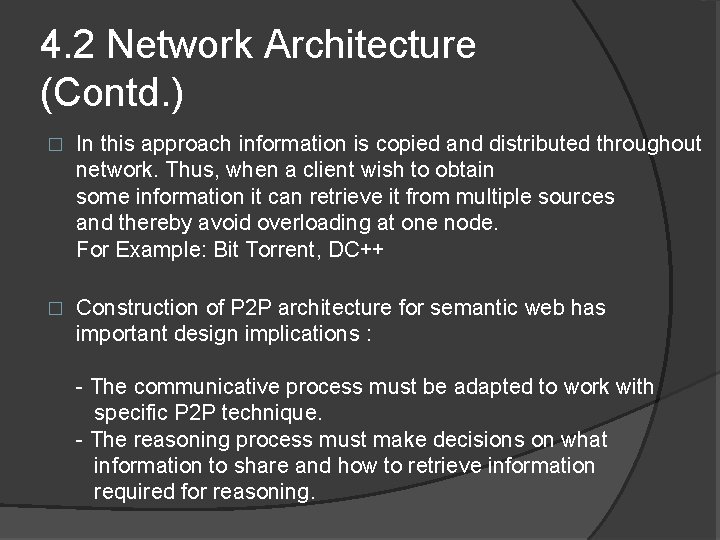

4. 2 Network Architecture (Contd. ) � In this approach information is copied and distributed throughout network. Thus, when a client wish to obtain some information it can retrieve it from multiple sources and thereby avoid overloading at one node. For Example: Bit Torrent, DC++ � Construction of P 2 P architecture for semantic web has important design implications : - The communicative process must be adapted to work with specific P 2 P technique. - The reasoning process must make decisions on what information to share and how to retrieve information required for reasoning.

4. 2 Network Architecture (Contd. ) � Hybrid (Client-Server and Peer-to-Peer):

5. Agent Communication Language � Abbreviated as ‘ACL’ for short. � In agent communication our source of inspiration in human communication. � We try to mimic human communication in ACL. � The foundation of ACL lies in the Speech Act Theory.

5. 1 Speech Act � Proposed by John Austin extended by John Searle. � How language is used by people everyday to achieve their goals and intentions. � Certain natural language utterances have the characteristics of physical actions. � Certain performative verbs in speech act changes the state of the world like physical actions.

5. 2 Types of Speech Acts � Representative: which commits the speaker to the truth of what is being asserted. e. g. inform � Directive: attempts to get the hearer to do something e. g. , ‘please make the tea’ � Commisives: which commit the speaker for doing something, e. g. , ‘I promise to…’ � Expressive: whereby a speaker expresses a mental state, e. g. , ‘thank you!’ � Declarative: effect some change on the state of affairs. e. g. declaring war.

5. 3 Components of Speech Act � In general Two Components: – Performative Verb (e. g. , request, inform, promise, … ) – Propositional Content (e. g. , “the door is closed”) � More Examples: performative = request content = “the door is closed” speech act = “please close the door” performative = inquire content = “the door is closed” speech act = “is the door closed ? ”

5. 4 ACL Examples � Communication is performed by exchanging messages where each message has an associated performativemessage types. � Agent Communication Languages define common sets of performatives. � Two Popular ACLs - KQML - FIPA-ACL.

5. 5 FIPA-ACL Performative Ontology

5. 6 Basic Problem of FIPA-ACL � Semantics Verification Problem Sincerity Assumption – agent always acts in accordance with their intentions. � Too restrictive in open environment – web. � Despite these FIPA-ACL remained popular - e. g. JADE multi agent platform – performatives are used to facilitate the exchange of message but compliance with formal model is not enforce.

5. 7 Dialogue � Communication rarely consists of a single act of speech in isolation. � It typically consists of sequence of messages exchanges between participants such as Conversation. � This type of communication is termed as Dialogue.

5. 8 Categories of Dialogues

5. 9 Dialogue frames � Key construct – Dialogue Type identifies dialogue type & kind of values over which it operates. � Different Dialogues can take different kind of values. e. g. Beliefs, Contract, Plans � Frame F is a tuple with four elements ( T, V , t, U) T = Dialogue Type V = Value over which the dialogue operates t = Topic of the Dialogue U = list of utterances which define the actual dialogue steps between the participants x & y e. g. {U}

5. 10 Protocols in FIPA-ACL � It refers to the stereotyped pattern of conversation between the agents. � The protocols are generally pre-specified by the agent designer & agents needs to discover which protocols to follow during Dialogue. � Choice of protocols to be followed can be negotiated by the agents. � In FIPA-ACL the convention is to put the name of the protocol in the : protocol parameter of the message.

5. 11 FIPA-Query-Protocol

5. 12 ACL in MAS � Reduce the complexity to pair wise interaction between agents. Has limitations in terms of multicast & broadcast communication. � As the size of the MAS increases, the ability to communicate reliably deteriorates. MAS operating over web has to face some basic problems such as delay in message passing, messages may be lost. So Asynchronous agents are required. � An open MAS is designed to enable interoperability between agents from many different sources. These may introduce problems like malicious, untrustworthy agents.

6. SPARQL � Simple Protocol And Rdf Query Language � SPARQL = Query Language + Protocol + XML Results Format � It’s a Query language for RDF Data, and it involves: - Basic graph pattern matching. - No inference in the query language itself. � As a Protocol it uses: - HTTP binding - SOAP binding � XML Results Format are: - Easy to transform (XSLT, XQuery)

6. 1 It’s Turtles all the way down Turtle (Terse RDF Triple Language ): − An RDF serialization − Triple representation of <Subject, Predicate, Object> <http: //xmlns. com/foaf. 0. 1/name> “Nilesh” −<http: //example/person/A> Human-friendly alternative to RDF/XML Blank Node @prefix person: <http: //example/person/>. @prefix foaf: <http: //xmlns. com/foaf/0. 1/>. person: A foaf: name “Nilesh". person: A foaf: mbox <mailto: nileshsp@example. net>. ------person: B foaf: name “Sapan". | name | _: b foaf: name “Vishal". _: b foaf: mbox <mailto: vishalv@example. org> ====. | “Nilesh” | | ”Sapan”| A "hello world" of queries | ”Vishal” | SELECT ? name ------WHERE { ? x foaf: name ? name }

6. 2 Matching RDF Literals @prefix dt: <http: //example. org/datatype#>. @prefix ns: <http: //example. org/ns#>. @prefix xsd: <http: //www. w 3. org/2001/XMLSchema#>. ---------------------| v | ===== -----------------========== -----------------| V | |http: //example. org/ns#x | SELECT ? v WHERE { ? v ? p "cat" } | V | ========== -----------------========== |http: //example. org/ns#z | SELECT ? v WHERE { ? v ? p "cat“@en } |http: //example. org/ns#y | ---------------------------------SELECT ? v WHERE { ? v ? p 42 } : x ns: p "cat"@en. : y ns: p "42"^^xsd: integer. : z ns: p "abc"^^dt: special. Datatype. SELECT ? v WHERE { ? v ? p "abc"^^<http: //example. org/datatype#special. Datatype> }

6. 3 Filter @prefix dc: <http: //purl. org/dc/elements/1. 1/>. @prefix stock: <http: //example. org/stock#>. @prefix inv: <http: //example. org/inventory#>. stock: book 1 dc: title "SPARQL Query Language Tutorial". stock: book 1 dc: edition “First” ----------------------------------stock: book 1 inv: price| book 10. | title | stock: book 1 inv: quantity 3. ==================== stock: book 2 dc: title "SPARQL Query Language (2 nd Language ed)". | stock: book 1 | "SPARQL Query Tutorial" stock: book 2 inv: price| 20 ; inv: quantity 5. stock: book 3 dc: title "Applying XQuery“; dc: edition “Second”. ----------------------------------stock: book 3 inv: price 20 ; inv: quantity 8. PREFIX dc: <http: //purl. org/dc/elements/1. 1/> PREFIX stock: <http: //example. org/stock#> PREFIX inv: <http: //example. org/inventory#> SELECT ? book ? title WHERE { ? book dc: title ? title. ? book inv: price ? price. FILTER ( ? price < 15 ) ? book inv: quantity ? num. FILTER ( ? num > 0 ) }

6. 4 Other Solution Modifiers PREFIX dc: <http: //purl. org/dc/elements/1. 1/> SELECT ? title ? edition { ? x dc: title ? title. OPTIONAL {? x dc: edition ? edition } } PREFIX foaf: <http: //xmlns. com/foaf/0. 1/> SELECT ? name WHERE { ? x foaf: name ? name } ORDER BY ? name PREFIX foaf: <http: //xmlns. com/foaf/0. 1/> SELECT DISTINCT ? name WHERE { ? x foaf: name ? name } ORDER BY ? name LIMIT 5 OFFSET 10

6. 5 CONSTRUCT @prefix foaf: <http: //xmlns. com/foaf/0. 1/>. _: a foaf: givenname "Alice". _: a foaf: family_name "Hacker". _: b foaf: firstname "Bob". _: b foaf: surname "Hacker". PREFIX foaf: <http: //xmlns. com/foaf/0. 1/> PREFIX vcard: <http: //www. w 3. org/2001/vcard-rdf/3. 0#> CONSTRUCT { ? x vcard: N _: v vcard: given. Name ? gname. _: v vcard: family. Name ? fname } WHERE { { ? x foaf: firstname ? gname } UNION { ? x foaf: givenname ? gname }. { ? x foaf: surname ? fname } UNION { ? x foaf: family_name ? fname }. } @prefix vcard: <http: //www. w 3. org/2001/vcard-rdf/3. 0#>. _: v 1 vcard: N _: x vcard: given. Name "Alice". _: x vcard: family. Name "Hacker". _: v 2 vcard: N _: z vcard: given. Name "Bob". _: z vcard: family. Name "Hacker".

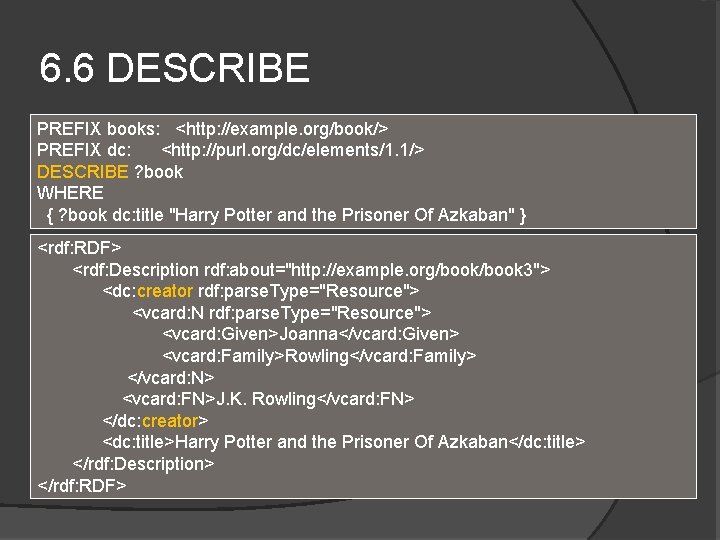

6. 6 DESCRIBE PREFIX books: <http: //example. org/book/> PREFIX dc: <http: //purl. org/dc/elements/1. 1/> DESCRIBE ? book WHERE { ? book dc: title "Harry Potter and the Prisoner Of Azkaban" } <rdf: RDF> <rdf: Description rdf: about="http: //example. org/book 3"> <dc: creator rdf: parse. Type="Resource"> <vcard: N rdf: parse. Type="Resource"> <vcard: Given>Joanna</vcard: Given> <vcard: Family>Rowling</vcard: Family> </vcard: N> <vcard: FN>J. K. Rowling</vcard: FN> </dc: creator> <dc: title>Harry Potter and the Prisoner Of Azkaban</dc: title> </rdf: Description> </rdf: RDF>

6. 7 XML Result Set ------------------------------------| name | mbox | ===================== | "Johnny Lee Outlaw" | <mailto: jlow@example. com> | | | <mailto: peter@example. org> | ------------------------------------<sparql xmlns="http: //www. w 3. org/2005/sparql-results#"> <head> <variable name=“name"/> <variable name=“mbox"/> </head> <results ordered="false" distinct="false"> <result> <binding name=“name"><literal>Johnny Lee Outlaw</literal></binding> <binding name=“mbox"><uri>mailto: jlow@example. com</uri></binding> </result> <binding name="mbox"><uri>mailto: peter@example. org</uri></binding> </results> </sparql>

6. 8 ASK @prefix foaf: <http: //xmlns. com/foaf/0. 1/>. _: a foaf: name "Alice". _: a foaf: homepage <http: //work. example. org/alice/>. _: b foaf: name "Bob". _: b foaf: mbox <mailto: bob@work. example>. Yes PREFIX foaf: <http: //xmlns. com/foaf/0. 1/> ASK { ? x foaf: name "Alice" } <? xml version="1. 0"? > <sparql xmlns="http: //www. w 3. org/2005/sparql-results#"> <head> </head> <results> <boolean>true</boolean> </results> </sparql>

6. 9 More Features � RDF Dataset - Collection of RDF Graphs - use FROM <http: //planetrdf. com/bloggers. rdf> & FROM NAMED <http: //site 1. example. com/foo. rdf> � Inbuilt functions for testing values - Is. Literal - Is. Blank - str - regex

6. 10 Limitation of SPARQL � No nested queries � No Insert, Update, Delete queries � No aggregation functions

7. Semantic Web Status Semantic Web Layer Communication XML SOAP, XML-RPC RDF SPARQL Standard ? Applications YES - Used for interoperability Within application. - Web services. YES - To and from converter and many editors - Over 107 RDF Documents - FOAF, DOAP, Dublin Core, Music Ontology, etc are some famous ontology OWLQL NO Rules / Queries SWRL YES Logic & Proof DIG NO - Jena, Racer, and Pellet are some of the projects Trust Tri. QL. P NO ? ? ? ?

8. Conclusion Knowledge representation is very well developed in semantic web. � Agent communication is still an active area of research, though we have standardized language like SPARQL, still lot of research is required in applying languages like FIPA-ACL to semantic web. � Semantic web trust still remains the least explored of all the layers of semantic web. Named graphs laid an important foundation in this area. � All in all semantic web is still a research field in academia �

9. Bibliography � Introduction - http: //www. wikipedia. org/Semantic_Web - http: //www. cs. cmu. edu/%7 Esoftagents/middle. html - Agency and Semantic Web, By Christopher Walton, Oxford Press. - Explorers Guide To Semantic Web, By Thomas B. P. , Manning Publication.

9. Bibliography (Contd. ) Agent Communication - Agency and Semantic Web, By Christopher Walton, Oxford Press. - Explorers Guide To Semantic Web, By Thomas B. P. , Manning Publication. - Lecture Notes of Multi-agent Semantic Web Systems, University of Edinburgh. SPARQL - http: //www. w 3. org/TR/2007/CR-rdf-sparql-query-20070614/ - http: //www. dajobe. org/2004/01/turtle/
