SEMANTIC ANALYSIS SYMBOL TABLE Shimmi Asokan

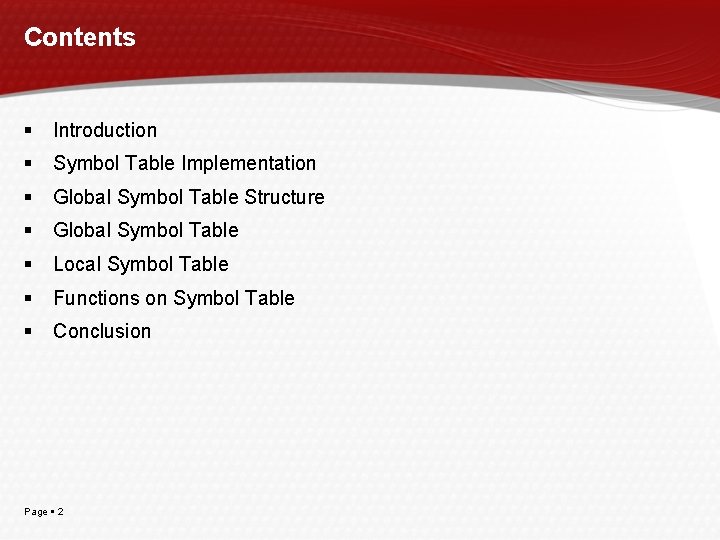

Contents Introduction Symbol Table Implementation Global Symbol Table Structure Global Symbol Table Local Symbol Table Functions on Symbol Table Conclusion Page 2

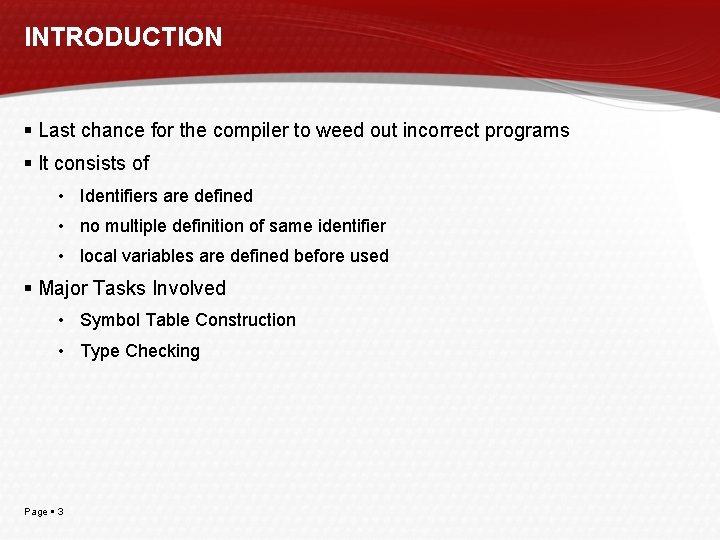

INTRODUCTION Last chance for the compiler to weed out incorrect programs It consists of • Identifiers are defined • no multiple definition of same identifier • local variables are defined before used Major Tasks Involved • Symbol Table Construction • Type Checking Page 3

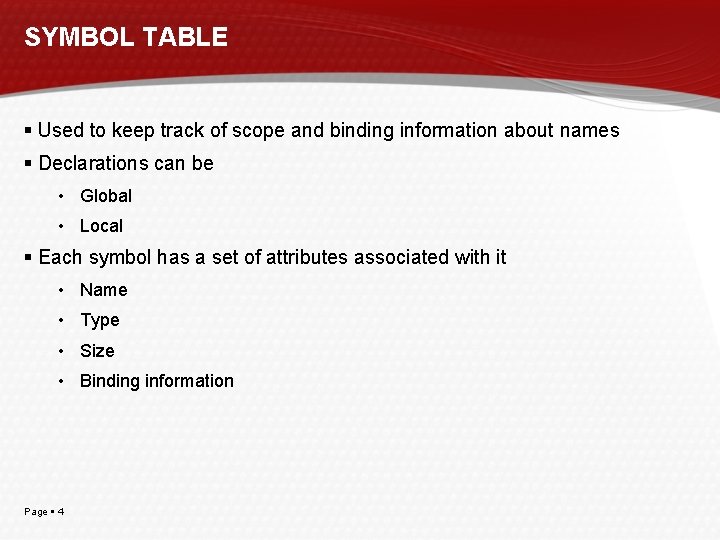

SYMBOL TABLE Used to keep track of scope and binding information about names Declarations can be • Global • Local Each symbol has a set of attributes associated with it • Name • Type • Size • Binding information Page 4

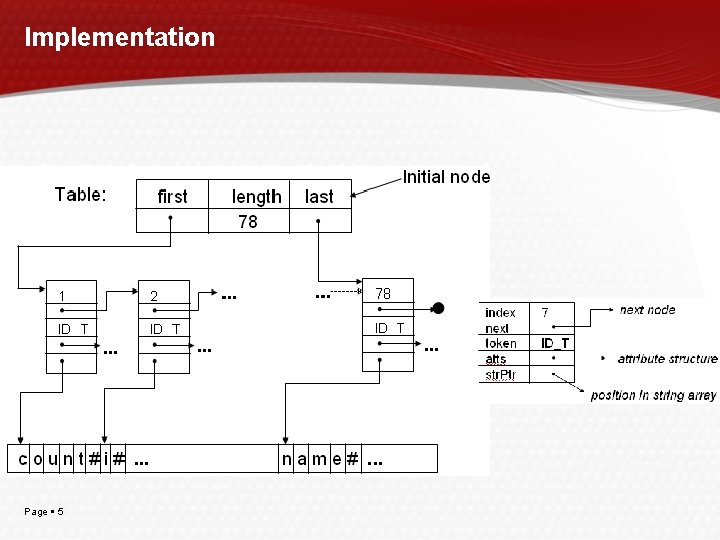

Implementation Page 5

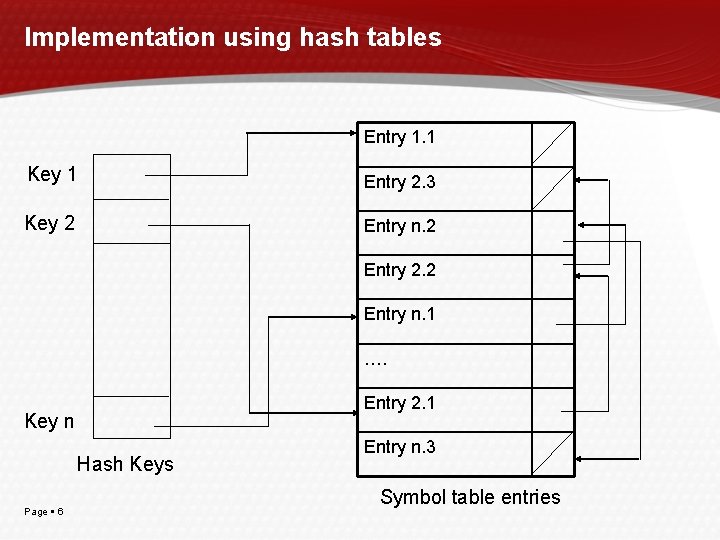

Implementation using hash tables Entry 1. 1 Key 1 Entry 2. 3 Key 2 Entry n. 2 Entry 2. 2 Entry n. 1 …. Entry 2. 1 Key n Hash Keys Page 6 Entry n. 3 Symbol table entries

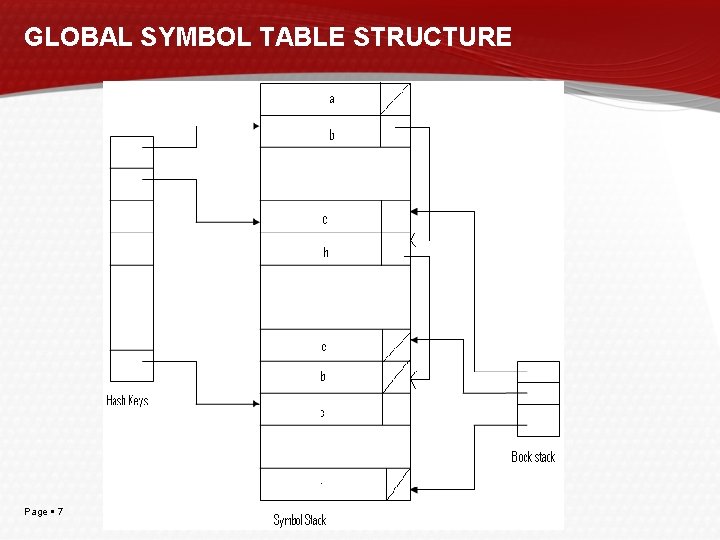

GLOBAL SYMBOL TABLE STRUCTURE Page 7

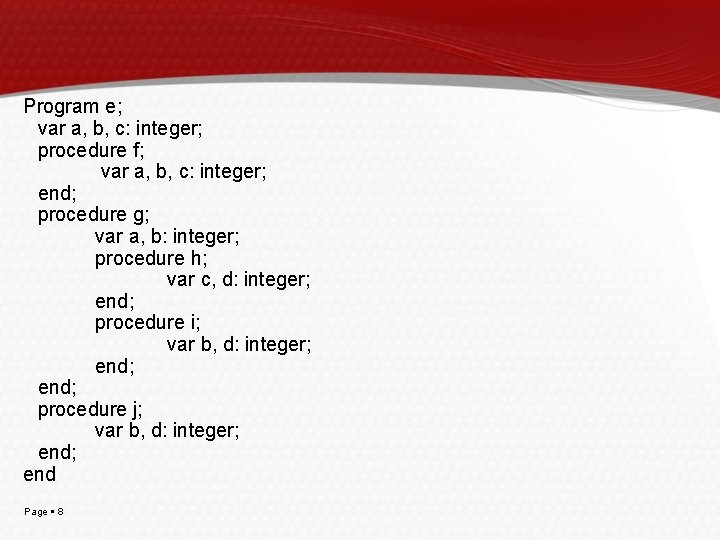

Program e; var a, b, c: integer; procedure f; var a, b, c: integer; end; procedure g; var a, b: integer; procedure h; var c, d: integer; end; procedure i; var b, d: integer; end; procedure j; var b, d: integer; end Page 8

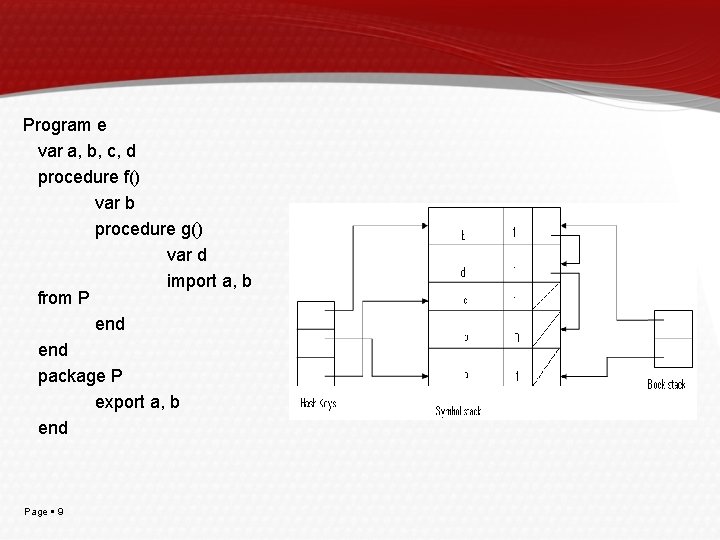

Program e var a, b, c, d procedure f() var b procedure g() var d import a, b from P end package P export a, b end Page 9

Structure – Global Symbol Table struct GSymbol_table #define NODPTR struct node* { struct node char name[MAXLEN]; struct argstruct { int type; Fdef : func_ret_type func_name '(' Farg. List ')' '{' Ldecl_sec BEG stmt_list ret_stmt END '}' GSymbol. Table* Gstptr; { { $$->Gstptr->fbody=$9; int binding; LSymbol. Table* Lstptr; $$->Gstptr->freturn=$10; } int size; char name[MAXLEN]; Argstruct* arglist; int type; Ret. Type; int Func. Ret. Type; int Node. Type; struct argstruct* next; int count; int is. Func. Defined; struct list 1 *head; } * list_head; int argcount; struct node *fbody; struct node *freturn; struct GSymbol_table* next; struct list *head; int count; }*Ghead; Page 10 int value; NODPTR list; NODPTR next; NODPTR Lptr; NODPTR Mptr; NODPTR Rptr; };

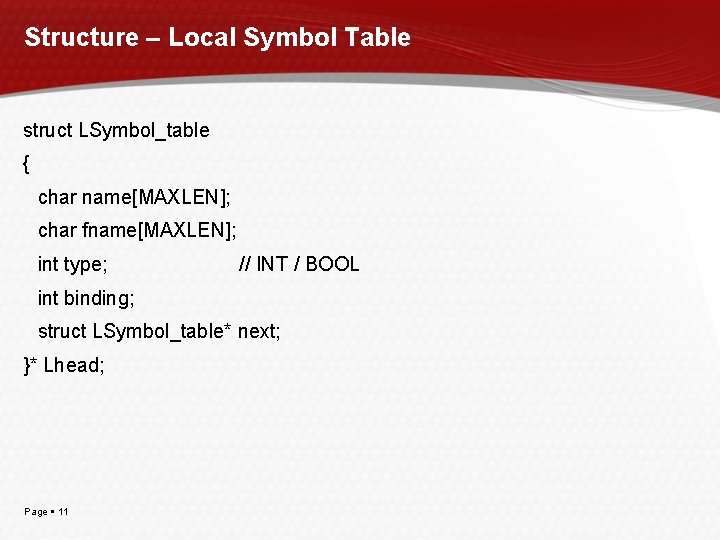

Structure – Local Symbol Table struct LSymbol_table { char name[MAXLEN]; char fname[MAXLEN]; int type; // INT / BOOL int binding; struct LSymbol_table* next; }* Lhead; Page 11

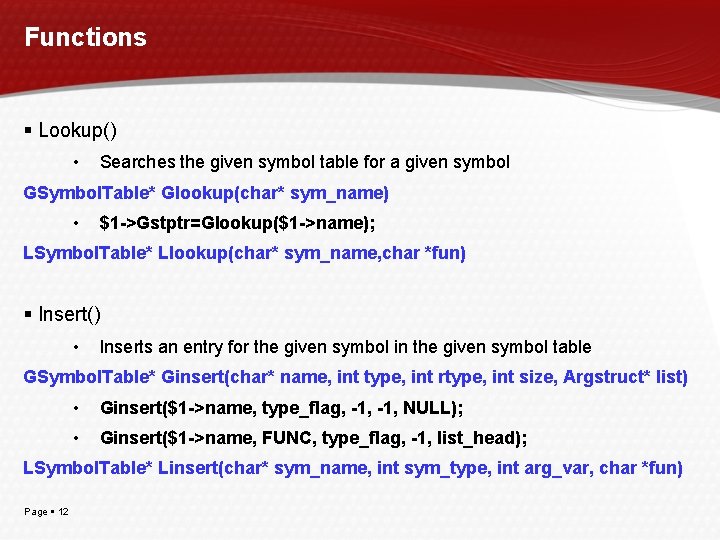

Functions Lookup() • Searches the given symbol table for a given symbol GSymbol. Table* Glookup(char* sym_name) • $1 ->Gstptr=Glookup($1 ->name); LSymbol. Table* Llookup(char* sym_name, char *fun) Insert() • Inserts an entry for the given symbol in the given symbol table GSymbol. Table* Ginsert(char* name, int type, int rtype, int size, Argstruct* list) • Ginsert($1 ->name, type_flag, -1, NULL); • Ginsert($1 ->name, FUNC, type_flag, -1, list_head); LSymbol. Table* Linsert(char* sym_name, int sym_type, int arg_var, char *fun) Page 12

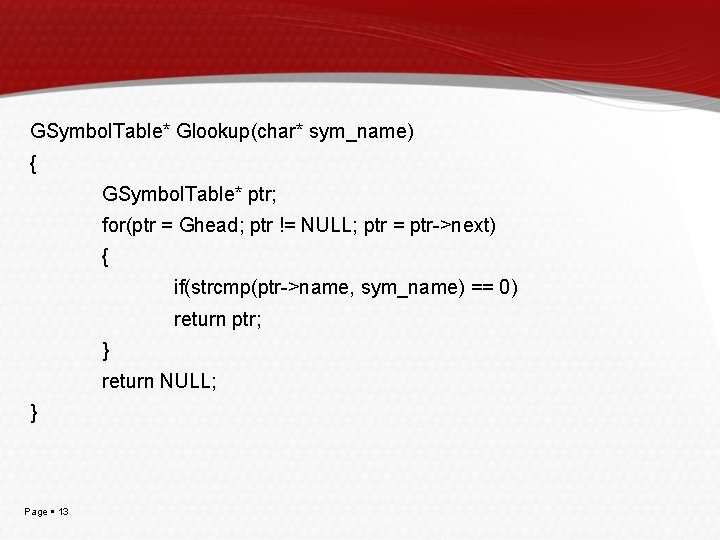

GSymbol. Table* Glookup(char* sym_name) { GSymbol. Table* ptr; for(ptr = Ghead; ptr != NULL; ptr = ptr->next) { if(strcmp(ptr->name, sym_name) == 0) return ptr; } return NULL; } Page 13

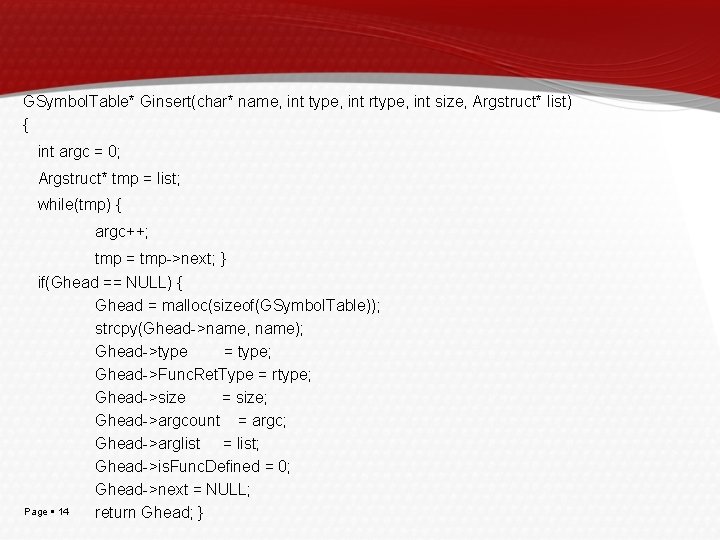

GSymbol. Table* Ginsert(char* name, int type, int rtype, int size, Argstruct* list) { int argc = 0; Argstruct* tmp = list; while(tmp) { argc++; tmp = tmp->next; } if(Ghead == NULL) { Ghead = malloc(sizeof(GSymbol. Table)); strcpy(Ghead->name, name); Ghead->type = type; Ghead->Func. Ret. Type = rtype; Ghead->size = size; Ghead->argcount = argc; Ghead->arglist = list; Ghead->is. Func. Defined = 0; Ghead->next = NULL; Page 14 return Ghead; }

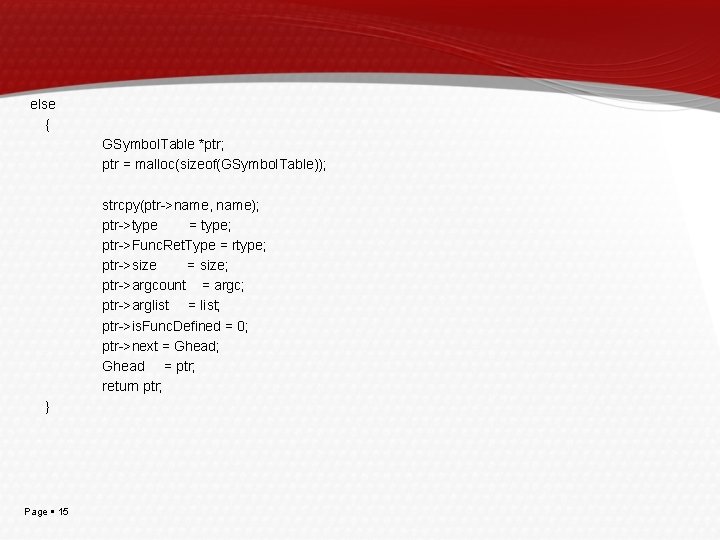

else { GSymbol. Table *ptr; ptr = malloc(sizeof(GSymbol. Table)); strcpy(ptr->name, name); ptr->type = type; ptr->Func. Ret. Type = rtype; ptr->size = size; ptr->argcount = argc; ptr->arglist = list; ptr->is. Func. Defined = 0; ptr->next = Ghead; Ghead = ptr; return ptr; } Page 15

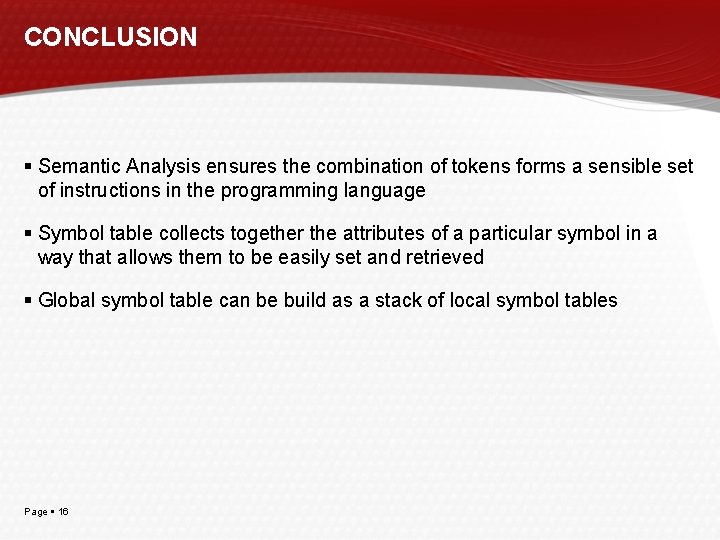

CONCLUSION Semantic Analysis ensures the combination of tokens forms a sensible set of instructions in the programming language Symbol table collects together the attributes of a particular symbol in a way that allows them to be easily set and retrieved Global symbol table can be build as a stack of local symbol tables Page 16

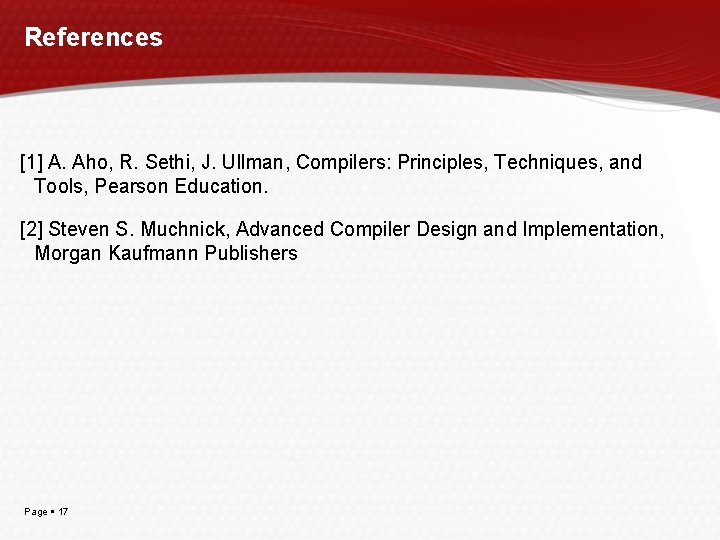

References [1] A. Aho, R. Sethi, J. Ullman, Compilers: Principles, Techniques, and Tools, Pearson Education. [2] Steven S. Muchnick, Advanced Compiler Design and Implementation, Morgan Kaufmann Publishers Page 17
