Self Contained Unit Ventilator Product Overview AHR 2015

Self – Contained Unit Ventilator Product Overview AHR 2015 Chicago Navy Pier 1

UV and SCB Agenda 1: 00 am to 2: 00 Ø 2014 Road Trip Ø UV Sample Kits Ø Product initiatives for 2015 release q SCB, SPB, SWB with Three Phase Power q SCB with EH q SPB (ASHP with Modulating HGRH) plus EH q SWB (WSHP with Modulating HGRH) plus EH Ø New Website Ø UV Share Reports Ø Demo of SCB and Light Weight UV sample 2

On the Road Again… With a Trailer & Generator - In Rain and Snow or Sun and Heat…. 3

On the Road Again… In Conference Rooms & Stairwells - And In Between Double Entrance Doors 4

On the Road Again… We’ve Gotten the Message out with Your Help… Magic Aire is Committed to New Product Development and Meeting the Needs of our Customers! 5

On the Road Again… • Met expectations of a major Southeast school district after showing them the UH sample during the roadshow and delivering on their custom requests after the show • Several SCB jobs based on showing unit at smaller trade shows • A large SCB job was pending and showed the unit to the maintenance team at the school district to answer any questions remaining before the sell 6

Magic Aire UV– Key Component Sample Kit ② ⑤ ⑥ ① ③ ④ Purchase the Mixed Air Damper Model separately for $75 or Complete UV Key Component Kit for $150 ① Polymer blower wheel. With large curved blades reduces RPM and tip speed, resulting in 7 -8 d. BA sound reduction versus older models ② Mixed Air Damper Model · Torsionally rigid aluminum extrusion eliminates twisting and binding · Precise control of Outdoor/Return air mixture · Operating handle represents actuator function ③ Mixed Air Damper cross section Displays cold-weather insulation option ④ Face & Bypass Damper cross section Displays rigid extrusion design ⑤ Double-sloped drain pan With anti-microbial powder-coat paint ⑥ Fit together in a rugged tool bag (included with full kit) 7

Magic Aire UV– Sample Units UV “Light Weight” Samples Perfect for Shows or Presentations! Light Weight Cut Outs with Lexan Windows Handles added to Dampers DDC Ready Hinged Panel All of UV key features Low Cost of $575 8

Magic Aire Model MASCB – NEW Product Highlights • Indoor Air Quality • Reduced Energy Consumption • Precise Control Modes • Highly Efficient • Improved Sound 9

Magic Aire Model MASCB – Indoor Air Quality The MAUV is certified under the AHRI 840 program for Unit Ventilators and ETL listed. The MASCB will also be certified to the same standards. A key feature of the Magic Aire UV is that our one-piece heavy gauge extruded aluminum damper that allows for full sealing and is not prone to breaking, warping, or binding. 10

Magic Aire Model MASCB – Reduced Energy Consumption The variable speed compressor continuously matches the load, delivering only the required energy to satisfy space conditions, providing you with exceptional energy savings and temperature control 11

Magic Aire Model MASCB – Typical Load Profile For a typical building load profile, the Design Conditions make up only 2% of operation time versus the part load conditions the unit will operate at a majority of the time. 12 12

Magic Aire Model MASCB – Capacity Range Comparison The MASCB models have twice as much Capacity Range as the AAF AZ models Magic Aire offers variable capacity between 60 -100% Competition has two discrete speeds: 80 or 100% 60000 50000 40000 $ 30000 20000 $ $ $ $ 10000 0 AZ 24 MASCB 2 AZ 36 MASCB 3 AZ 44 MASCB 4 AZ 54 MASCB 5 AZ Part Load AZ Full Load 13 MASCB Part Load MASCB Full Load 13

Magic Aire Model MASCB – Efficiency Comparison Full Load EER 20. 0 10. 0 9. 7 10. 0 9. 5 9. 8 9. 4 9. 3 0. 0 2 20. 0 3 4 Nominal Tons 18. 0! 16. 8 Part Load EER 12. 6 14. 6 12. 4 The MASCB units are 15 -34% higher in Partload Efficiency! 5 15. 6 11. 8 10. 0 2 14 3 4 Nominal Tons 5 14

Magic Aire Model MASCB – Flexible Options Configuration Options Nominal Tons Fully Recessed Partially Recessed Non-Recessed Factory Louvers 2 -5 Control Options Coil Options Stand Alone Packages 410 A DX Network Ready Packages – 1 & 2 row HW BACnet & Lon (Future) 1 & 2 row Demand Ventilation Steam Occupancy Control Motors and Compressors are Variable Speed for efficient Part Load operation. ECM Indoor and Low and High Outdoor Motors EH options 15

Magic Aire Model MASCB – Control Components The Variable Speed compressor is optimized for highest efficiency even at low speeds. It is designed for highest reliability with an integrated inverter control. The DDC Control Packages can be integrated into Building Management System network or ordered for Stand-Alone operation 16

Magic Aire Model MASCB – Competitive Snapshot Magic Aire Mc. Quay Yes No Capacity Range 60 -100% 80 -100% Compressor Sound Ramped On/Off AHRI 840 & 310/380 Certification Yes No One Piece OA/RA Damper Yes Linked MHGRH (Future) DX/HW Reheat Condensate Pump Option Yes No Slope Top Yes No Variable Capacity Dehumidification

Magic Aire Model MASWB – Future Releases Water Sourced Heat Pump Unit Controller Reversing Valve Electronic Expansion Valve (EXV) • Exceptionally efficient system • Includes a variable speed compressor Variable Speed Compressor

Magic Aire Model MASWB – Future Releases Water Sourced Heat Pump Plate Heat Exchanger Compressor VFD • Utilizes a “reversing valve”. Heat from the water loop is absorbed by the refrigerant in the coil and transferred to the room air coil. • Electric heat is also available as a supplemental heating option Condenser Valve Package

Magic Aire Model MASPB – Future Releases Air Sourced Heat Pump EXV Hot Gas Control Valve Options will include HW, Steam, and Electric Heat for supplemental heating. Modulating Hot Gas Reheat also included for excellent dehumidification. Hot Gas Shut-Off Valve Reversing Valve

Magic Aire Model MASPB – Design Special Extended Drain Pan Easy access to blow air through the drain line to clear any clogs and matches competitive spec New Anti-microbial coating added to the drain pan

Magic Aire Model MASPB – Design Special Raised Return Air Inlet Raises the Return Air Inlet off the floor aiding in keeping the filter cleaner longer

Magic Aire Model MASPB – Design Special Sloped Top Deters teachers and students from placing books and other objects on Discharge Grille

Magic Aire Model MASCB – Release Schedule Current All sizes DX/HW Single Phase Power Sloped Top April 2015 Electric Heat Air Sourced Heat Pump Modulating Hot Gas Reheat Three Phase Power Q 4 2015 Water Source Heat Pump 24

Magic Aire – AHRI UV REPORTS 25

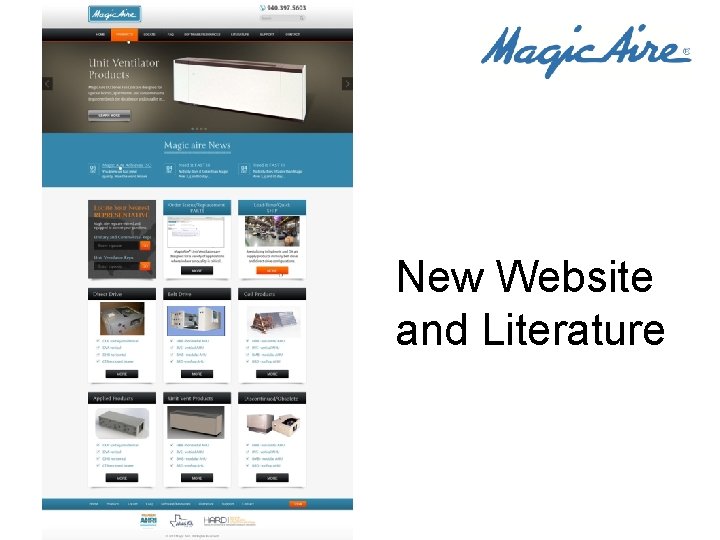

New Website and Literature

So…In Summary is investing heavily in • • Products Promotion Systems Tools Your Commitment to follow through on our Vision Is Critically Important ! 27

Thank you for your time and attention! Please visit our website! magicaire. com 28
