Selection Structures if switch statements CS 1123 Selection

Selection Structures (if & switch statements) (CS 1123)

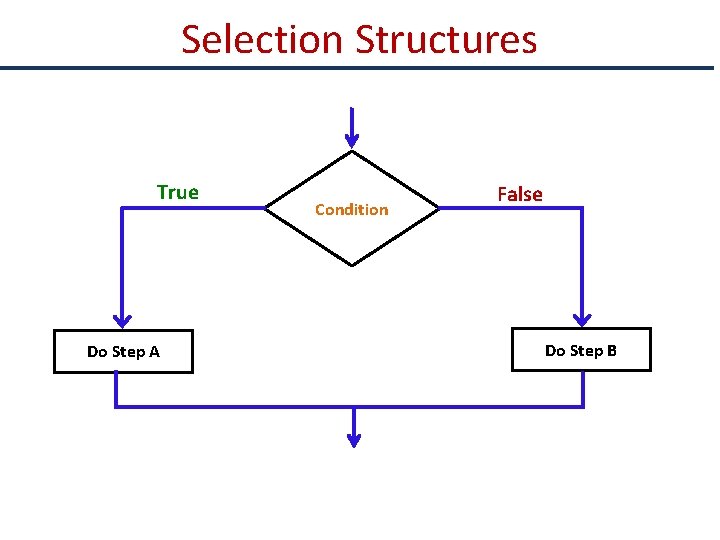

Selection Structures True Do Step A Condition False Do Step B

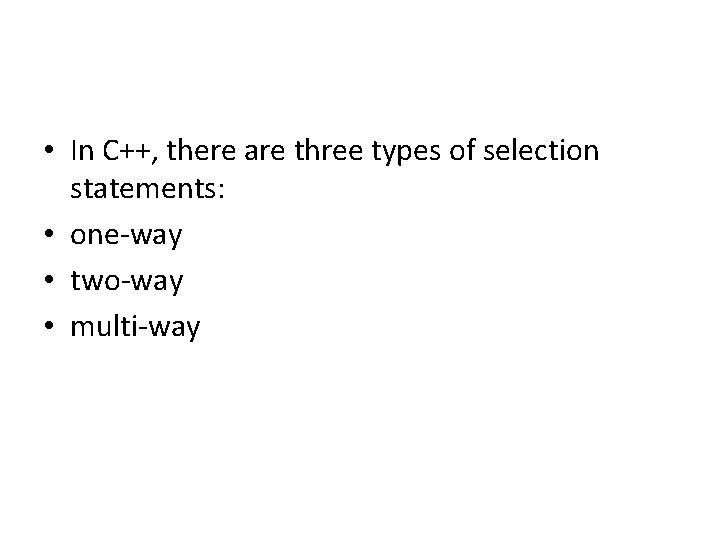

• In C++, there are three types of selection statements: • one-way • two-way • multi-way

One-Way Decisions • One-way decisions either do some particular thing or do nothing at all. The decision is based on a logical expression which either evaluates to true or false, a value of 1 or a value of 0, respectively. • Recall that a logical expression always evaluate to a value of true or false; in C++, a nonzero value is always true, and a value of zero is always false. • If the logical expression is evaluated to true, then the corresponding statement is executed; if the logical expression evaluates to false, control goes to the next executable statement.

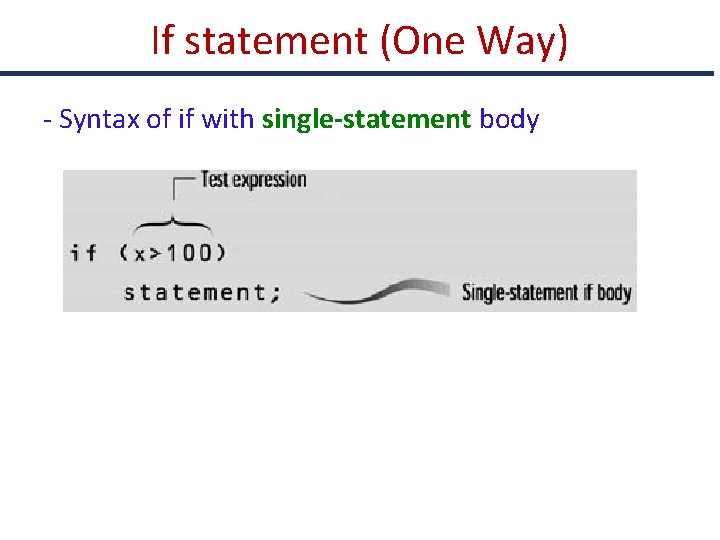

If statement (One Way) - Syntax of if with single-statement body

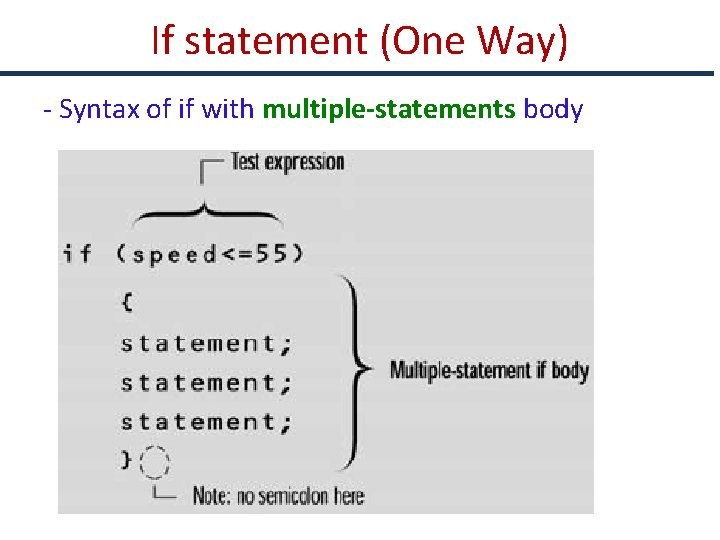

If statement (One Way) - Syntax of if with multiple-statements body

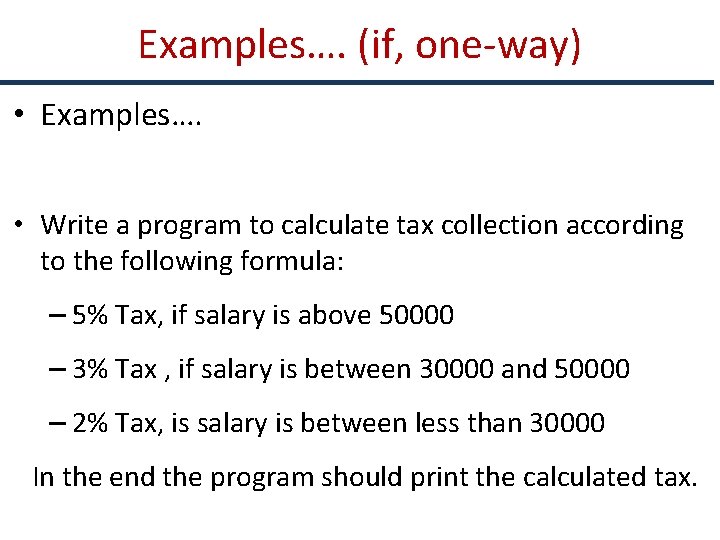

Examples…. (if, one-way) • Examples…. • Write a program to calculate tax collection according to the following formula: – 5% Tax, if salary is above 50000 – 3% Tax , if salary is between 30000 and 50000 – 2% Tax, is salary is between less than 30000 In the end the program should print the calculated tax.

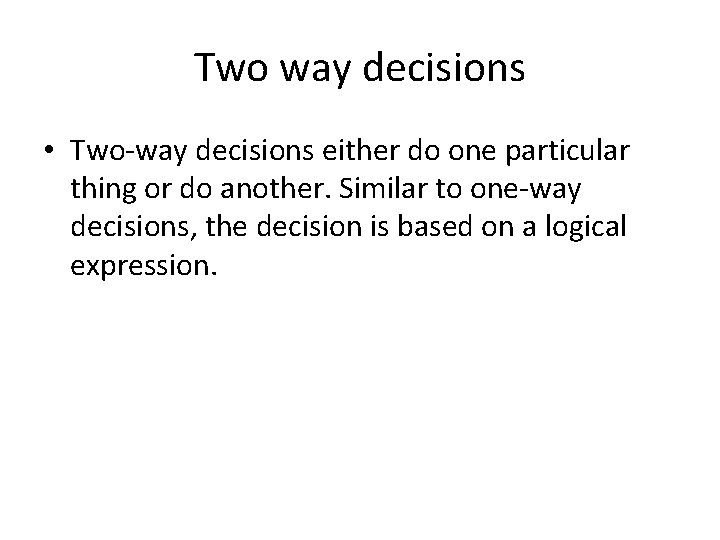

Two way decisions • Two-way decisions either do one particular thing or do another. Similar to one-way decisions, the decision is based on a logical expression.

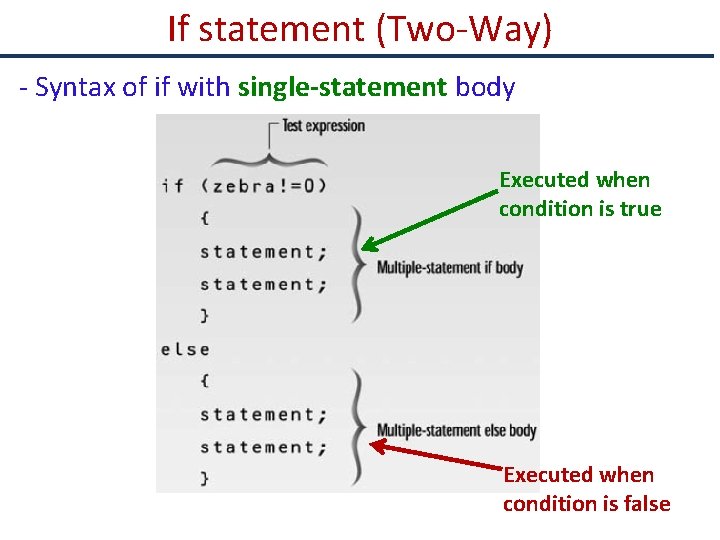

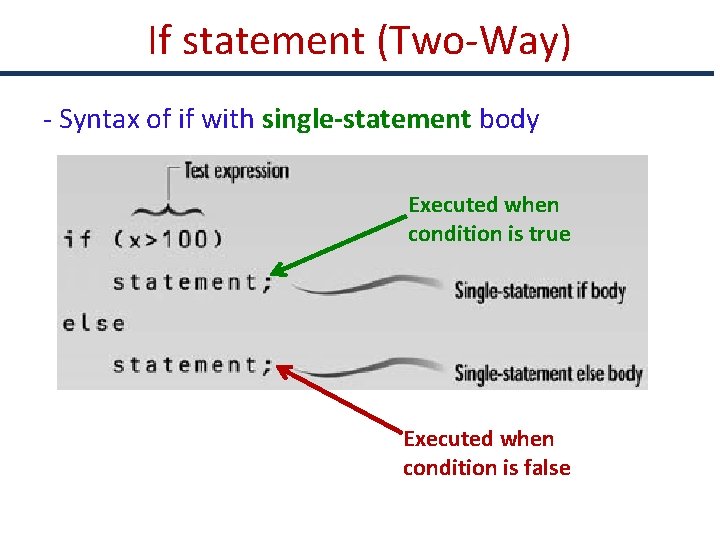

If statement (Two-Way) - Syntax of if with single-statement body Executed when condition is true Executed when condition is false

If statement (Two-Way) - Syntax of if with single-statement body Executed when condition is true Executed when condition is false

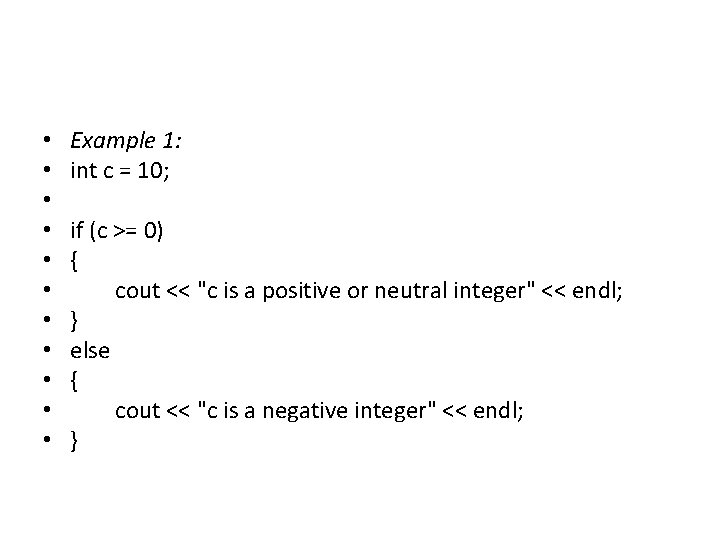

• • • Example 1: int c = 10; if (c >= 0) { cout << "c is a positive or neutral integer" << endl; } else { cout << "c is a negative integer" << endl; }

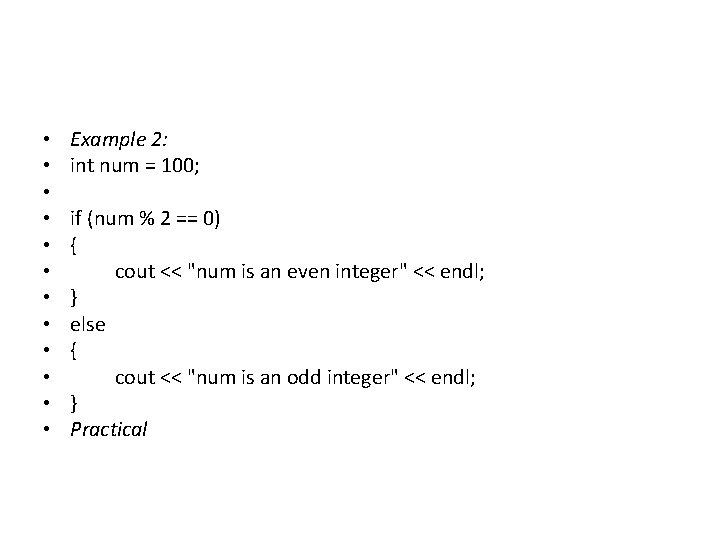

• • • Example 2: int num = 100; if (num % 2 == 0) { cout << "num is an even integer" << endl; } else { cout << "num is an odd integer" << endl; } Practical

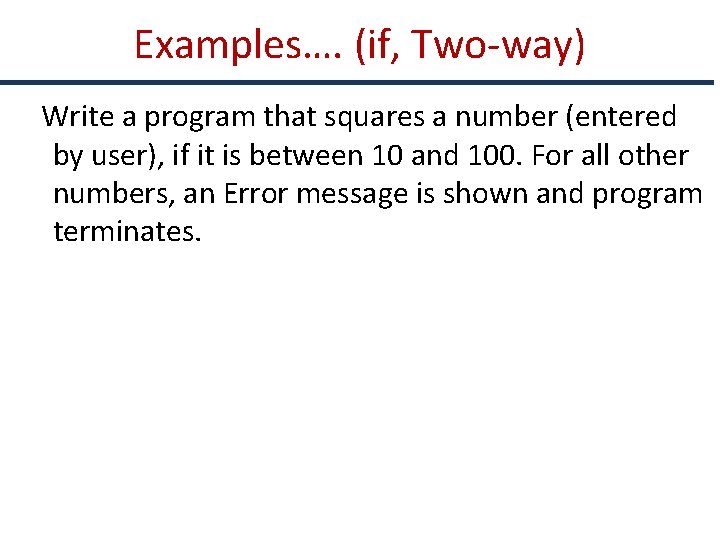

Examples…. (if, Two-way) Write a program that squares a number (entered by user), if it is between 10 and 100. For all other numbers, an Error message is shown and program terminates.

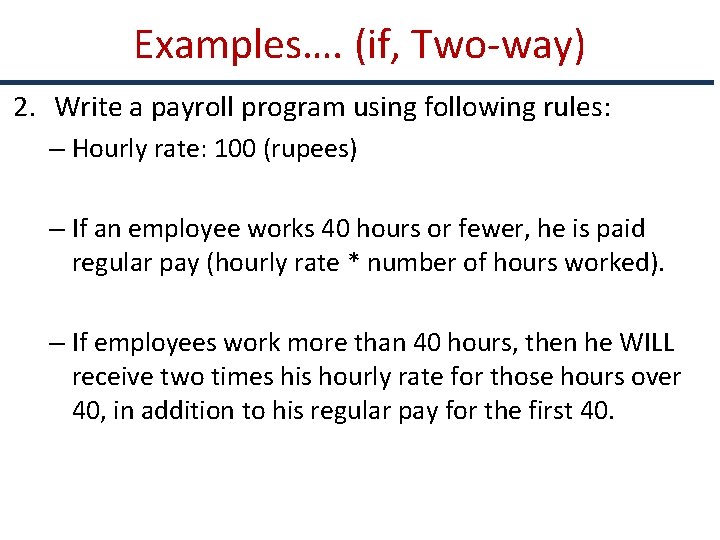

Examples…. (if, Two-way) 2. Write a payroll program using following rules: – Hourly rate: 100 (rupees) – If an employee works 40 hours or fewer, he is paid regular pay (hourly rate * number of hours worked). – If employees work more than 40 hours, then he WILL receive two times his hourly rate for those hours over 40, in addition to his regular pay for the first 40.

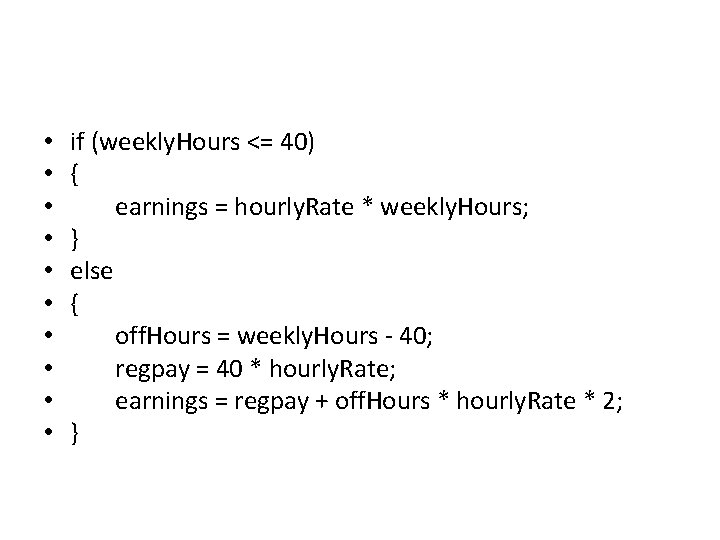

• • • if (weekly. Hours <= 40) { earnings = hourly. Rate * weekly. Hours; } else { off. Hours = weekly. Hours - 40; regpay = 40 * hourly. Rate; earnings = regpay + off. Hours * hourly. Rate * 2; }

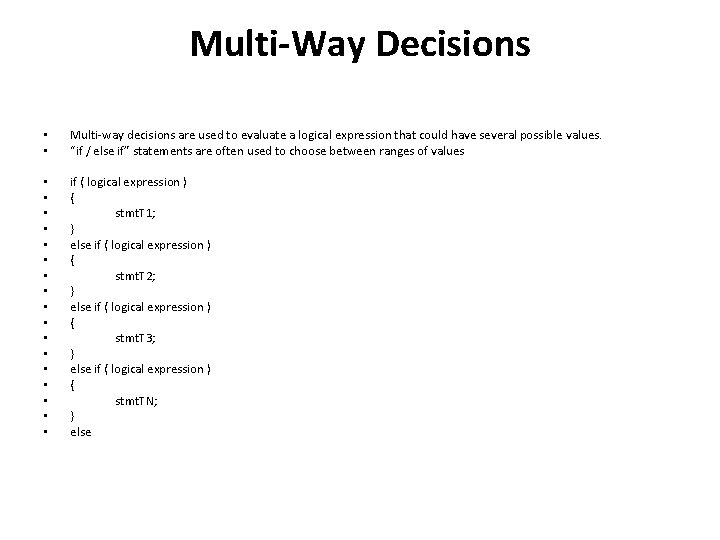

Multi-Way Decisions • • Multi-way decisions are used to evaluate a logical expression that could have several possible values. “if / else if” statements are often used to choose between ranges of values • • • • • if ( logical expression ) { stmt. T 1; } else if ( logical expression ) { stmt. T 2; } else if ( logical expression ) { stmt. T 3; } else if ( logical expression ) { stmt. TN; } else

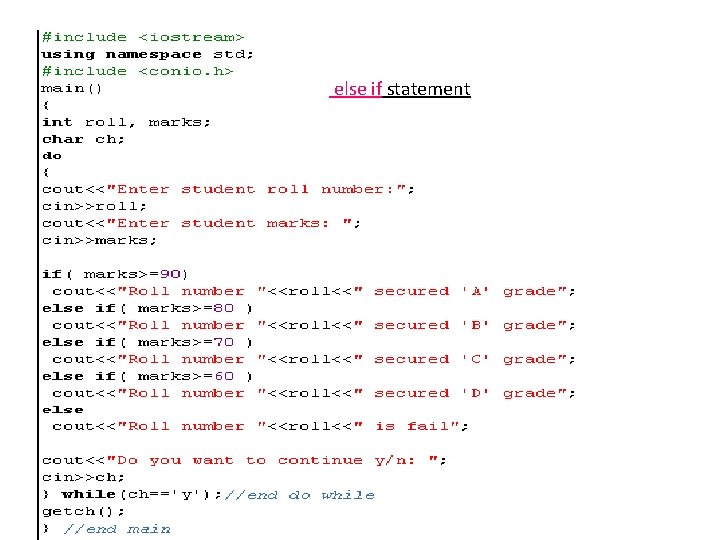

1 else if statement

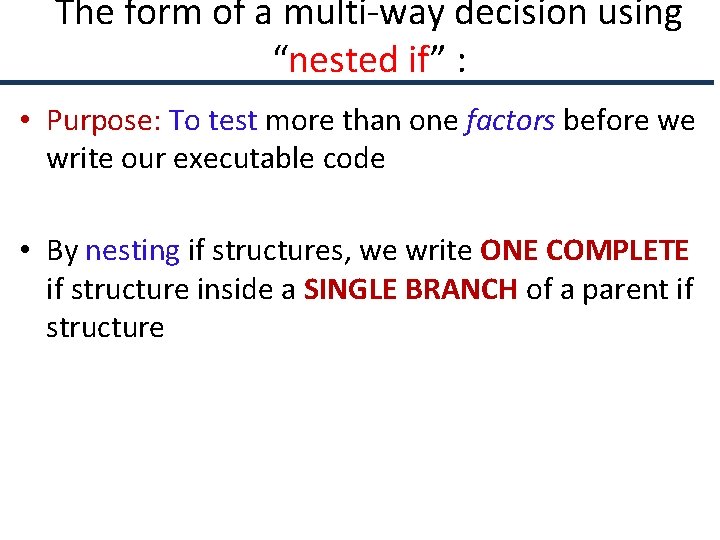

The form of a multi-way decision using “nested if” : • Purpose: To test more than one factors before we write our executable code • By nesting if structures, we write ONE COMPLETE if structure inside a SINGLE BRANCH of a parent if structure

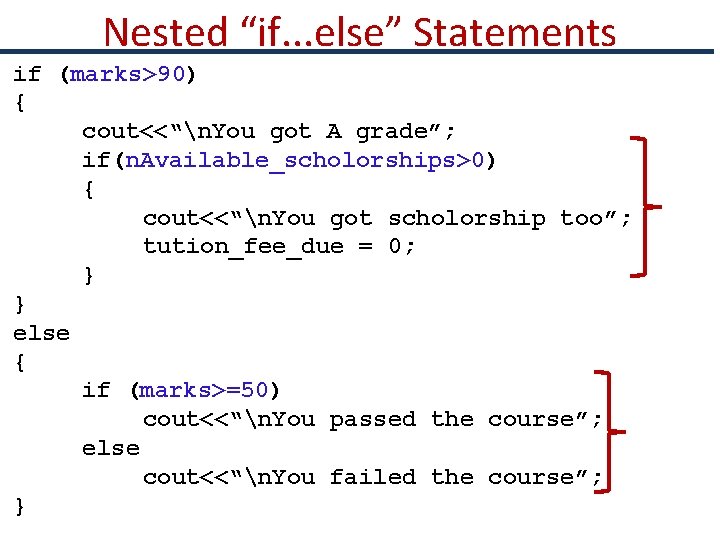

Nested “if. . . else” Statements if (marks>90) { cout<<“n. You got A grade”; if(n. Available_scholorships>0) { cout<<“n. You got scholorship too”; tution_fee_due = 0; } } else { if (marks>=50) cout<<“n. You passed the course”; else cout<<“n. You failed the course”; }

Matching the else

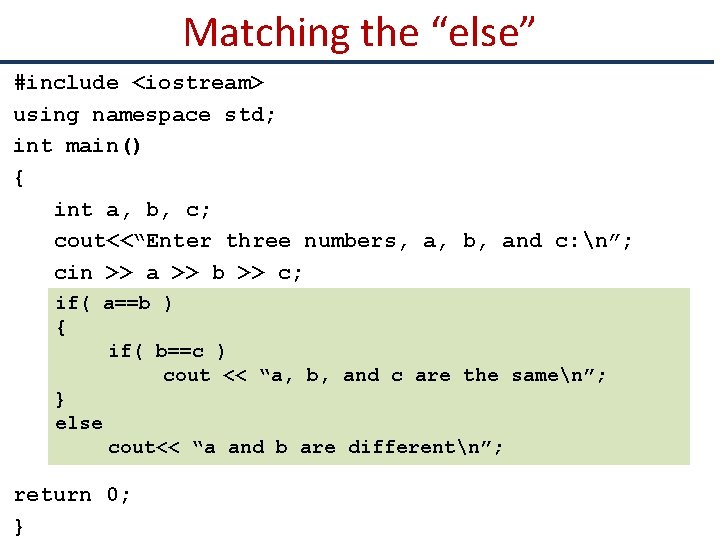

Matching the “else” #include <iostream> using namespace std; int main() { int a, b, c; cout<<“Enter three numbers, a, b, and c: n”; cin >> a >> b >> c; if( a==b )) { if( b==c ) cout << << “a, b, b, andc c samen”; cout areare thethe samen”; } else cout << and “b and c are differentn”; << “a b are differentn”; cout<< “a and b are differentn”; return 0; }

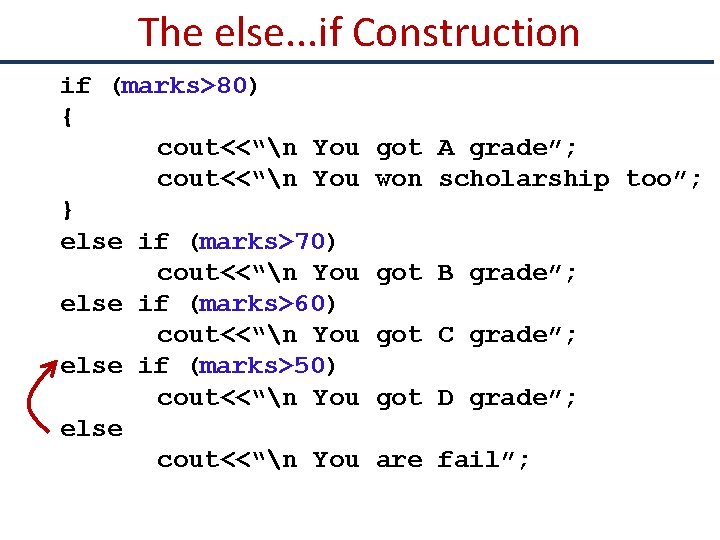

The else. . . if Construction if (marks>80) { cout<<“n You } else if (marks>70) cout<<“n You else if (marks>60) cout<<“n You else if (marks>50) cout<<“n You else cout<<“n You got A grade”; won scholarship too”; got B grade”; got C grade”; got D grade”; are fail”;

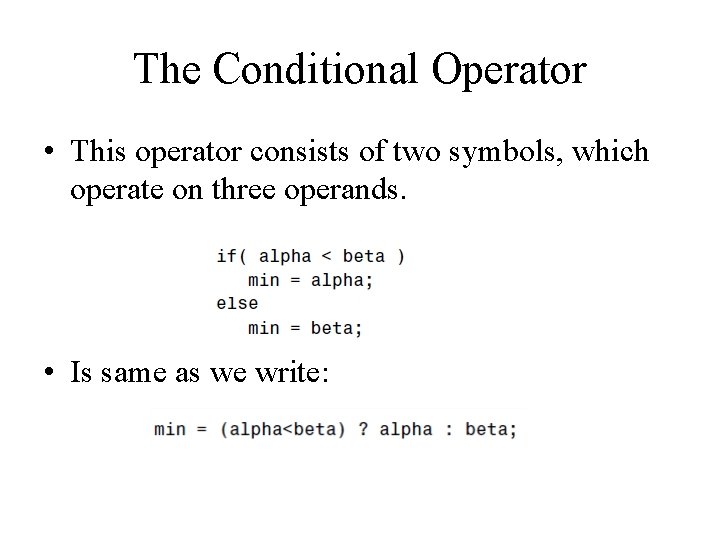

The Conditional Operator • This operator consists of two symbols, which operate on three operands. • Is same as we write:

The Conditional Operator • The part of this statement to the right of the equal sign is called the conditional expression: • The question mark and the colon make up the conditional operator. The expression before the question mark is the test expression.

The Conditional Operator • If the test expression is true, the entire conditional expression takes on the value of the operand following the question mark: alpha in this example. • If the test expression is false, the conditional expression takes on the value of the operand following the colon: beta.

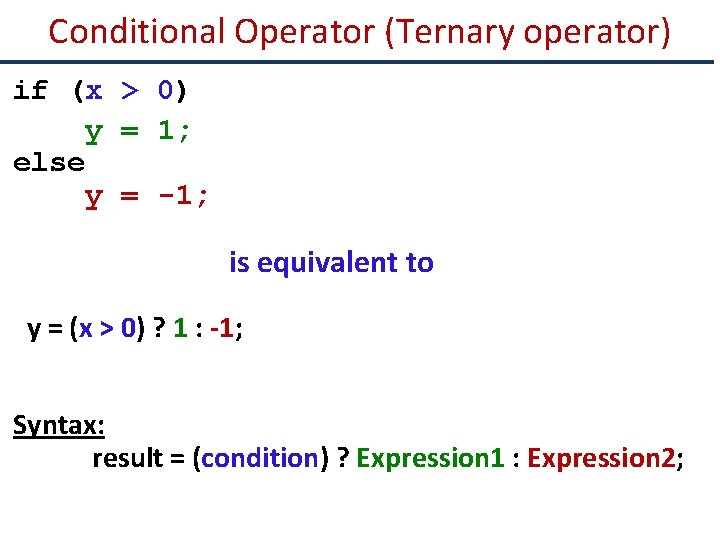

Conditional Operator (Ternary operator) if (x > 0) y = 1; else y = -1; is equivalent to y = (x > 0) ? 1 : -1; Syntax: result = (condition) ? Expression 1 : Expression 2;

Conditional Operator, examples cout << ((num % 2 == 0) ? "num is even" : "num is odd"); int min_value = (num 1<num 2) ? num 1 : num 2; unsigned int absvalue = (n< 0) ? -n : n;

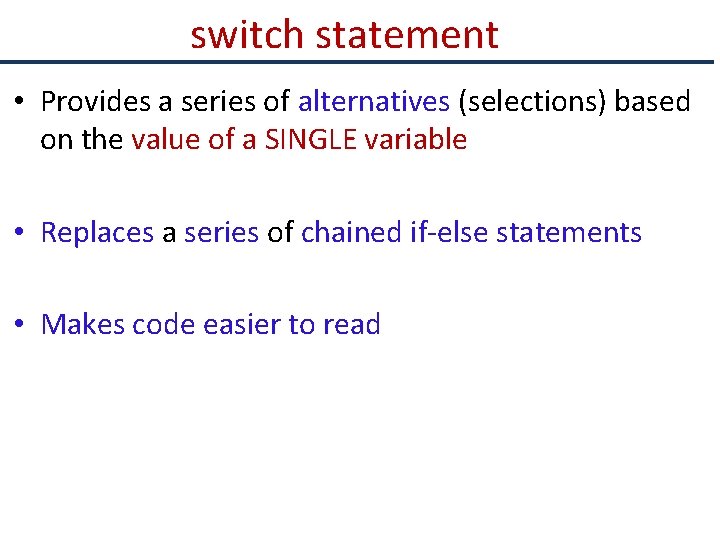

switch statement • Provides a series of alternatives (selections) based on the value of a SINGLE variable • Replaces a series of chained if-else statements • Makes code easier to read

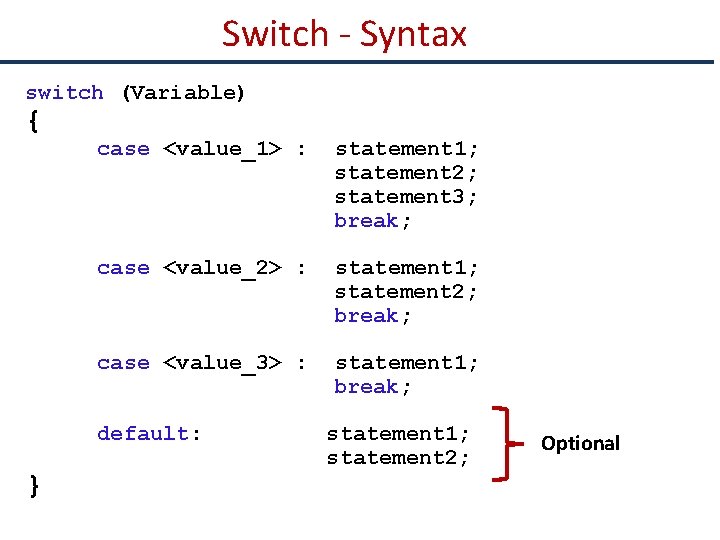

Switch - Syntax switch (Variable) { case <value_1> : statement 1; statement 2; statement 3; break; case <value_2> : statement 1; statement 2; break; case <value_3> : statement 1; break; default: } statement 1; statement 2; Optional

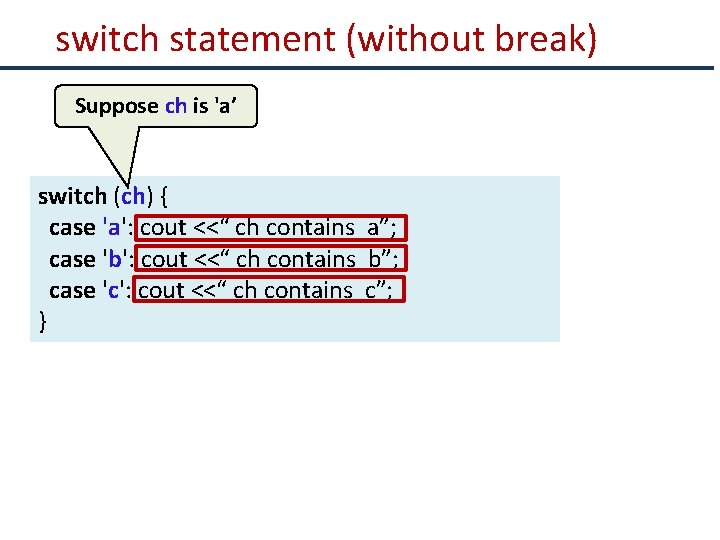

switch statement (without break) Suppose ch is 'a’ switch (ch) { case 'a': cout <<“ ch contains a”; case 'b': cout <<“ ch contains b”; case 'c': cout <<“ ch contains c”; }

switch statement (with break) Suppose ch is ‘b’ switch (ch) { case 'a': cout <<“ ch contains a”; break; case 'b': cout <<“ ch contains b”; break; case 'c': cout <<“ ch contains c”; break; } cout<<“n End of program…”;

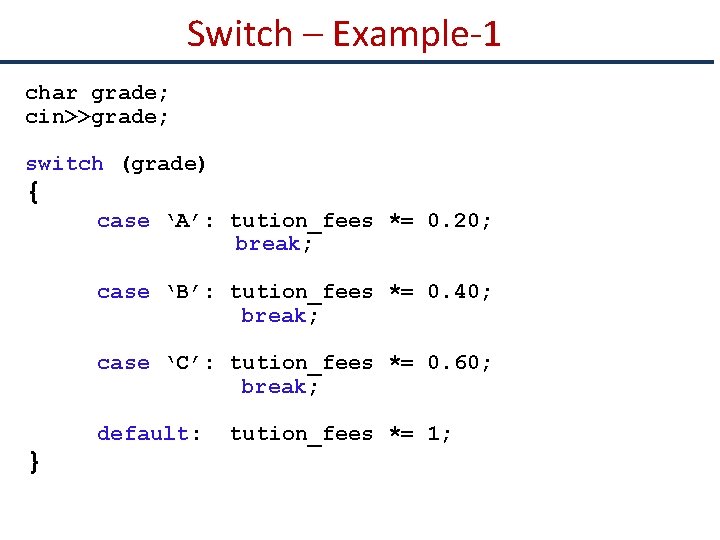

Switch – Example-1 char grade; cin>>grade; switch (grade) { case ‘A’: tution_fees *= 0. 20; break; case ‘B’: tution_fees *= 0. 40; break; case ‘C’: tution_fees *= 0. 60; break; } default: tution_fees *= 1;

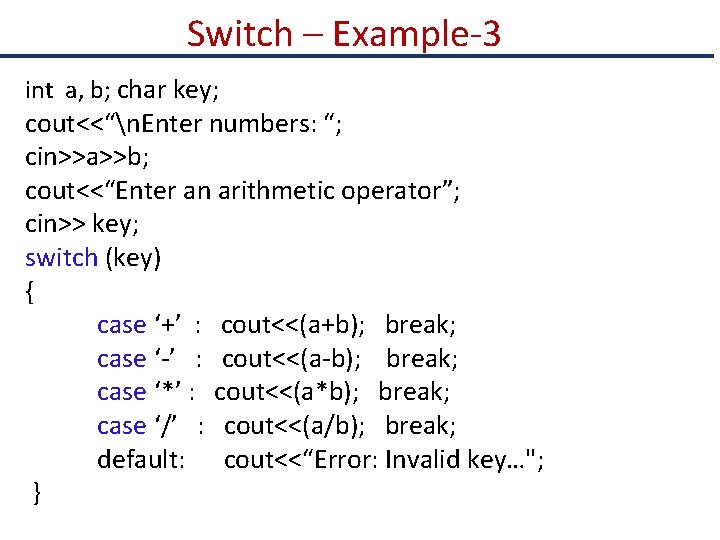

Switch – Example-3 int a, b; char key; cout<<“n. Enter numbers: “; cin>>a>>b; cout<<“Enter an arithmetic operator”; cin>> key; switch (key) { case ‘+’ : cout<<(a+b); break; case ‘-’ : cout<<(a-b); break; case ‘*’ : cout<<(a*b); break; case ‘/’ : cout<<(a/b); break; default: cout<<“Error: Invalid key…"; }

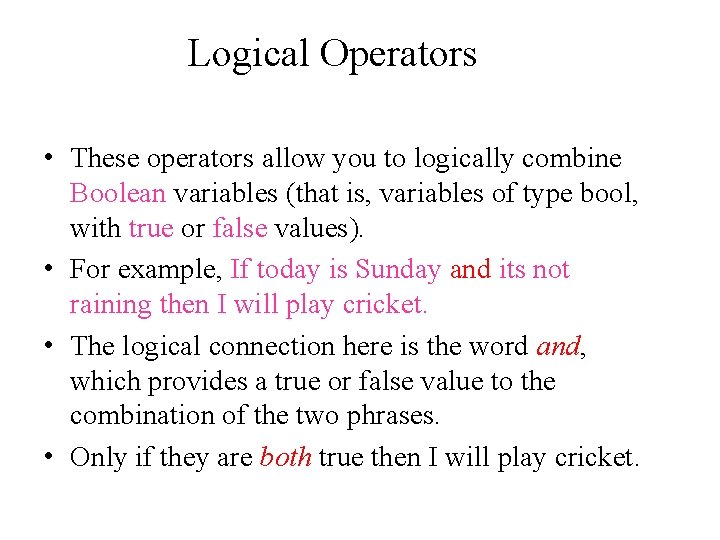

Logical Operators • These operators allow you to logically combine Boolean variables (that is, variables of type bool, with true or false values). • For example, If today is Sunday and its not raining then I will play cricket. • The logical connection here is the word and, which provides a true or false value to the combination of the two phrases. • Only if they are both true then I will play cricket.

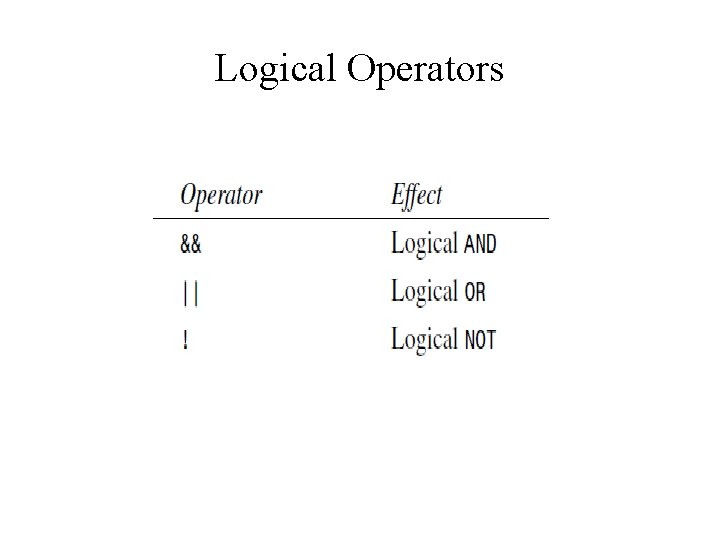

Logical Operators

Example

Example If input is ‘n’ then ? ? If input is ‘Y’ then ? ? If input is ‘N’ then ? ?

Operator Precedence

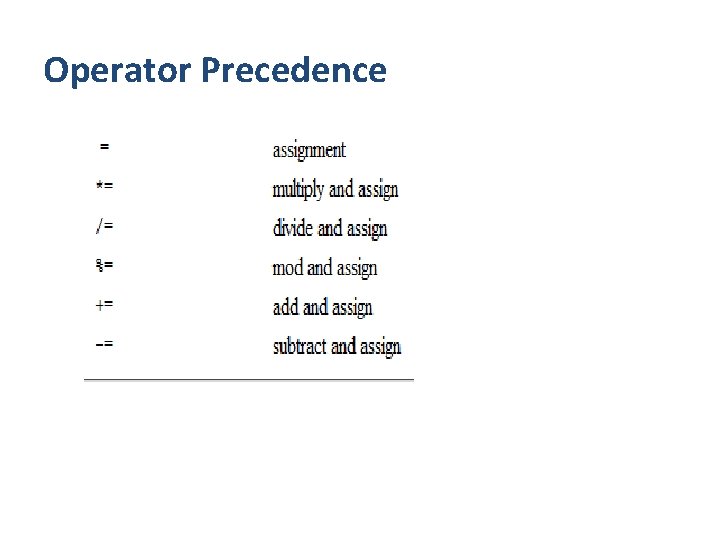

Operator Precedence

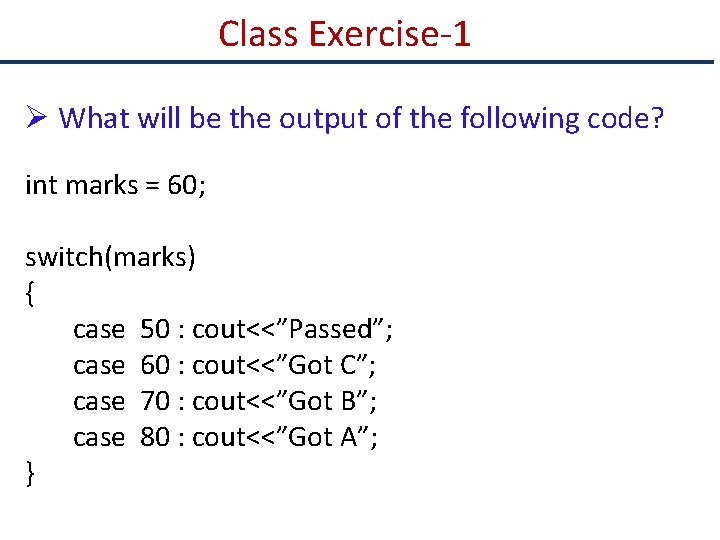

Class Exercise-1 Ø What will be the output of the following code? int marks = 60; switch(marks) { case 50 : cout<<”Passed”; case 60 : cout<<”Got C”; case 70 : cout<<”Got B”; case 80 : cout<<”Got A”; }

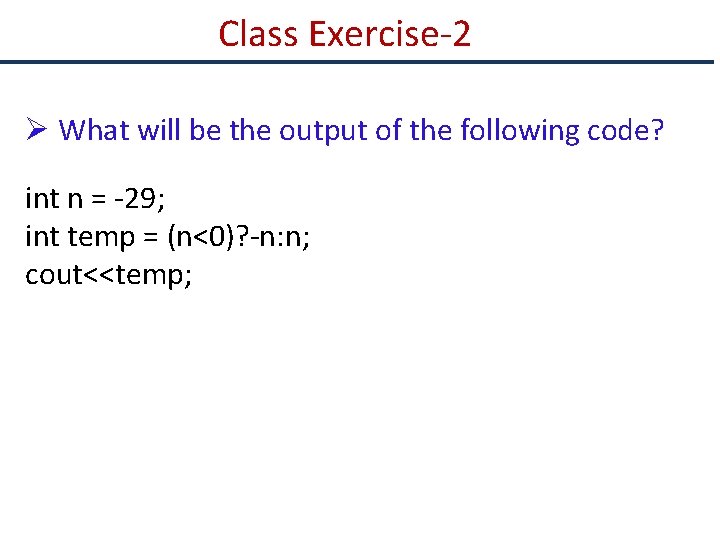

Class Exercise-2 Ø What will be the output of the following code? int n = -29; int temp = (n<0)? -n: n; cout<<temp;

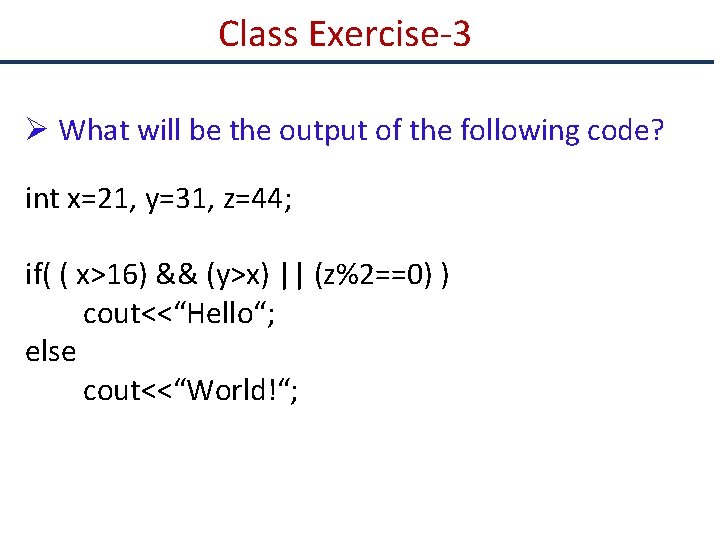

Class Exercise-3 Ø What will be the output of the following code? int x=21, y=31, z=44; if( ( x>16) && (y>x) || (z%2==0) ) cout<<“Hello“; else cout<<“World!“;

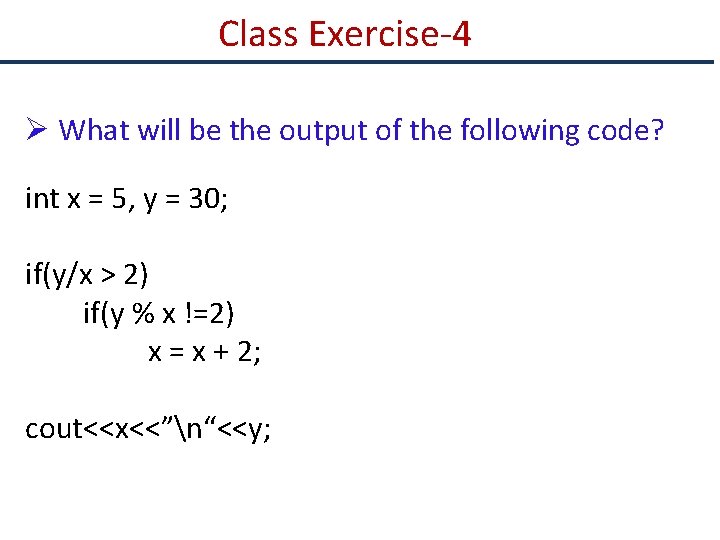

Class Exercise-4 Ø What will be the output of the following code? int x = 5, y = 30; if(y/x > 2) if(y % x !=2) x = x + 2; cout<<x<<”n“<<y;

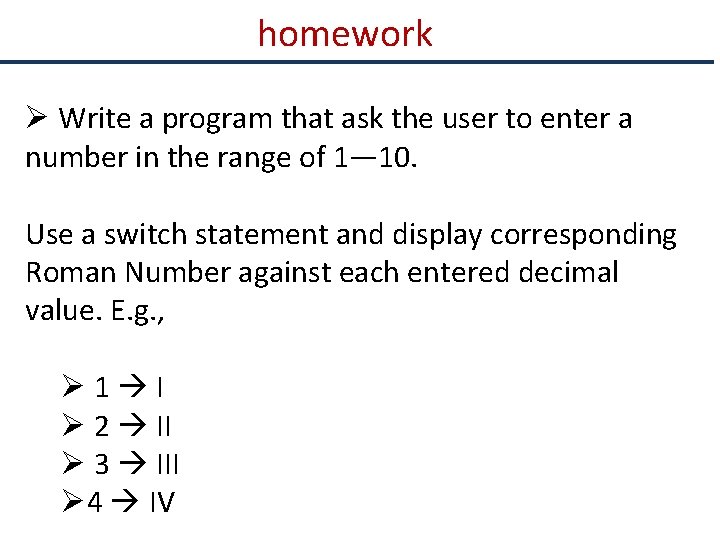

homework Ø Write a program that ask the user to enter a number in the range of 1— 10. Use a switch statement and display corresponding Roman Number against each entered decimal value. E. g. , Ø 1 I Ø 2 II Ø 3 III Ø 4 IV

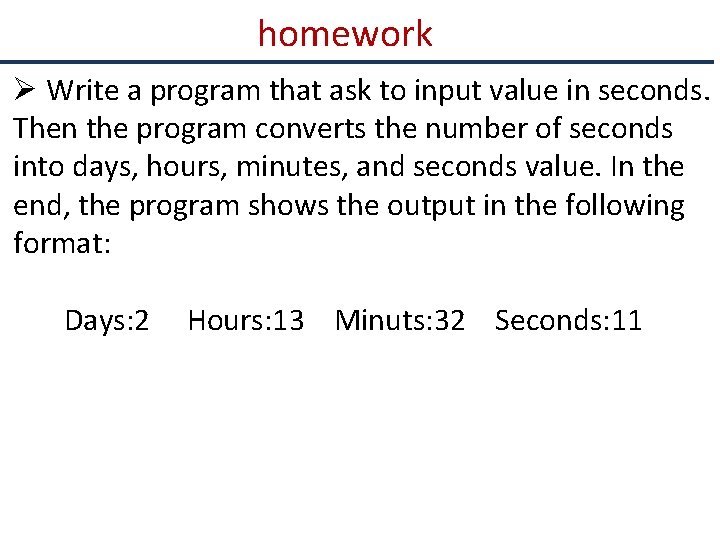

homework Ø Write a program that ask to input value in seconds. Then the program converts the number of seconds into days, hours, minutes, and seconds value. In the end, the program shows the output in the following format: Days: 2 Hours: 13 Minuts: 32 Seconds: 11
