SELECTING EXTERIOR TOPCOATS BASED ON AESTHETIC PERFORMANCE COATINGS

SELECTING EXTERIOR TOPCOATS BASED ON AESTHETIC PERFORMANCE

COATINGS & ULTRAVIOLET LIGHT

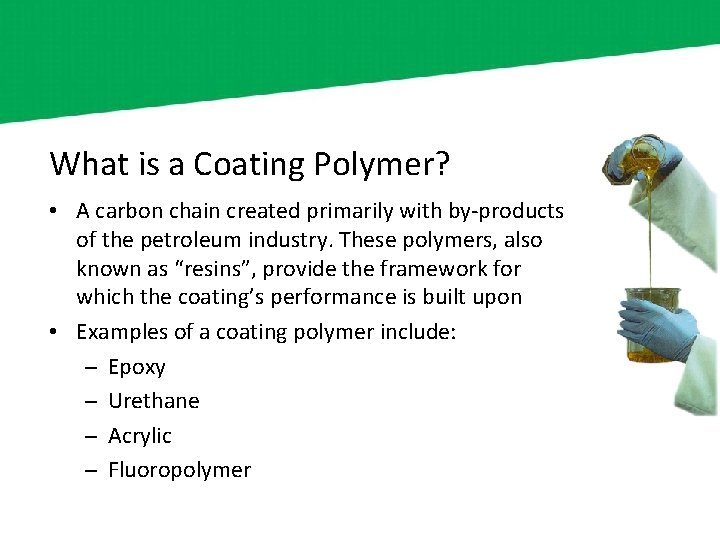

What is a Coating Polymer? • A carbon chain created primarily with by-products of the petroleum industry. These polymers, also known as “resins”, provide the framework for which the coating’s performance is built upon • Examples of a coating polymer include: ─ Epoxy ─ Urethane ─ Acrylic ─ Fluoropolymer

What Causes Coating Degradation? • Light Exposure – Primarily Ultraviolet (UV) light, along with oxygen and water, can induce slow degradation (aging) of many organic polymers found in coatings • Elements ─ Temperature fluctuations, pollution, chemical exposures, rain, etc. can also contribute to degradation, usually accelerating the process

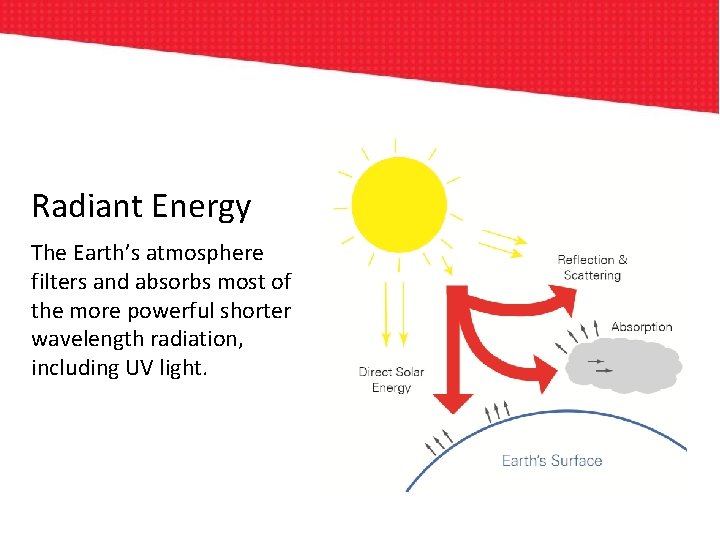

Radiant Energy The Earth’s atmosphere filters and absorbs most of the more powerful shorter wavelength radiation, including UV light.

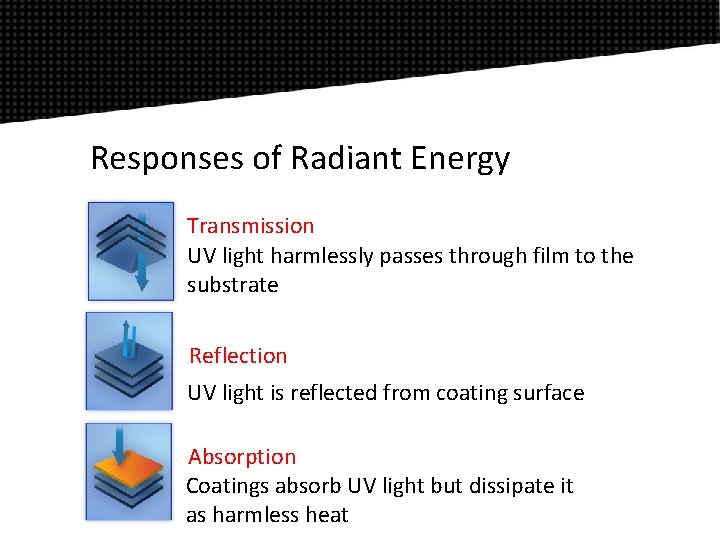

Responses of Radiant Energy Transmission UV light harmlessly passes through film to the substrate Reflection UV light is reflected from coating surface Absorption Coatings absorb UV light but dissipate it as harmless heat

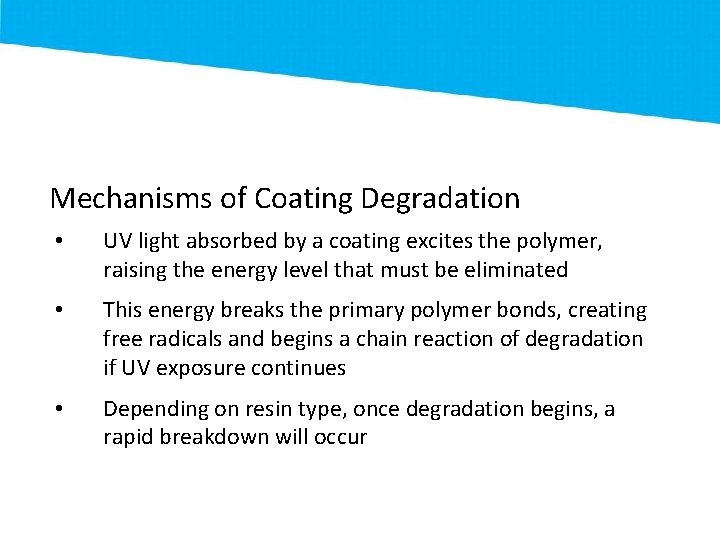

Mechanisms of Coating Degradation • UV light absorbed by a coating excites the polymer, raising the energy level that must be eliminated • This energy breaks the primary polymer bonds, creating free radicals and begins a chain reaction of degradation if UV exposure continues • Depending on resin type, once degradation begins, a rapid breakdown will occur

Increasing UV Resistance • UV Resistant Binders • Reflective Pigments • UV Absorbing Pigments • UV Inhibitors

PIGMENT SELECTION

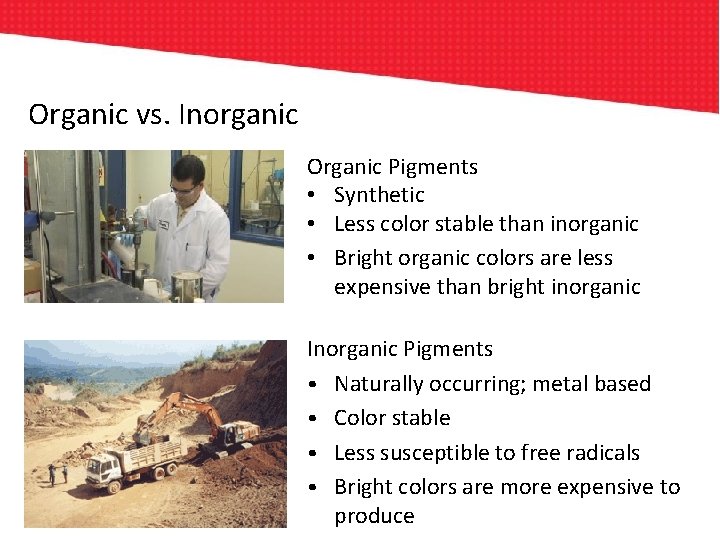

Organic vs. Inorganic Organic Pigments • Synthetic • Less color stable than inorganic • Bright organic colors are less expensive than bright inorganic Inorganic Pigments • Naturally occurring; metal based • Color stable • Less susceptible to free radicals • Bright colors are more expensive to produce

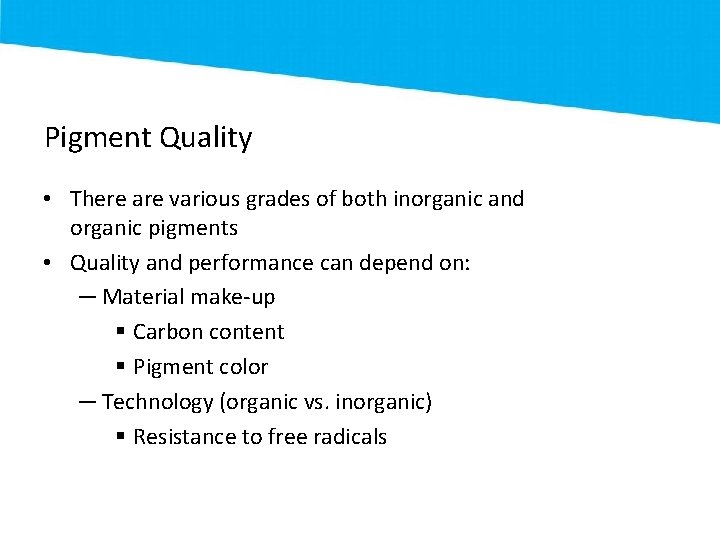

Pigment Quality • There are various grades of both inorganic and organic pigments • Quality and performance can depend on: ─ Material make-up § Carbon content § Pigment color ─ Technology (organic vs. inorganic) § Resistance to free radicals

EFFECTS OF ULTRAVIOLET LIGHT COLOR AND GLOSS

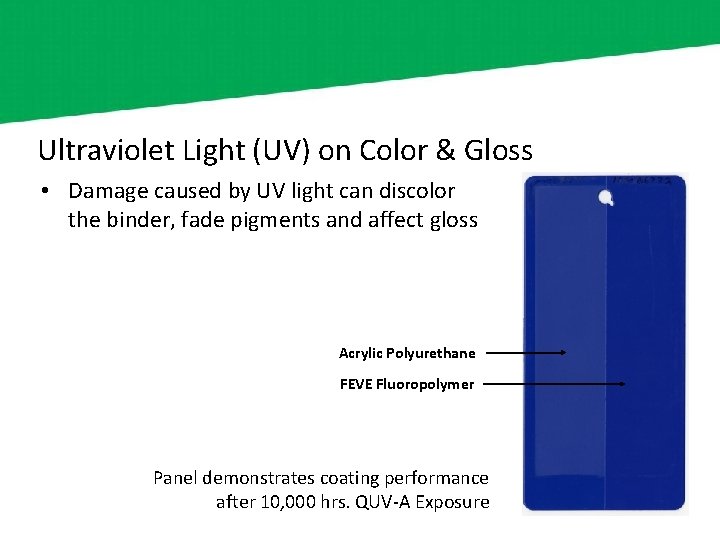

Ultraviolet Light (UV) on Color & Gloss • Damage caused by UV light can discolor the binder, fade pigments and affect gloss Acrylic Polyurethane FEVE Fluoropolymer Panel demonstrates coating performance after 10, 000 hrs. QUV-A Exposure

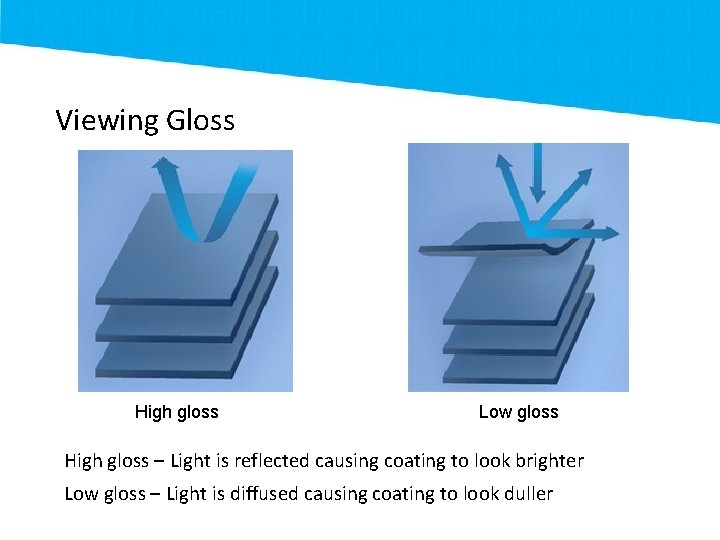

Viewing Gloss High gloss Low gloss High gloss – Light is reflected causing coating to look brighter Low gloss – Light is diffused causing coating to look duller

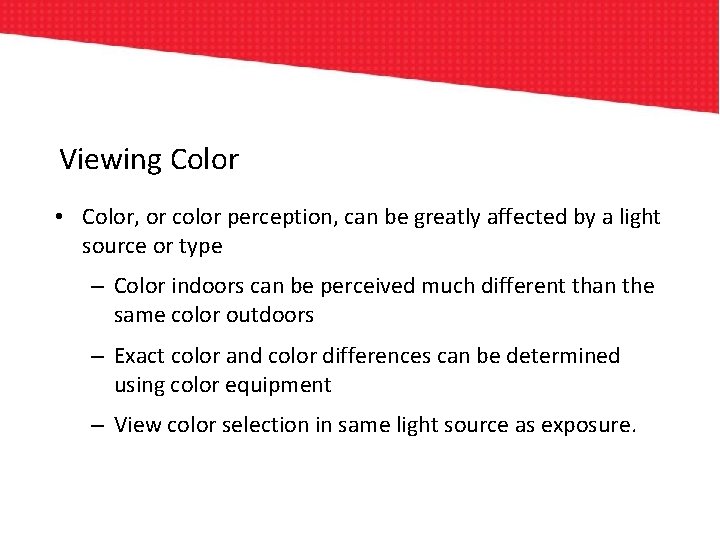

Viewing Color • Color, or color perception, can be greatly affected by a light source or type – Color indoors can be perceived much different than the same color outdoors – Exact color and color differences can be determined using color equipment – View color selection in same light source as exposure.

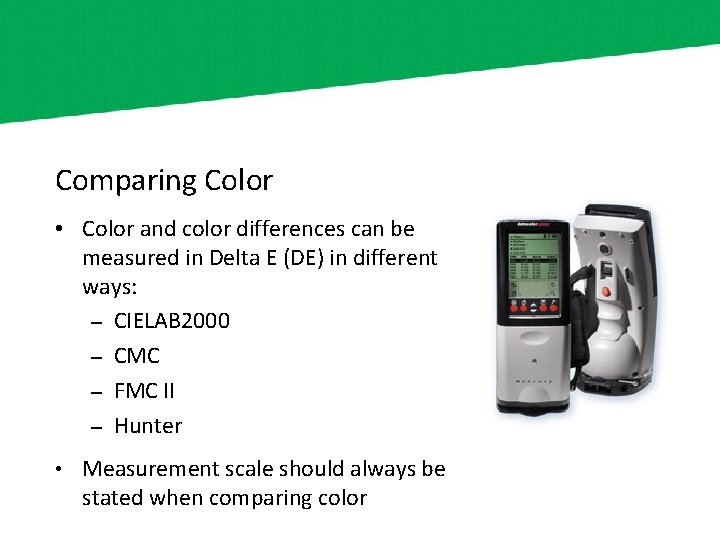

Comparing Color • Color and color differences can be measured in Delta E (DE) in different ways: – CIELAB 2000 – CMC – FMC II – Hunter • Measurement scale should always be stated when comparing color

TOPCOAT SELECTION BASED ON GENERIC TYPE

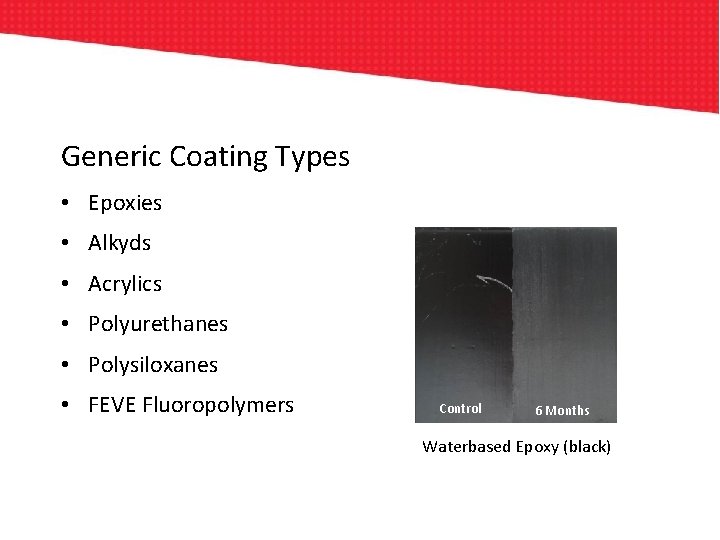

Generic Coating Types • Epoxies • Alkyds • Acrylics • Polyurethanes • Polysiloxanes • FEVE Fluoropolymers Control 6 Months Exp. Waterbased Epoxy (black)

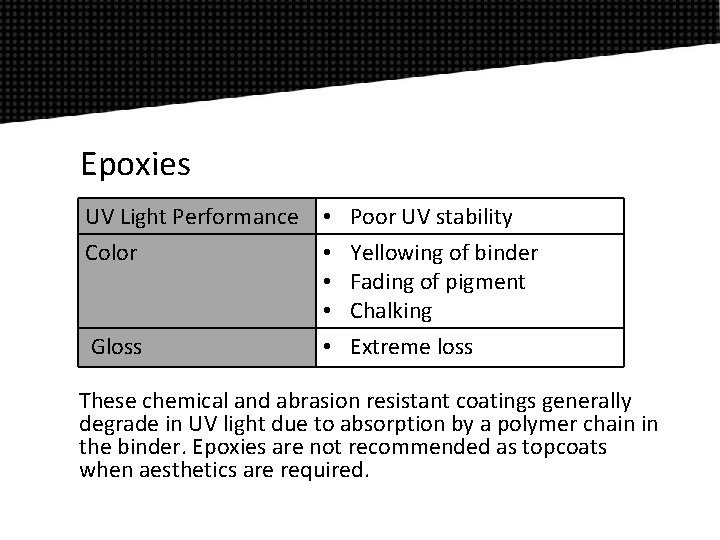

Epoxies UV Light Performance Color Gloss • • • Poor UV stability Yellowing of binder Fading of pigment Chalking Extreme loss These chemical and abrasion resistant coatings generally degrade in UV light due to absorption by a polymer chain in the binder. Epoxies are not recommended as topcoats when aesthetics are required. Control 6 Months Exp.

Alkyds UV Light Performance • Poor to moderate (depending on quality of oil) Color • Some discoloration of binder Fading of pigments • Chalking Gloss • Will decrease at an accelerated rate Alkyds’ convenient application make them widely used and can provide basic UV performance if comprised of quality materials.

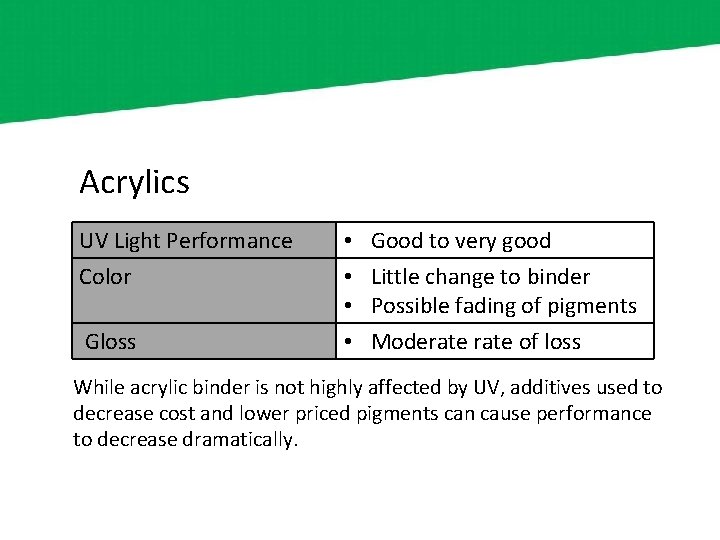

Acrylics UV Light Performance Color Gloss • • Good to very good Little change to binder Possible fading of pigments Moderate of loss While acrylic binder is not highly affected by UV, additives used to decrease cost and lower priced pigments can cause performance to decrease dramatically.

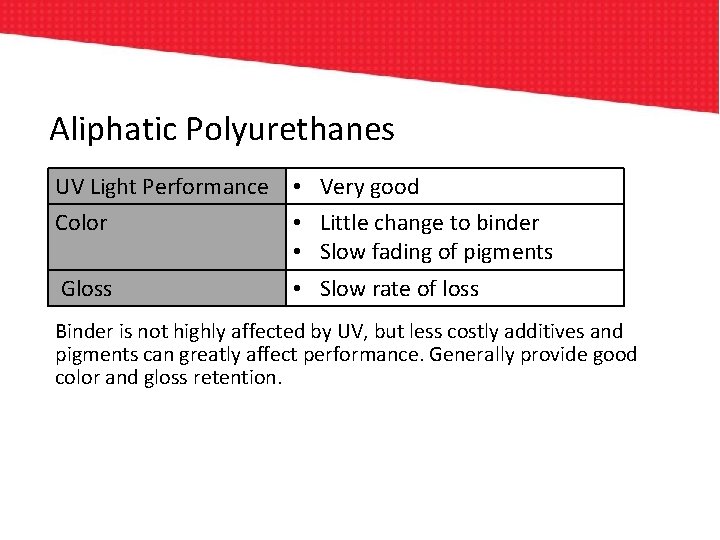

Aliphatic Polyurethanes UV Light Performance Color • Very good • Little change to binder • Slow fading of pigments Gloss • Slow rate of loss Binder is not highly affected by UV, but less costly additives and pigments can greatly affect performance. Generally provide good color and gloss retention.

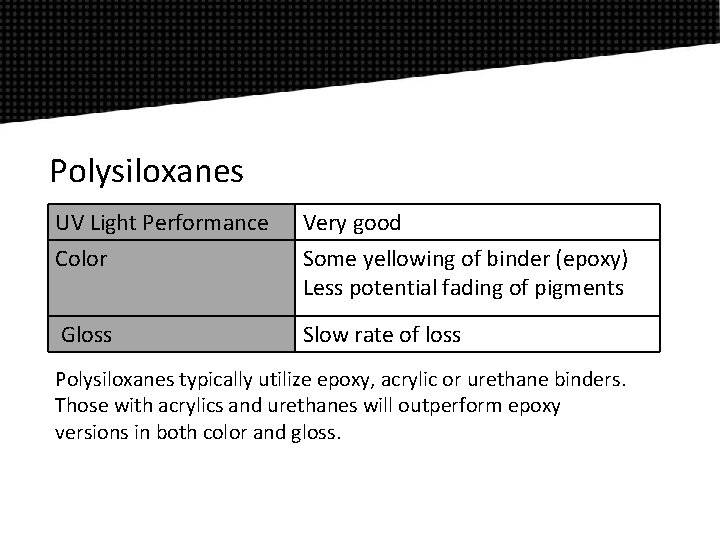

Polysiloxanes UV Light Performance Color Very good Some yellowing of binder (epoxy) Less potential fading of pigments Gloss Slow rate of loss Polysiloxanes typically utilize epoxy, acrylic or urethane binders. Those with acrylics and urethanes will outperform epoxy versions in both color and gloss.

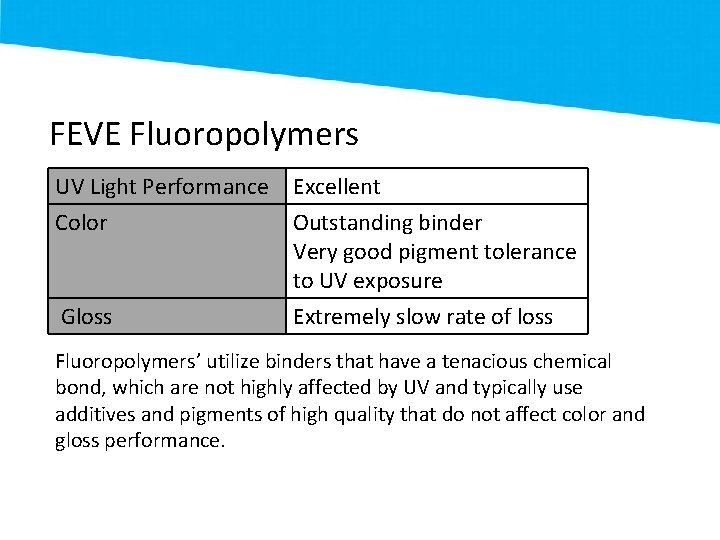

FEVE Fluoropolymers UV Light Performance Excellent Color Outstanding binder Very good pigment tolerance to UV exposure Gloss Extremely slow rate of loss Fluoropolymers’ utilize binders that have a tenacious chemical bond, which are not highly affected by UV and typically use additives and pigments of high quality that do not affect color and gloss performance.

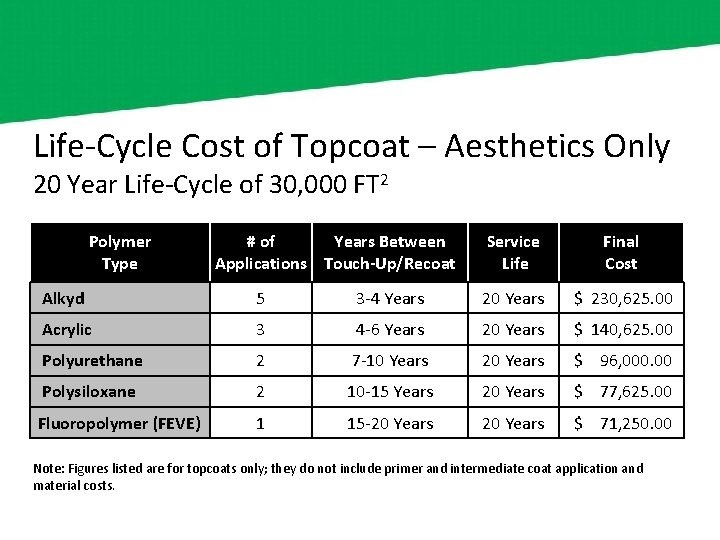

Life-Cycle Cost of Topcoat – Aesthetics Only 20 Year Life-Cycle of 30, 000 FT 2 Polymer Type # of Years Between Applications Touch-Up/Recoat Service Life Final Cost Alkyd 5 3 -4 Years 20 Years $ 230, 625. 00 Acrylic 3 4 -6 Years 20 Years $ 140, 625. 00 Polyurethane 2 7 -10 Years 20 Years $ 96, 000. 00 Polysiloxane 2 10 -15 Years 20 Years $ 77, 625. 00 Fluoropolymer (FEVE) 1 15 -20 Years $ 71, 250. 00 Note: Figures listed are for topcoats only; they do not include primer and intermediate coat application and material costs.

OTHER CONSIDERATIONS COATING PERFORMANCE AND TESTING

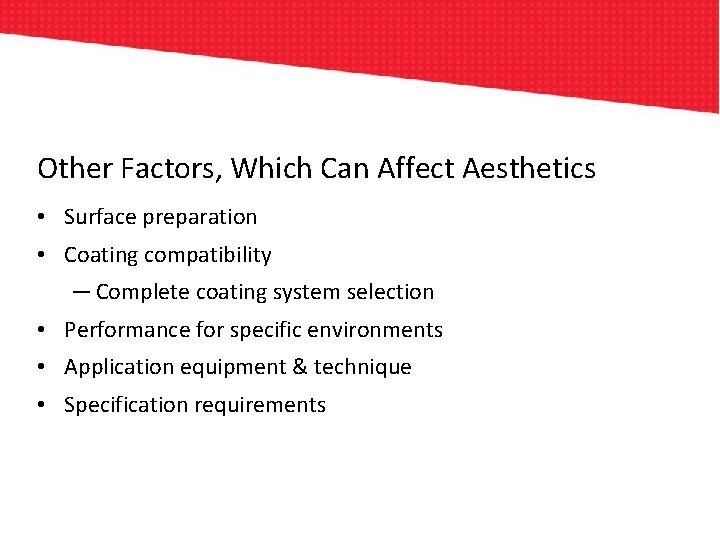

Other Factors, Which Can Affect Aesthetics • Surface preparation • Coating compatibility ─ Complete coating system selection • Performance for specific environments • Application equipment & technique • Specification requirements

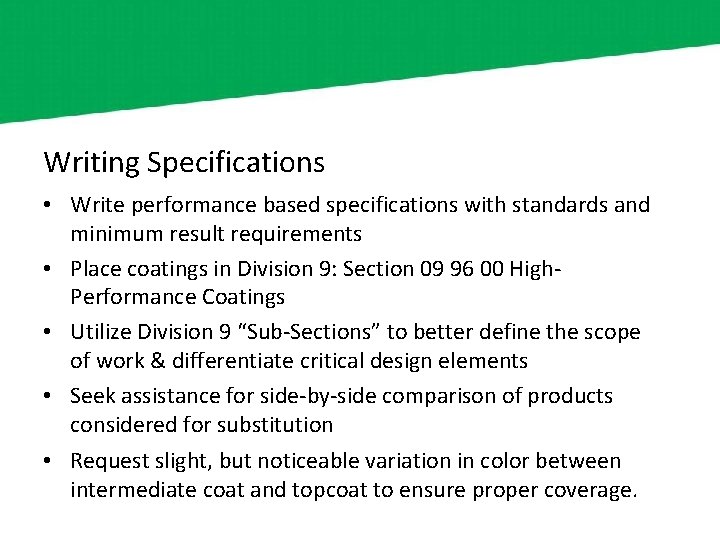

Writing Specifications • Write performance based specifications with standards and minimum result requirements • Place coatings in Division 9: Section 09 96 00 High. Performance Coatings • Utilize Division 9 “Sub-Sections” to better define the scope of work & differentiate critical design elements • Seek assistance for side-by-side comparison of products considered for substitution • Request slight, but noticeable variation in color between intermediate coat and topcoat to ensure proper coverage.

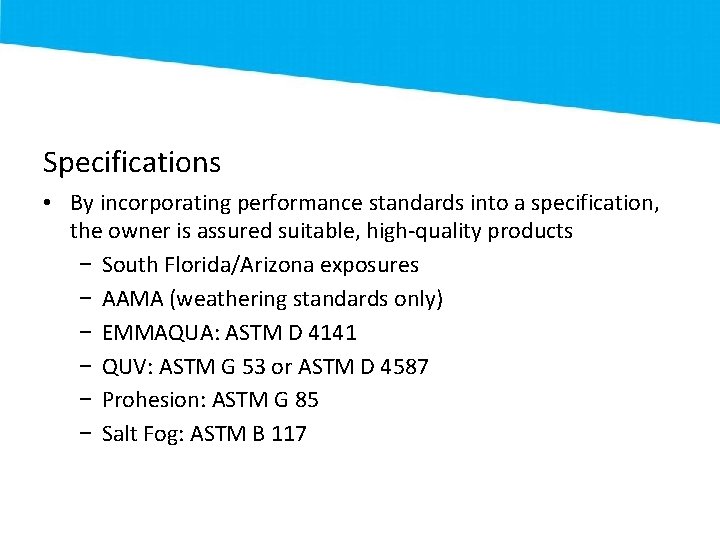

Specifications • By incorporating performance standards into a specification, the owner is assured suitable, high-quality products − South Florida/Arizona exposures − AAMA (weathering standards only) − EMMAQUA: ASTM D 4141 − QUV: ASTM G 53 or ASTM D 4587 − Prohesion: ASTM G 85 − Salt Fog: ASTM B 117

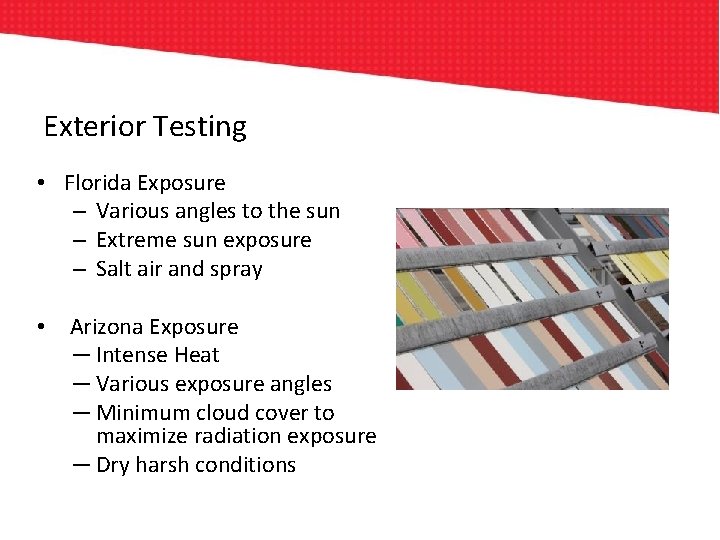

Exterior Testing • Florida Exposure – Various angles to the sun – Extreme sun exposure – Salt air and spray • Arizona Exposure ─ Intense Heat ─ Various exposure angles ─ Minimum cloud cover to maximize radiation exposure ─ Dry harsh conditions

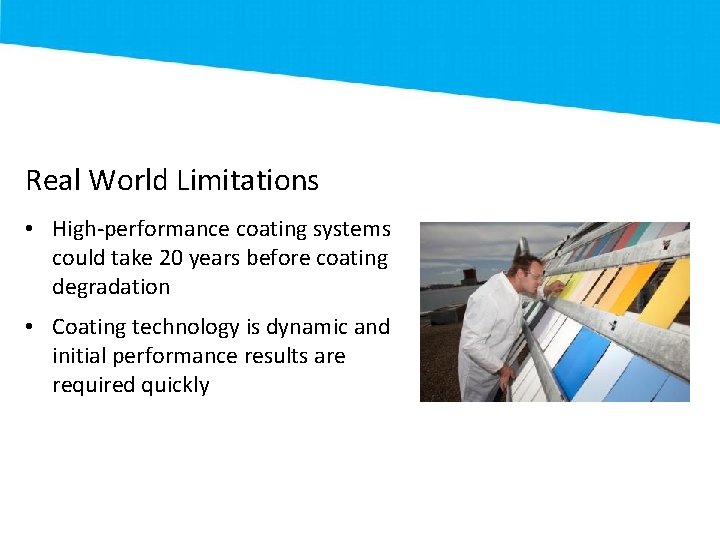

Real World Limitations • High-performance coating systems could take 20 years before coating degradation • Coating technology is dynamic and initial performance results are required quickly

Accelerated Testing • Natural exposures can take years to obtain results • Accelerated testing is utilized to emulate natural exposures with high concentrations of elements. • UV Exposure • Sunlight Concentrator – EMMAQUA • UV/Prohesion • Humidity

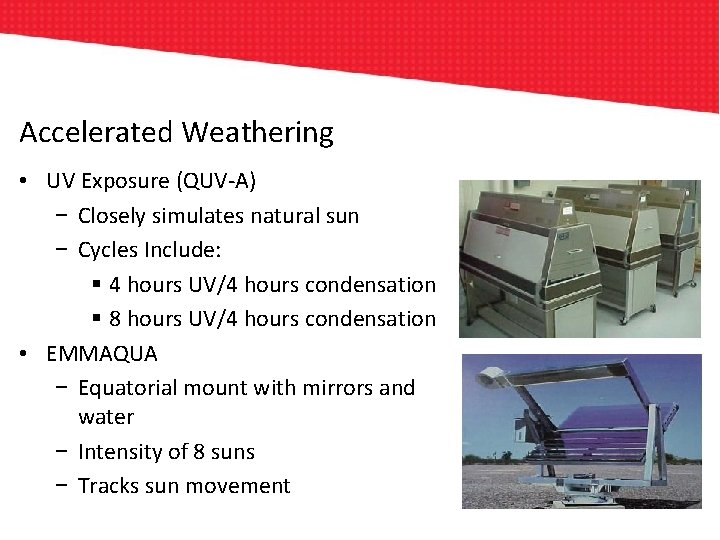

Accelerated Weathering • UV Exposure (QUV-A) − Closely simulates natural sun − Cycles Include: § 4 hours UV/4 hours condensation § 8 hours UV/4 hours condensation • EMMAQUA − Equatorial mount with mirrors and water − Intensity of 8 suns − Tracks sun movement

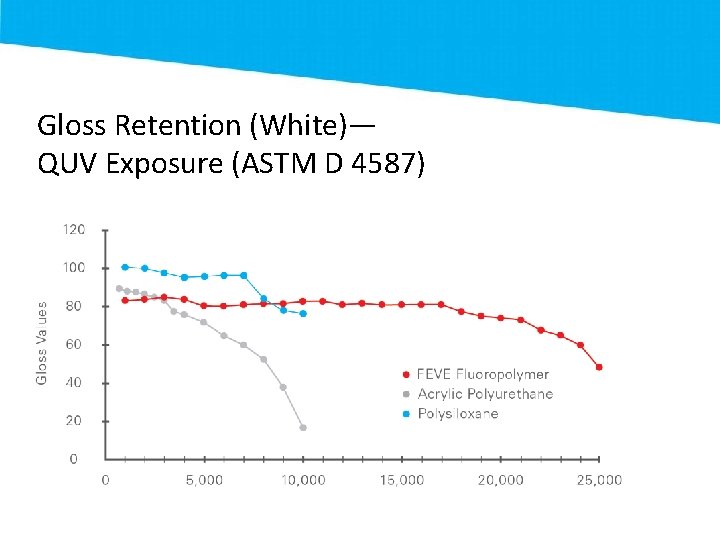

Gloss Retention (White)— QUV Exposure (ASTM D 4587)

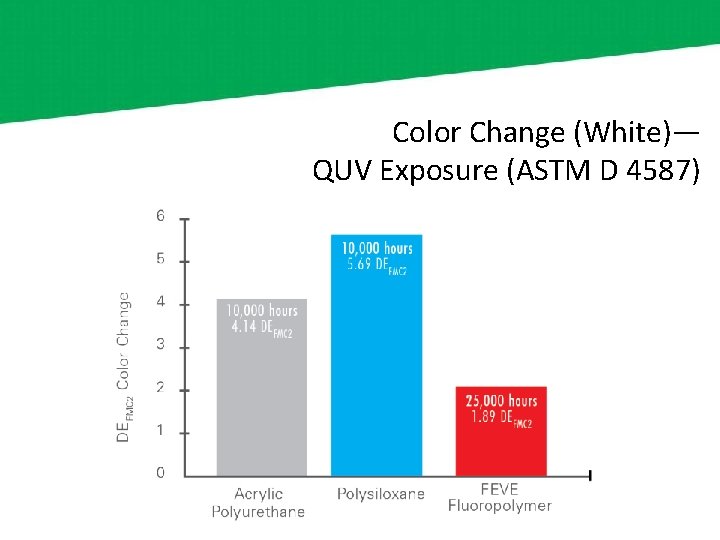

Color Change (White)— QUV Exposure (ASTM D 4587)

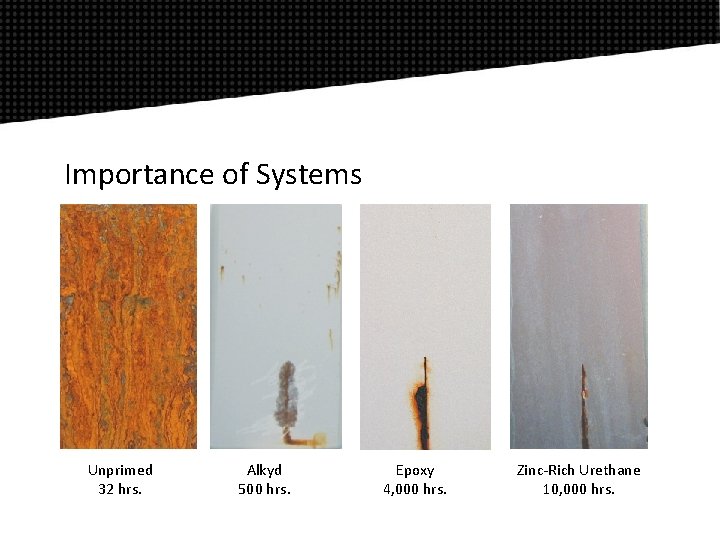

Importance of Systems Unprimed 32 hrs. Alkyd 500 hrs. Epoxy 4, 000 hrs. Zinc-Rich Urethane 10, 000 hrs.

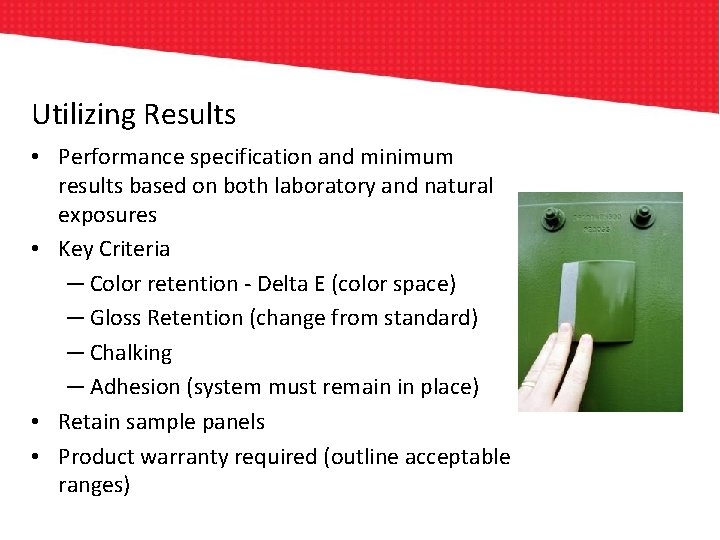

Utilizing Results • Performance specification and minimum results based on both laboratory and natural exposures • Key Criteria ─ Color retention - Delta E (color space) ─ Gloss Retention (change from standard) ─ Chalking ─ Adhesion (system must remain in place) • Retain sample panels • Product warranty required (outline acceptable ranges)

CASE STUDIES EXTENDING PERFORMANCE WITH FEVE FLUOROPOLYMERS

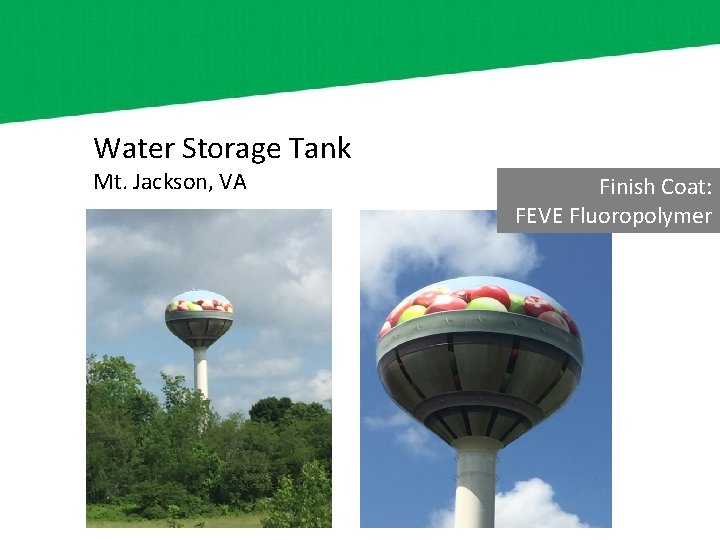

Water Storage Tank Mt. Jackson, VA Finish Coat: FEVE Fluoropolymer

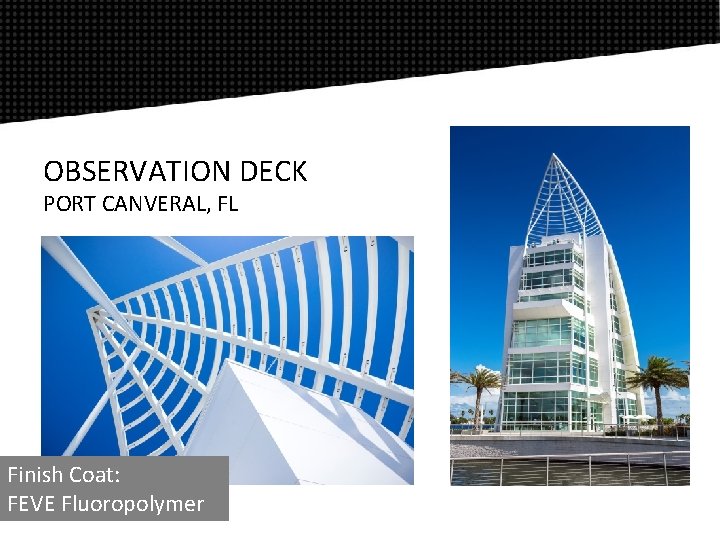

OBSERVATION DECK PORT CANVERAL, FL Finish Coat: FEVE Fluoropolymer

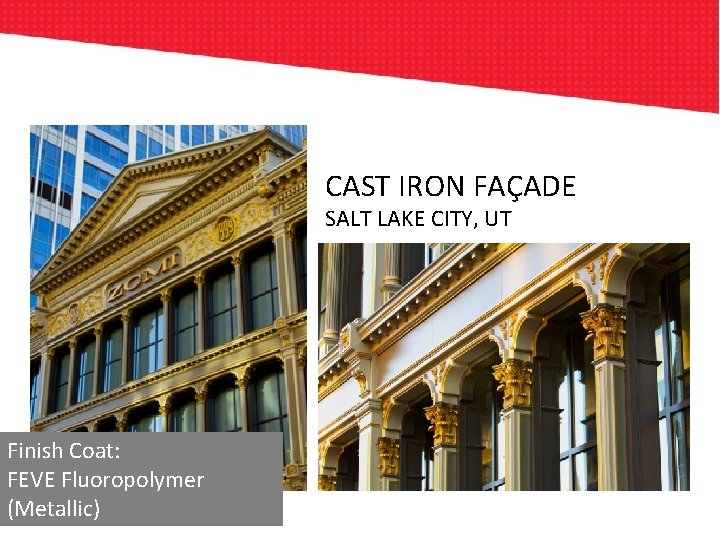

CAST IRON FAÇADE SALT LAKE CITY, UT Finish Coat: FEVE Fluoropolymer (Metallic)

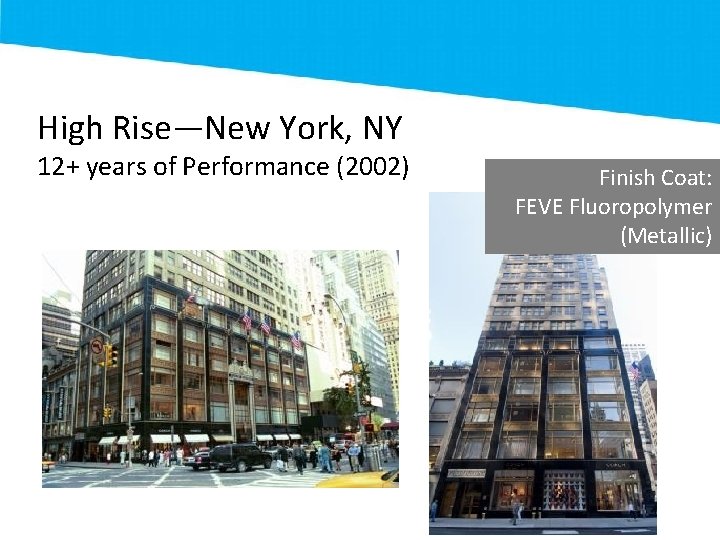

High Rise—New York, NY 12+ years of Performance (2002) Finish Coat: FEVE Fluoropolymer (Metallic)

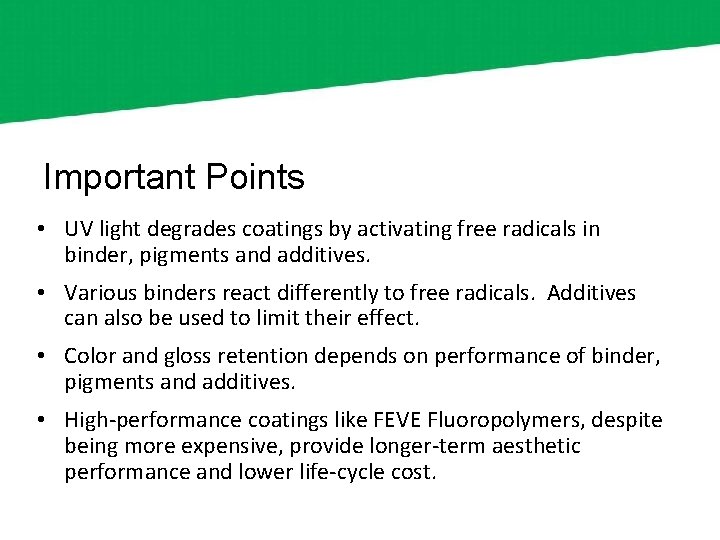

Important Points • UV light degrades coatings by activating free radicals in binder, pigments and additives. • Various binders react differently to free radicals. Additives can also be used to limit their effect. • Color and gloss retention depends on performance of binder, pigments and additives. • High-performance coatings like FEVE Fluoropolymers, despite being more expensive, provide longer-term aesthetic performance and lower life-cycle cost.

Thank you for your participation in today’s presentation. QUESTIONS?
