Selecting A Foam Pro System What Types Of

Selecting A Foam. Pro System

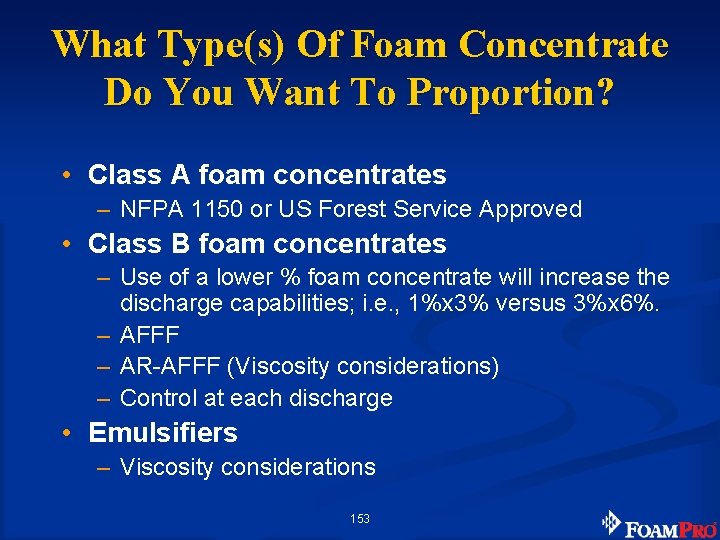

What Type(s) Of Foam Concentrate Do You Want To Proportion? • Class A foam concentrates – NFPA 1150 or US Forest Service Approved • Class B foam concentrates – Use of a lower % foam concentrate will increase the discharge capabilities; i. e. , 1%x 3% versus 3%x 6%. – AFFF – AR-AFFF (Viscosity considerations) – Control at each discharge • Emulsifiers – Viscosity considerations 153

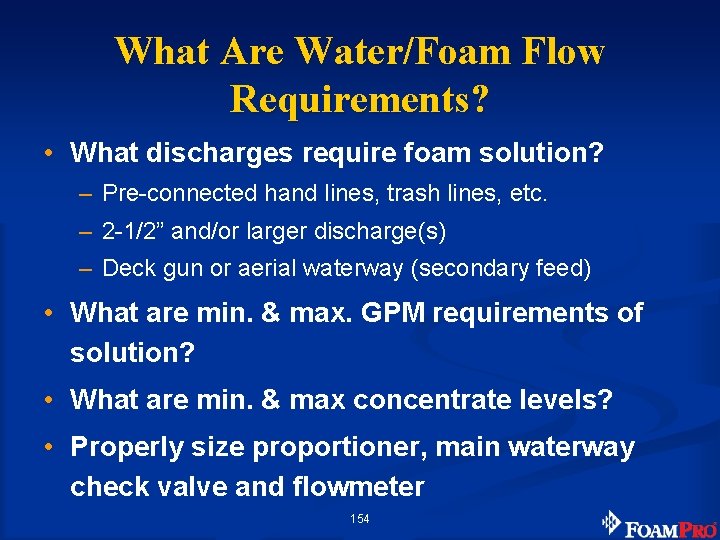

What Are Water/Foam Flow Requirements? • What discharges require foam solution? – Pre-connected hand lines, trash lines, etc. – 2 -1/2” and/or larger discharge(s) – Deck gun or aerial waterway (secondary feed) • What are min. & max. GPM requirements of solution? • What are min. & max concentrate levels? • Properly size proportioner, main waterway check valve and flowmeter 154

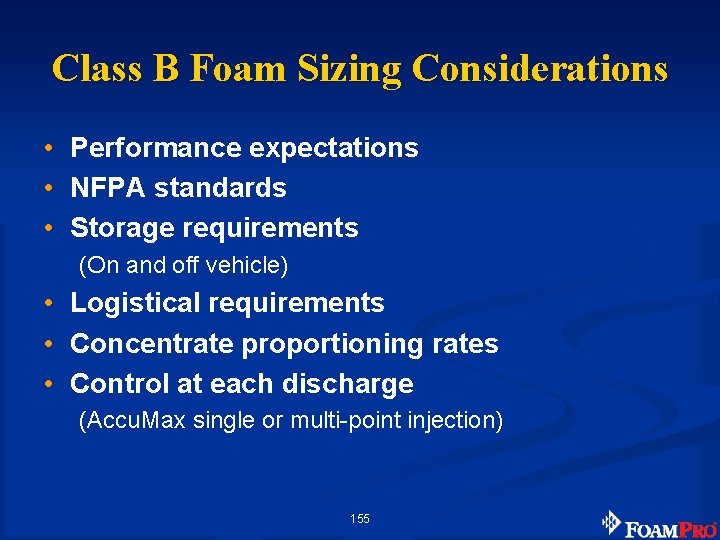

Class B Foam Sizing Considerations • Performance expectations • NFPA standards • Storage requirements (On and off vehicle) • Logistical requirements • Concentrate proportioning rates • Control at each discharge (Accu. Max single or multi-point injection) 155

Sizing The Proportioner Gallons per minute of foam concentrate required 156

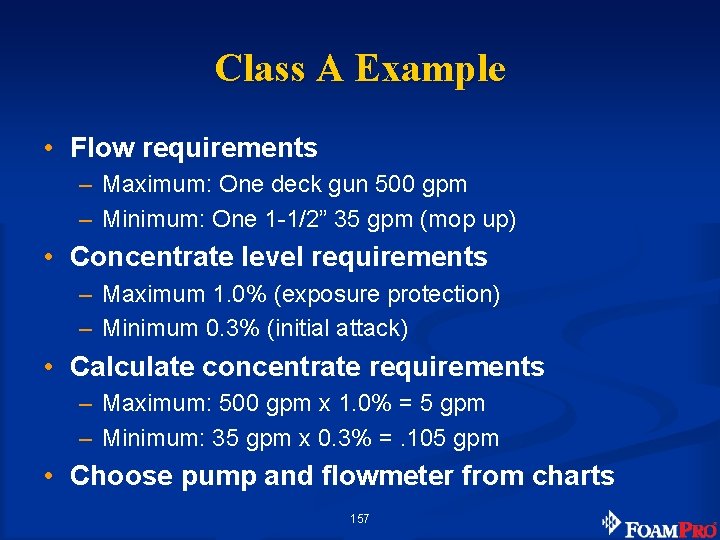

Class A Example • Flow requirements – Maximum: One deck gun 500 gpm – Minimum: One 1 -1/2” 35 gpm (mop up) • Concentrate level requirements – Maximum 1. 0% (exposure protection) – Minimum 0. 3% (initial attack) • Calculate concentrate requirements – Maximum: 500 gpm x 1. 0% = 5 gpm – Minimum: 35 gpm x 0. 3% =. 105 gpm • Choose pump and flowmeter from charts 157

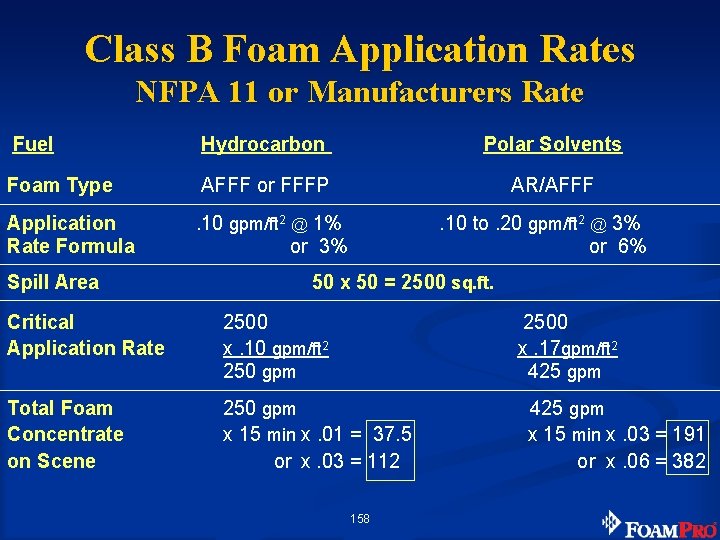

Class B Foam Application Rates NFPA 11 or Manufacturers Rate Fuel Hydrocarbon Polar Solvents Foam Type AFFF or FFFP AR/AFFF Application Rate Formula . 10 gpm/ft 2 @ 1% or 3% Spill Area . 10 to. 20 gpm/ft 2 @ 3% or 6% 50 x 50 = 2500 sq. ft. Critical Application Rate 2500 x. 10 gpm/ft 2 250 gpm 2500 x. 17 gpm/ft 2 425 gpm Total Foam Concentrate on Scene 250 gpm x 15 min x. 01 = 37. 5 or x. 03 = 112 158 425 gpm x 15 min x. 03 = 191 or x. 06 = 382

The Foam. Product Line Model Capacity Model 3020 3040 3060 3090 3150 3300 (Class A foam only) 1600 1601 0. 1 -1. 7 0. 1 -1. 1 gpm (Class A and/or B foam) 2001 2002 3012 0. 01 -2. 6 gpm 0. 01 -5. 0 gpm 0. 1 -12. 0 gpm Capacity 4. 0 - 20. 0 gpm 4. 0 - 40. 0 gpm 4. 0 - 60. 0 gpm 6. 0 - 90. 0 gpm 6. 0 -150. 0 gpm 10. 0 -300. 0 gpm Dual pump option available for flows below 3000 series minimums Maximum operating pressure 250 psi Maximum operating pressure 400 psi 159

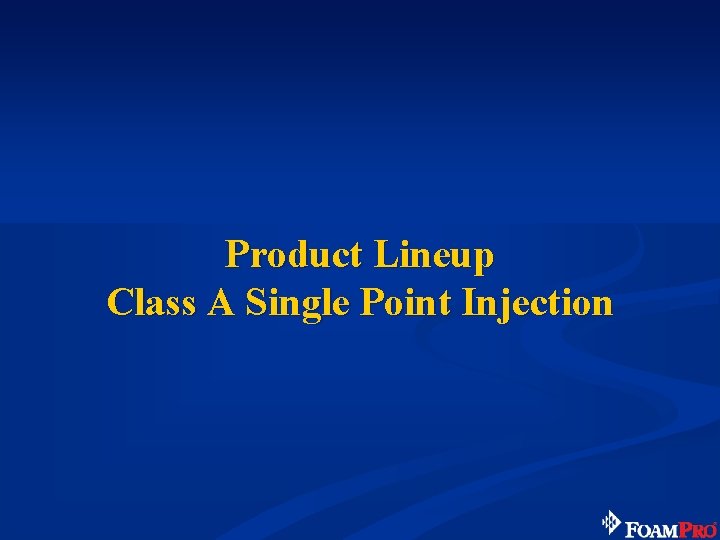

Product Lineup Class A Single Point Injection

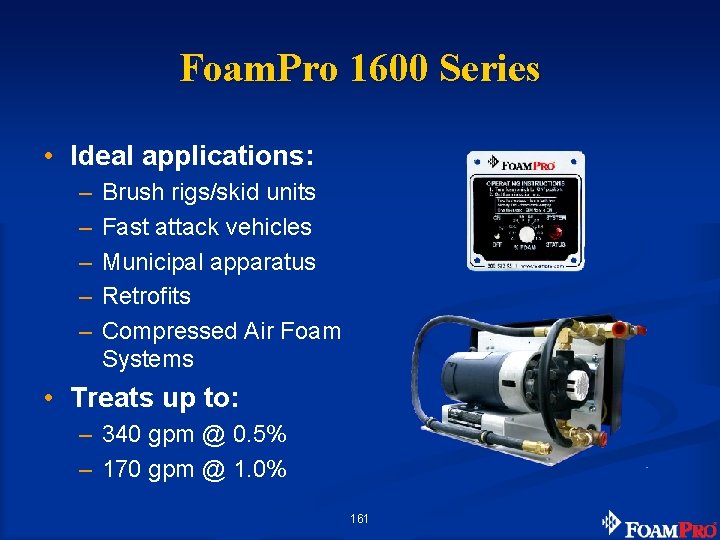

Foam. Pro 1600 Series • Ideal applications: – – – Brush rigs/skid units Fast attack vehicles Municipal apparatus Retrofits Compressed Air Foam Systems • Treats up to: – 340 gpm @ 0. 5% – 170 gpm @ 1. 0% 161

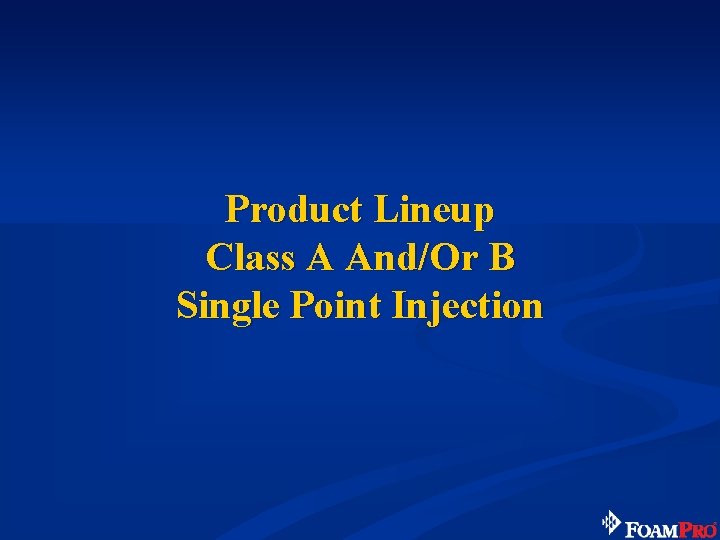

Product Lineup Class A And/Or B Single Point Injection

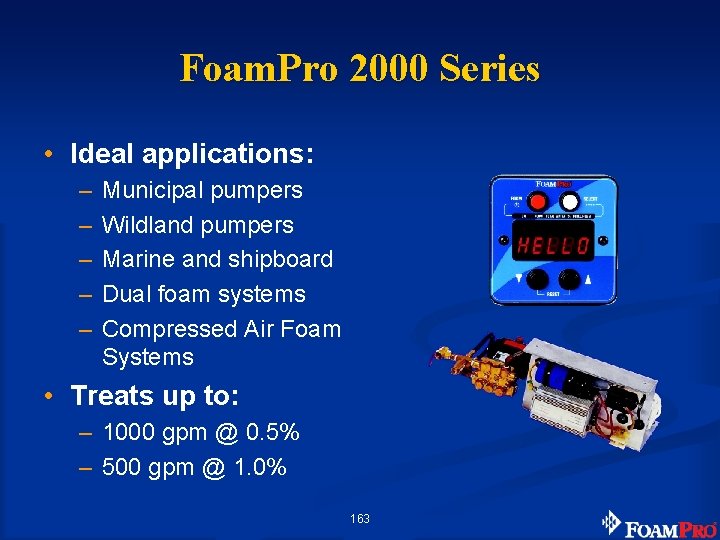

Foam. Pro 2000 Series • Ideal applications: – – – Municipal pumpers Wildland pumpers Marine and shipboard Dual foam systems Compressed Air Foam Systems • Treats up to: – 1000 gpm @ 0. 5% – 500 gpm @ 1. 0% 163

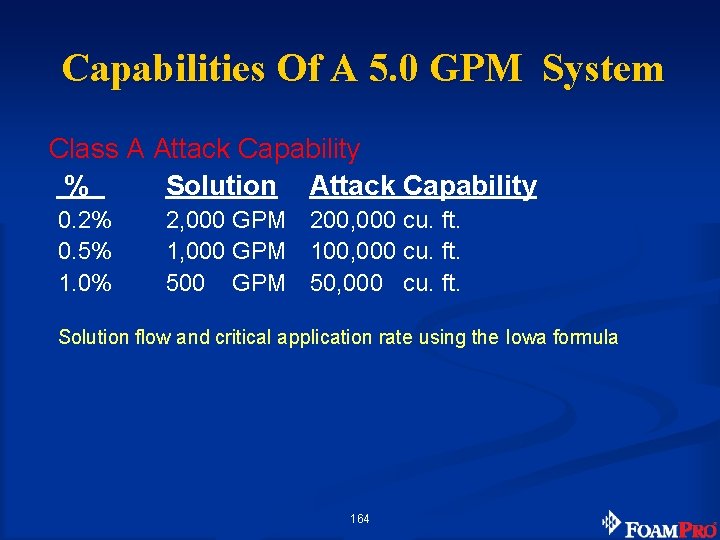

Capabilities Of A 5. 0 GPM System Class A Attack Capability % Solution Attack Capability 0. 2% 0. 5% 1. 0% 2, 000 GPM 200, 000 cu. ft. 1, 000 GPM 100, 000 cu. ft. 500 GPM 50, 000 cu. ft. Solution flow and critical application rate using the Iowa formula 164

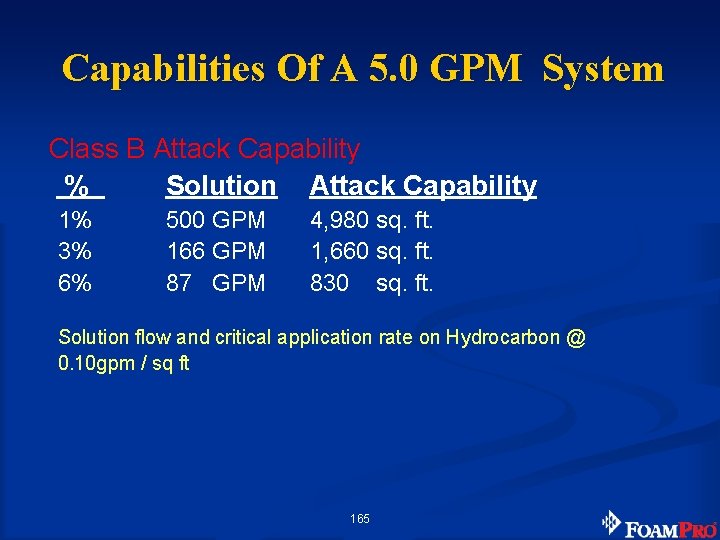

Capabilities Of A 5. 0 GPM System Class B Attack Capability % Solution Attack Capability 1% 3% 6% 500 GPM 166 GPM 87 GPM 4, 980 sq. ft. 1, 660 sq. ft. 830 sq. ft. Solution flow and critical application rate on Hydrocarbon @ 0. 10 gpm / sq ft 165

Foam. Pro Model 3012 • Ideal applications: – – – Municipal pumpers Wildland pumpers Marine and shipboard Dual foam systems Compressed Air Foam Systems • Treats up to: – 2400 gpm @ 0. 5% – 1200 gpm @ 1. 0% 166

Capabilities Of A 12. 0 GPM System Class A Attack Capability % Solution Attack Capability 0. 2% 0. 5% 1. 0% 6, 000 GPM 600, 000 cu. ft. 2, 400 GPM 240, 000 cu. ft. 1, 200 GPM 120, 000 cu. ft. Solution flow and critical application rate using the Iowa formula 167

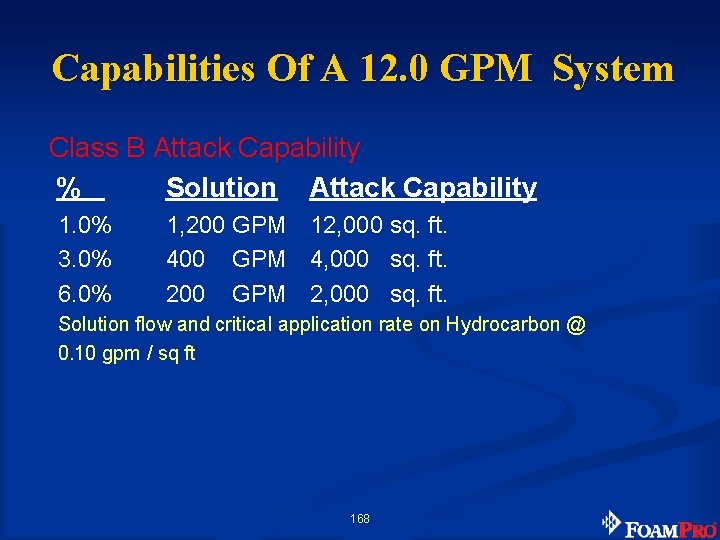

Capabilities Of A 12. 0 GPM System Class B Attack Capability % Solution Attack Capability 1. 0% 3. 0% 6. 0% 1, 200 GPM 12, 000 sq. ft. 400 GPM 4, 000 sq. ft. 200 GPM 2, 000 sq. ft. Solution flow and critical application rate on Hydrocarbon @ 0. 10 gpm / sq ft 168

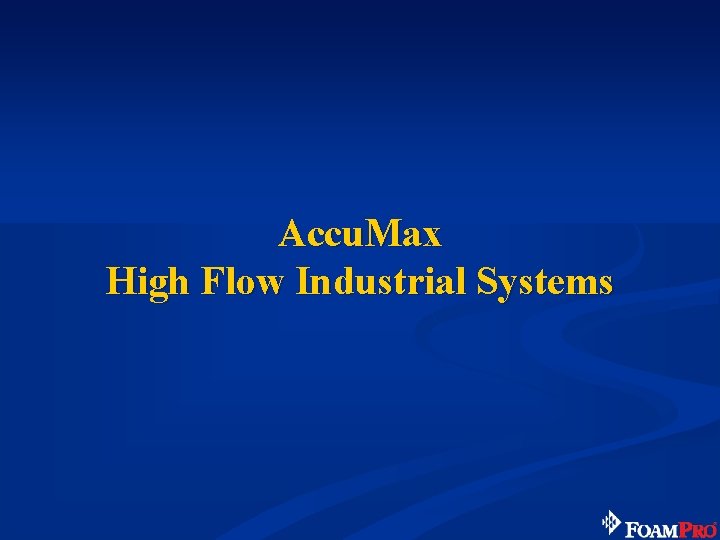

Accu. Max High Flow Industrial Systems

Accu. Max Single Point Systems • Ideal applications: – – – Industrial Municipal pumpers Airport rescue Aerial apparatus Compressed Air Foam Systems • Treats up to: – 10, 000 gpm @ 3. 0% – 5, 000 gpm @ 6. 0% 170

Accu. Max Single Point Injection Digital Display Control Foam Tank Line Strainer Water Tank Check Valves Flowmeter Water Pump 171 Multiple Discharges

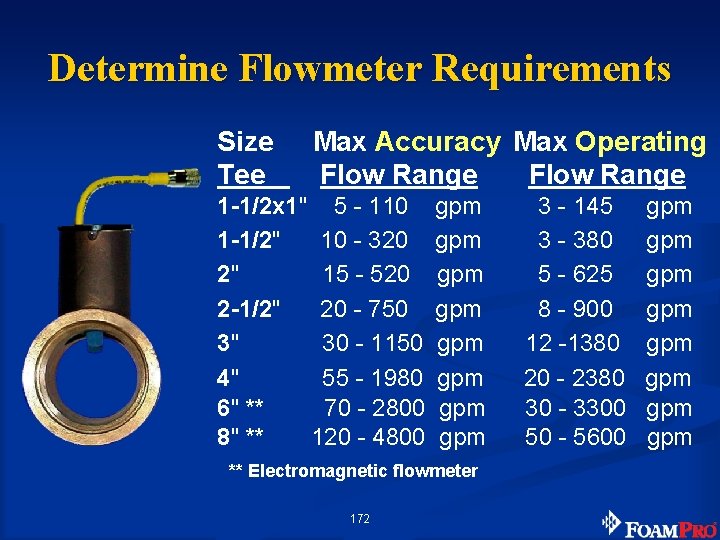

Determine Flowmeter Requirements Size Tee Max Accuracy Max Operating Flow Range 1 -1/2 x 1" 5 - 110 1 -1/2" 10 - 320 2" 15 - 520 2 -1/2" 20 - 750 3" 30 - 1150 4" 55 - 1980 6" ** 70 - 2800 8" ** 120 - 4800 gpm gpm ** Electromagnetic flowmeter 172 3 - 145 3 - 380 5 - 625 8 - 900 12 -1380 20 - 2380 30 - 3300 50 - 5600 gpm gpm

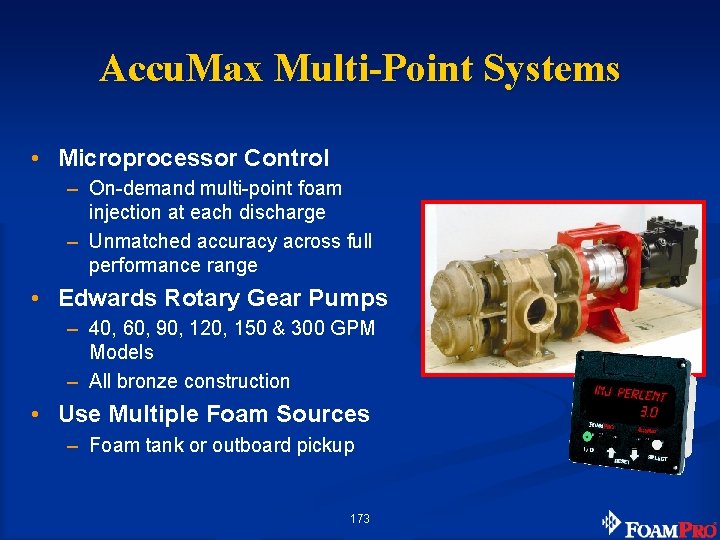

Accu. Max Multi-Point Systems • Microprocessor Control – On-demand multi-point foam injection at each discharge – Unmatched accuracy across full performance range • Edwards Rotary Gear Pumps – 40, 60, 90, 120, 150 & 300 GPM Models – All bronze construction • Use Multiple Foam Sources – Foam tank or outboard pickup 173

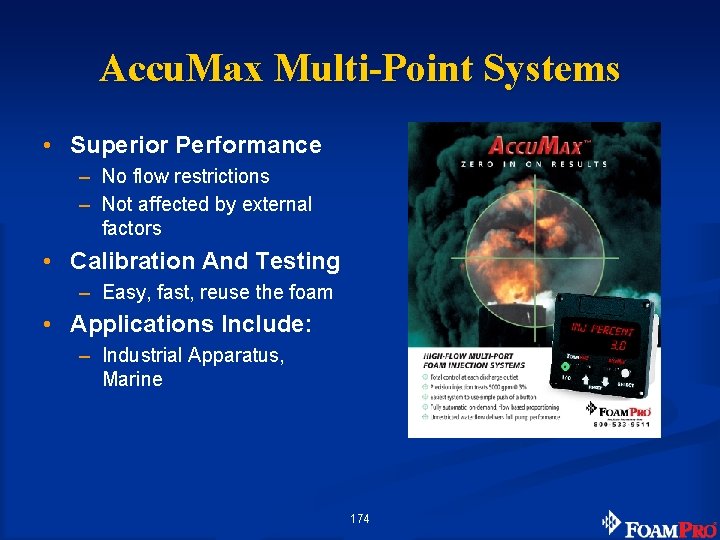

Accu. Max Multi-Point Systems • Superior Performance – No flow restrictions – Not affected by external factors • Calibration And Testing – Easy, fast, reuse the foam • Applications Include: – Industrial Apparatus, Marine 174

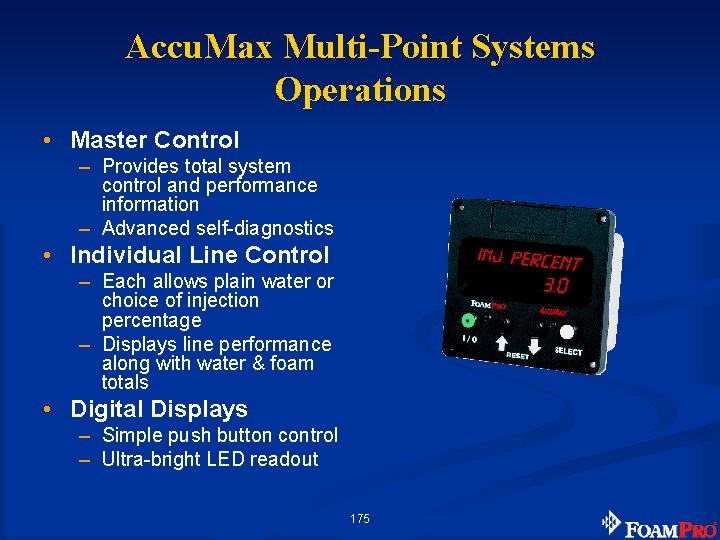

Accu. Max Multi-Point Systems Operations • Master Control – Provides total system control and performance information – Advanced self-diagnostics • Individual Line Control – Each allows plain water or choice of injection percentage – Displays line performance along with water & foam totals • Digital Displays – Simple push button control – Ultra-bright LED readout 175

Accu. Max Multi-Point Line Controller & Flowmeter Sizing 176

Accu. Max Multi-Point Line Controller & Flowmeter Sizing 177

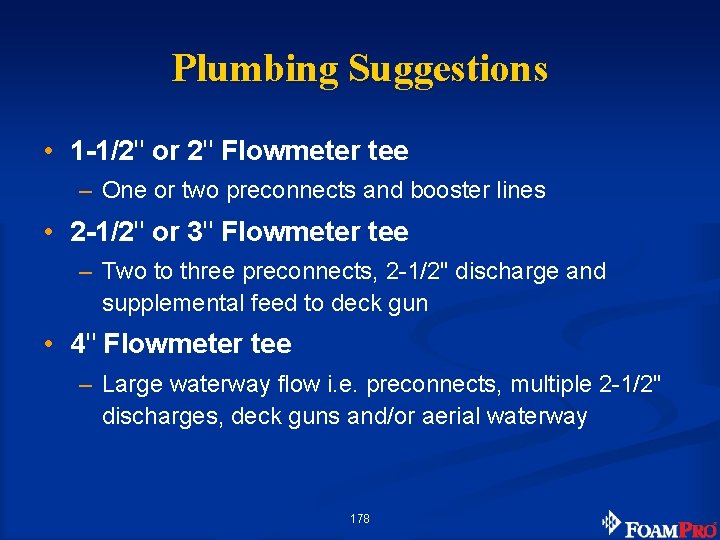

Plumbing Suggestions • 1 -1/2" or 2" Flowmeter tee – One or two preconnects and booster lines • 2 -1/2" or 3" Flowmeter tee – Two to three preconnects, 2 -1/2" discharge and supplemental feed to deck gun • 4" Flowmeter tee – Large waterway flow i. e. preconnects, multiple 2 -1/2" discharges, deck guns and/or aerial waterway 178

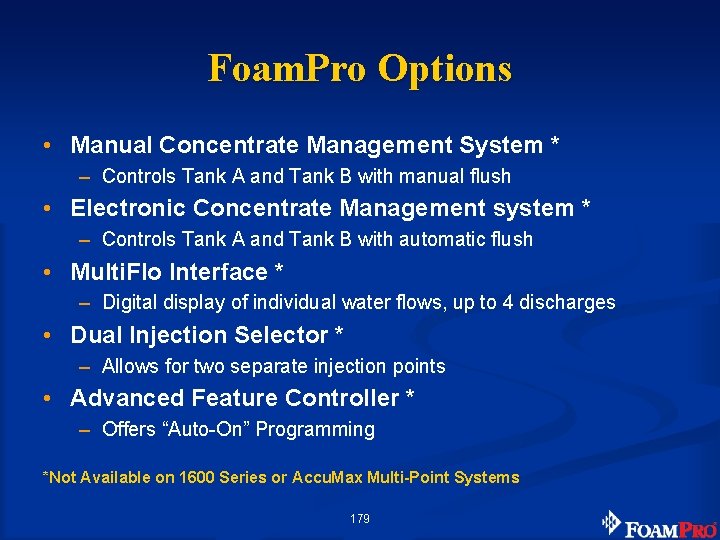

Foam. Pro Options • Manual Concentrate Management System * – Controls Tank A and Tank B with manual flush • Electronic Concentrate Management system * – Controls Tank A and Tank B with automatic flush • Multi. Flo Interface * – Digital display of individual water flows, up to 4 discharges • Dual Injection Selector * – Allows for two separate injection points • Advanced Feature Controller * – Offers “Auto-On” Programming *Not Available on 1600 Series or Accu. Max Multi-Point Systems 179

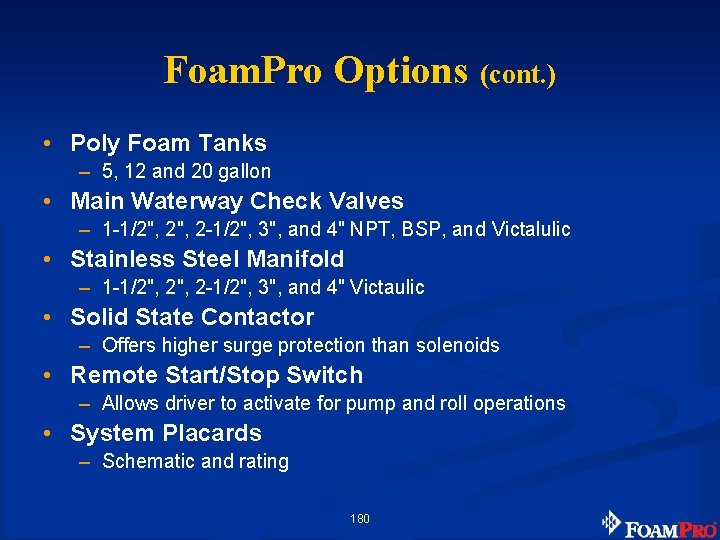

Foam. Pro Options (cont. ) • Poly Foam Tanks – 5, 12 and 20 gallon • Main Waterway Check Valves – 1 -1/2", 2 -1/2", 3", and 4" NPT, BSP, and Victalulic • Stainless Steel Manifold – 1 -1/2", 2 -1/2", 3", and 4" Victaulic • Solid State Contactor – Offers higher surge protection than solenoids • Remote Start/Stop Switch – Allows driver to activate for pump and roll operations • System Placards – Schematic and rating 180

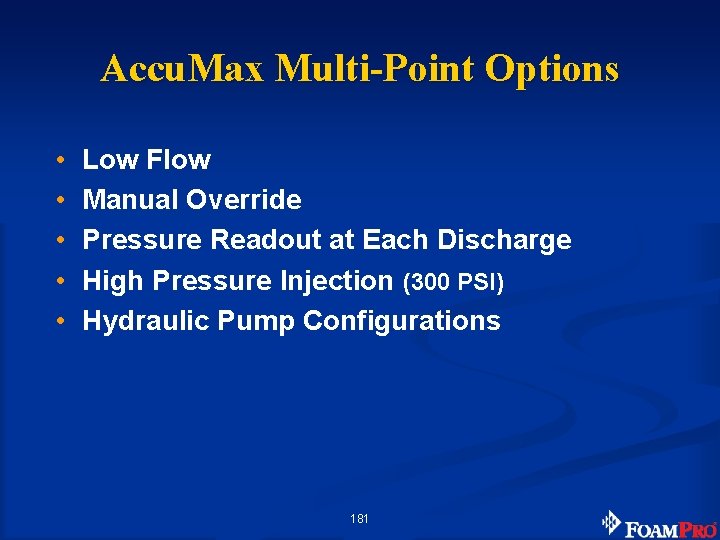

Accu. Max Multi-Point Options • • • Low Flow Manual Override Pressure Readout at Each Discharge High Pressure Injection (300 PSI) Hydraulic Pump Configurations 181

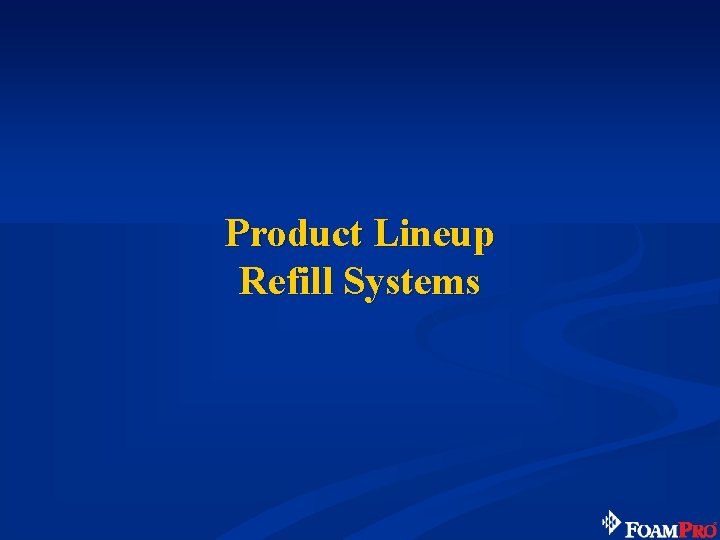

Product Lineup Refill Systems

Power-Fill • Improved Safety – No injuries from climbing on top of vehicles or lifting foam containers • Increased Efficiency – Accomplish task faster with fewer personnel • Added Economy – Purchase concentrate in larger containers for less cost • Two Models – Greater flexibility 183

D. C. Model • On-Board System – Pre-plumbed for fast, easy operation • Easy To Use – – Microprocessor control Push button activation Automatic shut-off Manual override • Heavy Duty Pump – Up to 12 GPM – 12 volt ½ hp motor – 24 volt available – Excellent drafting – Handles all viscosities 184

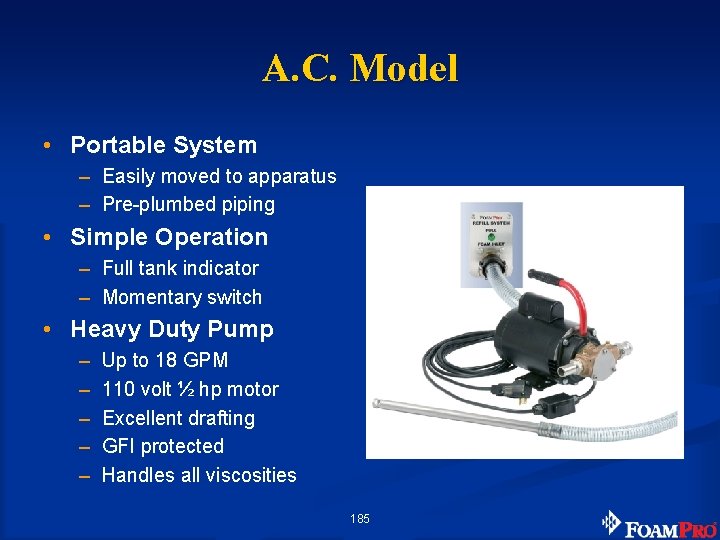

A. C. Model • Portable System – Easily moved to apparatus – Pre-plumbed piping • Simple Operation – Full tank indicator – Momentary switch • Heavy Duty Pump – – – Up to 18 GPM 110 volt ½ hp motor Excellent drafting GFI protected Handles all viscosities 185

Some Friendly Advice • Define your needs – Immediate – Life of the vehicle • Thoroughly check out all of the systems being considered – What the system will and will not do – Check with those who have experience – Consult with more than one reliable source 186

A “Solution” For Every Application 187
