SELECT PROGRAM BAKE CONV BAKE BROIL CONV BROIL
- SELECT PROGRAM - BAKE CONV BAKE BROIL CONV BROIL SELF CLEAN On any diagram screen, double click any of the following components to bring you to a description page of that component: • High Limit Thermostat • Self Clean Relay • Cooling Motor Thermostat • Selector • Convection Fan • DSI Module • Operating Thermostat • Door Latch Assembly • Bake Solenoid • Auto Reset • Self Clean Timer • Broil Solenoid • Auto Rest 2 • Cooling Motor

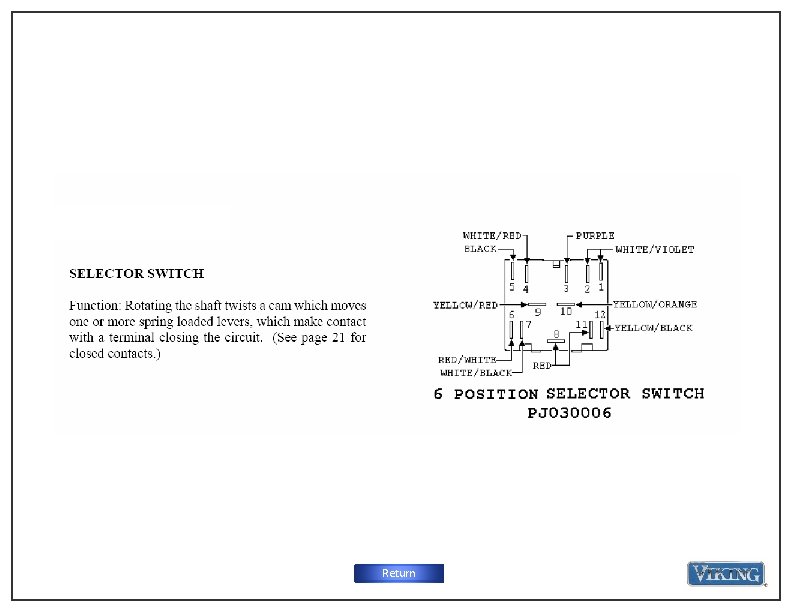

Selector switch contact 1 to 12 is closed. Click mouse to advance
Thermostat contacts 7 and 8 (on/off) and 1 and 2 (cycling) are closed. Click mouse to advance
L 1 travels through the high limiter, then through selector switch contacts 7 and 8 then 1 and 2 (cycling). Through selector contact 1 and 12. Through Auto Reset 2 – then to terminal 6 on the DSI. The Bake burner lights. ADVANCE
Selector switch contacts 1 to 12 is closed and 5 to 7 is closed. Click mouse to advance
Thermostat contacts 7 and 8 (on/off) and 1 and 2 (cycling) are closed. Click mouse to advance
L 1 travels through the high limiter, then through selector switch contacts 7 and 8 then 1 and 2 (cycling). Through selector contact 1 to 12. Through Auto Reset 2 – then to terminal 6 on the DSI. . The Bake burner lights. With contact 5 to 7 closed, the convection fan operates as well. ADVANCE
Selector switch contact 1 to 11 is closed. Click mouse to advance
Thermostat contacts 7 and 8 (on/off) and 1 and 2 (cycling) are closed. Click mouse to advance

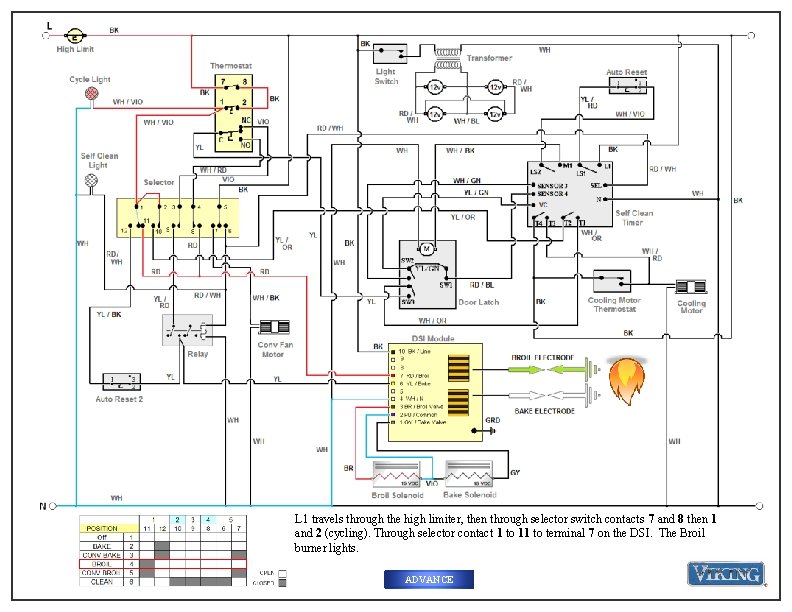

L 1 travels through the high limiter, then through selector switch contacts 7 and 8 then 1 and 2 (cycling). Through selector contact 1 to 11 to terminal 7 on the DSI. The Broil burner lights. ADVANCE
Selector switch contacts 1 to 11 is closed and 5 to 7 is closed. Click mouse to advance
Thermostat contacts 7 and 8 (on/off) and 1 and 2 (cycling) are closed. Click mouse to advance
L 1 travels through the high limiter, then through selector switch contacts 7 and 8 then 1 and 2 (cycling). Through selector contact 1 to 11 to terminal 7 on the DSI. The Broil burner lights. With contact 5 to 7 closed, the convection fan operates as well. ADVANCE
The following Selector switch contacts are closed: • 2 to 10 • 4 to 8 • 3 to 9 • 5 to 6 Click mouse to advance
Thermostat contacts 7 and 8 (on/off) and 1 and 2 (cycling) are closed. Also C and N. O are closed for the initial heating process. Click mouse to advance
L 1 travels through the high limiter, then through Thermostat contacts 7 and 8 (On/Off) then 1 and 2 (cycling). Voltage then goes to the Cycle light and contact 1 and 2 on the selector. L 1 also goes through contacts 5 and 6 on the selector, then to the input (SEL) on the self clean board. This activates the Self Clean. Click mouse to advance
At the same time that the power is sent to the Self Clean board, contact 5 and 6 also sends power to the Self Clean light. Click mouse to advance
With power The Self to the Clean Self board Clean closes board, contact the first. LS 2 thingtothat M 1 must and also happen closes is the LS 1 door to L 1 must be locked. . Click mouse to advance
With LS 2 and M 1 and LS 1 to L 1 closed, voltage flows through L 1 and LS 1, then though the Auto Reset. From there it flows through LS 2 and M 1. Exiting M 1 it flows to the lock motor. Click mouse to advance
8 -18 VDC In order for the Self Clean Board to know the position of the door latch, there are two sensor circuits in the Self Clean board. When the door is in the un-locked position, VC on the Self Clean board sends a voltage of between 8 - 18 volts DC to SENSOR 4. This lets the board know the door is UNLOCKED. Click mouse to advance
The door motor has advanced and. SW 1 locked When the door motor is advanced, onthe thedoor latch OPENS. At the same time SW 2 and SW 3 CLOSE. SW 2 sends the 8 - 18 volts DC to SENSOR 3. The Door will now move to the lock position. Click mouse to advance
8 -18 VDC With the door now locked, SW 2 sends the 8 - 18 volts DC to SENSOR 3. When SENSOR 3 sees this voltage, it opens LS 2 and M 1 on the Self Clean Board. Click mouse to advance
The board Line voltage will is now removed openfrom LS 2 the to M 1 door lock motor and the door remains locked. Click mouse to advance
Thethe At relay same is now time energized. that the Self When Cleanthe. Board ovenisreaches activating 600 the degrees door F lock thismechanism, contact will L 1 assist alsoin goesheating the through process. contacts 5 and 6 on the selector to the Self Clean relay coil. The relay closes the N. O contact. Click mouse to advance
When the door was locked, the Self Clean board also closed the N. O. contact T 3 to T 4. This circuit will supply line voltage to the cooling fan throughout the Self Clean Cycle. Click mouse to advance
T 1 to T 2 was also closed when the door locked. This allows voltage to flow through SW 3 on the Door Lock mechanism. Then it travels through the N. O. contact in thermostat. Then through Selector switch contact 4 and 8 and finally entering the DSI module #7 terminal. Click mouse to advance

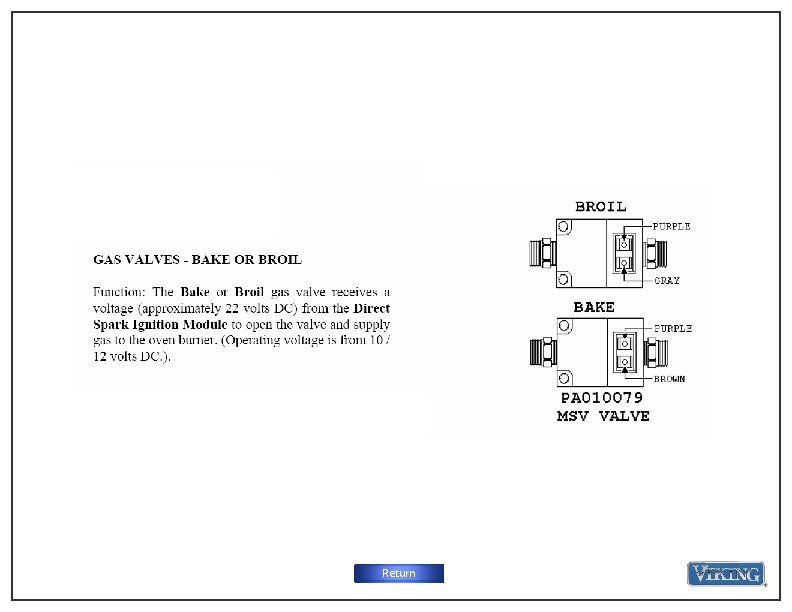

With voltage at the DSI, the module discharges a current at the Broil electrode and at the same time voltage is sent to the Broil solenoid. The gas is discharged and the Burner ignites. The Self Clean Cycle has begun. Click mouse to advance

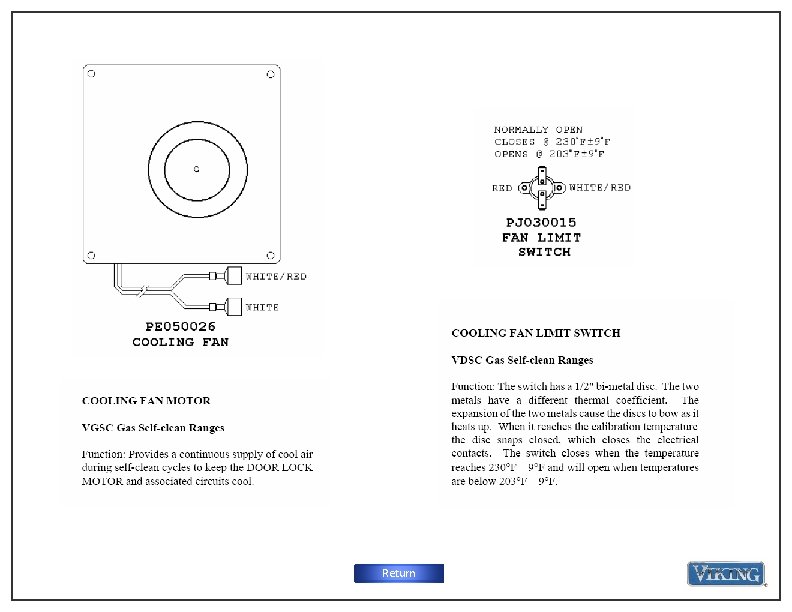

When the outer oven cavity temp reaches 250°the Cooling fan thermostat closes and will supply direct voltage to the cooling fan. This will stay closed until the temp drops below 250° Click mouse to advance
If the Self When the oven Cleantemp is switched is at 575°the off and Auto the Reset Auto Reset will open. is open, the door will not open. When the temperature drops below 575°the Auto rest will close and allow voltage to flow to LS 2 Click mouse to advance
Voltage When thenow oven flows tempthrough is at 600°the Selector oven contact thermostat 3 and 9. will Then switch it travels from the through C and the. N. O. contact to the C and (Now closed) N. C. contact. in the relay. From there to the DSI module #6 for the Bake burner. The Bake burner ignites. The oven will continue to increase in temperature until it reaches 825° Click mouse to advance
With the When thecontact oven reaches open, voltage 825°Contact no longer 1 and flows 2 in to thethe thermostat DSI module. opens. The Bake valve opens and the unit stops heating. When the temperature drops, the contact in thermostat will close and the DSI will re-ignite the Bake. This cycling will occur for 3 hours. Click mouse to advance
At the. T 1 endand of T 2 the open, 3 hr clean cycle, T 1 longer to T 2 sent and to T 3 the to DSI T 4 open. With voltage is no module so the burner shuts off. The cooling motor will still operate with T 3 and T 4 open because of the cooling fan thermostat. The oven begins the cool down cycle. Click mouse to advance
At the same time, contact LS 2 to M 1 close. Because the Auto Reset is still open, the door does not unlock. The temperature has to drop below 575°for the Auto Reset to close. Click mouse to advance
When the temperature 600°the contact in the Thermostat switches to the This contact will stay Drops in thisbelow position as long. N. C. as the Thermostat is in SELF CLEAN. N. O. contact. Click mouse to advance
Voltage flows through Auto 575°the Reset, then contactswill LS 2 and M 1. We now have When thenow temperature Dropsthe below Autothrough Reset contact close. voltage to the lock motor. Click mouse to advance
With. Door The voltage locktoadvances the Doortolock the Motor, open position. the motor SW 2 advances and SW 3 OPEN while SW 1 Closes Click mouse to advance
8 -18 VDC LS 2 and With the M 1 dooropens. now UNLOCKED, This stops the voltage SW 1 sends flowthe to 8 the- 18 Door volts motor. DC to The SENSOR door motor 4. When stops SENSOR 4 sees this voltage, it opens LS 2 and M 1 on the Self Clean Board. turning. Click mouse to advance
With thethe Though thermostat Self Clean opens, cyclethe is cooling complete, fanthe stops cooling running. fan will continue to run until the Fan thermostat opens when the temperature drops below 250° Click mouse to advance
The Self Clean Cycle is complete! PLEASE NOTE: As long as the Thermostat is in the ON position, the Cycle light will remain on. If the Selector is left in Self Clean, the Clean Light will remain on. Click mouse to advance
