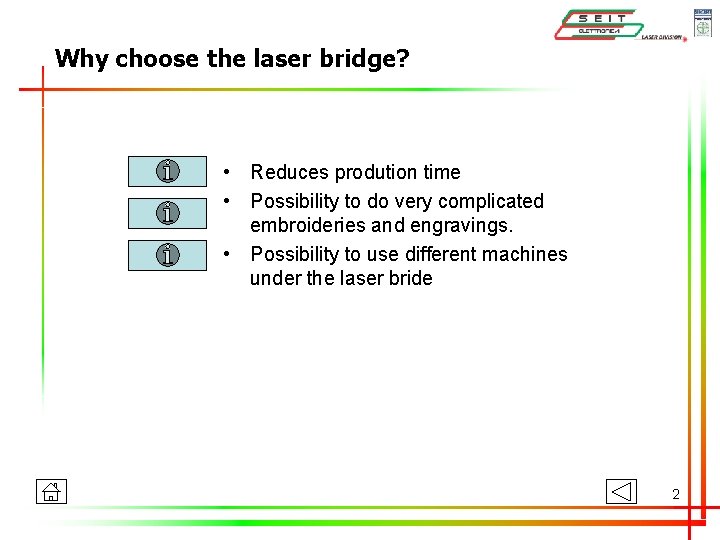

Why choose the laser bridge? • Reduces prodution time • Possibility to do very complicated embroideries and engravings. • Possibility to use different machines under the laser bride 2

Production time reduction. 1) Before you must cut with the plotter the single components for the appliqués and you must separate them in groups 2) A basting to see where to put the appliqué on the fabric 3) The appliqué gets glued to the fabric 4) Final sewing to fix it Traditional method of preparing appliqués Laser Bridge System 1) Loading laser cut on stitching file. 2) Stiching directing on final fabric 3) Laser cut Long production time Production time considerably decreased 3

Laser cut system speed with galvanometric head. The laser runs from the source to a galvanometric head where a mirror system sends the laser on the embroidery machine; with this system the laser beam achieves an incredibly high manoeuvring speed. With traditional plotter systems, the laser must be moved continuously on a Cartesian axis in order to make the same job that the galvanometric head system can achieve in few seconds. Cuting time = 15 seconds 4

Possibility to do very complicated embroideries and engravings. Other examples 5

GENERAL PRESENTATION • Seit Elettronica, certified ISO 9001 -2000 Vision, is a worldwide leader in the production of laser machinery for cutting and engraving. The firm is placed in Valdobbiadene, in the province of Treviso, few kilometers from Vicenza and Venice. Seit Elettronica proposes its machinery for the laser engraving and cutting, the fusion welding since 1979, and today as before, it achieves the whole production cycle inside the firm thanks to its mechanic and electronic metal structural work departments. Moreover there a modern design office and a laboratory for the research and the development. • The Seit laser department produces CO 2 and Nd: YAG laser systems for several applications. Our knowledge of the laser technology together with the most modern engineering has allowed us to create the laser bridge technology. • First in the world to develop this technology, with two patents obtained for this revolutionary system and always the first in the continue development and increase of this product and of the other ones. 6

PRODUCTS • Laser Bridge SL 5 ZOOM • Laser Bridge SL 4 • Roller for Laser Bridge • Plotter for Laser Bridge • Cartesian Plotter for Laser Cut • Galvanometric Plotter SLPlotter • Galvanometric Roller SLRoller • Label cutter LCM 05 7

LASER BRIDGE SL 5 ZOOM • New revolutionary laser bridge SL 5 ZOOM for multihead embroidery machines with the new and exclusive SEIT LASER 5 ZOOM system with variable field which allows to modify the laser field work from 100 x 100 to 500 x 500 mm. • General Description • Technical Features • Adavanced Funtionalities • Technical Data • Scroll Bar • Software • Assembling, Test and assistance 8

LASER BRIDGE SL 5 ZOOM ADAVANCED FUNTIONALITIES: • Authomatic recognition of the image contours and direct import as tolerance colors vectors • • Direct conversion into laser cut of the Windows “True Type” fonts Creation and modify of the vectors lines directly from software through functionality of “Laser Draw Fusion” Possibility of suspending the work on machine 1 and transferring on machine 2, then reprise on machine 1 • • Times and mode of cutting report 9

LASER BRIDGE SL 5 ZOOM TECHNICAL FEATURES: • Cooling system with water thermostatic control chiller for a continuos and steady dispensing of power (included) • Cooled elements: laser source, power supplies, head with galvanometric scanning • Indipendent control of the protective bell with multipoint system for smoke aspiration. • Possibility of independent setting of the protective bell and of the head of marking (for works on already made article); possibility of box “always up” or “always down” on machine heads • Laser driver: control software “Seit Magic Driver” of all the functions and of connection with the embroidery machine • Movement system “Direct Driver” without reducer for a higher speed and precision of setting • Security system “Pharo Radar" 10

LASER BRIDGE SL 5 ZOOM GENERAL DESCRIPTION: • NEW revolutionary laser bridge “SL 5 ZOOM” for multihead embroidery machines with the new and exclusive “SL 5 ZOOM” system with variable field which allows to modify the laser field work from 100 x 100 to 500 x 500 mm guaranteeing the maximum quality and precision of cut and marking. This new galvanometric head allows in fact to optimize the dimension of the spot of the laser based on the chosen workspace. Cutting an area of 125 x 125 mm, as an example, the dimension of the laser beam is only 117µm. This extraordinary functionality, usable also with the new pulsed laser (advised for the cut of the leather), allows the thinnest and extremely precise cut also on 3 to 4 mm of thickness with a pulsed laser of 100 or 150 W of power. Thanks to the functionality of the new software Seit Magic Driver we offer a versatility and precision never seen before • The laser bridge can be used with one or more manufactoring machines (one or more Embroidery machines of any brand or type and/or a motorised plotter and/or a roller fabric system. • Thanks to the scroll bar extension, in any moment it will be possible to decide to increase the length of the laser bridge to add other Embridery machines or other devices. 11

LASER BRIDGE SL 5 ZOOM TECHNICAL DATA : Laser source Sealed CO 2 laser Laser head with galvanometric scanning max speed 9 m/sec Laser nominal power 25 W - 50 W - 100 W Laser effective power 34 W - 68 W - 120 W Laser pulse nominal power 100 W - 150 W Laser max power pulse 150 W - 375 W Work field from 100 x 100 mm to 500 x 500 mm Translation speed of the machines max 2, 5 m/sec Test desk – useful area 600 x 600 mm Personal Computer with monitor LCD 17 inches included 12

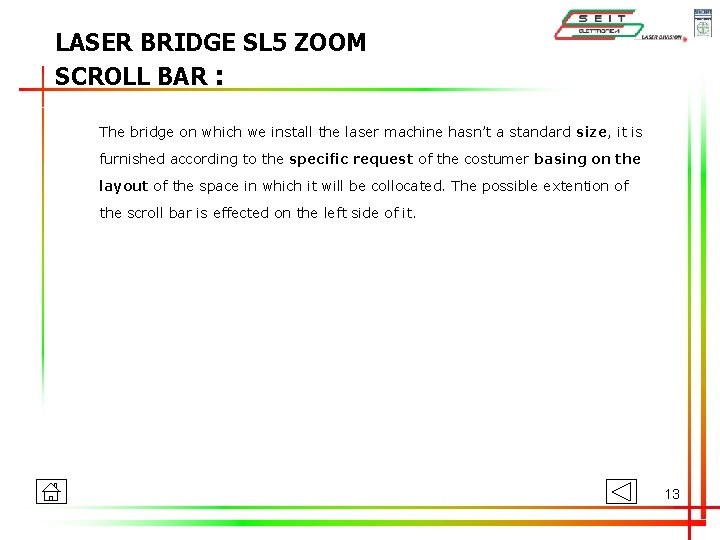

LASER BRIDGE SL 5 ZOOM SCROLL BAR : The bridge on which we install the laser machine hasn’t a standard size, it is furnished according to the specific request of the costumer basing on the layout of the space in which it will be collocated. The possible extention of the scroll bar is effected on the left side of it. 13

DEDICATED SOFTWARE: • Authomatic fractionation of the cuts exceeding from the work area of the head • Control for the conjunction of multiple cuts both in axes "X"and in axis "Y“ • Cut sequences: "forwards", "backwards", "forwards-backwards", "backwards-forwards" • Importation of any machine format code: (DST, DSB, DSZ, ecc. ) with possibility of inserting of the laser cut • Importation of any vector format (ai, cdr, etc. ) • Definition of the parameters of power, velocity, repetition and height of the fabric for every single vector • Direct importation of bitmap images for photoengraving • Fine software correction of the cuts for every single machine installed under the laser bridge • Possibility of reprise of the cut from any position • Regulation of the cuts for every single head of the embroidery machine • Licence for “Laser Draw Fusion” (compatible "Corel draw 12") 14

LASER BRIDGE SL 5 ZOOM BREIF FILM: 15

DEDICATED SOFTWARE: • Authomatic fractionation of the cuts exceeding from the work area of the head • Control for the conjunction of multiple cuts both in axes "X"and in axis "Y“ • Cut sequences: "forwards", "backwards", "forwards-backwards", "backwards-forwards" • Importation of any machine format code: (DST, DSB, DSZ, ecc. ) with possibility of inserting of the laser cut • Importation of any vector format (ai, cdr, etc. ) • Definition of the parameters of power, velocity, repetition and height of the fabric for every single vector • Direct importation of bitmap images for photoengraving • Fine software correction of the cuts for every single machine installed under the laser bridge • Possibility of reprise of the cut from any position • Regulation of the cuts for every single head of the embroidery machine • Licence for “Laser Draw Fusion” (compatible "Corel draw 12") 16

LASER BRIDGE SL 5 ZOOM ASSEMBLING, TEST AND ASSISTANCE: SEIT elettronica takes care about assembling, starting and testing of the system (guarantee 12 months from the test date). Moreover SEIT elettronica provides for the training of the people assigned to the use of Laser Bridge SL 5 ZOOM. Any possible adaptation of the system to situations of enviroment obstructions (drainings, pipelines etc. ) must be indicated previously. 17

SOFTWARE • Seit Magic Driver • Seit Laser Design Fusion Seit Magic Driver File for Laser Bridge (*. pxs) Embroidery and Vector Files Seit Laser Design Fusion (laser cut is inserted and saved in *. pxf) File for Embroidery machine 18

FILES THAT CAN BE IMPORTED IN SEIT DESIGN LASER FUSION: EMBROIDERY FILES : • Poem/Singer EU/Viking Huskygram(*. CSD) • Puylse Embroidery Files (*. PXF) • Proel Files (*. PUM, *. ARC) • Outline Files (*. POF, *. PED, *. KWK) • Saurer Files (*. PAT, *. T 15) • Stitch Files (*. PSF, *. PCH) • Singer PSW (*. XXX) • Tajima Stitch files (*. DST) • Viking Husquarna (*. HUS) • Tajima TBF files (*. TBF) • Viking SHV (*. SHV) • Wilcom Emb Files (*. EMB) • Zangz/ZSK Stitch Files (*. DSZ) • Babylock/Bernina/Brother (*. PEC) • Babylock/Bernina/Brother (*. PES) • Barudan Stitch Files (*. DSB) • VECTOR FILES : • Adobe (*. AI) Elna/Janome/Kenmore (*. SEW) • Auto. Desk (*. DXF) • Janome/New Home 10000 (*. JEF) • EPS Images (*. EPS) • Melco Condensed Files (*. CND) • HP-GL (*. PLT; *. HPGL) • Melco Expanded Files (*. EXP) • Corel. Draw (*. CDR; *. CMX) • Pfaff Stitch Files (*. PCM, *. PCS) • Windows Metafiles (*. WMF; *. EMF) 19

Examples of Emboidery machines that work with the Laser Bridge. • Barudan • Tajima(Default) • Barudan Z • Tajima (Chenille) • Brother • Tajima (Tbf) • Happy • Tajima TMCE -100 • Happy DST • Melco • Tajima TMLH • PFAFF • Toyota • Renaissance • ZSK • SWF • others…. . Chenille 20

SECURITY SYSTEMS: • Pharo radar • Emergency button • Continuos emergency cable along the machine (if for example the operator forgets an object on the Embroidery machine, where the radar does not detect it, a person can stop the device simply by pulling the cable in any point of the machine). 21

LASER BRIDGE SL 4 • Revolutionary laser bridge SL 4 for multihead embroidery machines, with the new software Laser Driver and Laser Draw Fusion, it allows perfect cut and engraving of any image and character for different production lines. • General Description • Technical Features • Adavanced Funtionalities • Technical Data • Scroll Bar • Software • Assembling, Test and assistance 22

LASER BRIDGE SL 4 GENERAL DESCRIPTION: • Revolutionary laser bridge SL 4 for multihead embroidery machines endowed with the new control software Seit Magic Driver which allows the direct conversion into laser cut and engraving of the fonts “True Type” Windows, moreover thanks to the Functionality Laser Draw Fusion we can create and modify vector lines and drawings directly from the software, by converting theme into works of cut and engraving for different production lines. • The laser bridge can be used with one or more manufactoring machines (one or more Embroidery machines of any brand or type and/or a motorised plotter and/or a roller fabric system. • Thanks to the scroll bar extension, in any moment it will be possible to decide to increase the length of the laser bridge to add other Embridery machines or other devices. 23

LASER BRIDGE SL 4 TECHNICAL FEATURES: • Cooling system with water thermostatic control chiller for a continuos and steady dispensing of power (included) • Cooled elements: laser source, power supplies, head with galvanometric scanning • Indipendent control of the protective bell with multipoint system for smoke aspiration. • Possibility of independent setting of the protective bell and of the head of marking (for works on already made article); possibility of box “always up” or “always down” on machine heads • Laser driver: control software “Seit Magic Driver” of all the functions and of connection with the embroidery machine • Movement system “Direct Driver” without reducer for a higher speed and precision of setting • Security system “Pharo Radar" 24

LASER BRIDGE SL 4 ADVANCED FUNCTIONALITIES: • Authomatic recognition of the image contours and direct import as tolerance colors vectors • Direct conversion into laser cut of the Windows “True Type” fonts • Creation and modify of the vectors lines directly from software through functionality of “Laser Draw Fusion” • Possibility of suspending the work on machine 1 and transferring on machine 2, then reprise on machine 1 • Times and mode of cutting report 25

LASER BRIDGE SL 4 TECHNICAL DATA: Laser source Sealed CO 2 laser Laser head with galvanometric scanning max speed 9 m/sec Laser nominal power 25 W - 50 W - 100 W Laser effective power 34 W - 68 W - 120 W Laser pulse nominal power 100 W - 150 W Laser max power pulse 150 W - 375 W Work field from 100 x 100 mm to 500 x 500 mm Translation speed of the machines max 2, 5 m/sec Test desk – useful area 600 x 600 mm Personal Computer with monitor LCD 17 inches included 26

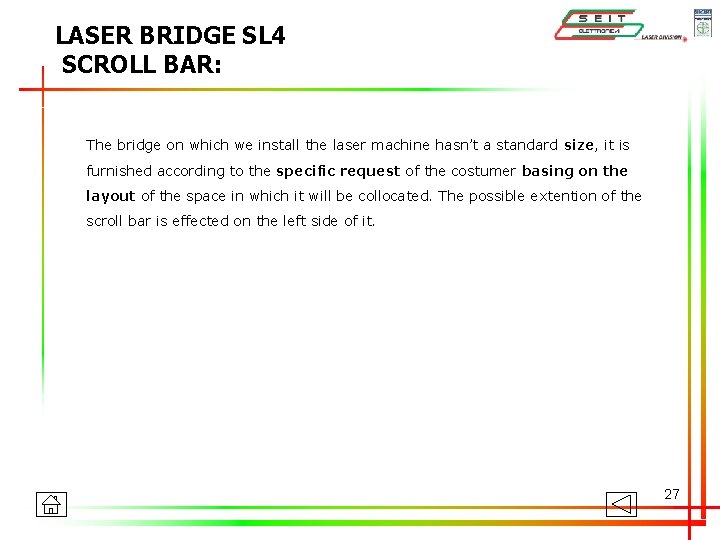

LASER BRIDGE SL 4 SCROLL BAR: The bridge on which we install the laser machine hasn’t a standard size, it is furnished according to the specific request of the costumer basing on the layout of the space in which it will be collocated. The possible extention of the scroll bar is effected on the left side of it. 27

DEDICATED SOFTWARE: • Authomatic fractionation of the cuts exceeding from the work area of the head • Control for the conjunction of multiple cuts both in axes "X"and in axis "Y“ • Cut sequences: "forwards", "backwards", "forwards-backwards", "backwards-forwards" • Importation of any machine format code: (DST, DSB, DSZ, ecc. ) with possibility of inserting of the laser cut • Importation of any vector format (ai, cdr, etc. ) • Definition of the parameters of power, velocity, repetition and height of the fabric for every single vector • Direct importation of bitmap images for photoengraving • Fine software correction of the cuts for every single machine installed under the laser bridge • Possibility of reprise of the cut from any position • Regulation of the cuts for every single head of the embroidery machine • Licence for “Laser Draw Fusion” (compatible "Corel draw 12") 28

LASER BRIDGE SL 4 ASSEMBLING, TEST AND ASSISTANCE: SEIT elettronica takes care about assembling, starting and testing of the system (guarantee 12 months from the test date). Moreover SEIT elettronica provides for the training of the people assigned to the use of Laser Bridge SL 4. Any possible adaptation of the system to situations of enviroment obstructions (drainings, pipelines etc. ) must be indicated previously. 29

VIDEOS • • • Labels Small patches Leather Roller for Laser Bridge Plotter for Laser Bridge Harley Saurer Plotter 1 Plotter 2 Saurer GT Supports for frames 30

ROLLER FOR LASER BRIDGE • The roller for laser bridge is a winder-unwinder of fabric which together with a multihead embroidery machine under the laser bridge allows to work directly on the fabric without interfere with the embroidery machine work. • Generale Description • Technical Data • Software • Other photos 31

ROLLER FOR LASER BRIDGE DESCRIZIONE GENERALE The roller for laser bridge is a winder-unwinder of fabric which, set under the laser bridge has use of functionality of the control software Seit Magic Driver for the work directly on the roll of the fabric guaranteeing precision and quality of cut and engraving. The software, alternating in automatic way the work on the embroidery machine and on the roller, eliminates the useless times by guaranteeing the highest return of your laser bridge. 32

ROLLER FOR LASER BRIDGE TECHNICAL DATA: Power source 220 – 500 W Length roll 1800 mm Size 2285 x 1400 x 860 mm Control software Seit magic Driver 33

ROLLER FOR LASER BRIDGE OTHER PHOTOS: 34

DEDICATED SOFTWARE: • Authomatic fractionation of the cuts exceeding from the work area of the head • Control for the conjunction of multiple cuts both in axes "X"and in axis "Y“ • Cut sequences: "forwards", "backwards", "forwards-backwards", "backwards-forwards" • Importation of any machine format code: (DST, DSB, DSZ, ecc. ) with possibility of inserting of the laser cut • Importation of any vector format (ai, cdr, etc. ) • Definition of the parameters of power, velocity, repetition and height of the fabric for every single vector • Direct importation of bitmap images for photoengraving • Fine software correction of the cuts for every single machine installed under the laser bridge • Possibility of reprise of the cut from any position • Regulation of the cuts for every single head of the embroidery machine • Licence for “Laser Draw Fusion” (compatible "Corel draw 12") 35

PLOTTER FOR LASER BRIDGE • The plotter for laser bridge is a work desk (with the automatic movimentatio on the “Y” axes) which, positioned under the laser bridge, allows particular workings on already made articles or on frames of other machines with extreme facility, without interfere with the embroidery machine work. • Generale Description • Technical Data • Software • Other photos 36

PLOTTER FOR LASER BRIDGE GENERAL DESCRIPTION: The plotter for laser bridge is a work desk which, positioned under the laser bridge, next to the embroidery machine has use of functionality of the software Seit Magic Driver to get works of cutting and engraving of great precision on an 1800 X 900 mm area. The software alternating in automatic way the work on the embroidery machine and on the plotter, eliminates the useless times by guaranteeing the highest return of your Laser Bridge. 37

PLOTTER FOR LASER BRIDGE TECHNICAL DATA: Power source 220 – 1000 W Work desk 1800 x 900 mm Control software Seit magic Driver Latching for frames of any other embroidery machine 38

PLOTTER FOR LASER BRIDGE OTHER PHOTOS: 39

DEDICATED SOFTWARE: • Authomatic fractionation of the cuts exceeding from the work area of the head • Control for the conjunction of multiple cuts both in axes "X"and in axis "Y“ • Cut sequences: "forwards", "backwards", "forwards-backwards", "backwards-forwards" • Importation of any machine format code: (DST, DSB, DSZ, ecc. ) with possibility of inserting of the laser cut • Importation of any vector format (ai, cdr, etc. ) • Definition of the parameters of power, velocity, repetition and height of the fabric for every single vector • Direct importation of bitmap images for photoengraving • Fine software correction of the cuts for every single machine installed under the laser bridge • Possibility of reprise of the cut from any position • Regulation of the cuts for every single head of the embroidery machine • Licence for “Laser Draw Fusion” (compatible "Corel draw 12") 40

GALVANOMETRIC PLOTTER SLPlotter • The galvanometric plotter SLPlotter is a independent work desk (with the automatic movimentation on “Y” axes), endowed with its own laser source muoving on the “X” axes, SLPlotter uses the functionality of the software Seit magic Driver offering velocity, Precision and flexibility. • General Description • Technical features • Advanced Functionalities • Technical Data • Software • Assembling, Test and Assistance 41

GALVANOMETRIC PLOTTER SLPlotter GENERAL DESCRIPTION: The galvanometric plotter SLPlotter is an independent work desk which allows any kind of work. Thanks to the functionality of the new software Seit Magic Driver you can in fact realize laser cut and engraving on fabrics and on finished products, moreover the possibility to move the laser also vertically offers the possibility to work with perfect precision on materials of different height. Also the size of the useful working area (1800 x 900) helps to make efficient this plotter with the galvanometric laser. 42

GALVANOMETRIC PLOTTER SLPlotter TECHNICAL FEATURES: • Cooling system with water thermostatic control chiller for a continuos and steady dispensing of power (included) • Cooled elements: laser source, power supplies, head with galvanometric scanning 43

GALVANOMETRIC PLOTTER SLPlotter ADVANCED FUNCTIONALITIES: • Authomatic recognition of the image contours and direct import as tolerance colors vectors • Direct conversion into laser cut of the Windows "True Type" fonts • Creation and modify of the vectors lines directly from software through functionality of "Laser Draw Fusion" • Times and mode of cutting report 44

GALVANOMETRIC PLOTTER SLPlotter TECHNICAL DATA: Power source 220 v – 500 w Laser source Sealed CO 2 laser Laser head with galvanometric scanning max speed 9 m/sec Laser nominal power 25 W – 50 W -100 W Laser effective power 34 W - 68 W - 120 W Laser pulse nominal power 100 W - 150 W Laser max power pulse 150 W - 375 W Laser Work field 300 x 300 mm Work field 1800 x 900 mm Translation speed of the machines max 2, 5 m/sec Personal Computer with monitor LCD 17 inches included Equipped with external protection barrier, smoke aspiration system and protection bell according with the european normatives. 45

GALVANOMETRIC PLOTTER SLPlotter ASSEMBLING, TEST AND ASSISTANCE: SEIT elettronica takes care about assembling, starting and testing of the system (guarantee 12 months from the test date). Moreover SEIT elettronica provides for the training of the people assigned to the use of SLPlotter. Any possible adaptation of the system to situations of enviroment obstructions (drainings, pipelines etc. ) must be indicated previously. 46

DEDICATED SOFTWARE: • Authomatic fractionation of the cuts exceeding from the work area of the head • Control for the conjunction of multiple cuts both in axes "X"and in axis "Y“ • Cut sequences: "forwards", "backwards", "forwards-backwards", "backwards-forwards” • Importation of any machine format code: (DST, DSB, DSZ, ecc. ) with possibility of inserting of the laser cut • Importation of any vector format (ai, cdr, etc. ) • Definition of the parameters of power, velocity, repetition and height of the fabric for every single vector • Direct importation of bitmap images for photoengraving • Fine software correction of the cuts for every single machine installed under the laser bridge • Possibility of reprise of the cut from any position • Regulation of the cuts for every single head of the embroidery machine • Licence for “Laser Draw Fusion” (compatible "Corel draw 12") 47

GALVANOMETRIC ROLLER SLRoller • The galvanometric SLroller is a winder-unwinder endowed of its own laser source which, using the functionality of the software Seit magic driver offers velocity, precision, flexibility and great comfort for every work on fabric. • General Description • Technical features • Advanced Functionalities • Technical Data • Software • Assembling, Test and Assistance 48

GALVANOMETRIC ROLLER SLRoller GENERAL DESCRIPTION: The galvanometric SLRoller is a winder-unwinder endowed of its own laser source which allows it, thanks to the software Seit Magic Driver, to engrave, inlay and to make micro pierces pieces of fabric in a continuos cycle. SLRoller is the best solution for those who need a great number of applications in short times without forget the precision. 49

GALVANOMETRIC ROLLER SLRoller TECHNICAL FEATURES: • Cooling system with water thermostatic control chiller for a continuos and steady dispensing of power (included) • Cooled elements: laser source, power supplies, head with galvanometric scanning • Indipendent control of the protective bell with multipoint system for smoke aspiring 50

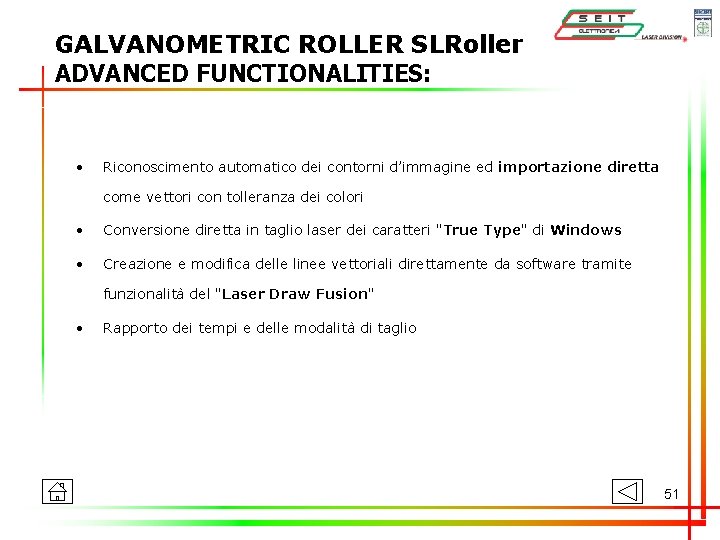

GALVANOMETRIC ROLLER SLRoller ADVANCED FUNCTIONALITIES: • Riconoscimento automatico dei contorni d’immagine ed importazione diretta come vettori con tolleranza dei colori • Conversione diretta in taglio laser dei caratteri "True Type" di Windows • Creazione e modifica delle linee vettoriali direttamente da software tramite funzionalità del "Laser Draw Fusion" • Rapporto dei tempi e delle modalità di taglio 51

GALVANOMETRIC ROLLER SLRoller TECHNICAL DATA: Power suply 220 v – 500 w Laser source Sealed CO 2 laser Laser head with galvanometric scanning max speed 9 m/sec Laser nominal power 25 W – 50 W – 100 W Laser effective power 34 W - 68 W - 120 W Laser pulse nominal power 100 W - 150 W Laser max power pulse 150 W - 375 W Length roll 1800 mm Cutting / Marking area asse x = 1. 800 mm asse y = 300 mm Dimension 2285 x 1400 x 860 mm Personal Computer with monitor LCD 17 inches included Equipped with external protection barrier, smoke aspiration system and protection bell according with the european normative. 52

GALVANOMETRIC ROLLER SLRoller ASSEMBLING, TEST AND ASSISTANCE: SEIT elettronica takes care about assembling, starting and testing of the system (guarantee 12 months from the test date). Moreover SEIT elettronica provides for the training of the people assigned to the use of SLRoller. Any possible adaptation of the system to situations of enviroment obstructions (drainings, pipelines etc. ) must be indicated previously. 53

DEDICATED SOFTWARE: • Authomatic fractionation of the cuts exceeding from the work area of the head • Control for the conjunction of multiple cuts both in axes "X"and in axis "Y“ • Cut sequences: "forwards", "backwards", "forwards-backwards", "backwards-forwards • Importation of any machine format code: (DST, DSB, DSZ, ecc. ) with possibility of inserting of the laser cut • Importation of any vector format (ai, cdr, etc. ) • Definition of the parameters of power, velocity, repetition and height of the fabric for every single vector • Direct importation of bitmap images for photoengraving • Fine software correction of the cuts for every single machine installed under the laser bridge • Possibility of reprise of the cut from any position • Regulation of the cuts for every single head of the embroidery machine • Licence for “Laser Draw Fusion” (compatible "Corel draw 12") 54

LABELS CUTTER LCM 05 • Machine endowed of laser source with galvanometric head for the cut and the engraving of labels. Thanks to the software Seit Laser Mark it is possible to make any kind of cut and engraving on every roll fabric. • General Description • Technical features • Advanced Functionalities • Technical Data • Software • Assembling, Test and Assistance 55

LABELS CUTTER LCM 05 GENERAL DESCRIPTION: The Labels cutter LCM 05 is a modern Machine endowed of laser source with galvanometric head available in several powers, which allows the most difficult works on any fabrics in roll. LCM 05 can work in different modes, being endowed of optical sensors, it is possible to operate in manual mode, in automatic mode by regulating a measured step or automatic by the reading of the label. LCM 05 allows also to insert a grid tray to use as a small plotter. 56

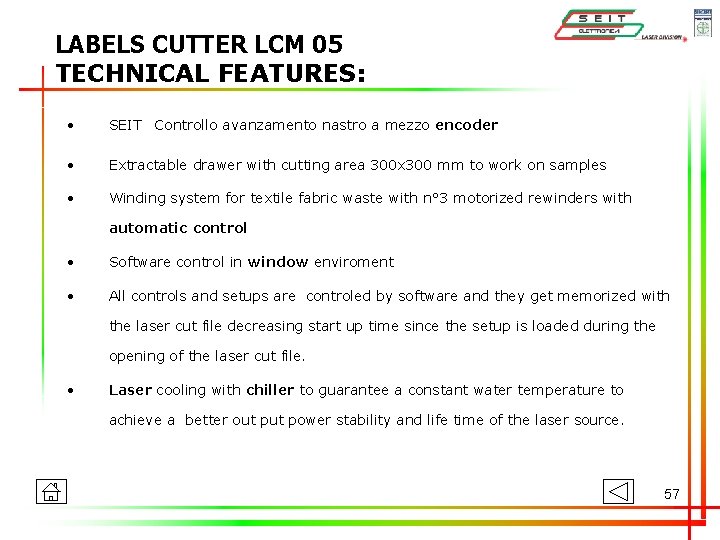

LABELS CUTTER LCM 05 TECHNICAL FEATURES: • SEIT Controllo avanzamento nastro a mezzo encoder • Extractable drawer with cutting area 300 x 300 mm to work on samples • Winding system for textile fabric waste with n° 3 motorized rewinders with automatic control • Software control in window enviroment • All controls and setups are controled by software and they get memorized with the laser cut file decreasing start up time since the setup is loaded during the opening of the laser cut file. • Laser cooling with chiller to guarantee a constant water temperature to achieve a better out power stability and life time of the laser source. 57

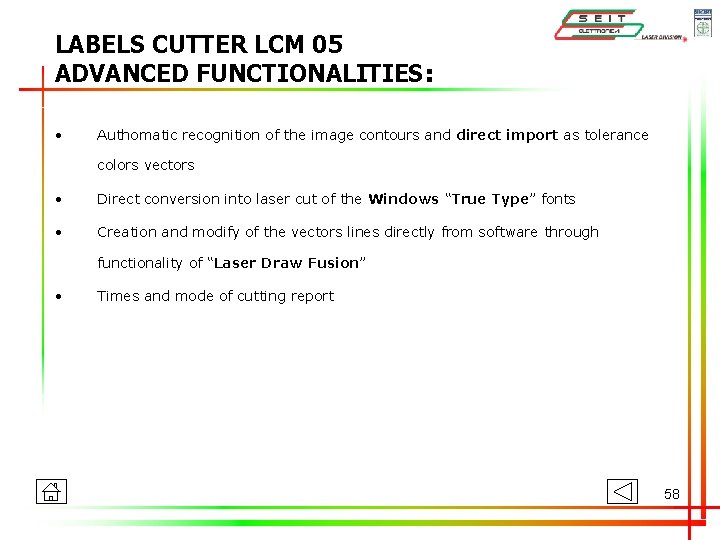

LABELS CUTTER LCM 05 ADVANCED FUNCTIONALITIES: • Authomatic recognition of the image contours and direct import as tolerance colors vectors • Direct conversion into laser cut of the Windows “True Type” fonts • Creation and modify of the vectors lines directly from software through functionality of “Laser Draw Fusion” • Times and mode of cutting report 58

LABELS CUTTER LCM 05 TECHNICAL DATA: Laser source Sealed CO 2 laser Laser nominal power 25 W – 50 W– 100 W Laser effective power 34 W – 68 W – 120 W Power supply 220/230 V singlefase Frequency 50/60 Hz Advancing belt speed from 100 mm/sec. to 1000 mm/sec. Cutting speed 2000 mm/sec. Engraving speed 6000 mm/sec Mark reader optic, with fiber optic, autolearning regolation system centering system for the Y axes motorized with optic rivelator Available focal lens 370 mm – 450 mm Cutting area 200 x 200 mm – 300 x 300 mm Dimension 1600 x 2300 x 825 mm 59

LABELS CUTTER LCM 05 ASSEMBLING, TEST AND ASSISTANCE: SEIT elettronica takes care about assembling, starting and testing of the system (guarantee 12 months from the test date). Moreover SEIT elettronica provides for the training of the people assigned to the use of LCM 05. Any possible adaptation of the system to situations of enviroment obstructions (drainings, pipelines etc. ) must be indicated previously. 60

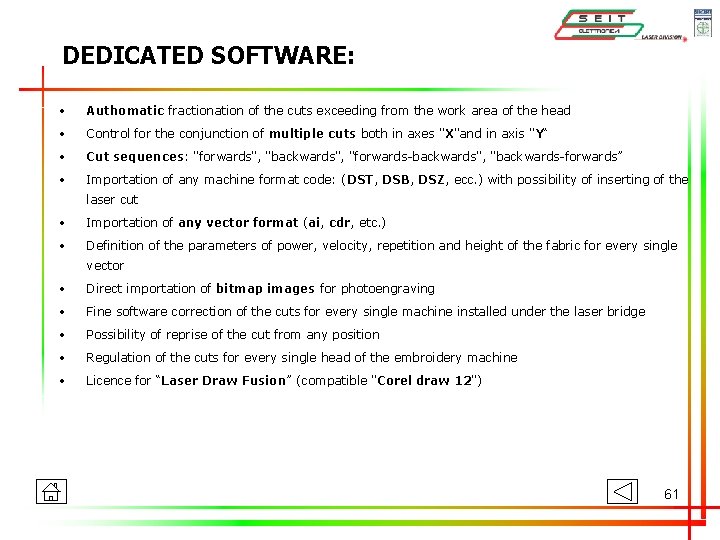

DEDICATED SOFTWARE: • Authomatic fractionation of the cuts exceeding from the work area of the head • Control for the conjunction of multiple cuts both in axes "X"and in axis "Y“ • Cut sequences: "forwards", "backwards", "forwards-backwards", "backwards-forwards” • Importation of any machine format code: (DST, DSB, DSZ, ecc. ) with possibility of inserting of the laser cut • Importation of any vector format (ai, cdr, etc. ) • Definition of the parameters of power, velocity, repetition and height of the fabric for every single vector • Direct importation of bitmap images for photoengraving • Fine software correction of the cuts for every single machine installed under the laser bridge • Possibility of reprise of the cut from any position • Regulation of the cuts for every single head of the embroidery machine • Licence for “Laser Draw Fusion” (compatible "Corel draw 12") 61

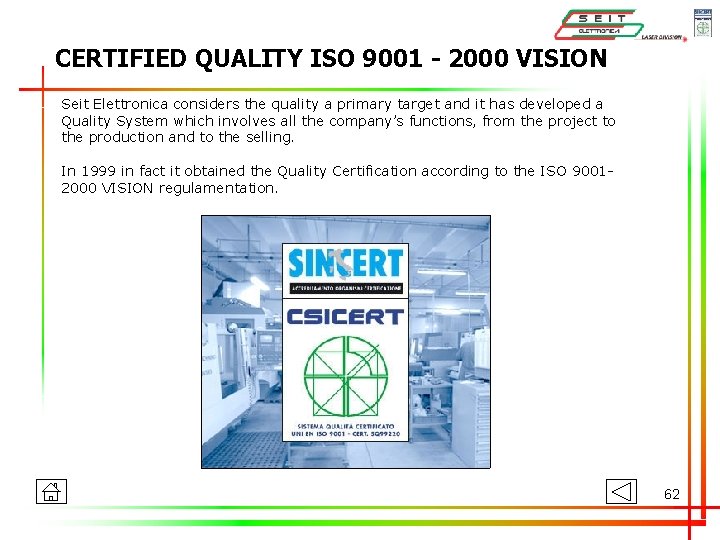

CERTIFIED QUALITY ISO 9001 - 2000 VISION Seit Elettronica considers the quality a primary target and it has developed a Quality System which involves all the company’s functions, from the project to the production and to the selling. In 1999 in fact it obtained the Quality Certification according to the ISO 90012000 VISION regulamentation. 62

CARTESIAN PLOTTER FOR LASER CUT • The Cartesian Plotter, available in several sizes and powers, is a fix and independent work desk with its own laser source. • General description • Technical data • Other photos 63

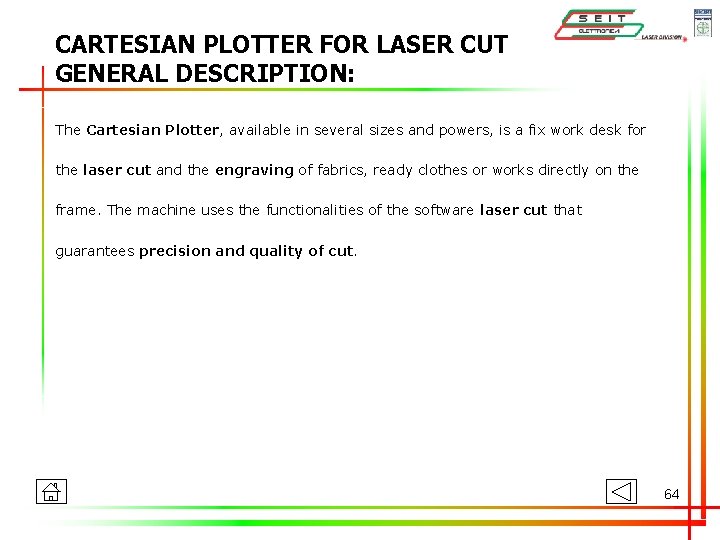

CARTESIAN PLOTTER FOR LASER CUT GENERAL DESCRIPTION: The Cartesian Plotter, available in several sizes and powers, is a fix work desk for the laser cut and the engraving of fabrics, ready clothes or works directly on the frame. The machine uses the functionalities of the software laser cut that guarantees precision and quality of cut. 64

CARTESIAN PLOTTER FOR LASER CUT TECHNICAL DATA: Laser source Sealed CO 2 laser Cooling system water Laser nominal power 25 W - 50 W - 100 W Laser effective power 34 W - 68 W - 120 W -Voltage 220 -230 50 Hz Movimentation CNC Work field 900 x 600 / 1200 x 900 / 1600 x 1000 / 1600 x 2100 mm Work table bee nest table Cutting speed 0 -800 mm/sec Marking speed 0 -1000 mm/sec Precision +/- 0. 03 mm Dimension 1320 x 1080 / 1900 x 1190 x 1390 / 1910 x 1380 x 1270 / 2220 x 1680 x 1270 / 2983 x 2520 x 1100 mm Reading system (optional) CCD Camera 65

CARTESIAN PLOTTER FOR LASER CUT OTHER PHOTOS: SLP 160/210 Roller for SLP 160/210 66

FIVE DEPARTMENTS WORKING SIMULTANEOUSLY TO GRANT THE QUALITY : MECHANIC DEPARTMENT ELECTRONIC DEPARTMENT METAL STRUCTURAL WORK DEPARTMENT PROJECT OFFICE RESEARCH AND DEVELOPMENT LABORATORY Seit Elettronica is endowed of a mechanic workroom equipped with the most modern numeric control machinery used by our qualified technicians. It allows to realize inside the firm every part and to guarantee to our costumers a high quality of the achieved product. In order to guarantee the high quality of its products, Seit Elettronica projects and realizes inside it also the electronic parts (technologic heart above all others) not only regarding the wirings, but also producing and assembling with automatic welding lines the electronic boards that equip every machine. Every covering equipping the machinery Seit Elettronica is realized in this department provided of modern automatic machines. From the cut of the plate, to the punching, to the bending, to the wiring of the parts, our qualified carpenters achieve with precision the projects entrusted to them. Inside a modern equipped office, a team of mechanic and electronic engineers project and design every particular of the sophisticated machinery produced by Seit Elettronica. Thanks to the help of the most modern technologies of computer simulation, every part is designed and tested virtually and physically to know in advance its functionality. In close collaboration with the project office and with the market office, this department tests the machinery, finds the problems and suggests solutions and improvements. Thanks also to the knowledge of our technicians, it allows to make at any moment personalized tests of any material or particular works to satisfy the requirements of any our costumer. Moreover the laboratory has the task to find and test new components and technologic solutions allowing this way to Seit to offer not only a product which is always technologically forefront and above all tested in every parts according to our qualitative standards. 67
