Segment Lengths in Circles MM 2 G 3
- Slides: 15
Segment Lengths in Circles MM 2 G 3. Students will understand the properties of circles. a. Understand use properties of chords, tangents, and secants as an application of triangle similarity.

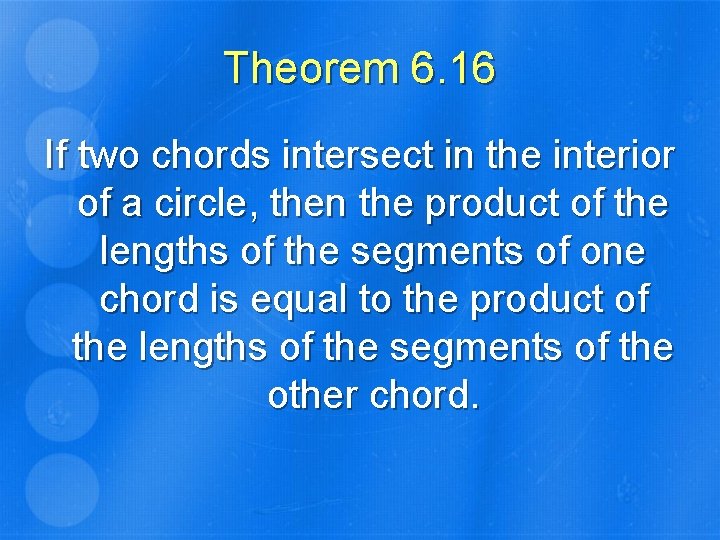

Theorem 6. 16 If two chords intersect in the interior of a circle, then the product of the lengths of the segments of one chord is equal to the product of the lengths of the segments of the other chord.
EXAMPLE 1 Find ML and JK. SOLUTION NK NJ = NL NM x (x + 4) = (x + 1) (x + 2) x 2 + 4 x = x 2 + 3 x + 2 4 x = 3 x + 2 x = 2 Use Theorem 6. 16. Substitute. Simplify. Subtract x 2 from each side. Solve for x.
EXAMPLE 1 Find ML and JK by substitution. SOLUTION ML = ( x + 2 ) + ( x + 1) JK = x + ( x + 4) = 2+2+2+1 = 2+2+4 = 7 = 8
Theorem 6. 17 If two secant segments share the same endpoint outside a circle, then the product of the lengths of one secant segment and its external segment equals the product of the lengths of the other secant segment and its external segment.

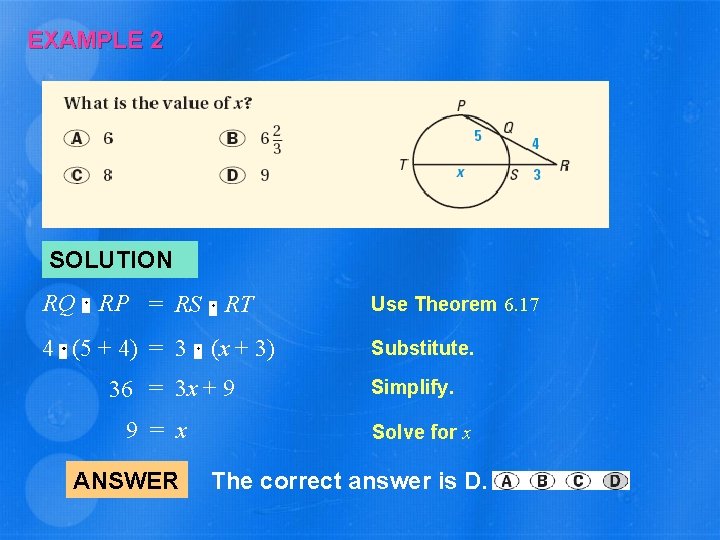

EXAMPLE 2 SOLUTION RQ RP = RS 4 (5 + 4) = 3 RT (x + 3) 36 = 3 x + 9 9 = x ANSWER Use Theorem 6. 17 Substitute. Simplify. Solve for x The correct answer is D.
GUIDED PRACTICE Find the value(s) of x. ANSWER 13 = x
GUIDED PRACTICE Find the value(s) of x. ANSWER x = 8
GUIDED PRACTICE Find the value(s) of x.
Theorem 6. 18 If a secant segment and a tangent segment share an endpoint outside a circle, then the product of the lengths of the secant segment and its external segment equals the square of the length of the tangent segment.
GUIDED PRACTICE 3. Find the value of x. ANSWER x =
GUIDED PRACTICE 4. Find the value of x. ANSWER x = 24 5
GUIDED PRACTICE 5. Find the value of x. ANSWER x =8
GUIDED PRACTICE 6. Determine which theorem you would use to find x. Then find the value of x. ANSWER x = 8
GUIDED PRACTICE 7. Find the value of x.
