Seeing Things 1 Eye and Brain How Your

Seeing Things 1 Eye and Brain How Your Brain Works - Week 3 Dr. Jan Schnupp jan. schnupp@dpag. ox. ac. uk How. Your. Brain. Works. net

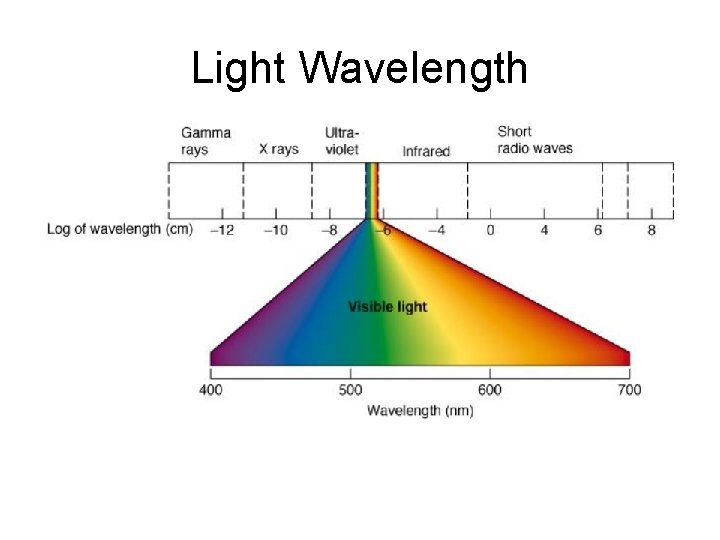

Light Wavelength

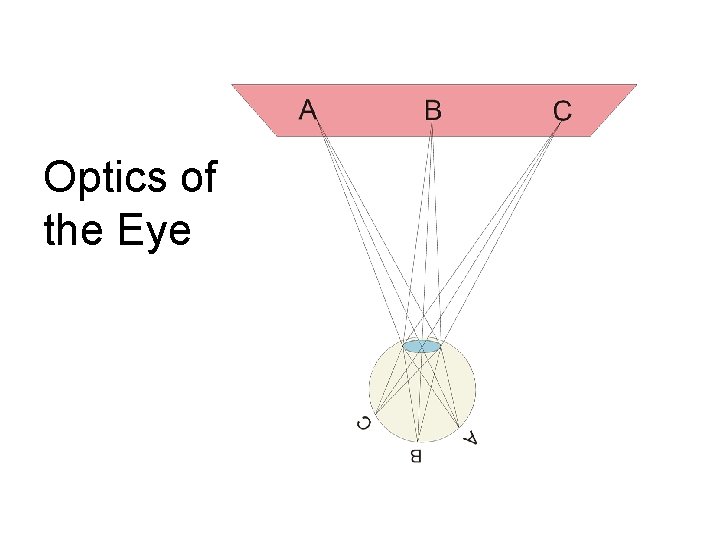

Optics of the Eye

Eye and Retina

The Blind Spot

Retinotopy • Adapted from drawings by Ramon y Cajal

The Optic Pathway: eye, optic nerve, optic chiasm, optic tract, thalamus, optic radiation, visual cortex

Rene Descartes, Retinotopy and the Seat of the Soul

Photoreceptors • The human eye has ca. 10 million rods and ca 120 million cones

Phototransduction • Light activated rhodopsin (R) activates G-protein (G) which in turn activates phosphodiesterase (PDE) which cleaves c. GMP which closes c. GMP-gated Na+ channel. • What does any of this have to do with carrots?

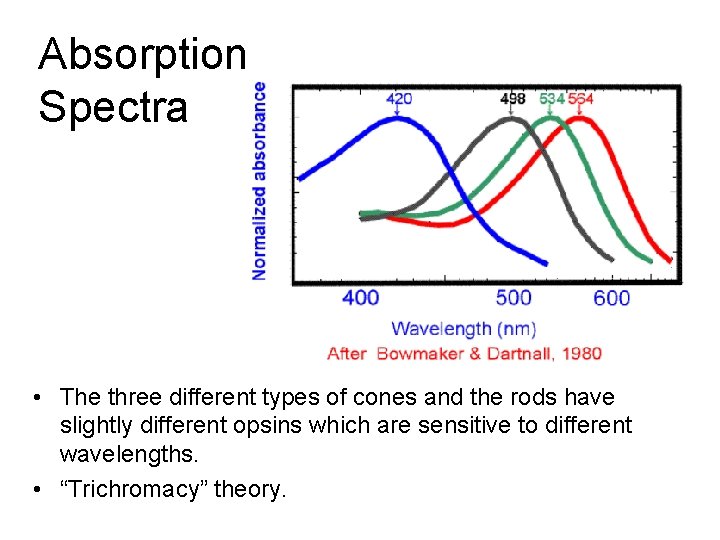

Absorption Spectra • The three different types of cones and the rods have slightly different opsins which are sensitive to different wavelengths. • “Trichromacy” theory.

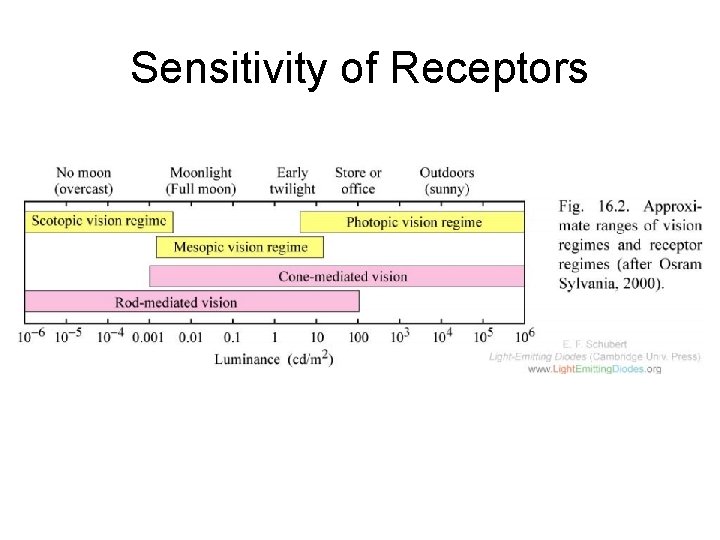

Sensitivity of Receptors

Rod and Cone Distribution

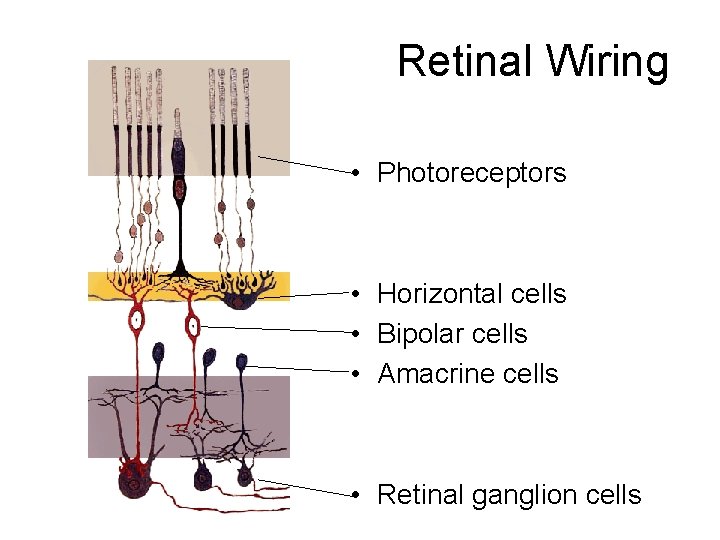

Retinal Wiring • Photoreceptors • Horizontal cells • Bipolar cells • Amacrine cells • Retinal ganglion cells

Centre –Surround Receptive Fields Photoreceptors Horizontal Cell Bipolar Cell Retinal Ganglion Cell

On-centre and off-centre Receptive Fields • Lateral inhibition provided by photoreceptor ribbon synapses, horizontal cell synapses and amacrine cells

Lateral inhibition for contrast (edge) detection

RGC receptive fields as “spatial frequency filters”

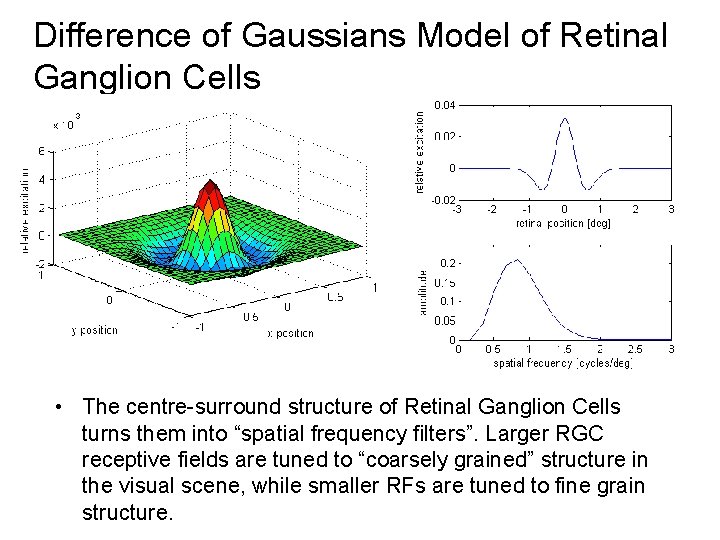

Difference of Gaussians Model of Retinal Ganglion Cells • The centre-surround structure of Retinal Ganglion Cells turns them into “spatial frequency filters”. Larger RGC receptive fields are tuned to “coarsely grained” structure in the visual scene, while smaller RFs are tuned to fine grain structure.

Convolving a Penny with Do. Gs • The picture of an American cent (left) seen through large (middle) or small (right) difference of Gaussian receptive fields.

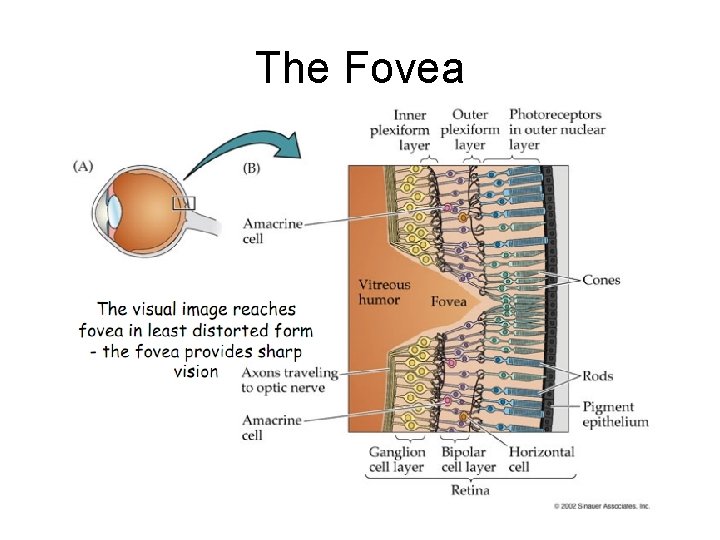

The Fovea

Eye muscles

Eye movements • • Eye-movement traces while a subject explores a picture of the bust of Nefertiti. From "Eye Movements and Vision" by A. L. Yarbus; Plenum Press, New York; 1967

Dan Simmons’ visual attention task • Count the number of passes of the white team

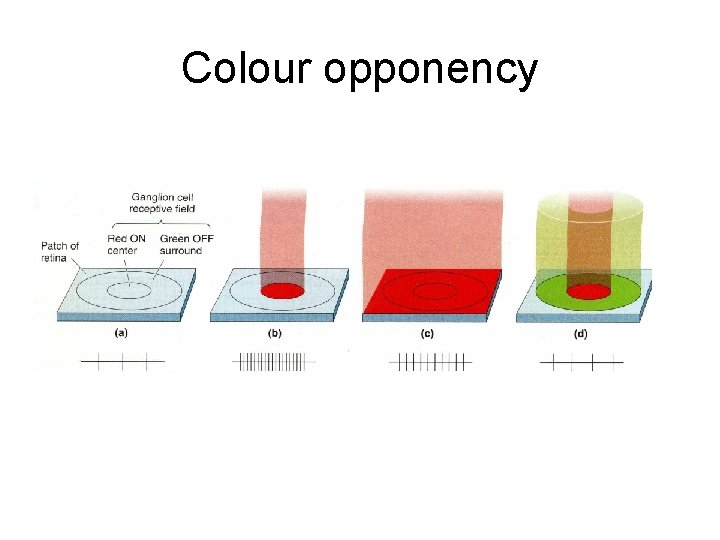

Colour opponency

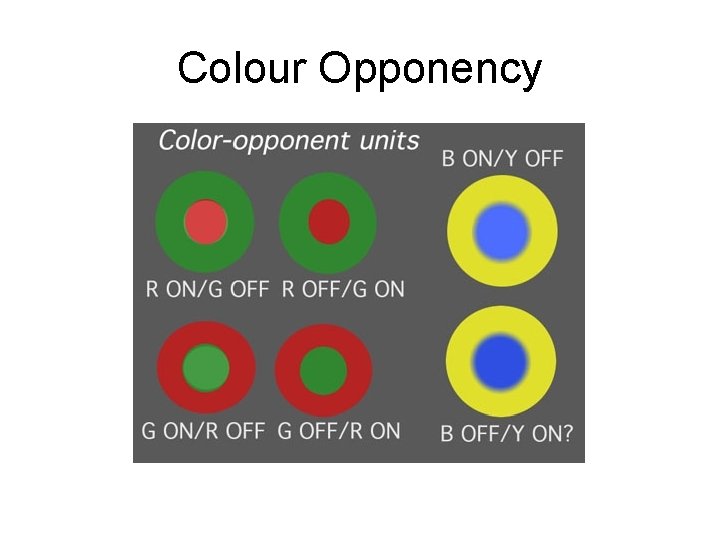

Colour Opponency

The Colour Wheel Yellow-Blue Red Green

Why Colour Vision Does Not Work Well in Poor Light

Cone mosaics • Cone mosaics for four different individuals

Colour blindness Red-green channel broken Blue-yellow channel broken

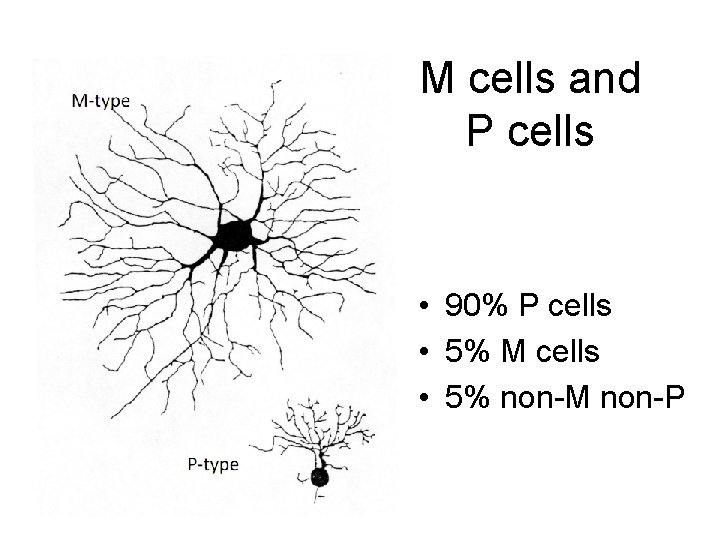

M cells and P cells • 90% P cells • 5% M cells • 5% non-M non-P

Projections to the Lateral Geniculate Nucleus

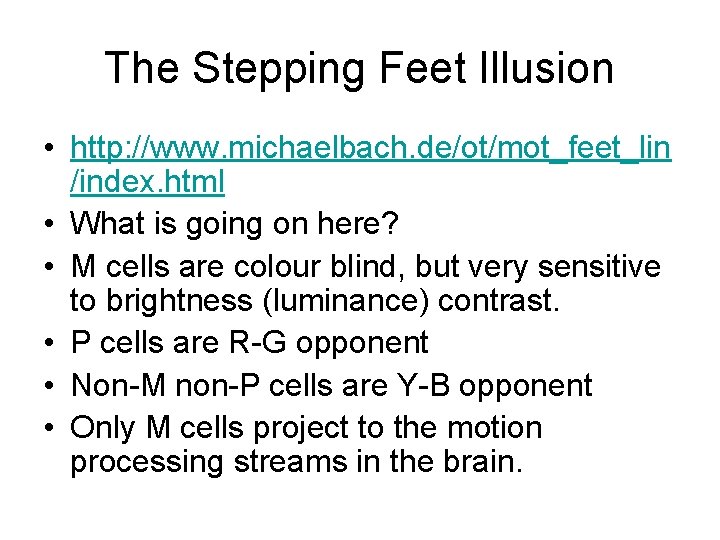

The Stepping Feet Illusion • http: //www. michaelbach. de/ot/mot_feet_lin /index. html • What is going on here? • M cells are colour blind, but very sensitive to brightness (luminance) contrast. • P cells are R-G opponent • Non-M non-P cells are Y-B opponent • Only M cells project to the motion processing streams in the brain.
