Sedimentary Rock Descriptions and Distractions Description vs Interpretation











































- Slides: 43
Sedimentary Rock Descriptions and Distractions • Description vs Interpretation • Rock Descriptions • Unit Descriptions • Distractions Text: Manual, p. 13 -16, 77 -90; Compton, p. 27 -31
Rock Descriptions • stratigraphic name • rock type

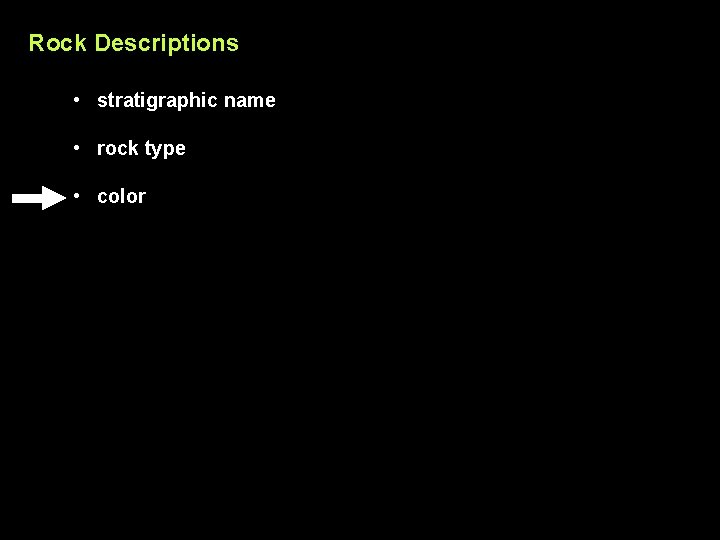

Rock Descriptions • stratigraphic name • rock type • color
(Luis Garcia)

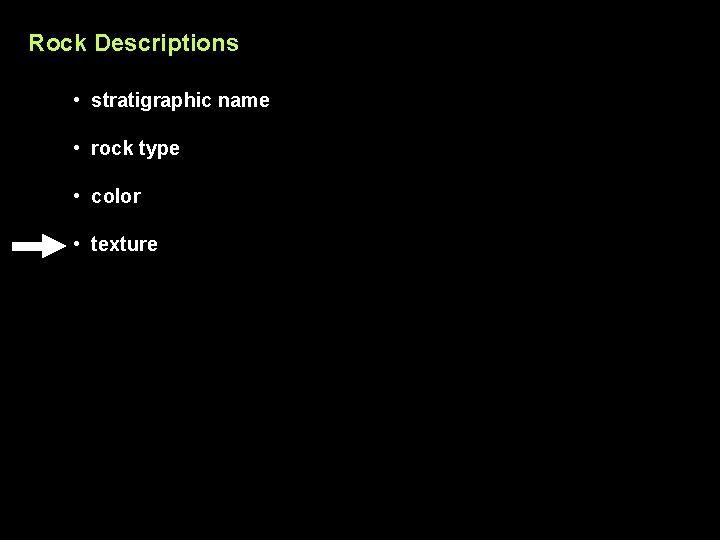

Rock Descriptions • stratigraphic name • rock type • color • texture

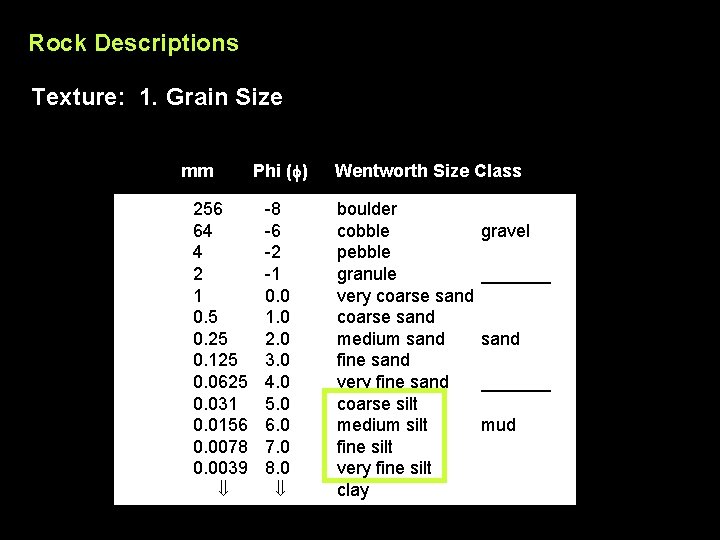

Rock Descriptions Texture: 1. Grain Size mm 256 64 4 2 1 0. 5 0. 25 0. 125 0. 0625 0. 031 0. 0156 0. 0078 0. 0039 Phi ( ) -8 -6 -2 -1 0. 0 1. 0 2. 0 3. 0 4. 0 5. 0 6. 0 7. 0 8. 0 Wentworth Size Class boulder cobble pebble granule very coarse sand medium sand fine sand very fine sand coarse silt medium silt fine silt very fine silt clay gravel _______ sand _______ mud

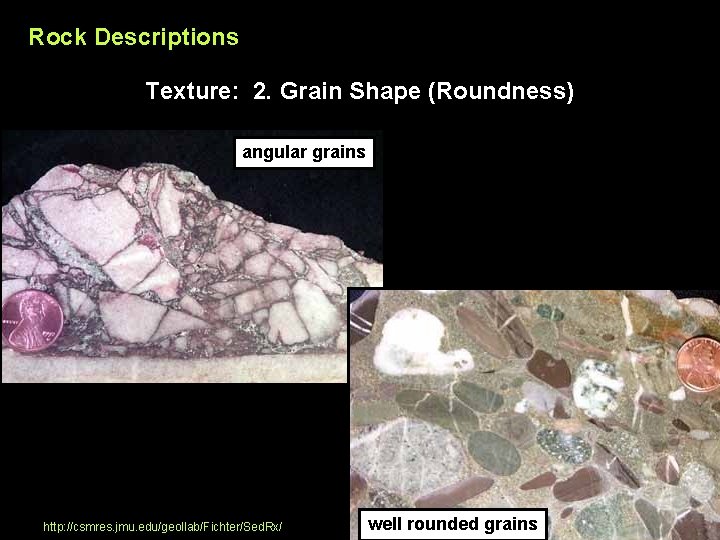

Rock Descriptions Texture: 2. Grain Shape (Roundness) angular grains http: //csmres. jmu. edu/geollab/Fichter/Sed. Rx/ well rounded grains
Rock Descriptions Texture: 3. Sorting

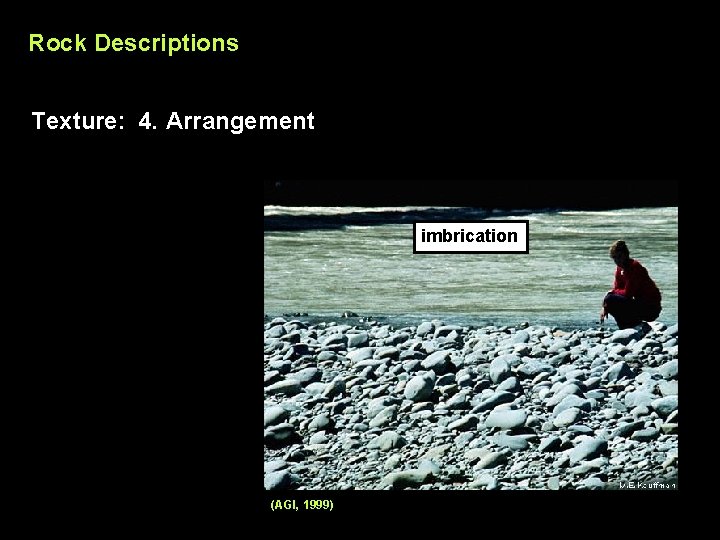

Rock Descriptions Texture: 4. Arrangement imbrication (AGI, 1999)

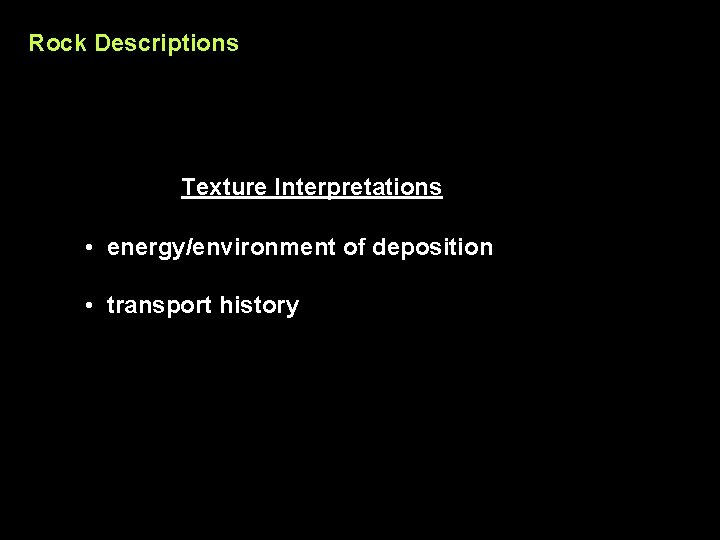

Rock Descriptions Texture Interpretations • energy/environment of deposition • transport history

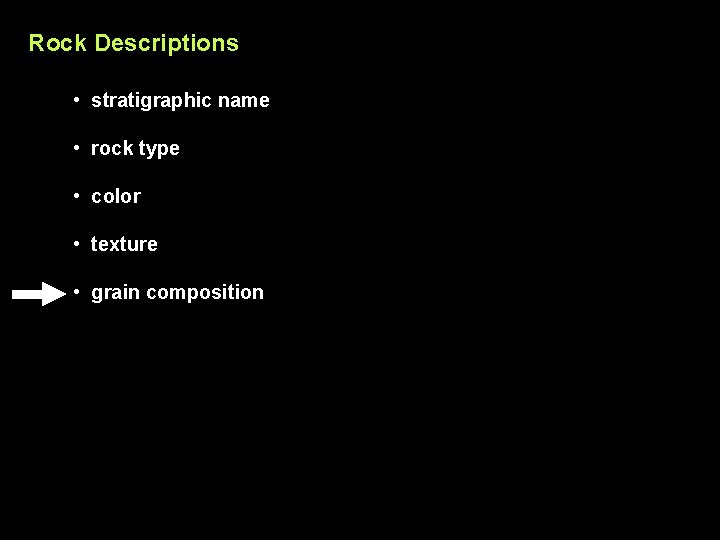

Rock Descriptions • stratigraphic name • rock type • color • texture • grain composition

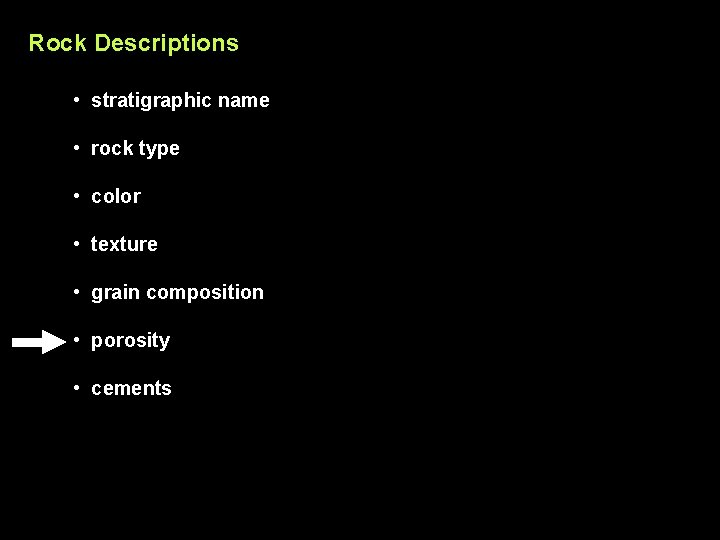

Rock Descriptions • stratigraphic name • rock type • color • texture • grain composition • porosity • cements
Rock Descriptions grain porosity cement matrix (M. Campbell)

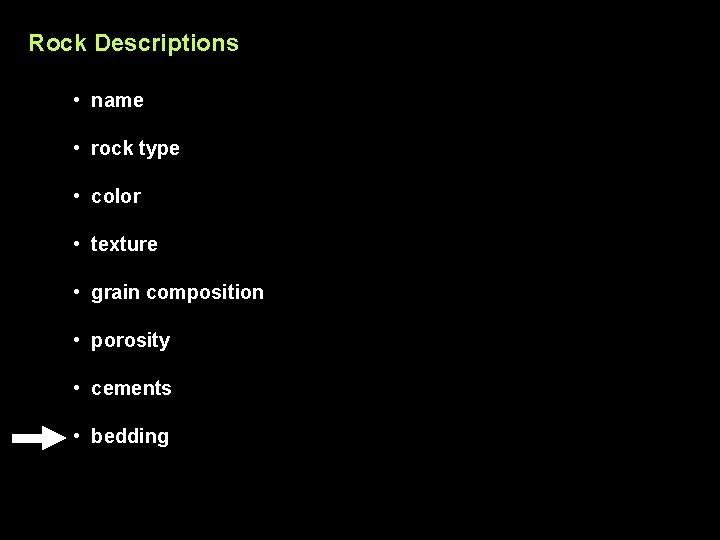

Rock Descriptions • name • rock type • color • texture • grain composition • porosity • cements • bedding

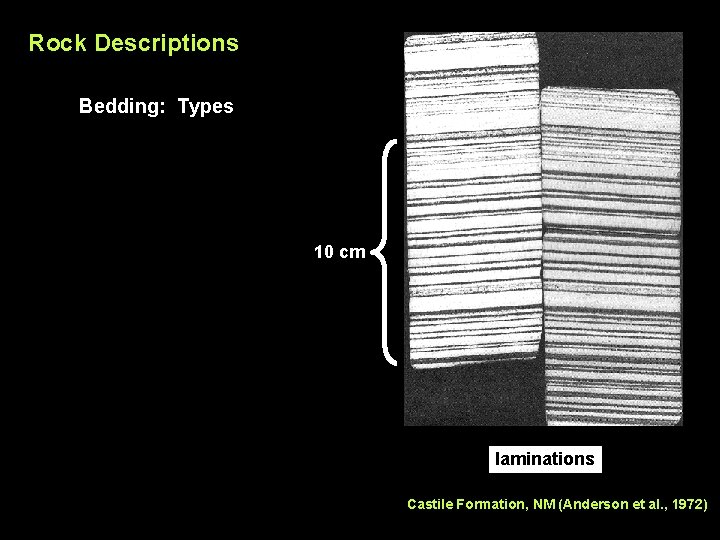

Rock Descriptions Bedding: Types 10 cm laminations Castile Formation, NM (Anderson et al. , 1972)

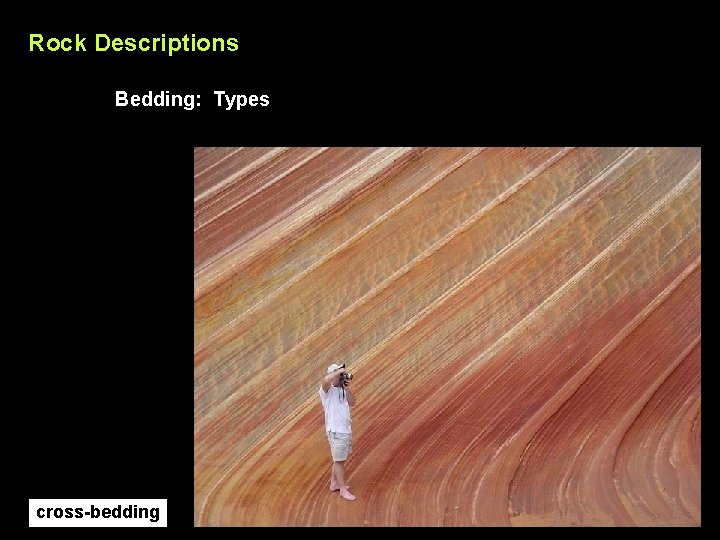

Rock Descriptions Bedding: Types cross-bedding

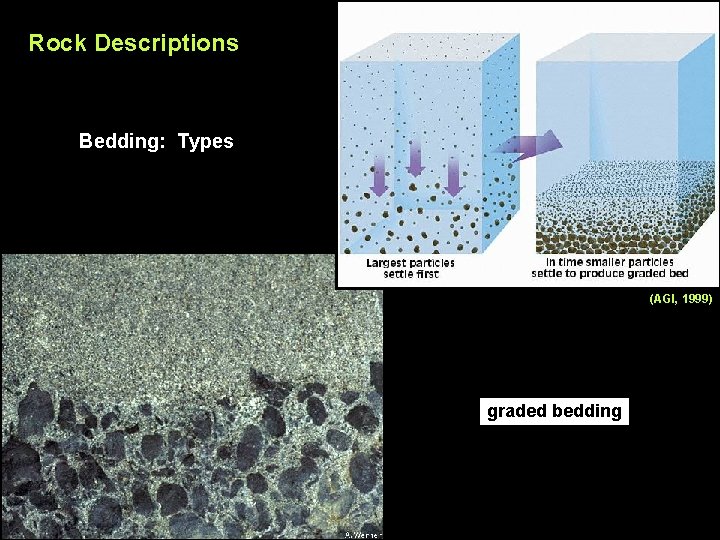

Rock Descriptions Bedding: Types (AGI, 1999) graded bedding
Rock Descriptions Bedding: Thickness

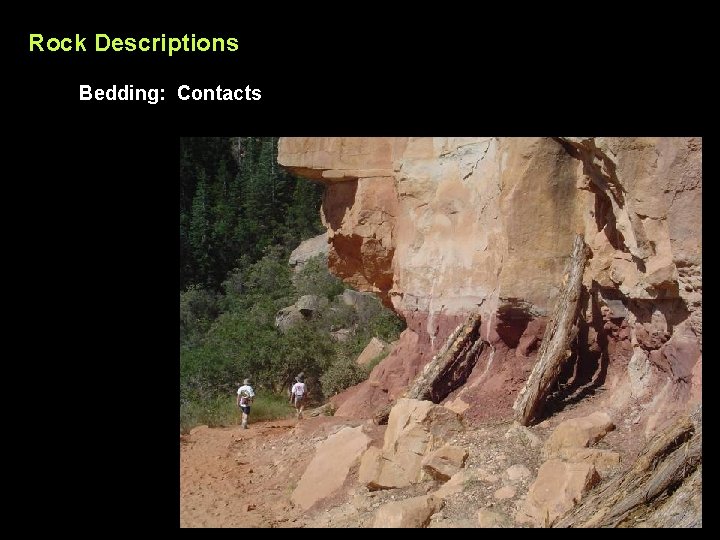

Rock Descriptions Bedding: Contacts

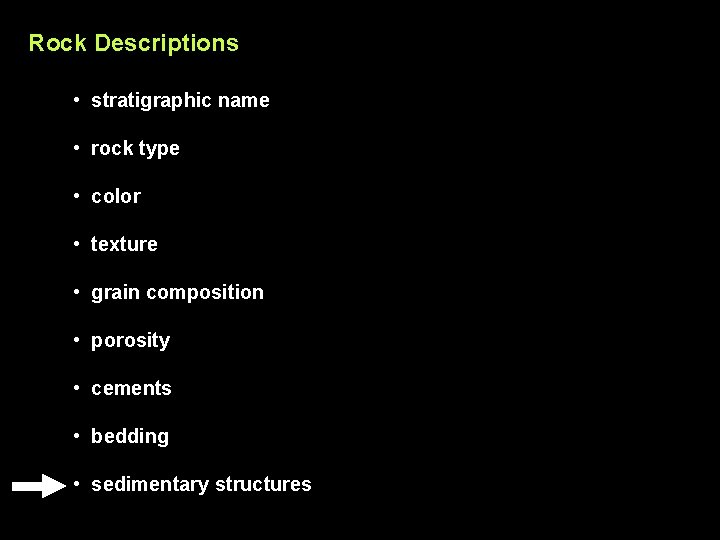

Rock Descriptions • stratigraphic name • rock type • color • texture • grain composition • porosity • cements • bedding • sedimentary structures
Rock Descriptions Sedimentary Structures wave ripples
Rock Descriptions Sedimentary Structures burrows

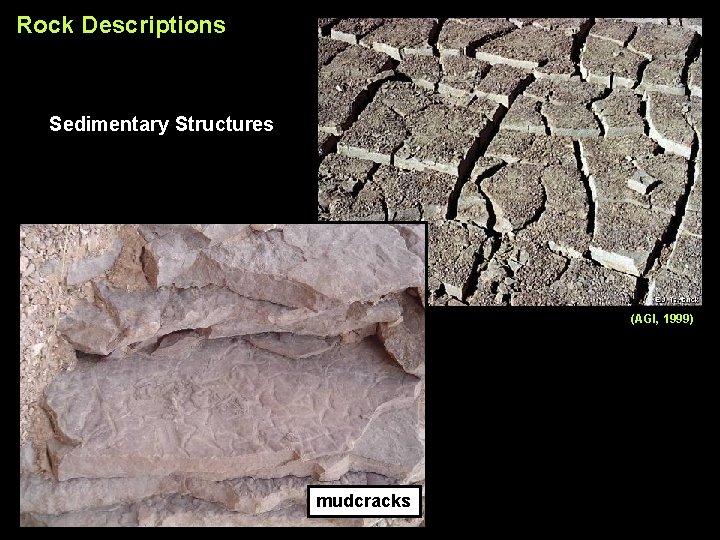

Rock Descriptions Sedimentary Structures (AGI, 1999) mudcracks

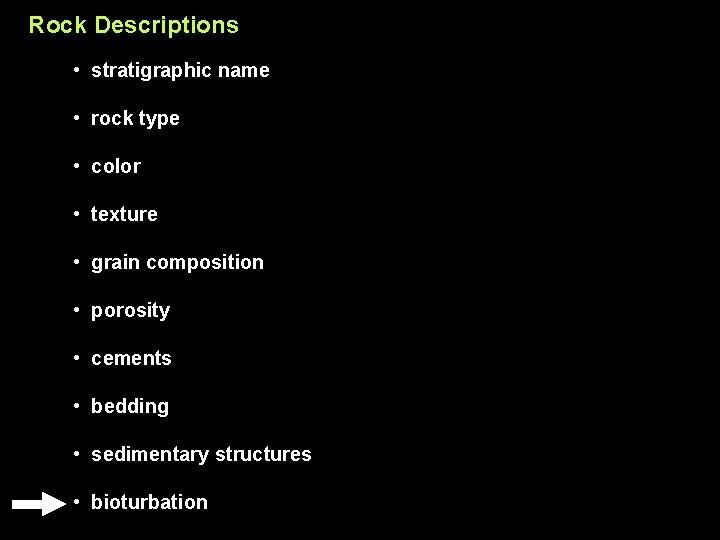

Rock Descriptions • stratigraphic name • rock type • color • texture • grain composition • porosity • cements • bedding • sedimentary structures • bioturbation

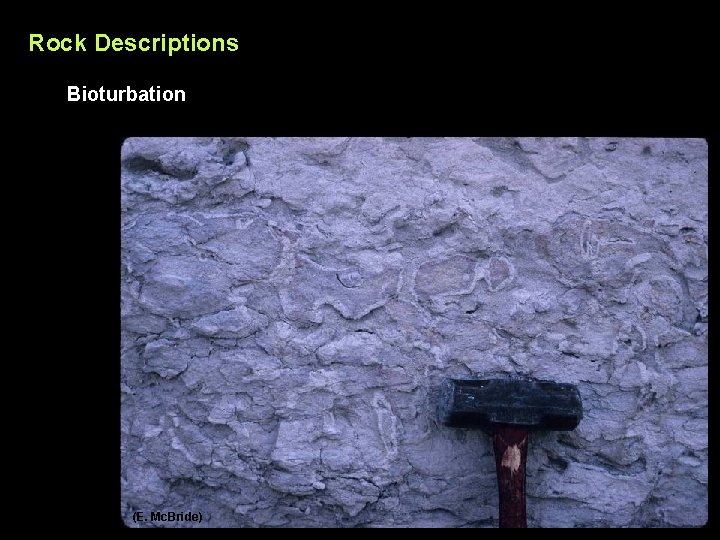

Rock Descriptions Bioturbation (E. Mc. Bride)

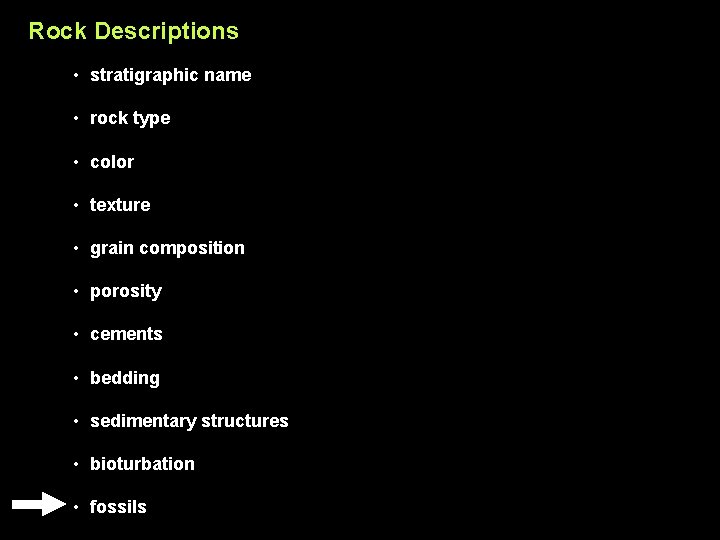

Rock Descriptions • stratigraphic name • rock type • color • texture • grain composition • porosity • cements • bedding • sedimentary structures • bioturbation • fossils

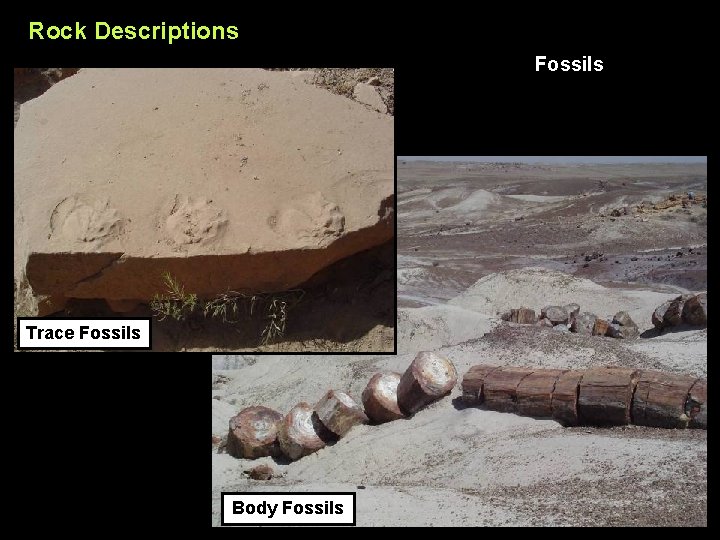

Rock Descriptions Fossils Trace Fossils Body Fossils

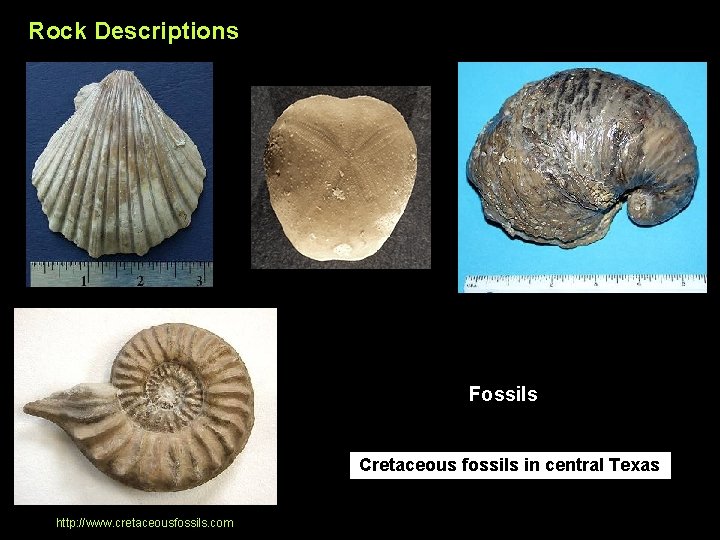

Rock Descriptions Fossils Cretaceous fossils in central Texas http: //www. cretaceousfossils. com
UT AUSTIN Interpretation

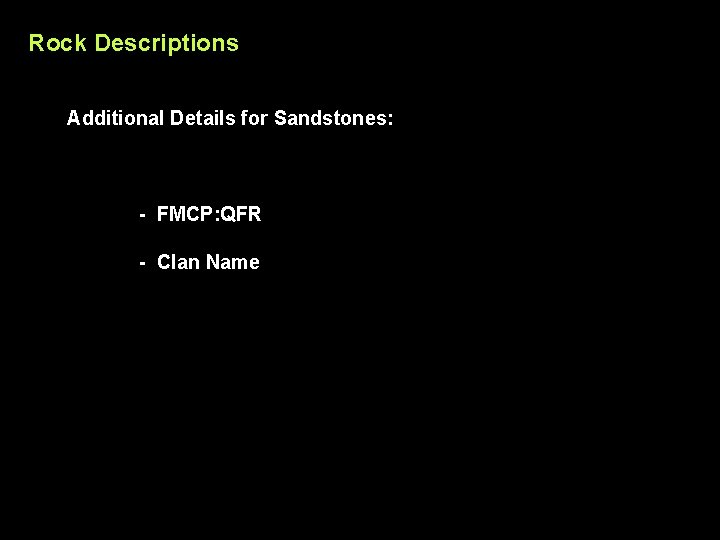

Rock Descriptions Additional Details for Sandstones: - FMCP: QFR - Clan Name

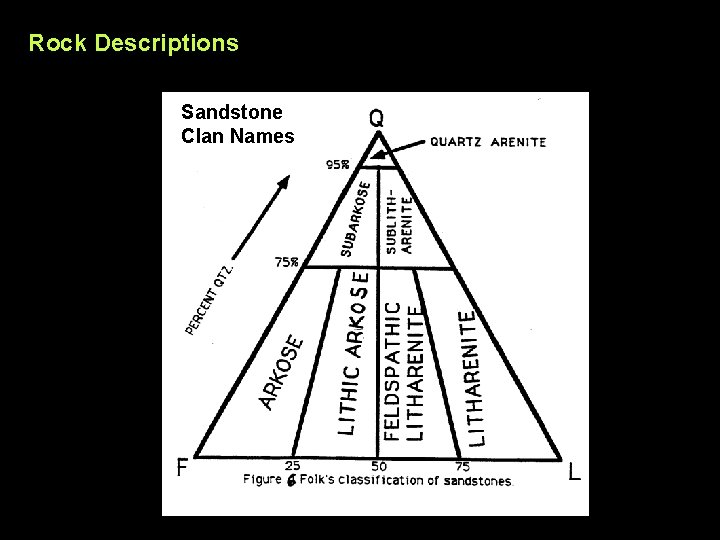

Rock Descriptions Sandstone Clan Names

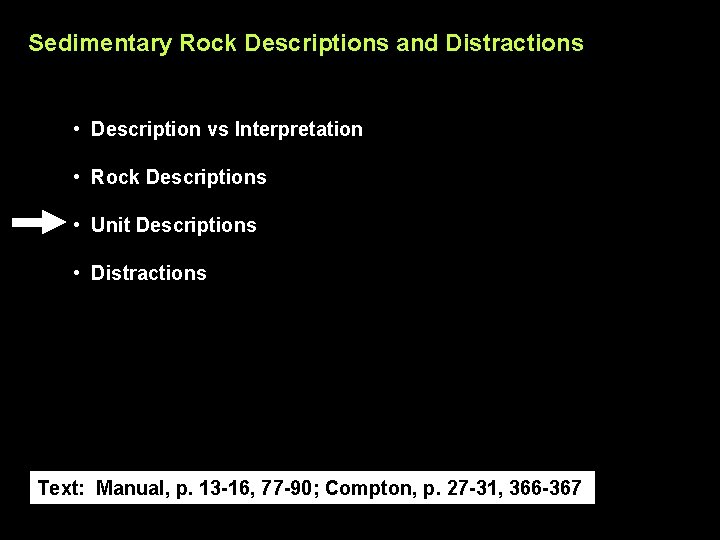

Sedimentary Rock Descriptions and Distractions • Description vs Interpretation • Rock Descriptions • Unit Descriptions • Distractions Text: Manual, p. 13 -16, 77 -90; Compton, p. 27 -31, 366 -367
Unit Descriptions • stratigraphic name • rock types interbedding • brief rock descriptions - percentages thicknesses contacts interbedding • special features - soil and vegetation - topographic expression gradational sharp

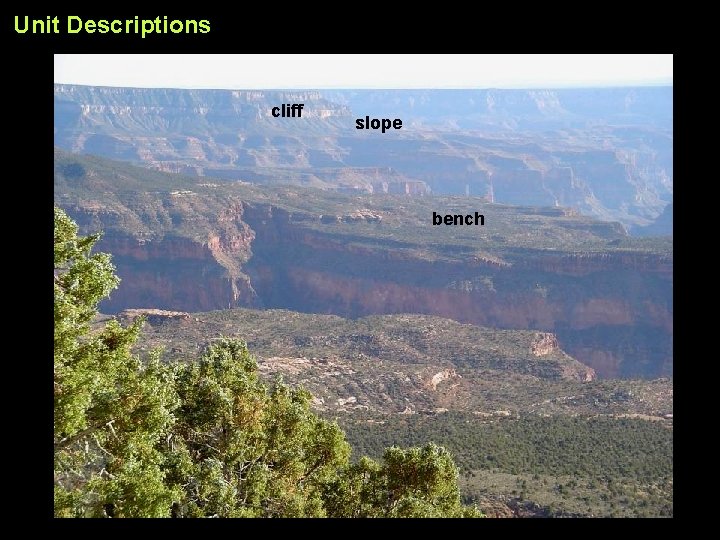

Unit Descriptions cliff slope bench

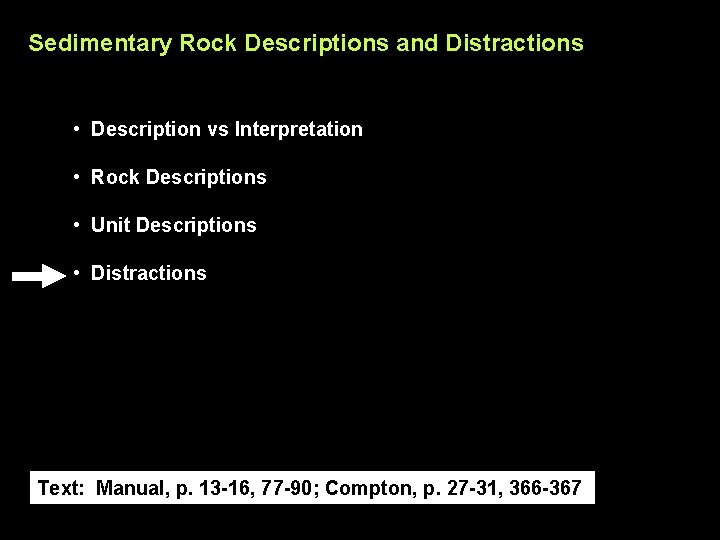

Sedimentary Rock Descriptions and Distractions • Description vs Interpretation • Rock Descriptions • Unit Descriptions • Distractions Text: Manual, p. 13 -16, 77 -90; Compton, p. 27 -31, 366 -367
Distractions Vegetation

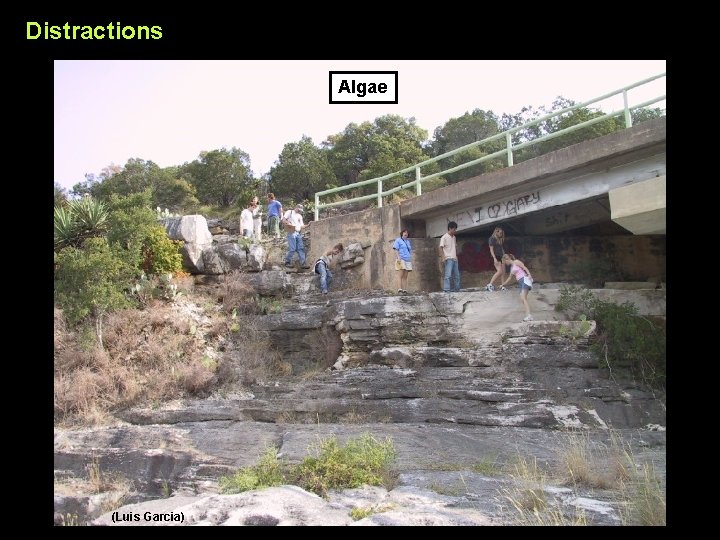

Distractions Algae (Luis Garcia)

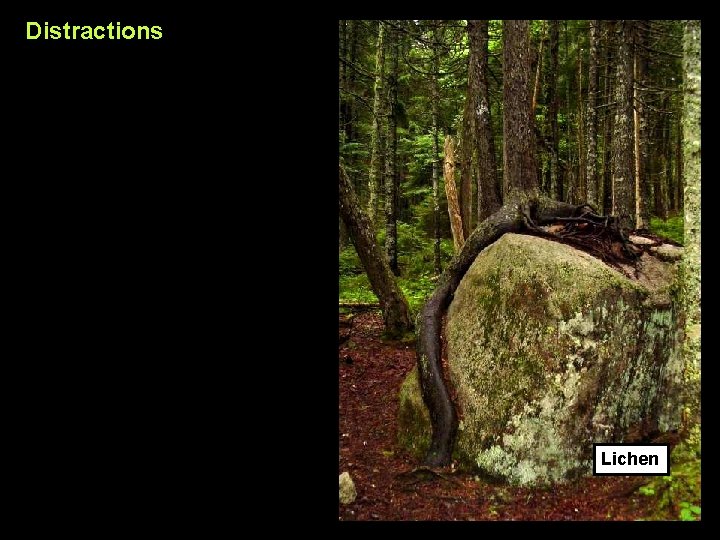

Distractions Lichen

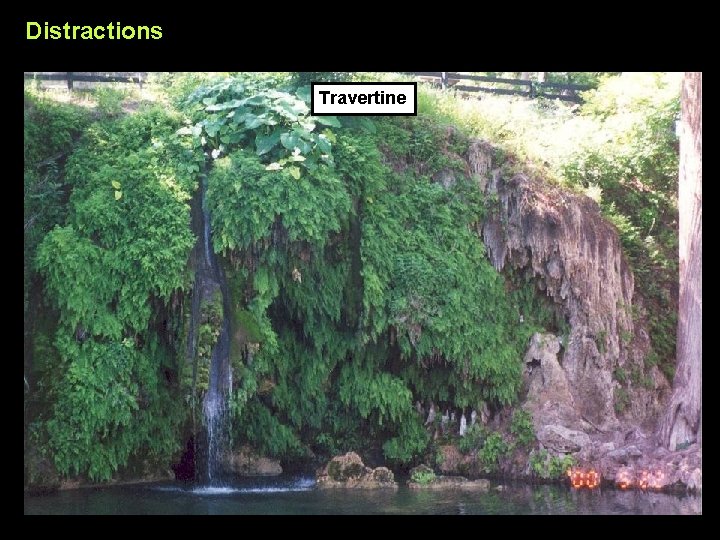

Distractions Travertine

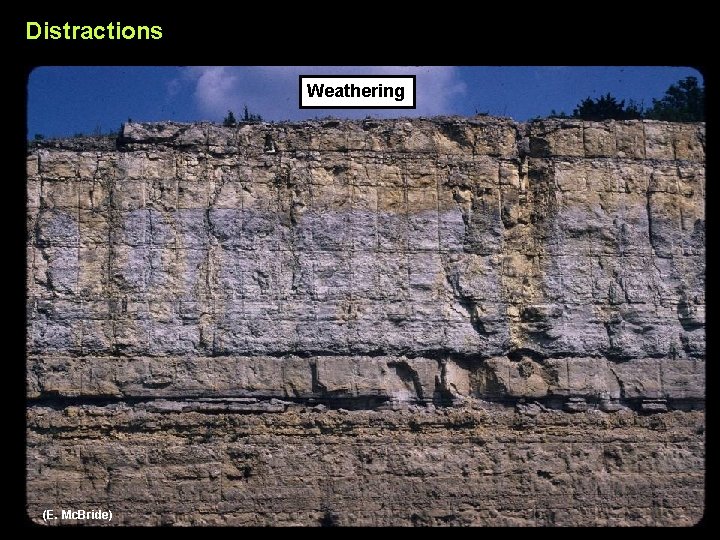

Distractions Weathering (E. Mc. Bride)

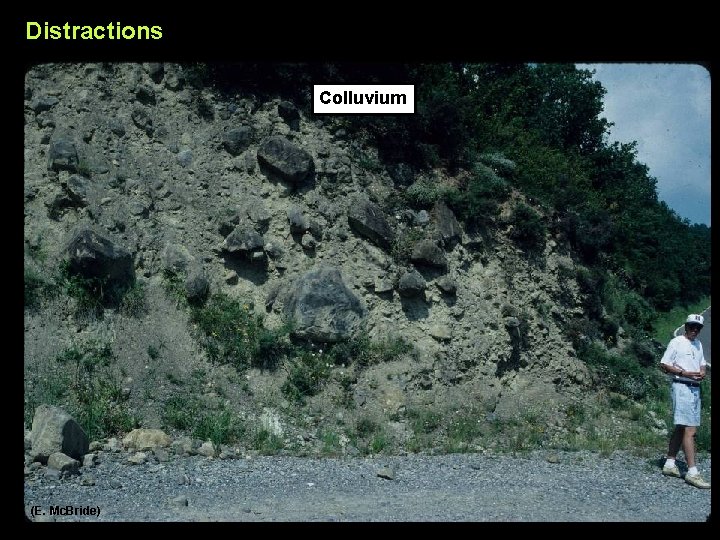

Distractions Colluvium (E. Mc. Bride)
Distractions Float (E. Mc. Bride)

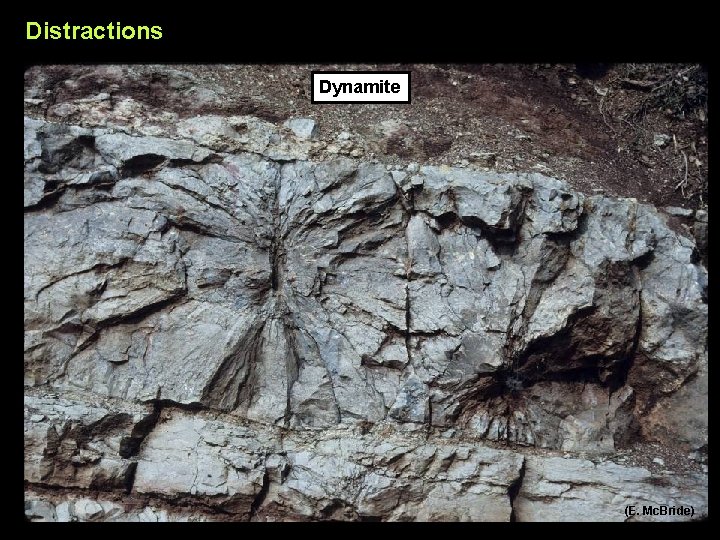

Distractions Dynamite (E. Mc. Bride)
