Sedgwick County Fire Chiefs Association Regional Training ExerciseViola

Sedgwick County Fire Chief’s Association Regional Training Exercise-Viola, Ks. May 3 rd, 2008 Rural Water Supply “Working Together” to maximize coordination between multi-agencies.

Apparatus What’s available?

Communication How effective are we?

Equipment How adaptable?

Familiar Do we know our own resources and capabilities?

Familiar Do we know our mutual aid departments resources and capabilities?

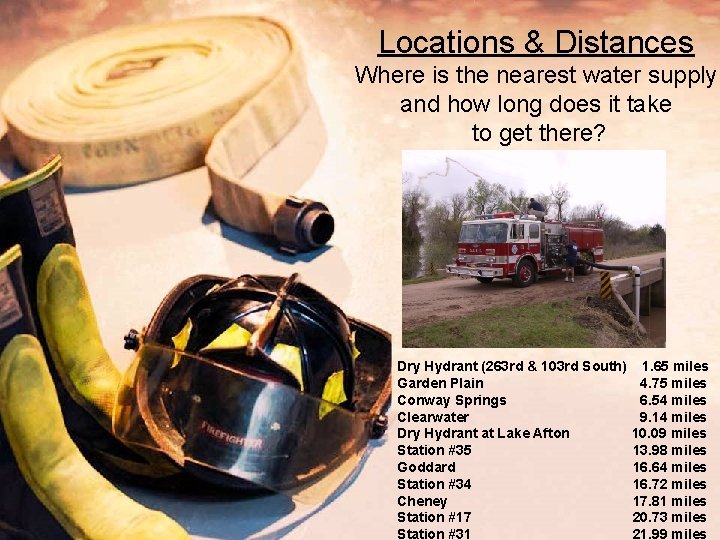

Locations & Distances Where is the nearest water supply and how long does it take to get there? Dry Hydrant (263 rd & 103 rd South) Garden Plain Conway Springs Clearwater Dry Hydrant at Lake Afton Station #35 Goddard Station #34 Cheney Station #17 Station #31 1. 65 miles 4. 75 miles 6. 54 miles 9. 14 miles 10. 09 miles 13. 98 miles 16. 64 miles 16. 72 miles 17. 81 miles 20. 73 miles 21. 99 miles

Water Shuttle Operations Tender Cycle Time = 10 minutes the first mile + 2 minutes each additional mile (Calculated one way and not for a round trip) Example #1: Viola to Conway Springs: 6. 5 miles travel distance (round up) 10 minutes the first mile + 12 minutes for six miles Tender Cycle Time = 22 minutes Example #2: Viola to Clearwater: 9. 4 miles travel distance 10 minutes the first mile + 18 minutes for nine miles Tender Cycle Time = 28 minutes Example #3: Viola to 103 rd S. & 263 rd West: 2 miles travel distance 10 minutes the first mile + 2 minutes for the last mile Tender Cycle Time = 12 minutes

Water Shuttle Operations Tenders Required = Tender Cycle Time X GPM Flow = # of Tenders Required Tender Capacity Example #1: 28 minutes X 1000 GPM = 11. 2 Tenders 2500 Gallons (Round Up) 28 minutes X 650 GPM = 7. 2 Tenders 2500 Gallons Example #2: 22 minutes X 1000 GPM = 8. 8 Tenders 2500 Gallons 22 minutes X 650 GPM = 5. 7 Tenders 2500 Gallons Example #3: 12 minutes X 1000 GPM = 4. 8 Tenders 2500 Gallons 12 minutes X 650 GPM = 3. 1 Tenders 2500 Gallons (Consider one additional tender for safety margin!)
