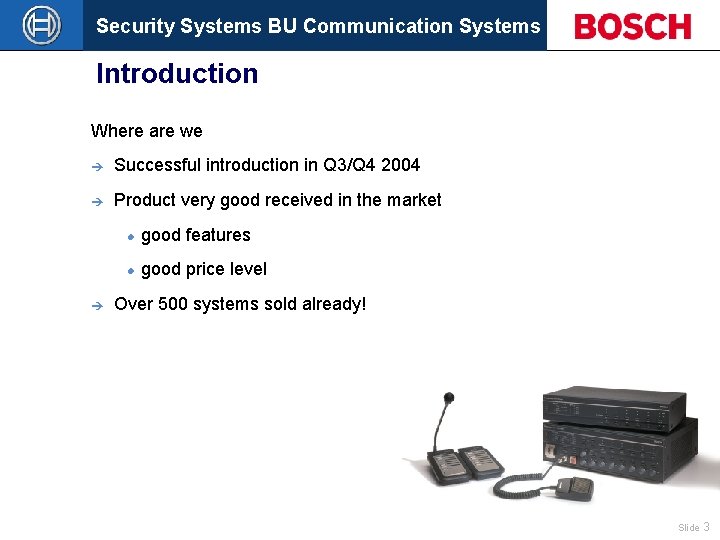

Security Systems BU Communication Systems Introduction Where are we è Successful introduction in Q 3/Q 4 2004 è Product very good received in the market è l good features l good price level Over 500 systems sold already! Slide 3

Security Systems BU Communication Systems Phase 2 What is new è v 2. 0 software è Remote Control Panels and kits è Fireman’s panel Let’s have a closer look Slide 4

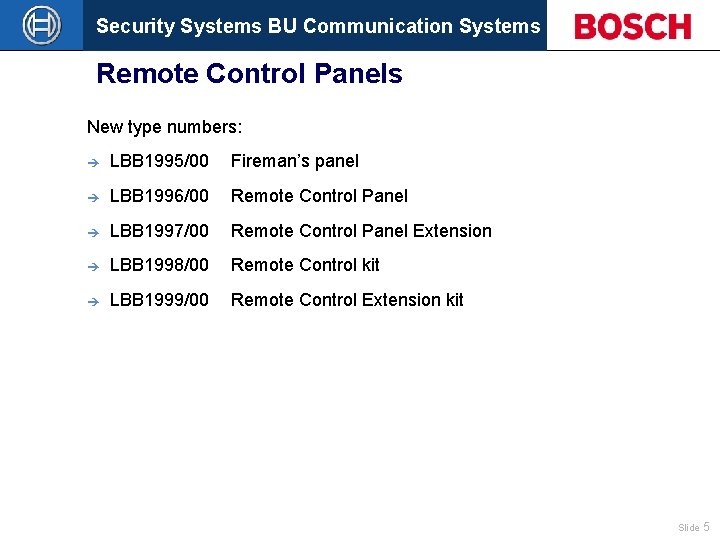

Security Systems BU Communication Systems Remote Control Panels New type numbers: è LBB 1995/00 Fireman’s panel è LBB 1996/00 Remote Control Panel è LBB 1997/00 Remote Control Panel Extension è LBB 1998/00 Remote Control kit è LBB 1999/00 Remote Control Extension kit Slide 5

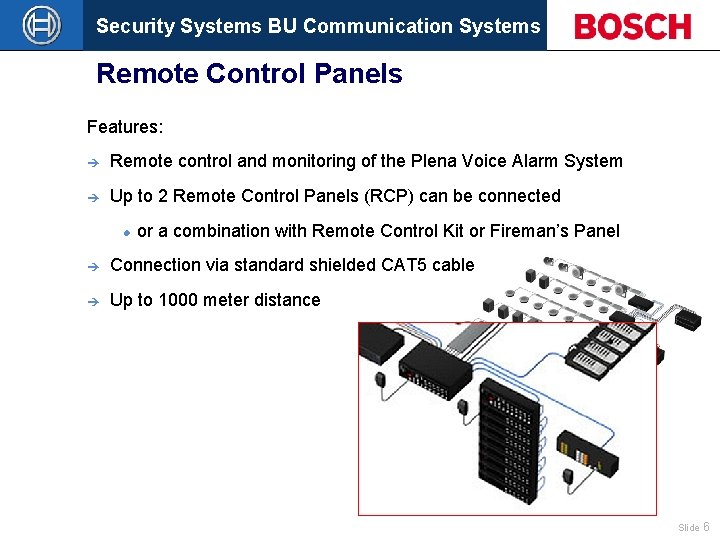

Security Systems BU Communication Systems Remote Control Panels Features: è Remote control and monitoring of the Plena Voice Alarm System è Up to 2 Remote Control Panels (RCP) can be connected l or a combination with Remote Control Kit or Fireman’s Panel è Connection via standard shielded CAT 5 cable è Up to 1000 meter distance Slide 6

Security Systems BU Communication Systems Remote Control Panels è è è RCP with up to 9 RCP extensions Fireman’s panel user interface l Fault and status indicators l Indicator test button EMG Microphone on front panel (included) Same user interface and functionality as the Controller / Router l (except BGM volume control) 24 Vdc power (LBB 1996/00 Remote Control Panel) (LBB 1997/00 Remote Control Panel Extension) Slide 7

Security Systems BU Communication Systems Remote Control kits è è è RC kits with up to 9 RC extension kits can be connected For customized fireman’s panel Connection of indicators and buttons via standard connectors on front panel EMG Microphone + extension connector included Mounting in 19” rack or within 19” cabinet 24 Vdc power LBB 1998/00 Remote Control kit LBB 1999/00 Remote Control Extension kit Slide 8

Security Systems BU Communication Systems Fireman’s Panel è è è è Fully functional all call fireman’s panel EMG Microphone on front panel (included) Big control buttons l EVAC (message) l Alarm message l Faul acknowledge and Reset l EVAC acknowledge and Reset Fault and status indicators as on Voice Alarm Controller Indicator test button No zone selection 24 Vdc power LBB 1995/00 Fireman’s panel Slide 9

Security Systems BU Communication Systems V 2. 0 software New / changed software functionality è New hardware added to software è Message keeps playing after cable fault è Return to trigger message after use of EMG microphone è BGM shuts down during mains failure è Disable LED turns on if all supervision is disabled via configuration software è 3 -Wire Volume override è 19 priority levels V 2. 0 software available via extranet Slide 10

Security Systems BU Communication Systems Functionality è 3 -Wire Volume override l Use of A and B loudspeaker output l 1 loudspeaker line only l Make correct setting in the configuration software Slide 11

Security Systems BU Communication Systems Configuration software System set-up è Remote Control Panels è 3 -wire Volume override è Volume control message manager l è disable volume control EMG messages EMG All Call l disabling of zone selection keys Slide 12

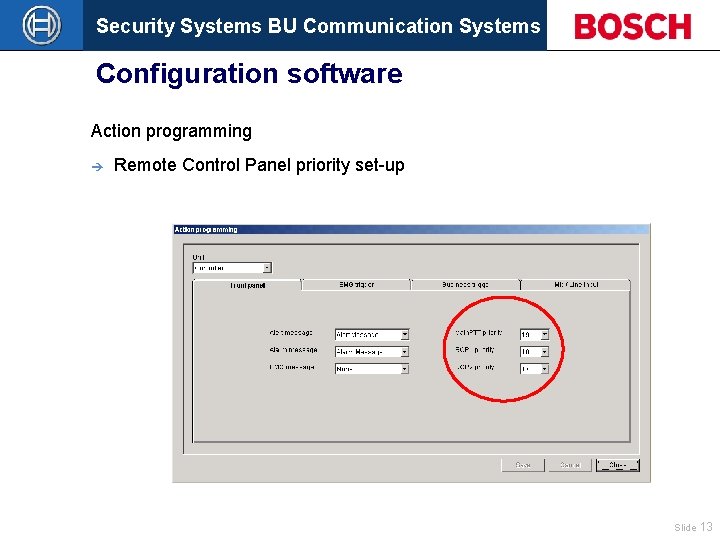

Security Systems BU Communication Systems Configuration software Action programming è Remote Control Panel priority set-up Slide 13

Security Systems BU Communication Systems Configuration software 19 priority levels è 1 BGM è 2 – 8 Business calls è l Business trigger inputs l Call Stations l Mic/Line Input (2 -14) 9 – 19 Emergency Calls l Emergency trigger inputs (9 – 14) l Mic/Line input (2 -14) l EMG Microphone Controller (17 -19) l EMG Microphone Remote Control Panels (17 -19) Slide 14

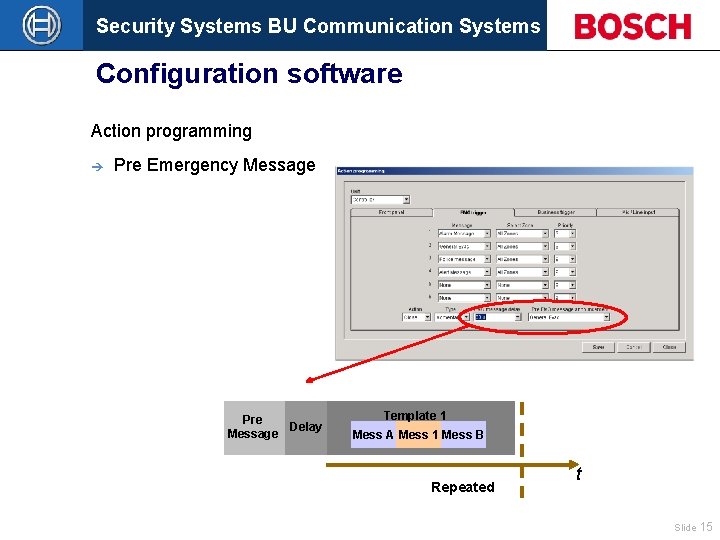

Security Systems BU Communication Systems Configuration software Action programming è Pre Emergency Message Pre Delay Message Template 1 Mess A Mess 1 Mess B Repeated t Slide 15

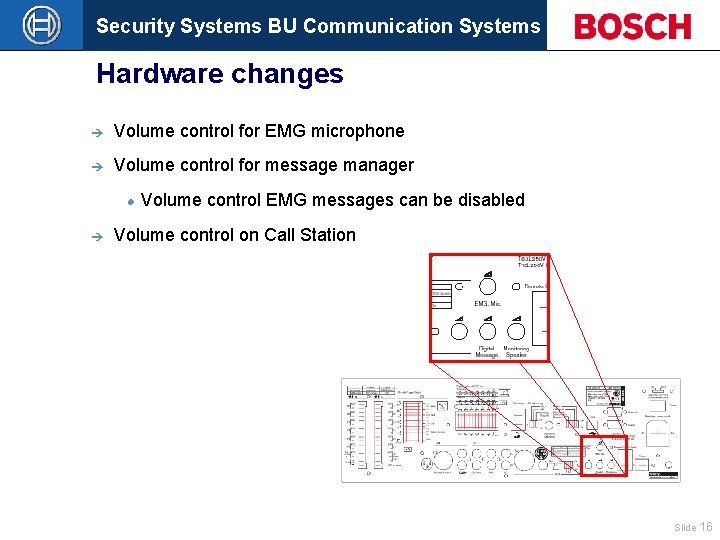

Security Systems BU Communication Systems Hardware changes è Volume control for EMG microphone è Volume control for message manager l è Volume control EMG messages can be disabled Volume control on Call Station Slide 16

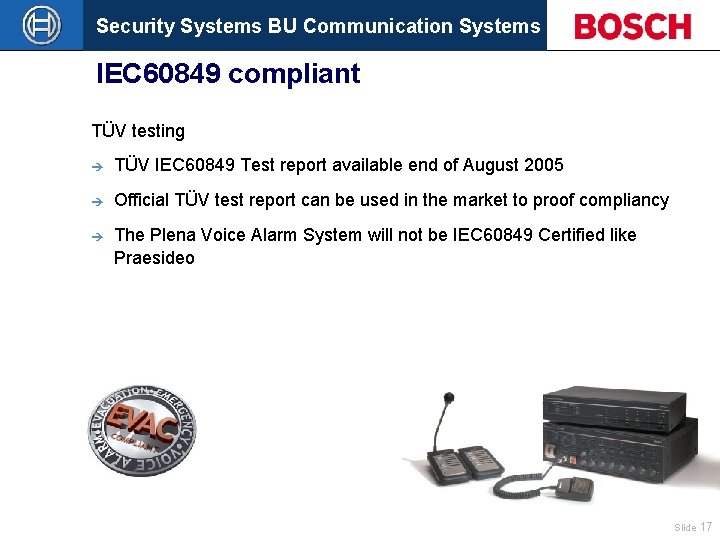

Security Systems BU Communication Systems IEC 60849 compliant TÜV testing è TÜV IEC 60849 Test report available end of August 2005 è Official TÜV test report can be used in the market to proof compliancy è The Plena Voice Alarm System will not be IEC 60849 Certified like Praesideo Slide 17

Security Systems BU Communication Systems Marcom Materials è Remote Control Panels already in available Marcom materials l Commercial leaflet l Application notes l Plena family brochure l Mailer è Commercial leaflet planned for Q 3 2005 è Plena Family Brochure Data book è update Q 4 2005. update Q 2 2005 Slide 18
