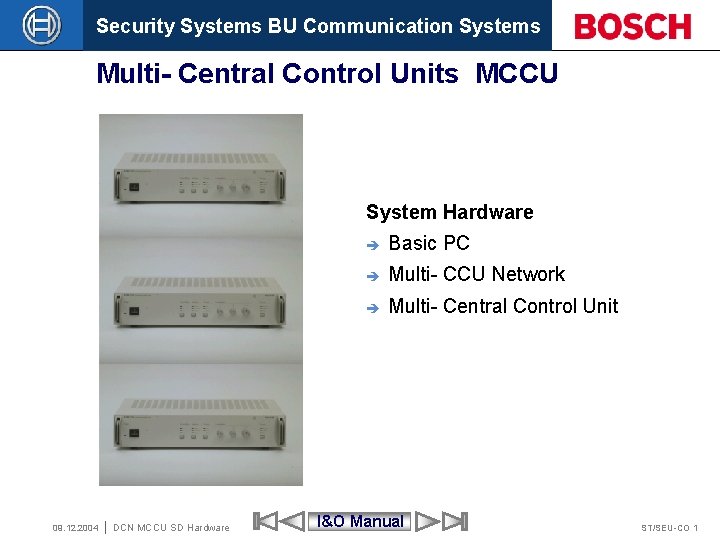

Security Systems BU Communication Systems Multi- Central Control Units MCCU System Hardware 09. 12. 2004 DCN MCCU SD Hardware è Basic PC è Multi- CCU Network è Multi- Central Control Unit I&O Manual ST/SEU-CO 1
Security Systems BU Communication Systems Multi- CCU Systems è BNC connectors for loop-through connection. 1 09. 12. 2004 DCN MCCU SD Hardware ST/SEU-CO 2
Security Systems BU Communication Systems Multi- CCU Network Card 09. 12. 2004 DCN MCCU SD Hardware LBB 3511/00 ST/SEU-CO 3
Security Systems BU Communication Systems Multi- CCU Network Card LBB 3511/00 Connectors 5. Input connection for External power- fail signal (active low). 6. Connector for Multi- trunk Out. 7. Pin connectors for test purposes only. 9. Connector for Multi- trunk In. 10. Card edge connector for connection to ISA- bus. LED indications 2 D 1(Yellow) Output port 1 indicator, D 2 (Green) Output port 1 indicator, D 3 (Red) Output port 1 indicator. 3 D 4 (Yellow) Indicates the master state of the PC card, D 5 (Green) Indicates card has been initialized by the software, D 6 (Red) Indicates power- on. Jumpers 4 X 32 When placed (indicated by LED D 4) the Multi- CCU board is in its master state (default: placed). 8 09. 12. 2004 X 24 Not placed DCN MCCU SD Hardware ST/SEU-CO 4

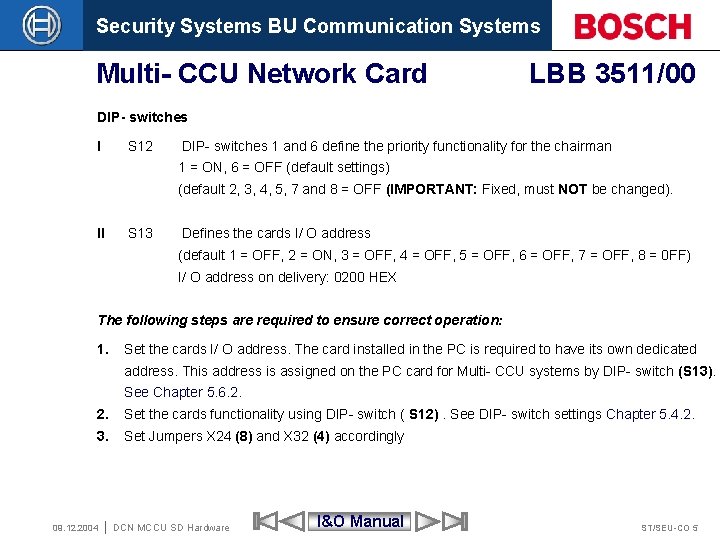

Security Systems BU Communication Systems Multi- CCU Network Card LBB 3511/00 DIP- switches I S 12 DIP- switches 1 and 6 define the priority functionality for the chairman 1 = ON, 6 = OFF (default settings) (default 2, 3, 4, 5, 7 and 8 = OFF (IMPORTANT: Fixed, must NOT be changed). II S 13 Defines the cards I/ O address (default 1 = OFF, 2 = ON, 3 = OFF, 4 = OFF, 5 = OFF, 6 = OFF, 7 = OFF, 8 = 0 FF) I/ O address on delivery: 0200 HEX The following steps are required to ensure correct operation: 1. Set the cards I/ O address. The card installed in the PC is required to have its own dedicated address. This address is assigned on the PC card for Multi- CCU systems by DIP- switch (S 13). See Chapter 5. 6. 2. Set the cards functionality using DIP- switch ( S 12). See DIP- switch settings Chapter 5. 4. 2. 3. Set Jumpers X 24 (8) and X 32 (4) accordingly 09. 12. 2004 DCN MCCU SD Hardware I&O Manual ST/SEU-CO 5
Security Systems BU Communication Systems Dip switch settings LBB 3511/00 09. 12. 2004 DCN MCCU SD Hardware ST/SEU-CO 6
Security Systems BU Communication Systems Dedicated PC for Configuration & Control 09. 12. 2004 DCN MCCU SD Hardware ST/SEU-CO 7
Security Systems BU Communication Systems Multi- CCU System Audio Outputs 09. 12. 2004 PA- Out = Total Floor Part A & B Channel 12 = Local Floor Conference Hall Part A PA- Out = Total Floor Part A & B Channel 12 = Local Floor Conference Hall Part B DCN MCCU SD Hardware ST/SEU-CO 8
Security Systems BU Communication Systems Multi- CCU System with Remote Controller 09. 12. 2004 DCN MCCU SD Hardware Touch Panels ST/SEU-CO 9
Security Systems BU Communication Systems Multi- Central Control Units End of section Robert Bosch Gmb. H All rights are reserved. Reproduction or passing on to third parties in whole or in parts is prohibited without the written consent of the copyright owner. 09. 12. 2004 DCN MCCU SD Hardware ST/SEU-CO 10
