Security Systems BU Communication Systems Design Sound Projectors

Security Systems BU Communication Systems Design Sound Projectors Slide 1

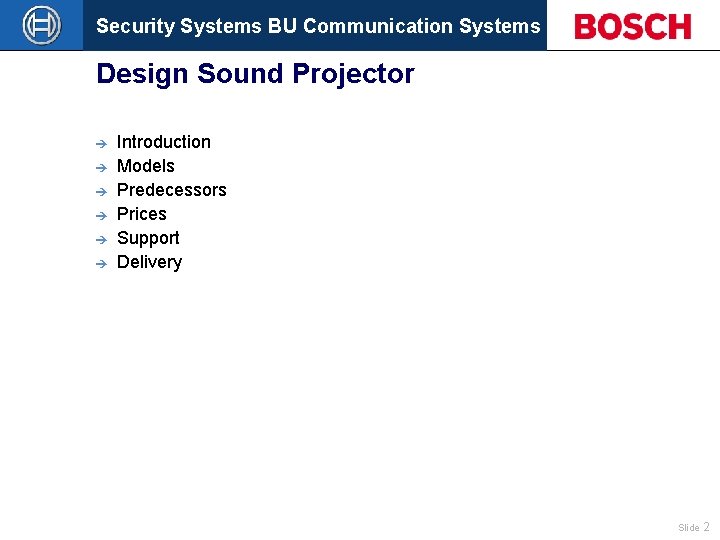

Security Systems BU Communication Systems Design Sound Projector è è è Introduction Models Predecessors Prices Support Delivery Slide 2

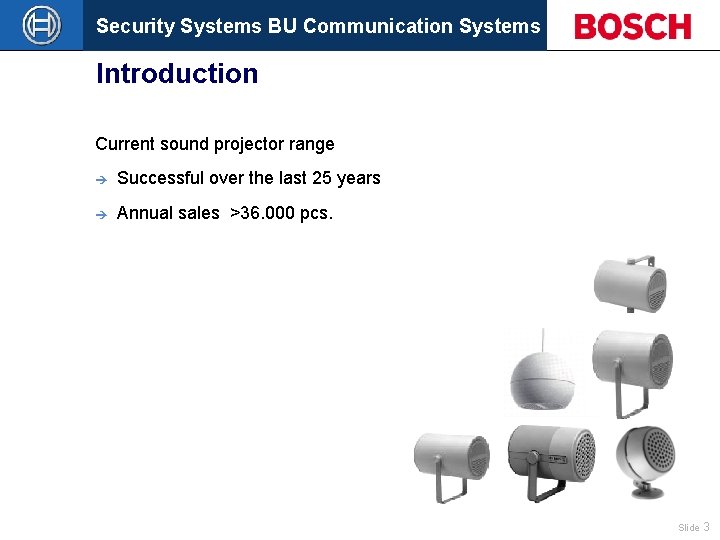

Security Systems BU Communication Systems Introduction Current sound projector range è Successful over the last 25 years è Annual sales >36. 000 pcs. Slide 3

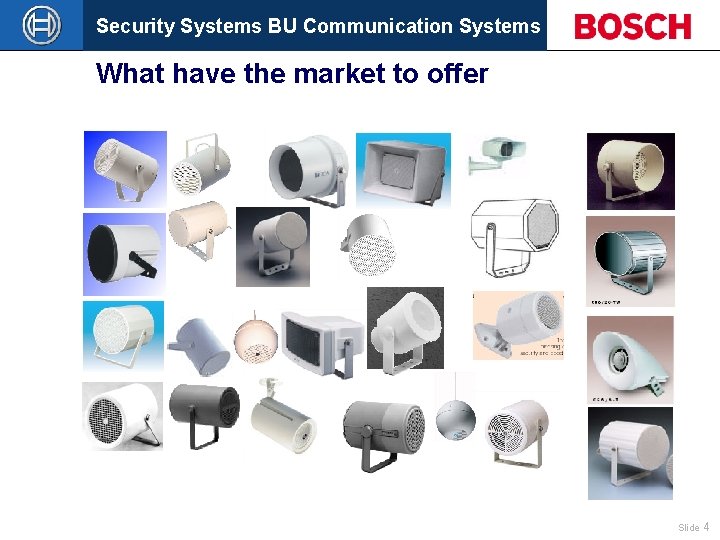

Security Systems BU Communication Systems What have the market to offer Slide 4

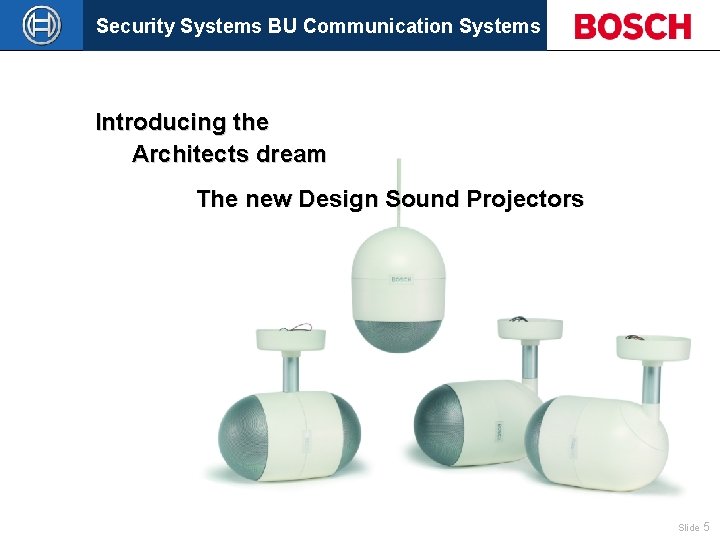

Security Systems BU Communication Systems Introducing the Architects dream The new Design Sound Projectors Slide 5

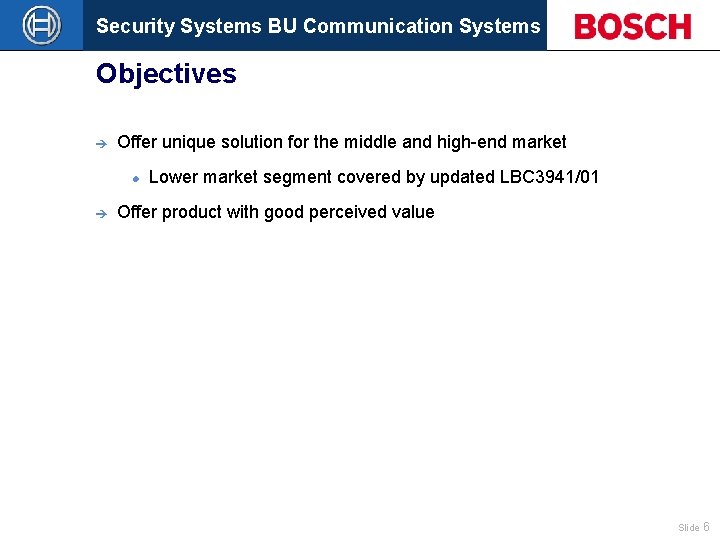

Security Systems BU Communication Systems Objectives è Offer unique solution for the middle and high-end market è Lower market segment covered by updated LBC 3941/01 Offer product with good perceived value Slide 6

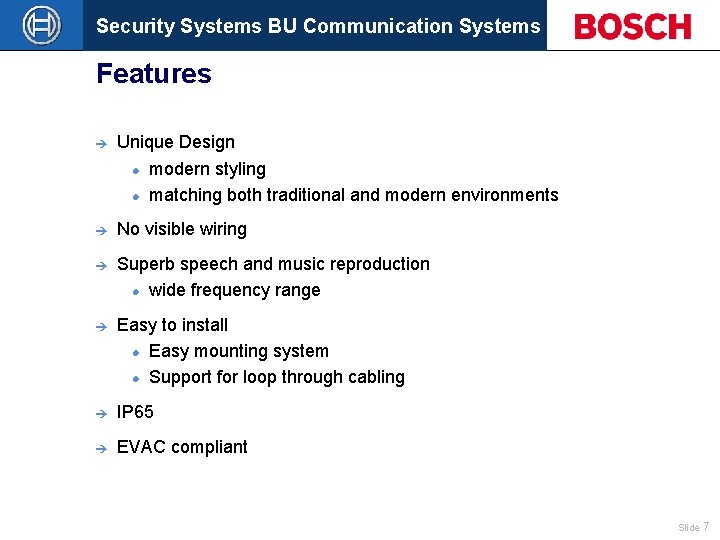

Security Systems BU Communication Systems Features è Unique Design modern styling matching both traditional and modern environments è No visible wiring è Superb speech and music reproduction wide frequency range è Easy to install Easy mounting system Support for loop through cabling è IP 65 è EVAC compliant Slide 7

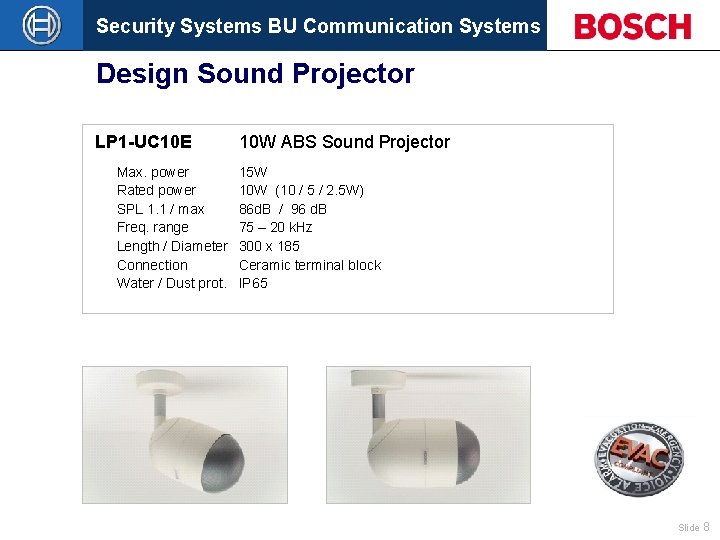

Security Systems BU Communication Systems Design Sound Projector LP 1 -UC 10 E Max. power Rated power SPL 1. 1 / max Freq. range Length / Diameter Connection Water / Dust prot. 10 W ABS Sound Projector 15 W 10 W (10 / 5 / 2. 5 W) 86 d. B / 96 d. B 75 – 20 k. Hz 300 x 185 Ceramic terminal block IP 65 Slide 8

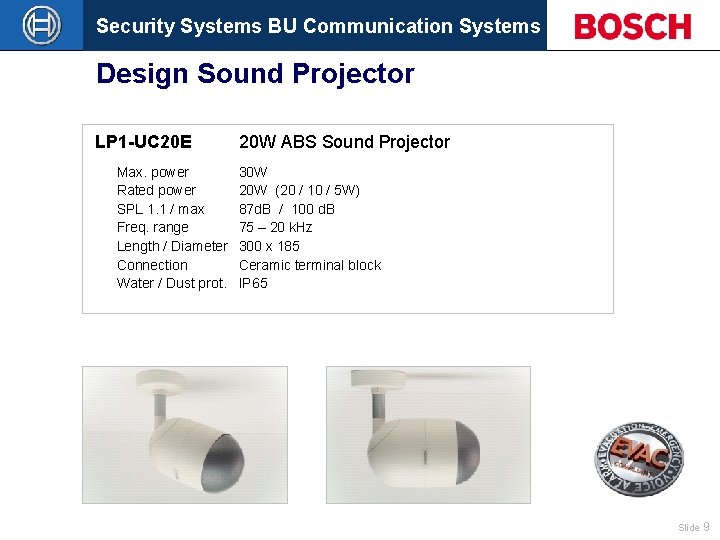

Security Systems BU Communication Systems Design Sound Projector LP 1 -UC 20 E Max. power Rated power SPL 1. 1 / max Freq. range Length / Diameter Connection Water / Dust prot. 20 W ABS Sound Projector 30 W 20 W (20 / 10 / 5 W) 87 d. B / 100 d. B 75 – 20 k. Hz 300 x 185 Ceramic terminal block IP 65 Slide 9

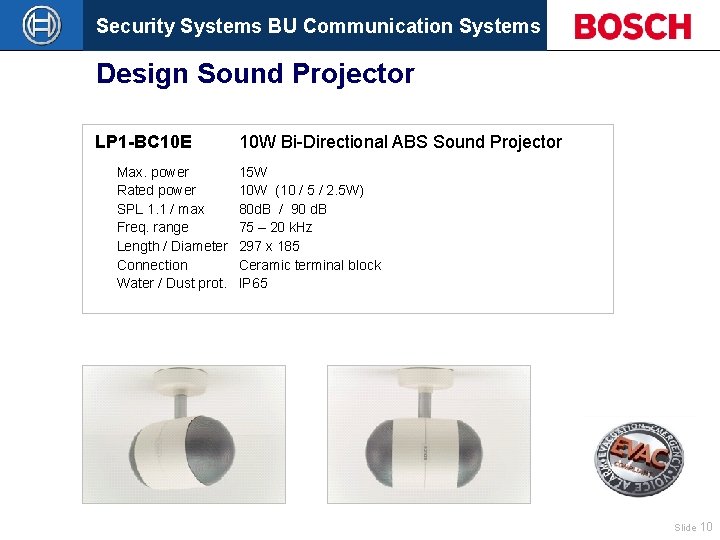

Security Systems BU Communication Systems Design Sound Projector LP 1 -BC 10 E Max. power Rated power SPL 1. 1 / max Freq. range Length / Diameter Connection Water / Dust prot. 10 W Bi-Directional ABS Sound Projector 15 W 10 W (10 / 5 / 2. 5 W) 80 d. B / 90 d. B 75 – 20 k. Hz 297 x 185 Ceramic terminal block IP 65 Slide 10

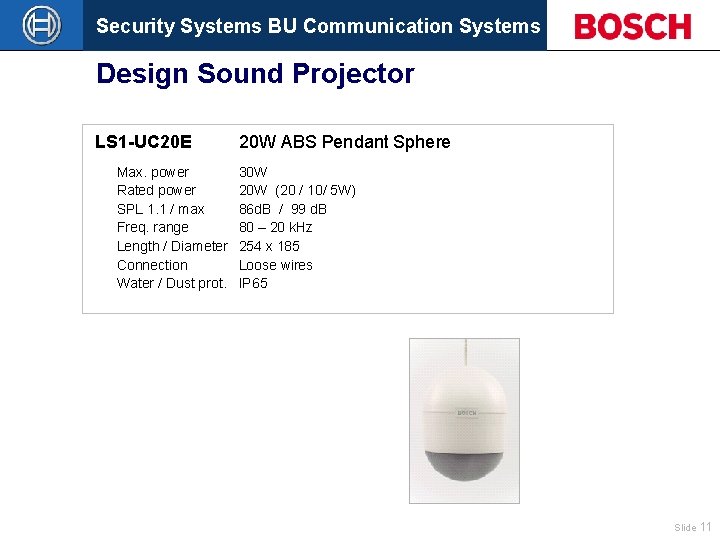

Security Systems BU Communication Systems Design Sound Projector LS 1 -UC 20 E Max. power Rated power SPL 1. 1 / max Freq. range Length / Diameter Connection Water / Dust prot. 20 W ABS Pendant Sphere 30 W 20 W (20 / 10/ 5 W) 86 d. B / 99 d. B 80 – 20 k. Hz 254 x 185 Loose wires IP 65 Slide 11

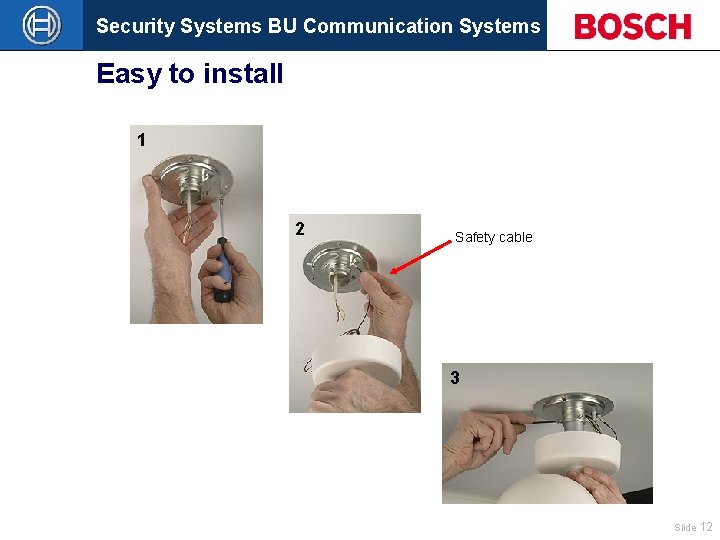

Security Systems BU Communication Systems Easy to install 1 2 Safety cable 3 Slide 12

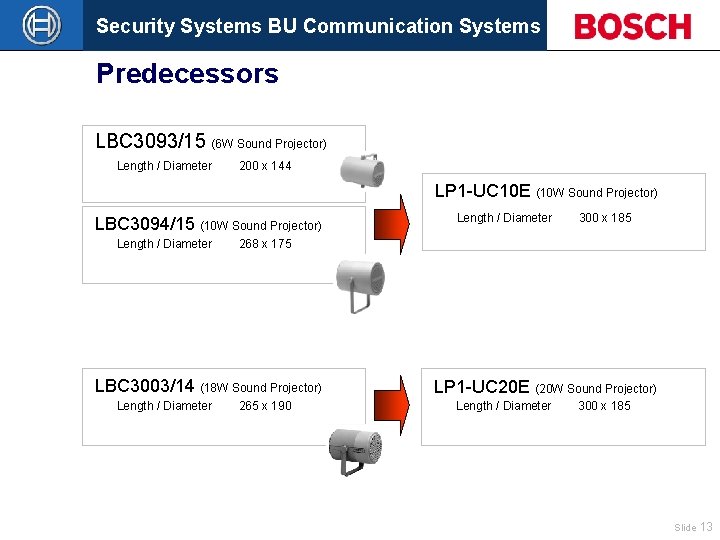

Security Systems BU Communication Systems Predecessors LBC 3093/15 (6 W Sound Projector) Length / Diameter 200 x 144 LP 1 -UC 10 E (10 W Sound Projector) LBC 3094/15 (10 W Sound Projector) Length / Diameter 300 x 185 268 x 175 LBC 3003/14 (18 W Sound Projector) Length / Diameter 265 x 190 LP 1 -UC 20 E (20 W Sound Projector) Length / Diameter 300 x 185 Slide 13

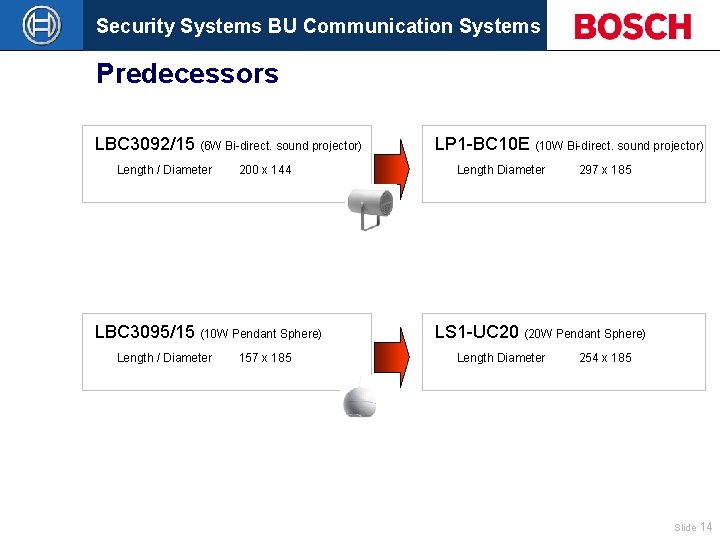

Security Systems BU Communication Systems Predecessors LBC 3092/15 (6 W Bi-direct. sound projector) Length / Diameter 200 x 144 LBC 3095/15 (10 W Pendant Sphere) Length / Diameter 157 x 185 LP 1 -BC 10 E (10 W Bi-direct. sound projector) Length Diameter 297 x 185 LS 1 -UC 20 (20 W Pendant Sphere) Length Diameter 254 x 185 Slide 14

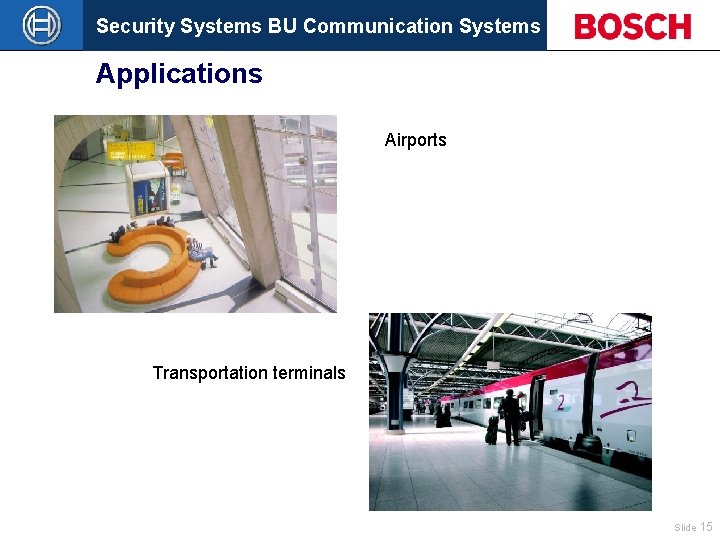

Security Systems BU Communication Systems Applications Airports Transportation terminals Slide 15

Security Systems BU Communication Systems Applications Shopping Malls Stadiums Slide 16

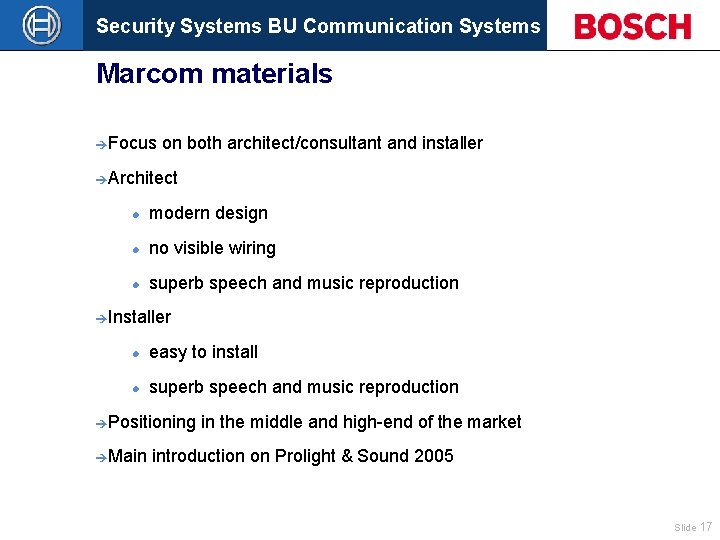

Security Systems BU Communication Systems Marcom materials èFocus on both architect/consultant and installer èArchitect modern design no visible wiring superb speech and music reproduction èInstaller easy to install superb speech and music reproduction èPositioning èMain in the middle and high-end of the market introduction on Prolight & Sound 2005 Slide 17

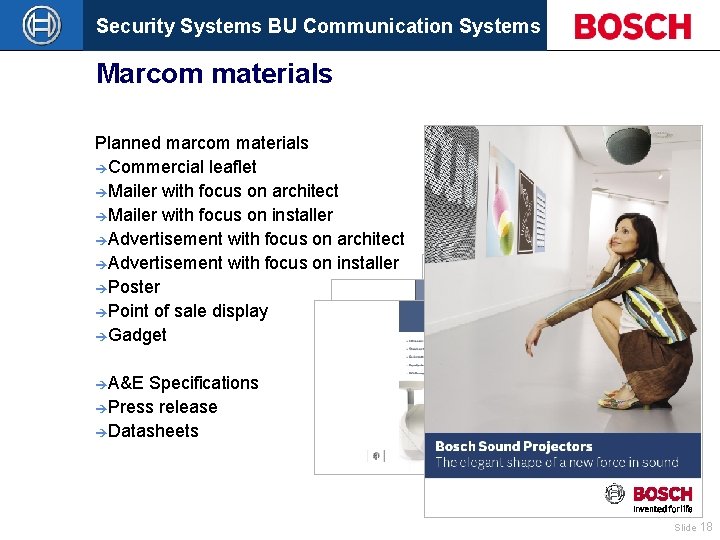

Security Systems BU Communication Systems Marcom materials Planned marcom materials èCommercial leaflet èMailer with focus on architect èMailer with focus on installer èAdvertisement with focus on architect èAdvertisement with focus on installer èPoster èPoint of sale display èGadget èA&E Specifications èPress release èDatasheets Slide 18

Security Systems BU Communication Systems Marcom materials èDatasheets èMarcom materials èLoudspeaker èData selection guide book èLoudspeaker commercial leaflet èLoudspeaker overview poster Week 524 update Q 3 2005. update Q 2 2005 Q 3 2005 Slide 19

Security Systems BU Communication Systems © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Slide 20
