Security Systems BU Communication Systems DCN Remote control facilities LBB 3500/05 Stand Alone: no remote control facility available 09. 12. 2004 DCN Remote Control Panels LBB 3500/15 Stand Alone: with remote control facility DCN LBB 3500/15 /35 with PC Control & remote control facility ST/SEU-CO 1

Security Systems BU Communication Systems CCU’s comport for Open Interface connection è è è RS 232 è è 09. 12. 2004 DCN Remote Control Panels DCN System Installation Microphone management Voting Attendance Registration Intercom Message Distribution LBB 3587 for opening Open Interface ST/SEU-CO 2

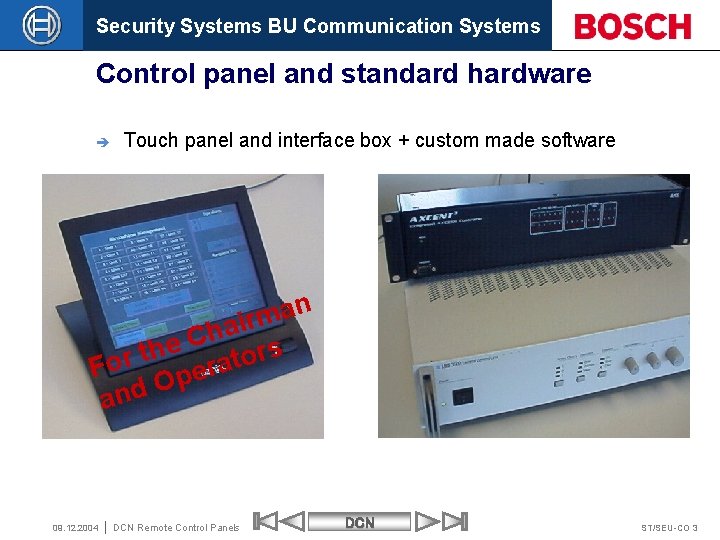

Security Systems BU Communication Systems Control panel and standard hardware è Touch panel and interface box + custom made software n a m ir a h C e s h r t o r t ra Fo e p O d n a 09. 12. 2004 DCN Remote Control Panels DCN ST/SEU-CO 3

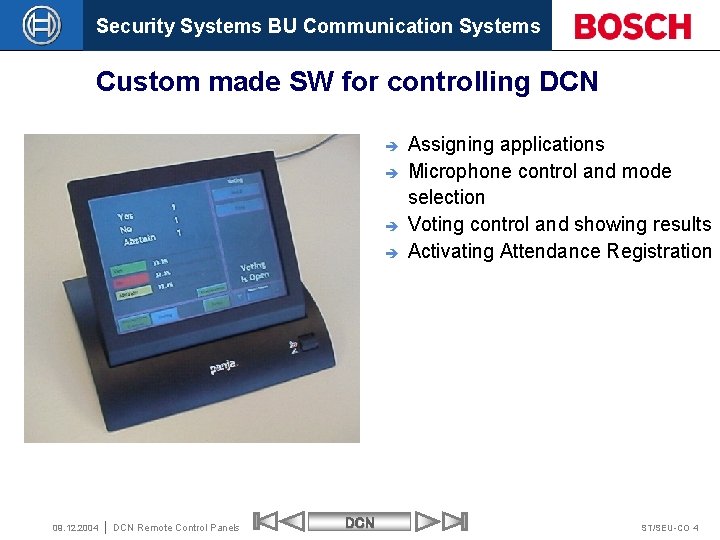

Security Systems BU Communication Systems Custom made SW for controlling DCN è è 09. 12. 2004 DCN Remote Control Panels DCN Assigning applications Microphone control and mode selection Voting control and showing results Activating Attendance Registration ST/SEU-CO 4

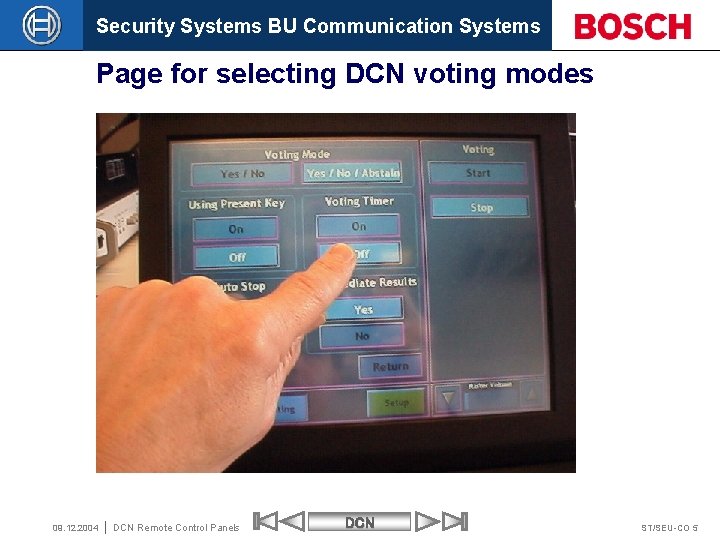

Security Systems BU Communication Systems Page for selecting DCN voting modes 09. 12. 2004 DCN Remote Control Panels DCN ST/SEU-CO 5

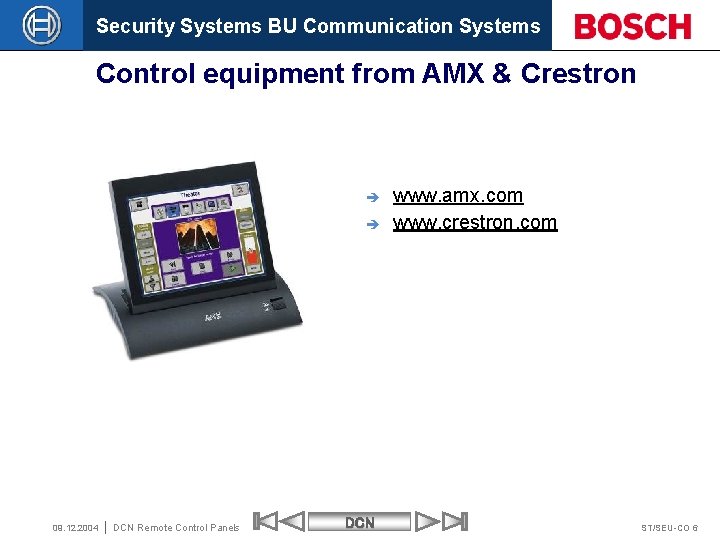

Security Systems BU Communication Systems Control equipment from AMX & Crestron è è 09. 12. 2004 DCN Remote Control Panels DCN www. amx. com www. crestron. com ST/SEU-CO 6

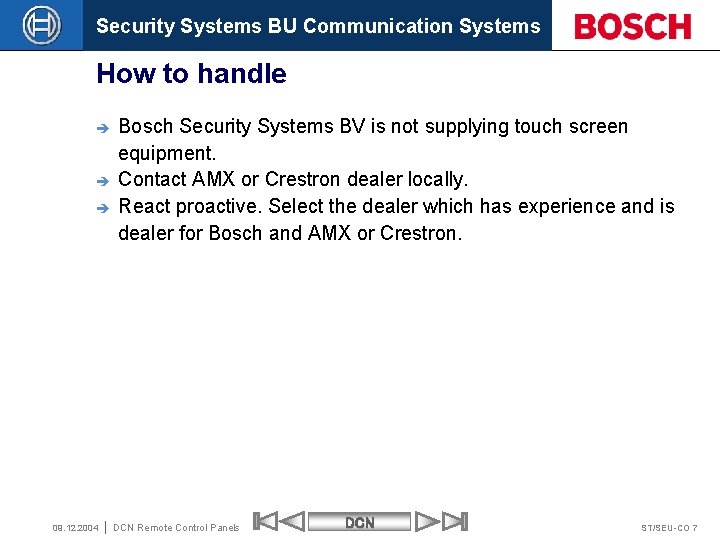

Security Systems BU Communication Systems How to handle è è è 09. 12. 2004 Bosch Security Systems BV is not supplying touch screen equipment. Contact AMX or Crestron dealer locally. React proactive. Select the dealer which has experience and is dealer for Bosch and AMX or Crestron. DCN Remote Control Panels DCN ST/SEU-CO 7

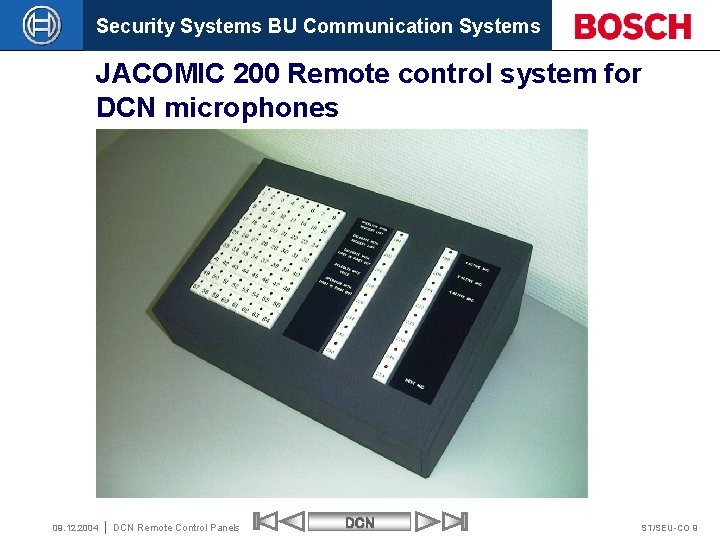

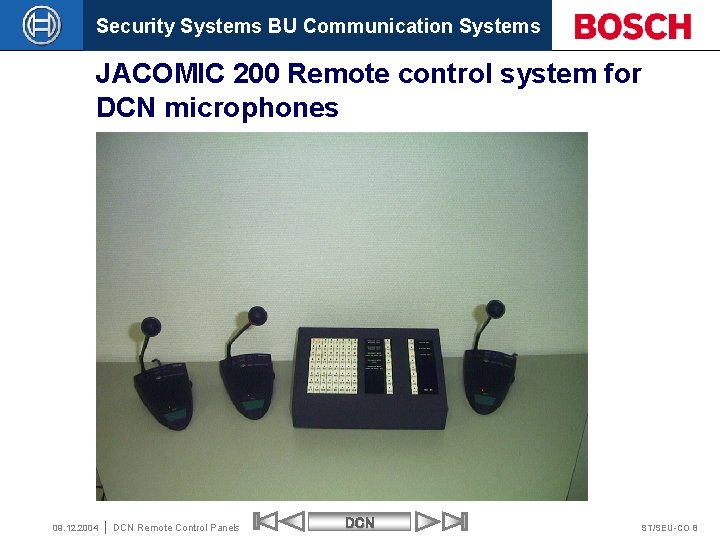

Security Systems BU Communication Systems JACOMIC 200 Remote control system for DCN microphones 09. 12. 2004 DCN Remote Control Panels DCN ST/SEU-CO 8

Security Systems BU Communication Systems JACOMIC 200 Remote control system for DCN microphones 09. 12. 2004 DCN Remote Control Panels DCN ST/SEU-CO 9

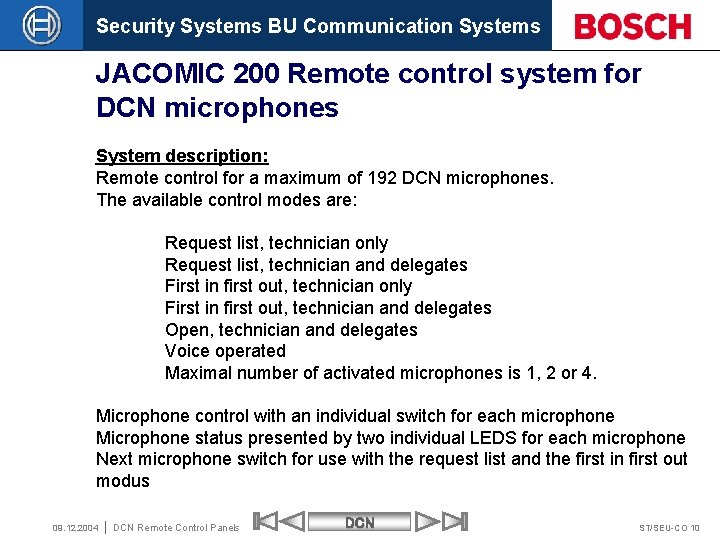

Security Systems BU Communication Systems JACOMIC 200 Remote control system for DCN microphones System description: Remote control for a maximum of 192 DCN microphones. The available control modes are: Request list, technician only Request list, technician and delegates First in first out, technician only First in first out, technician and delegates Open, technician and delegates Voice operated Maximal number of activated microphones is 1, 2 or 4. Microphone control with an individual switch for each microphone Microphone status presented by two individual LEDS for each microphone Next microphone switch for use with the request list and the first in first out modus 09. 12. 2004 DCN Remote Control Panels DCN ST/SEU-CO 10

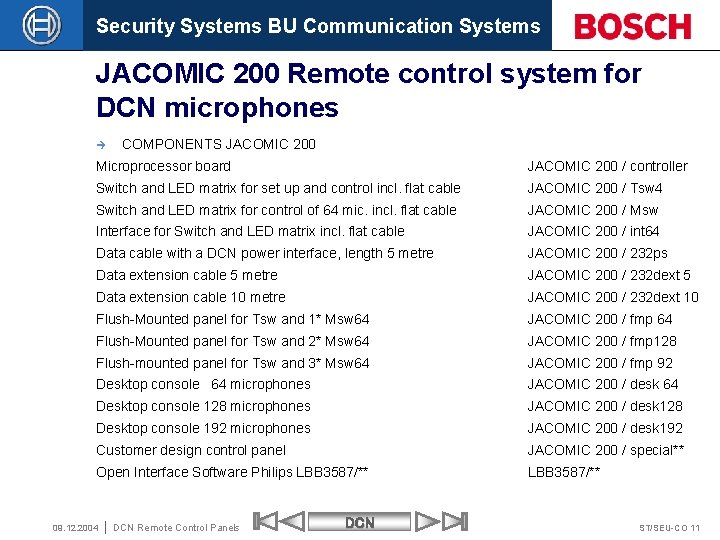

Security Systems BU Communication Systems JACOMIC 200 Remote control system for DCN microphones è COMPONENTS JACOMIC 200 Microprocessor board JACOMIC 200 / controller Switch and LED matrix for set up and control incl. flat cable JACOMIC 200 / Tsw 4 Switch and LED matrix for control of 64 mic. incl. flat cable JACOMIC 200 / Msw Interface for Switch and LED matrix incl. flat cable JACOMIC 200 / int 64 Data cable with a DCN power interface, length 5 metre JACOMIC 200 / 232 ps Data extension cable 5 metre JACOMIC 200 / 232 dext 5 Data extension cable 10 metre JACOMIC 200 / 232 dext 10 Flush-Mounted panel for Tsw and 1* Msw 64 JACOMIC 200 / fmp 64 Flush-Mounted panel for Tsw and 2* Msw 64 JACOMIC 200 / fmp 128 Flush-mounted panel for Tsw and 3* Msw 64 JACOMIC 200 / fmp 92 Desktop console 64 microphones JACOMIC 200 / desk 64 Desktop console 128 microphones JACOMIC 200 / desk 128 Desktop console 192 microphones JACOMIC 200 / desk 192 Customer design control panel JACOMIC 200 / special** Open Interface Software Philips LBB 3587/** 09. 12. 2004 DCN Remote Control Panels DCN ST/SEU-CO 11

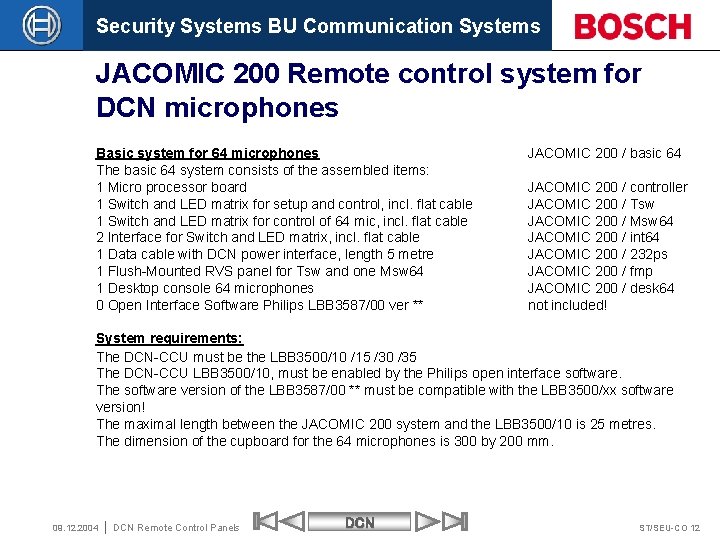

Security Systems BU Communication Systems JACOMIC 200 Remote control system for DCN microphones Basic system for 64 microphones The basic 64 system consists of the assembled items: 1 Micro processor board 1 Switch and LED matrix for setup and control, incl. flat cable 1 Switch and LED matrix for control of 64 mic, incl. flat cable 2 Interface for Switch and LED matrix, incl. flat cable 1 Data cable with DCN power interface, length 5 metre 1 Flush-Mounted RVS panel for Tsw and one Msw 64 1 Desktop console 64 microphones 0 Open Interface Software Philips LBB 3587/00 ver ** JACOMIC 200 / basic 64 JACOMIC 200 / controller JACOMIC 200 / Tsw JACOMIC 200 / Msw 64 JACOMIC 200 / int 64 JACOMIC 200 / 232 ps JACOMIC 200 / fmp JACOMIC 200 / desk 64 not included! System requirements: The DCN-CCU must be the LBB 3500/10 /15 /30 /35 The DCN-CCU LBB 3500/10, must be enabled by the Philips open interface software. The software version of the LBB 3587/00 ** must be compatible with the LBB 3500/xx software version! The maximal length between the JACOMIC 200 system and the LBB 3500/10 is 25 metres. The dimension of the cupboard for the 64 microphones is 300 by 200 mm. 09. 12. 2004 DCN Remote Control Panels DCN ST/SEU-CO 12

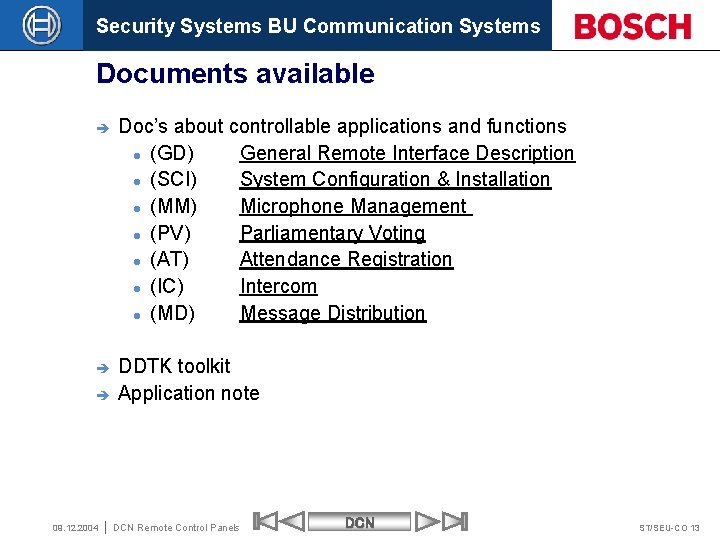

Security Systems BU Communication Systems Documents available è Doc’s about controllable applications and functions (GD) General Remote Interface Description (SCI) System Configuration & Installation (MM) Microphone Management (PV) Parliamentary Voting (AT) Attendance Registration (IC) Intercom (MD) Message Distribution è DDTK toolkit Application note è 09. 12. 2004 DCN Remote Control Panels DCN ST/SEU-CO 13
