Security Protection Tanenbaum Bo Modern Operating Systems 4
Security Protection Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

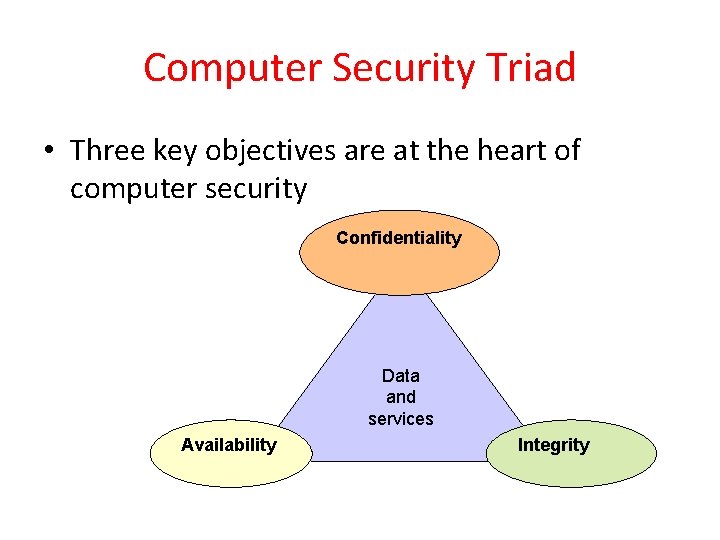

Computer Security Triad • Three key objectives are at the heart of computer security Confidentiality Data and services Availability Integrity

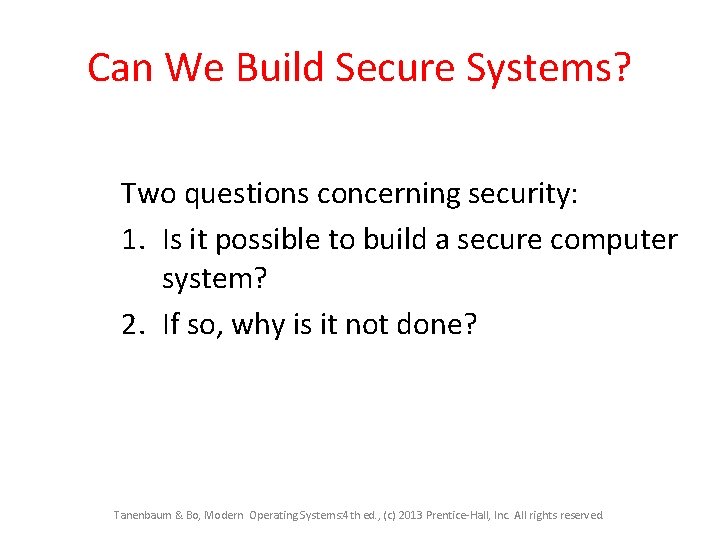

Can We Build Secure Systems? Two questions concerning security: 1. Is it possible to build a secure computer system? 2. If so, why is it not done? Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.
Trusted Computing Base Reference monitor Accepts all system call security and makes security decisions Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

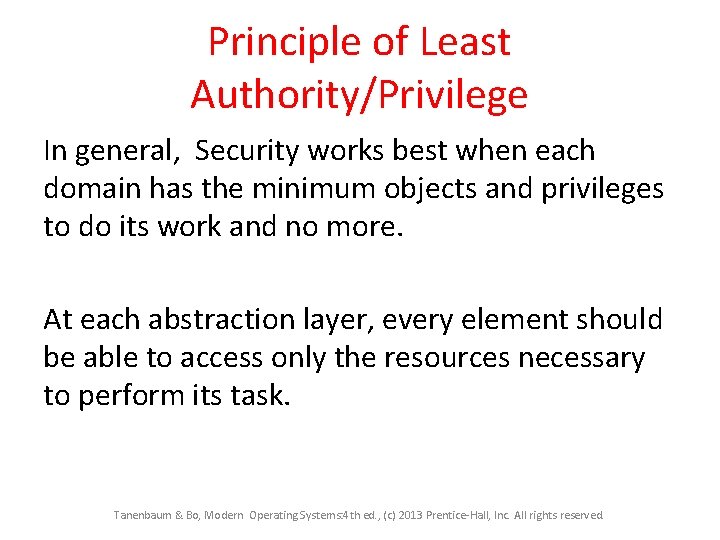

Principle of Least Authority/Privilege In general, Security works best when each domain has the minimum objects and privileges to do its work and no more. At each abstraction layer, every element should be able to access only the resources necessary to perform its task. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

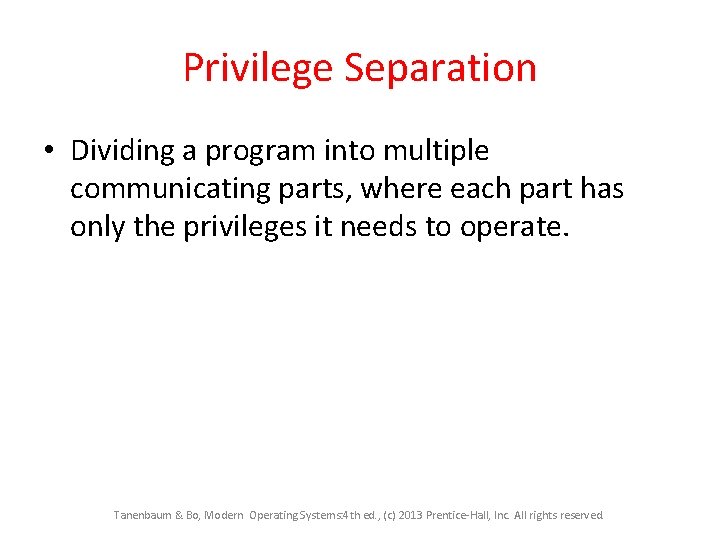

Privilege Separation • Dividing a program into multiple communicating parts, where each part has only the privileges it needs to operate. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.
User IDs real user ID – The real process owner effective user ID – ID used in access control – Represents what privileges a process has
Set-UID Program • Like any other program with a special Set-UID attribute bit … results in OS handling IDs of these processes differently
Protection Domains • Domain is a collection of access rights • Domain is a set of (object, rights)pairs. – Each pair specifies an object and some operation that can be preformed on it. – Right, in this context, means the permission to perform one of the operations. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.
Protection Domains Three protection domains. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

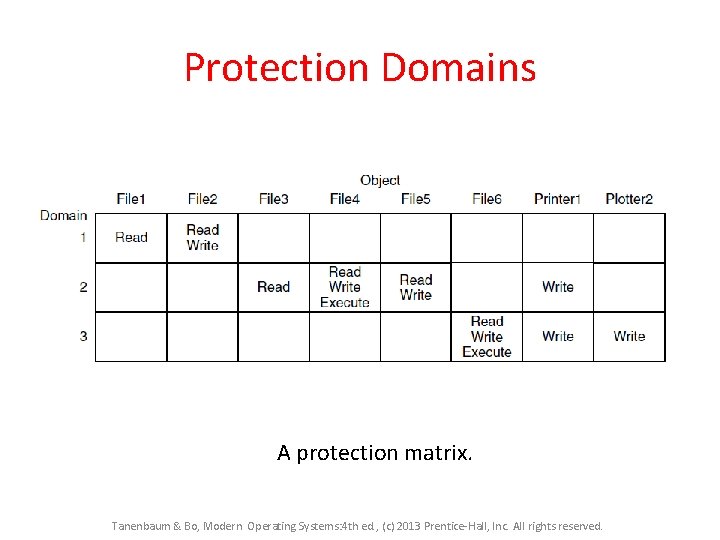

Protection Domains A protection matrix. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

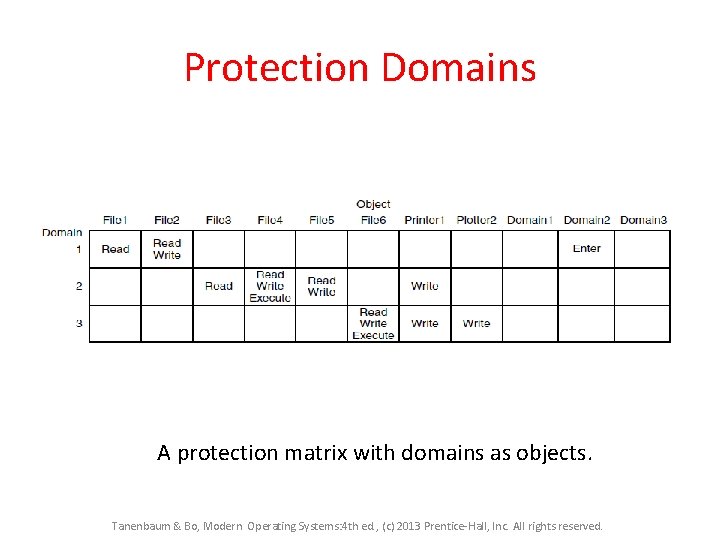

Protection Domains A protection matrix with domains as objects. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.
Two methods of implementation • Access Control lists • Capabilities list Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.
Access control lists: slice by columns A protection matrix. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

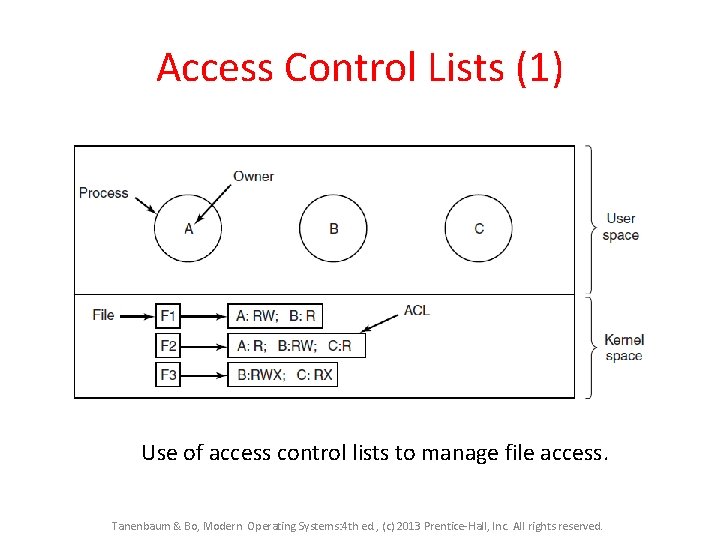

Access Control Lists (1) Use of access control lists to manage file access. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.
Access Control Lists • Tana belongs to two groups and requires 2 login • An alternative is to have each entry be a group OR an individual Pigeon_data : debbie: RW, phil: RW, pigfan: RW Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.
Access Control Lists • Easy to change permissions with respect to file • Only check at file open. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

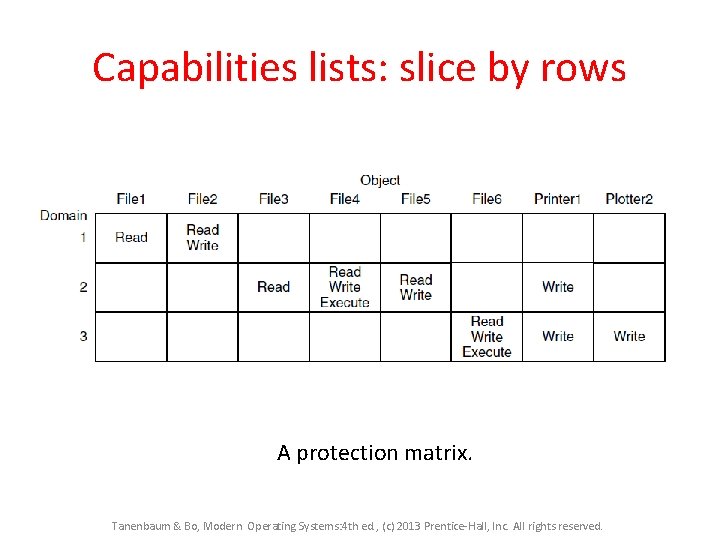

Capabilities lists: slice by rows A protection matrix. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.
Capabilities When capabilities are used, each process has a capability list. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.
Capabilities • Protect the list from tampering: – A cryptographically protected capability. • Suited for distributed files Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

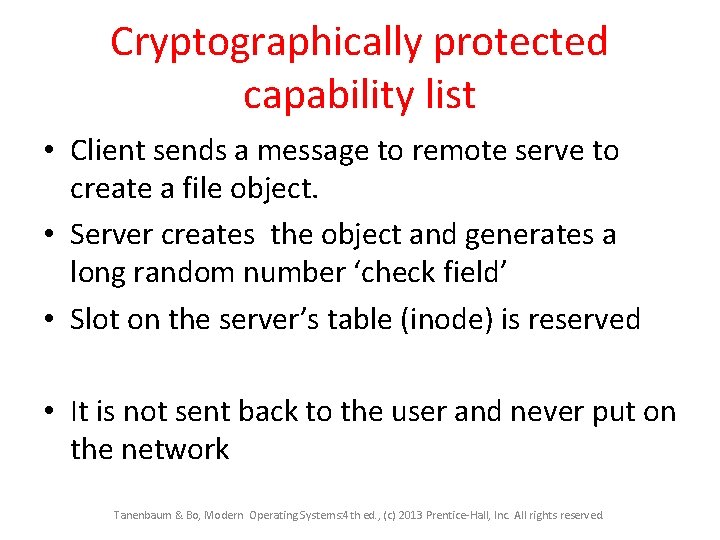

Cryptographically protected capability list • Client sends a message to remote serve to create a file object. • Server creates the object and generates a long random number ‘check field’ • Slot on the server’s table (inode) is reserved • It is not sent back to the user and never put on the network Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.
Cryptographically protected capability list • Sent to the user is the capability entry in the form: • Run object, rights, and check through a oneway function (f). • User sends the capability entry when it wants to access the file. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.
Multilevel Security • Discretionary Access Control – Operating systems allow individual to determine who may read and write their files • Mandatory Access Control – Organizational rules state who can see and modify what. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

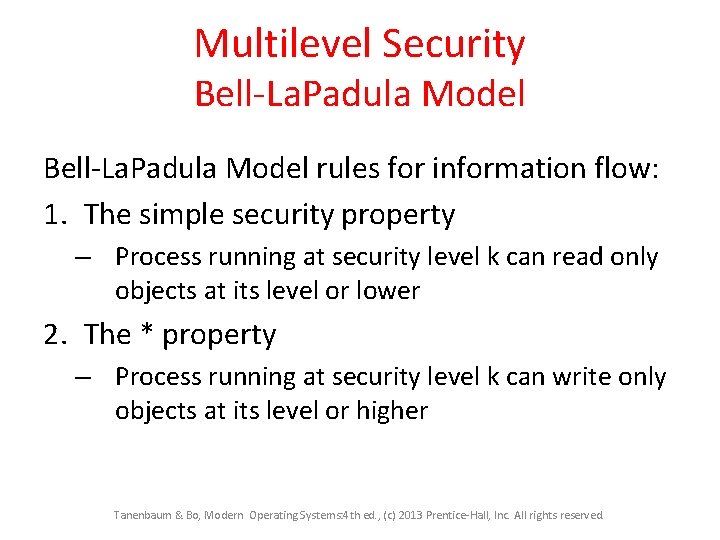

Multilevel Security Bell-La. Padula Model rules for information flow: 1. The simple security property – Process running at security level k can read only objects at its level or lower 2. The * property – Process running at security level k can write only objects at its level or higher Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

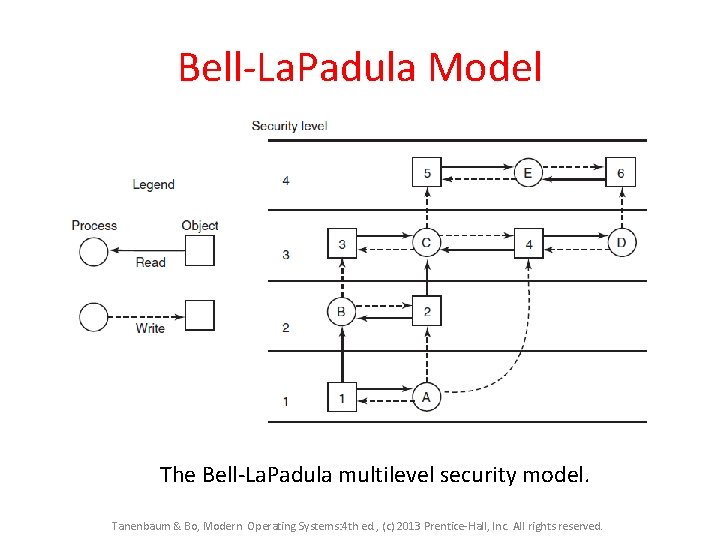

Bell-La. Padula Model The Bell-La. Padula multilevel security model. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.
Bell-La. Padula Model • The Bell-La. Padula multilevel security model was devised to keep secrets, not guarantee the integrity of data. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

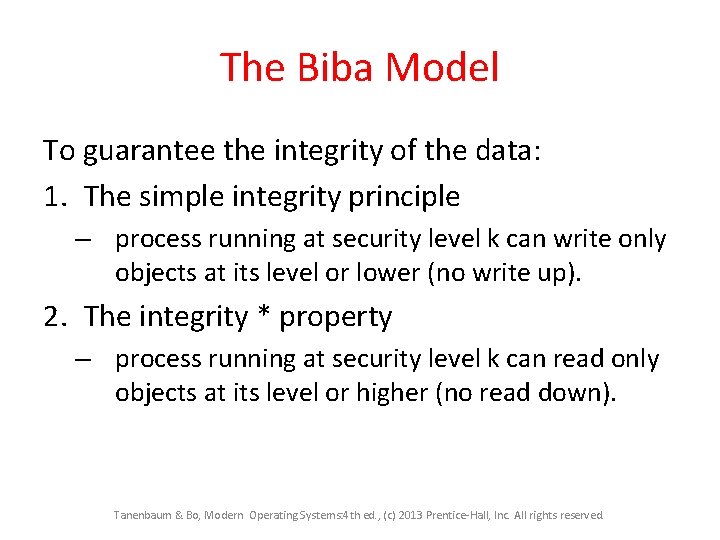

The Biba Model To guarantee the integrity of the data: 1. The simple integrity principle – process running at security level k can write only objects at its level or lower (no write up). 2. The integrity * property – process running at security level k can read only objects at its level or higher (no read down). Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.
• BUT… security leaks still can occur Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.
Covert Channels (a) The client, server, and collaborator processes. (b) The encapsulated server can still leak to the collaborator via covert channels. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

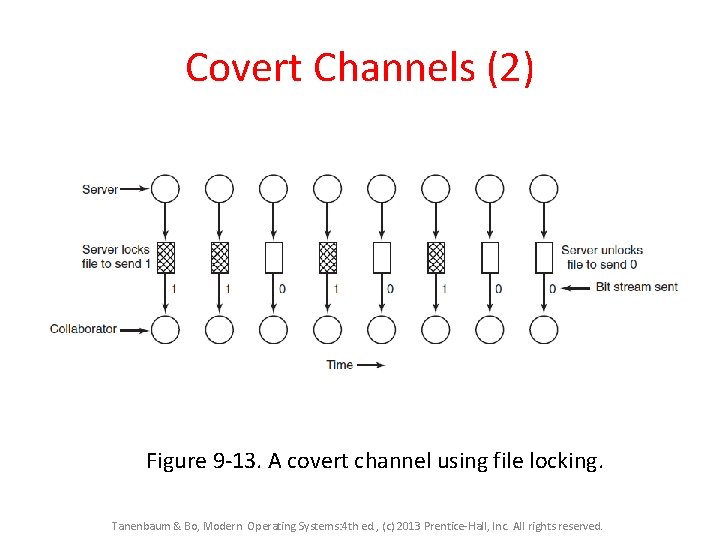

Covert Channels (2) Figure 9 -13. A covert channel using file locking. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

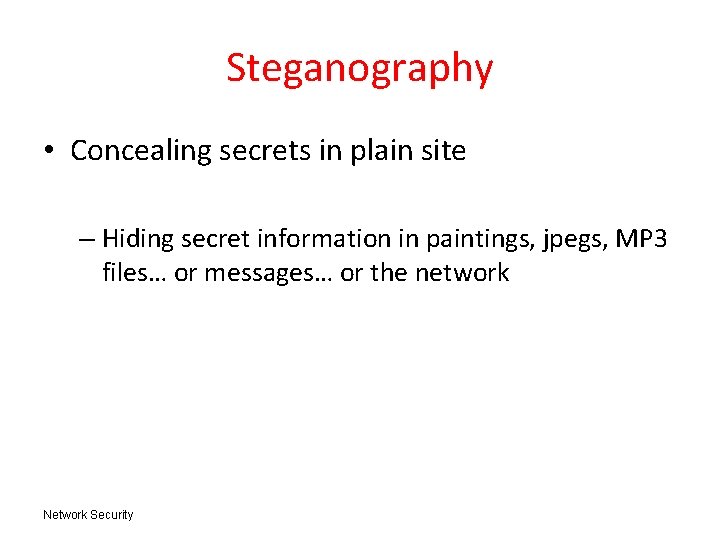

Steganography • Concealing secrets in plain site – Hiding secret information in paintings, jpegs, MP 3 files… or messages… or the network Network Security

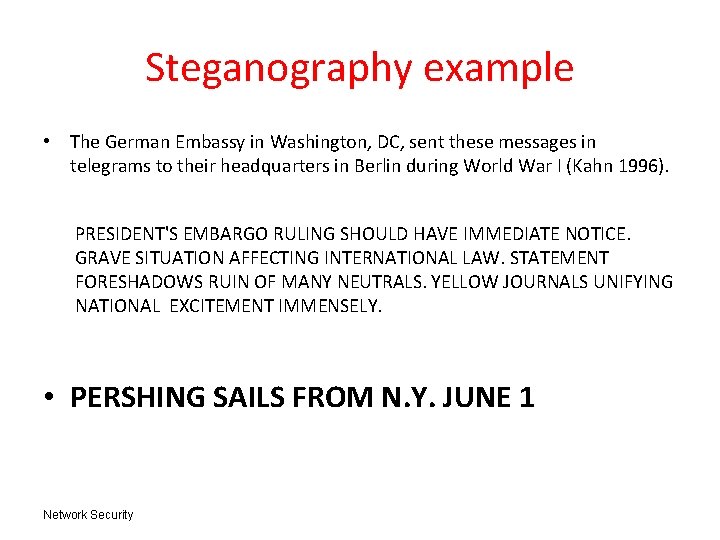

Steganography example • The German Embassy in Washington, DC, sent these messages in telegrams to their headquarters in Berlin during World War I (Kahn 1996). PRESIDENT'S EMBARGO RULING SHOULD HAVE IMMEDIATE NOTICE. GRAVE SITUATION AFFECTING INTERNATIONAL LAW. STATEMENT FORESHADOWS RUIN OF MANY NEUTRALS. YELLOW JOURNALS UNIFYING NATIONAL EXCITEMENT IMMENSELY. • PERSHING SAILS FROM N. Y. JUNE 1 Network Security
“Steg. Torrent” • Bob sends messages through computers which he previously established control over. • The order of the messages and which computer sends them, hides the secret. – Bob commands two computers to request a file from Alice – Alice send message to computer 1 then computer 2 Binary 1 – Alice sends message to computer 2 then compute 1 Binary 0 Network Security
Skyde (Skype Hide) • Skype packs data into audio packets while Alice is talking • Skype continues to send audio packets when Alice is silent. – This improves the quality of the call and helps data continue to clear firewalls • ‘Silent’ packets are hijacked contents are replaced with encrypted data – Receiver application just assumes the original silent packets were lost • 30% of silent packets can be compromised with out notice Network Security
Steganography (a) Three zebras and a tree. (b) Three zebras, a tree, and the complete text of five plays by William Shakespeare. Demo: http: //www. cs. vu. nl/~ast/books/mos 2/zebras. html Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

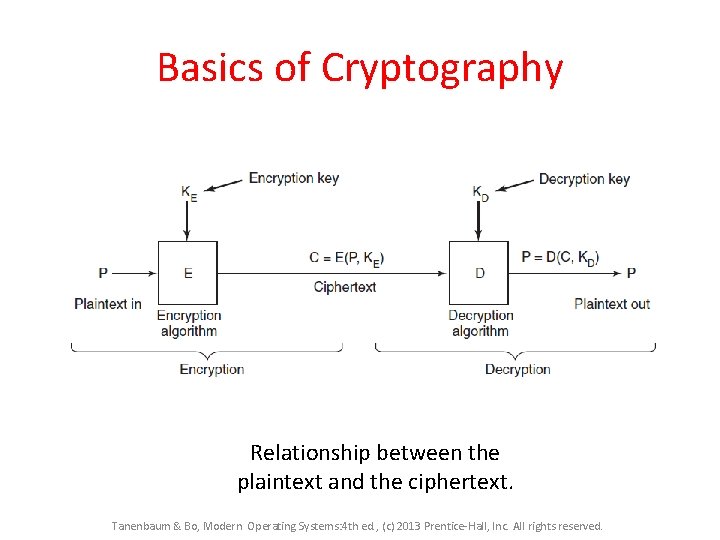

Basics of Cryptography Relationship between the plaintext and the ciphertext. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

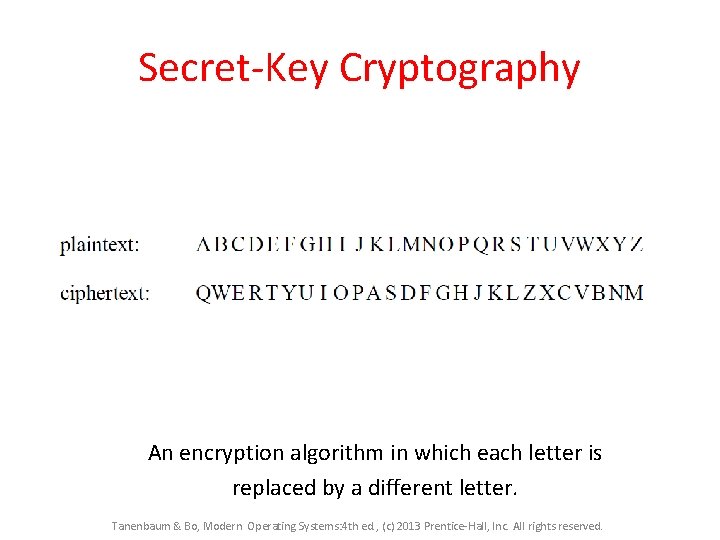

Secret-Key Cryptography An encryption algorithm in which each letter is replaced by a different letter. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

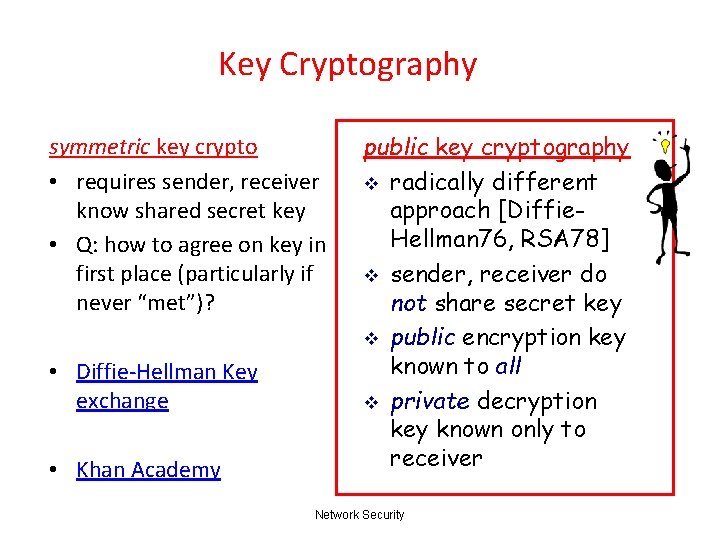

Key Cryptography symmetric key crypto • requires sender, receiver know shared secret key • Q: how to agree on key in first place (particularly if never “met”)? • Diffie-Hellman Key exchange • Khan Academy public key cryptography v radically different approach [Diffie. Hellman 76, RSA 78] v sender, receiver do not share secret key v public encryption key known to all v private decryption key known only to receiver Network Security
Public key cryptography + Bob’s public B key K K plaintext message, m Network Security encryption ciphertext algorithm + K (m) B - Bob’s private B key decryption plaintext algorithm message + m = K B(K (m)) B
Public key encryption algorithms Requirements: 1 need . . + KB( ) and K B( ) such - + K (K (m)) = m B B that 2 given public key K + , it should be B impossible to compute private key K B RSA: Rivest, Shamir, Adelson algorithm Network Security

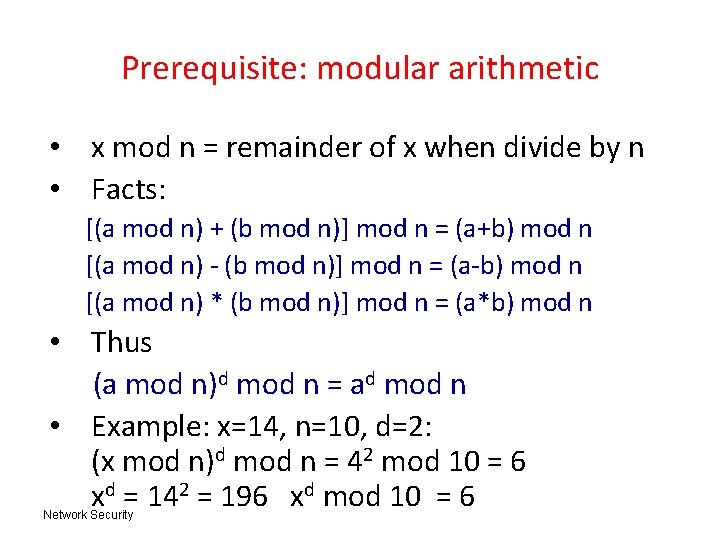

Prerequisite: modular arithmetic • x mod n = remainder of x when divide by n • Facts: [(a mod n) + (b mod n)] mod n = (a+b) mod n [(a mod n) - (b mod n)] mod n = (a-b) mod n [(a mod n) * (b mod n)] mod n = (a*b) mod n • Thus (a mod n)d mod n = ad mod n • Example: x=14, n=10, d=2: (x mod n)d mod n = 42 mod 10 = 6 xd = 142 = 196 xd mod 10 = 6 Network Security
RSA: getting ready • A message is a bit pattern. • A bit pattern can be uniquely represented by an integer number. • Thus encrypting a message is equivalent to encrypting a number. Example • m= 10010001. This message is uniquely represented by the decimal number 145. • To encrypt m, we encrypt the corresponding number, which gives a new number (the ciphertext). Network Security
RSA: Creating public/private key pair 1. Choose two large prime numbers p, q. (e. g. , 1024 bits each) 2. Compute n = pq, z = (p-1)(q-1) 3. Choose e (with e<n) that has no common factors with z. (e, z are “relatively prime”). 4. Choose d such that ed-1 is exactly divisible by z. (in other words: ed mod z = 1 ). 5. Public key is (n, e). Private key is (n, d). + KB Network Security - KB

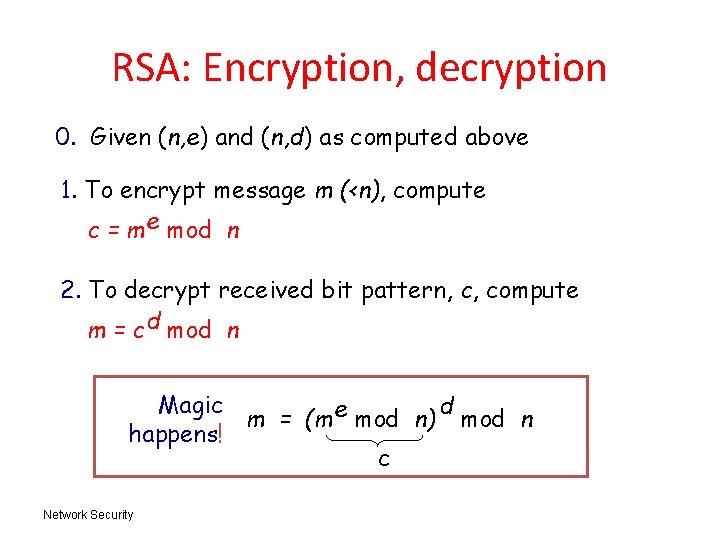

RSA: Encryption, decryption 0. Given (n, e) and (n, d) as computed above 1. To encrypt message m (<n), compute c = m e mod n 2. To decrypt received bit pattern, c, compute m = c d mod n Magic d m = (m e mod n) mod n happens! c Network Security
RSA example: Bob chooses p=5, q=7. Then n=35, z=24. e=5 (so e, z relatively prime). d=29 (so ed-1 exactly divisible by z). Encrypting 8 -bit messages. encrypt: decrypt: Network Security bit pattern m me 0000 l 000 12 24832 c 17 d c 48196857210675091411825223071697 c = me mod n 17 m = cd mod n 12
RSA: another important property The following property will be very useful later: - + B B K (K (m)) + = m = K (K (m)) B B use public key first, followed by private key use private key first, followed by public key Result is the same! Network Security
Why is RSA Secure? • suppose you know Bob’s public key (n, e). How hard is it to determine d? • essentially need to find factors of n without knowing the two factors p and q. • fact: factoring a big number is hard. Generating RSA keys have to find big primes p and q v approach: make good guess then apply testing rules (see Kaufman) v Network Security
Ensuring Networked Message Integrity • allows communicating parties to verify that received messages are authentic. – Content is not read by anyone other than intended recipient – Content of message has not been altered – Source of message is who/what you think it is: – Message has not been replayed Network Security
Ensuring Networked Message Integrity • Goal: Allow communicating parties to verify that received messages are authentic. – Content is not read by anyone other than intended recipient Encryption – Content of message has not been altered – Source of message is who/what you think it is – Message has not been replayed Network Security
Ensuring Network Message Integrity • allows communicating parties to verify that received messages are authentic. – Content is not read by anyone other than intended recipient Encryption – Content of message has not been altered Message Digests – Source of message is who/what you think it is – Message has not been replayed Network Security

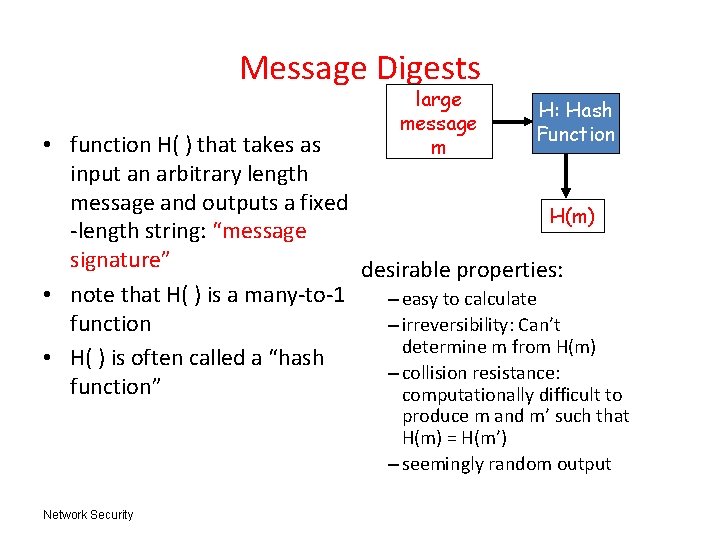

Message Digests large message m H: Hash Function • function H( ) that takes as input an arbitrary length message and outputs a fixed H(m) -length string: “message signature” desirable properties: • note that H( ) is a many-to-1 – easy to calculate function – irreversibility: Can’t determine m from H(m) • H( ) is often called a “hash – collision resistance: function” computationally difficult to produce m and m’ such that H(m) = H(m’) – seemingly random output Network Security
Hashed Message Digest • MD 5 hash function widely used (RFC 1321) – computes 128 -bit message digest in 4 -step process. • SHA-1 is also used. – US standard [NIST, FIPS PUB 180 -1] – 160 -bit message digest Network Security

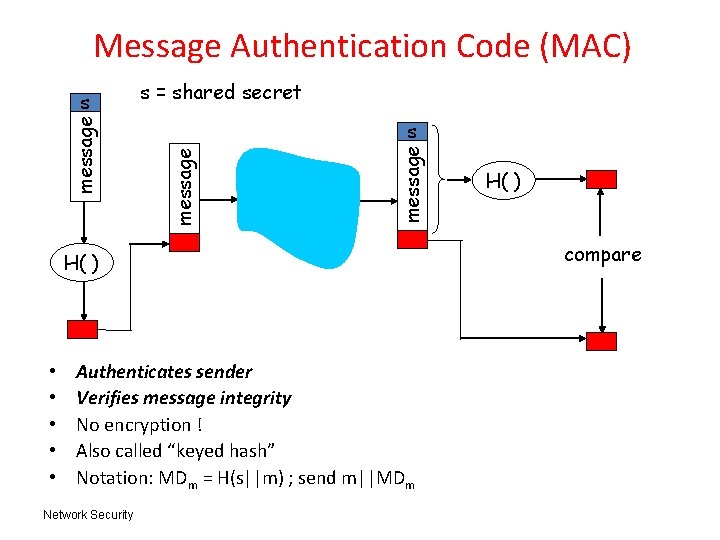

Message Authentication Code (MAC) s = shared secret message s H( ) • • • Authenticates sender Verifies message integrity No encryption ! Also called “keyed hash” Notation: MDm = H(s||m) ; send m||MDm Network Security H( ) compare

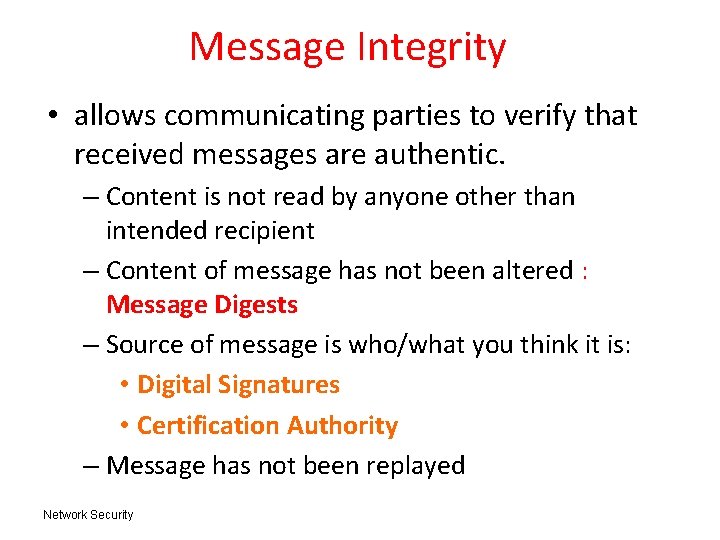

Message Integrity • allows communicating parties to verify that received messages are authentic. – Content is not read by anyone other than intended recipient – Content of message has not been altered : Message Digests – Source of message is who/what you think it is: • Digital Signatures • Certification Authority – Message has not been replayed Network Security

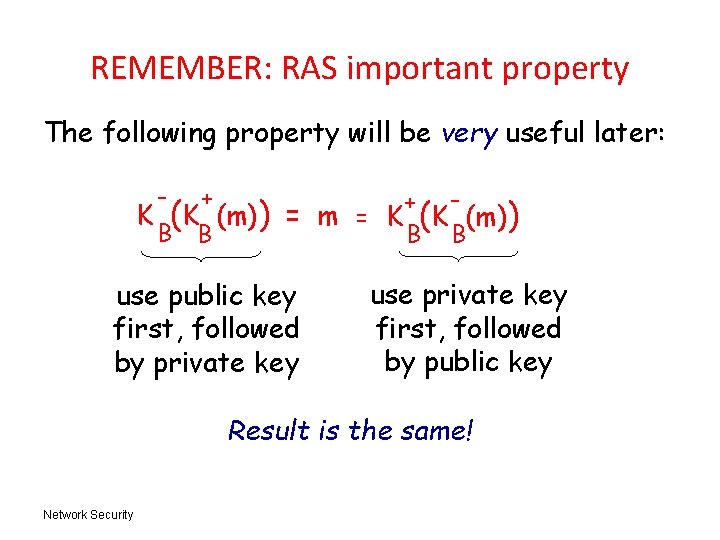

REMEMBER: RAS important property The following property will be very useful later: - + B B K (K (m)) + = m = K (K (m)) B B use public key first, followed by private key use private key first, followed by public key Result is the same! Network Security

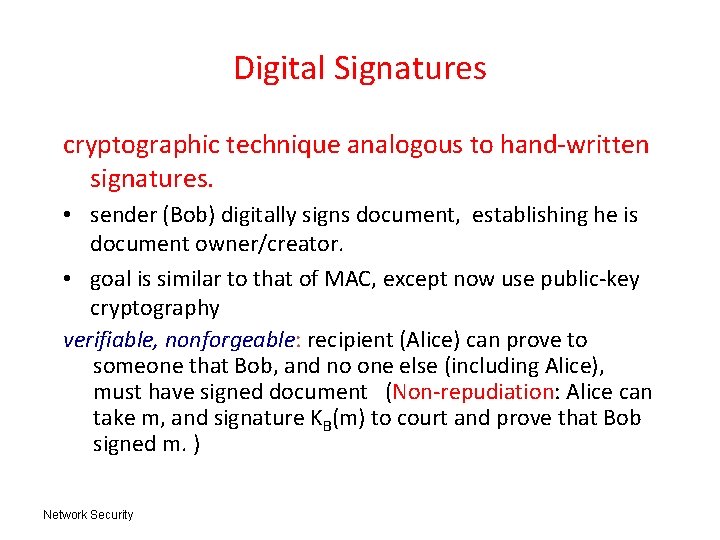

Digital Signatures cryptographic technique analogous to hand-written signatures. • sender (Bob) digitally signs document, establishing he is document owner/creator. • goal is similar to that of MAC, except now use public-key cryptography verifiable, nonforgeable: recipient (Alice) can prove to someone that Bob, and no one else (including Alice), must have signed document (Non-repudiation: Alice can take m, and signature KB(m) to court and prove that Bob signed m. ) Network Security
Digital Signatures simple digital signature for message m: • Bob signs m by encrypting with his private key KB, creating “signed” message, KB(m) Bob’s message, m Dear Alice Oh, how I have missed you. I think of you all the time! …(blah) Bob Network Security K B Bob’s private key Public key encryption algorithm K B(m) Bob’s message, m, signed (encrypted) with his private key

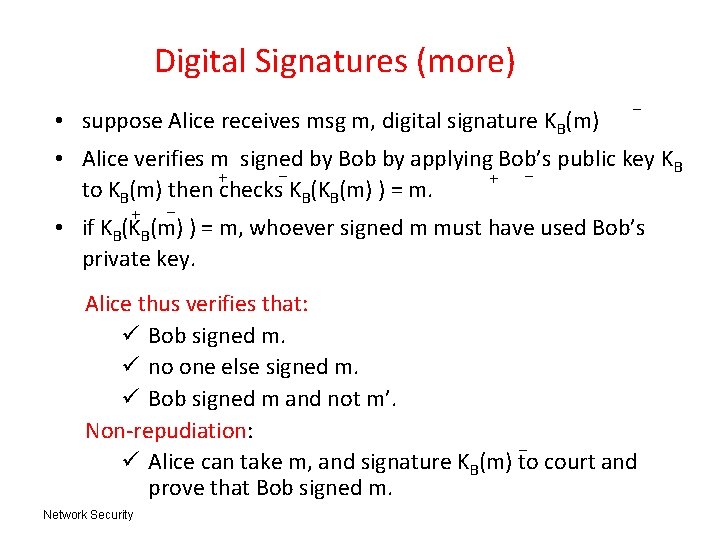

Digital Signatures (more) • suppose Alice receives msg m, digital signature KB(m) - • Alice verifies m signed by Bob by applying Bob’s public key KB + + to KB(m) then checks KB(KB(m) ) = m. + - • if KB(KB(m) ) = m, whoever signed m must have used Bob’s private key. Alice thus verifies that: ü Bob signed m. ü no one else signed m. ü Bob signed m and not m’. Non-repudiation: ü Alice can take m, and signature KB(m) to court and prove that Bob signed m. Network Security

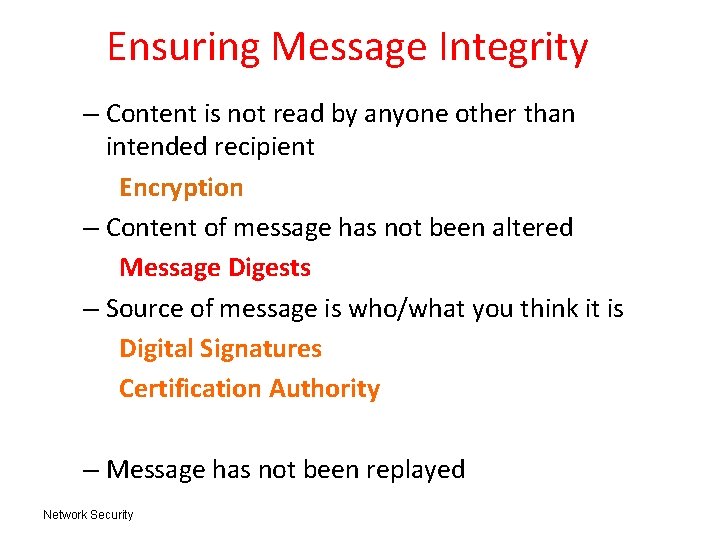

Ensuring Message Integrity – Content is not read by anyone other than intended recipient Encryption – Content of message has not been altered Message Digests – Source of message is who/what you think it is Digital Signatures Certification Authority – Message has not been replayed Network Security

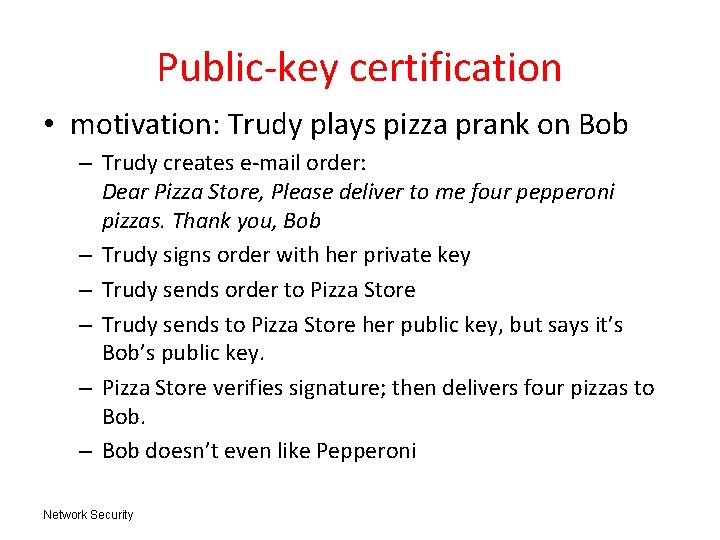

Public-key certification • motivation: Trudy plays pizza prank on Bob – Trudy creates e-mail order: Dear Pizza Store, Please deliver to me four pepperoni pizzas. Thank you, Bob – Trudy signs order with her private key – Trudy sends order to Pizza Store – Trudy sends to Pizza Store her public key, but says it’s Bob’s public key. – Pizza Store verifies signature; then delivers four pizzas to Bob. – Bob doesn’t even like Pepperoni Network Security
Certification Authorities • Certification authority (CA): binds public key to particular entity, E. • E (person, router) registers its public key with CA. – E provides “proof of identity” to CA. – CA creates certificate binding E to its public key. – certificate containing E’s public key digitally signed by CA – CA says “this is E’s public key” Bob’s public key Bob’s identifying information + KB digital signature (encrypt) CA private key Network Security K- CA + KB certificate for Bob’s public key, signed by CA
Certification Authorities • when Alice wants Bob’s public key: – gets Bob’s certificate (Bob or elsewhere). – apply CA’s public key to Bob’s certificate, get Bob’s public key + KB digital signature (decrypt) CA public key + K CA Network Security Bob’s public + key KB

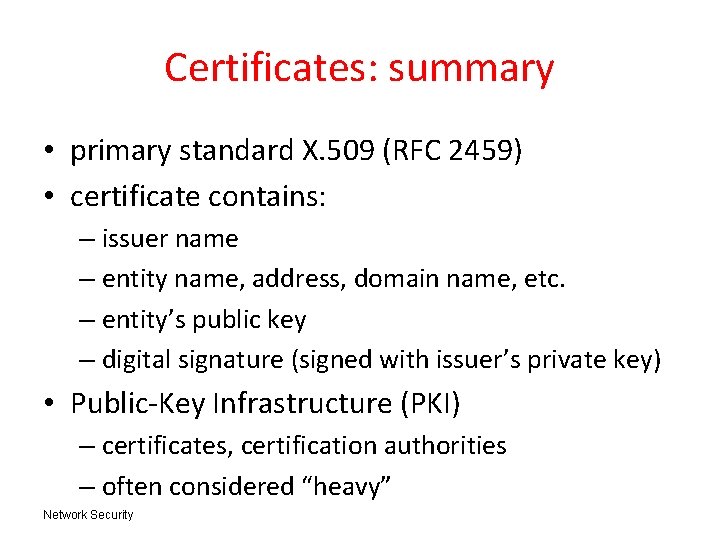

Certificates: summary • primary standard X. 509 (RFC 2459) • certificate contains: – issuer name – entity name, address, domain name, etc. – entity’s public key – digital signature (signed with issuer’s private key) • Public-Key Infrastructure (PKI) – certificates, certification authorities – often considered “heavy” Network Security

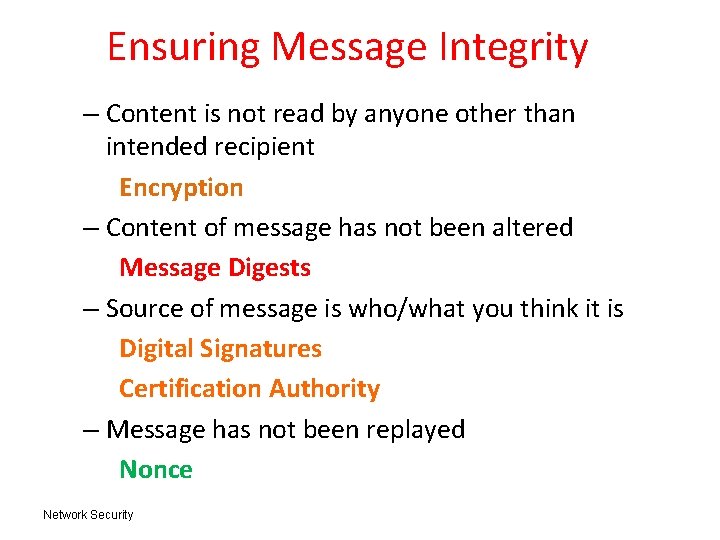

Ensuring Message Integrity – Content is not read by anyone other than intended recipient Encryption – Content of message has not been altered Message Digests – Source of message is who/what you think it is Digital Signatures Certification Authority – Message has not been replayed Nonce Network Security

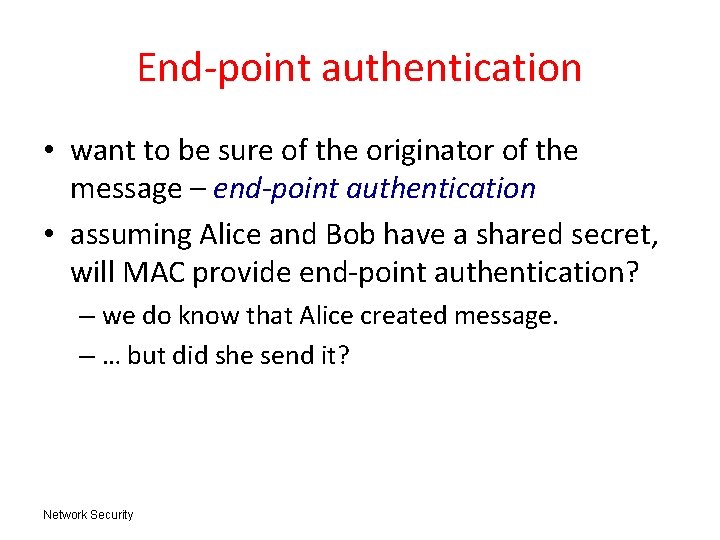

End-point authentication • want to be sure of the originator of the message – end-point authentication • assuming Alice and Bob have a shared secret, will MAC provide end-point authentication? – we do know that Alice created message. – … but did she send it? Network Security

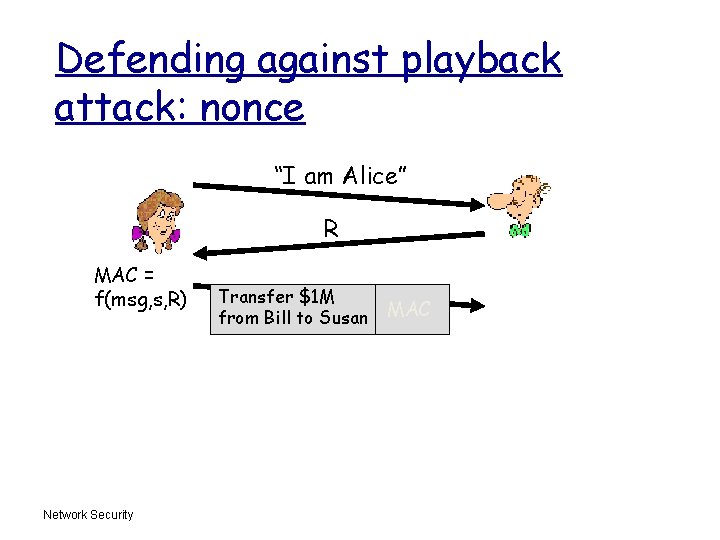

Defending against playback attack: nonce “I am Alice” R MAC = f(msg, s, R) Network Security Transfer $1 M from Bill to Susan MAC

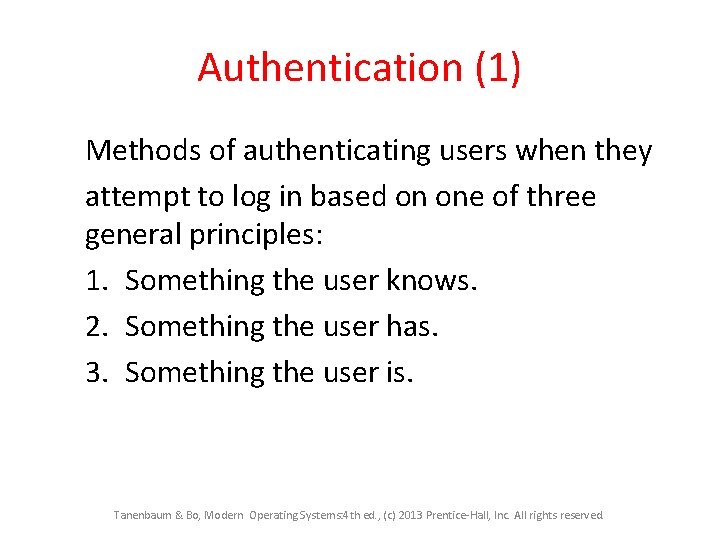

Authentication (1) Methods of authenticating users when they attempt to log in based on one of three general principles: 1. Something the user knows. 2. Something the user has. 3. Something the user is. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

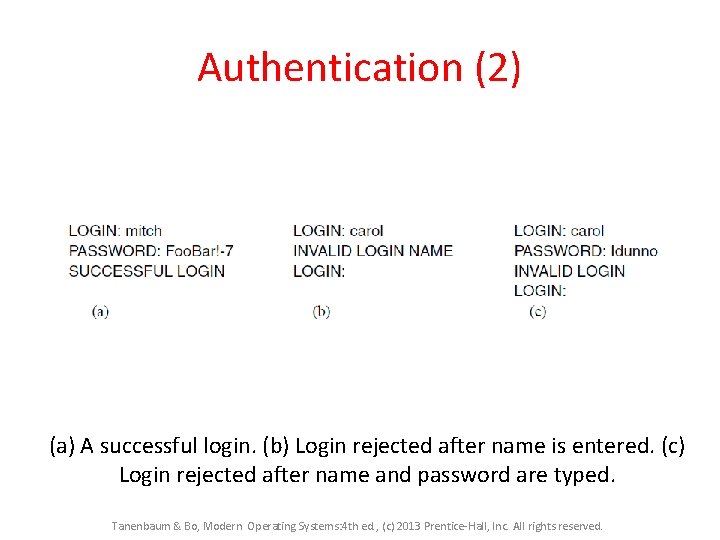

Authentication (2) (a) A successful login. (b) Login rejected after name is entered. (c) Login rejected after name and password are typed. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.
UNIX Password Security The use of salt to defeat precomputation of encrypted passwords. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

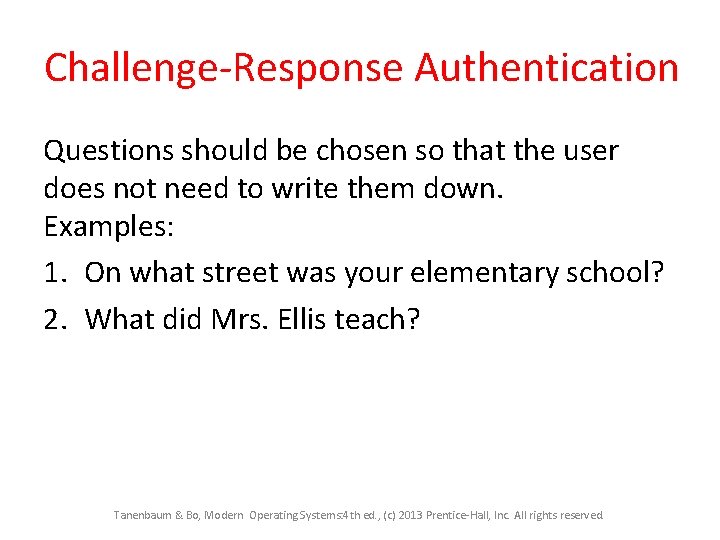

Challenge-Response Authentication Questions should be chosen so that the user does not need to write them down. Examples: 1. On what street was your elementary school? 2. What did Mrs. Ellis teach? Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

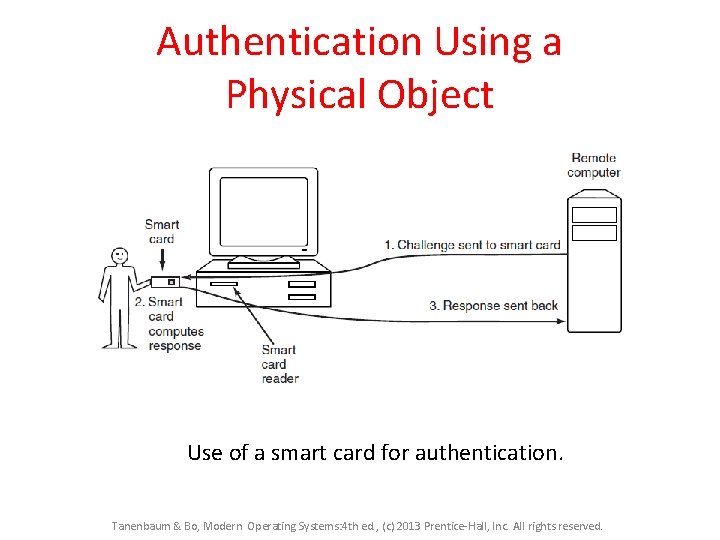

Authentication Using a Physical Object Use of a smart card for authentication. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.
Authentication Using Biometrics A device for measuring finger length. Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.

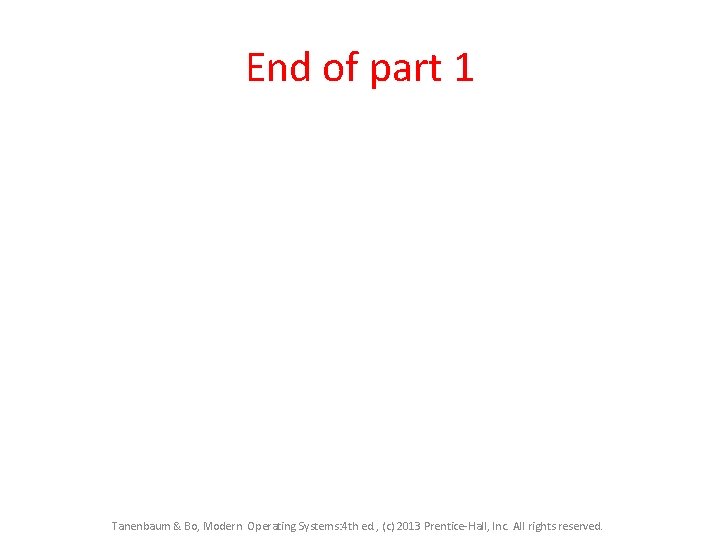

End of part 1 Tanenbaum & Bo, Modern Operating Systems: 4 th ed. , (c) 2013 Prentice-Hall, Inc. All rights reserved.
